Extensive Venous and Arterial Thrombosis Associated With an Inhibitor to Activated Protein C

Blood samples were anticoagulated with 0.129 mol/L buffered sodium citrate, and platelet-free plasma was obtained by centrifugation, first at 3,000g and then at 10,000g. Plasma samples were stored at −35°C for assays that were not performed immediately. Blood samples were obtained from the patient in 1992, 1993, 1995, and 1998 while she was on enoxaparine treatment.

Prothrombin time (PT) was measured using a recombinant tissue thromboplastin, Innovin, and activated partial thromboplastin time (APTT) was measured using Actin FS, both purchased from Dade (Miami, FL). Thrombin time was measured by standard techniques using bovine thrombin (Dade, Miami, FL). Atroxin time was measured after addition of 0.1 mL atroxin (Sigma, St Louis, MO) to 0.2 mL plasma. Protein C activity was assayed after activation of plasma protein C by a specific snake venom and hydrolysis of a specific chromogenic substrate by the formed APC (Baxter Dade, Bonnstrasse, Switzerland). Antithrombin (AT) activity was measured by a chromogenic assay (Chromogenix, Molndal, Sweden) and free protein S antigen was measured by enzyme-linked immunosorbent assay (ELISA) (Gradipore Elisa PS kit, North Ryde, Australia). Circulating anticoagulant was assayed by three methods: Staclot-LA kit (Diagnostica Stago, Asnieres, France), Kaolin APTT ratio,17 and dilute Russell’s viper venom (RVV) ratio (Gradipore). Anticardiolipin antibody (Autozyme ACL kit, Cambridge Life Sciences, Cambridge, UK), antiphosphatidylserine antibody and antiphosphatidylethanolamine antibody were assayed as described previously.18 19

APCR was determined using the following four different assays: (1) an APTT-based assay in which APC is added at the last stage of the assay together with calcium ions (Coatest, Chromogenix, Molndal, Sweden); (2) an APTT-based assay in which protein C is activated by the addition of a snake venom (Protac, ProC Global; Behring Diagnostics, Marburg, Germany); (3) an RVV-based assay in which plasma is preincubated with APC (PC Impedence; Gradipore); (4) an RVV-based assay in which protein C is activated by snake venom (Factor V [Leiden] test; Gradipore). Some of the APCR tests were performed after dilution of patient’s or normal plasma with either factor V– or factor VIII–deficient plasmas. The results were expressed as a ratio of clotting time of the sample plasma in the presence of APC over the clotting time in the absence of APC. The normalized APCR ratio was the patient’s APCR ratio divided by control plasma APCR ratio. Normal plasma (Unicalibrator, Diagnostica Stago) served as reference plasma.

IgG fractions from plasma of healthy controls not bearing Q506-factor V, from plasma of an asymptomatic subject with homozygous Q506-factor V, and from plasma of the patient (obtained in 1995 and 1998) were purified by affinity chromatography on a protein A agarose column according to the manufacturer’s technical bulletin (Bio-Rad, Hercules, CA). The IgG fractions were dialyzed against 50 mmol/L Tris-HCl and 0.15 mmol/L NaCl, pH 7.5 (TBS) and concentrated by Centricon 30 ultrafiltration (Amicon, Beverly, MA) to approximately 14 mg/mL. IgG samples appeared homogenous on both mercaptoethanol-reduced and nonreduced 10% sodium dodecyl sulfate-polyacrylamide gel electrophoresis (SDS-PAGE).

Equal volumes of 5 nmol/L APC (Haematologic Technologies Inc, Essex Junction, VT) and control or patient’s IgG (14 mg/mL) in TBS containing 1 mg/mL of bovine serum albumin (TBS-BSA) were incubated for 30 minutes at 37°C. A total of 30 μL of the reaction mixture was then added to 80 μL of a chromogenic substrate (Protein C kit; Diagnostica Stago) and ΔΑ/min was measured at 405 nm.

For measurement of the effect of the patient’s IgG on the rate of inactivation of factor Va by APC, human factor Va (Haematologic Technologies Inc) and control or patient’s IgG, in TBS-BSA containing 5 mmol/L CaCl₂, were incubated with APC in the presence or absence of phospholipids (rabbit brain cephalin; Sigma) and protein S (Enzyme Research, South Bend, IN). At selected time intervals, aliquots of the mixture were diluted in TBS-BSA and assayed for residual factor Va activity in a one stage PT-based assay using factor V–deficient plasma (Diagnostica Stago). Standard curves for residual factor V activity were prepared from clotting times of dilutions of control plasma in factor V–deficient plasma in a one stage PT-based assay. A detailed description of the reaction mixtures is given in the legend to Fig 3.

The ability of the patient’s IgG to bind purified factor Va or APC was examined by passing these components through a protein A agarose column from which the IgG of the patient or a control had not been eluted. In these experiments, 1 μg of factor Va (20 to 25 U) in 250 μL TBS-BSA stabilized with 2.5 mmol/L CaCl₂ or 200 ng APC in 200 μL TBS-BSA, were applied to either control or patient’s protein A-IgG columns (total volume, 1 mL) and collected into 250-μL fractions at 4°C. The amount of factor Va or APC retained on the columns, expressed as percent, was calculated from measurements of factor Va and APC concentrations, respectively, in samples applied and those that passed through the columns.

The concentration of APC was measured by incubating test samples with 3 nmol/L factor Va, 40 nmol/L protein S, 5% vol/vol phospholipids, and 5 mmol/L CaCl₂ in TBS-BSA at 37°C for 1 minute and assaying the residual factor Va activity. APC activity was calculated from a standard curve using purified APC.

After the binding experiments were completed, the amounts of patient’s and control IgG on their respective protein A columns were calculated following elutions with 0.1 mol/L glycine, pH 2.8, and measurement of the optical density at 280 nm. The quantities of control and patient’s IgG were 8.2 mg and 11.6 mg, respectively.

Crossed immunoelectrophoreses of purified APC and plasma protein C was performed in 1% agarose (Seakem ME; FMC Bioproducts, Rockland, ME) in Tris-Tricine buffer (81 mmol/L Tris-HCl and 24 mmol/L tricine, pH 8.6).20 Rabbit antihuman protein C antiserum (Diagnostica Stago) was included in the agarose at a final concentration of 0.2% for electrophoresis in the second dimension. The antigen-antibody complexes (arcs) were visualized by autoradiography after immersing the agarose plates in TBS-BSA containing 100,000 cpm ¹²⁵I Protein A/mL (NEN Life Science Products, Boston, MA) followed by excessive washing with distilled water.

Purified IgG, factor V, factor Va, protein S, and APC were analyzed on 10% nonreduced SDS-PAGE gels according to the method of Laemmli.21 Proteins were transblotted onto Immobilon-P transfer membrane (Millipore, Bedford, MA) according to the method of Towbin et al.22 To examine whether the patient’s IgG could bind denatured nonreduced proteins, patient’s plasma that had been heat-inactivated at 56°C for 30 minutes was diluted 1 to 100 in TBS and applied to the membrane. IgG binding was detected using biotinylated goat antihuman IgG, ABC-peroxidase kit, and the substrate DAB (Vector, Burlingame, CA) according to the manufacturer’s instructions.

Genomic DNA was isolated from whole blood by a standard method.23 The Arg506Gln and Arg306Thr were analyzed by polymerase chain reaction (PCR) amplifications and enzyme digestions as previously described.8,24 The nucleotide C677T substitution in the methylenetetrahydrofolate reductase (MTHFR) gene and the G20210A substitution in the factor II gene were examined as previously described.25 26

Total RNA was obtained from peripheral blood mononuclear cells by TRI reagent kit (Molecular Research Center, Cincinnati, OH). mRNA was purified by QuickPrep Micro mRNA purification kit (Pharmacia, Uppsala, Sweden). First-strand cDNA was generated from mRNA using random hexamers (Boehringer Mannheim, Mannheim, Germany) and Avian Myeloblastosis virus reverse transcriptase (Promega, Madison, WI) and was sequenced by Sequenase II (US Biochemical, Cleveland, OH).

Sequence alterations from the published factor V cDNA27were confirmed by PCR amplification and restriction enzyme digestion. The sequence variations, A327G and G495A, are polymorphisms that were described elsewhere.28 The PCR-amplified product of exon 4 containing G495A was digested with the restriction enzyme AvaI to identify a new polymorphism G642T. An additional unpublished polymorphism in exon 13, C4300T, was identified by PCR amplification and DdeI digestion using forward 5′ATGCCCCTCTTTGCAGATCTCAG and reverse 5′AGTCACCTGGCTGAGGTCTGGG primers.

The patient was 32 years old when she first presented in 1981 with idiopathic deep vein thrombosis (DVT) of the right femoral vein. Her past history was unremarkable. She has never smoked or taken oral contraceptives. Hypertension, diabetes mellitus, and dyslipidemia were excluded. At age 39, the patient experienced another episode of DVT at the same site and as a result, long-term warfarin treatment was instituted. Four years later (September, 1992), extensive skin necrosis of the left thigh and foot occurred and the patient was referred to our center. Warfarin treatment was discontinued and daily subcutaneous injections of enoxaparine 40 mg were administered. Repeated skin grafting failed to arrest progressive necrosis, and consequently below-knee amputation was performed. Despite this procedure and treatment with enoxaparine, skin necrosis continued at the stump. Pulse therapy of 1G methylprednisolone per day for 5 days finally resulted in cessation of the necrotic process. Two months later, while on 40 mg enoxaparine daily, the patient developed left cavernous sinus thrombosis resulting in blindness of the left eye. Consequently, the dose of enoxaparine was increased to 40 mg every 12 hours. Nine months later, while on this regimen, the patient presented with right hemiparesis and motor aphasia. Computerized tomography of the brain showed infarctions in the left internal capsule, caudate, and right parietal lobes. After this additional thrombotic event, the daily dose of enoxaparine was further increased to 80 mg every 12 hours and aspirin 100 mg/d was added. Since September 1993, the patient has been doing well. The patient’s mother, maternal grandmother, and uncle died of ischemic stroke at ages 46, 40, and 67, respectively. They all had morbid obesity and hypertension.

PT, APTT, platelet count, fibrinogen level, thrombin time, and atroxin time were all within normal limits. Serum protein electrophoresis performed on several occasions was normal. Laboratory evaluation of the patient in 1992 disclosed normal values of antithrombin activity in a chromogenic assay, protein C amidolytic activity, and free protein S antigen (Table 1). Circulating anticoagulant and an increased titer of antiphospholipid antibodies were not found. The patient bore the normal factor V gene sequences G1691 and G1091, factor II G20210, and was heterozygous for MTHFR C677T.

A plasma sample taken in 1993 showed an APCR ratio of 1.4 by an APTT-based assay (Coatest Chromogenix) as compared with values of >2.0 of normal individuals. The APCR ratio of patient’s plasma diluted with 9 parts factor VIII–deficient plasma was 3.3 versus an APCR ratio of 3.6 in normal plasma similarly diluted. This made a mutation in factor VIII gene an unlikely cause of the APCR phenotype. In contrast, the APCR ratio of the patient’s plasma was 1.8 (control value, 2.2) when diluted with 9 parts factor V–deficient plasma, suggesting a defect in the factor V gene responsible for the APCR phenotype. In retrospect, however, this was a misinterpretation, as the normalized APCR was 0.82 (1.8:2.2), which was in the low normal range (see below).

In view of the central role of factor V defects giving rise to APCR, we sequenced the factor V cDNA. The analysis disclosed no remarkable mutations, and we did not find a previously identified APCR-related factor V HR2 haplotype.9 The only findings were four polymorphisms, all in the heterozygous state. These alterations, confirmed by restriction analysis of genomic DNA, were: A327G and G495A, (previously described28), and two new polymorphisms G642T in exon 4 (fully linked with G495A) and C4300T in exon 13. The frequency of the C4300 allele was 0.89 in 26 subjects examined. These analyses were inconsistent with a significant defect in the factor V gene.

In 1998, we renewed our attempts to understand the nature of the thrombotic tendency exhibited by the patient. The patient’s plasma obtained on different occasions over the 5 years of follow-up was tested using four available commercial assays for APCR. APCR normalized ratios of the patient’s undiluted plasma were significantly decreased throughout the 5 years. In each assay the results were similar to those obtained with plasma from a homozygote for factor V Q506 (Table 2). However, 1:10 dilution of patient’s plasma with factor V–deficient plasma in samples obtained in 1993 and 1995 and 1:5 dilution of sample obtained in 1998 yielded normal normalized APCR ratios (Table 2). The assays performed on diluted plasma obtained in 1998 showed a higher APCR normalized ratio compared with the values for the plasma sample of 1995, ie, 0.80 versus 0.56 by an APTT-based test (Coatest, Chromogenix) and 0.75 versus 0.50 by an RVV-based test (PC Impedence, Gradipore) (Table 2). These results suggested that the patient had an inhibitory activity against the protein C pathway, which declined between 1995 and 1998.

The APCR performed by an APTT-based assay (ProC-Global, Behring) showed that addition of the patient’s IgG (final concentration 4.7 mg/mL) to normal plasma yielded a ratio of 1.6, whereas comparable amounts of control IgG or IgG obtained from an individual homozygous for factor V Q506 yielded APCR ratios of 2.4 and 2.6, respectively (Table 3). These results were similar to those obtained when the patient’s plasma was mixed with normal plasma, suggesting that the patient’s IgG was responsible for the inhibitory effect in the APCR assay.

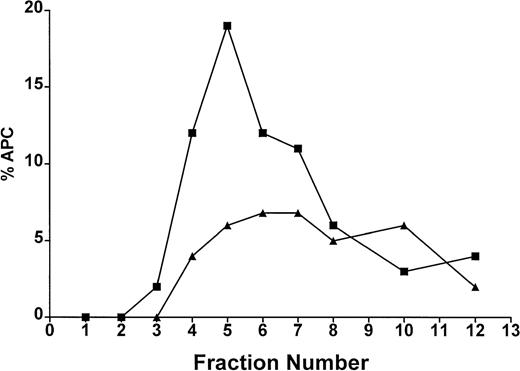

To elucidate against which protein in the protein C system the inhibitor was directed, we examined the ability of the patient’s IgG, immobilized on a protein A agarose column, to bind factor Va or APC. The amounts of factor Va applied and recovered from the column were 24 and 27 U, respectively, for the patient’s IgG, and 20 and 23 U for the normal IgG, respectively. Thus, purified factor Va did not bind to the patient’s or control IgG. In contrast, as shown by the elution profiles of APC (Fig 1), there was significant binding of APC to the patient’s immobilized IgG in comparison to the control IgG. Amidolytic activity of APC in the pooled eluate indicated that 60% of the applied APC bound to the patient’s IgG, whereas no binding was observed by control IgG (96% recovery). These data strongly suggested that the inhibitor was an IgG antibody directed against APC.

Direct evidence for the binding of the patient’s IgG to APC was obtained by crossed immunoelectrophoresis (Fig 2). Addition of patient’s IgG to purified APC yielded a shoulder in the precipitin line representing immune complexes between the two (Fig 2A). No such shoulder was observed with control IgG. When normal plasma was used as a source of native protein C, the patient’s IgG had no effect on the electrophoretic pattern (Fig 2B). Therefore, the patient’s IgG had an affinity only for the activated form of protein C. Notably, the patient’s antibodies against APC did not react with denatured APC transferred onto a membrane as examined by Western immunoblotting analysis (data not shown).

In experiments on the effect of patient’s and control IgG on APC activity as measured by hydrolysis of a chromogenic substrate, the patient’s IgG did not exert an inhibitory activity. Thus, the relative amidolytic activity expressed as ΔΑ/min of 2.5 nmol/L APC was 36 with patient’s IgG and 38 with control IgG. These results explain the finding of normal patient’s protein C amidolytic activity obtained using a chromogenic assay. This finding also indicates that the patient’s IgG apparently did not interfere with activation of protein C to APC.

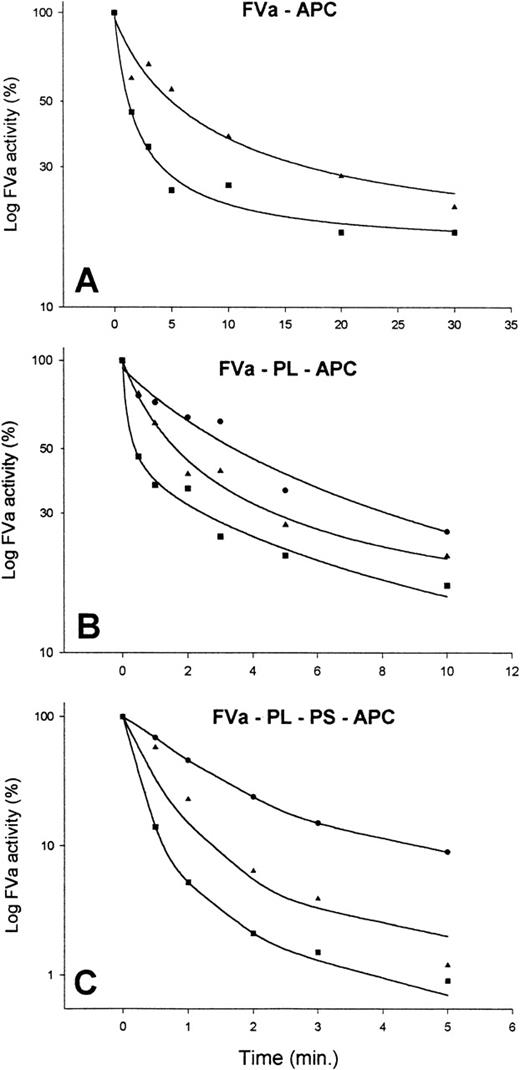

To clarify the mechanism by which the patient’s IgG inhibited APC activity, studies with purified factor Va and APC in the presence of control or patient’s IgG were undertaken (Fig 3). Factor Va inactivation by APC in the presence of phospholipids was decreased when patient’s IgG was added in comparison to normal IgG (Fig 3B). Similar results were obtained in the absence of phospholipids, although increased concentrations of APC were required to obtain the same extent of inactivation (Fig 3A). Addition of protein S, as well as phospholipids, significantly enhanced the ability of APC to inactivate factor Va in the presence of normal IgG, yielding 95% inactivation after 1 minute (Fig 3C). In contrast, in the presence of patient’s IgG at a concentration of 3.7 mg/mL, only a 20% inactivation of factor Va was observed, and using patient’s IgG at a concentration of 0.2 mg/mL resulted only in 50% inactivation (Fig 3C). In the presence of 3 mg/mL patient’s IgG, the extent of inhibition of APC-induced factor Va inactivation was similar whether or not APC was preincubated with the IgG (data not shown). These data were consistent with fast-acting antibodies. All experiments were performed with patient’s IgG obtained from plasma samples drawn in 1995. Patient’s IgG obtained in 1998 displayed a 20% to 50% less pronounced inhibitory activity indicating a decrease in the antibody titer (data not shown).

The patient described had a remarkable history of venous, arterial, and capillary thromboses spanning over 9 years until abated by use of high doses of low-molecular-weight heparin and aspirin. During none of the thrombotic episodes were provoking circumstances apparent and several events occurred despite heparin treatment. The only abnormality identified in the patient was a profound decrease in the APCR ratio, which was neither due to the common Arg506Gln prothrombotic polymorphism in factor V nor to a rare Arg306Thr change recently reported.8 Because dilution of the patient’s plasma in factor VIII–deficient plasma yielded a normal APCR ratio and dilution in factor V–deficient plasma only partially corrected the APCR ratio, we initially hypothesized that an unknown defect in factor V was responsible for the patient’s resistance to APC. However, an extensive analysis of the patient’s factor V cDNA failed to disclose significant alterations.

The data presented showed that the patient’s resistance to APC stemmed from an IgG inhibitor reacting with APC, but not with protein C. The evidence included: (1) substantial decrease of APCR ratio of normal plasma by the patient’s IgG (Table 3); (2) significant binding of purified normal APC to patient’s IgG immobilized on a protein A column (Fig 1); (3) abnormal migration in crossed immunoelectrophoresis of purified normal APC incubated with patient’s IgG, but normal migration of normal plasma protein C that was incubated with patient’s IgG (Fig2); and (4) inhibition of factor Va inactivation by APC in the presence of patient’s IgG (Fig 3). Additional evidence showed that the inhibitor failed to interfere with the hydrolytic activity of APC on a specific chromogenic substrate, which explained why the patient had normal plasma protein C in amidolytic activity assays. Taken together, it is conceivable that the patient’s IgG does not affect the active site of APC (the amidolytic activity is preserved), but does interfere with an APC exosite required for binding and degradation of factor Va.

Small amounts of APC circulate in blood of normal individuals,29 and primates infused with small amounts of thrombin exhibit increased levels of APC.30 The circulating APC has been suggested to operate as a physiological anticoagulant.29 Conceivably, the extensive thrombotic events experienced by our patient were related to partial or complete abolishment of the natural anticoagulant effects of circulating APC by the acquired inhibitor. A previously reported patient had an inhibitor directed against the functional activity of APC, which was associated with extensive thromboses.16 There are several differences between our patient and the one reported earlier.16 First, the reported patient had two IgG lambda paraproteins, whereas our patient had no gammopathy. Second, in the reported case, the antigen reacting with the antibodies was not defined, whereas direct interference of the IgG with APC was shown in the plasma from our patient. Third, in the reported patient, the anti-APC activity was only demonstrated in the presence of phospholipids, whereas, the anti-APC activity of our patient’s IgG was also demonstrable in the absence of phospholipids. A third patient with recurrent thrombotic events had an IgG lambda gammopathy, which was shown to bind protein C and inhibit its activity.31 Taken together, these patients illustrate that inhibitors of the protein C pathway can be associated with severe venous, capillary, and arterial thromboses.

The conspicuous laboratory finding in our patient was a profound decrease in the APCR ratio. Similar, although less pronounced, decreases in APCR ratio were observed in subjects using oral contraceptives,11 during normal pregnancy,10,32and in patients with antiphospholipid antibodies12,13 or ischemic stroke.14,15 Whereas increased factor VIII levels were suggested to be in part responsible for the diminished APCR ratios during normal pregnancy,32 no cause for the low APCR ratio in patients with ischemic stroke has been delineated. Similarly, many patients with venous thrombosis were recently shown to have a subnormal APCR ratio with a normal factor V genotype.33 It is speculated that autoantibodies causing mild acquired APCR are associated with at least some of these cases and may be far more common than heretofore appreciated.

Our observations imply that a search for anti-APC antibodies in such patients is warranted. However, such a search should not rely on currently used methods of APCR ratio determinations that include 1:5 or 1:10 dilution of patient’s plasma in factor V–deficient plasmas. Such a procedure may dilute out the effects of an antibody against APC. Screening for an APC inhibitor might consist of APCR ratio determination of 1:1 mixture of patient’s plasma and normal plasma. Alternatively, various protocols that involve mixing of patient’s IgG with APC before assaying APC activity would allow detection of anti-APC antibodies.
