A robust approach for the generation of functional hematopoietic progenitor cell lines to model leukemic transformation

Adult hematopoietic stem cells (HSCs) represent 0.005% to 0.01% of all nucleated cells in the bone marrow (BM). They are unique in their ability to continuously self-renew, differentiate into distinct lineages of mature blood cells,^1,2  and regenerate a functional hematopoietic system following transplantation into immunocompromised mice.^3-6  Most hematopoietic malignancies originate in stem/progenitor cells upon acquirement of genetic/epigenetic defects. These so-called leukemic stem cells (LSCs) maintain key characteristics of regular HSCs, including the ability of self-renewing and multipotency.^7-9

Although hematopoietic cell differentiation is a dynamic and continuous process, cell-surface marker expression defining distinct subsets and developmental stages is an inevitable tool in HSC characterization.²  A common strategy is to further define murine lineage–negative, c-Kit and Sca-1–positive (LSK) cells by their CD48, CD135, CD150, and CD34 expression. This marker combination stratifies the most dormant HSCs into the increasingly cycling multipotent progenitors (MPP) 1 and 2 and the myeloid or lymphoid-prone MPP3 and 4.^10-12  Leukemia, analogous to normal hematopoiesis, is hierarchically organized; LSCs residing in the BM initiate and maintain the disease and give rise to their more differentiated malignant progeny. Therapeutically, LSCs are often resistant to many current cancer treatments and thus cause disease relapse.^9,13-17  Understanding potential Achilles’ heels in LSCs to develop new curative therapeutic approaches is of fundamental interest and represents a major frontier of cancer biology.

Modeling hematopoietic disease development and defining therapeutic intervention sites require the availability of multipotential hematopoietic cell lines. HSCs can be maintained and expanded to a limited extent in vitro: the vast majority of their progeny differentiates in culture. Numerous attempts have been made to increase the number of long-term HSCs in culture, including the use of high levels of cytokines and growth factors or ill-defined factors secreted by feeder cells.^18-32

Alternatively, immortalization using genetic manipulation was employed to establish stem cell–like cell lines. One major limitation of these cell lines is the failure to reconstitute a fully functional hematopoietic system upon transplantation.^33,34  One of the most successful immortalized murine multipotent hematopoietic cell lines is the erythroid, myeloid, and lymphocytic line derived by retroviral expression of a truncated, dominant-negative form of the human retinoic acid receptor. However, erythroid, myeloid, and lymphocytic cells are phenotypically and functionally heterogeneous and display a block in the differentiation of myeloid cells.^35-42

An alternative route for immortalization of murine multipotent hematopoietic cells was employing Lhx2,^43-47  a LIM-homeobox domain transcription factor binding a variety of transcriptional cofactors. Lhx2 is expressed in embryonic hematopoietic locations, such as the aorta-gonad-mesonephros region, yolk sac, and fetal liver, but is absent in BM, spleen, and thymus of adult mice.^48-50 Lhx2 upregulates key transcriptional regulators for HSCs, including Hox and Gata, while downregulating differentiation-associated genes.⁴³ Lhx2 is aberrantly expressed in human chronic myelogenous leukemia, suggesting a role for Lhx2 in the growth of immature hematopoietic cells.⁵¹  Enforced expression of Lhx2 in BM-derived murine HSCs and embryonic stem cells (ES)/induced pluripotent cells resulted in ex vivo expansion of engraftable HSC-like cells^45,47,52  strictly dependent on stem cell factor (SCF) and yet undefined autocrine loops providing additional secreted molecule(s).⁴⁴  These cells generate functional progeny and in the long term repopulate stem cell–deficient hosts.^45,47,52

The cyclin-dependent kinase 6 (CDK6) has been recently described as a critical regulator of HSC quiescence and is essential in BCR/ABL^p210 LSCs.^53,54  Besides its main characteristic, CDK6 and its close homolog CDK4 control cell-cycle progression, CDK6 functions as a transcriptional regulator.^55-57  CDK6 is recognized as being a key oncogenic driver in hematopoietic malignancies and therefore represents a promising target for cancer therapy and intervention.^53,58,59  More recent evidence highlights the importance of CDK6 during stress, including oncogenic transformation when CDK6 counteracts p53 effects.⁶⁰  Furthermore, CDK6 plays a crucial role in several myeloid diseases, including Jak2^V617F+ myeloproliferative neoplasm, chronic myeloid leukemia, and acute myeloid leukemia, by regulating stem cell quiescence, apoptosis, differentiation, and cytokine secretion.^53,61,62

Using the long-term culture system, it was possible to generate HPC^LSKs from the transgenic mouse line Cdk6^−/−, which represents a powerful tool to analyze specific functions of CDK6 in progenitor cells and allows mechanistic and therapeutic studies tailored specifically to leukemic stem/progenitor cells.

BM of 2 to 5 C57BL/6N (Ly5.2⁺) mice was isolated, pooled, and sorted for LSK cells. Sorted LSK cells were cultured in 48-well plates for 48 hours in a 1:1 ratio of Stem Pro-34 SFM (Gibco/Thermo Scientific, Waltham, MA) and Iscove modified Dulbecco medium (IMDM; Sigma-Aldrich, St. Louis, MO) supplemented with 0.75 × 10⁻⁴ M 1-thiolglycerol (Sigma), 1% penicillin/streptomycin (Sigma), 2 mM l-glutamine (Sigma), 25 U heparin (Sigma), 10 ng fibroblast growth factor (mFGF) acidic (R&D Systems, Minneapolis, MN), 10 ng murine insulin-like growth factor II (mIGF-II) (R&D), 20 ng murine thrombopoetin (mTPO) (R&D), 10 ng murine interleukin-3 (mIL-3) (R&D), 20 ng human interleukin-6 (hIL-6) (R&D), and SCF (generated in-house) used at 2% final concentration. LSK cells were transduced with a Lhx2 pMSCV-puromycin (Clontech/Takara, Mountain View, CA) vector⁴⁶  in 1% peqGOLD Universal Agarose (Peqlab/VWR, Darmstadt, Germany) coated 48-well plates and transfected 4 times on days 3 to 6 with the Lhx2-containing viral supernatant. At day 7, cells were transferred to 1% agarose-coated 24-well plates in IMDM with 5% fetal calf serum, 1.5 × 10⁻⁴ M 1-thiolglycerol, penicillin/streptomycin, 2 mM l-glutamine, referred hereafter as IMDM culture medium. In addition, the IMDM culture medium was supplemented with 12.5 ng/mL interleukin-6 (IL-6; R&D) and 2% SCF. At day 10, 1.5 µg/mL puromycin (InvivoGen, San Diego, CA) was added to the medium to select for the Lhx2 expressing LSK cells. The same reagents were subsequently used for all the experiments.

HPC^LSK cell lines were kept on 1% agarose-coated culture plates. Solidified plates were stored in a 5% CO₂ humidified incubator with 1 mL IMDM culture media per well. HPC^LSK cells were plated in IMDM culture media supplemented with 12.5 ng/mL IL-6 and 2% SCF on the agarose plates. Cells were continuously kept at a density between 0.8 and 2 × 10⁶ cells per mL.

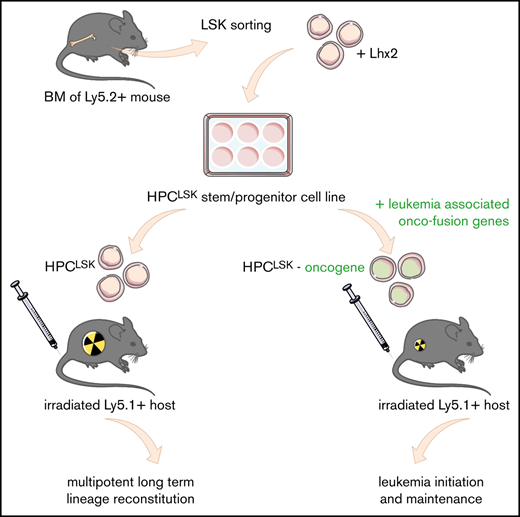

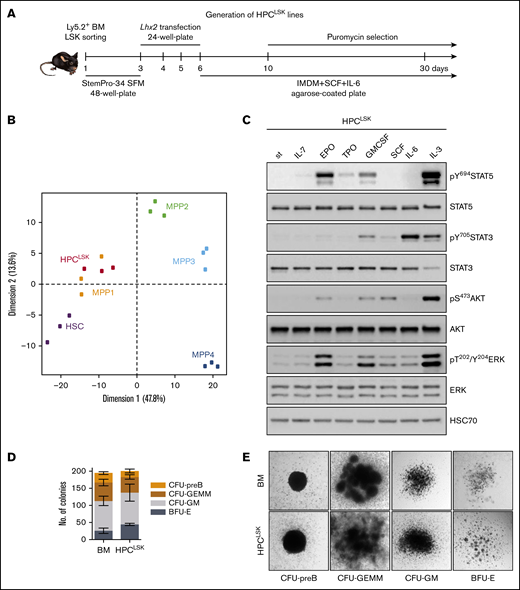

To meet the increasing need of studying hematopoietic stem/progenitor cells, we sought to establish a robust method to generate murine stem-cell lines by modifying a strategy that was originally described by the Carlsson laboratory.^45,46  Sorted murine Ly5.2⁺ LSK cells were maintained in cytokine- and growth factor–supplemented serum-free medium for 2 days. Thereafter, the cells were infected with a retroviral construct encoding Lhx2 coupled to a puromycin selection marker and switched to SCF, IL-6, and 5% serum-containing IMDM culture medium on agarose-coated plates to prevent attachment-induced differentiation. Puromycin selection was initiated 10 days after sorting. Within 4 weeks continuously proliferating, HPC^LSK cell lines establish and can be stored long term by cryopreservation (Figure 1A). LSK cells can be classified into dormant HSCs and 4 subsequent MPP populations based on their surface markers.^10-12  HPC^LSK cell lines express c-Kit and Sca-1 but lack expression of the myeloid and lymphoid lineage markers Gr-1 (neutrophil), CD11b (monocyte/macrophage), CD3 (T cell), CD19 (B cell), and Ter119 (erythroid). According to the CD34, CD48, and CD150 expression, HPC^LSKs categorize as MPP2, a population able to give rise to myeloid and lymphoid cells.^10-12  Despite the MPP2 surface expression markers, transcriptome analysis of HPC^LSKs revealed a predominant overlap with the MPP1 signature pointing to an even more immature state. Upon long-term culture, a uniform cellular morphology is maintained within the cell lines (Figure 1B; supplemental Figure 1A-D). Comparison with other progenitor cell lines, including the BM-derived BM-HPC5, BM-HPC9, and the ES-derived HPC-7 cell line,^45,46  showed that HPC^LSKs have the most immature profile. The other cell lines are either positive for lineage markers or lack Sca-1 expression. The ES-derived HPC-7 cell line stains positive for c-Kit, Sca-1, CD48, and CD150 and lacks lineage markers. It is also limited in its differentiation capacity^63,64  (supplemental Figure 1E).

To explore signaling patterns, HPC^LSK cells were treated with cytokines for 15 minutes. Erythropoietin (EPO), granulocyte-macrophage colony-stimulating factor (GM-CSF), or IL-3 resulted in phosphorylation and activation of STAT5, STAT3, AKT, and ERK signaling, whereas IL-6 induced predominantly STAT3 phosphorylation. STAT3, AKT, and ERK were also activated upon SCF treatment albeit to a lesser extent in line with signaling in stem/progenitor cells (Figure 1C). In line, HPC^LSK cells formed erythroid (BFU-E), myeloid (CFU-GM, CFU-GEMM), and pre-B (CFU-pre-B) cell colonies in methylcellulose-enriched cytokines (EPO, GM-CSF, IL-7, SCF, IL-6, IL-3) comparable to primary BM-derived cells (Figure 1D-E). We confirmed expression of erythroid (Ter119/CD71), myeloid (CD11b/Gr-1), or B-cell (B220/CD93) markers on these colonies (supplemental Figure 1G). In comparison, the ability to form colonies and to in vitro differentiate HPC-7 and BM-HPC5 cells was reduced in accordance with an impaired cytokine–induced activation of STAT5, STAT3, AKT, and ERK (supplemental Figure 1F,H-J).

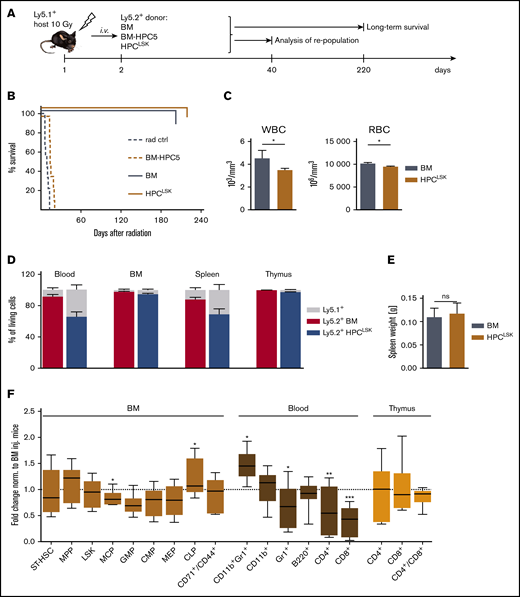

As HPC^LSKs differentiate into myeloid and lymphoid lineages in vitro, we explored the potential of the cells to protect mice from radiation-induced death in vivo. Lethally irradiated Ly5.1⁺ mice received 1 × 10⁷ Ly5.2⁺ BM-HPC5 or HPC^LSK cells per tail vein injection. Ly5.2⁺ BM cells were used as controls. Noninjected irradiated mice died within 10 days, briefly thereafter followed by BM-HPC5 recipients. Injection of HPC^LSKs and primary BM cells rescued the mice because of the efficient repopulation of the hematopoietic system (Figure 2A-B). After 40 days, white blood cell (WBC) and red blood cell counts were comparable between HPC^LSKs and BM-injected controls (Figure 2C). Blood counts remained stable over a 6-month period after which the experiment was terminated (supplemental Figure 2A). HPC^LSKs had efficiently homed to the BM, blood, spleen, and thymus, comparable to the BM control, and no alterations of the spleen weight was detectable (Figure 2D-E). Fluorescence-activated cell sorting analysis confirmed the efficient repopulation of the hematopoietic system. Numbers of myeloid and lymphoid progenitors in the BM and differentiated blood cells (Gr-1⁺ granulocytes, CD11b⁺ monocytes, Gr-1/CD11b⁺ eosinophils/neutrophils, and B220⁺ B cells) were comparable to BM-injected mice. Only HPC^LSK-derived CD4⁺ or CD8⁺ T cells were significantly lower in the blood but were present in the thymus in similar numbers as in the BM-injected control (Figure 2F).

To determine cell numbers required for hematopoietic repopulation in mice, we gradually lowered the cell number used for injection. An amount of 2.5 × 10⁶ of HPC^LSKs sufficed to allow for an 80% survival of the animals for a period of at least 8 months, after which the experiment was terminated. Injection of 1 × 10⁶ HPC^LSKs did not induce long-term survival but significantly prolonged the lifespan of lethally irradiated animals (median survival: 51 days compared with 8.5 days) (supplemental Figure 2B-C).

To analyze the influence of a high passage number and cryopreservation on the self-renewal capacity of HPC^LSKs, we performed serial replating experiments. Untransformed HPC^LSK cell lines after cryopreservation and with a passage number of 70 to 100 have been seeded in semisolid methylcellulose media with cytokines and replated for 3 rounds (supplemental Figure 2D). Even after the third round, the number of colonies is not reduced, and their immature status analyzed by LSK staining stays comparable to the BM control (supplemental Figure 2D-F).

These experiments led us to conclude that HPC^LSKs possess the ability for long-term replenishment of the hematopoietic system.

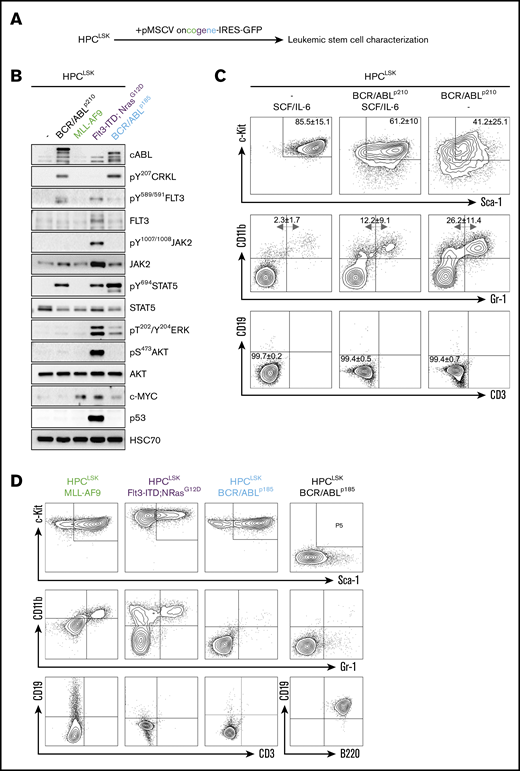

LSCs differ from the bulk of leukemic cells and possess the ability for self-renewal. To establish LSC models, we infected HPC^LSKs with a retrovirus encoding for oncogenes either inducing myeloid (BCR/ABL^p210, MLL-AF9, Flt3-ITD;NRas^G12D) or lymphoid (BCR/ABL^p185) leukemia (Figure 3A). Analysis of signaling pathways in the GFP⁺ leukemic lines showed that the cells faithfully reflected the signaling patterns downstream of the respective oncogene. As described, BCR/ABL predominantly induced phosphorylation of CRKL and STAT5.^65,66  Flt3-ITD;NRas^G12D was associated with a pronounced JAK2, STAT5, AKT, and ERK signaling activation⁶⁷  and MLL-AF9 upregulated c-MYC⁶⁸  (Figure 3B).

In the presence of SCF and IL-6, HPC^LSK BCR/ABL^p210 retained the expression of stem cell markers (Figure 3C). All transformed HPC^LSK cell lines, except MLL/AF9, are able to grow without SCF. A small fraction of transformed HPC^LSK cells differentiated and upregulated the respective lineage markers (Figure 3D). Except for MLL-AF9, all oncogenes tested formed growth factor–independent colonies in methylcellulose gel (supplemental Figure 3A).

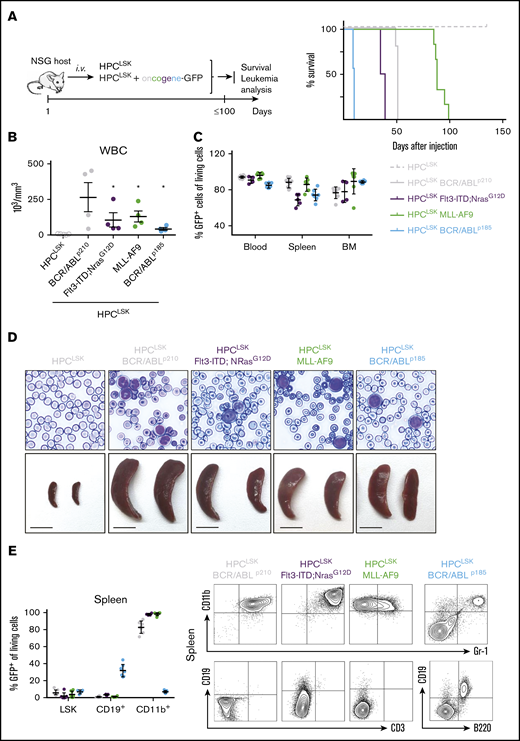

To determine their leukemic potential in vivo, transformed HPC^LSKs were injected IV into NSG and HPC^LSKs BCR/ABL^p185+ also in sublethally irradiated (4.5 Gy) C57BL/6N recipient mice (Figure 4A left; supplemental Figure 4A,F). HPC^LSKs BCR/ABL^p185 inflicted disease within 12 days in NSG and 15 days in sublethally irradiated mice, followed by NSG mice with HPC^LSKs BCR/ABL^p210 and HPC^LSKs Flt3-ITD;NRas^G12D, which succumbed to disease within 50 days. The longest disease latency was observed upon injection of HPC^LSKs MLL-AF9, which induced disease after 3 months (Figure 4A right). All diseased animals displayed elevated WBC counts and blastlike cells in the blood and suffered from splenomegaly (Figure 4B,D; supplemental Figure 4B,G-H). GFP⁺-transformed HPC^LSK cells were detected in the blood, spleen, and BM of the diseased mice (Figure 4C; supplemental Figure 4I). HPC^LSKs BCR/ABL^p210, HPC^LSKs MLL-AF9, and HPC^LSKs FLT3/NRas^G12D-injected NSGs suffered from myeloid leukemia with an average of 92% CD11b⁺ cells, whereas HPC^LSKs BCR/ABL^p185-injected C57BL/6N developed predominantly GFP⁺ B cells with a percentage mean of 51% of CD19⁺ cells (Figure 4E; supplemental Figure 4C-E,J). These experiments determine HPC^LSK cells as a valid model system studying leukemogenesis in vivo downstream of several oncogenic drivers.

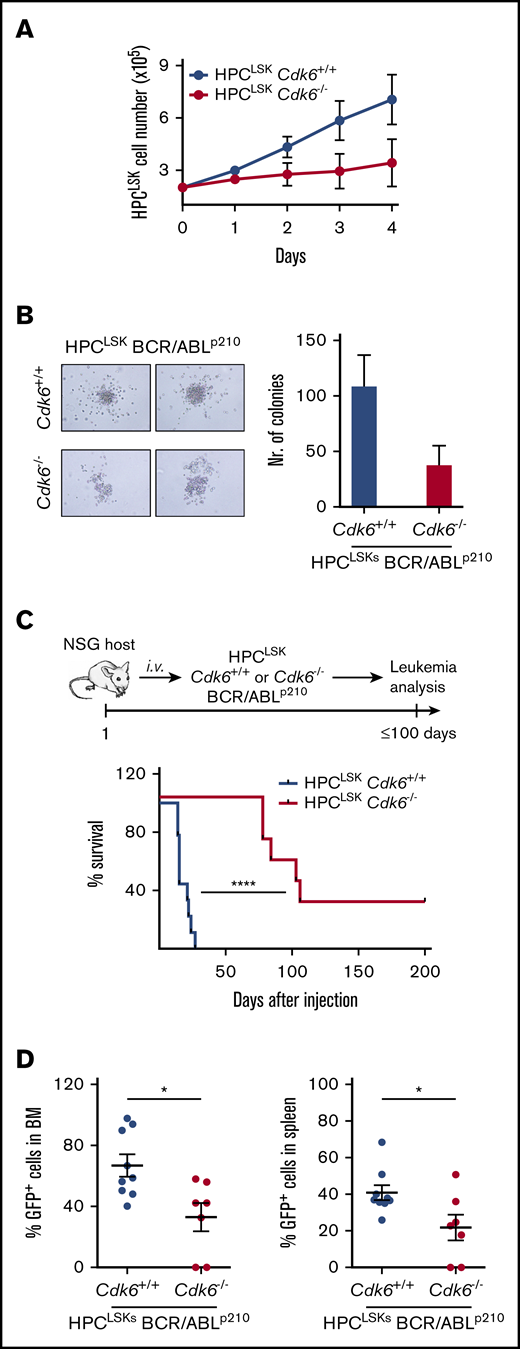

CDK6 plays a key role as a transcriptional regulator for HSC activation, and its function extends to LSCs.⁵³  To gain insights into distinct functions of CDK6 in HSCs/LSCs, we generated HPC^LSK cell lines from Cdk6^−/− transgenic mice.⁶⁹  CDK4 does not compensate for the loss of CDK6 in those lines (supplemental Figure 5A). HPC^LSKsCdk6^−/− grow under normal HPC^LSK culture conditions albeit with a reduced cell proliferation and slightly increased apoptosis when compared with wild-type HPC^LSKs (Figure 5A; supplemental Figure 5B). An amount of 5 × 10⁶ HPC^LSKsCdk6^+/+ or Cdk6^−/− were capable equally well to rescue lethally irradiated mice for up to 40 days (supplemental Figure 5C). In a murine CML model, BCR/ABL^p210Cdk6^−/− BM cells induced disease significantly slower and with a drastically reduced disease phenotype.⁵³  To investigate whether this phenotype can be recapitulated with HPC^LSKs, we generated HPC^LSKs BCR/ABL^p210Cdk6^+/+ and Cdk6^−/− by retroviral infection. Irrespective of the presence of CDK6, HPC^LSK BCR/ABL^p210 cells grow in the absence of any cytokine and retain the expression of LSK markers (supplemental Figure 5D). In line with murine CML models, HPC^LSKs BCR/ABL^p210Cdk6^−/− form fewer growth factor–independent colonies when compared with Cdk6^+/+ controls 7 days after plating, yet the difference did not reach significance (Figure 5B).⁵³  HPC^LSK BCR/ABL^p210-derived colonies displayed Gr-1 and CD11b marker expression. However, HPC^LSKs BCR-ABL^p210Cdk6^−/− show a trend to higher Gr-1 and lower CD11b expression compared with wild type (supplemental Figure 5E). To study the leukemic potential of HPC^LSKs BCR/ABL^p210Cdk6^−/− in vivo, we injected 1 × 10⁶ cells IV into NSG mice. HPC^LSKs BCR/ABL^p210Cdk6^+/+ inflict disease within 14 days with severe signs of leukemia, including splenomegaly (Figure 5C; supplemental Figure 5F). In contrast, HPC^LSKs BCR/ABL^p210Cdk6^−/− failed to induce disease within this period, and only two-thirds of the mice started to show signs of disease ∼80 days after injection, whereas one-third of the animals did not develop any sign of leukemia within 7 months. Analysis of diseased mice shows a reduced infiltration of HPC^LSKs BCR/ABL^p210Cdk6^−/− into the BM and spleen, and the percentage of BCR/ABL^p210 GFP⁺ cells in the blood is comparable to Cdk6^+/+ control cells (Figure 5D; supplemental Figure 5G). These results underline the crucial role of CDK6 in BCR/ABL^p210 LSCs and verify the potential of our novel cellular HPC^LSK system to charter leukemic phenotypes.

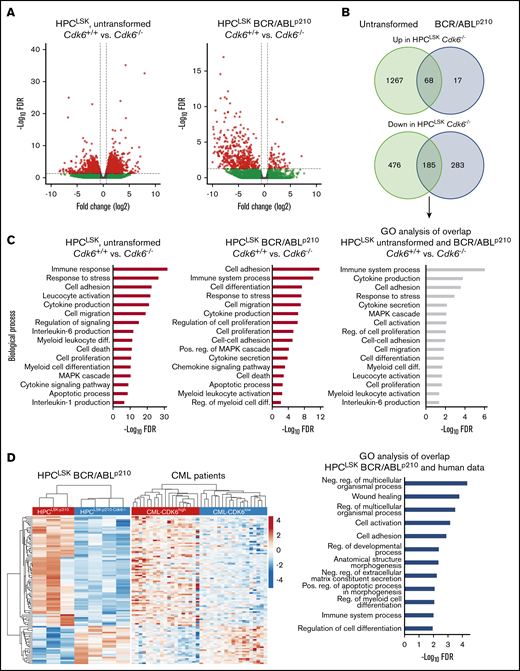

To study CDK6-dependent gene regulation in untransformed and BCR/ABL^p210 transformed HPC^LSKs, we performed RNA-Seq analysis. Untransformed HPC^LSKs lacking CDK6 show an altered gene regulation with 1335 genes upregulated and 661 genes downregulated when compared with HPC^LSKsCdk6^+/+ (Figure 6A). These differences decreased upon transformation; cytokine-independent HPC^LSKs BCR/ABL^p210 showed 85 upregulated and 468 genes downregulated in the absence of CDK6 compared with controls. Overall, 80% and 40% of genes found to be upregulated or downregulated in HPC^LSK BCR/ABL^p210Cdk6^−/− cells were also deregulated in Cdk6^−/− untransformed HPC^LSK cells, defining a transformation-independent gene signature downstream of CDK6 (Figure 6B). Gene ontology (GO) enrichment analyses of CDK6-dependent genes revealed an association with immune response, cell adhesion, cell death, and myeloid cell differentiation irrespective of the transformation status (Figure 6C). The differential gene expression in our murine HPC^LSK BCR/ABL^p210 cells was compared with CDK6-associated gene expression changes in human CML samples. To do so, we stratified a dataset from 76 human CML patients into CDK6^high and CDK6^low samples based on quartile expression of CDK6 and subsequently calculated the differential gene expression. We identified 101 genes that are regulated in a CDK6-dependent manner in murine and human BCR/ABL^p210 cells (Figure 6D). In human and mouse, CDK6-dependent deregulated genes belong to pathways pointing at apoptosis/stress response, cell differentiation, and homing.

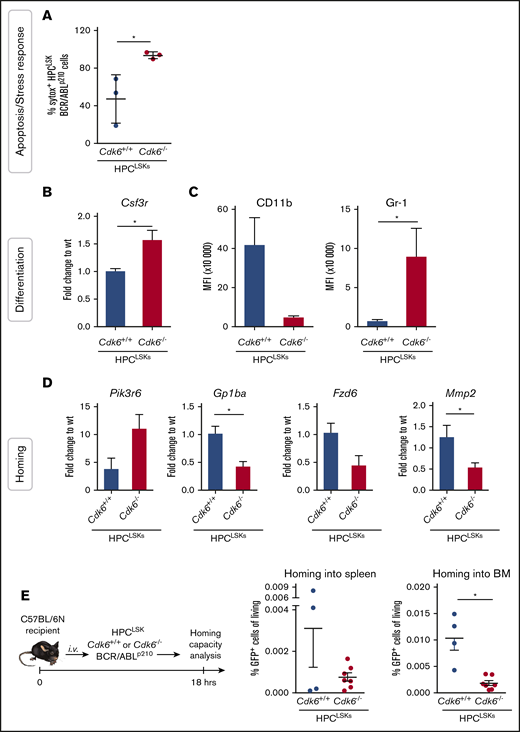

In line with the deregulated pathways in human and mouse resulting from the RNA-Seq analysis, we recently demonstrated that CDK6 regulates apoptosis during BCR/ABL^p185 transformation.⁶⁰  To validate this aspect in our HPC^LSK system, we serum-starved HPC^LSKs BCR/ABL^p210Cdk6^+/+ and Cdk6^−/− for 90 minutes and performed an apoptosis staining by flow cytometry (Figure 7A). As expected, HPC^LSKs BCR/ABL^p210Cdk6^−/− showed increased response to stress. In addition to apoptosis, cell differentiation was one of the most significant deregulated pathways detected by the transcriptome analysis. Colonies from HPC^LSKs BCR/ABL^p210Cdk6^−/− showed a bias to the granulocytic direction by increased Gr-1 expression (supplemental Figure 5E). In the RNA-Seq analysis and validated by quantitative polymerase chain reaction (qPCR), Csf3r, an essential receptor for granulocytic differentiation, is upregulated in HPC^LSK BCR/ABL^p210Cdk6^−/− cells compared with controls (Figure 7B). Furthermore, cytokine-independent HPC^LSKs BCR/ABL^p210Cdk6^−/− show increased MFI levels of Gr-1 and reduced MFI levels of CD11b compared with Cdk6^+/+ controls (Figure 7C). Together, these data demonstrate that loss of CDK6 shows an advantage for granulocytic differentiation.

Finally, the reduced percentages of HPC^LSKs BCR/ABL^p210Cdk6^−/− in the BM and spleen upon IV injection (Figure 5D) together with the RNA-Seq analysis point toward a hampered homing capacity of HPC^LSK BCR/ABL^p210Cdk6^−/− cells. We validated several deregulated genes found in the transcriptome analysis, which can be linked to homing by qPCR analysis (Figure 7D; supplemental Figure 6A) and performed an in vivo homing assay. Therefore, we injected 1 × 10⁶ HPC^LSKs BCR/ABL^p210 with and without CDK6 into aged- and sex-matched female C57BL/6N mice and profiled the number of BCR/ABL^p210 GFP⁺ cells after 18 hours in the BM and spleen by flow cytometry. HPC^LSKs BCR/ABL^p210Cdk6^−/− showed a significantly diminished homing capability to the BM compared with HPC^LSKs BCR/ABL^p210Cdk6^+/+ (Figure 7E). In line with our previous publication,⁵³  the homing capacity of untransformed HPC^LSKsCdk6^−/− is slightly but not significantly reduced compared with controls (supplemental Figure 6B-D).

Taken together, the validated data describe essential roles of CDK6 in LSCs and support the strong reliability of our murine cellular system. Moreover, we here describe a prominent function for CDK6 in regulating BCR/ABL^p210 leukemic cell homing.

Functional and molecular studies on hematopoietic stem cells and LSCs have provided numerous insights into the mechanisms of hematopoietic diseases. However, progress is restricted by the limited availability of hematopoietic stem/progenitor cells and the difficulty of in vitro culturing. We present a robust procedure to generate an unlimited source of functional mouse HSC/HPC lines called HPC^LSK that possess characteristics of MPPs and can serve as a source of lymphoid and myeloid LSC lines. HPC^LSKs are multipotent cells that retain lymphoid and myeloid differentiation potential and can repopulate lethally irradiated mice without supporter BM cells. More than 90% of HPC^LSKs are Lin⁻/c-Kit⁺/Sca-1⁺ and express CD34, CD48, and CD150, which is characteristic of MPP2. The result of the transcriptome analysis and the fact that HPC^LSK cells are able to replenish the hematopoietic system long term (followed up to 7 months) strongly argues that HPC^LSK cells are functionally grouped to MPP1, which corresponds to the earliest proliferating stem/progenitor cell. As HPC^LSKs represent a continuous proliferating cell line, it might explain why they also express CD48 SLAM (signaling lymphocyte activation molecule) marker on their cell surface. CD48 is expressed throughout all the short-term progenitors but is excluded from the long-term HSCs.^11,70  Altogether, HPC^LSK cells should be categorized as MPP1 with a slight bias toward MPP2 direction.

Our approach is robust and simple and requires no coculture system or feeder layer and no extensive amounts of cytokines. We have established >50 distinct HPC^LSK cell lines with an efficiency of 100%, using either mouse strains of various genetic backgrounds or transgenic mice as a source. HPC^LSK cells can be genetically modified by retroviral transduction or CrispR/Cas9 technologies, so are a versatile tool in HSC and LSC research.

Our method is based on the enforced expression of Lhx2, a transcription factor for mouse HPC immortalization.^43,45-47,52  Improvements to the original protocol include fluorescence-activated cell sorting of LSKs to avoid 5-fluorouracil treatment, the use of serum low-media with a defined cocktail of cytokines, precoating of plates to avoid adherence-induced myeloid differentiation, and the maintenance of high HPC^LSK cell density.^{4,45,46,71-73}

Lhx2-immortalized HPCs have been reported to induce a transplantable myeloproliferative disorder resembling human chronic myeloid leukemia in long-term engrafted mice.⁷⁴  We did not observe this even after long-term repopulation in lethally irradiated Ly5.1 or in immunosuppressed NSG mice. The difference probably stems from our use of sorted LSKs instead of total BM to overexpress Lhx2, as the myeloid disorder may originate from a more differentiated myeloid progenitor.

We have used HPC^LSKs as a source to generate LSCs and obtained leukemic HPC^LSK lines harboring BCR/ABL, MLL-AF9, and Flt3-ITD;NRas^G12D oncogenes. Removal of SCF and IL-6 in vitro induced myeloid differentiation, indicating that the self-renewal program depends on the presence of low-level cytokines and downstream signaling events that are provided in vivo by the BM niche.

The cell-cycle kinase CDK6 is a transcriptional regulator and is particularly important in hematopoietic malignancies. In HSCs, its actions are largely independent of its kinase activity. It is essential for HSC activation in the most dormant stem cell population under stress situations, including transplantation and oncogenic stress. The impact of CDK6 extends to LSCs, as BCR/ABL^p210 transformed BM cells fail to induce disease in vivo in the absence of CDK6. To investigate how CDK6 drives leukemogenesis in progenitor cells, we generated HPC^LSKsCdk6^−/− from Cdk6-deficient mice and transformed them with BCR/ABL^p210. The absence of CDK6 was associated with a reduced incidence of leukemia and with significantly delayed disease development, thereby mimicking the effects seen in primary BM transplantation assays.⁵³  RNA-Seq and subsequent pathway analysis show deregulated stress response, cell adhesion, and apoptotic processes/cell death in the absence of CDK6. This result is consistent with our recent observations that CDK6 antagonizes p53 responses and regulates survival. In the absence of CDK6, hematopoietic cells need to overcome oncogenic-induced stress by mutating p53 or activating alternative survival pathways, as in the case of CDK6-deficient JAK2^V617F-positive LSKs.^59,60  Another feature shared by CDK6-deficient JAK2^V617F+ LSKs and CDK6-deficient HPC^LSK BCR/ABL is an altered cytokine secretion, as revealed by pathway enrichment analysis in both systems.⁵⁹

HSCs show homing and cell adhesion, which allow them to migrate to the BM and replenish hematopoietic lineages.⁷⁵  GO pathway analysis revealed deregulated cell adhesion and cell migration pathways in HPC^LSK cell lines and in human patient samples. Our bioinformatic data show that loss of CDK6 from transformed cells leads to a significantly reduced capacity to home to the BM, which slows the onset of leukemic disease. The common CDK6-dependent gene signature between HPC^LSKs BCR/ABL^p210 and human CML patient samples underlines the translational relevance of our model system. A large subset of CDK6-regulated genes is also found in patients, which we could validate with specific assays using our HPC^LSKs BCR/ABL^p210. The data strengthen our confidence in our murine cellular system and show that results from HPC^LSK experiments can be translated to the human situation. HPC^LSK lines thus represent a quick and simple alternative to the lymphoid progenitor Ba/F3 or the myeloblast-like 32D cells to explore the potential transforming ability of mutations found in hematopoietic malignancies.

The authors thank P. Kudweis, S. Fajmann, M. Ensfelder-Koparek, and P. Jodl for excellent technical support and M. Dolezal for critical discussion of bioinformatical analysis. The schematic art pieces used in the visual abstract were provided by SMART (Servier Medical Art, licensed under a Creative Common Attribution 3.0 Generic License; http://servier.com).

This work was supported by the European Research Council under the European Union's Horizon 2020 research and innovation programme grant agreement no. 694354 and by the Austrian Science Foundation via grant P 31773 (K.K.).

Contribution: E.D. and I.M.M. designed and conducted experiments and collected and analyzed data; T.B., B.M., and I.M. collected and analyzed data; R.G., M.Z., and G.H. performed bioinformatical analysis; L.C. was involved in conception and design of the study, contributed essential material, and reviewed the manuscript; K.K. designed and supervised experiments; A.H.-K. reviewed the manuscript and supervised experiments; V.S. designed and supervised the study; and V.S., E.D., I.M.M., and K.K. wrote the manuscript.

Conflict-of-interest disclosure: The authors declare no competing financial interests.

Correspondence: Veronika Sexl, Department of Biomedical Sciences, Institute of Pharmacology and Toxicology, University of Veterinary Medicine Vienna, Veterinaerplatz 1, A-1210 Vienna, Austria; e-mail: veronika.sexl@vetmeduni.ac.at.
