RUNX transcription factors potentially control E-selectin expression in the bone marrow vascular niche in mice

While the leukemogenic role of Runt-related (RUNX) transcription factors has been intensively studied and well described in acute myeloid leukemia (AML),^1-6  little is known about the effect of RUNX inhibition on the microenvironment surrounding tumor cells in vivo. Leukemic stem cells reside in the distinct regions within this microenvironment called niches. These niches maintain the principle properties of leukemic stem cells, protect them from the immune surveillance, and facilitate their oncogenic potential.⁷  In the bone marrow, the vascular niche and the osteoblastic niche are the 2 major components of this microenvironment. Although discovered later than osteoblastic niche, vascular niche is now regarded as an alternative indispensable niche regulating hematopoietic stem cells (HSCs).^8,9  Endothelial selectins are cell adhesion molecules expressed in the vascular niche. Selectins are a family of 3 cell adhesion molecules (E-, L- and P-selectins) with well-characterized roles in leukocyte homing. Among them, the crucial role of E-selectin as a component of the vascular niche has been recently discovered, and inhibition of E-selectin is reported to enhance chemoresistance of normal HSCs and accelerate blood neutrophil recovery after chemotherapeutic treatment.¹⁰  Previous reports suggest that the survival of AML blasts is enhanced by their adhesion to the vascular niche via E-selectin.^11,12  Although these findings underpin the rationale for using an E-selectin–targeting strategy in antileukemia treatment, precise mechanisms in transcriptional regulation of E-selectin have remained mostly unknown. Here, we address this issue and elaborate to clarify the role of RUNX transcription factors in the vascular niche in AML.

Embryonic kidney–derived HEK293T cells were purchased from the Japanese Collection of Research Bioresources. AML-derived MV4-11 cells and bone osteosarcoma–derived HOS cells were obtained from the American Type Culture Collection. HEK293T and HOS cells were maintained in Dulbecco’s modified Eagle’s medium supplemented with 10% heat-inactivated fetal bovine serum (FBS) and 1% penicillin-streptomycin at 37°C, 5% CO₂. MV4-11 cells were cultured in RPMI 1640 medium with 10% FBS and 1% penicillin-streptomycin at 37°C, 5% CO₂. Human umbilical vein endothelial cells (HUVECs) were purchased from PromoCell and maintained in endothelial cell growth medium 2 (PromoCell) at 37°C, 5% CO2.

Chromatin immunoprecipitation (ChIP) was performed using the SimpleChIP Plus Enzymatic Chromatin IP Kit (Cell Signaling Technology) according to the manufacturer’s instructions. In brief, cells were cross-linked in 1% formaldehyde in PBS for 10 minutes at room temperature. After glycine quenching, cell pellets were collected and lysed and then subjected to sonication (Q55 sonicator system, QSONICA). The supernatant was diluted with the same sonication buffer and processed for immunoprecipitation with the following antibodies at 4°C overnight: anti-RUNX1 (ab23980, Abcam), anti-RUNX2 (D1H7 rabbit monoclonal antibody 8486, Cell Signaling Technology), and anti-RUNX3 (ab11905, Abcam). The beads were then washed, and DNA was reverse cross-linked and purified. Following ChIP, DNA was quantified by quantitative polymerase chain reaction (qPCR) using the standard procedures for 7500 Real-Time PCR System (Applied Biosystems). Primers used for ChIP-qPCR are listed in supplemental Table 1.

Total RNA was isolated using the RNeasy mini kit (Qiagen) and reverse transcribed with a reverse script kit (Toyobo) to generate complementary DNA. Real-time qPCR was carried out with the 7500 Real-Time PCR System (Applied Biosystems) according to the manufacturer’s instructions. The results were normalized to GAPDH levels. Relative expression levels were calculated using the 2^−ΔΔCt method. Primers used for real-time qPCR are listed in supplemental Table 2.

A specific short hairpin RNA (shRNA) targeting human RUNX1 was designed and subcloned into pENTR4-H1tetOx1, CS-RfA-ETBsd, CS-RfA-ETV, and CS-RfA-ETR vectors (RIKEN BioResource Center). Nontargeting control shRNA was designed against luciferase (sh_Luc.). Target sequences are provided in supplemental Table 3.

Production and transduction of lentivirus was conducted as previously described.¹³  For the production of lentivirus, HEK293T cells were transiently cotransfected with lentivirus vectors such as psPAX2 and pMD2.G with polyethylenimine (Sigma-Aldrich). Forty-eight hours after transfection, viral supernatants were collected and immediately used for infection, and then successfully transduced cells were sorted by flow cytometry (Aria III, BD Biosciences).

For the homing and engraftment assay, C57BL/6 mice were either preconditioned by andrographolide (given 3 times per week, intraperitoneally [IP]), A 205804 (given 3 times per week, orally), or Chb-M′ (given 3 times per week, IV) for 2 weeks. Twenty-four hours after the last administration, 1 × 10⁶ GFP+ AML cells from MLL-ENL mice were injected IV through the tail veins. Twenty-four hours after transplantation, mice were properly euthanatized, and the frequency of GFP+ cells in the femur bone marrow and spleen were determined using a BD FACS Canto II flow cytometer.

Differences between control and experimental groups were assessed using a 2-tailed unpaired Student t test and declared statistically significant if P < .05. Equality of variances in 2 populations was calculated with the F test. Results are presented as mean ± standard error of the mean (SEM) values obtained from 3 independent experiments. In transplantation experiments, animals were randomly allocated to each experimental group, and the treatments were given with blinding. The overall survival of mice is shown in a Kaplan-Meier curve. Survival between the indicated groups was compared using the log-rank test. To measure the correlation between mRNA or protein expression, Spearman’s rank correlation coefficient was used.

All animal studies were properly conducted in accordance with the Regulation on Animal Experimentation at Kyoto University, based on International Guiding Principles for Biomedical Research Involving Animals. All procedures employed in this study were approved by the Kyoto University Animal Experimentation Committee (permit Med Kyo 14332).

Synthesis of Chb-M′ was conducted as previously reported.⁶  Briefly, pyrrole-imidazole (PI) polyamide supported by oxime resin was prepared in a stepwise reaction using the Fmoc solid-phase protocol. The product with oxime resin was cleaved with N,N-dimethyl-1,3-propane diamine (1.0 mL) at 45°C for 3 hours. The residue was dissolved in the minimum amount of dichloromethane and washed with diethyl ether to yield 59.6 mg. To the crude compound (59.6 mg, 48.1 μmol), a solution of chlorambucil (32.6 mg, 107 μmol), PyBOP (benzotriazole-1-yl-oxy-tris-pyrrolidino-phosphonium hexafluorophosphate) (101 mg, 195 μmol), and N,N-diisopropylethylamine (100 μL, 581 μmol) in N,N-dimethylformamide (300 μL) was added. The reaction mixture was incubated for 1.5 hours at room temperature, washed with diethyl ether and N,N-dimethylformamide 3 times, and dried in vacuo. The crude product was purified by reversed-phase flash column chromatography (water with 0.1% trifluoroacetic acid/MeCN). After lyophilization, product was obtained (30.2 mg, 19.8 μmol). Machine-assisted polyamide syntheses were performed on a PSSM-8 (Shimadzu) system with computer-assisted operation. Flash column purifications were performed by a CombiFlash Rf (Teledyne Isco) with C18 RediSep Rf Flash Column. Electrospray ionization time-of-flight mass spectrometry was performed on a Bio-TOF II (Bruker Daltonics) mass spectrometer using a positive ionization mode, and proton nuclear magnetic resonance spectra were recorded with a JEOL JNM ECA-600 spectrometer operating at 600 MHz and in parts per million downfield relative to tetramethylsilane, which was used as an internal standard to verify the quality of synthesized PI polyamides.

The E-selectin static adhesion assay was conducted as previously described, with minor modifications.¹⁰  Briefly, 96-well plates were coated with purified recombinant mouse VCAM-1 or E-selectin–human IgG1 (huIgG1)-Fc fusion proteins (R&D Systems) at the indicated concentrations in 40 μl of 20 mM Tris-buffered saline (pH 7.4) with 1 mM CaCl₂ at 4°C for 16 hours and then washed and blocked with 100 μl IMDM + 1% BSA at room temperature for 1 hour. c-KIT positive fraction of mice AML cells with MLL-ENL were sorted and 5 × 10³ cells were seeded for each well. After gentle sedimentation by centrifugation (4°C, 1500 rpm, 10 min), cells were left in contact with the coated surface for 30 min at 4°C, washed 4 times with PBS plus 3% FBS to remove nonadhesive cells, and the percentage of adherent cells was quantified with Cell Count Reagent SF (Nacalai Tesque) and a multiplate reader (Infinite200 PRO, Tecan).

MLL-ENL fusion gene was retrovirally transduced to c-kit⁺ primary mice bone marrow cells to obtain AML cells from immortalized mice. Detection or isolation of c-kit⁺ fraction from mice normal or leukemic bone cells retrovirally transduced with MLL-ENL harboring GFP immunofluorescent color marker expression and human cell lines transduced with shRNA lentivirus vectors harboring Venus expressions were performed using FACS Aria III (BD) cell sorter. To obtain endothelial vascular niche cells, mice femurs were collected after proper euthanasia and flushed into ice-cold PBS plus 2% newborn calf serum for the isolation of bone marrow cells. The empty femurs were flushed twice more in PBS then flushed with 1 mg/mL collagenase 1 every 5 min at 37°C for 30 minutes to dislodge endosteal cells, which were then used for flow cytometry. The following antibodies were used to identify E-selectin expression in mouse endothelial cells: fluorescein isothiocyanate anti-mouse LIN (CD3/Gr-1/CD11b/CD45R(B220)/Ter-119, Pacific Blue anti-mouse CD45 (30-F11), allophycocyanin anti-mouse CD31 (390) (BioLegend), phycoerythrin (PE) rat anti-mouse CD62E (10E9.6) (BD Pharmingen), and PE rat anti-mouse isotype control (PE rat immunoglobulin G2a [IgG2a], κ isotype control, clone R35-95) (BD Biosciences). E-selectin expressions in HUVEC was detected by anti-human CD62E (E-selectin) PE (P2H3) antibody (eBioscience).

C57BL/6J mice were purchased from CLEA Japan. NOD/Shi-scid, IL-2RγKO (NOG) mice were purchased from the Central Institute for Experimental Animals (Japan). Littermates were used as controls in all experiments.

For transplantation assay, mice were either preconditioned with Chb-M′ 320 μg/kg body weight twice per week IV or control dimethyl sulfoxide (DMSO) (IV) for 2 weeks. Twenty-four hours after the last administration, 1 × 10⁶ MV4-11 cells were injected IV through the tail vein to NOG mice. Seven days after transplantation, mice were treated with either Chb-M′ 320 μg/kg body weight twice per week IV or control DMSO until they showed physical signs of leukemia development.

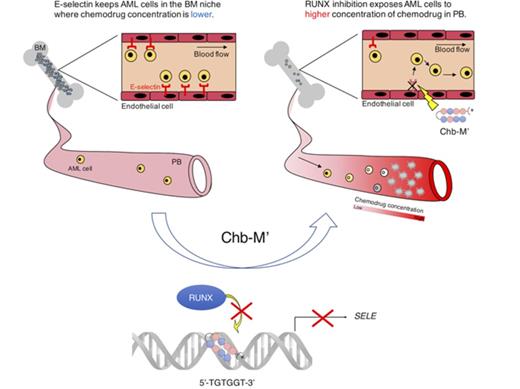

To investigate the effect of RUNX1 inhibition on the endothelial vascular niche cells, we first screened the expression of representative surface molecules in HUVECs treated with either the selective RUNX inhibitor Chb-M′⁶  or control DMSO. As shown in Figure 1A, Chb-M′ treatment significantly suppressed the expressions of E-selectin, P-selectin, VCAM1, and TIE2. Among them, we focused on E-selectin not only because it was the most profoundly attenuated molecule in our screen but also because it has recently been recognized as a vital component of vascular niche and fundamentally involved in the housing of HSCs.¹⁰  As shown in Figure 1B, RUNX1 and E-selectin expression is indeed positively correlated among HUVEC cell lines with significance. In addition, the surface expression of E-selectin was decreased upon Chb-M′ treatment with significance in HUVECs (Figure 1C). To extend the robustness of our findings, we genetically attenuated the expression of RUNX1 in HUVECs with doxycycline-inducible shRNA. As expected, the expression of E-selectin was tightly and most profoundly downregulated both at the transcript level and the surface expression level upon RUNX1 silencing (Figure 1D-E). On the other hand, additive expression of RUNX1 in HUVECs resulted in the upregulation of E-selectin, of which finding was consistent with those obtained in RUNX1 knockdown experiments (supplemental Figure 1A-B). Of note, neither Chb-M′-treatment nor shRNA-mediated RUNX1 knockdown resulted in significant change in the expression of niche-associated surface molecules in AML-derived MV4-11 cells (supplemental Figure 2A-B). In addition, neither Chb-M′ treatment nor RUNX1 knockdown resulted in a significant change in the expression of osteoblastic niche components in osteosarcoma-derived HOS cells (supplemental Figure 3A-B). These results suggest that RUNX1 potentially and primordially be involved in the regulation of E-selectin in the endothelial vascular niche cells. Close inspection of the E-selectin promoter revealed the canonical RUNX binding sequence of 5′-TGTGGT-3′ in 320 bp upstream of the transcription start site (Figure 1F). As shown in Figure 1G, we have confirmed the actual binding of RUNX1 in this site by ChIP assay. Activity of E-selectin promoter was increased in the additional RUNX1 expression while the modified E-selectin promoter which lacks this 5′-TGTGGT-3′ site dramatically decreased its luciferase reporter activity, confirming the vital role of RUNX1 in E-selectin transactivation (supplemental Figure 4A-C). Because all RUNX family members recognize these consensus sequences, we next addressed the possible involvement of other RUNX family members in E-selectin regulation. Interestingly, RUNX2 knockdown, but not RUNX3 knockdown, showed attenuation of E-selectin expression in HUVECs (supplemental Figure 5A-B). The ChIP assay also revealed the binding of RUNX2 to the E-selectin promoter, but it failed to show the binding of RUNX3 (supplemental Figure 6A-B). These results indicate the possible involvement of RUNX2 and RUNX1 in E-selectin transactivation.

To further investigate the role of RUNX transcription factors in the niche, we next examined the effect of Runx attenuation on E-selectin expression in endothelial vascular niche cells in mice (Figure 1H). To appropriately set the gates in fluorescence-activating cell sorter (FACS) analysis, we first confirmed that the expression of endothelial markers such as Sca-1 and VE-cadherin were consistently higher in CD31⁺ cells relative to CD31⁻ cells (supplemental Figure 7A-B). Treating C56BL/6 mice either with the previously validated E-selectin inhibitors andrographolide¹⁴  and A 205804¹⁵  or with the Runx inhibitor Chb-M′ for 2 weeks indeed efficiently decreased the expression of E-selectin on the endothelial vascular niche cells (Figure 1I-L). We next retrovirally transduced MLL-ENL to c-kit⁺ mice bone marrow cells and obtained leukemic cells. Using these mouse leukemic cells, we investigated the effect of Runx inhibition therapy on the homing ability of leukemia cells to their bone marrow niche. Firstly, we conducted in vitro static assay to examine the E-selectin–mediated adhesion of AML cells. As shown in Figure 2A, the number of AML cells attached to the plate was proportional to the coated E-selectin concentrations. We next treated mice with andrographolide, A 205804, or Chb-M′ for 2 weeks followed by transplantation of MLL-ENL⁺ leukemic cells (Figure 2B). To minimize unwanted direct antitumor effect of the drugs on the transplanted AML cells, we used a 24-hour washout period before transplantation. As shown in Figure 2C-E, these treatments significantly decreased the number of homed leukemic cells in the bone marrow compared with the vehicle-treated mice, underscoring the importance of E-selectin in the engraftment of AML cells in the vascular niche. Intriguingly, E-selectin was reported to exclusively express in the endothelial vascular niche in the bone marrow, whereas no expression was detected in spleen cells.¹⁰  In our homing experiments, we indeed observed no change in the number of homed leukemic cells in the spleens of mice treated with Chb-M′, andrographolide, or A 205804, showing that the inhibition of Runx-mediated E-selectin regulation specifically disrupts the homing of leukemia cells in the bone marrow (Figure 2C-E). Consistent with these observations, conditioning bone marrow vascular niche with Chb-M′ before transplantation of leukemic cells significantly prolonged the overall survival periods of AML mice (Figure 2F-G). Although we acknowledge that pharmacologic inhibition of RUNX or E-selectin are not fully specific and our findings should further be examined in genetically engineered mice to rule out the involvement of other unknown mechanisms, our results indicate that RUNX-silencing drugs such as Chb-M′ not only directly control the growth of AML cells themselves⁶  but also indirectly enhance their antileukemic potential, possibly by attenuating E-selectin expression in the bone marrow vascular niche. Because we observed consistently higher numbers of circulating transplanted AML cells in the peripheral blood of Chb-M′–pretreated mice relative to control mice, these drugs could potentially bring leukemic stem-like cells out from deep in the bone marrow niche to the peripheral bloodstream and expose these primordial leukemia cells to chemotherapeutic drugs at much higher concentrations (supplemental Figure 8A).
