Coexpression of FOXP3 and a Helios isoform enhances the effectiveness of human engineered regulatory T cells

Regulatory T cells (Tregs) are a subset of T cells that mediate immune homeostasis through suppression of immune activity.^1-4  Tregs downregulate the immune response via a variety of mechanisms, including inhibiting conventional T-cell (Tconv) proliferation and activation, secretion of immunosuppressive cytokines, killing of immune cells, and induction of anergy. The major Treg subset that has been studied is CD4⁺ Tregs, which represent 3% to 5% of circulating CD4⁺ T cells. In addition, there are CD8⁺ Tregs, which have not been well characterized.^5,6

There is intense interest in using Tregs as a cellular therapeutic. Clinical trials are testing the use of natural Tregs in the treatment of multiple inflammatory diseases, including type 1 diabetes, transplant rejection, and graft-versus-host disease (GVHD).^7-11  These trials have shown that CD4⁺ Treg infusions are safe but only moderately successful. A major challenge is expanding natural CD4⁺ Tregs to numbers required to treat.⁹  Another limitation of Treg therapy is isolating a pure population of Tregs. Tregs are commonly isolated by selecting CD4⁺ CD25⁺ T cells, but these markers are also expressed by activated Tconvs.¹²  This scenario leads to potential contamination of Tregs with Tconvs that could exacerbate disease. In addition, natural Tregs can convert to Tconvs and lose immunosuppressive activity in vivo.^13-16

Engineered Tregs (eTregs) provide potential solutions to the limitations of natural Tregs. Total CD4⁺ T cells can be isolated in greater numbers and expanded more quickly than endogenous Tregs. These cells can then be transduced with Treg genes, allowing for the creation of a much larger number of Tregs compared with natural Tregs. Coexpression of Treg genes with a transduction marker allows for purification of eTregs and ensures homogeneity of the cell population.¹⁷  Constitutively expressing Treg transcription factors stabilizes the Treg phenotype.¹⁸  Although the advantages of eTregs are clear, the Treg genes necessary to create an optimal engineered Treg are still undefined.

High expression of the transcription factor FOXP3 is a hallmark of CD4⁺ Tregs. Enforced FOXP3 expression in CD4⁺ T cells generates Tregs capable of mediating in vitro suppression.¹⁹  Furthermore, FOXP3-transduced CD4⁺ T cells can reduce symptoms in murine colitis and GVHD models.^20,21  However, in a study using a murine arthritis model, FOXP3-transduced cells were not as effective as endogenous Tregs at reducing joint destruction or decreasing the number of pathogenic T helper 17 cells in the joint.¹⁸  In addition, microarray data have shown that FOXP3 is not sufficient to induce a complete Treg gene signature in murine CD4⁺ T cells.²²

In addition to FOXP3, the Ikaros family member Helios is highly expressed in ∼70% of CD4⁺ FOXP3⁺ Tregs.²³  Helios⁺ CD4⁺ Tregs more effectively suppress cytokine production by Tconv cells^24,25  and are more stable under inflammatory conditions than Helios^– CD4⁺ Tregs.^23,26-28  Mice with Helios deficiency in Foxp3⁺ cells develop spontaneous autoimmune disease, and CD4⁺ Tregs from these mice have reduced suppressive activity and survival.^29,30  Coexpression of Helios and Foxp3 in murine CD4⁺ Tconvs increases the Treg transcriptional signature index compared with Foxp3 alone.³¹  Furthermore, Helios is required to mediate CD8⁺ Treg function.²⁹  For these reasons, we hypothesized that ectopic expression of Helios with FOXP3 would generate optimal CD4⁺ and CD8⁺ eTreg-mediated immunosuppression.

Here, we report that human CD4⁺ and CD8⁺ T cells isolated from the peripheral blood can be genetically modified to express high levels of FOXP3 and Helios. We generated eTregs that coexpressed FOXP3 with the following 2 endogenous splice variants of Helios found in human nTregs^32,33 : full-length Helios (Hel-FL) and a shorter form, Δ3B Helios (Hel-Δ3B). The addition of Hel-FL to FOXP3 was able to convey increased immunosuppressive properties to both CD4⁺ and CD8⁺ Tregs in vitro, and eTregs expressing Hel-FL and FOXP3 were the most effective at immunosuppression in vivo in a xenogeneic GVHD model.

Blood was collected from healthy adult volunteers under signed informed consent with approval from the Institutional Review Board of the University of Kansas Medical Center (KUMC). Peripheral blood mononuclear cells (PBMCs) were isolated via Ficoll-Paque (GE Healthcare) density centrifugation with SepMate tubes (STEMCELL Technologies Inc.).

Retroviral constructs were generated to express complementary DNA (cDNA) encoding FOXP3, Hel-FL, or Hel-Δ3B. The NCBI Reference Sequences for FOXP3, Hel-FL, and Hel-Δ3B are NM_014009.3, NM_016260.2, and NM_001079526.1, respectively. The SFG retroviral vector, RDF, and pEQPAM3 retroviral packaging plasmids were generously donated by Malcom Brenner (Baylor College of Medicine). The cDNAs were cloned into the SFG vector via Gibson assembly.³⁴  Multiple genes were linked in frame with a picornavirus 2A ribosomal skip peptide.³⁵  The FOXP3 construct contains truncated CD19 (ΔCD19) cDNA, and the Hel-FL and Hel-Δ3B contains truncated CD34 (ΔCD34) cDNA. The NCBI Reference Sequences for CD19 and CD34 are NM_001178098.1 and NM_001025109.1. The ΔCD19 and ΔCD34 sequences only contain the signal peptide, extracellular and transmembrane regions. ΔCD19 and ΔCD34 alone vectors were generated as negative controls. FOXP3, ΔCD19, and ΔCD34 were codon optimized via Invitrogen GeneArt Gene Synthesis (Thermo Fisher Scientific) before being cloned into the SFG vector. Hel-FL and Hel-Δ3B cDNA sequences were not altered before cloning. Viral particles were generated by transfecting HEK 293T cells with SFG vectors containing genes of interest, retroviral packaging vectors, and FuGENE HD Transfection Reagent (Promega). Viral supernatants were collected 2 and 3 days after transfection and stored at −80°C until use.

Human T cells were activated in Aim V medium (Thermo Fisher Scientific) with 2% human AB serum (Bio-Techne) (complete media). Then, 3 × 10⁶ PBMCs at 10⁶/mL were stimulated with 2 µg/mL plate-bound anti-CD3 (OKT3; Bio X Cell) and anti-CD28 (9.3; Bio X Cell). After 2 days of activation, complete medium was supplemented with 200 U/mL of recombinant human interleukin-2 (rhIL-2) (PeproTech). Cells were passed every 2 to 3 days at 1 to 2 × 10⁶ cells/mL in complete medium supplemented with rhIL-2 (200 U/mL). Five to 6 days postactivation, T cells were transduced with viral supernatants containing ΔCD34 vectors. Allowing cells to expand for 5 to 6 days increased the starting T-cell number an average of twofold. Non-tissue culture 6-well plates were coated in RetroNectin (Takara Bio Inc.) at 20 µg/mL in phosphate-buffered saline per manufacturer’s instructions. Then, 1.5 mL of viral supernatant per well was bound to RetroNectin-coated plates by centrifuging plates for 2 hours at 2000g at 32°C. Viral supernatant was removed, and 1.5 mL of viral supernatant and 2.5 to 3 × 10⁶ T cells in complete medium with rhIL-2 at 10⁶ cells/mL were added to each well. Transduced cells were positively selected 2 days posttransduction with anti-human CD34 CELLection magnetic beads (Thermo Fisher Scientific). Beads were allowed to dissociate and removed via magnet 2 days later, and cells were transduced (without restimulation) with viral supernatants containing ΔCD19 vectors. Transduced cells were positively collected 2 to 3 days later with CELLection Biotin Binder Kit beads (Thermo Fisher Scientific) coated with biotinylated anti-human CD19 antibody (HIB19; BioLegend). Beads were removed 2 days later and used in assays up to 10 days after the last transduction. FOXP3 and Helios were transduced on separate vectors because Helios downregulated expression of genes on the same vector (including ΔCD34) (Figure 1D; supplemental Figure 1). Sequential transduction was also optimal for transduction efficiency.

RNA was isolated by using the RNeasy Mini Kit (Qiagen). RNA was converted to cDNA by using the TaqMan High Capacity RNA-to-cDNA kit (Thermo Fisher Scientific). Real-time polymerase chain reaction was performed by using the following primers:

F: 5′TGA​TGG​CTA​TAT​AAC​GTG​TGA​CAA3′, R: 5′CTC​ACA​CTT​GAA​GGC​CCT​AAT​C3′.

All animal studies were approved by the KUMC Institutional Animal Care and Use Committee. NOD-SCIDIL-2Rγnull (NSG) mice were purchased from The Jackson Laboratory and bred at KUMC under specific pathogen-free conditions.

NSG mice (8-12 weeks old) of both sexes received 1.5 Gy of whole-body irradiation. The next day, the mice were injected retro-orbitally with 10⁷ human PBMCs, 10⁷ PBMCs with 5 × 10⁶ eTregs (all cells from the same donor), or phosphate-buffered saline. Mice were clinically scored with the GVHD scoring system established by Cooke et al³⁶  and euthanized at a score of 7 (graphed as a 7 for the remainder of the experiment) or at 42 days postinjection. The researcher assessing score was blinded to the treatment of each mouse.

Cells were stained with various combinations of the following anti-human antibodies: CD3-APC-Cy7, CD4-PE-Cy7, CD4-eFluor-610, CD8-Alexa Fluor (AF) 488, CD8-Brilliant Violet (BV) 785, CD19-BV421, CD34-BV605, CD39-BV 510, CD25- PerCPCy-5.5, CD127-BV650, CD73-APC-Cy7, CCR4-PE-Cy7, GITR-PE-Cy5, CTLA-4-PE, and CD62L-AF700 (BioLegend). Intracellular transcription factor staining was performed by using the FOXP3 Staining Buffer kit (eBioscience) with anti-human FOXP3-PE, anti-human Helios-AF647, or anti-Helios-BV421 (BioLegend). Samples were run on an LSRII (Becton Dickinson) or Attune NxT (Thermo Fisher Scientific).

Cells were resuspended at a concentration of 10⁶ cells/mL in complete media. Then, 2 × 10⁵ cells were stimulated with plate-bound anti-CD3 (10 µg/mL OKT3) and anti-CD28 (1 µg/mL 9.3) for 2, 4, or 6 days. Cells were stained with Zombie Green Fixable Viability Dye and Annexin V PE (BioLegend) and assessed for cell death via flow cytometry.

Two × 10⁵ cells were stimulated with plate-bound anti-CD3 (10 µg/mL OKT3) and anti-CD28 (1 µg/mL 9.3) for 6 hours in the presence of Golgi Stop (Becton Dickinson) and Brefeldin A (MilliporeSigma). Cells were stained with extracellular antibodies and then fixed with 2% paraformaldehyde (MilliporeSigma), permeabilized with permeabilization buffer from the FOXP3 Staining Buffer kit (eBioscience), and stained with the following antibodies: anti-human IL-2-FITC, anti-human interferon-γ–Pacific Blue, anti-human IL-10-AF647 or anti-human-IL-21 AF647, anti-human IL-4-PE-Cyanine-7, and anti-human IL-17A BV605 (BioLegend).

Autologous T cells were isolated from PBMCs by using a T-cell enrichment kit (STEMCELL Technologies Inc.) and labeled with the Cell Proliferation Dye eFluor670 (eBioscience). T cells were cocultured with each eTreg cell strain at a 1:1 ratio with or without stimulation at 5 × 10⁵ cells/mL. Cells were stimulated with anti-CD3 and anti-CD28 coated DYNAL Dynabeads (Thermo Fisher Scientific) (1:10 bead:target cell ratio). After 96 hours, cells were stained with Zombie Green Fixable Viability Dye (BioLegend), and target cell proliferation was assayed via flow cytometry. Percent suppression was calculated by the following equation: [(percent responder proliferation alone) – (percent responder proliferation with transduced cells)]/(percent responder proliferation alone) × 100.

FOXP3–ΔCD19⁺ΔCD34, FOXP3–ΔCD19⁺Hel-FL–ΔCD34, and FOXP3–ΔCD19⁺Hel-Δ3B–ΔCD34 cells were generated with PBMCs from 3 different donors. Cells were collected 5 days after the second transduction, and CD4⁺ and CD8⁺ cells were isolated via flow cytometry–assisted cell sorting on a BD FACS Aria III (BD Biosciences). RNA was isolated by using the RNeasy Mini Kit (Qiagen). TruSeq stranded messenger RNA sequencing libraries were performed by using the Illumina TruSeq and NuGEN sample preparation kits (Illumina). Paired-end RNA sequencing data were generated by using a NovaSeq 6000 Sequencing System (Illumina).

Adaptor removal was performed by cutadapt,³⁷  and quality control was done with FastQC (http://www.bioinformatics.babraham.ac.uk/projects/fastqc). Samples were aligned to human genome (hg38) with RSEM³⁸  and bowtie2,³⁹  and transcript counts were obtained. Using the Bioconductor package “edgeR,”⁴⁰  data were normalized according to library size, and genes with low expression were filtered out. Genes were retained if their count per million (cpm) value was larger than 1 for at least 2 samples of the 18 considered in this study. After filtering low/nonexpressed genes, 13 955 remained for subsequent statistical analysis (supplemental Table 1).

Genes were further filtered with differential expression by taking the top 2000 genes with the lowest false discovery rate and then further restricted to genes with an expression change that was the same direction in all 3 donors. These filtered lists were made for each donor and comparison, and the cpm gene counts were used to conduct a gene set enrichment analysis (GSEA) with the GSEA version 3.0 software (Broad Institute) (supplemental Table 2). Enrichment in the KEGG pathway gene sets (c2.cp.kegg.v6.2.symbols.gmt) was used to identify and visualize significantly enriched pathways.^41,42

To examine Treg-related gene expression, heat maps were generated based on the cpm values. Two lists of Treg genes were generated based on comparisons of Tconvs vs Tregs by Miyara et al,¹⁵  Mold et al,⁴³  and Bonacci et al,⁴⁴  referred to as the “up gene list” and the “down gene list.” From the gene expression comparisons data, genes were analyzed that were present in the up or down Treg gene lists and had a nominal, uncorrected P < .05. Genes were then selected if they exhibited the expected expression pattern; that is, all 3 subjects were upregulated in an up-gene comparison or vice versa. Finally, the 2 comparisons were merged into 1 heat map. For each cell in the heat map, the difference of cpm values was calculated between 2 strains of cell for 1 subject and divided by the average cpm value of that gene in all 3 subjects.

Data were analyzed with GraphPad Prism 7 (GraphPad Software) and the R statistical programming language (http://r-progject.org). Data reported at each time point for GVHD score are an average of the scores of the mice left alive and the last scores and weights of any deceased mice in each group. Mann-Whitney U tests were done to compare GVHD scores at each time point. The log-rank (Mantel-Cox) test was used for analysis of Kaplan-Meier curves. Differences between groups were compared via Mann-Whitney U tests. Differences between groups with data normalized to a control were compared by using the Wilcoxon matched-pairs signed rank test, which paired data points within separate experiments. One-tailed analysis was used because hypotheses were 1 tailed (1 direction). P ≤ .05 was considered significant. Results show mean ± standard error of the mean unless indicated otherwise.

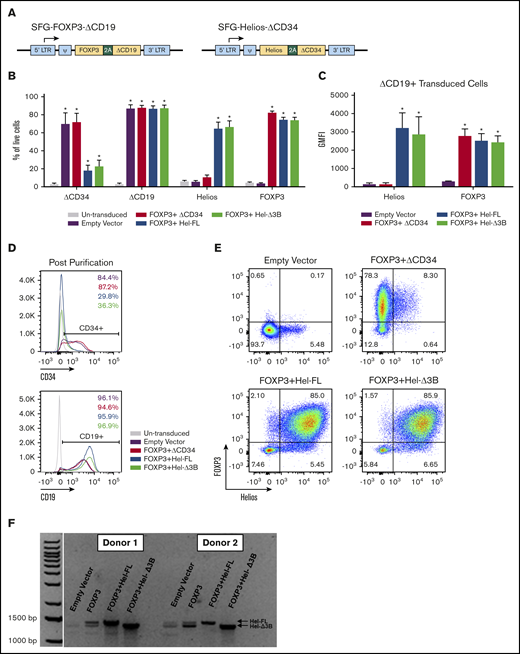

We generated human eTregs that expressed both FOXP3 and Helios with a dual vector transduction system. A dual vector system was used because a single tricistronic vector resulted in reduced expression of FOXP3 in Helios-expressing cells (Figure 1; supplemental Figure 1). In addition, we transduced total T cells rather than purified CD4⁺ T cells¹⁹  to reduce selection steps in eTreg production. T cells in both mice and humans express 2 isoforms of Helios, Hel-FL, and the shorter isoform lacking half of the 3rd exon (Hel-Δ3B), although little is known about the functional differences between these splice variants.^32,33  Thus, we transduced either Hel-FL or Hel-Δ3B with a truncated CD34 marker (ΔCD34) and FOXP3 with a truncated CD19 marker (ΔCD19) into T cells purified from peripheral blood to obtain a mixed population of CD4⁺ and CD8⁺ T cells that highly expressed both Helios and FOXP3 (supplemental Figure 2). Although ΔCD34 expression was downregulated in transduced cells with Helios (Figure 1D), there was still higher expression of Helios compared with an empty vector control (Figure 1E). The transduced isoform of Helios was the predominant splice variant of Helios expressed in each eTreg (Figure 1F).

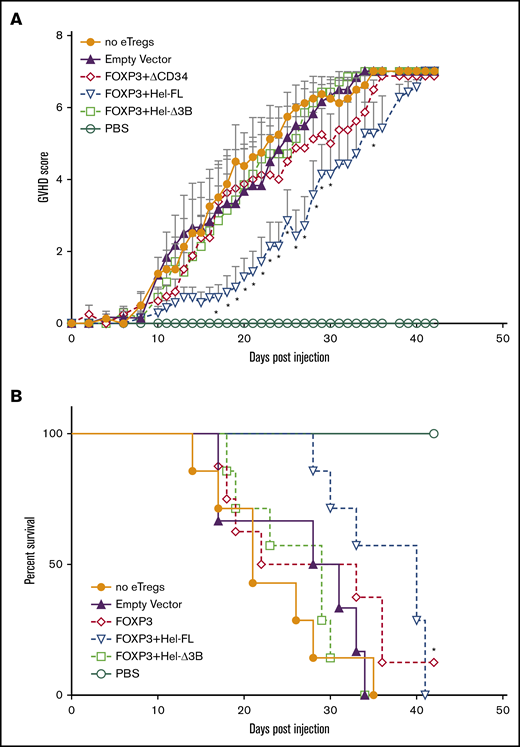

To assess the suppressive capacity of each eTreg strain, we used a xenogeneic GVHD model in which sublethally irradiated NSG mice were injected with human PBMCs without or with each eTreg cell strain. Injected eTregs had comparable CD4:CD8 ratios across all groups (supplemental Figure 3). Treatment with FOXP3⁺Hel-FL eTregs significantly delayed GVHD progression compared with mice injected with PBMCs alone (Figure 2A). In addition, FOXP3⁺Hel-FL eTregs significantly improved overall survival compared with mice injected with PBMCs only (Figure 2B). In contrast, the FOXP3 or FOXP3⁺Hel-Δ3B eTregs did not delay GVHD or affect overall survival.

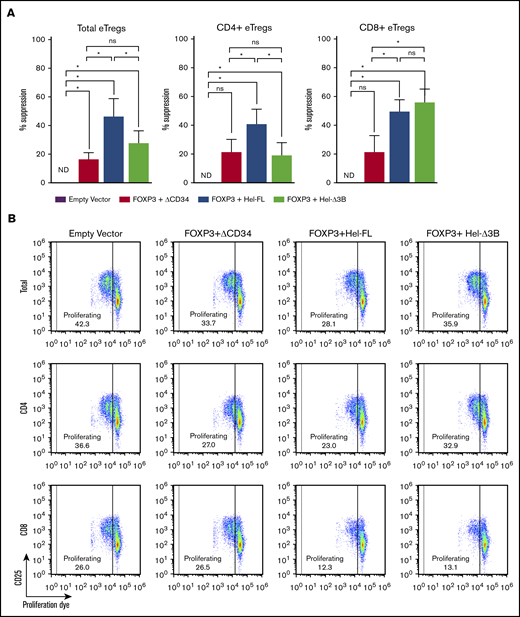

To determine why the FOXP3⁺Hel-FL eTregs were best at suppressing GVHD, we first assessed the ability of each eTreg strain to suppress T-cell proliferation in vitro. In addition to the total eTregs, we purified and analyzed the suppressive capability of CD4⁺ and CD8⁺ T cells in the eTreg strains separately. Hel-FL expression increased the ability of both total and CD4⁺ eTregs to suppress the proliferation of naive T cells in this assay (Figure 3; supplemental Figures 4-6). However, both FOXP3⁺Hel-FL and FOXP3⁺Hel-Δ3B similarly increased the suppressive capability of CD8⁺ eTregs. These data show that there is a differential requirement for Helios isoform expression in CD4⁺ and CD8⁺ T cells for the enhancement of suppressive function of FOXP3-expressing eTregs.

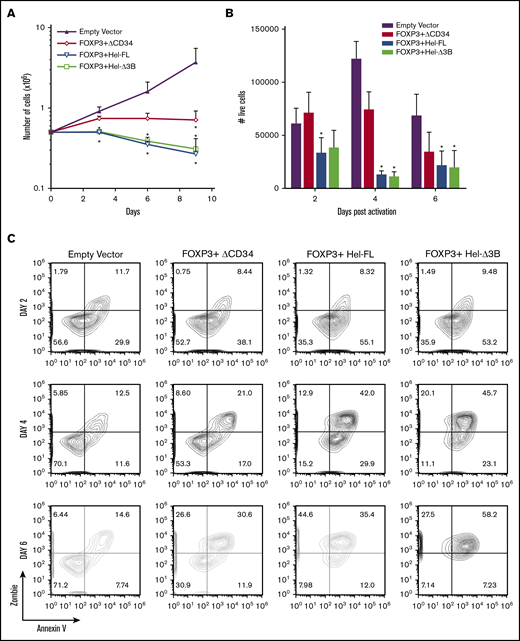

To determine whether the greater suppressive function of the Helios-expressing eTregs was due to enhanced eTreg survival, we compared the proliferation and survival of the eTreg cell strains in vitro. FOXP3 expression reduced proliferation over time, and the addition of either isoform of Helios further reduced proliferation and/or survival (Figure 4A). There was also an increase in activation-induced cell death in all 3 eTreg cell strains, with more death observed in both the Helios-expressing eTregs (Figure 4B-C). Interestingly, Helios expression alone did not significantly affect proliferation (supplemental Figure 7).

In addition to no observable difference in cell survival between FOXP3⁺Hel-FL and FOXP3⁺Hel-Δ3B eTregs, we detected no differences in the expression of the Treg markers CD25, CD73, or CCR4, or secretion of interferon-γ, IL-2, IL-4, IL-10, or IL-17A between these cell strains (supplemental Figures 8-10). Therefore, to determine how these cell strains were different, we performed RNA sequencing (supplemental Tables 1 and 2).

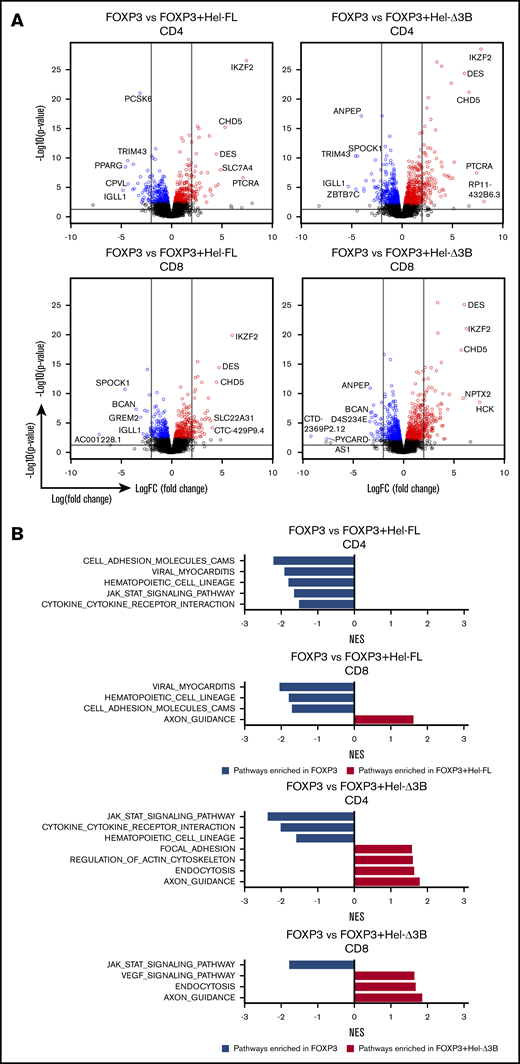

Adding either isoform of Helios to FOXP3-expressing CD4⁺ or CD8⁺ eTregs significantly changed gene expression and altered the KEGG pathways enriched compared with FOXP3 alone (Figure 5). FOXP3⁺Hel-FL and FOXP3⁺Hel-Δ3B eTregs had the least transcriptional differences (Figure 6A). However, FOXP3⁺Hel-FL induced enrichment in different KEGG pathways more than FOXP3⁺Hel-Δ3B in both CD4⁺ and CD8⁺ eTregs (Figure 6B). Three of these pathways were enriched by Hel-FL in both CD4⁺ and CD8⁺ eTregs; these were the p53 signaling, cell adhesion molecule, and cytokine–cytokine receptor interaction pathways. Of note, however, there were differences in the genes that were changed in these common pathways between CD4⁺ and CD8⁺ eTregs (supplemental Figure 11).

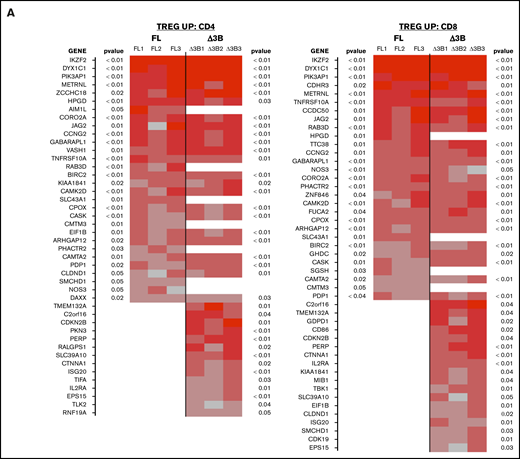

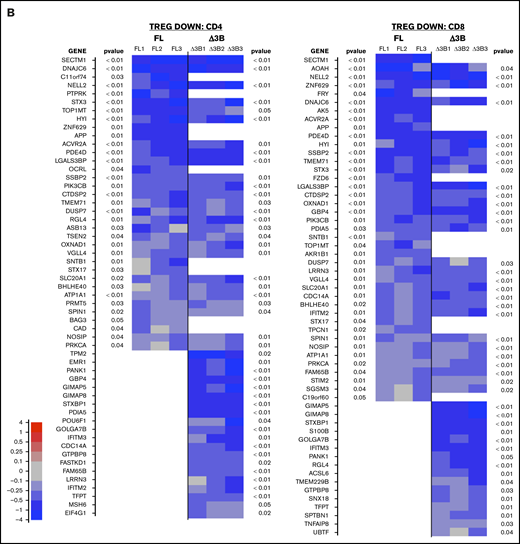

We also compared the genes expressed in our eTreg strains vs a “Treg signature” that we generated from a list of gene changes observed in previous comparisons between human Tconvs and Tregs.^15,43,44  Coexpression of Hel-FL or Hel-Δ3B with FOXP3 generated cells with more “Treg signature”–like gene expression compared with FOXP3 alone (Figure 7). However, the FOXP3⁺Hel-Δ3B eTregs had a gene expression pattern most similar to this “Treg signature.” This was true for both CD4⁺ and CD8⁺ eTregs. In addition, there were many Treg genes whose expression was differently affected by the coexpression of Hel-FL or Hel-Δ3B with FOXP3 in both CD4⁺ and CD8⁺ eTregs.

The current article describes that overexpression of Hel-FL along with FOXP3 in total human T cells converts these T cells into CD4⁺ and CD8⁺ eTregs with immunosuppressive properties. We recognize that transduction efficiency will need to be optimized to translate this work to the clinic. One approach would be to transduce cells 2 to 3 days after activation when cells are more actively dividing. We showed that treatment with these FOXP3⁺Hel-FL human eTregs was able to delay disease in a xenogeneic GVHD model, whereas treatment with FOXP3⁺Hel-Δ3B or FOXP3 eTregs was not. Similarly, we found that both CD4⁺ and CD8⁺ FOXP3⁺Hel-FL eTregs had the most suppressive capacity in vitro compared with FOXP3 alone. There were no measurable differences in survival, Treg marker expression, or cytokine production between FOXP3⁺Hel-FL and FOXP3 eTregs. Thus, we performed RNA sequencing and revealed that there was a significant change in gene expression between FOXP3⁺Hel-FL eTregs compared with FOXP3 alone. These genes are involved in immune pathways, including cell adhesion molecules, JAK/STAT signaling, and Treg-related genes. Changes in transcription were expected, as ectopic expression of Helios and FOXP3 in mouse Tconvs mediated expression of different Treg signature genes.^22,31  However, the changes we observed in the human cells by Helios expression were different from those observed in mouse T cells. Further studies will be needed to determine which specific genes and pathways altered by Hel-FL expression are responsible for the observed changes in human eTreg function.

Although Helios has been described as a key Treg transcription factor for many years, its function in Tregs is still being defined. Experiments using Treg-specific Helios-deficient mice showed that Helios plays a major role in mediating both CD4⁺ and CD8⁺ mouse Treg function and survival.^29,30  In contrast, we found that in human eTregs, Helios expression reduced Treg survival but enhanced Treg suppressive function. This scenario correlates with the Helios⁺ subset of human CD4⁺ Tregs that have improved stability in proinflammatory environments compared with Helios^– CD4⁺ Tregs.^23-28

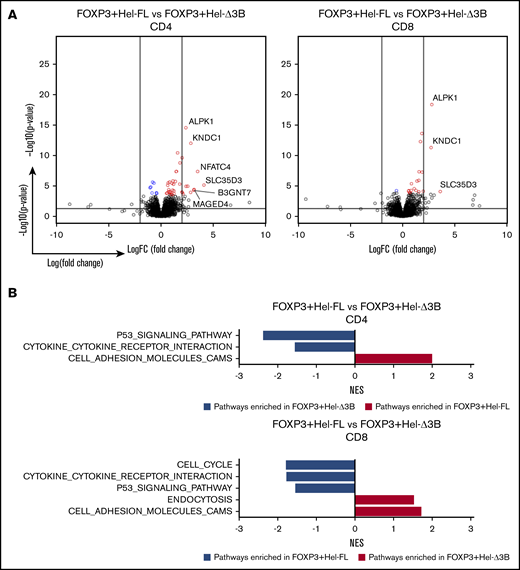

We found that both Hel-FL and Hel-Δ3B coexpression with FOXP3 changed gene expression compared with FOXP3 alone, but there were changes that were unique to each isoform of Helios. We also found that coexpression of these 2 isoforms differentially affected the suppressive function of FOXP3-expressing CD4⁺ and CD8⁺ eTregs. FOXP3⁺Hel-FL expression improved CD4⁺ eTreg suppressive activity, whereas FOXP3⁺Hel-Δ3B expression did not. However, FOXP3⁺Hel-Δ3B did improve suppressive activity of CD8⁺ eTregs to a similar degree as FOXP3⁺Hel-FL eTregs. Correlation of the gene changes in FOXP3⁺Hel-FL and FOXP3⁺Hel-Δ3B with our functional studies reveal molecular mechanisms required to convey immunosuppressive properties to CD4⁺ and CD8⁺ T cells. Our RNA sequencing and GSEA data showed that FOXP3⁺Hel-FL CD4⁺ eTregs had increased gene enrichment in p53 signaling and cytokine–cytokine receptor interaction but decreased gene enrichment in cell adhesion molecules compared with FOXP3⁺Hel-Δ3B CD4⁺ eTregs. Consistent with these data, p53 signaling is important for CD4⁺ Treg induction in mice.⁴⁵  The various cytokine receptors that were upregulated on FOXP3⁺Hel-FL CD4⁺ eTregs included the chemokine receptors CCR5 and CXCR6, which have been shown to be expressed on endogenous human Tregs,⁴⁶  where these receptors drive immune cell trafficking to sites of inflammation.^47-52  The differences we observed in cell adhesion molecule expression between FOXP3⁺Hel-FL and FOXP3⁺Hel-Δ3B CD4⁺ eTregs could be linked to T-cell immunosuppressive function, although further studies are needed. Thus, the changes we found in these 3 KEGG pathways likely explain why FOXP3⁺Hel-FL CD4⁺ eTregs were more effective at suppressing in vivo and in vitro than FOXP3⁺Hel-Δ3B CD4⁺ eTregs. However, this theory will have to be directly tested in future studies.

FOXP3⁺Hel-Δ3B and FOX⁺Hel-FLCD8⁺ eTregs had similar differences in KEGG pathway expression compared with FOXP3⁺Hel-Δ3B and FOX⁺Hel-FL CD4⁺ eTregs, but unlike with the CD4⁺ eTregs, these CD8⁺ eTreg cell strains suppressed equally well in vitro. Further examination revealed there were differences in the specific genes that were changed in the common pathways altered in FOXP3⁺Hel-Δ3B compared with FOX⁺Hel-FL CD4⁺ and CD8⁺ eTregs. Thus, the specific gene expression differences in these pathways that were unique to the CD4⁺ eTregs could identify the genes important in mediating T-cell suppressive activity.

We found that both CD4⁺ and CD8⁺ FOXP3⁺Hel-Δ3B had a higher Treg signature compared with FOXP3⁺Hel-FL eTregs based on the number of genes that were differentially expressed in our Treg signature gene lists. However, based on the functional differences between FOXP3⁺Hel-FL and FOXP3⁺Hel-Δ3B CD4⁺ eTregs, it is the genes that are differentially expressed between these 2 eTreg cell strains that are critical to CD4⁺ T-cell immunosuppressive function rather than the number of genes changed. Similarly, the gene expression differences between the FOXP3⁺Hel-FL and FOXP3⁺Hel-Δ3B CD8⁺ eTregs are not critical to CD8⁺ T-cell immunosuppression, as these 2 cell strains suppress at a similar level.

Taken together, our findings indicate that the endogenous isoforms of Helios play different roles in CD4⁺ and CD8⁺ Tregs. Hel-Δ3B lacks half an exon in a zinc finger domain, which affects its ability to bind DNA. Thus, differences between the effect of FOXP3⁺Hel-Δ3B overexpression in CD4⁺ vs CD8⁺ T cells likely arises from epigenetic differences between the cell subsets and promoter accessibility. Another example of Ikaros family members playing different roles in CD4⁺ and CD8⁺ T cells is the critical role of Ikaros in CD8⁺, but not CD4⁺, T-cell development.⁵³  Investigating the differences between FOXP3, FOXP3⁺Hel-FL, and FOXP3⁺Hel-Δ3B CD4⁺ and CD8⁺ eTregs will help define which signaling pathways are critical for CD4⁺ and CD8⁺ Treg function.

In conclusion, our data show that ectopic expression of Hel-FL along with FOXP3 in human T cells results in the generation of immunosuppressive CD4⁺ and CD8⁺ eTregs. We describe differential roles for the 2 endogenous isoforms of Helios in mediating suppressive function in CD4⁺ and CD8⁺. These new findings define new roles for endogenous Helios splice variants in both CD4⁺ and CD8⁺ Tregs. These findings not only provide insight into the role of Helios and FOXP3 coexpression in Treg function but could improve current human eTreg generation protocols and increase the potential for eTregs to be used in the clinic.
