In vivo analyses of early events in acute graft-versus-host disease reveal sequential infiltration of T-cell subsets

Allogeneic hematopoietic cell transplantation (HCT) has proven to be an effective therapy for a variety of life-threatening malignancies.¹  The beneficial effects of HCT are due to the graft-versus-tumor reaction, which is capable of destroying residual tumor cells that persist after chemotherapy or radiation therapy.²  However, allogeneic HCT is limited by the immunologic recognition and destruction of host tissues, termed graft-versus-host disease (GVHD). Acute GVHD continues to be a major source of morbidity and mortality following HCT, which limits treatment of a broader spectrum of diseases, such as autoimmune diseases or organ transplant rejection.^3,4

Tissue-specific destruction of GVHD target organs, as gastrointestinal tract, liver, and skin, underlines the importance of migration capacities of alloreactive T lymphocytes.^5,6  In the current study we aimed to determine the time points of organ infiltration and focused on the role of different lymphoid organs in initiating acute GVHD. We used in vivo bioluminescence imaging (BLI) to analyze the migration pattern of whole splenocytes after transplantation into allogeneic recipients. BLI has already proven to be a sensitive and accurate means of characterizing engraftment patterns of hematopoietic stem cells, of monitoring tumor cell growth, and of assessing response to conventional and biological therapies.^7-9

We also aimed to clarify the role of different T-cell subsets during GVHD development. It is reported in the literature^10-12  that CD4⁺ effector memory T (T_EM) cells do not cause GVHD. This prompted us to characterize their trafficking and proliferation pattern in vivo, while comparing it to purified naive CD4⁺ T lymphocytes.

FVB/N (H-2^q, Thy1.1) mice and Balb/c mice (H-2^d, Thy1.2) were purchased from Jackson Laboratory (Bar Harbor, ME). The luciferase-expressing (luc⁺) transgenic FVB/N line was generated as previously described.⁹  Female heterozygous luc⁺ offspring of the transgenic founder line FVB-L2G85 were used for all transplantation experiments. All animal studies were performed under institutional approval.

The following antibodies were purchased from BD Pharmingen (San Diego, CA) and eBiosciences (San Diego, CA) and used for fluorescence-activated cell-sorting (FACS) on an LSR flow cytometer (Becton Dickinson, Mountain View, CA): CD3ϵ (145-2c11), CD4 (RM4-5), CD8α (53-6.7), CD11b/Mac-1 (M1/70), CD25 (PC61), CD44 (IM7), CD45R/B220 (RA3-6B2), CD62L (MEL14), CD69 (H1.2F3), Gr-1 (RB6-8C5), H-2K^q (KH114), H-2D^q (KH117), H-2D^d (34-2-12), LPAM-1/α4β7 (DATK32), NK1.1 (PK136), Thy1.1 (H1S51), Thy1.2 (53-2.1). Dead cells were excluded by propidium iodide staining shortly before FACS.

For transplantation of T-cell subsets, splenic single-cell suspensions from FVB-L2G85 mice were enriched with CD4-conjugated magnetic beads using the AutoMACS system (Miltenyi Biotech, Auburn, CA). After a single enrichment step approximately 80% of splenocytes were CD4⁺ before incubation with CD44–phycoerythrin (PE), CD62L–fluoroscein isothiocyanate (FITC), and CD4–allophycocyanin (APC) and sorted into naive CD4⁺ T cells (CD44^-CD62L⁺) or effector memory CD4⁺ T cells (CD44⁺CD62L^-) on a dual laser FACS (Becton Dickinson) to more than 99% purity.

FACS analyses were performed on single-cell suspensions from cervical lymph nodes (cLNs), inguinal lymph nodes (iLNs), mesenteric lymph nodes (mLNs), Peyer patches (PPs), and spleen at indicated time points after HCT. For cell proliferation analysis splenocytes (1 × 10⁷/mL) were resuspended in plain phosphate-buffered saline (PBS) and stained with Vybrant CFDA SE (carboxyfluorescein diacetate, succinimidyl ester) Tracer kit (Molecular Probes, Eugene, OR) at a final concentration of 5 μM for exactly 6 minutes at 37°C. Immediately after staining, cells were washed in 5 volumes of ice-cold RPMI plus 10% fetal bovine serum (Gibco, Life Sciences, Grand Island, NY) twice, resuspended in PBS, and counted before intravenous injection. Flow cytometric data were analyzed with FlowJo Software (Treestar, Ashland, OR).

Unseparated splenocytes (10⁵) or fluorescence-sorted T-cell subsets from L2G85 FVB/N (H-2^q) donor mice were used as responders and mixed with irradiated (3000 cGy) allogeneic Balb/c splenocytes (H-2^d) as stimulators for MLRs. Responder-stimulator ratios were chosen to be 1:0, 1:1, and 1:4. Cultures were set up in triplicates in 96-well flat-bottom plates in a total volume of 200 μL. Cells were cultured in RPMI 1640 medium with 10% fetal calf serum (FCS), 10 mM HEPES (N-2-hydroxyethylpiperazine-N′-2-ethanesulfonic acid), 1% nonessential amino acids, 2 mM L-glutamine, 100 U/mL penicillin, 100 μg/mL streptomycin (all from GIBCO), and 5 μg/mL 2-mercaptoethanol (Sigma-Aldrich, St Louis, MO). Proliferation was assessed after 5 days by pulsing the cells with 0.037 MBq/well (1 μCi/well) [³H]thymidine (Amersham Biosciences, Freiburg, Germany) for the last 16 hours. Cells were harvested onto filter membranes using a Wallac harvester (Perkin-Elmer, Shelton, CT) and the amount of incorporated [³H]thymidine was measured with a Wallac Betaplate counter (Perkin-Elmer).

To condition mice for HCT, a Phillips Unit Irradiator (250 kv, 15 milliamp) was used to deliver lethal radiation on day 0 relative to transplantation. Female 8- to 12-week-old HCT recipient mice received 2 split doses of either 400 cGy (allogeneic Balb/c recipients) or 450 cGy (syngeneic FVB/N recipients) 3 to 4 hours apart. For hematopoietic reconstitution, animals were injected with 5 × 10⁶ FVB/N wild-type BM cells intravenously within 3 hours after the second dose of radiation. To induce acute GVHD, wild-type mice were coinjected intravenously with FVB/N-L2G85 luc⁺ splenocytes or with FACS sorted T-cell subpopulations from the spleen of 8- to 12-week-old female donors or 8- to 10-month-old donors, respectively. In vivo bioluminescence imaging (BLI) was performed as previously described, using an IVIS100 charge-coupled device (CCD) imaging system (Xenogen, Alameda, CA).⁸

After in vivo BLI, mice were injected with an additional dose of luciferin (150 μg/g bodyweight, intraperitoneally). Five minutes later, animals were humanely killed. Selected tissues were prepared and imaged for 5 minutes. Tissue processing was timed to stay within a period of 3 minutes. Ex vivo BLI resulted in high-resolution images displaying signal foci within organs of interest and directed the embedding of tissues for histology as well as cell extraction for FACS analysis. Imaging data were analyzed and quantified with Living Image Software (Xenogen) and Igor (WaveMetrics, Lake Oswego, OR).

For analysis of luciferase expression in hematopoietic subsets, splenocytes were obtained from 8-week-old female luc⁺ transgenic FVB/N mice. Cell populations were FACS sorted to more than 99% purity. Cells were placed into black flat-bottom 96-well tissue culture plates and incubated in complete RPMI (Gibco Lifetechnologies, plus 1% penicillin/streptomycin, 1% L-glutamine, 10% fetal calf serum, and 0.1% mercaptoethanol) for 12 hours. Prior to imaging, 2 μL of luciferin (30 mg/mL) were added into each well containing exactly 1 × 10⁵ cells in 200 μL media. After BLI, cells were reanalyzed by propidium iodide staining and flow cytometry to exclude dead cells from the calculation of light emission per cell.

Tissues were sampled over the time course of 6 days and cryopreserved at -80°C. Fresh frozen sections of 5 μm thickness were mounted on positively charged precleaned microscope slides (Superfrost/Plus; Fisher Scientific, Hampton, NH) and stored at -80°C. The sections were initially thawed for 20 minutes at room temperature (RT). After acetone fixation (7 minutes at RT) and air drying (3 minutes), sections were incubated with blocking solution (PBS + 2% FCS) for 15 minutes. Incubations with primary antibodies were performed for 1 hour at RT. Directly conjugated antibodies were used for lineage determination of T lymphocytes (CD8-FITC and CD4-PE; BD Pharmingen) diluted 1:200 in 1 × PBS. The donor T-cell marker Thy1.1-APC (BD Pharmingen) was used 1:100 in PBS. Nuclei were stained with DAPI (4′,6-diamidino-2-phenylindole). Washing steps after antibody incubation and DAPI staining were performed in 1 × PBS (3 times, 3 minutes each). Fluorescence microscopic evaluation was performed on a Nikon microscope (Eclipse, TE 300; Melville, NY). Microscopic photos were obtained using a Spot digital camera (Diagnostic Instruments, Sterling Heights, MI). Digital images were saved as TIFF files and inserted and processed in PowerPoint (Microsoft Office, Redmond, WA). Standard magnifications were 200×/numerical aperture 0.45 and 400×/numerical aperture 0.60.

To study proliferation and migration of unmanipulated donor cells in vivo, we used a luciferase (luc)–expressing transgenic donor mouse line (designated L2G85; FVB/N background). The transgene consisted of the chicken-β-actin promoter and a dual reporter gene, comprising the coding sequences for luc and enhanced green fluorescent protein (eGFP). Splenic T cells as well as other hematopoietic cells from L2G85 donors expressed luciferase; the level of light emission was similar for CD4⁺ and CD8⁺ T cells, and was highest for CD11b⁺ populations.⁹ eGFP was only detected in a few nonhematopoietic tissues such as skin and heart muscle of newborn L2G85 mice, but not in hematopoietic cell lineages.

To characterize the acute GVHD induction potential of FVB/N splenocytes (H-2^q) in Balb/c recipients (H-2^d), we performed mixed leukocyte reactions (MLRs). FVB/N splenocytes proliferated in a similar fashion to C57Bl/6 splenocytes against Balb/c stimulators. FVB-L2G85 luc⁺ transgenic splenocytes were functionally comparable to FVB/N wild-type splenocytes (data not shown). MLR could also demonstrate that the luc⁺ transgene was not recognized immunologically (data not shown).

To establish optimal study conditions for acute GVHD we performed HCT experiments in lethally irradiated Balb/c recipients receiving 5 × 10⁶ FVB/N bone marrow (BM) cells to re-establish hematopoiesis by intravenous injection. FVB/N bone marrow alone rescued all Balb/c recipients from irradiation-induced lethality, without signs of GVHD (Figure 1A). In contrast, addition of increasing numbers of FVB-L2G85 luc⁺ splenocytes induced acute lethal GVHD in a dose-dependent manner. While most animals recovered following an injection of 5 × 10⁵ splenocytes, the majority of animals succumbed within 12 days following an injection of 1 × 10⁶ and 4 × 10⁶ splenocytes. The latter group of mice displayed all features of acute GVHD, including diarrhea, weight and hair loss, and hunched back. Since we aimed to investigate the most severe course of acute lethal GVHD, we decided to use 4 × 10⁶luc⁺ splenocytes for subsequent experiments.

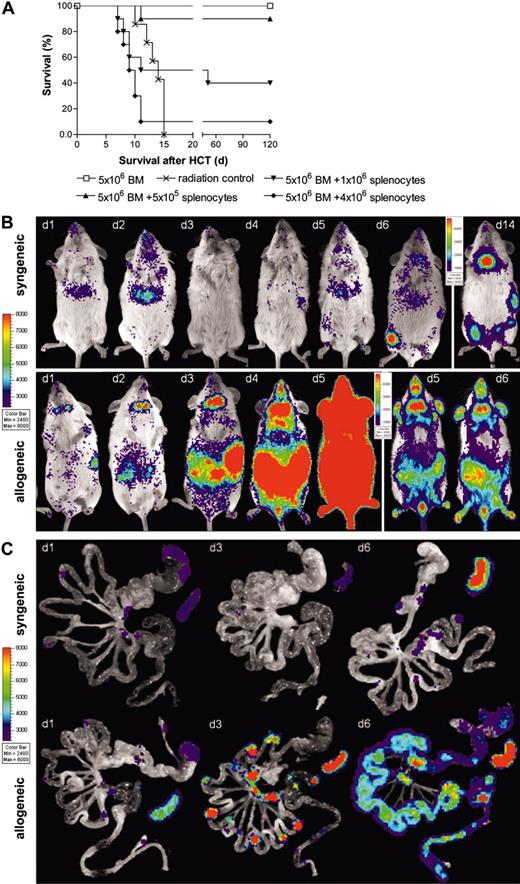

Allogeneic Balb/c recipients showed a dramatic BLI signal increase within the first 6 days after transfer of 4 × 10⁶luc⁺ splenocytes as measured by total body photon emission. BLI revealed signals from the abdominal region, the spleen, and the cervical lymph node area within 1 day after transfer (Figure 1B, lower panel). The abdominal signals rapidly increased by day 3, to become intense and uniform by day 4. This abdominal increase preceded apparent infiltration of the skin, which occurred on days 5 and 6 as indicated by BLI signals from ears and paws. Indicative of massive cell proliferation, BLI signals were extremely intense by day 5 and changes in the camera settings were necessary to accommodate the intensity (threshold increase, Figure 1B, lower panel, days 5, 6).

To distinguish homeostatic cell proliferation and engraftment from acute GVHD we simultaneously transplanted luc⁺ L2G85-FVB splenocytes plus wild-type FVB/N bone marrow cells into syngeneic recipients (FVB/N, wild type; Figure 1B, upper panel). BLI on syngeneic recipients showed waves of transient homing and proliferation over the liver in the first days after transplantation. The spleen showed weak BLI signals until day 5 after syngeneic transplantation. Starting on day 6 we observed signs of hematopoietic engraftment, predominantly in femura and pelvis and in the spleen (day 14), while distinct signals were also apparent over the thymus (day 14).

Due to dramatic signal increases over the abdomen of allogeneic recipients, we decided to investigate this compartment in greater detail. First, we established optimal conditions for ex vivo imaging of bioluminescent signals from freshly prepared organs, with a particular focus on the gastrointestinal tract (GIT). Subsequently, we humanely killed representative animals of each experimental group and prepared the GIT for ex vivo analyses (Figure 1C).

Within 12 hours after transplantation, ex vivo analyses of allogeneic GIT tissues revealed signals over Peyer patches (PPs) and mesenteric lymph nodes (mLNs; Figure 1C, lower panel). Furthermore, we observed transient BLI signals over gastric fundus¹³  and perirectal LNs. By days 2 and 3 signals dramatically increased over PPs, mLNs, the celiac patch, and spleen. By day 6 the entire GIT showed strong and diffuse BLI positivity, including small bowel, large bowel, stomach, and esophagus of allogeneic recipients. These findings correlated well with the symptoms of acute gut GVHD.

Syngeneic GIT samples on day 1 showed weak BLI signals, similar in distribution and strength to allogeneic recipients at this early time point (Figure 1C, upper panel). In contrast, BLI signals on syngeneic recipients remained weak throughout the first 5 days after splenocyte transfer. The signals were indicative of transient infiltration of lymphoid organs without signs of active proliferation or signs of GVHD. Ex vivo analysis of the syngeneic spleen confirmed a BLI signal increase, indicative of either hematopoietic engraftment or homeostatic proliferation.

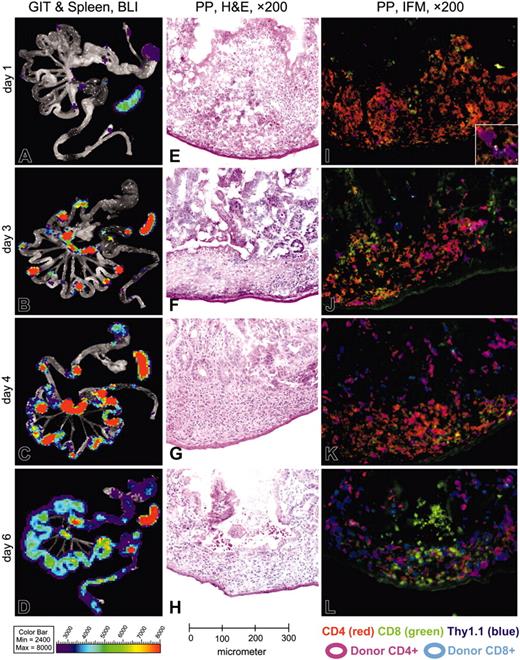

Due to the dramatic GIT involvement at early time points during acute GVHD we explored the infiltration of allogeneic donor T cells in greater detail. We used BLI to target sites for analysis by triple-color immunofluorescence. Fresh frozen sections were stained for CD4, CD8, and the donor-specific T-cell marker Thy1.1. PPs showed infiltration of CD4⁺ donor T lymphocytes in parafollicular T zones as early as 12 hours after transfer (Figure 2A,E,I). Thy1.1⁺ donor T cells were not found in subepithelial dome regions (SEDs) or B-cell follicles of PPs at this early time point (12 hours after transfer). Similarly, donor T cells showed specific homing within 12 hours to the subcortical T zones of cLNs, mLNs, and periarteriolar lymphoid sheaths (PALSs) of the spleen (data not shown). By day 3 a significant increase in BLI signals of PPs, mLNs, and the spleen was observed, suggesting proliferation (Figure 2B). Histological examination revealed that PPs were beginning to collapse and were infiltrated primarily by CD4⁺ donor T cells (Figure 2F,J). By day 4 BLI signals spread out into adjacent areas of PPs to become confluent in the aboral parts of the small bowel (ileum and jejunum; Figure 2C). A dense infiltration of donor-derived CD4⁺ T cells could now be observed in the PPs (Figure 2G,K). By day 6 complete infiltration of the small and large bowel was apparent (Figure 2D). By this time the PPs had collapsed and were now mainly infiltrated by donor CD8⁺ cells, which had also diffusely infiltrated the entire intestinal mucosa (Figure 2H,L).

We did not observe donor B-cell infiltration (CD19⁺, H-2k^q+) in PPs at any of the analyzed time points. Most PP follicles instead demonstrated radiation-induced necrosis at early time points (12, 24, and 48 hours), surrounded by foamy macrophages, which showed a high degree of autofluorescence (either cytoplasmic, or as amorphic and anuclear signals), particularly in the green color channel (Figure 2I-L).

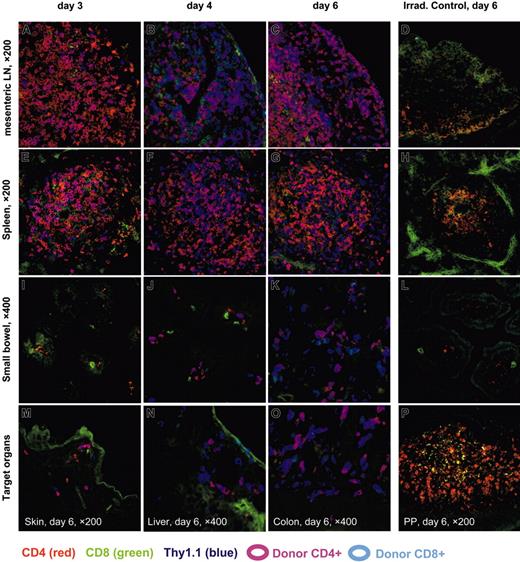

mLNs, spleen, and small bowel were also analyzed at days 3, 4, and 6 after HCT (Figure 3). On day 3, predominantly CD4⁺ donor lymphocytes were observed in mLNs, spleen (Figure 3A,E), while the small bowel was still negative for donor T cells (Figure 3I). By day 4 infiltration of donor CD8⁺ T cells became more predominant in mLNs and spleen, while the intestinal mucosa now showed infiltration by CD4⁺ donor T cells (Figure 3B,F,J).

We furthermore observed donor-cell infiltration also in other target organs of allogeneic recipients, such as skin, liver, and colon. By day 6 these infiltrates consisted of both donor-derived CD4⁺ and CD8⁺ T cells, which were often found in direct cellular contact (Figure 3M,N,O).

Control tissues of mice, which received only lethal irradiation 6 days prior to sampling, stained negative for the donor marker Thy1.1. Interestingly, PPs were the only site where CD4⁺ host T cells seemed to survive until day 6 (Figure 3P). In contrast only few weakly stained CD4⁺ host cells were found in mLNs, spleen, and intestinal tissues at this time point (Figure 3D,H,L).

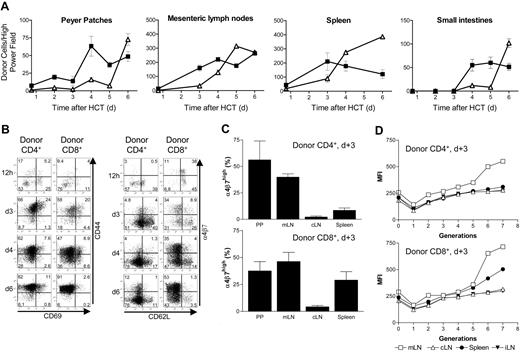

To gain further insight into the composition of the cellular infiltrates of PPs, mLNs, spleen, and small intestines, we counted the number of donor CD4⁺ and CD8⁺ T cells per microscopic high-power field (× 400). In all tissues CD4⁺ T cells preceded CD8⁺ T-cell infiltration (Figure 4A). The spleen was the first lymphatic organ to show a shift in favor of the CD8⁺ donor population, resulting in a CD4/CD8 ratio of 1:1.5 on day 4. The mLNs displayed a similar shift on day 5 equaling a CD4/CD8 ratio of 1:1.8.

To study phenotypic changes of infiltrating donor T cells we characterized the expression of activation markers such as CD25, CD44, and CD69 on donor CD4⁺ and CD8⁺ T cells. We used FACS to analyze donor-cell infiltrates in spleen, cLNs, mLNs, iLNs and PPs of animals that received transplants at specific time points (Figure 4B). Only few donor cells were identified at the earliest time point after intravenous injection (12 hours). Analysis of samples from day 3 in contrast showed an appreciable number of donor CD4⁺ and CD8⁺ T cells, of which approximately 70% to 80% expressed the activation marker CD44. By day 6 more than 93% of the donor T cells were CD44⁺. CD69 expression in contrast followed a different time course, showing highest expression (approximately 25%) on day 3, while gradually declining on day 4 and 6. These changes of activation markers on donor T cells were comparable between PPs, mLNs, cLNs, and spleen.

We also evaluated expression of the homing receptors α4β7 integrin and L-selectin (CD62L; Figure 4B, bottom panels).^14-16  In the spleen donor, CD4⁺ T cells mostly expressed CD62L but not α4β7 at early time points (12 hours and 3 days), whereas a significant proportion of donor-derived CD8⁺ T cells expressed both α4β7 and CD62L (12 hours). Over time CD62L expression was lost, while α4β7 became up-regulated. As shown by BLI and confirmed by histology, day 3 was the latest time point that alloreactive donor T cells were confined to lymphoid organs before infiltrating mucosal GVHD target sites. Therefore, detailed analysis of α4β7 expression on donor CD4⁺ and CD8⁺ T cells in different tissues was performed on day 3, since this time point appeared to be critical to the activation and homing of alloreactive T cells. Within PPs and mLNs a significant number of donor CD4⁺ and CD8⁺ T cells up-regulated the gut-homing receptor α4β7 (Figure 4C). This stood in contrast to cLNs, in which only very few α4β7⁺ cells were detected. We also found significant numbers of α4β7⁺ donor CD8⁺ T cells in the spleen. On day 6, α4β7⁺ donor T cells of CD4⁺ and CD8⁺ origin were observed in all lymphoid tissues (data not shown). Interestingly, we observed a link between proliferation stage and up-regulation of homing molecules, as demonstrated by CFSE (carboxyfluorescein succinimidyl ester) analysis (Figure 4D). Before, or possibly during the first cell cycle, donor CD4⁺ and CD8⁺ T cells down-regulated α4β7. After a phase of slow and modest up-regulation between generations 2 and 5, α4β7 integrin became highly up-regulated after the sixth cell division. This phenomenon was most pronounced in donor T cells derived from the mLN (Figure 4D).

In summary, ex vivo imaging, histology, and FACS analysis revealed the initiation of GVHD in secondary lymphoid organs. Gut-homing alloreactive T cells were shown to develop specifically in Peyer patches, mLNs, and spleen, but not in peripheral lymphoid organs such as cLNs and iLNs.

As described under “Initial CD4⁺ T-cell expansion in lymphatic organs shifts rapidly to CD8⁺ response,” above, the combination of CD4⁺ and CD8⁺ T lymphocytes contained in the transplanted splenoctytes induced acute GVHD. Furthermore, FACS-sorted CD4⁺ or CD8⁺ T cells transplanted separately both caused acute lethal GVHD (data not shown). Since GVHD initiation took place exclusively in secondary lymphoid organs, we wanted to test whether T-cell subsets incapable of entering these sites would cause GVHD. T_EM cells are a heterogeneous cell population characterized by several surface markers.^17,18  A common denominator of T_EM cells is the lack of homing receptors such as L-selectin and chemokine receptor 7 (CCR7), which are found on naive T cells and allow for migration from the bloodstream into T-cell zones of lymph nodes and Peyer patches.^19-21  The aim was to compare T_EM cells with purified naive T cells regarding their migration pattern and their potential to cause GVHD. We FACS sorted triplicates of 10⁵luc⁺ naive T cells (CD4⁺ CD44^- CD62L⁺) and T_EM cells (CD4⁺ CD44⁺ CD62L^-) into 96-well plates (Figure 5A). BLI revealed that FACS-sorted luc⁺ T_EM cells emitted 3-fold more photons/cell/second than naive T cells (Figure 5B).

Young donor mice (8-10 weeks) that are kept in a laboratory setting have a rather small T_EM-cell pool, while the naive T-cell pool is large. It is known that naive T cells have a highly diverse T-cell receptor repertoire.¹⁷  If a diverse T-cell repertoire is more likely to contain alloreactive T-cell clones, the size of this T-cell pool becomes of high importance. To this end we performed mixed leukocyte reactions in which we compared proliferation of FACS-sorted naive T cells versus T_EM cells derived from either young donors (8-10 weeks of age) or aged donors (8-10 months; Figure 5C). Naive allogeneic T cells (CD4⁺) from young and aged donors proliferated in this MLR at a comparable level to whole splenocytes. Of importance, T_EM cells from aged donors were highly alloreactive in these MLRs, in contrast to T_EM cells from young donors.

It remained to be tested whether both T-cell subsets would be capable of inducing GVHD in vivo. Therefore, we transplanted 5 × 10⁵ sorted CD4⁺ naive T cells versus T_EM cells (purity > 99%) from luc⁺ transgenic FVB/N donors together with 5 × 10⁶ wild-type bone marrow cells. Mice given transplants of naive T cells died of acute GVHD within 40 to 60 days in contrast to a 100% survival in mice that received the same number of T_EM cells from aged donors (Figure 5D). Despite the strong in vitro proliferation, T_EM cells from aged donors did not cause GVHD (Figure 5D-E). Naive T cells showed homing to PPs, mLNs, and spleen followed by a rapid expansion, comparable to BLI patterns observed after whole splenocyte transfer (Figure 5E). In contrast, T_EM cells from aged donors showed only transient homing to liver and nose-associated lymphatic tissues (NALTs) with limited T_EM cell expansion in allogeneic recipients (Figure 5E).

Histomorphologic evaluation of liver samples confirmed a severe graft-versus-host reaction on the bile ducts of mice that had received CD4⁺ naive T lymphocytes from aged donors 6 days prior, equaling a grade IV GVHD.^22-24  We observed a widespread loss of bile duct epithelia (> 80%) in these animals (Figure 5F, arrow), accompanied by a diffuse infiltration of lymphocytes in the portal triads. Furthermore, hepatocytes in these animals showed fatty changes and hydropic degeneration as potential signs of inflammation and metabolic stress. In contrast, liver samples of mice that had received allogeneic CD4⁺ T_EM cells from aged donors 6 days prior displayed intact bile ducts with regular epithelia without apoptosis (Figure 5G, arrow). We did not find any signs of inflammation within the portal triads of these mice, while hepatocytes looked normal throughout the observation period. Rarely, we found single lymphocytes in perivascular regions.

Taken together, naive T cells caused GVHD that was initiated in secondary lymphoid organs and followed by GVHD manifestation in target organs such as gut, liver, and skin. In contrast, transplanted CD4⁺ T_EM cells did not proliferate in secondary lymphoid organs in vivo and despite their alloreactivity in vitro did not cause acute GVHD.

Clinical GVHD in murine and human recipients displays remarkable tissue tropism involving primarily gut, liver, and skin.⁶  The recognition of either major or minor histocompatibility antigens followed by cellular proliferation in lymphoid organs and infiltration of GVHD target organs results in serious tissue damage. In vivo BLI allowed a comprehensive visualization of cell migration and expansion in vivo, including the infiltration of GVHD target tissues. Ex vivo BLI enabled an even more precise localization of cellular infiltrates, which allowed specific sampling of BLI-positive tissues for histology and FACS analyses. For example, PPs, which had vanished macroscopically as a consequence of irradiation, suddenly became accessible to further analysis because of BLI-guided tissue sampling.

Analyses of lymphoid organs at early time points clearly demonstrated that expansion of CD4⁺ T cells preceded CD8⁺ T cells. Allogeneic T-cell activation occurred in several lymphoid organs. After initial down-regulation of CD62L, the gut-homing receptor α4β7 integrin was up-regulated only on donor T cells in PPs, mLNs, and spleen. Occurrence of α4β7^hi T cells in the spleen during GVHD onset was recently described.¹⁶  In the spleen and in peripheral LNs α4β7^hi CD4⁺ cells represented only a small fraction. It is possible, that α4β7⁺ CD4⁺ T cells were in transition through the spleen, since we did not see a dramatic increase of α4β7^hi CD4⁺ T cells. In contrast, the increase of α4β7^hi CD8⁺ T cells from day 1 to day 6 could indicate active proliferation in the spleen itself. Interestingly, the peak of α4β7^hi CD8⁺ T cells in the spleen coincides with the onset of GIT infiltration by CD8⁺ T cells between days 5 and 6. In GVHD target organs we observed direct cell contacts between CD4⁺ and CD8⁺ donor T cells at this time, which were suggestive of cellular interactions and potential synergisms. Nevertheless, separate transplantation of purified CD4⁺ and CD8⁺ T-cell populations into Balb/c reicipients both induced lethal acute GVHD. Thus, donor CD8⁺ T-cell function was not dependent on donor CD4⁺ T cells.

A prior study has suggested a critical role for PPs in GVHD induction in animals receiving either no or sublethal irradiation.²⁵  Early infiltration of PPs was clearly demonstrated in our study, resulting in activation of donor-derived T cells; however, this function was not exclusively observed in PPs as T-cell activation was also observed in other sites. Alloreactive gut-homing T cells did not arise in PPs only but were also found in large numbers in mLNs and spleen. However, peripheral lymph nodes such as iLNs and cLNs did not show the potential to prime donor T cells for alloreactive gut homing within the critical first 3 days of GVHD initiation. This is in accordance with findings of other groups that used T-cell receptor (TCR) transgenic mouse models in vitro and in vivo.^26-29

An intravital microscopy study recently described that in addition to secondary lymphoid structures and classical GVHD target organs, nonclassical organs as kidneys, connective tissues, and brain were infiltrated by gfp⁺ donor cells.³⁰  In our study we did not find any bioluminescent signals in the kidneys or the brain during the entire observation period (up to 3 months). On the level of immunofluorescence microscopy, the kidneys were completely negative for donor-derived T lymphocytes. The only positive tissue in the head was found to be the NALT system. We never observed signals derived from the central nervous system itself. Furthermore, connective tissues were also completely negative for donor T cells on immunofluorescence microscopy and bioluminescence level.

Previous studies reported that memory T cells do not induce acute lethal GVHD, in contrast to naive T cells.^10-12  These observations were reported as comparable between minor and major mismatch transplantation models. Furthermore, memory T cells were shown to have functional graft-versus-tumor activity besides a variety of other immunologic functions.^10-12  In the present study we evaluated the trafficking and proliferation patterns of CD4⁺ naive versus T_EM cells in vivo. A likely explanation for the incapacity of T_EM cells to induce GVHD could be their distinct trafficking patterns. Strikingly, both naive and T_EM cells are potentially alloreactive in vitro. Of note, only T_EM cells from aged donors but not from 8- to 10-week-old mice, the standard age group used in most GVHD studies,¹¹  were alloresponsive in the MLRs. Interestingly there was no difference in the naive T cells from young or old donors concerning their in vitro alloreactivity. It is conceivable that human T_EM cells are more diverse than T_EM cells of young mice kept in a laboratory setting. Foster and colleagues described in a recent paper that freshly sorted human memory T cells would be less alloreactive in vitro than naive T cells.³¹  They described a statistically significant difference in proliferation comparing human naive CD4⁺ T cells to CD4⁺ T_EM cells in MLR.³¹  However, their data show that CD4⁺ T_EM cells do proliferate strongly upon in vitro allorecognition. In this light our MLR findings of alloreactive proliferation of CD4⁺ T_EM cells of aged animals are correlating well with their human data.

Furthermore, we found that the absolute number of T_EM cells in the spleen increased with the age of the donor animals (A.B., S.S., R.S.N., unpublished data). Friedman et al³²  observed less GVHD when transplanting splenocytes from aged donors. A shift from naive T cells toward T_EM cells in aged mice could explain their findings.

As a functional explanation for acute GVHD initiation, it seems very likely that access to secondary lymphoid organs is of critical importance. Naive CD4⁺ T cells fulfill this property in contrast to T_EM cells. Indirect evidence about the importance of lymphoid organs comes from studies demonstrating retainment of alloresponsive T cells to lymphoid organs during the initiation phase of GVHD.³³  In contrast, nonalloreactive donor cells had been found in the circulation soon after transplantation. Another important finding was described by Shlomchik and colleagues, who showed the capacity of host APCs to induce GVHD.³⁴  Murai and colleagues described that blocking the access to PPs could inhibit acute GVHD.²⁵  In this context our study highlights the importance for donor T cells to access secondary lymphoid organs to initiate GVHD, and gives further insights into the kinetics and timing of this process.

Other populations of CD4⁺ T cells which coexpress CD25 (T_reg) cells have been shown by a number of groups, including our own, to suppress GVHD while not eliminating graft-versus-tumor responses.⁸  Interestingly, only the CD62L⁺ subpopulation of T_regs were capable of suppressing GVHD in vivo, whereas both CD62L⁺ and CD62L^- T_regs were capable of suppressing alloreactive T-cell proliferation in vitro.^35,36  Therefore, it appears that regulatory cells need to access lymphoid organs to suppress GVHD. On the other hand, T_EM cells are alloreactive in vitro, but do not proliferate in lymphoid organs in vivo and do not cause GVHD. Patients could potentially benefit from a cotransfer of T_EM cells because of enhanced bone marrow engraftment, improved immune reconstitution, and possible increased graft-versus-tumor reaction without GVHD risk.

The present study advances the understanding of T-lymphocyte behavior after allogeneic HCT by characterizing in detail the trafficking patterns of T-cell subsets in vivo. Definition of the trafficking capacities of T-cell subsets will help to refine immune reconstitution therapies by avoiding the risk of GVHD and help to improve outcomes following allogeneic transplantation.

The authors would like to thank S. Burns-Guydish, T. Doyle, J. A. Olson, and R. T. Stovel for helpful comments and technical assistance.
