Toward clinical therapies using hematopoietic cells derived from human pluripotent stem cells

A decade has now passed since the first report describing human embryonic stem cells (hESCs) provided an important landmark in studies of stem cell biology.¹  Even that first report shows the potential to use hESCs to study hematopoiesis, because a figure of an hESC-derived teratoma showed bone elements surrounding immature hematopoietic cells. In the past decade, dozens of studies have now described the derivation of essentially all blood cell lineages from hESCs. The foundation for this work rests on decades of previous studies using mouse ESCs (mESCs) and other developmental models.^2,3  These approaches have facilitated our ability to translate basic biologic mechanisms to novel cellular therapies now routinely used for transfusions, hematopoietic cell transplantation, and cell-based immunotherapy.

The more recent development of mouse and human induced pluripotent stem cells (iPSCs) also provide other key achievements in the stem cell field.^4-10  Briefly, iPSCs are produced by reprogramming somatic cells (eg, fibroblasts) by transfer of defined genes using viral or other vectors.^9,10  Initial studies by Yamanaka^4,7  used Oct4, Sox2, Klf4, and c-Myc to derive first mouse and then human iPSCs. Thomson and colleagues⁸  found Oct4, Sox2, Nanog, and Lin28 could also produce human iPSCs. iPSCs can now be successfully produced with just 1 or 2 genes, and this gene expression can be done transiently rather than requiring stable genome integration.^9,11-17  This premise is further advanced by derivation of iPSCs with the use of protein transduction of appropriate transcription factors.^18,19  In addition, it is possible to convert many different mature cell lineages (including hematopoietic cells) into iPSCs.^20-22  In an intriguing related study, transient expression of a limited number of genes can convert one mature cell population into another mature cell population without going through an iPSC intermediary, as shown for conversion of exocrine to endocrine pancreas.²³

iPSCs have essentially the same phenotype, gene expression pattern, and developmental potential as ESCs. Mouse iPSCs can form viable chimeras and contribute to germline cells when injected into mouse blastocytes.^5,24  This demonstration that an entire mouse can be derived from a single mouse iPSC is the most stringent test of pluripotency. Human iPSCs form teratomas with contributions of all 3 germ layers (endoderm, ectoderm, and mesoderm) and have been used to produce many differentiated cell lineages.^6-8,25

Human iPSCs may provide an optimal source of patient-specific pluripotent stem cells for derivation of hematopoietic cells (or other cells of interest) suitable for transplantation without concern for immunologic barriers. Recent studies have shown derivation of hematopoietic cells from iPSCs with the same characteristics as those derived from hESCs.²⁶  Although many questions about iPSCs remain, this technology has proven to be highly reproducible and rapidly evolving to become more efficient.

This review focuses on the potential clinically relevant use of hematopoietic cells from either hESCs or iPSCs (collectively considered human pluripotent stem cells, hPSCs). However, there are several key rationale or other important applications of hPSC biology (Table 1). These other rationale include using hPSCs as models of human development and human genetics, as well as using hPSCs and their derivatives as a platform for pharmaceutical testing. These considerations are especially relevant in hematology in which many therapies using “adult” (non–hPSC-derived) cell populations such as HSCs from bone marrow (BM), peripheral blood (PB), or cord blood already exist.

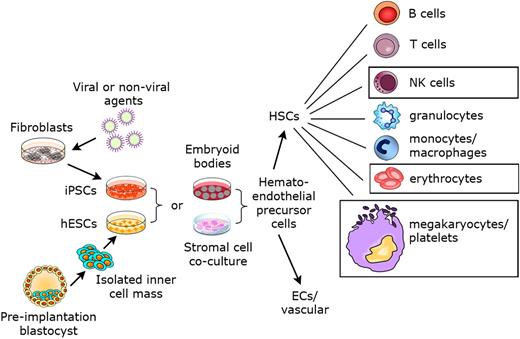

An overview of hematopoietic development from hPSCs is outlined (Figure 1). In studies that first showed hematopoietic development from hESCs, CD34⁺ hematopoietic precursor cells expressing hematopoietic transcription factors were derived using a coculture method with the murine BM cell line S17 or the yolk sac endothelial cell line C166 in the presence of fetal bovine serum (FBS), without any other added cytokines or growth factors.⁵⁷  As an important validation for the normal characteristics of the hESC-derived cells, CD34⁺ cell selection lead to enrichment of the hematopoietic progenitor cells capable of forming characteristic myeloid, erythroid, and megakaryocytic colonies from clonogenic progenitors. Hematopoietic cells derived from these colonies also expressed typical hematopoietic cell morphology and phenotype. Multiple reports have subsequently used a variety of stromal cell lines, including OP9, M2-10B4, FH-B-hTERT, and primary human BM stroma, to support hematopoietic development from hESCs.^54,58-61

More recent studies have evaluated what soluble or secreted “factors” are important for hematopoietic development in these cultures. Ledran et al⁵⁴  demonstrated that coculture of hESCs on AM20.1B4 cell line lead to increased development of severe combined immunodeficient (SCID) mouse–repopulating cells (SRCs), a close surrogate for HSCs. Further analysis showed AM20 cells produced more TGFβ than other stromal cell lines tested, and the addition of exogenous TGFβ to hESCs cocultured with other stromal cell lines had a similar effect. The ability to modify stromal cells also provides a useful means to define specific “niche factors” that regulate human hematopoiesis. For example, hESCs express Frizzled receptors for Wnt protein, and expression of Wnt1 on S17 and M2-10B4 cells leads to increased hemato-endothelial cell development from hESCs.⁵⁹  Another recent report by Bhatia and colleagues⁶²  has shown noncanonical Wnt signaling also plays key role in this system.

Embryoid body (EB)–mediated differentiation can also be used to support hematopoietic development from hPSCs. EBs have been commonly used for studies of hematopoiesis from mESCs, although the mechanics and timing of EB-mediated differentiation from hESCs is somewhat different. Initial studies using EB-mediated hematopoietic differentiation from hESCs used a combination of FBS and defined cytokines.⁶³  Numerous other studies have also used EB-mediated differentiation for development of both hematopoietic progenitor cells and more mature cell populations from hESCs.^64-66  Notably, studies by several investigators, including Elefanty's group and Zandstra's group, who use EB-mediated differentiation of hESCs, highlight methods to make EB-mediated hematopoietic differentiation of hESCs more consistent and efficient.^67-69

As emphasized, hESCs provide an unparalleled means to analyze early stages of human development that are otherwise difficult to study in a systematic manner. Several groups have characterized progenitor cells with both hematopoietic and endothelial cell potential (termed hemogenic-endothelium or hemangioblasts) from hESCs.^{59,64,66,70,71}  Although this characterization of hemato-endothelial cells from hESCs has used different hESC lines and differing methods to induce or support differentiation, the timing of development and phenotype of this cell population is reasonably similar. Bhatia and colleagues⁷⁰  first characterized a population of CD31⁺Flk1(KDR, CD309)⁺VE-Cadherin(CD144)⁺CD45⁻ cells with the use of EB-mediated differentiation. Similarly, we used stromal cell–mediated differentiation to generate CD34^bright CD31⁺Flk1(KDR)⁺CD45⁻ cells with hemato-endothelial potential.⁵⁹  Key studies by Zambidis et al⁶⁶  identified angiotensin-converting enzyme/CD143 (as recognized by the BB9 antibody) on hESC-derived hemangioblasts as not just a lineage “marker,” but also as a functionally important molecule to regulate hemato-endothelial cell development by the renin-angiotensin system. Inhibiting angiotensin-converting enzyme activity (by captopril) or blocking AGTR1 led to decreased hematopoietic development and increased endothelial cell development from hEB-derived progenitors. In contrast, blocking AGTR2 leads to a 5-fold increase in hematopoietic progenitor cells (colony-forming cells; CFCs) and increased hematopoietic development from hESC-derived BL-CFCs (clonal hemangioblast colonies). Therefore, these analyses not only provide insight into regulation of early human hematopoiesis, but they may also be applicable to clinical hematopoietic cell transplantation when prompt hematopoietic engraftment is desired and may be affected by patient medications. Keller and colleagues,⁷²  who pioneered studies to characterize development of hemangioblasts from mESCs, have also isolated 2 separate populations of cells from hESCs that meet the criteria of hemangioblast (ie, blast colonies having both hematopoietic and vascular potential).⁶⁴

The OP9 stromal cell line (genetically deficient in M-CSF production) commonly used for studies of hematopoiesis from mESCs has also been used for hESC-based studies. Vodyanik et al⁷¹  demonstrated that early progenitors committed to hematopoietic development could be identified by surface expression of leukosialin (CD43). The appearance of CD43 was found to precede that of CD45 on all types of emerging clonogenic progenitors, and CD43 can reliably separate the hematopoietic CD34⁺ population from CD34⁺CD43⁻ endothelial and mesenchymal cells. Interestingly, a population of CD34⁺CD43⁻KDR⁺ cell population with dual hemato-endothelial potential was isolated, similar to the CD34^brightCD31⁺Flk1(KDR)⁺ cell population isolated by our group.⁵⁹

With the use of stromal cell lines engineered to express mediators of canonical and non–canonical Wnt signaling, we further tested the role of Wnt proteins to provide insight into mechanisms that mediate hESC-derived hemato-endothelial cell development. Wnts are known to play a key role in many developmental pathways.⁷³  As mentioned, stromal cell expression of Wnt1 (activating canonical Wnt signaling pathway), but not Wnt5 (non–canonical Wnt signaling) lead to increased CD34^brightCD31⁺Flk1⁺ hemato-endothelial cells and CD34^dimCD45⁺ hematopoietic progenitor cells.⁵⁹  A corresponding decrease in these cell populations was shown by the inhibition of canonical Wnt signaling. Here again, the hESC system may provide insight to translate this basic biology to clinical applications.

This review highlights the development of essentially all mature hematopoietic cell lineages from hESCs. Therefore, isolation of putative HSCs from hESCs with long-term multilineage engraftment potential could be considered a straightforward goal. However, studies to date continue to find that SRCs, regarded as a close surrogate for HSCs, remain challenging to derive and characterize from hESCs. Notably, this same hurdle exists for studies of mESCs in which xenogeneic barriers are not a concern.²  Several groups have exploited strategies such as overexpression of HoxB4 or other genes in mESC-derived cells to enable development of cells capable of long-term, multilineage hematopoietic cell engraftment.^74-76  Similar strategies have been less successful for improving development of hematopoietic cells capable of long-term multilineage engraftment from hESCs.^55,77,78  These finding emphasize that understanding the role of HoxB4 and related genes in hematopoietic cell development remains incomplete.

Several studies have now evaluated the engraftment potential of hESC-derived hematopoietic cells.^53-56  The first used an intra-BM transplantation (IBMT) technique to successfully engraft hESC-derived cells in 11 of 19 mice.⁵⁵  However, evidence of human reconstitution was limited compared with umbilical cord blood (UCB)–derived cells. Interestingly, this same study was unable to show successful engraftment after intravenous (tail vein) injection of the mice with hESC-derived hematopoietic cells. Indeed, there was actually a decrease in survival of the mice after intravenous injection, probably because of aggregation of the cells after injection, resulting in pulmonary emboli.

We used both IBMT and intravenous injection of hESC-derived hematopoietic cells to demonstrate successful engraftment in the mice without any decreased survival or pulmonary emboli after intravenous injection.⁵³  These results probably reflect differences in the cell populations derived by alternative methods (by coculture with stromal cells versus by EB formation). In this study, BM analyzed 3 or more months after intravenous injection showed an average 0.69% human CD45⁺ cells, still considerably reduced compared with mice injected with cells derived from UCB. In mice in which IBMT was used, the level of engraftment was seen to be approximately 2% in the femur directly injected with the cells and essentially the same in the contralateral femur. The engrafted cells were primarily CD45⁺CD33⁺ myeloid cells; however, some CD34⁺ cells were also seen, suggesting HSC survival. Secondary transplantation studies were done to more rigorously show successful engraftment, although at a level only detectable by polymerase chain reaction (PCR) analysis in the secondary recipients. NOD/SCID mice are reported as NK-cell deficient; however, several analyses have shown that these mice retain some NK cell activity.⁵⁵  In this regard, mice treated with anti-asialo GM1 antiserum (which depletes NK cells) led to a modestly enhanced level of engraftment, probably related to lower HLA class I molecule expression on the hESC-derived progenitors compared with UCB-derived HSCs, a difference that would predispose them to NK cell–mediated lysis.

In light of the residual immunity in NOD/SCID mice, a more recent study used the more immunodeficient NOD/SCID/IL2Rγc^−/− mice.⁵⁴  Here, Ledran et al⁵⁴  also used a stromal cell coculture system and transplanted a heterogenous population of unsorted hESC-derived cells into adult recipients. Coculture of hESCs with one stromal cell line (AM20.1B4) isolated from the aorta/mesenchyme region of day 10 mouse embryos lead to higher levels of engraftment than the other stromal cell lines isolated from other developmental niches. Up to 16% of human CD45⁺ cell engraftment could be seen in the PB of some of these mice that received a transplant, although engraftment in the BM remained at only 1% to 2%. There were at least two other important findings in these studies that compared efficiency of different mouse stromal cell lines on hematopoietic development from hESCs.⁵⁴  First, the stromal cell lines that lead to the highest level of hematopoietic development in vitro did not necessarily lead to the best SRC development. For example, hESCs cocultured with the cell line UG26.1B6 produced more CD34⁺ cells and more CFCs in vitro, compared with hESCs cocultured with AM20.1B4 cells. However, the AM20-derived cells were markedly better at in vivo engraftment. Second, stromal cell expression of TGFβ superfamily members correlated with improved hematopoietic (CD45⁺ cell) development from hESCs. Addition of TGFβ1 and TGFβ3 lead to improved CD45⁺ cell development, although studies to evaluate the SRC potential of the TGFβ-treated cells were not reported.⁵⁴

Narayan et al⁵⁶  used a fetal sheep transplantation system; hESC-derived hematopoietic cells were injected in utero into the peritoneal cavity of fetal sheep at less then 65 days of gestation. Five to 17 months after birth, approximately 0.1% human CD34⁺ or CD45⁺ cells were seen in the BM and or PB. Again, this level of engraftment is deceased compared with the use of UCB-derived cells.⁵⁶  However, the low level engraftment was confirmed in the hESC studies by PCR for human DNA; BM samples were chimeric in 6 of 8 animals analyzed at 33 to 39 months after transplantation. Furthermore, human hematopoiesis in sheep that received a secondary transplant was followed for up to 22 months.

In another interesting study, hESC-derived CD34⁺ cells were transplanted into chick embryos.⁷⁹  Here, human CD45⁺ cells could be seen to develop, with highest levels in the bursa of Fabricius, including CD19⁺IgM⁺ cells consistent with B cells. Other erythroid, myeloid, and endothelial cell populations could also be identified by phenotype, although no T cells were found. Although these studies are limited to a short time course, this does provide an intriguing in vivo model for future analyses to better identify mediators of hematopoietic development and engraftment.

To produce HSCs with better long-term multilineage engraftment potential from hESCs, it is probably necessary to develop culture techniques that more closely resemble the in vivo microenvironment needed to stimulate a genetic program needed for not only the hematopoietic specification of the hESCs but also for the transition from primitive to definitive hematopoiesis. In this regard we need better understanding of the pathways involved in this complex process. Several signaling pathways, including Wnt, Notch, Hedgehog, and TGFβ/Smad, are likely to play a prominent role in this developmental process.^3,80,81  Furthermore, the in vivo environment may skew development of the hESC-derived cells, as shown by recent studies that used luciferase (luc)–expressing hESCs. Here, transplantation of luc⁺hESC-derived CD34⁺ cells that are known to have both hematopoietic and endothelial potential in vitro lead to long-term engraftment of the luc⁺ cells when transplanted into neonatal NOD/SCID/IL2Rγc^−/− recipient mice, as visualized by bioluminescent imaging. However, although the engrafted luc⁺hESC-derived cells could be seen to expand and migrate systemically to diverse anatomic regions for several months after transplantation, analysis of the surviving and expanding cells found them to be mainly endothelial cells, again with little long-term hematopoietic cell engraftment.⁸²  In another report, Lu et al⁸³  also transplanted hESC-derived cells with hemato-endothelial cell potential into xenogeneic models of vascular injury and demonstrated endothelial cell engraftment and repair, without evidence of hematopoietic engraftment.

One important and often overlooked outcome of these multiple studies concerns the safety of hESC-based therapies because of the ability of the undifferentiated hESCs to form teratomas on injection into animals. However, no teratoma formation has been seen in any engraftment studies that used hematopoietic progenitors derived from hESCs. This is despite the use of irradiated immunocompromised mice that are very susceptible to teratoma development. Although a more rigorous study would be needed to prove that transplantation of hESC-derived hematopoietic cells pose no risk of teratoma development, these studies suggest that this is the case.

Derivation of several mature cell lineages from hESCs has been a very fruitful endeavor, with potential to translate use of these cells to clinical testing sooner than HSCs derived from hESCs.

Derivation of erythroid cells from hESCs may translate into a new and safer source of RBCs for transfusions. Although millions of units of RBCs are donated and used each year, new sources of RBCs that do not require volunteer donations remain of considerable interest. These alternatives include either cell-free systems such as polymerized hemoglobin⁸⁴  or production of RBCs in bioreactor systems. Because each unit of transfused RBCs contains approximately 10¹² mature, enucleated erythrocytes, efficient development of a cellular RBC population to be used routinely on a clinical scale remains a daunting (although not impossible) obstacle. Derivation of RBCs from UCB has been done,⁸⁵  although it is unclear if a yield such as shown in those studies (∼ 3 units of RBCs from 1 donated UCB unit) is clinically feasible on a wide scale. Because hESCs can be used as a starting cell population and expanded essentially indefinitely, several studies that aim at large-scale production of RBCs from hESCs or iPSCs have been recently published.^41-43

Analysis of erythroid development from hESCs provides key biologic insight about the developmental stage of hESC-derived cells. Globin gene regulation has distinct switches during normal human erythropoiesis.⁸⁶  The α-globin locus switches from ζ-globin to α-globin expression, and the β-globin locus switches from ϵ-globin to γ-globin at approximately 6 to 7 weeks of development. Subsequently, γ-globin switches to β-globin expression around the time of birth. Of course, many human hemoglobinopathies and thalassemic syndromes result in defective or deficient globin expression and abnormal erythroid development. Models exploiting hESCs and iPSCs provide a promising approach to define molecular mechanisms that may be altered to repair these defects.³⁰

Initial studies on hematopoietic differentiation from hESCs have shown derivation of erythroid progenitor cells, as shown by their ability to form BFU-E and CFU-E colonies in a methylcellulose-based colony-forming cell assay.⁵⁷  Subsequent studies used EB-mediated differentiation with media supplemented by defined cytokines whereby VEGF and EPO improved development of erythroid cells and expression of embryonic ζ and ϵ globins, although no change in fetal/adult hemoglobin was noticed.⁸⁷  More specific analysis of globin gene expression in erythroid cells derived from hESCs used hESCs cocultured on FH-B or S17 cells.⁶¹  Analysis of mRNA expression from the β-globin locus showed that hESC-derived erythroid cells produced ϵ- and γ-globin mRNAs but only minimal β-globin expression. Over time in culture, the mean ratio of γ/ϵ increased by more than 10-fold, recapitulating the ϵ-globin to γ-globin switch but not the later γ-globin to β-globin switch. Another analysis that used both EB and stromal cell (OP9)–mediated differentiation, as well as different cytokine combinations, also showed almost exclusive expression of ϵ- and γ-globin genes, with little β-globin expression.⁸⁷

Production of RBCs from hESCs on a scale large enough for clinical use is intriguing from a therapeutic standpoint for several reasons. Blood from an hESC (or iPSC) line that was blood group O and RhD⁻ would provide a source of “universal donor” RBCs. Such hESC-derived erythroid cells would originate from a defined source selected so that it was free of infectious pathogens. Furthermore, it may be possible to engineer hESC-derived cells to have a longer “shelf-life” and be more stable in storage. Recently, 3 groups have used different methods to scale up production of erythroid cells from hESCs.^41-43  Together, these results have been impressive, not only in terms of the number of cells produced but also in the functional maturity of the cells. One study used a multistage protocol involving EB formation, defined cytokines plus a recombinant tPTD-HOXB4 protein to produce up to 10¹⁰ to 10¹¹ RBCs from one 6-well plate of undifferentiated hESCs (probably ∼ 10⁷ starting cells).⁴²  In addition, the hESC-derived erythrocytes enucleate over time in culture, show near-normal O₂–disassociation curves, and respond to 2,3-DPG and pH, similar to other RBCs.^42,43  Although considerable effort is still needed to bring hESC-derived RBCs to a scale needed for clinical trials, these efforts certainly provide a promising direction.

Platelets derived from hESCs also have the potential for transfusion medicine purposes, for much of the same safety and supply reasons as hESC-derived RBCs. Although our initial studies on hematopoietic development from hESCs showed CFU-megakaryocytes, identified by CD41 (α_IIb) staining,⁵⁷  these cells were not further characterized. Subsequently, the OP9 stromal cell coculture system was also used to generate megakaryocytes from hESCs with characteristic polyploid nucleus, cytoskeletal proteins, and ability to signal through integrin α_IIbβ₃.⁴⁴  Although that report only showed developmental maturation to the megakaryocyte stage (without platelet production), subsequent work used hESC coculture with either OP9 or C3H10T1/2 cells in the presence of thrombopoietin for longer periods of time (2-4 weeks) to generate platelets with morphology and function similar to those isolated from fresh plasma.⁴⁵

As discussed later in this review, safety of hPSC-derived cells is a key concern for clinical translation. Importantly, because RBCs and platelets do not have a nucleus and only minimal genetic material, malignant transformation of these particular cell types should not be an issue.

Although some earlier reports suggested development of lymphocytes from hESCs based on limited reverse transcription–PCR analysis or surface staining for markers such as CD3 (T cells) or CD19 (B cells),^46,60  studies to derive NK cells were the first to show development of functional lymphocytes from hESCs.⁴⁷  A 2-step culture method was used to support development of CD56⁺CD45⁺ hESC-derived lymphocytes that function like mature NK cells. Specifically, these hESC-derived NK cells express killer cell Ig-like receptors, natural cytotoxicity receptors, and CD16, and they were able to lyse human tumor cells by both direct cell-mediated cytotoxicity and antibody-dependent cellular cytotoxicity.⁴⁷

More recently, we have extended these studies to show killing not only of leukemia cells but also prostate cancer, lymphoma, glioma, germ cell tumor, and breast cancer cell lines by hESC-derived NK (hESC-NK) cells.⁸⁸  To advance these studies to a more relevant preclinical system, the in vivo activity of hESC-NK cells was investigated in a xenogeneic mouse model. All mice treated with hESC-NK cells showed complete clearance of the primary tumor 2 weeks after tumor inoculation. In contrast, mice treated with UCB-derived NK (UCB-NK) cells had significantly less antitumor activity in vivo. Some mice treated with hESC-NK cells were monitored up to 8 weeks with no evidence of tumor development, showing complete tumor eradication after just one injection of hESC-NK cells. Furthermore, tissues were analyzed for the presence of micrometastasis, finding a significant reduction of metastases in the hESC-NK–treated animals. These results suggest that hESC-NK cells are capable of clearing human tumor cells in vivo more effectively than UCB-NK cells.

We postulated several potential mechanisms to account for the increased killing of tumors by the hESC-NK cells compared with UCB-NK cells. Analysis of homing receptors on the 2 cell populations did not show any significant differences, and studies to determine whether there was increased in vivo survival of the hESC-NK cells were inconclusive. Instead, we found a significant difference in the phenotype of the hESC-NK and UCB-NK cells based on expression of the receptor tyrosine kinase CD117 and the c-type lectin receptor CD94. Interesting studies find CD117⁺CD94⁻CD56⁺ NK cells represent an immature stage whereby the cells have committed to the NK-cell lineage but lack expression of NK-cell receptors and have no cytotoxic capacity. In contrast, a second population of more mature NK cells can be identified that are CD117^−/lowCD94⁺ cells and acquire NK receptors, cytolytic activity, and IFNγ production.^89,90  Notably, UCB-NK cells are a heterogeneous population with both immature CD117⁺CD94⁻ and mature CD117^−/lowCD94⁺ NK cells.^88,89  In contrast, hESC-NK cells are a homogeneous population of mature CD117^−/lowCD94⁺ NK cells.⁸⁸  This suggests that, although cytolytic cells are generated from UCB progenitors, the proportion of mature and functional cytolytic NK cells is higher from the hESC-derived progenitor cells. This probably accounts for increased antitumor activity by hESC-NK cells.

Studies of T-cell development from hESCs have also lead to interesting and surprising results. Work by Galic et al⁴⁸  initially used OP9 stromal cells to differentiate GFP-expressing hESCs into CD34⁺ and CD133⁺ cells that were injected into human thymic tissues engrafted into immunodeficient mice (SCID-hu mouse model). These hESC-derived T cells expressed surface antigens such as CD4, CD8, CD1a, and CD7 typical of T cells. More recently, this group has used EB-mediated differentiation to also derive T-cell progenitor cells, as assayed in the SCID-hu model.⁴⁹  These studies also showed function of the hESC-derived T cells based on increased expression of CD25 after CD3/CD28-mediated activation. Although these studies clearly show development of hESC-derived T cells, the engraftment of these cells derived in the SCID-hu model is typically 1% or less, as measured by GFP⁺ cells. In contrast, previous studies that used SCID-hu mice to derive T cells from human BM, UCB, or fetal liver would be expected to have significantly higher levels of engraftment.⁹¹  These results suggest some inhibition or unexplained inefficiency in the development of hESC-derived T cells in this model.

To study hESC-based T-cell development in an in vitro model that might allow more access to developing cells and manipulation of conditions that support or inhibit development of these cells, we used the Notch ligand–expressing OP9-DL1 stromal cells that have been used to derive T cells from multiple progenitor cell populations such as human BM, UCB, and mouse ES cells.^92-95  Surprisingly, the same hESC-derived CD34⁺CD45⁺ cells that effectively produce NK cells from hESCs were unable to produce T cells in this in vitro system. Use of fetal thymic organ culture also failed to produce T cells, although both the OP9-DL1 stromal cells and fetal thymic organ culture system effectively produced T cells from UCB.⁹²  In addition, we also explored derivation of B cells from hESC-derived CD34⁺CD45⁺ cells with the use of different stromal cells lines and cytokine combinations, but again we failed to demonstrate effective B-cell development in the in vitro cultures that worked well from UCB progenitor cells.⁹²

To identify potential mechanisms that may account for effective development of NK cells from hESC-derived progenitor cells, but inhibit development of mediators or adaptive immunity (T and B cells), we evaluated the expression of ID family genes in the hESC and UCB populations. ID genes encode for helix-loop-helix proteins that regulate many developmental pathways by the interaction with E proteins and other bHLH transcription factors.⁹⁶  We found that undifferentiated hESCs expressed all 4 ID family members (ID1-4), and differentiation of the hESCs even further stimulated ID2 and ID3 expression.⁹²  In contrast, UCB progenitor cells had only low levels of ID2 expressed and no ID3. In addition, E2A-responsive gene expression is inhibited in the hESC-derived cells, as would be expected by the function of more highly expressed ID proteins. Notably, several studies have shown ID2 and ID3 expression in mouse and human lymphoid progenitor cells promotes NK cell development and inhibits B- and T-cell development.^97-100  Therefore, the in vitro conditions used to culture undifferentiated hESCs, as well as to promote hematopoietic differentiation (eg, with serum or BMP4), may induce ID expression and skewed lymphoid development of the hESC-derived cells toward NK-cell and away from T- and B-cell development. In addition, SLUG, a gene known to be activated by SCF-mediated signaling, is also more highly expressed in hESC-derived CD34⁺CD45⁺ cells than in similar cells from UCB.⁹²  Because this SCF/c-kit–SLUG pathway stimulates NK-cell expansion, the presence of SCF and/or activation of this signaling pathway by other agonists probably also promote NK-cell growth from hESC-derived progenitor cells. These findings provide an important lesson for clinical translation of hESCs, because the hESC culture conditions may mediate unrecognized effects on the quantity or quality of mature cells of defined lineages that may be of interest for novel therapies.

Recently, Timmermans et al¹⁰¹  demonstrated in vitro development of T cells from hESCs with the use of a different hESC line (H1) and a different stromal cell line (OP9) to mediate differentiation. In addition, they demonstrated that a specific population of CD34⁺CD43^low cells that were present in hematopoietic zones morphologically similar to blood islands were uniquely suited to produce T cells when cultured on OP9-DL1 cells with a cocktail of cytokines. This promising study suggests a process to use hESCs to generate T cells for novel immunotherapy. However, additional work is needed to better understand the differences between hESC lines and/or culture conditions that may effect the development of T cells in this system.

CFC assays to quantify hematopoietic progenitor cells have been perhaps the most useful means to show the development of bona fide hESC-derived hematopoietic cells,⁵⁷  because other tests such as surface antigens tested by flow cytometry and gene expression evaluated by reverse transcription PCR are not always completely specific for hematopoietic cell properties. Subsequently, several studies have evaluated more specific means to produce and characterize hESC-derived monocyte/macrophages and granulocytes. In an initial report about producing more purified macrophages from hESCs, CD34⁺ cells derived by S17 stromal cell–mediated culture were isolated. These hESC-derived CD34⁺ cells were sorted and cultured with defined cytokines to generate macrophages. The hESC-derived macrophages could be cultured in bulk and displayed functions including phagocytosis, up-regulation of the costimulatory molecule B7.1, cytokine secretion in response to lipopolysaccharide stimulation, and maintenance of productive HIV infection.¹⁰²  Another study used EB-mediated differentiation of 3 different hESC lines to first produce monocytes then mature macrophages with defined cytokines in a 3-step culture process.⁶⁵  Although demonstration of granulocytes from hESCs is common with CFC assay conditions,⁵⁷  2 studies produced a highly enriched population of neutrophils by a 2-step culture system with partially defined conditions (feeder-free, but with serum).^103,104  These neutrophils were characterized based on morphology, surface antigen and gene expression, as well as phagocytosis and in vivo chemotactic activity.

Dendritic cells (DCs) are principle antigen-presenting cells that trigger and support immune responses. One study by Cheng's group used EB-mediated differentiation to derive both functional DCs and macrophages.⁴⁶  These antigen-presenting cells expressed high levels of HLA class II molecules and were able to stimulate mixed leukocyte reactions as an in vitro measure of immune activity. A second study by Slukvin et al⁵⁰  used the OP9 coculture to promote differentiation of hESCs into myeloid DCs. Function was shown by antigen (ovalbumin) uptake and processing, as well as well by the ability to stimulate allogeneic and antigen-specific T-cell responses. Other studies have also shown similar development of hESC-derived DCs also using OP9 cell coculture, but with different cytokines, or in a stromal-fee system that might be more amenable to clinical translation.^51,52

The derivation of iPSCs from mouse and then human somatic cells is yet another key landmark in stem cell biology.^4-8  Although this review does not detail technical aspects of iPSC production, the ability to now to produce iPSCs with transient gene expression and by combined use of drugs or small molecules with just 1 or 2 transgenes and without need for stable integration of the transgenes is a key development.^11-17  These advances foreshadow an expected means to produce iPSCs without any gene transfer, instead relying on defined exogenous agents to reprogram differentiated cells into a pluripotent cell population, an advance very recently described to generate mouse and human iPSCs solely using protein transduction.^18,19  Although the efficiency of iPSC production may be reduced with the use of fewer transgenes, it is quite easy to treat 10⁶ or more cells with agents that lead to iPSC development. Therefore, even low-frequency events should readily lead to iPSC outgrowth.

Although iPSCs offer many potential advantages (detailed in part below), they may not be optimal for some purposes. Specifically, hESCs will probably remain the preferred starting point for studies of normal human development, because it is certainly not “normal” for a somatic cell to be reprogrammed to a pluripotent state. Consequently, using iPSCs as a starting point to determine genes, proteins, and other stimuli that mediate differentiation into defined cell lineages may be less accurate or helpful than starting from hESCs. In addition, safety concerns for iPSCs are still the same as for hESCs, because by definition iPSCs are able to form teratomas. However, iPSCs offer an unparalleled means to study human genetic disease and to evaluate how defined mutations may affect developmental pathways. Therefore, although hESCs provide a “gold standard” for human pluripotent stem cells, hESCs and iPSCs offer complementary opportunities.

Cure of a mouse model of human sickle cell anemia shows how human iPSCs may lead to new combined cell and gene therapies. Here, fibroblasts from a mouse carrying homozygous expression of the human β-globin sickle cell gene were made into iPSCs. The β^s mutation was then corrected in these iPSCs, and those β^s-expressing cells corrected to be normal β^A-expressing cells were then made into hematopoietic cells by EB formation, HoxB4 was expressed in these cells to allow successful engraftment and an effective cure for the affected β^s mouse.³⁰  Similar cures have now been achieved for the mouse model of hemophilia,³¹  as well as nonhematologic diseases.³²  Translation of these strategies to treat human genetic disease is inevitable,^33,105  although the same barriers that exist for bringing hESC-based therapies to clinical reality also certainly apply to iPSC-based therapies. In addition, for autoimmune diseases such as type 1 diabetes, it is unclear whether iPSCs are an optimal starting cell population, because they would still be subject to the underlying autoimmune process, although immune suppressive or immune-evasive strategies can be proposed for iPSCs, much like for hESCs.^106,107  Remarkable work showing the potential to directly convert 1 mature cell population to another without the need to go through an iPSC intermediate, as was shown for conversion of exocrine to endocrine pancreas,²³  provides another therapeutic pathway.

Hematopoietic cell development from human iPSCs was shown in one of the initial studies.⁶  In addition, Slukvin's group²⁶  has more closely analyzed hematopoietic development from several iPSC lines. Although there is variation between the lines, the overall developmental pattern based on phenotype, gene expression, and production of CFCs is essentially the same as for hESCs.²⁶  Because these studies have found significant differences in developmental potential of iPSCs derived from the same person, an unknown question is how many iPSC lines are needed from a person if they are to be used for therapeutic purposes.

It is also unclear how similar or how different hESCs are in their ability to efficiently produce specific cell populations. An important study by the International Stem Cell Initiative compared phenotype, gene expression, and imprinting of 59 hESCs lines produced by 17 different groups.¹⁰⁸  This analysis showed that overall the undifferentiated hESCs were quite similar to one another, although some differences, especially in imprinted genes, were noted. However, Melton's group¹⁰⁹  evaluated 17 different hESC lines induced to differentiate by EB formation. They analyzed representative gene expression for the 3 germ layers and 8 derivative organs and found significant differences between the hESC lines.¹⁰⁹  Similar variation between hESC lines was described in a more detailed study of cardiac differentiation.¹¹⁰  Additional rigorous analyses are clearly needed that use functional studies and not just phenotype or limited gene expression to compare the developmental potential of different hESC lines, as well as how iPSCs compare with hESCs.²⁶

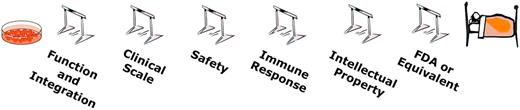

Within a decade, we have moved from the initial derivation of hESCs to approval by the Food and Drug Administration (FDA) of the first clinical trials with hESC-derived cells. These initial trials will evaluate oligodendrocyte cells or progenitors for patients with spinal cord injury.¹¹¹  This is indeed a remarkable achievement to initiate trials of these novel therapies for diseases or disorders such as spinal cord injury in which there are currently no effective therapies. However, there are still several barriers that will be important to overcome for clinical trials of hPSC-derived cells to be effective. Although these barriers hold true whether treating disorders such as spinal cord injury or other conditions, there are some barriers that may be more relevant for clinical trials of hematopoietic cell therapies from hPSCs (Figure 2).

It is not enough to produce cells from hPSCs of appropriate phenotype and gene expression patterns to be used for clinical purposes. Cells used for clinical therapies must have proper function and will have to integrate or interact appropriately with an injured or diseased environment. In some respects, hematopoietic cells that primarily exist in the blood and BM do not integrate with their environment. However, HSCs still have to mature in a defined hematopoietic cell niche, and potentially therapeutic cells such as lymphocytes have to recognize appropriate targets through receptor repertoire as well as properly home to areas of disease or injury. hPSC-derived cells must also reach an appropriate degree of functional maturity. Several lineages, including cardiomyocytes, pancreatic endoderm cells, and hematopoietic cells derived from hESCs, have embryonic/fetal developmental characteristics rather than fully adult characteristics.^61,112,113  For example, as described, erythroid cells derived from hESCs primarily express ϵ- and γ-globin and relatively little β-globin. Of course, RBCs that express fetal globins can still be functional (and, in fact, may be particularly desirable in conditions such as sickle cell anemia), but they are not the same as typical adult erythroid cells.

Administration of novel cell products will obviously be an area of key consideration for clinical use of hPSC-derived hematopoietic cells, whether they be HSCs, RBCs, platelets, or lymphocytes. It is fortunate that these cells can probably be administered systemically by intravenous method as is standard for current transfusion therapies and hematopoietic cell transplantation. Even antitumor lymphocytes are routinely infused systemically, with no apparent need or benefit to directly inject cells at sites of persistent malignancies. Other related cell populations such as endothelial cells may need to be injected at local sites of ischemia (cardiac or peripheral vascular disease), as has been done for clinical trials of other cell-based therapies for ischemia.

The number of cells necessary for specific therapies will clearly depend on the underlying disease or condition being treated. The number of glial cells needed for spinal cord injury or the number of retinal-pigmented epithelial cells required to treat blindness caused by macular degeneration is approximately 10⁵ to 10⁶. This is a scale that is readily achieved in a single culture dish or flask. However, for some hematopoietic cell therapies, especially development of RBCs for transfusion medicine, the number of cells needed is enormous. Each unit of RBCs contains approximately 10¹² enucleated, mature RBCs. Although considerable efforts have been made to derive erythroid cells suitable for transfusions from hESCs, the scale required will probably require novel bioengineering methods. How long it will take to routinely and efficiently achieve the numbers of hESC- or iPSC-derived cells for immunotherapies or transfusion therapies remains a matter of speculation. However, this field is moving ahead rapidly. If, as expected, the initial trials of hESC-derived oligodendrocyte progenitor cells for spinal cord injury show safety and, potentially, some clinical success, then the impetus for other therapies will grow. With the progress reviewed here, and in recognition of the outline obstacles, it is possible for hES- or iPSC-derived hematopoietic cells to begin clinical trials in the next 3 to 5 years.

Investigators have expressed concern about the possible development of teratomas or other tumors from undifferentiated hESCs that might be transplanted along with the more mature functional tissue. Obviously, no trial would use undifferentiated hPSCs known to lead to teratoma development. Indeed, almost no preclinical test in which hESC-derived cells were transplanted into immunodeficient animals has shown teratoma development in a system in which these tumors would probably be evident.^53,54  However, one study in which differentiated neuronal cells were transplanted into a rat Parkinson disease model did show that some animals developed neuroectoderm tumors.¹¹⁴  Of course, other “adult” cell-based therapies also confer the risk of tumors such as sarcomas that can develop from mesenchymal stem cells,¹¹⁵  and even in clinical hematopoietic cell transplantation, donor-derived leukemia can develop on occasion.¹¹⁶  Therefore, although safety of the hPSC-derived cells is of utmost concern, this risk will have to be weighed against the potential benefits of the therapy being administered.

Because most hESC-derived cells have been tested in preclinical models using immunodeficient mice and rats, the actual immune response against the hESC-derived cells is difficult to determine. Cells derived from hESCs would almost certainly be an allogeneic tissue source and be subject to typical immune rejection.¹¹⁷  Recent studies have shown that hESCs and hESC-derived cells can be rejected by a T cell–mediated process,¹¹⁷  and other studies have shown that immune effectors (NK cells) can also mediate rejection of hESC-derived hematopoietic cells that may have low levels of HLA class I expression.⁵³  Multiple methods have been proposed to inhibit the host immune response against these transplanted tissues.^106,107  These options range from standard pharmaceutical immunosuppressive drugs to using the novel properties of hPSCs to allow potentially more creative and effective means to prevent immunorejection such as decreasing HLA expression or promoting expression of immunosuppressant molecules. For clinical use of iPSCs, these can be derived from an autologous cell source, and host immune rejection would not be an expected issue. Of course, for some therapies such as pancreatic endocrine cells given to patients with type 1 diabetes, the ability of these patients to still have an underlying immune response against the islet cells needs to be considered. In addition, allogeneic lymphocytes from hESCs may be preferable to autologous lymphocytes from iPSCs to better mediate antitumor or other beneficial immune responses.

The FDA must approve clinical trials of hPSC-derived cells performed in the United States. Similar regulatory bodies will need to approve trials in other parts of the world. These regulatory bodies will not only be concerned with the safety of the cells but also with standard, clinical grade cell production (GMP methods).¹¹⁸  In many cases this has been inferred to mean avoidance of xenogeneic tissue such as murine cells that are used for maintenance of undifferentiated hPSCs, or stromal cell lines that are commonly utilized to induce differentiation. Notably, use of stromal cells and serum does not preclude the use of the cells for clinical trials. Indeed, the initial trials of oligodendrocytes from hESCs for spinal cord will use hESCs that were derived on mouse embryonic fibroblasts and cultured for at least a time with FBS. Other cell-based clinical therapies such as keratinocytes grown for the treatment of burns use mouse stromal cells and FBS. This treatment for severe burns (used in over 1000 patients) is now FDA approved and available as Epicel. Therefore, although there is strong interest to develop cell-free and serum-free methods for hESC growth and differentiation, the use of xenogeneic reagents does not, in and of themselves, preclude translation to clinical therapies. Another regulatory issue to consider will be intellectual property rights. This is a complex area within the stem cell and hPSC literature and beyond the scope of this review. Although business and other interests should be considered and appropriately accommodated, these considerations should facilitate and not inhibit clinical translation of hPSCs as these therapies move to the clinic. Importantly, intellectual property issues may differ in areas of the world, such that the European patent office has not approved a patent on hESCs.

Hematologists have been using hematopoietic stem cells to cure malignant and nonmalignant hematologic diseases for more than 40 years. Therefore, the study and clinical use of stem cells are not a new concept. However, the derivation of hESCs and the remarkable ability to induce pluripotency from somatic cells has captured both the imagination of the public and scientific communities. These PSCs present both new opportunities and challenges for novel cell-based therapies. A decade of studies with hESCs has produced remarkable progress, despite some political inhibition. The recent change in the US federal policy to permit federal (National Institutes of Health) funding for a greater number of hESC lines will accelerate the momentum of this work. In addition, work by organizations such as the US National Academies of Science and the International Society for Stem Cell Research to provide policy recommendation for oversight of hESCs and other new stem cell research and clinical translation are extremely beneficial in setting uniform standards.¹¹⁹  As clinical trials of hPSC-based therapies are now being initiated to better treat and cure diseases, it is now paramount to define the efficacy and safety of the novel therapies. The clinical need for new and better therapies remains greater than any barriers and unanswered questions. The next few years will undoubtedly continue to produce great strides to move hematopoietic cells derived from hPSCs to new clinical treatments and cures.
