Axl, a prognostic and therapeutic target in acute myeloid leukemia mediates paracrine crosstalk of leukemia cells with bone marrow stroma

Axl represents a member of the TAM family of receptor tyrosine kinases (TAMRs), which consists of Tyro3 (Sky/Rse), Axl (Ufo/Ark), and Mer (Eyk). Axl has transforming properties because overexpression of a truncated version in premalignant cells induces tumors in mice.⁵  In line with these data, Axl is overexpressed in different (solid) cancers.^6-10  Its ligand, growth arrest–specific gene 6 (Gas6) exerts pleiotropic effects in pathobiology: it amplifies platelet aggregation during thrombus formation,^11,12  enhances erythropoiesis,¹³  and increases leukocyte extravasation in inflammatory conditions,¹⁴  among other functions.^2,15  Furthermore, Gas6 promotes proliferation and survival of different cancer cell lines in vitro.^16,17  In vivo, tumor cells can educate tumor-infiltrating myeloid cells to express Gas6, which in turn fosters their proliferation.¹⁸

Members of the TAMR family are abundantly expressed in physiological and malignant hematopoiesis.^19,20  Evidence in literature links Axl to acute myeloid leukemia (AML) pathobiology²¹  and therapy resistance.²²  Recent work demonstrated that Axl phosphorylation is important for FLT3 activation and that Axl inhibition suppresses the growth of human FLT3-positive AML in vivo.²¹  Furthermore, Axl expression conferred worse prognosis to AML patients.²³  However, the latter analysis was carried out in a limited number of (n = 19) AML patients. In contrast to Axl, much less is known about the role of the common TAMR ligand Gas6 in AML. Furthermore, a systematic study about prognostic relevance of Gas6 and TAMR has not been carried out until now.

In the present study, we provide evidence for an independent prognostic role of Axl in AML. In addition, the clinically applicable small molecule Axl-inhibitor BGB324 selectively inhibits Axl⁺ AML independent of FLT3 mutational status. Functional studies point toward a role of stroma-derived Gas6 in chemoresistance of AML cells. Altogether, our data indicate an important role of stroma-derived Gas6 in AML.

All animal experiments were carried out according to institutional guidelines for the welfare of animals and were approved by the local licensing authority (Behörde für Soziales, Gesundheit, Familie, Verbraucherschutz; Amt für Gesundheit und Verbraucherschutz, Hamburg, Germany, project numbers 111/10 and 53/12).

All studies with human samples were carried out in accordance with the Declaration of Helsinki with approval of the local ethical committee (approval numbers PV3997 and PV4107).

Detailed methods are provided in the supplemental data on the Blood Web site.

Animal models were performed as published.^24-26

We used material from patients with primary diagnosis of cytogenetically normal (Cn) AML included in the multicenter treatment trial AML SHG0199 (www.clinicaltrials.gov #NCT00209833).

Cell lines were maintained under standard conditions and assays were performed as described elsewhere.^18,27

Immunoblots were carried out as described elsewhere.²⁸

Quantitative reverse transcription-polymerase chain reaction (qRT-PCR) was performed as described elsewhere.²⁷  For primer sequences, refer to supplemental Table 5.

Experiments were performed according to standard protocols.²⁷

Cloning of lentiviral gene ontology vectors and lentiviral transductions were performed as described elsewhere.^29-32  For primers, refer to supplemental Table 5.

Data represent mean ± standard error of the mean (SEM) of representative experiments, unless otherwise stated.

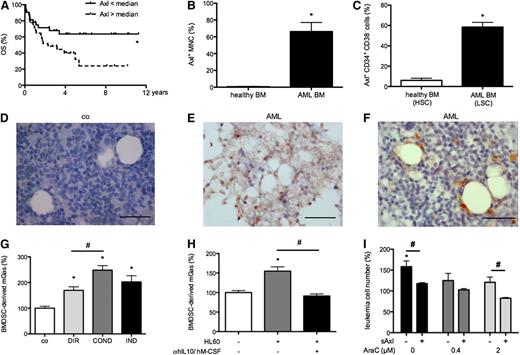

We first studied the prognostic impact of Gas6 and TAMR messenger RNA (mRNA) expression in a cohort of uniformly treated cn AML patients (n = 112) (AML SHG0199; www.clinicaltrials.gov #NCT00209833; for patient characteristics, see supplemental Table 1). We found expression of Axl, Tyro3, Mer, and Gas6 in 57%, 79%, 85%, and 90% of patients, respectively. Upon correlation of expression data with survival data, patients expressing Axl above the median showed a significantly shorter overall survival (OS) than patients expressing Axl below the median (Figure 1A). Tyro3, Mer, and Gas6 lacked prognostic impact in univariate analysis. Axl expression levels represented an independent prognostic factor for OS after correcting for established prognostic factors in multivariate analysis (Table 1). Of note, age was not prognostic in our cohort, which might be explained by the limited patient number resulting from sample availability. Axl expression levels were independent of patient age, French-American-British type or different mutations with prognostic implications (supplemental Table 2). Adjusting for the time-dependent covariate of bone marrow (BM) transplantation (BMT) indicated no influence of BMT status on prognostic impact of Axl (P = .27).

Next, we investigated Axl protein expression in AML BM compared with healthy BM (n = 19/6) by flow cytometry. These analyses indicated (1) presence of Axl protein in 63% of patients (n = 19); (2) higher Axl expression by AML mononucleated cells (MNCs) compared with healthy MNCs (Figure 1B); (3) Axl expression by 73 ± 7% of AML blasts (n = 8); and (4) higher expression of Axl by CD34⁺CD38⁻ AML stem cells compared with healthy CD34⁺CD38⁻ BM stem cells (Figure 1C). Finally, we analyzed distribution of Axl ligand Gas6 in BM sections of AML patients and controls (n = 7/5). We found that Gas6 expression was low in AML cells, similar to healthy hematopoietic cells. In contrast, Gas6 was abundant in AML BM stromal cells with fibroblastic/mesenchymal morphology (referred to as BMDSCs), whereas its expression was lower in control BMDSCs (Figure 1D-F). Osteoblasts and endothelial cells exhibited similar Gas6 levels in AML patients compared with controls, whereas fewer osteoclasts expressed Gas6 in AML (supplemental Table 3). Thus, Axl represents a therapeutic target upregulated by AML cells, whereas expression of its ligand becomes increased in AML BM stroma.

Determination of Gas6 and Axl mRNA and protein expression levels in different AML cell lines revealed that, similar to our observations in AML patients, most cell lines expressed Axl, whereas expression of Gas6 was restricted (supplemental Table 4). Congruent with the patient data, Gas6 was secreted by different BMDSC cell lines (S17, OP9) as well as by primary murine BMDSCs (supplemental Table 4). We focused on 2 Gas6⁺ cell lines (MV4-11, OCI-AML5) and 1 Gas6⁻ cell line (HL60) to dissect impact of autocrine vs paracrine Gas6 supplied by BMDSCs on AML biology.

Interestingly, upon culture of human Gas6⁻ HL60 cells or Gas6⁺ MV4-11 cells on top of S17 or OP9 cells (direct coculture) or separated by inserts (indirect coculture), Gas6 was specifically upregulated in stromal cells, whereas its levels remained essentially unchanged in AML cells as demonstrated by species-specific ELISAs. Gas6 upregulation in BMDSCs also occurred following incubation with AML cell–conditioned medium (Figure 1G; supplemental Figure 1A-B; and data not shown), suggesting a role for soluble mediators. Therefore, we investigated expression of interleukin-10 (IL-10), IL-4, and macrophage colony-stimulating factor (M-CSF), soluble candidate cytokines implicated in Gas6 upregulation in other cell types,^18,33  in BMDSCs, and in AML cells by species-specific qRT-PCR after coculture. We found that HL60 cells upregulated IL-10 and M-CSF, but not IL-4 upon coculture with stromal cells (supplemental Figure 1C). qRT-PCR revealed that BMDSCs expressed IL-10 receptor as well as M-CSF receptor (data not shown). Subsequently, we added human IL-10 and hM-CSF function-blocking antibodies to the cocultures and found that the presence of both anti–hIL-10 and anti-hM-CSF attenuated mGas6 upregulation, whereas each antibody alone had no effect (Figure 1H). Interestingly, this stroma-derived Gas6 was partially responsible for the well-known protective effect of BMDSCs on AML cells^34-36  because the pro-survival effect of S17 and OP9 cells on HL60 cells was reduced by sAxl, a Gas6-neutralizing “trap” molecule (supplemental Figure 1D).³⁷  In addition, we found that Gas6 contributed to the chemoprotective effect of BMDSCs on AML cells because sAxl decreased their pro-survival effect upon treatment with cytarabine (Figure 1I). Thus, AML-mediated M-CSF and IL-10 instructs BMDSCs to secrete Gas6, which supports tumor growth and chemoresistance.

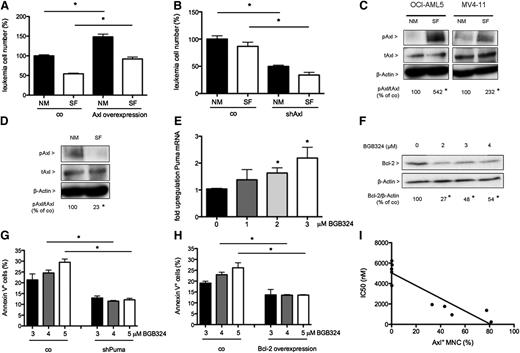

Based on these data and on the improved survival of patients expressing low Axl levels, we hypothesized that Axl receptor signaling plays a role in AML pathobiology and chemoresistance. Indeed, presence of Axl confers a growth advantage to AML cells because overexpression of Axl increased numbers of viable cells in comparison with controls, whereas its downmodulation had the opposite effect, in concordance with published literature (Figure 2A-B; supplemental Figure 1E).²¹  In conditions mimicking adverse conditions in the leukemia microenvironment by serum starvation, Axl phosphorylation was increased in Gas6⁺ MV4-11 and OCI-AML5 cells (Figure 2C). Furthermore, treatment of Gas6⁺ AML cells (MV4-11, OCI-AML5) with different concentrations of doxorubicin or cytarabine induced upregulation and increased phosphorylation of Axl in agreement with published data (supplemental Figure 1F and data not shown).²²  In contrast, Gas6⁻ HL60 cells did not show enhanced Axl phosphorylation upon chemotherapy and decreased Axl phosphorylation when, after serum starvation, no exogenous Gas6 was present (Figure 2D). Thus, autocrine or paracrine presence of Gas6 might be required for Axl (hyper)activation in AML cell lines. Altogether, we concluded that blockade of Axl signaling holds potential to inhibit AML cells, increase their chemosensitivity, and disrupt their protective niche within the BM.

To investigate the biological effects of Axl inhibition in AML cells, we used a well-characterized, clinically applicable small-molecule Axl kinase inhibitor BGB324 (formerly named R428)³⁸  that inhibits phosphorylation of Axl in AML cells (supplemental Figure 2A). Application of BGB324 monotherapy inhibited proliferation of FLT3-mutated MV4-11 cells and of FLT3 wild-type (WT) OCI-AML-5, THP-1, and Hoxa9/Meis1 cells in a dose-dependent manner with a 50% inhibition/inhibitory concentration (IC₅₀) of 1.75 ± 0.002 µM (MV4-11), 1.35 ± 0.001 µM (OCI-AML5), 2.94 ± 0.003 µM (THP-1), and 0.81 ± 0.001 µM (Hoxa9/Meis1), respectively (supplemental Figure 2B-E). Inhibition of proliferation was validated by 5-bromo-2′-deoxyuridine assays in MV4-11 cells (supplemental Figure 2F). In addition, BGB324 exerted a pro-apoptotic effect on AML cell lines shown by increased Annexin V⁺ cells (supplemental Figure 2G). Treatment with BGB324 increased expression of the anti-apoptotic Bcl family member Puma (Figure 2E), whereas anti-apoptotic Bcl-2 levels were reduced in BGB324-sensitive cell lines (Figure 2F and data not shown). In contrast to our findings in MV4-11 and OCI-AML5 cells, Bcl-2 levels remained unchanged in BGB324-resistant HL60 cells (supplemental Figure 3A-B). Also, Puma mRNA levels were not significantly increased in HL60 cells treated with BGB324 (supplemental Figure 3C).

To assess functional significance of these perturbations, we silenced Puma by means of lentiviral constructs and subsequently incubated Puma-silenced or control MV4-11 cells and OCI-AML5 cells with different concentrations of BGB324. These experiments revealed that Puma-silenced AML cells underwent less apoptosis in comparison with control cells upon Axl blockade (Figure 2G; supplemental Figure 3D; and data not shown). In line with the mechanism that BGB324 increases Puma levels, which leads to repression of anti-apoptotic Bcl-2 and thereby induces apoptosis, overexpression of Bcl-2 reduced BGB324-mediated apoptosis (Figure 2H; supplemental Figure 3E; and data not shown). These data suggest that Puma and Bcl-2 have functional relevance in mediating induction of apoptosis by BGB324.

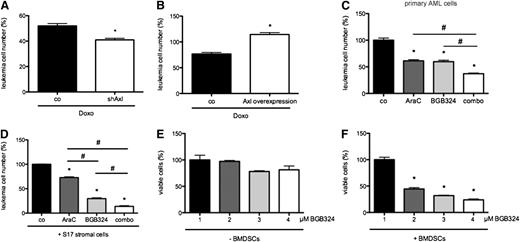

BM cells from 7 of 11 patients with primary human AML were sensitive toward Axl inhibition with BGB324 (IC₅₀ 1.9 ± 0.5 µM). FLT3-mutational status did not influence response to BGB324 because FLT3 WT AML cells were similarly sensitive to this Axl inhibitor (n = 3/8; P = .4212). Importantly, IC₅₀ values correlated with Axl protein expression levels, indicating specificity of the therapeutic effect because Axl⁻ cells were almost completely resistant (Figure 2I). Thus, after validation in larger cohorts, Axl expression levels could serve as a biomarker for patient stratification for Axl-targeting agents in the clinic. Healthy BM MNCs that express less Axl (described previously) were also almost completely resistant toward BGB324 (IC₅₀ 8.9 ± 3.1 μM, n = 5, P = .02) indicating an AML-specific effect of the compound. The role of autocrine Gas6 in primary cells in response to BGB324 is the subject of future studies. Our immunohistochemistry data indicate abundance of stroma-derived Gas6 in AML BM and lower expression in AML cells. qRT-PCR data show that 90% of AML patients express Gas6. Thus, in AML patients, paracrine Gas6 might be more important than autocrine Gas6, but in any case Gas6 protein is present in AML microenvironment.

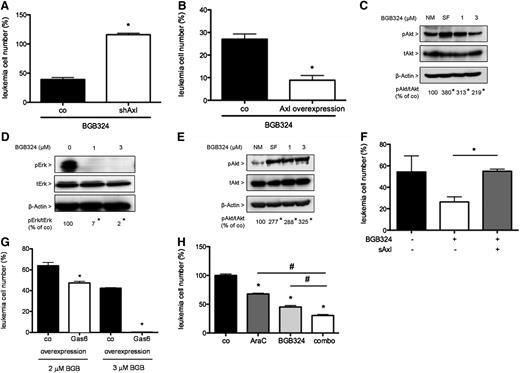

To determine whether the observed biological effects specifically depend on blockade of Axl and not on (potential) off-target effects of BGB324, we used lentiviral short hairpin RNA (shRNA)-mediated knockdown. Silencing of Axl in MV4-11 cells decreased the sensitivity toward BGB324 (Figure 3A). Conversely, efficacy of BGB324 was enhanced upon overexpression of Axl (Figure 3B).

To delineate signaling pathways mediating the biological effects of Axl in AML, we investigated key mediators of leukemia cell proliferation and survival. Here, we found reduced starvation-induced phosphorylation of Akt in Gas6⁺ MV4-11 and OCI-AML5 cells upon Axl kinase inhibition with BGB324 (Figure 3C and data not shown). Furthermore, BGB324 inhibited baseline and granulocyte macrophage-CSF stimulated mitogen-activated protein kinase (MAPK) pathway signaling in MV4-11 cells (Figure 3D; supplemental Figure 4A).

We conducted additional experiments using the well-described Akt and MAPK inhibitors MK2206^39-41  and PD98059,^42-44  respectively. These experiments revealed that (1) the combination of MAPK inhibition with BGB324 does not exert additive effects at different dose levels (4-8 µM); (2) upon addition of chemotherapy, the therapeutic effect in combination with BGB324 is significantly higher compared with the combination with the MAPK inhibitor; and (3) addition of MAPK inhibitor to the combination of chemotherapy and BGB324 does not result in additive therapeutic efficacy (supplemental Figure 4B and data not shown). These results indicate that BGB324 inhibits MAPK signaling. Furthermore, they underscore the specific implication of Axl in chemoresistance. Similar results were obtained when using the Akt inhibitor (0.5 and 4 µM; supplemental Figure 4C and data not shown).

Next, we sought to elucidate whether the observed AML inhibitory effects of Axl blockade were Gas6-dependent and therefore investigated effects of BGB324 on HL-60 cells (Axl⁺ Gas6⁻). Interestingly, Gas6⁻ HL-60 cells were resistant to BGB324; neither proliferation was inhibited nor apoptosis was induced upon treatment (supplemental Figure 5A-B and data not shown). In line with these data, BGB324 did not inhibit Akt phosphorylation or elicit changes in Puma or Bcl-2 expression levels in HL60 cells (Figure 3E; supplemental Figure 3A-C). Specificity of this observation was confirmed in Gas6⁺ cell lines by knocking down Gas6 via shRNAs and by addition of sAxl. Both treatments induced resistance of OCI-AML-5 cells toward BGB324 (Figure 3F; supplemental Figure 5C). Conversely, expression of Gas6 induced sensitivity to BGB324 in Gas6⁻ HL-60 cells (Figure 3G).

Subsequently, we investigated whether Axl signaling functionally mediates chemoresistance of AML cells. Concomitant inhibition of Axl by BGB324 or Axl shRNA in combination with doses in the range of the IC₅₀ doses of doxorubicin (0.22 ± 0.001 µM) or cytarabine (3.30 ± 0.001 µM) determined by prior dose-response experiments revealed enhanced chemosensitivity of MV4-11 and OCI-AML cells (Figure 3H and data not shown). Again, silencing of Axl phenocopied this effect in MV4-11 cells (Figure 4A). Conversely, overexpression of Axl in these cell lines decreased chemosensitivity (Figure 4B). Isobologram analyses confirmed additive effects of BGB324 in combination with doxorubicin or cytarabine in MV4-11 and OCI-AML cells (supplemental Figure 5D-E and data not shown). The chemosensitivity of Gas6⁻ HL60 cells was not affected by concomitant Axl-inhibition by BGB324 (supplemental Figure 5F). Interestingly, the observed reduction of AML cell chemoresistance by Axl receptor inhibition was mainly the result of increased apoptosis, as evidenced by Annexin V assays and activation of caspase 3 (supplemental Figure 6A-B). Similarly, combination therapy with BGB324 and cytarabine exerted an additive therapeutic effect on 7/11 primary AML patient cells (Figure 4C).

Further, we determined whether treatment with BGB324 could reduce Gas6-mediated chemoresistance of AML cells elicited by BMDSCs. To measure this, we added BGB324 at different concentrations ± chemotherapy ± sAxl to cocultures of S17 and HL60 cells and found partial abrogation of the chemoprotective effect of BMDSCs upon Axl inhibition (Figure 4D). Thus paracrine Gas6 can induce chemoresistance in Gas6⁻ cells via Axl. Further experiments revealed that BGB324 inhibited proliferation of HL60 cells in the presence of BMDSCs, whereas HL60 cells alone were resistant to Axl inhibition (Figure 4E-F). Interestingly, additional sAxl could not enhance the inhibitory effect of BGB324 (data not shown) indicating that ligand-mediated effects on other TAM receptors besides Axl most likely play a negligible role in this process. Hence, inhibition of Gas6-Axl signaling in AML cells by pharmacologic or RNA interference agents impedes growth in vitro, increases chemosensitivity, and disrupts BMDSC-derived chemoprotective effects. These effects are specific for the Gas6-Axl axis, because they are abrogated in absence of Gas6 or Axl.

Encouraged by the in vitro data indicating therapeutic potential of Axl inhibition in AML, we investigated the effects of Axl kinase inhibition in vivo. Subcutaneous human AML FLT3 ITD⁺ MV4-11 xenografts⁴⁵  displayed inhibition of AML tumor growth and survival of systemic FLT3 WT Hoxa9/Meis1–bearing AML mice²⁶  was significantly prolonged upon treatment with BGB324 (Figure 5A-B). Remarkably, the highest dose caused regression of established MV4-11 tumors by 50.4 ± 22.9% (Figure 5A). To validate that BGB324 affected Axl kinase activity, we determined the phosphorylation status of Axl relative to total Axl in control-treated AML tissue compared with BGB324-treated AML tumors. This analysis demonstrated pronounced inhibition of Axl-phosphorylation in AML tumors by BGB324 treatment, indicating target inhibition by the compound (Figure 5C). Importantly, Axl inhibition reduced anemia, thrombocytopenia, and leukemia cell burden in Hoxa9/Meis1-bearing AML mice (Figure 5D-F). Thus, BGB324 exerts therapeutic effects on clinically relevant end points in localized and systemic preclinical AML models regardless of FLT3 mutational status.

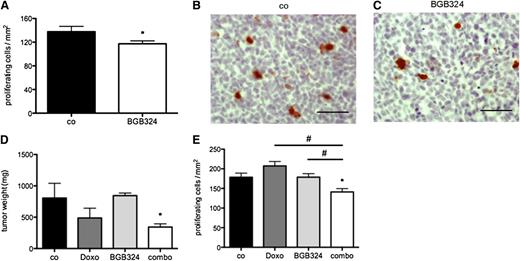

To further elucidate the effects of Axl kinase inhibition on AML tumor cells in vivo, we analyzed proliferation and apoptosis markers in MV4-11 tumors treated with BGB324 compared with control-treated tissue. Histomorphometric analysis of phospho-histone H3 staining⁴⁶  showed reduced proliferation of AML cells from BGB324-treated tumors compared with controls (Figure 6A-C). Quantification of activated Caspase 3 by immunoblotting revealed enhanced apoptosis in BGB324-treated AML compared with control (Figure 5C). Hence, the observed therapeutic efficacy of BGB324 in vivo is at least partly due to inhibition of AML cell proliferation and increased apoptosis.

In concordance with our in vitro data, we found decreased Bcl-2, pAkt, and pErk levels in tumor tissue after treatment with BGB324 compared with control tumors (Figure 5C). These results indicate that similar perturbations in signal transduction intermediates might be responsible for increased apoptosis and reduced proliferation induced by BGB324 in vivo. We also analyzed efficacy of BGB324 in Gas6⁻ HL60 cells implanted subcutaneously into NSG mice. Here, we found no difference in tumor growth, corroborating the in vitro finding that HL60 cells are resistant against BGB324 when Gas6 is absent as demonstrated by qRT-PCR of HL60 xenografts (supplemental Figure 7A-B and data not shown).

Our in vitro experiments implicated a role for Axl in mediating chemoresistance of AML cells. We wished to confirm this finding in vivo and combined BGB324 treatment with chemotherapy in our AML models. In the MV4-11 model, we combined BGB324 at a low dose level of 12.5 mg/kg with 3 mg/kg doxorubicin. We deliberately chose subtherapeutic doses of BGB324 and doxorubicin to detect additive effects of the treatments. These experiments showed that combined treatment with BGB324 and doxorubicin inhibits MV4-11 growth, whereas each single treatment did not (Figure 6D). Upon analysis of proliferation and apoptosis, again only the combined approach could inhibit proliferation (Figure 6E).

Our study shows that Axl expression represents an independent prognostic factor and provides evidence for a specific role of Gas6-Axl axis as therapeutic target in AML.

By analyzing AML patient samples as well as in vivo and in vitro models, this study yielded the following major findings: (1) high Axl mRNA expression represents an independent poor prognostic factor in Cn AML patients; (2) Axl is a therapeutic target upregulated by primary AML (stem) cells when compared with healthy hematopoietic cells independent of FLT3 mutational status; (3) Axl upregulation in concert with autocrine or paracrine Gas6 specifically induces chemoresistance of AML cells; (4) AML cells instruct BMDSCs to upregulate Gas6, which fosters their growth and chemoresistance; (5) blockade of Axl signaling by a small-molecule Axl kinase inhibitor (BGB324) reduces proliferation and induces apoptosis of AML cells by upregulating Puma expression, which inhibits anti-apoptotic Bcl-2; (6) BGB324 exerts a therapeutic anti-AML effect on relevant clinical end points in FLT3-mutated and -WT AML in systemic and subcutaneous AML models; and (7) presence of Gas6 and Axl might predict for the success of this strategy.

Circumstantial evidence in the literature links Axl expression to prognosis of AML patients.²³  However, our study represents the first in which expression of Axl, Sky, Mer, and Gas6 was quantified with qRT-PCR. In a previously published study,²³  Axl but not Gas6 or other TAMR expression was determined by semiquantitative conventional PCR. Subsequently, Axl expression was correlated with outcome in a limited sample size yielding no significance in univariate analysis. We now demonstrate that Axl expression levels influence prognosis in univariate and multivariate analysis, whereas Gas6 or other TAMRs have no prognostic relevance. Subsequently we investigated the target potential of Axl.

Although a previous study was primarily focused on the effect of Axl inhibition in FLT3-ITD⁺ AML,²¹  we show similar efficacy of Axl targeting approaches in FLT3-ITD⁺ and FLT3-WT AML. Our data also indicate that >50% of AML patients express Axl protein and that efficacy of BGB324 correlates with Axl expression levels. Thus, a substantial fraction of AML patients is potentially eligible for treatment, and Axl expression could serve as a biomarker for patient stratification. In addition, we show single-agent activity and additive effects of BGB324 when combined with chemotherapy in vitro and in vivo, indicating that BGB324 might be useful for treatment of AML patients alone and in combination with cytotoxic agents.

We discovered that blockade of Axl by BGB324 inhibits Akt and MAPK pathways in AML cells, explaining the antiproliferative and pro-apoptotic effects of BGB324 on AML cells. Functional significance was demonstrated by pharmacologic inhibition of these pathways; however genetic approaches might be required to render the findings more definitive. Furthermore, we demonstrate the novel finding that apoptosis induction by BGB324 is mediated via upregulation of Puma, which in turn suppresses Bcl-2. However, we cannot rule out that Axl signaling exerts its pro-AML effects via additional signaling pathways. For instance, it was demonstrated that Axl is constitutively activated in B-cell chronic lymphocytic leukemia cells and acts as a docking site of intracellular kinases such as Syk,⁴⁷  which is similar to our findings in AML BGB324-induced apoptosis in chronic lymphocytic leukemia cells.⁴⁷  Future studies are warranted to dissect the Axl signaling pathway in AML cells in detail.

Our work further indicates that interaction of AML cells with BMDSCs educates the stroma cells to upregulate Gas6, which fosters AML growth and chemoresistance. Until now, Gas6 was known to be an important stroma-derived factor supporting hematopoietic progenitor cells,³⁶  whereas its role in AML biology and therapy resistance represents a novel finding. The Gas6 upregulation occurs via AML cell-derived granulocyte macrophage-CSF and IL-10. These cytokines were already shown to be involved in Gas6 upregulation in other cell types, including different populations of myeloid cells.^18,33  Our findings in AML patient BM sections suggest that Gas6 is mainly secreted by BMDSCs, whereas AML cells show relatively little expression. Thus, Gas6 represents a mostly stroma-derived factor supporting AML growth and chemoresistance via Axl.

Interestingly, efficacy of Axl-targeted approaches can depend on presence of Gas6, because HL60 cells grown in vitro or subcutaneously without presence of Gas6-secreting stroma cells are resistant to BGB324. Conversely, overexpression of Gas6 or coculture with BMDSCs renders them sensitive toward BGB324. Future studies with crosstransplantations of Gas6⁻ and Gas6⁺ AML cells in Gas6-deficient and WT hosts using systemic disease models are warranted. Such studies will be useful to validate the concept with alternative cell lines and to determine impact of autocrine vs paracrine Gas6 on sensitivity of AML to BGB324 in vivo.

The finding that Gas6 is upregulated in the BM stroma upon interaction with neoplastic cells is congruent with previous research showing upregulation of Gas6 by osteoblasts upon contact with prostate carcinoma cells.⁴⁸  However, in prostate cancer cells residing in the BM, Gas6 exerted an inhibitory effect on proliferation,⁴⁸  whereas in our study Gas6 fosters proliferation of AML cells. This divergent effect might be due to different biological effects of Gas6 on different (neoplastic) cell types. Further evidence for a proproliferative effect of Gas6 on different murine solid tumor cell lines was provided by an earlier study.¹⁸  Thus, Gas6 seems to act in a cell type–specific manner and further research is necessary in order to dissect specific effects of this cytokine on different cell types.

In summary, we postulate that AML cells educate BMDSCs to secrete Gas6, which fosters AML cell growth and chemoresistance. Axl inhibition by BGB324 is active in FLT3-ITD and FLT3-WT AML as single treatment and has additive effects in combination with chemotherapy. Success of Axl inhibition requires presence of Gas6 and Axl. Thus, Axl-targeting agents hold promise to improve current AML therapies.

Our findings might have possible implications beyond AML; for instance, Axl inhibitors might be useful in treating Axl⁺ solid cancer or target metastatic cancer cells in their BM niches.⁴⁹
