An inducible caspase 9 safety switch for T-cell therapy

Cellular therapies hold great promise for the treatment of human disease, and this promise may be extended if the cells are first genetically modified to alter or augment function. Unfortunately, significant toxicities from the cells themselves or from their transgene products have hampered clinical investigation. There is considerable interest in developing means by which infused cells may be ablated should problems arise from their use. Most experience with safety-switch genes to date has been in T lymphocytes since immunotherapy with these cells has proved efficacious as treatment for viral infections and malignancies.^1-4

The herpes simplex virus I–derived thymidine kinase (HSV-TK) gene has been used as an in vivo suicide switch in donor T-cell infusions to treat recurrent malignancy and Epstein Barr virus (EBV) lymphoproliferation after hemopoietic stem cell transplantation.^5,6  However, destruction of T cells causing graft-versus-host disease was incomplete, and the use of ganciclovir (or analogs) as a pro-drug to activate HSV-TK precludes administration of ganciclovir as an antiviral drug for cytomegalovirus infections. Moreover, HSV-TK–directed immune responses have resulted in elimination of HSV-TK–transduced cells, even in immunosuppressed human immunodeficiency virus and bone marrow transplant patients, compromising the persistence and hence efficacy of the infused T cells.^5,7  The E coli–derived cytosine deaminase gene has also been used clinically,⁸  but as a xenoantigen it is also likely to be immunogenic and thus incompatible with T-cell–based therapies that require long-term persistence.

Transgenic human CD20, which can be activated by a monoclonal chimeric anti–CD20 antibody, has been proposed as a nonimmunogenic safety system.⁹  However, it results in the unwanted loss of normal B cells for 6 months or more. An alternative suicide gene strategy is based on human proapoptotic molecules fused with an FKBP variant that is optimized to bind a chemical inducer of dimerization (CID),¹⁰  AP1903, a synthetic drug that has proven safe in healthy volunteers.¹¹  Administration of this small molecule results in cross-linking and activation of the proapoptotic target molecules. The application of this inducible system in human T lymphocytes has been explored using Fas or the death effector domain (DED) of the Fas-associated death domain–containing protein (FADD) as proapoptotic molecules. Up to 90% of T cells transduced with these inducible death molecules underwent apoptosis after administration of CID.^12-16

While these results are promising, elimination of 90% of transduced cells may be insufficient to ensure safety of genetically modified cells in vivo. Moreover, death molecules that act downstream of most apoptosis inhibitors may be effective in a wider range of cells. The activity of membrane proximal apoptosis initiators such as Fas and FADD may be impaired when cellular inhibitors of apoptosis such as c-FLIP, bcl-2, and bcl-x_L are upregulated (Figure 1)—a frequent early event in malignant transformation and in the long-term maintenance of memory T cells.^17,18  Hence, the most deleterious cells may be inadvertently spared.

The efficacy of adoptive immunotherapy may be enhanced by rendering the therapeutic T cells resistant to immune evasion strategies employed by tumor cells. In vitro studies have shown that this can be achieved by transduction with a dominant-negative receptor or an immunomodulatory cytokine.^19,20  Moreover, transfer of antigen-specific T-cell receptors allows for the application of T-cell therapy to a broader range of tumors.^21,22  We therefore chose to develop and test a suicide system for engineered human T cells to allow their subsequent use in clinical studies. Here we describe how a modification of a late-stage apoptosis pathway molecule, caspase 9, can be stably expressed in human T lymphocytes without compromising their functional and phenotypic characteristics while demonstrating exquisite sensitivity to CID, even in T cells that have upregulated antiapoptotic molecules.

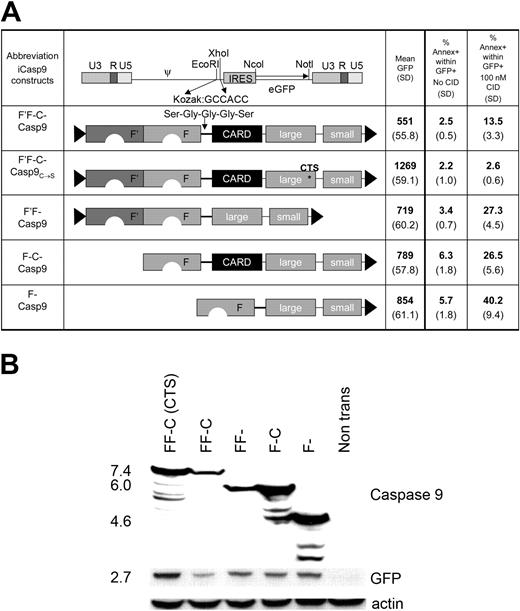

Full-length inducible caspase 9 (F'F-C-Casp9.I.GFP) consists of full-length caspase 9, including its caspase recruitment domain (CARD; GenBank NM001 229) linked to 2 12-kDa human FK506 binding proteins (FKBP12; GenBank AH002 818) that contain an F36V mutation (Figure 2A).¹⁰  The inducer of dimerization used in this study, AP20187 (generous gift of ARIAD Pharmaceuticals, Cambridge, MA), is a nontoxic synthetic FK506 analog that has been modified to reduce interactions with endogenous FKBPs, while enhancing binding to this FK506-BP12 variant. Administration of the CID results in the aggregation of inducible caspase 9 molecules, leading to their activation. Caspase 9 will subsequently activate downstream effector caspases, such as caspase 3, and ultimately induce apoptosis (Figure 1). Silent mutations in the third base of multiple codons have been introduced into the first FKBP segment to prevent homologous recombination between the coding sequences of the 2 linked FKBPs in our retroviral system¹²  and a short Ser-Gly-Gly-Gly-Ser linker connects the FKBPs and caspase 9 to enhance flexibility.¹⁴  Inducible Fas consists of the extracellular and transmembrane domains of human low-affinity nerve growth factor receptor (ΔNGFR), 2 FKBP12_V36s, and the cytoplasmic domains of human Fas as described by Thomis et al.¹²  The cDNA for the p40 and p35 subunit of human interleukin 12 (IL-12) connected with a flexible linker was cloned from pcDNA3.1, a kind gift from Robert Anderson and Grant Prentice, Royal Free Hospital, London, United Kingdom.²³  All constructs were cloned into the retroviral vector MSCV.IRES.GFP.

Transfected 293T cells were resuspended in lysis buffer (50% Tris/Gly, 10% sodium dodecyl sulfate [SDS], 4% beta-mercaptoethanol, 10% glycerol, 12% water, 4% bromophenol blue at 0.5%) containing aprotinin, leupeptin, and phenylmethylsulfonyl fluoride (Boehringer, Ingelheim, Germany) and incubated for 30 minutes on ice. After a 30-minute centrifugation, supernatant was harvested, mixed 1:2 with Laemmli buffer (Bio-Rad, Hercules, CA), boiled and loaded on a 10% SDS–polyacrylamide gel. The membrane was probed with rabbit anti–caspase 9 (amino acid residues 299-318) immunoglobulin G (IgG; Affinity BioReagents, Golden, CO; 1:500) and with mouse anti–GFP IgG (Covance, Berkeley, CA; 1:25 000). Blots were then exposed to appropriate peroxidase-coupled secondary antibodies and protein expression was detected with enhanced chemiluminescence (ECL; Amersham, Arlington Heights, IL). The membrane was then stripped and reprobed with goat polyclonal antiactin (Santa Cruz Biotechnology; 1:500) to check equality of loading.

B95-8 EBV transformed B-cell lines (LCLs), Jurkat, and MT-2 cells (kindly provided by Dr S. Marriott, Baylor College of Medicine, Houston, TX) were cultured in RPMI 1640 (Hyclone, Logan, UT) containing 10% fetal bovine serum (FBS; Hyclone). Polyclonal EBV-specific T-cell lines were cultured in 45% RPMI/45% Clicks (Irvine Scientific, Santa Ana, CA)/10% FBS and generated as previously reported.²  Briefly, peripheral blood mononuclear cells (2 × 10⁶ per well of a 24-well plate) were stimulated with autologous LCLs irradiated at 4000 rads at a responder-to-stimulator (R/S) ratio of 40:1. After 9 to 12 days, viable cells were restimulated with irradiated LCLs at an R/S ratio of 4:1. Subsequently, cytotoxic T cells (CTLs) were expanded by weekly restimulation with LCLs in the presence of 40 U/mL to 100 U/mL recombinant human interleukin-2 (rhIL-2; Proleukin; Chiron, Emeryville, CA).

For the transient production of retrovirus, 293T cells were transfected with iCasp9/iFas constructs, along with plasmids encoding gag-pol and RD114 envelope using GeneJuice transfection reagent (Novagen, Madison, WI). Virus was harvested 48 to 72 hours after transfection, snap frozen, and stored at -80°C until use. A stable FLYRD18-derived retroviral producer line was generated by multiple transductions with VSV-G pseudotyped transient retroviral supernatant.²⁴  FLYRD18 cells with highest transgene expression were single-cell sorted, and the clone that produced the highest virus titer was expanded and used to produce virus for lymphocyte transduction. The transgene expression, function, and retroviral titer of this clone was maintained during continuous culture for more than 8 weeks. For transduction of human lymphocytes, a non–tissue-culture–treated 24-well plate (Becton Dickinson, San Jose, CA) was coated with recombinant fibronectin fragment (FN CH-296; Retronectin; Takara Shuzo, Otsu, Japan; 4 μg/mL in PBS, overnight at 4°C) and incubated twice with 0.5 mL retrovirus per well for 30 minutes at 37°C. Subsequently, 3 × 10⁵ to 5 × 10⁵ T cells per well were transduced for 48 to 72 hours using 1 mL virus per well in the presence of 100 U/mL IL-2. Transduction efficiency was determined by analysis of expression of the coexpressed marker gene green fluorescent protein (GFP) on a FACScan flow cytometer (Becton Dickinson). For functional studies, transduced CTLs were either nonselected or segregated into populations with low, intermediate, or high GFP expression using a MoFlo cytometer (Dako Cytomation, Ft Collins, CO) as indicated.

CID (AP20187; ARIAD Pharmaceuticals) at indicated concentrations was added to transfected 293T cells or transduced CTLs. Adherent and nonadherent cells were harvested and washed with annexin binding buffer (BD Pharmingen, San Jose, CA). Cells were stained with annexin-V and 7-amino-actinomycin D (7-AAD) for 15 minutes according to the manufacturer's instructions (BD Pharmingen). Within 1 hour after staining, cells were analyzed by flow cytometry using CellQuest software (Becton Dickinson).

The cytotoxic activity of each CTL line was evaluated in a standard 4-hour ⁵¹Cr release assay, as previously described.²⁵  Target cells included autologous LCLs, human leukocyte antigen (HLA) class I–mismatched LCLs and the lymphokine-activated killer cell–sensitive T-cell lymphoma line HSB-2. Target cells incubated in complete medium or 1% Triton X-100 (Sigma, St Louis, MO) were used to determine spontaneous and maximum ⁵¹Cr release, respectively. The mean percentage of specific lysis of triplicate wells was calculated as 100 × (experimental release - spontaneous release)/(maximal release - spontaneous release).

Cell-surface phenotype was investigated using the following monoclonal antibodies: CD3, CD4, CD8, (Becton Dickinson) and CD56 and TCR-α/β (Immunotech, Miami, FL). ΔNGFR-iFas was detected using anti–NGFR antibody (Chromaprobe, Aptos, CA). Appropriate matched isotype controls (Becton Dickinson) were used in each experiment. Cells were analyzed with a FACSscan flow cytometer (Becton Dickinson).

The concentration of interferon-γ (IFN-γ), IL-2, IL-4, IL-5, IL-10, and tumor necrosis factor-α (TNFα) in CTL culture supernatants was measured using the Human Th1/Th2 cytokine cytometric Bead Array (BD Pharmingen) and the concentration of IL-12 in the culture supernatants was measured by enzyme-linked immunosorbent assay (ELISA; R&D Systems, Minneapolis, MN) according to the instructions of the manufacturer.

Nonobese diabetic severe combined immunodeficient (NOD/SCID) mice, 6 to 8 weeks of age, were irradiated (250 rad) and injected subcutaneously in the right flank with 10 × 10⁶ to 15 × 10⁶ LCLs resuspended in Matrigel (BD Bioscience). Two weeks later mice bearing tumors that were approximately 0.5 cm in diameter were injected into the tail vein with a 1:1 mixture of nontransduced and iCasp9.I.GFP_high-transduced EBV CTLs (total 15 × 10⁶). At 4 to 6 hours prior and 3 days after CTL infusion, mice were injected intraperitoneally with recombinant hIL-2 (2000 U; Proleukin; Chiron). On day 4, the mice were randomly segregated in 2 groups: 1 group received CID (50 μg AP20 187, intraperitoneally) and 1 group received carrier only (16.7% propanediol, 22.5% PEG400, and 1.25% Tween 80, intraperitoneally). On day 7, all mice were killed. Tumors were homogenized and stained with antihuman CD3 (BD Pharmingen). By FACS analysis, the number of GFP⁺ cells within the gated CD3⁺ population was evaluated. Tumors from a control group of mice that received only nontransduced CTLs (total 15 × 10⁶) were used as a negative control in the analysis of CD3⁺/GFP⁺ cells.

We initially screened previously described caspases 3, 7, and 9 for their suitability as inducible safety-switch molecules both in transfected 293T cells and in transduced human T cells.¹⁴  Only inducible caspase 9 (iCasp9) could be expressed at levels sufficient to confer sensitivity to CID (data not shown). However, even the initially tested iCasp9 could not be maintained stably at high levels in T cells, and we hypothesized that basal activity of the transgene was eliminating transduced cells. The CARD domain is responsible for physiologic dimerization of caspase 9 molecules, by a cytochrome C and adenosine triphosphate (ATP)–driven interaction with apoptotic protease-activating factor 1 (Apaf-1). Hence the CARD domain appears superfluous in this context and its removal might reduce basal activity. Given that only dimerization rather than multimerization is required for activation of caspase 9, we also reasoned that a single FKBP domain might be adequate to effect activation. We therefore compared the activity of iCasp9 derivatives in which either the CARD domain, or one of the 2 FKBP domains, or both, had been removed. A construct with a disrupted activation site, F'F-C-Casp9_C→S, provided a nonfunctional control (Figure 2A). All constructs were cloned into the retroviral vector MSCV²⁶  in which retroviral long terminal repeats (LTRs) direct transgene expression and enhanced GFP is coexpressed from the same mRNA by use of an internal ribosomal entry site (IRES). In transfected 293T cells, expression of all inducible caspase 9 constructs at the expected size as well as coexpression of GFP was demonstrated by Western blot (Figure 2B). Protein expression (estimated by mean fluorescence of GFP and visualized on Western blot) was highest in the nonfunctional construct F'F-C-Casp9_C→S and greatly diminished in the full-length construct F'F-C-Casp9. Removal of the CARD (F'F-Casp9), one FKBP (F-C-Casp9), or both (F-Casp9) resulted in progressively higher expression of both inducible caspase 9 and GFP, and correspondingly enhanced sensitivity to CID (Figure 2A). Based on these results, the F-Casp9 construct (henceforth referred to as iCasp9_M) was used for further study in human T lymphocytes.

The long-term stability of suicide gene expression is of utmost importance, since suicide genes must be expressed for as long as the genetically engineered cells persist. For T-cell transduction, a FLYRD18-derived retroviral producer clone that produces high-titer RD114-pseudotyped virus was generated to facilitate the transduction of T cells.²⁴  We evaluated iCasp9_M expression in EBV-specific CTL lines (EBV-CTL), since these have well-characterized function and specificity and are already being used as in vivo therapy for prevention and treatment of EBV-associated malignancies.^2,27  Consistent transduction efficiencies of EBV-CTLs of more than 70% (mean, 75.3%; range, 71.4%-83.0% in 5 different donors) were obtained after a single transduction with retrovirus. The expression of iCasp9_M in EBV-CTLs was stable for at least 4 weeks after transduction without selection or loss of transgene function (data not shown).

To ensure that expression of iCasp9_M did not alter T-cell characteristics, we compared the phenotype, antigen-specificity, proliferative potential, and function of nontransduced or nonfunctional iCasp9_C→S-transduced EBV-CTLs, with that of iCasp9_M-transduced EBV-CTLs. In 4 separate donors, transduced and nontransduced CTLs consisted of equal numbers of CD4⁺, CD8⁺, CD56⁺, and TCRαβ⁺ cells (Figure 3A). Similarly, production of cytokines including IFN-γ, TNFα, IL-10, IL-4, IL-5, and IL-2 was unaltered by iCasp9_M expression (Figure 3B). iCasp9_M-transduced EBV-CTLs specifically lysed autologous LCLs comparable to nontransduced and control-transduced CTLs (Figure 3C). Expression of iCasp9_M did not affect the growth characteristics of exponentially growing CTLs, and importantly, dependence on antigen and IL-2 for proliferation was preserved (Figure 3D).

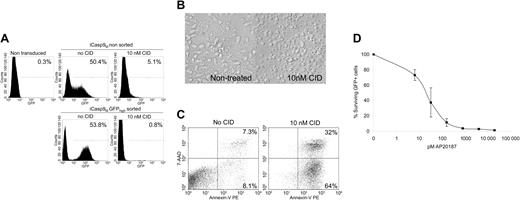

To provide an effective safety switch, suicide gene induction should eliminate all gene-modified cells. Therefore, iCasp9_M proficiency in CTLs was tested by monitoring loss of GFP-expressing cells after administration of CID; 91.3% (range, 89.5%-92.6% in 5 different donors) of GFP⁺ cells were eliminated after a single 10-nM dose of CID (Figure 4A). Similar results were obtained regardless of exposure time to CID (range, 1 hour-continuous; data not shown). In all experiments, CTLs that survived CID treatment had low transgene expression with a 70% (range, 55%-82%) reduction in mean fluorescence intensity of GFP after CID. No further elimination of the surviving GFP⁺ T cells could be obtained by an antigenic stimulation followed by a second 10-nM dose of CID (data not shown). Therefore, the nonresponding CTLs most likely expressed insufficient iCasp9_M for functional activation by CID. To test this hypothesis CTLs were sorted for low, intermediate, and high expression of the linked marker gene GFP and mixed 1:1 with nontransduced CTLs from the same donor to allow for an accurate quantitation of the number of transduced T cells responding to CID-induced apoptosis. The number of transduced T cells eliminated increased with the level of GFP transgene expression (Figure S1; see the Supplemental Figure link at the top of the online article on the Blood website). For GFP_high-selected cells, 10 nM CID led to deletion of 99.1% (range, 98.7%-99.4%) of transduced cells (Figure 4A). Rapid induction of apoptosis in these GFP_high-selected cells is demonstrated by apoptotic characteristics such as cell shrinkage and fragmentation within 14 hours of CID administration (Figure 4B). Of these T cells, 64% (range, 59%-69%) had an apoptotic (annexin-V⁺/7-AAD^-) and 30% (range, 26%-32%) had a necrotic (annexin-V⁺/7-AAD⁺) phenotype (Figure 4C). In contrast, the induction of apoptosis was significantly lower in T cells selected for intermediate or low GFP expression (Figure S1). For clinical applications therefore, transduced cells may have to be sorted for sufficient transgene expression before administration. CID-induced apoptosis was inhibited by the pancaspase inhibitor zVAD-fmk (100 μM for 1 hour prior to adding CID; data not shown). Titration of CID showed that 1 nM CID was sufficient to obtain the maximal deletion effect (Figure 4D). This dose response remained unchanged for at least 4 weeks after transduction (data not shown).

We had selected caspase 9 as an inducible proapoptotic molecule for clinical use rather than previously described iFas¹²  and iFADD,¹⁶  since caspase 9 acts relatively late in apoptosis signaling and should be less susceptible to inhibition by apoptosis inhibitors. Thus, suicide function should be preserved not only in malignant, transformed T-cell lines that express antiapoptotic molecules,^28,29  but also in subpopulations of normal T cells that express elevated antiapoptotic molecules as part of the process to ensure long-term preservation of memory cells.^18,30  To test this hypothesis we first compared the function of iCasp9_M and iFas in EBV-CTLs. Like iCasp9, inducible Fas¹²  was expressed by the MSCV.IRES.GFP vector. For these experiments both ΔNGFR.iFas.I.GFP and iCasp9_M.I.GFP-transduced CTLs were sorted for GFP_high expression and mixed with nontransduced CTLs at a 1:1 ratio to obtain cell populations that expressed either iFas or iCasp9_M at equal proportions and at similar levels (Figure 5A). Elimination of GFP⁺ cells after administration of 10 nM CID was more rapid and more efficient in iCasp9_M than in iFas-transduced CTLs (99.2% ± 0.14% of iCasp9_M-transduced cells compared with 89.3% ± 4.9% of iFas-transduced cells at day 7 after CID; P < .05; Figure 5B).

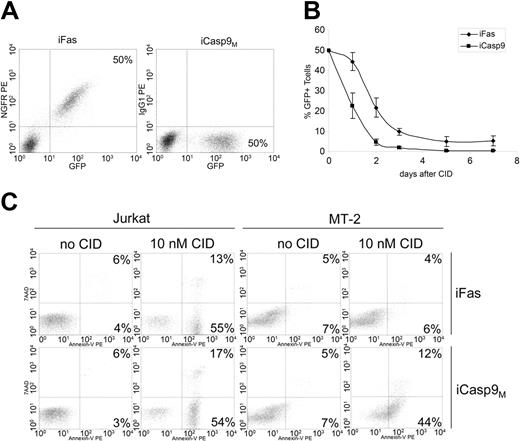

Second, we compared the function of iCasp9_M and iFas in 2 malignant T-cell lines: Jurkat, an apoptosis-sensitive T-cell leukemia line, and MT-2, an apoptosis-resistant T-cell line, due to c-FLIP and bcl-x_L expression.^31,32  Jurkat cells and MT-2 cells were transduced with iFas and iCasp9_M with similar efficiencies (92% vs 84% in Jurkat, 76% vs 70% in MT-2) and were cultured in the presence of 10 nM CID for 8 hours. Annexin-V staining showed that although iFas and iCasp9_M induced apoptosis in an equivalent number of Jurkat cells (56.4% ± 15.6% and 57.2% ± 18.9%, respectively), only activation of iCasp9_M resulted in apoptosis of MT-2 cells (19.3% ± 8.4% and 57.9% ± 11.9% for iFas and iCasp9_M, respectively; Figure 5C). These results demonstrate that in T cells overexpressing apoptosis-inhibiting molecules, the function of iFas can be blocked, while iCasp9_M can still effectively induce apoptosis.

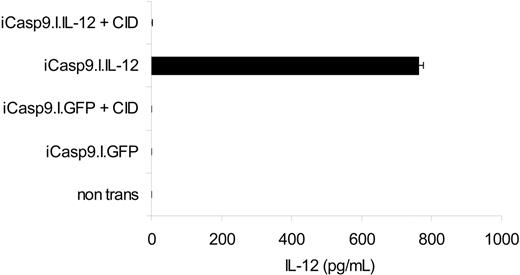

To determine whether iCasp9_M could effectively destroy cells genetically modified to express an active transgene product, we measured the ability of iCasp9_M to eliminate EBV-CTLs stably expressing IL-12 to enhance their antitumor activity.²⁰  While IL-12 was undetectable in the supernatant of nontransduced and iCasp9_M.IRES.GFP-transduced CTLs, the supernatant of iCasp9_M.IRES.IL-12–transduced cells contained 324 pg/mL to 762 pg/mL IL-12. After administration of 10 nM CID, however, the IL-12 in the supernatant fell to undetectable levels (< 7.8 pg/mL). Hence, even without prior sorting for high transgene–expressing cells, activation of iCasp9_M is sufficient to completely eliminate all T cells producing biologically relevant levels of IL-12 (Figure 6).

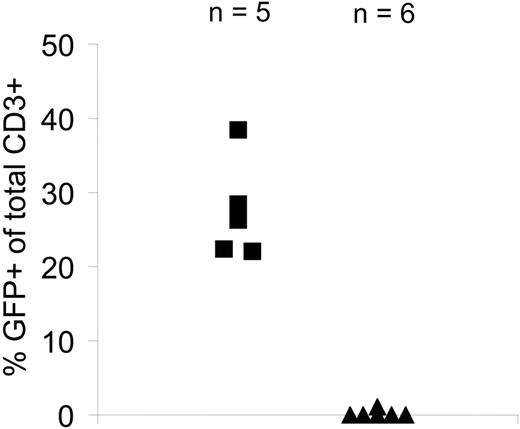

Finally, to evaluate the function of iCasp9_M in transduced EBV-CTLs in vivo, we used a SCID mouse–human xenograft model for adoptive immunotherapy.³³  After intravenous infusion of a 1:1 mixture of nontransduced and iCasp9_M.IRES.GFP_high-transduced CTLs into SCID mice bearing an autologous LCL xenograft, mice were treated either with a single dose of CID or carrier only. Three days after CID/carrier administration, tumors were analyzed for human CD3⁺/GFP⁺ cells. Detection of the nontransduced component of the infusion product using human anti–CD3 antibodies confirmed the success of the tail-vein infusion in mice that received CID. In mice treated with CID, there was a more than 99% reduction in the number of human CD3⁺/GFP⁺ T cells, compared with infused mice treated with carrier alone, demonstrating equally high sensitivity of iCasp9_M-transduced T cells in vivo and in vitro (Figure 7).

A suicide gene designed to eliminate gene-modified T cells in vivo ideally should be coexpressed stably in all cells carrying the modifying gene, at levels high enough to elicit cell death. Thus, it must have low basal activity along with high specific activity, together with minimal susceptibility to endogenous antiapoptotic molecules. We have developed an inducible caspase 9, iCasp9_M, which has low basal activity allowing stable expression for more than 4 weeks in human T cells. A single 10-nM dose of CID is sufficient to kill more than 99% of iCasp9_M-transduced cells selected for high transgene expression both in vitro and in vivo. Moreover, when coexpressed with the pivotal Th1 cytokine IL-12, activation of iCasp9_M eliminated all detectable IL-12–producing cells, even without selection for high transgene expression. As caspase 9 acts downstream of most antiapoptotic molecules, a high sensitivity to CID is preserved regardless of the presence of increased levels of antiapoptotic molecules of the bcl-2 family. Thus, iCasp9_M should induce destruction even of transformed T cells and memory T cells that are relatively resistant to apoptosis.

Recent insights into caspase 9 activation allow us to propose a molecular mechanism of iCasp9_M activation.³⁴  In contrast to other caspase molecules, proteolysis appears to be insufficient and unnecessary for activation of caspase 9.^35,36  Crystallographic and functional data indicate that dimerization of inactive caspase 9 monomers leads to conformational change–induced activation.³⁷  In a physiologic setting the concentration of pro-caspase 9 is in the 20 nM range,³⁵  well below dimerization threshold. According to the proposed model, the energetic barrier to dimerization is overcome by homophilic interactions between the CARD domains of Apaf-1 and caspase 9, driven by cytochrome C and ATP.³⁷  Overexpression of caspase 9 joined to 2 FKBPs results in a situation where spontaneous dimerization might occur and account for the observed toxicity of the initial construct. Removal of one FKBP resulted in increased gene expression probably by reducing spontaneous dimerization and hence toxicity. While multimerization is required for activation of surface death receptors, this model predicts that dimerization should be sufficient to mediate activation of caspase 9. Indeed, iCasp9 constructs with a single FKBP function as effectively as those with 2 FKBPs. Increased sensitivity to dimerizer by removal of the CARD domain probably represents a reduction in the energetic threshold of dimerization upon CID binding. In short, our final construct simply represents replacement of one dimerization/activation module (CARD) with another (FKBP12).

Unwanted immune responses against cells expressing virus- or bacteria-derived lethal genes such as HSV-TK and cytosine deaminase can impair their persistence.^5,7  The FKBPs and proapoptotic molecules that form the components of iCasp9_M are human-derived molecules and are therefore less likely to induce an immune response. Although the linker between FKBP and caspase 9 and the single point mutation in the FKBP domain introduce novel amino acid sequences, the latter was not immunologically recognized by macaque recipients of iFas-transduced T cells.¹⁵  Moreover, unlike virus-derived proteins such as HSV-TK, no memory T cells specific for these junctional sequences should be present, reducing the risk of immune response–mediated elimination of iCasp9_M-transduced T cells.

Elimination of all cells expressing the therapeutic transgene is a prerequisite for a safety switch for clinical applications. Previous studies using inducible Fas or DED of FADD showed that approximately 10% of transduced cells were unresponsive to activation of the destructive gene.^12,15,16  One explanation for unresponsiveness to CID is low expression of the transgene: both iCasp9_M-transduced T cells in our study and iFas-transduced T cells in studies by others^12,16  that survived after CID administration had low levels of transgene expression. We interpreted this as a retroviral “positional effect” and attempted to achieve more homogeneous expression of transgene by flanking retroviral integrants with the chicken beta-globin chromatin insulator.³⁸  This modification dramatically increased the homogeneity of expression in transduced 293T cells, but had no significant effect in transduced primary T cells (data not shown). Selection of T cells with high expression levels minimized variability of response to the dimerizer. Over 99% of transduced T cells sorted for high GFP expression were eliminated after a single 10-nM CID dose. This demonstration supports the hypothesis that cells expressing high levels of suicide gene can be isolated using a selectable marker. Although a very small number of residual cells may cause resurgence of toxicity, a deletion efficiency of up to 2 logs will significantly decrease this possibility. For clinical use, coexpression with a nonimmunogenic selectable marker such as truncated human NGFR, CD20, or CD34 instead of GFP will allow for selection of high transgene–expressing T cells.^39-41  Coexpression of such a selectable marker can be obtained using either an IRES or posttranslational modification of a fusion protein containing a self-cleaving (eg, 2A) sequence.⁴²  In contrast, in situations where the sole safety concern is the transgene-mediated (eg, artificial T-cell receptors, cytokines) toxicity, this selection step may be unnecessary, as tight linkage between iCasp9_M and transgene expression ensures elimination of those cells that are expressing biologically relevant levels of the therapeutic transgene. We demonstrated this by coexpressing iCasp9_M with IL-12; activation of iCasp9_M completely abolished measurable IL-12 production. However, this may depend on the function and the activity of the transgene.

The other explanation for unresponsiveness to CID is that high levels of apoptosis inhibitors may attenuate CID-mediated apoptosis. These include c-FLIP, bcl-2 family members, and inhibitors of apoptosis proteins (IAPs), which normally regulate the balance between apoptosis and survival. For instance, upregulation of c-FLIP and bcl-2 render a subpopulation of T cells, destined to establish the memory pool, resistant to activation-induced cell death in response to cognate target or antigen-presenting cells.^18,30  In several T-lymphoid tumors, the physiologic balance between apoptosis and survival is disrupted in favor of cell survival.^28,29  A suicide gene should delete all transduced T cells including memory and malignantly transformed cells. Thus, to ensure safety, preserved function of the inducible suicide gene in the presence of increased levels of antiapoptotic molecules is critical. The apical location of iFas (or iFADD) in the apoptosis signaling pathway may leave it especially vulnerable to inhibitors of apoptosis and these molecules are therefore less suited to being the key component of an apoptotic safety switch. While caspase 3 or 7 as terminal effector molecules appear to be ideal candidates, we were unable to express either in primary human T cells at functional levels (data not shown). One possible explanation is that caspase 3 and 7, unlike caspase 9, make poor substrates for themselves and thus require prohibitively high cellular concentrations for cleavage.¹⁴  We therefore chose caspase 9, which bypasses the inhibitory effects of c-FLIP and antiapoptotic bcl-2 family members and could be expressed stably at functional levels. Although X-linked inhibitor of apoptosis (XIAP) could in theory reduce spontaneous caspase 9 activation (Figure 1),⁴³  the high affinity of AP20187 (or AP1903) for FKBP_V36 likely displaces this noncovalently associated XIAP. Indeed, in contrast to iFas, iCasp9_M remained functional in a transformed T-cell line that overexpresses antiapoptotic molecules, including bcl-x_L.

We have described a new inducible safety switch, designed specifically for expression from an oncoretroviral vector by human T cells. iCasp9_M can be activated by AP1903 (or analogs), a small chemical inducer of dimerization that has proven safe at the required dose for optimum deletional effect,¹¹  and unlike ganciclovir or rituximab has no other biologic effects in vivo. Therefore, expression of this suicide gene in T cells for adoptive transfer will increase safety and hence broaden the scope of clinical applications.
