Ikaros is required for plasmacytoid dendritic cell differentiation

Plasmacytoid dendritic cells (pDCs) are a unique DC subset. pDCs produce large quantities of type I IFN (α, β,or ω) in response to viral infection and bacterial components,^1-5  and thus are considered key cells for the immune response to these pathogens. Human and mouse pDCs have been implicated in the activation of natural killer (NK) cells, the differentiation of regulatory T cells and plasma cells, as well as in the polarization of naive T cells into Th1/Th2 responders.^6-14  These pleiotropic roles highlight the importance of pDCs in the control of T-cell tolerance, graft-versus-host disease, allergic responses, and lupus erythematosus.^15-20  Despite numerous studies, however, pDC function in vivo remains incompletely understood.

Similarly, little is known about the specific signals and factors involved in pDC differentiation.²¹  Flt-3 signaling has been described as a crucial component of the pDC developmental program.^22-24  Recent studies have shown that pDCs develop from Flt-3⁺ cells within the common lymphoid or common myeloid progenitor populations in mouse bone marrow.^25,26  Since many pDCs express some lymphoid-related gene products (such as pTα, V-preB, and EBF) and harbor D-J rearrangements, it has been proposed that pDCs arise from lymphoid progenitors, and are possibly related to B cells. Other pDC subtypes, however, appear to lack lymphoid-associated attributes.²⁷  Thus, pDC development appears complex, as it may be associated with considerable plasticity and as immature pDCs can arise from independent pathways that converge to produce the mature pDC subset.

Several transcription factors have been identified that regulate the development of distinct DC types.^28-31  Among these is Ikaros, a zinc finger protein essential for the development of multiple hematopoietic lineages.^32-36  Ikaros functions mainly as a repressor.^37-39  It binds DNA as homodimers or heterodimers with other members of the Ikaros family such as Aiolos, expressed mainly in B and T cells, and Helios, expressed in early hematopoietic precursors and T cells.^40-43  Expression of a dominant-negative form of Ikaros results in a complete loss of all conventional DC (cDC) subsets, while a null mutation in Ikaros leads to the selective loss of CD11c⁺CD11b⁺ but not CD11c⁺CD8α⁺ cDCs.³⁰  Moreover, human CD34⁺ BM cells expressing a dominant-negative Ikaros protein can generate DCs from myeloid (CD10^–) but not lymphoid (CD10⁺) progenitors,⁴⁴  providing further evidence that Ikaros is an important regulator of early DC development. Whether pDCs are affected by Ikaros deficiency is unknown.

Our laboratory has described a mutant mouse line carrying a hypomorphic mutation in the Ikaros locus (Ik^L/L) in which a β-galactosidase reporter gene was inserted into the 5′ part of the Ikaros locus (exon 3) by homologous recombination in ES cells.³⁵  Ik^L/L mice express low levels of functional Ikaros protein in their hematopoietic cells. Here we report that Ik^L/L mice selectively lack pDCs, but not cDCs. Loss of the pDC population results in an inability of these mice to produce type I IFN and control viral replication. Further, we find that pDC development is engaged but incomplete in the BM of Ik^L/L mice, suggesting that Ikaros plays a key role in the generation of peripheral pDCs from a pDC-committed BM precursor population. Lastly, we show that Ikaros represses the expression of many genes in these pDC precursors. Together, our results show that Ikaros is critical for pDC development and function, and identify the Ik^L/L mouse line as a potentially valuable in vivo model to study host-pathogen interactions in the absence of pDCs.

The Ik^L/L mouse line was previously described.³⁵  Mice (6-10 weeks old) used in this study were maintained under specific pathogen-free (SPF) conditions, and were backcrossed more than 7 generations onto the C57Bl/6 genetic background. Most experiments used mice from a 10th backcross generation. All gave similar results. B6.Ly5^SJL congenics were also maintained under SPF conditions.

All antibodies were from BD Pharmingen (San Diego, CA) or eBiosciences (San Diego, CA) except for biotin-conjugated Ly-6C (clone ER-MP20; BMA Biomedicals, Augst, Switzerland) and anti–Ly-49Q (MBL, Watertown, MA). Alexa488-conjugated 120G8 was described previously.⁴⁵  CD11c (N418), CD11b (M1/70), and B220 (RA3-6B2) were purified and conjugated to FITC, PE, allophycocyanin (APC), or biotin according to standard protocols. For fluorescence-activated cell sorting (FACS) analyses, cells were first incubated with anti-CD16/32 to block Fc receptors. Intracellular IL-12 was detected according to Dalod et al.⁴⁶  Cells were analyzed on a FACSCalibur or LSR II (BD BioSciences, San Jose, CA). Results were analyzed with the FlowJo software (TreeStar, Ashland, OR). Sorting was performed on a FACSVantage SE option DiVa (BD BioSciences).

Organs were digested by collagenase (liberase CI; Boehringer Mannheim, Mannheim, Germany) as described.⁴⁷  Cell suspensions were treated with 0.165 MNH₄Cl to lyse red blood cells (RBCs). For experiments requiring DC enrichment from the spleen, cells were incubated with anti-CD3 (17A2) and anti-CD19, followed by goat anti–rat IgG–coated Dynabeads (Dynal, Lake Success, NY), and depleted with a Dynal magnet. Depleted cells were then positively purified for CD11c⁺ cells using CD11c⁺ Microbeads and MiniMacs (Miltenyi Biotec, Auburn, CA). Purity was more than 95%. For enrichment from the BM, WT cells were depleted of CD19⁺ cells by the Dynal method, then purified with the indicated antibodies by FACS. Ik^L/L BM cells were not depleted but were similarly purified. Sort purity was more than 95%.

Cells were cultured in RPMI 1640 (Life Technologies, Bethesda, MD), 10% FCS (Life Technologies), 2 mM l-glutamine, 10 mM HEPES, 50 μM 2-ME, and 80 μg/mL gentamycin. Cells were stimulated at 10⁵ cells/well in 200 μL in 96-well plates. Poly I:C (Invitrogen, Frederick, MD) was used at 20 μg/mL final concentration. The formaldehyde-inactivated human influenza virus, strain NK/TM/138/00 (a kind gift from N. Kuehn, Aventis Pasteur, France), was used at 100 hemagglutinin U/mL. CpG D19 (GGT GCA TCG ATG CAG GGG GG) was phosphorothioate-modified (MWG Biotec, High Point, NC) and used at 10 μg/mL. Murine recombinant Flt-3L (25 ng/mL; R&D Systems, Minneapolis, MN) was used as previously described.²³  Supernatants were collected after 24 hours of culture and tested for IFNα by specific enzyme-linked immunosorbent assay (ELISA; PBL Biomedical Labs, Piscataway, NJ), and tested for IL-12p40 or IL-12p70 using IL-12 p70/p40 Duoset ELISA or IL-12 p70-specific Duoset ELISA (both from R&D Systems), respectively.

Mice were anesthetized and injected intravenously in the retro-orbital vein with 200 μL CpG 1668 (TCC ATG ACG TTC CTG ATG CT), prepared as described.²  R848 (Invivogen, San Diego, CA) was used at 5 μg/mouse in PBS. Poly I:C (Invitrogen) was used at 50 μg/mouse in PBS. Control mice were injected with PBS. Sera were analyzed using the ELISAs described for in vitro stimulation. Infections were initiated with 2 × 10⁴ to 5 × 10⁴ plaque-forming units of a salivary gland–extracted GFP-recombinant murine cytomegalovirus (MCMV) Smith strain (RVG-102) injected intraperitoneally on day 0. Control mice were injected with the medium in which the virus stocks were diluted. At 1.5 days after challenge, frequencies of splenic pDCs, MCMV-infected DCs, and IL-12⁺ DCs were analyzed as described. IFNγ was measured using the IFNγ-specific Duoset ELISA (R&D Systems).

B6.Ly5^SJL congenics were irradiated (9 gray) 24 hours before reconstitution. WT (2 × 10⁶) or Ik^L/L (5 × 10⁶) BM cells, both expressing the Ly5^B6 allele, were harvested from donor mice and injected intravenously into the recipients. For the double chimera experiments, WT or Ik^L/L BM cells were mixed with freshly-isolated, nonirradiated B6.Ly5^SJL cells before injection, at a 1:1 ratio for WT cells (1 × 10⁶:1 × 10⁶) and a 5:1 ratio for Ik^L/L cells (5 × 10⁶:1 × 10⁶). Ly5^B6 cells were analyzed 6 to 10 weeks after transfer using an anti-Ly5^B6 (Ly5.2) allele-specific antibody (clone 104). Reconstitution efficiency ranged between 30% and 50% for Ik^L/L and between 50% and 70% for WT donor cells.

Total RNA was extracted from sorted populations (2 × 10⁵ cells) using Trizol (Invitrogen) and reverse transcribed using AMV reverse transcriptase. Reversetranscription–polymerase chain reaction (RT-PCR) was performed with cDNA from the equivalent of 2 × 10⁴ cells with the following primers: β-actin, 5′-GTGACGAGGCCCAGAGCAAGAG, 5′-AGGGGCCGGACTCATCGTACTC; Ikaros, 5′-GGAGGCACAAGTCTGTTGAT, 5′-GTTGGCACTGTCATAGGGCA; Aiolos, 5′-ATCGAAGCAGTGCCGCTTCTCACC, 5′-GTGTGCGGGTTATCCTGCATTAGC; and Helios, 5′-TGGAAACAGACGCAATTGAT, 5′-CATGGCAACCCATGTGAAT. Thirty-five cycles were used for Ikaros, Aiolos, and Helios, and 28 for β-actin.

Three WT and 3 Ik^L/L samples of 2 × 10⁵ CD11c⁺120G8⁺ BM cells were sorted and RNA extracted with the Qiagen micro RNAeasy kit (Valencia, CA), yielding approximately 30 ng total RNA for each sample. Quality and absence of genomic DNA contamination was assessed with a Bioanalyser (Agilent, Palo Alto, CA). Probes were synthesized using 2 successive rounds of cRNA amplification, according to standard Affymetrix protocols, and hybridized to mouse 430 2.0 chips (Affymetrix, Santa Clara, CA). Raw data were transformed with the Mas5 algorithm, which yields a normalized expression value, and “absent” and “present” calls. Target intensity was set to 100 for all chips. Using Mas5, we performed all possible pairwise analyses, which yield “increased” (I), “decreased” (D), “marginally increased,” “marginally decreased,” or “not changed” calls, as well as fold change values. To select probe sets specifically increased or decreased in Ik^L/L samples compared with WT, we imposed that an I or D call be met by all possible Ik^L/L/WT pairwise comparisons. To evaluate the number of changes that might be due to experimental or biologic noise, we performed similar analyses, comparing “nonspecific” groups of 3 samples in which given WT and mutant samples had been permuted between groups (eg, comparing a first group containing 2 WT and 1 Ik^L/L samples with a second group containing 2 Ik^L/L and 1 WT samples). All 9 possible nonspecific combinations were analyzed. In 6 combinations, no probe sets were increased or decreased in all pairwise comparisons. In 3 combinations, fewer than 15 genes exhibited variations.

As DC development has been shown to be affected upon loss of Ikaros activity,^30,44  we examined distinct DC subpopulations in the spleens of WT, heterozygote Ik^+/L, and homozygote Ik^L/L mice, using a combination of antibodies including the pDC-specific antibody, 120G8.⁴⁵  WT, Ik^+/L, and Ik^L/L spleens contained similar proportions of “myeloid” (CD11c⁺CD11b⁺) and “lymphoid” (CD11c⁺CD8α⁺) cDC populations (Figure 1A). In striking contrast, the pDC population (CD11c⁺120G8⁺B220⁺) was significantly reduced in the spleens of Ik^+/L animals and absent in those of Ik^L/L mice. Similar results were obtained in the lymph node and peripheral blood (Figure 1B, and not shown). A detailed account of pDC and cDC (myeloid and lymphoid) frequencies in collagenase-treated WT and Ik^L/L organs is provided in Table 1. These data indicate that peripheral pDCs are severely diminished in mice deficient for Ikaros, and that this phenotype is dose dependent on Ikaros.

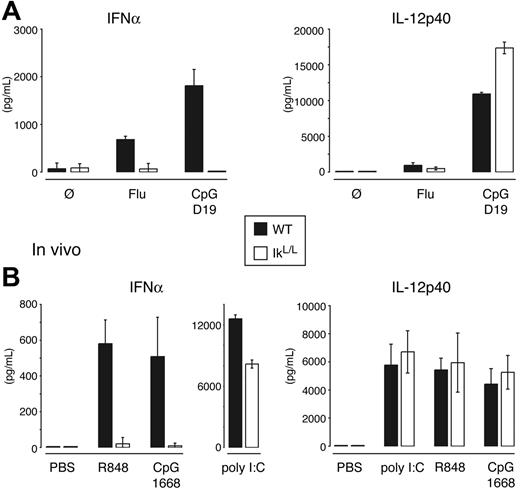

To determine if pDCs are functionally lacking in these animals, we used both in vitro and in vivo assays to test the capacity of Ik^L/L mice to produce IFNα in response to stimuli known to activate pDCs through the triggering of Toll-like receptors (TLRs). The TLR ligands included influenza virus, TLR9-binding CpG oligonucleotides, and the TLR7 ligand R848, all of which can also induce both pDCs and cDCs to produce IL-12.^1,48  As shown in Figure 2A, when CD11c⁺ WT and Ik^L/L spleen cells were cultured with influenza virus or CpG D19, WT cells produced IFNα but Ik^L/L cells did not. Likewise, injection of CpG 1668 or R848 induced IFNα production in WT but not mutant animals (Figure 2B). In contrast, normal IL-12 production was observed in all conditions, suggesting that TLR and/or cDC responses were not grossly altered in Ik^L/L mice. The in vivo IFNα response to polyinosinic: polycytidylic acid (poly I:C), which activates a variety of cell types through TLR3,⁴⁹  was also unaffected in Ik^L/L mice. Thus, Ik^L/L mice specifically lack pDCs, but not cDCs, both at the phenotypic and functional levels.

The lack of a peripheral pDC compartment implies that Ik^L/L mice may be susceptible to systemic infections. As pDCs have been reported to be the major IFNαβ producer during murine cytomegalovirus (MCMV) infection,⁴⁶  we tested the physiological relevance of pDC deficiency by evaluating the capacity of Ik^L/L mice to mount early innate immune responses to MCMV. Animals were challenged with GFP-recombinant MCMV, and titers of IFNα, IL-12, and IFNγ were measured at 1.5 days, the peak of the in vivo response.⁵⁰  The intensity of viral replication was also evaluated by measuring GFP expression in splenic leukocytes.

While WT mice produced robust levels of IFNα upon infection, IFNα levels were strikingly lower (> 10-fold less) in the Ik^L/L serum (Figure 3A), spleen homogenate, and ex vivo–conditioned media of CD11c-enriched DCs (not shown). Furthermore, infected Ik^L/L mice continued to lack peripheral pDCs (Figure 3A), indicating that MCMV infection and its associated acute inflammatory context could not restore a peripheral pDC compartment in these animals. Ik^L/L spleen cells contained a larger proportion of GFP-positive cells following MCMV challenge (Figure 3C), particularly within the CD11c⁺ population (Figure 3A), suggesting that Ik^L/L animals were also less efficient at controlling viral replication. This overall response may be due to the lack of pDCs and/or compromised function in other leukocytes, as Ikaros is expressed in all hematopoietic cells. However, serum IL-12 and IFNγ titers were not significantly different between Ik^L/L and WT animals (Figure 3A), suggesting normal antiviral responses from cDCs and NK cells, innate cell types known to be involved in the early defense against MCMV. Together, these data confirm that pDCs are major IFNα/β producers and contribute to an efficient early response to MCMV infection.

To further confirm that Ik^L/L cDCs function normally in vivo, we tested their capacity to produce IL-12 and up-regulate maturation markers in 2 systems—MCMV infection and stimulation with Toxoplasma gondii soluble tachyzoite antigen (STAg).⁵¹  MCMV infection induces both CD8α⁺ and CD11b⁺ cDCs to produce IL-12 through TLR9 triggering.⁵²  STAg challenge specifically induces CD8α⁺ cDCs to make IL-12 via TLR11 activation.⁵³  As shown in Figure S1 (available at the Blood website; see the Supplemental Materials link at the top of the online article), the frequencies of IL-12–producing cells within the cDC subsets were similar between Ik^L/L and WT mice, either 1.5 days after MCMV infection (Figure S1A) or 6 hours after stimulation with STAg (Figure S1B). Furthermore, all cDCs up-regulated CD86 and MHC class II expression in both conditions. Thus, Ik^L/L cDCs behaved normally in 2 experimental situations, involving distinct TLRs on different cDC subsets. These data further demonstrate that TLR signaling is unaffected and that cDCs are phenotypically and functionally normal in Ik^L/L mice.

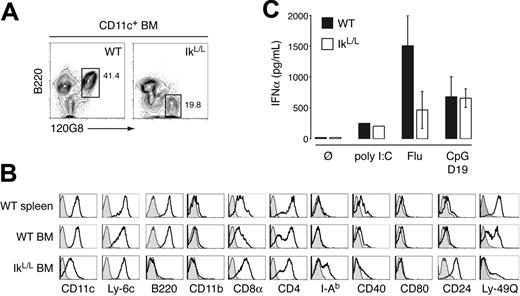

As pDC development normally occurs in the BM, we examined the Ik^L/L BM for pDC differentiation. WT BM contained a population of CD11c⁺B220⁺Ly-6C⁺120G8⁺ cells that was similar in phenotype and frequency to splenic pDCs, although B220 expression was more heterogeneous in the BM population (Figure 4A; Table 1). Surprisingly, 120G8⁺ cells were also detected in similar numbers in the Ik^L/L BM; these cells expressed low levels of CD11c and were positive for Ly-6C, but negative for B220. Loss of the B220 marker was not a general phenomenon in Ik^L/L mice, as it is expressed at normal levels by Ik^L/L B cells.³⁵  We compared the expression of other pDC-related markers on Ik^L/L BM 120G8⁺ cells and WT BM and splenic pDCs (Figure 4B). Notably, a larger proportion of Ik^L/L 120G8⁺ cells expressed high levels of CD8α, CD4, CD24, and MHC class II, but were mostly negative for CD40, CD80, and CD86 (Figure 4B and not shown). Interestingly, Ly-49Q expression was also altered in Ik^L/L 120G8⁺ cells. Ly-49Q, an ITIM-bearing inhibitory receptor, is highly expressed by WT splenic pDCs and can be used to discriminate 2 pDC populations in the WT BM, where Ly-49Q^– cells appear more immature and may represent the immediate precursors of the Ly-49Q⁺ population (Figure 4B).^54-56  Ik^L/L BM 120G8⁺ cells were mostly negative for Ly-49Q, suggesting a block in pDC differentiation at an immature stage. Finally, both WT and Ik^L/L BM 120G8⁺ cells exhibited plasmacytoid morphology, as determined by May-Grünwald/Giemsa staining and transmission electron microscopy (not shown).

A hallmark of pDC identity is the capacity to produce IFNα. We therefore tested the ability of Ik^L/L BM 120G8⁺ cells to produce IFNα upon activation with influenza virus and CpG D19. Ik^L/L 120G8⁺ cells produced IFNα in both cases (Figure 4C), while CD11c⁺CD11b⁺ BM cells from either genotype did not (not shown). Interestingly, CpG D19 induced WT levels of IFNα from Ik^L/L cells, while the response to influenza virus was suboptimal, indicating that the mutant cells respond more fully to some stimuli than others. These data provide strong functional evidence that the 120G8⁺ cells in the Ik^L/L BM are pDC-lineage cells.

BM pDC development can be enhanced by Flt-3/Flt-3 ligand (Flt-3L) interactions,^22-24  and Ikaros appears to be required for Flt-3 expression at the mRNA level in hematopoietic progenitors.³⁴  We therefore asked if Ik^L/L BM 120G8⁺ cells were blocked in their differentiation due to a loss of Flt-3 signaling. To address this issue, we analyzed Flt-3 expression, and responsiveness to Flt-3L in Ik^L/L BM 120G8⁺ cells. Ik^L/L 120G8⁺ BM cells expressed strong levels of surface Flt-3 (Figure 5A), which at times were higher than WT levels, depending on the mouse (not shown). Importantly, culture of unfractionated BM cells with Flt-3L led to the ready emergence of CD11c⁺120G8⁺ cells in both WT and Ik^L/L cultures, with similar frequency and kinetics (Figure 5B-C). These results indicate that Flt-3 signaling is functional in Ik^L/L pDC precursors, even though the cells derived from Ik^L/L BM still failed to up-regulate B220.

Together, our results show that a pDC population resides in the bone marrow of Ik^L/L mice. These cells produce IFNα and express markers indicative of the pDC lineage, but do not terminally differentiate even upon Flt-3 signaling.

As Ikaros is expressed by all hematopoietic cells, it was important to distinguish if the block in pDC development in Ik^L/L mice was due to a cell-intrinsic defect within the pDC lineage or to an indirect effect due to diminished Ikaros levels in another hematopoietic population. To allow the development of Ik^L/L BM cells in a WT environment, we established single and double (mixed) bone marrow chimeras. In the single chimeras, we used unfractionated WT or Ik^L/L BM cells (both expressing the Ly5^B6 allele) to reconstitute lethally irradiated B6.Ly5^SJL recipients. These experiments tested the capacity of Ik^L/L hematopoietic progenitors to differentiate in an environment containing WT stromal cells. In the double chimeras, we used WT or Ik^L/L BM cells mixed with B6.Ly5^SJL congenic BM cells to reconstitute irradiated B6.Ly5^SJL recipients. This latter combination tested the capacity of Ik^L/L hematopoietic progenitors to differentiate in an environment containing both WT stromal and hematopoietic elements. Double chimeras also allowed us to determine if Ik^L/L hematopoietic cells can interfere with WT pDC development, or reciprocally, if the presence of WT (B6.Ly5^SJL) BM cells can rescue Ik^L/L pDC development. Ly5^B6 spleen and BM cells were analyzed 6 to 10 weeks after reconstitution.

As shown in Figure 6A, chimeras reconstituted with WT BM cells exhibited normal pDC compartments (B220⁺120G8⁺ cells) in both the BM and spleen. In striking contrast, both single chimeras reconstituted with Ik^L/L BM cells and double chimeras exhibited the same block in Ik^L/L pDC differentiation at the B220^–120G8⁺ stage in the BM, with few if any detectable Ik^L/L pDCs in the spleen. WT B6.Ly5^SJL pDCs differentiated normally in the double chimeras reconstituted with WT and Ik^L/L BM cells, eliminating the possibility that Ik^L/L BM cells might exert a dominant-negative intercellular effect on pDC differentiation (not shown). These results demonstrate that the pDC block is due to a cell-intrinsic defect in Ik^L/L hematopoietic cells.

To determine the relative expression of Ikaros and other family members during pDC maturation, we analyzed its expression, versus that of Aiolos and Helios, in pDCs and cDCs by RT-PCR. Ikaros was expressed in WT BM and splenic pDCs, and in splenic cDCs (Figure 6B), although at much lower levels than in thymocytes. Interestingly, Aiolos was expressed by all splenic DCs, but at barely detectable levels in the BM pDC population. Helios expression was not detected in any of the DC populations tested. These results suggest that Ikaros is the predominant family member expressed in BM pDCs.

To gain insight into the mechanism of Ikaros function during pDC differentiation, we compared the gene expression profiles of WT and Ik^L/L BM CD11c⁺120G8⁺ pDCs. Three independent RNA samples were prepared for each genotype, and analyzed on pangenomic Affymetrix arrays. Most genes were similarly expressed between WT and Ik^L/L samples (note the global shape of the scatterplots in Figure 7A), including those previously found to be highly expressed in pDCs (ie, SpiB, Bcl-11a, and Siglec_H). These data provide further evidence that Ik^L/L BM pDCs belong to the pDC lineage. However, there were striking differences in the Ik^L/L transcriptome. Three-hundred and seventy genes were strongly overexpressed in Ik^L/L BM pDCs with 137 of these up-regulated more than 4-fold (Figure 7B; Table 2; Table S1). Furthermore, 52 of these genes were normally not expressed in WT BM pDCs (Figure 7C; Table 2 asterisks). In contrast, most of the 247 down-regulated genes showed only a modest decrease in expression (Figure 7B; Table S2), and only 4 of them were turned off in Ik^L/L BM pDCs. These experiments suggest that Ikaros deficiency results in a widespread and strong derepression of specific genes in immature pDCs. Interestingly, some of these deregulated transcripts are T- or B-cell specific. Ik^L/L BM pDCs strongly express Lck, pKCθ,pTα, TCR-Vβ13, and Thy1, all T-cell–specific, as well as λ5 and VpreB1, which encode the surrogate light chains of the pre-BCR. Also intriguing is the strong induction of CD56 (NCAM1, Table 2), a diagnostic marker for human plasmacytoid leukemia not normally expressed in premalignant pDCs.⁵⁷  CD56 might therefore be a marker for immature pDCs. Collectively, our data indicate that Ikaros functions to repress a specific set of genes during pDC differentiation, by direct or indirect means.

Our data show that pDCs are selectively and severely reduced in mice with diminished Ikaros activity and that this phenotype is dose dependent on Ikaros. Loss of the pDC population, but not other DC subsets or hematopoietic lineages in Ik^L/L mice,^35,36  allowed us to confirm the highly specific IFNα-producing role of pDCs to influenza virus, and to TLR7 and TLR9 ligands. Moreover, we confirm that pDCs are essential in the early response to viral infection, as MCMV-infected Ik^L/L mice failed to produce high levels of IFNα and control viral replication.

Although pDCs are absent in Ik^L/L mice, cDCs appear normal. Their numbers are slightly reduced in Ik^L/L collagenase-treated organs, but these cells respond normally when stimulated in vivo with MCMV or STAg, producing IL-12 and up-regulating maturation markers. Thus, the Ik^L/L mouse line provides a powerful tool to study pDC requirement in vivo, without previous external manipulation. Indeed, Ik^L/L mice have been valuable in revealing a second and novel wave of IFNα production following MCMV infection that is pDC independent.⁵²  Some caution, however, should be exercised when using this mouse line as a “pDC-less” model, as other hematopoietic lineages including T and B cells and neutrophils are also affected by the Ik^L/L mutation, and Ik^L/L mice develop thymic lymphomas by 10 to 12 weeks of age.^35,36,58

The lack of peripheral pDCs in Ik^L/L mice is likely due to a developmental block in the BM, where we have identified a putative pDC precursor population. These cells resemble WT BM pDCs in several aspects: (1) they express 120G8, Ly-6C, Flt-3, CD8α, and CD4, and exhibit a gene expression program similar to that of WT pDCs; (2) they present a typical plasmacytoid morphology; and (3) they produce IFNα after stimulation with CpG oligonucleotides and, to a lesser extent, influenza virus. Since Ik^L/L BM pDCs express less TLR7 at the mRNA level (Table S2), and TLR7 mediates influenza-induced IFNα production,^59,60  our transcriptome data may explain why Ik^L/L pDCs respond less well to influenza stimulation. Moreover, Ik^L/L BM cells give rise to 120G8⁺ cells with similar kinetics as WT BM cells following Flt-3L stimulation in vitro, indicating that Ik^L/L progenitors can proceed through the initial steps of pDC differentiation. Interestingly, Ik^L/L BM 120G8⁺ cells are mostly Ly-49Q^–, like the immature pDC subset recently identified in WT BM, which may represent the immediate precursors of the more mature Ly-49Q⁺ pDCs found in the BM and the periphery.^54-56  It is therefore tempting to speculate that Ik^L/L pDCs are blocked at this immature Ly-49Q^– stage of differentiation. However, Ik^L/L BM 120G8⁺ cells are also different in other respects—they lack B220, and express some markers of activation (CD8α, MHC class II, CD40) but not others (CD80, CD86). Collectively, our data suggest that commitment to the pDC lineage occurs in the Ik^L/L BM, but that differentiation is blocked.

Our results show that pDC-committed precursors in the BM show a cell-intrinsic requirement for Ikaros, as Ik^L/L BM pDCs do not terminally differentiate in vivo even if given a WT BM and stromal microenvironment, as shown in single and double chimera experiments. Although Flt-3/Flt-3L signaling has been shown to be essential for optimal pDC development^22-24  and Flt-3 expression appears dependent on Ikaros,³⁴  our studies suggest that this pathway is not defective in Ik^L/L BM pDCs, and notably, that Flt-3/Flt-3L signaling alone is not sufficient for pDC development. Indeed, Ik^L/L BM cells respond to Flt-3L stimulation in vitro but never give rise to mature cells. Moreover, cDC development and function appear normal in Ik^L/L mice, and their differentiation also depends on Flt-3/Flt-3L.⁶¹

How Ikaros regulates pDC differentiation may be linked to its proposed function as a transcriptional repressor. Our gene expression analyses show that a significant number of genes, not normally expressed in WT pDCs, are strongly up-regulated in Ik^L/L BM pDCs. These data suggest that Ikaros may act as a key repressor of non-pDC–specific genes during pDC differentiation, similar to Pax5 function in early B-cell development.⁶²  Of importance, several T- and B-lineage–specific genes are highly expressed in Ik^L/L pDCs, suggesting that Ikaros is required to suppress lymphoid-related genes in pDCs. It is also noteworthy that the majority of deregulated genes code for adhesion molecules, cell surface receptors, extracellular matrix proteins, and secreted factors (Table 2; Figure S2), suggesting that an altered response to the BM environment may play an important role in the differentiation block seen here. Further functional investigation will be required to dissect the roles of these genes in pDC differentiation.

Our observation that most of the deregulated genes show increased mRNA expression supports the hypothesis that Ikaros acts mainly as a repressor, through its association with the NURD histone deacetylase complex or the CtBP and Sin3 corepressors. The fact that few transcriptional activators are strongly induced in Ik^L/L pDCs (Table 2) argues in favor of a direct influence by Ikaros on the affected genes. Indeed, 2 genes have previously been shown to be targets of Ikaros-mediated repression in other systems: λ5, which contains several Ikaros binding sites in its promoter responsible for silencing a reporter gene during the proB/preB transition in transgenic mice,⁶³  and Hes-1, which was shown to be up-regulated in Ikaros-deficient leukemic T cells and whose promoter contains a regulatory element recognized by Ikaros and RBP-Jκ.⁵⁸

Ik^L/L mice carry a β-galactosidase reporter gene inserted into exon 3 of the Ikaros locus (exon 3).³⁵  We have shown that low levels of Ikaros transcripts are expressed in the hematopoietic cells of these mice that lack the altered exon and exhibit in-frame splicing between exons 2 and 4. As a result, residual quantities of smaller-sized Ikaros proteins (Ik*) are synthesized. An important issue is whether these Ik* proteins function similarly to WT proteins. Our previous data indicate that both normal Ik and Ik* proteins bind Ikaros target sequences and repress transcription similarly.⁵⁸  Furthermore, the Ik^L/L mutation leads to incomplete loss of function, as (1) the phenotype of Ik^L/L mice is similar but milder than that of Ikaros-null mice, and (2) overexpression of WT or mutant Ikaros proteins can rescue T-cell phenotypes.⁵⁸  Thus, Ik* proteins probably function normally but are present at low levels in Ik^L/L cells. Moreover, Wu and colleagues have alluded, in a recent review, that pDCs are also missing in Ikaros-null mice, in addition to their published defects in the cDC compartment (Naik et al²¹ ). Together, these data suggest that the lack of pDCs in Ik^L/L mice results from loss of Ikaros function, rather than the manifestation of a novel dominant effect of the Ik* protein.

Our results, together with previous work highlighting the role of Ikaros in hematopoiesis and DC differentiation,^30,44  should provide insights into the molecular events required for the development of each DC lineage. Previous data illustrate that mice expressing a dominant-negative Ikaros mutation exhibit a complete block in the development of all DCs, and animals bearing a null mutation produce some CD8α⁺ but no CD11b⁺ cDCs.³⁰  Our work extends these findings by showing that pDC development is exquisitely dependent on Ikaros, as Ik^L/L mice, which express low Ikaros levels, lack pDCs but exhibit only slightly reduced numbers of CD8α⁺ and CD11b⁺ cDCs. Furthermore, heterozygote Ik^+/L mice that express intermediate levels of Ikaros show a dramatic reduction in pDC numbers but present normal numbers of cDCs. As BM pDCs uniquely express low levels of Aiolos and Helios, Ikaros may play an essential, nonredundant role in pDC differentiation. Collectively, these results demonstrate that Ikaros and/or related family members are essential for the development of all DC populations. Our results suggest that different DC subsets require graded levels of Ikaros activity for their development: very low levels suffice for CD8α⁺ cDCs, moderate levels are needed for CD11b⁺ cDCs, and high levels are required for pDCs.

In conclusion, we have shown that our mouse model bearing a hypomorphic mutation for Ikaros specifically lacks plasmacytoid dendritic cells, but not conventional dendritic cells, in the periphery. We have demonstrated that high levels of Ikaros are not necessary for engagement of BM precursors into the pDC lineage but are required for terminal differentiation of BM pDCs. This block is linked to a failure of Ik^L/L pDCs to silence the expression of many genes, some of which encode proteins important in intercellular crosstalk. Further studies are now required to determine the specific contribution of these genes to pDC differentiation.

Contribution: D.A., M.D., C.A.-P., T.D., S.H.R., P.K., and S.C. designed and performed experiments; G.T. and C.A.B provided valuable reagents and intellectual input; and M.D., P.K., and S.C. wrote and edited the manuscript.

Conflict-of-interest disclosure: The authors declare no competing financial interests.

D.A., M.D., P.K., and S.C. contributed equally to this work.

We thank G. Yap (Brown University) for the kind gift of STAg; M. Sellars for critical reading of the paper; S. Duhautbois-Boine, G. Kimmich, and G. Brizard for help; C. Thibault, C. Grussenmeyer, and D. Dembélé for microarray experiments and analysis; J. Barths, C. Ebel, and I. Durand for flow cytometry; and F. Memedov and M. Gendron for animal husbandry.

This work was supported by institute funds from INSERM, CNRS, and the Hôpital Universitaire de Strasbourg; a grant from the Association pour la Recherche sur le Cancer (ARC); and the Centre National de Ressources en Génomique (Programme Affymetrix) (P.K. and S.C.). M.D. was supported by an ATIPE (Action Thématique et Incitative sur Programme) grant from the CNRS and a grant from the ARC. S.H.R. was supported by the CNRS, the Fondation pour la Recherche Médicale, and the Philippe Foundation. D.A. was supported by National Institutes of Health (NIH) grants AI52861 and AI58066, and is the recipient of a Career Development Program Award from the Leukemia and Lymphoma Society. C.A.B. was supported by NIH grant AI55677.
