Effector and regulatory T-cell function is differentially regulated by RelB within antigen-presenting cells during GVHD

Allogeneic bone marrow transplantation (BMT) is the definitive curative therapy for the majority of hematologic malignancies and severe immunodeficiencies. The major complication of allogeneic BMT remains graft-versus-host disease (GVHD) in which the skin, gastrointestinal tract, and liver are preferentially damaged by the transplanted donor immune system. The therapeutic potential of BMT relates to the graft-versus-leukemia (GVL) effect, which eradicates host malignancy after BMT and is mediated by donor T and natural killer cells.¹  GVHD occurs in the majority (50%-70%) of recipients and is largely responsible for the high rate of mortality associated with allogeneic BMT. There is thus a pressing need for new treatment approaches to both prevent and treat GVHD, ideally without inhibiting GVL.

The complex interactions resulting in the generation of T-cell–mediated alloimmune responses depend on antigen presentation, cognate interactions between donor T cells and antigen-presenting cells (APCs), and the concomitant production of soluble and membrane-bound costimulatory molecules by APCs and T cells (reviewed in Morris et al² ). The initiation of GVHD absolutely depends on the presence of mature donor T cells in the graft.²  Thus, although TLR signaling undoubtedly contributes to the activation of APCs early after transplantation,³  it is likely that donor T cells provide the most critical signal. In this regard, the CD40-CD40L pathway appears to be of major importance, as demonstrated by the induction of tolerance following disruption of this receptor-ligand interaction.⁴  The subsequent molecular mechanisms controlling APC function in tolerance and immunity are poorly defined. The NF-kB/Rel family of proteins include 5 subunits: c-Rel, RelA, RelB, NF-kB1, and NF-kB2, which form homodimers or heterodimers. At steady state, most of these proteins are inactive within the cytoplasm, bound by inhibitory IkB proteins. Activation by the classical pathway within a broad range of cells (including APCs and T cells) occurs as a result of a variety of membrane signals, including TNF, IL-1, and Toll receptors, that allow nuclear import of c-Rel and RelA heterodimers with subsequent transcriptional activation of inflammatory proteins. Activation by the alternative pathway within APCs is the result of lymphocyte interactions and signaling through the lymphotoxin-β receptor, BAFF receptor or CD40, resulting in nuclear import of p52/RelB heterodimers and transcriptional activation of characterized and uncharacterized proteins that result in maturation and antigen-presenting activity within professional APCs.^5–7

Because APCs are known to be critical for the initiation and maintenance of GVHD^8,9  and their activation occurs rapidly after transplantation,¹⁰  we hypothesized that maintaining host APCs in a state of RelB inactivity during conditioning would promote the induction of peripheral tolerance after allogeneic stem cell transplantation (SCT). We found that the lack of RelB within either host or donor APCs limited the ability of these cells to initiate and maintain GVHD, respectively. Strikingly, this was due to the failure of donor helper T cell type 1 (Th1) expansion after transplantation.

Female C57BL/6 (B6, H-2^b, CD45.2⁺), B6 PTPRCA Ly-5a (H-2^b, CD45.1⁺), B6D2F1 (H-2^b/d, CD45.2⁺), and BALB/c (H-2^d, CD45.2⁺) mice were purchased from the Animal Resources Centre (Perth, Australia). RelB^−/− (B6, H-2^b, CD45.2⁺) mice¹¹  were originally provided by L. Wu (Walter and Eliza Hall Institute, Melbourne, Australia), and selected heterozygotes were bred in the animal facility at Herston (University of Queensland, Brisbane, Australia). CD11c-DTR-GFP and “MacGreen” (c-fms/EGFP) transgenic mice on a B6 background were provided by Mark Smyth (Peter MacCallum Cancer Institute, Melbourne, Australia) and David Hume (University of Queensland, Brisbane, Australia), respectively. Mice were housed in sterilized microisolator cages and received normal chow and autoclaved drinking water which was acidified for the first 2 weeks after BMT. Bone marrow chimeras (BMCs) were generated by injecting 5 × 10⁶ T-cell–depleted (TCD) BM cells from WT or RelB^−/− donors into irradiated B6 PTPRCA recipients (1000 cGy, split dose separated by 3 hours from a ¹³⁷Cs source at 108 cGy/min). BMCs were then phenotyped or used as transplant recipients 3 to 4 months later as previously described.⁸  In some experiments, luciferase-transfected P815 host-type (H-2^d) leukemia cells were administered to transplant recipients 14 days after BMT, and the development of leukemia was monitored by biophotonic imaging as previously described.¹²

The following mAbs were purchased from BioLegend (San Diego, CA): FITC-conjugated I-A/I-E (M5/114.15.2), CD45.1 (A20), and IgG2a isotype control; PE-conjugated CD4 (RM4-5), CD8a (53-6.7), CD11b (M1/70), CD11c (N418), CD45R/B220 (RA3-6B2), CD45.2 (104), and IgG2b isotype control; PE-Cy5–conjugated CD8, CD4, and IgG2b isotype control; Alexa647-conjugated anti-FoxP3 and isotype control; allophycocyanin-conjugated CD11c (N418) and IgG2b isotype control. FITC-conjugated CD25 (7D4) and PE-conjugated CD40 (3/23), CD80 (16-10A1), CD86 (GL1), CD62L (MEL14), and I-A/I-E (2G9) were purchased from PharMingen (San Diego, CA). Purified anti-RelB (C-19) was purchased from Santa Cruz Biotechnology (Santa Cruz, CA). Biotinylated anti–rabbit immunoglobulins and streptavidin-HRP were purchased from DakoCytomation (Ft Collins, CO). PE-conjugated PDCA-1 was purchased from Miltenyi Biotec (Bergisch Gladbach, Germany). FITC-conjugated CD11c (HL3) and purified mAb against CD3 (KT3), CD19 (HB305), CD25 (PC61), rat IgG1 isotype control (MAC-49), Gr1 (RB6-8C5), Thy1.2 (HO-13-4), CD62L (MEL14), Ter119, and FcγR II/III (2.4G2) were produced in house.

DC purification was undertaken as previously described.¹³  Briefly, low-density cells were enriched from digested spleen by Optiprep density gradient centrifugation. For culture experiments, highly purified DC populations (> 98%) were obtained from the density gradient–enriched APC fraction by fluorescence-activated cell sorting of CD11c^hi cells (MoFlo; DakoCytomation). For MLC, splenic CD3⁺ T cells were purified to greater than 90% by depleting B cells (B220, CD19), monocytes (CD11b), granulocytes (Gr-1), and erythroid cells (Ter119) using magnetic bead depletion. In some experiments, antibody to CD8a was added to this cocktail to purify CD4 T cells for transplantation. Naive CD4⁺ T cells were purified from spleen for in vitro assays by fluorescence-activated cell sorting (FACS) of the CD4⁺CD62L⁺ population.

For analysis of cell-surface molecules, cells were incubated with mAb as per the manufacturer's instructions or at 5 to 20 μg/mL in 2% FCS in PBS, for 20 to 60 minutes at 4°C. Cells were washed in 2% FCS in PBS. Biotinylated mAbs were detected with the appropriate conjugated streptavidin detection reagents diluted in 2% FCS in PBS and analyzed on a FACS Calibur cytometer (Becton Dickinson, Franklin Lakes, NJ). In some experiments, 7AAD (1 μg/mL) was added in the final wash to identify dead cells. For FoxP3 detection, following surface labeling, cells were fixed and permeabilized using “Fix & Perm” (BioLegend), followed by incubation with Alexa647-conjugated FoxP3 mAb (BioLegend).

For immunohistochemical detection of RelB, spleens were harvested from control B6 mice or 24 hours after total body irradiation (TBI; 1100 cGy using a ¹³⁷Cs source at 108 cGy/min), APCs were enriched by density gradient centrifugation, and cytospins were prepared. Slides were fixed in paraformaldehyde and stained for RelB using immunoperoxidase and diaminobenzidine staining as previously described.¹⁴  For quantification of nuclear RelB, nuclear protein extracts from sort-purified cell populations were prepared as previously described,¹⁵  and protein was estimated using a Bio-Rad Protein Assay kit (Hercules, CA). RelB DNA binding was detected by enzyme-linked immunosorbent assay (ELISA) using a Mercury Transfactor NFkB kit (Clontech Laboratories, Palo Alto, CA). Briefly, 50 μg nuclear protein was bound to wells coated with NF-kB consensus oligonucleotide, incubated with anti-RelB followed by anti–rabbit HRP-conjugated Ig, and then detected by measuring color development of tetramethylbenzidine at 650 nm using a Multiskan plate reader (Labsystems, Chicago, IL).

Confocal images of split mouse ear pinnae were acquired at various times after transplantation using a Leica TCS SP2 confocal and Leica upright Model DMRE microscope (Leica Microsystems, Heidelberg, GmbH) with 63×/1.32 HCX PL APO objectives at room temperature using 488 nm laser excitation. Imaging used Leica Confocal Software (LCS) Version 2.61 build 1537 acquisition software. Immunohistochemistry images were acquired on an Olympus BX41 microscope and Olympus DP12 camera (Tokyo, Japan) using a 10× ocular objective and 100×/1.25 oil objective at room temperature.

Sort-purified CD11c^hi DCs were cultured for 18 to 24 hours at 10⁶ cells/mL in 10% FCS/IMDM (JRH Biosciences, Lenexa, KS) supplemented with GM-CSF, IL-4 (each at 100 ng/mL), and IFNγ (20 ng/mL) with or without anti-CD40 (FGK-45; 100 μg/mL). Tissue culture supernatants were stored at −70°C for subsequent cytokine analysis. For MLCs, 10⁵ magnetic bead–purified Balb/c T cells were cultured for 5 days with varying numbers of sort-purified CD11c^hi DCs. [³H]-thymidine (1 μCi [0.037 MBq]/well) was added on day 4, and proliferation was determined 18 hours later using a Betaplate Reader (Wallac, Turku, Finland). For T_reg suppression assays, 10⁵ magnetic bead–purified CD4⁺ Balb/c T cells were cultured with 10⁴ sort-purified CD11c^hi Balb/c DCs in the presence of anti-CD3 (2C11; 1 μg/mL) and varying numbers of sort-purified CD4⁺CD25⁺ T_reg cells. [³H]-thymidine (1 μCi [0.037 MBq]/well) was added on day 3, and proliferation was determined 18 hours later. All cytokine analysis used CBA inflammation or Th1/Th2 kits (BD Biosciences, San Diego, CA) as per the manufacturer's recommended protocols.

Two well-established murine transplantation models were used, and mice received transplants according to a standard protocol as previously described.^12,16–18  To study the effect of RelB within recipient APCs, BMCs received 950 cGy (split dose separated by 3 hours on day 0) and were transplanted with 5 × 10⁶ bone marrow and 3 × 10⁶ purified splenic T cells from Balb/c (allogeneic) or B6 (syngeneic) donors. For donor T_reg depletion studies, Balb/c mice were injected intraperitoneally with 500 μg anti-CD25 mAb (PC61) or control mAb (rat IgG1 isotype control MAC49) on day −4 prior to transplantation. BMCs received BM from PC61-treated donors supplemented with 3 × 10⁶ purified lymph node (LN) T cells from control mAb or PC61-treated donors. To study the effect of RelB within donor APCs on GVHD, B6D2F1 mice received 1100 cGy on day 0 and were given transplants of 5 × 10⁶ bone marrow cells from WT or RelB KO mice with or without 5 × 10⁵ purified splenic T cells. Animals were monitored daily thereafter. For the transient depletion of DCs after transplantation, irradiated B6D2F1 mice were given transplants of 5 × 10⁶ BM cells from CD11c-DTR-GFP Tg mice with or without 5 × 10⁵ purified splenic T cells. Recipients received diptheria toxin (DT) (100 ng intraperitoneally) at 14, 18, and 23 days after BMT.

The degree of systemic GVHD was assessed by a scoring system that sums changes in 5 clinical parameters: weight loss, posture (hunching), activity, fur texture, and skin integrity (maximum index = 10).¹⁹  Animals with severe clinical GVHD (scores ≥ 6) were killed according to ethical guidelines, and the day of death was deemed to be the following day, as previously described.^12,16,17,20

Survival curves were plotted using Kaplan-Meier estimates and compared by log-rank analysis. The Mann Whitney U test was used for the statistical analysis of cytokine data and clinical scores. P less than .05 was considered statistically significant.

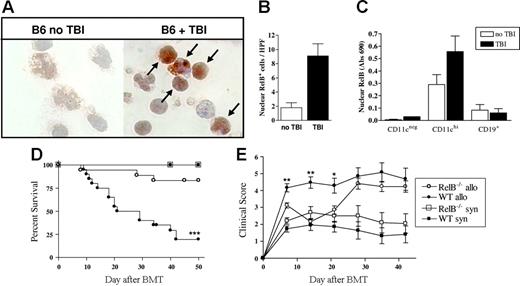

In initial experiments, we examined the effect of TBI on RelB expression by host APCs. RelB expression was increased 4- to 5-fold in APCs enriched from mice 18 hours after TBI relative to naive mice (Figure 1A-B). When APC subsets were sorted by FACS from naive mice and those that had received TBI 4 hours earlier, nuclear RelB was present in DCs but not B cells or other CD11c^neg populations, and this was further enhanced by TBI (Figure 1C). This increase in nuclear RelB was associated with an increase in DC costimulatory molecule expression (data not shown), as previously described.¹⁰

RelB^−/− mice exhibit impaired development of lymphoid organs, multiorgan inflammation, and splenomegaly and have a reduced lifespan. To overcome this phenotype and to restrict the RelB deficiency to hematopoietic tissues, we generated bone marrow chimeras (BMCs) for use as subsequent transplant recipients. We then examined whether the increased expression of RelB in residual host APCs after irradiation impacted on GVHD outcomes. We used a MHC mismatched BMT model of acute GVHD (Balb/c → B6) in which WT or RelB^−/− BMCs were used as recipients. As expected, 100% of the WT and RelB^−/− BMC recipients that received syngeneic grafts survived. In contrast, by day 50, the majority (80%) of WT BMC recipients died with characteristic features of GVHD (weight loss, hunching, fur ruffling, etc). The RelB^−/− BMC recipients of allogeneic grafts had significantly improved survival compared with the WT BMC recipients (83% versus 20%, P < .001) (Figure 1D). In addition, for the first 3 weeks after BMT, the GVHD clinical scores indicated a significant reduction in disease severity in the RelB^−/− BMC recipients compared with WT BMC recipients (P < .01). Subsequently, however, the clinical scores for the RelB^−/− BMC recipients increased and were equivalent to those of the WT BMC recipients (Figure 1E).

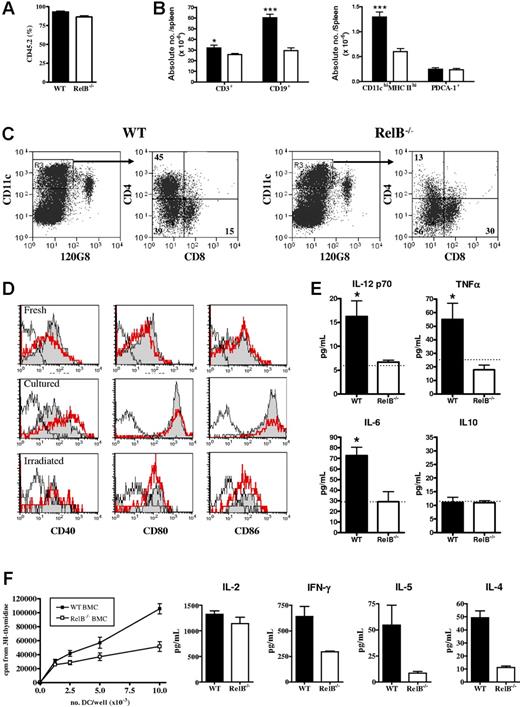

Flow cytometric examination of spleens from BMCs 4 to 6 months after generation revealed equivalent proportions of engraftment, although overall spleen size was smaller in the RelB BMCs, predominantly because of diminished numbers of CD19⁺ B cells (Figure 2A-B). Total splenic PDCA-1⁺ (plasmacytoid DC) numbers were similar in WT or RelB^−/− BMCs; however, the number of conventional CD11c^hi dendritic cells (cDCs) was significantly decreased in the RelB^−/− BMCs (Figure 2B), reflecting an impaired development of the CD4⁺ subset (Figure 2C). Freshly purified CD11c^hi cDCs from WT or RelB^−/− BMCs expressed equivalent levels of CD40, CD80, and CD86, which were spontaneously up-regulated following overnight culture or following TBI (Figure 2D). Interestingly, CD40 was consistently expressed at a higher level on RelB^−/− cDCs following culture (Figure 2D). The addition of LPS or anti-CD40 to cultures had no additional effect on cell-surface costimulatory molecule expression (data not shown). In contrast, although CD40 ligation induced IL-12, IL-6, and TNFα from WT cDCs, those from RelB^−/− BMCs failed to respond (Figure 2E). Finally, CD11c^hi cDCs from RelB^−/− BMCs induced lower proliferation and cytokine production in naive (ie, CD62L⁺) CD4 T cells than DCs from WT BMCs both before (Figure 2F) and after TBI (data not shown). Thus, APCs within RelB^−/− BMCs are quantitatively and qualitatively different from those in WT BMCs.

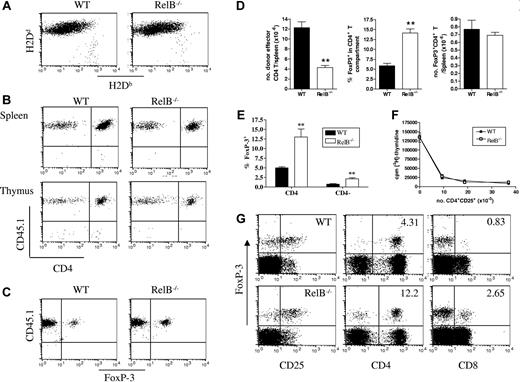

To address the mechanism(s) by which the absence of RelB within host APCs attenuated GVHD, we first compared the degree of donor engraftment 10 days after BMT using flow cytometric analysis of splenic cell populations. As shown in Figure 3A, donor engraftment was equivalent and near complete (> 90%) in both the WT and RelB^−/− BMC recipients of allogeneic grafts. Because the Balb/c→B6 model of GVHD depends on CD4⁺ T cells²¹  (and Figure S1A, available on the Blood website; see the Supplemental Figures link at the top of the online article), we next examined the degree of donor CD4⁺ T-cell expansion after BMT. In initial experiments, we used splenic donor T cells from CD45.1⁺ congenic Balb/c mice and donor bone marrow from CD45.2⁺ Balb/c mice to differentiate T-cell expansion occurring in the periphery from that arising centrally via the thymus. As shown in Figure 3B, all CD4 T cells in the spleen (and LN; data not shown) of recipients were derived from the mature donor T-cell component of the graft 10 days after BMT. Interestingly, the vast majority of the small numbers of cells in the thymus (< 10⁶) at this stage were also CD45.1⁺ (Figure 3B), reflecting the previously described recirculation of activated mature donor T cells.²²  Finally, the FoxP3⁺ T_reg cells in the periphery of BM transplant recipients were also all CD45.1⁺ and thus also derived from the mature donor T-cell inoculum within the graft (Figure 3C). Having demonstrated that all T cells in the BM transplant recipients were peripherally expanded from the mature donor T-cell inoculum at this time, we next quantified donor FoxP3⁻ CD4⁺ effector (T_effector) and T_reg expansion in the periphery of WT and RelB^−/− BMC recipients. On day 10 after BMT the total number of splenic T_effector cells was significantly reduced in the RelB^−/− BMC recipients as compared with the WT BMC recipients (Figure 3D). Strikingly, within the RelB^−/− BMC recipients there was a 2- to 3-fold increase in the frequency of T_reg cells as compared with WT BMC recipients. This resulted in equivalent overall expansion of T_reg cells, despite the impairment of T_effector expansion (Figure 3D). Although the T_reg expansion was predominantly in the CD25⁺ population, it was not limited to the classical CD4⁺Foxp3⁺ population but also included a CD8⁺Foxp3⁺ T_reg population (Figure 3E,G). Importantly, the T_reg cells that expanded in the RelB^−/− BMC recipients had equivalent suppressive function to those in the WT BMC recipients (Figure 3F).

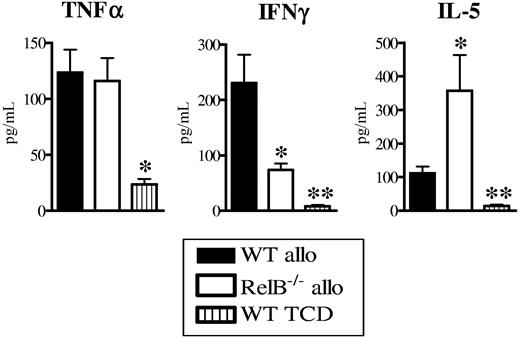

To study the relative states of T-cell differentiation after transplantation, we next examined the sera and CD4⁺ T-cell cytokine profiles in the WT and RelB^−/− BMC allograft recipients. Whereas the levels of TNFα within sera were equivalent between groups, IFNγ was significantly reduced and IL-5 levels were increased in the RelB^−/− BMC recipients compared with WT BMC recipients (Figure 4A). Donor CD4⁺ T cells purified from RelB^−/− BMC allograft recipients produced significantly more of both IL-4 and IL-5 in response to alloantigen and CD3 relative to those from WT BMC recipients (Figure S2A-B). Although CD4 T cells from both recipients produced similar amounts of IFNγ in vitro, this is unlikely to fully recreate the stimuli in vivo, making the later the most relevant information. Thus, the absence of RelB^−/− within host APCs resulted in equivalent T_reg expansion to recipients where APCs had intact RelB but impaired Th1 effector expansion.

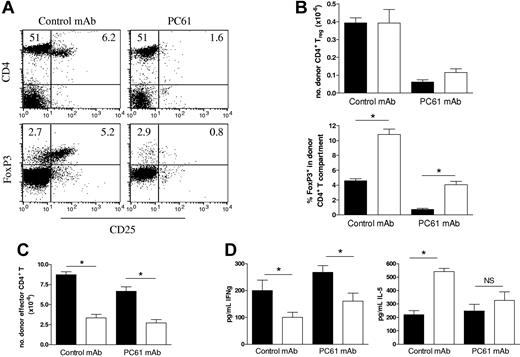

In addition to their effects on CD4 T-cell proliferation, both CD4⁺ and CD8⁺ T_reg cells have been shown to suppress the capacity of mature DCs to induce Th1 responses^23,24  and Th1-mediated pathologies, including GVHD.^25–27  Thus, the defect in Th1 differentiation in the absence of RelB within host APCs may be the result of the increased proportions of T_reg cells in these recipients. To examine this, we depleted CD25⁺ cells within donors by the administration of PC61 antibody which resulted in 75% depletion of CD4⁺CD25⁺ cells within LNs (Figure 5A). FoxP3 staining was used to confirm T_reg depletion and demonstrated an 85% reduction in CD25⁺FoxP3⁺ T_reg cells and a sparing of a residual FoxP3⁺CD25⁻ population (< 3%). These LN cell preparations were then used as the donor T-cell inoculum in subsequent transplants into WT and RelB^−/− BMC recipients, and subsequent donor effector function was examined 10 days later. The depletion of donor T_reg cells prior to BMT resulted in a greater than 80% reduction in the number of T_reg cells recovered after BMT (Figure 5B). These residual T_reg cells will therefore be derived from the FoxP3⁺CD25⁻ cells transferred in the graft or generated de novo from FoxP3⁻ naive cells. The absolute numbers of T_reg cells were equivalent in RelB^−/− and WT BMC recipients regardless of depletion of the CD25⁺ cells in the donor T-cell fraction, whereas the ratio of T_reg to T_effector cells was again increased in RelB^−/− BMC recipients. Importantly, depletion of T_reg cells in WT or RelB^−/− BMC recipients did not result in a significant increase in effector T-cell expansion (Figure 5C) or IFNγ generation (Figure 5D), and the failure of Th1 differentiation in RelB^−/− BMC recipients persisted. Thus, the impairment of Th1 expansion is independent of the presence or function of donor T_reg cells.

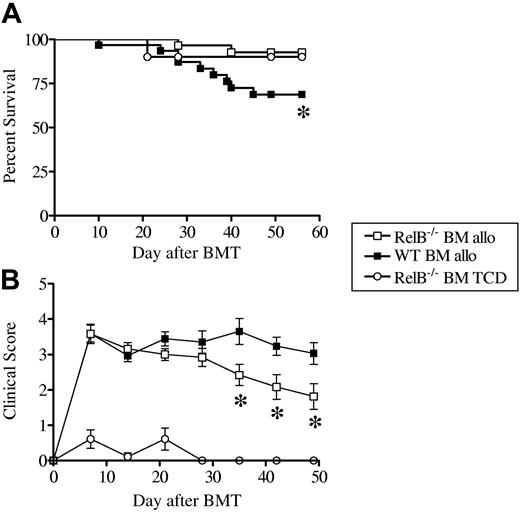

We next studied the role of donor RelB in a second established model of acute GVHD (B6→B6D2F1). As would be predicted given that the host APCs were RelB competent, GVHD was rapidly induced in recipient mice given transplants with either WT or RelB^−/− bone marrow (BM) and RelB-competent T cells. The absence of RelB in the donor BM had no effect on clinical scores for the first 3 weeks after transplantation (Figure 6B). Although the GVHD clinical scores for recipients of WT bone marrow remained high after transplantation, subsequent to the initial 3-week period, clinical scores for recipients of RelB^−/− BM decreased over time, and this was associated with a significant survival advantage (Figure 6A), confirming that RelB-competent donor APCs were required for the full spectrum of GVHD (Figure 6B). The presence of RelB^−/− donor APCs did not impair the class I–dependent graft-versus-leukemia effect against host type P815 leukemia (Figure S2C), although further studies are needed to document the effect of RelB^−/− host APCs on GVL.

Taken together, the attenuation of GVHD early after transplantation in RelB-deficient recipients and the failure to induce the full spectrum of GVHD in recipients of RelB^−/− BM demonstrate that functional RelB is required for both the initiation and maintenance of GVHD.

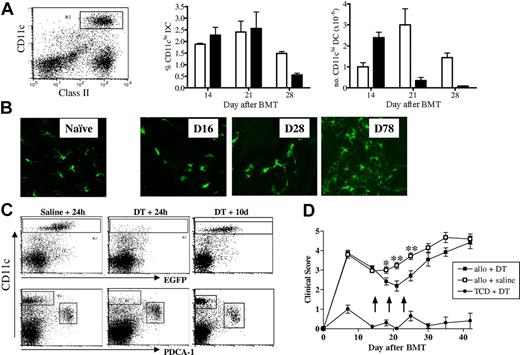

The delayed induction of GVHD in the RelB^−/− BMC recipients and the reduction in GVHD seen in recipients of RelB^−/− BM commenced approximately 3 weeks after transplantation. To examine whether this coincided with the emergence of donor DCs, we transplanted CD45.1⁺ TCD BM, alone or supplemented with T cells, into B6D2F1 recipients and enumerated splenic donor-derived CD11c^hi cDCs at weekly intervals after transplantation (Figure 7A). Minimal donor CD11c^hi cDC reconstitution was evident at day 7; however, by day 14 all cDCs were of donor origin (data not shown) and represented approximately 2% of splenocytes in both TCD and T-cell replete recipients. At later time points the proportion of cDCs remained similar in both groups; however, after 2 weeks the absolute number of cDCs in the T-cell–replete recipients declined because of the lymphoid hypoplasia associated with GVHD. To follow the turnover of skin DCs, BM from MacGreen mice, in which the Langerhans cells within the skin are exclusively EGFP⁺,²⁸  was supplemented with WT T cells and transplanted into B6D2F1 recipients. EGFP⁺ Langerhans cells within the ear pinnae were visualized by confocal microscopy at weekly intervals after BMT (Figure 7B). The reconstitution of donor Langerhans cells within the skin began within a similar timeframe to that of splenic CD11c^hi cDCs but was not complete until 2 to 3 months after transplantation.

To directly examine whether donor-derived CD11c^hi DCs contribute to GVHD, we used CD11c-DTR-GFP transgenic (Tg) mice as donors in which the diphtheria toxin (DT) receptor and EGFP are controlled by the CD11c promoter. Thus, DCs can be tracked using GFP expression and transiently depleted with diphtheria toxin.²⁹  Transplant recipients were then depleted of DCs by the administration of DT during a 10-day period, commencing at the time of complete donor DC reconstitution (day 14). This was effective in depleting greater than 90% of repopulating CD11c^hi DCs while sparing the PDCA-1⁺ plasmacytoid DCs and resulted in a transient decrease in GVHD clinical scores (Figure 7C-D). DCs reconstituted within 10 days of the final injection of DT (day 28), at which time GVHD increased consistent with a causal role for these cells in maintaining GVHD.

Our understanding of GVHD pathophysiology has greatly expanded over the past decade as we learn more about the complex interaction between APCs and T-cell subsets of both recipient and donor origin. The first demonstration of the importance of recipient APCs on GVHD in CD8-dependent GVHD⁸  has now been balanced by the confirmation that either recipient or donor APCs are sufficient to induce CD4-dependent GVHD.^9,30  In this study, we demonstrate that the activation of RelB within DCs is a critical pathway determining the effective induction of GVHD, regardless of whether the DCs are of recipient or donor origin. In the absence of RelB activation, acute GVHD is attenuated by the limitation of full Th1 differentiation.

The realization that APCs are critical to the induction of effective GVL and the ability of specific APCs to induce tolerance via the induction of regulatory T cells that permit effective GVL^12,32  has lead to the concept of functionally modifying rather than depleting APCs to separate GVHD and GVL. At the present time the relative contribution of particular APC subsets to the induction of GVHD is not clear, although much circumstantial evidence has previously suggested that DCs at least are critical in initiating the process.^10,33  Although host B cells were reduced in the RelB^−/− BMCs, they have been shown not to play a pathogenic role in this model of GVHD³⁴  and thus are unlikely to be involved in the reduction in GVHD seen in these recipients. Similarly, although the RelB^−/− BMCs have increased proportions of splenic FoxP3⁺ T_reg cells (Figure S1B), this does not equate to increased total numbers, and these cells have previously been shown to be able to modulate GVHD only in MHC-matched³⁵  but not in MHC-disparate models³⁶  as studied here. Thus, the published data and that presented here suggest that professional APCs and, most likely, conventional CD11c^hi DCs control the induction of GVHD, and the translocation of RelB in these cells predate and predict the subsequent acquisition of their full immunologic potential. Because DCs mature in response to activation signals mediated by radiation, CD40L, or microbial products signaling through the TLRs, they express high levels of MHC and costimulatory molecules (particularly CD40, CD80, and CD86) and secrete cytokines important in Th1 differentiation. Importantly, the stimulation of DCs through ligation of CD40 or the lymphotoxin-β and BAFF receptors following lymphocyte engagement invoke these effects in a RelB-dependent fashion.⁷  Because the costimulatory molecule expression by host (Figure 2) and reconstituting RelB-deficient donor DCs were similar to that of WT DCs (Figure S1C), alternative defects are responsible for the failure of Th1 differentiation and maintenance of T_reg expansion in this setting. Impaired secretion of relevant soluble mediators downstream of CD40 ligation such as IL-12, IL-23, or IL-27 that are known to be RelB dependent are the clear and most likely candidates.

A role for DCs in the development of peripheral tolerance through the induction of T_reg cells has been supported by several studies. The induction of immunity or tolerance by DCs has been linked previously to their maturation state.^37–39  Immature DCs generated from murine bone marrow induced T-cell unresponsiveness in vitro and prolonged cardiac allograft survival.³⁹  Immature myeloid DCs induced CD4⁺ T_reg cells in vitro and CD8⁺ T_reg cells in vivo, each of which produced high levels of IL-10.^37,38  Various agents shown to inhibit myeloid DC maturation have thus been described to promote T_reg cells.^40–44  We have also previously shown that bone marrow–derived DCs which are rendered incapable of translocating RelB to the nucleus are capable of inducing IL-10–producing T_reg cells and inhibiting autoimmunity.²⁵  In contrast, RelB-deficient APCs expand T_reg cells in the periphery in an equivalent fashion to WT APCs, and this process, unlike Th1 effector function, is thus independent of RelB and in some circumstances is actually promoted by its absence.²⁵  This is entirely consistent with the known ability of immature or semimature DCs to promote T_reg differentiation and activation.⁴⁵

The effect of broad NFkB inhibitors on GVHD has already been studied in preclinical models with some success.^46–48  The proteasome inhibitor bortezomib was able to inhibit GVHD when administered early after BMT in association with apoptosis of alloreactive T cells,⁴⁷  consistent with effects on a broad range of cells, including the donor T cell. However, the prolonged or delayed use after BMT amplified GVHD mortality because of amplification of inflammatory cytokine generation,⁴⁸  suggesting a narrow therapeutic window. These studies confirm that the nonspecific nature of these NFkB inhibitors within a broad range of target cells result in tolerance via alloreactive donor T-cell deletion rather than the induction of active T-cell regulation or deviation as is the case when RelB is specifically inhibited within APCs.

Taken together, the data indicate that the nuclear translocation of RelB is a key signaling pathway for the induction of Th1 immunity. Thus, disruption of RelB activation within DCs represents an attractive target for inhibition of Th1-mediated tissue injury, concomitantly sparing T_reg expansion and function. In clinical practice, this will require that RelB inhibitors are directed specifically to APCs and most likely, DCs. This is now feasible with targeted delivery technology using DC-specific antibodies to chaperone inhibitors to cell subsets.⁴⁹  Such an approach would theoretically permit the inhibition of Th1-mediated pathology and the reestablishment of regulatory T-cell–dependent tolerance in disorders characterized by autoimmunity and alloimmunity.
