Low rhodamine 123 retention identifies long-term human hematopoietic stem cells within the Lin⁻CD34⁺CD38⁻ population

To identify factors that govern human hematopoietic stem cell (HSC) fate decisions (self-renewal or differentiation), pure HSC populations are required. Human HSCs are enriched in the Lin⁻CD34⁺CD38⁻ cell fraction, as assessed by the functional SCID-repopulating cell (SRC) assay.^1,2  The frequency of SRCs in cord blood (CB) was estimated to be 1 in 600 Lin⁻CD34⁺CD38⁻ cells.³  Recent improvements to the nonobese diabetic/severe combined immunodeficient (NOD/SCID) model have suggested that SRC frequency in this fraction is 1% to 2%.⁴  Thus, while markedly enriched for HSCs, this fraction still remains heterogeneous. In the mouse, multiple markers are used to purify HSCs. One functional parameter used to purify HSCs is uptake of Rho. Rho is a fluorescent dye that binds to active mitochondria in cells, thus reflecting the metabolic state of the cell.^5-7  Rho efflux is mediated by P-glycoprotein, encoded by the multidrug resistance gene-1.⁸  Murine long-term stem cells are enriched based on low retention of Rho.^9-11  Previous studies have attempted to separate human HSCs from progenitor cells using Rho, however, the SRC activity of purified fractions was not assessed.^8,12  Here, we used the SRC assay to show that differential Rho efflux can be used to enrich human HSCs in the Lin⁻CD34⁺CD38⁻ cell fraction.

All animal experimental protocols were approved by the Animal Care Committee of the University Health Network. The NOD/SCID repopulation assay was performed by intrafemoral injection as described.^13,14  Sublethally irradiated NOD/SCID mice (3.5 Gy) were treated with 200 μg/mouse anti-CD122 antibody 24 hours prior to transplantation.¹⁵  Mice were killed at 3 to 10 weeks after transplantation and the injected right femur (RF) and noninjected femur, tibia, and pelvis (BM) were analyzed by flow cytometry for human engraftment. Whole bone marrow from either RF or BM was injected into 2 separate preconditioned secondary mice, without further purification or adjustment for human-cell content. The transplanted cell dose from the RF and BM of mice that received a transplant of Lin⁻CD34⁺CD38⁻Rho^lo cells was 9.0 ± 0.6 × 10⁶ and 29 ± 2.6 × 10⁶ cells, respectively; and from the RF and BM of mice that received a transplant of Lin⁻CD34⁺CD38⁻Rho^hi cells was 7.5 ± 1.1 × 10⁶ and 20.5 ± 2.6 × 10⁶ cells, respectively.

Samples of cord blood (CB) were obtained according to procedures approved by the institutional review board of Trillium Hospital and University Health Network. Human CB samples were depleted of lineage-positive and CD38⁺ cells by negative selection using the StemSep system (Stem Cell Technologies, Vancouver, BC). Rho staining was performed as described.⁹  Briefly, cells were incubated at 37°C in 0.1 μg/mL rhodamine 123 dye (Eastman Kodak, Rochester, NY) for 30 minutes and destained at 37°C for an additional 30 minutes. CD38 and CD34 staining was performed as described.¹²  Cells were sorted on a MoFlo (Dako Cytomation, Fort Collins, CO). Twenty percent cutoffs were used to sort Lin⁻CD34⁺CD38⁻Rho^lo and Lin⁻CD34⁺CD38⁻Rho^hi cell fractions as shown in Figure 1A. Sorted cells were injected at a dose of 3500 cells per mouse unless cells were injected for limiting dilution analysis (see “Limiting dilution analysis”).

A third-generation lentiviral vector encoding the enhanced green fluorescent protein (Egfp) gene was used for clonal tracking experiments as described.^13,16  Lin⁻CD34⁺CD38⁻Rho^lo cells were infected at a concentration of 1.7 × 10⁵ cells/mL with an MOI of 130 to 180. Genomic DNA from the RF and BM of mice injected with transduced cells was extracted and clonal analysis was performed as reported.¹⁶  Gene transfer efficiency (13.6%) was estimated in suspension cultures as described.¹⁷

Preconditioned mice received an intrafemoral transplant of 200, 100, or 50 Lin⁻CD34⁺CD38⁻ cells and 200, 100, or 33 Lin⁻CD34⁺CD38⁻Rho^lo cells along with 3000 irradiated (15 Gy) lineage-positive CB cells, and were killed after 7 to 10 weeks. Recipients were considered to be engrafted if the RF contained more than 0.4% CD45⁺ human cells by flow cytometry or was positive by Southern blot analysis using a human-specific probe as described.¹⁸  Data from 3 limiting dilution experiments (n = 65 mice) were pooled and analyzed using L-Calc software (Stem Cell Technologies).

Data are presented as mean ± standard error (SE). The significance of the differences between groups was determined by the Student t test (SigmaStat software; Jandel, Chicago, IL).

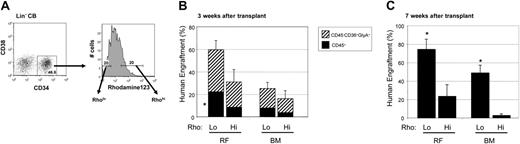

Equivalent numbers of Lin⁻CD34⁺CD38⁻Rho^lo and Lin⁻CD34⁺CD38⁻Rho^hi (hereafter referred to as Rho^lo and Rho^hi, respectively) cells were transplanted intrafemorally into preconditioned NOD/SCID mice, and human engraftment was evaluated at 3 and 7 weeks after transplantation (Figure 1B and C, respectively) in the injected right femur (RF) and remaining bone marrow (BM: left femur, tibiae, and pelvis). This strategy enabled assessment of both repopulation and migration, properties characteristic of the most primitive SRCs.¹⁹  At 3 weeks (Figure 1B), Rho^lo cells provided significantly higher levels of lymphomyeloid (CD45⁺) engraftment in the RF than Rho^hi cells (mean, 22.4% ± 3.4% versus 8.7% ± 3.5%), although only a trend was observed for the total human graft (CD45⁺ lymphomyeloid and CD45⁻CD36⁺GlyA⁺ erythroid cells). Similar to other grafts characterized at this early time point,¹³  we observed high levels of CD45⁻CD36⁺GlyA⁺ erythroid cells in the RF (mean, 37.4% ± 5.6% and 22.5% ± 8.5% from Rho^lo and Rho^hi cells, respectively). Comparable results were observed for engraftment in BM. By 7 weeks after transplantation (Figure 1C), Rho^lo cells provided a significantly larger lymphomyeloid (CD45⁺) graft in both the RF and BM compared with Rho^hi cells (mean, RF 74.5% ± 10.9% versus 23.8% ± 12.3%; BM 48.8% ± 8.5% versus 3.0% ± 1.4%), suggesting that the Rho^lo immunophenotype may enrich for HSCs.

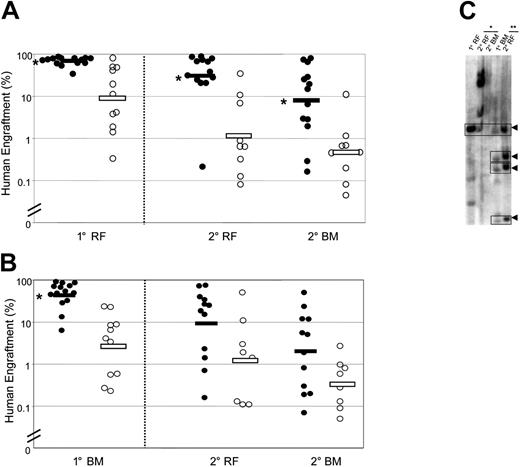

In order to evaluate the content of self-renewing HSCs in each cell population, we performed serial transplantations. Cells from the RF of primary mice that received a transplant of Rho^lo cells produced significantly larger human grafts in secondary mice (both in RF and BM) compared with cells from the RF of primary mice that received a transplant of Rho^hi cells (geometric means in secondary mice: RF, 33.1% versus 1.3%; BM, 8.7% versus 0.5%) (Figure 2A). The same trend was seen in secondary mice that received a transplant of primary BM cells (Figure 2B). To directly examine the self-renewal of individual Rho^lo SRCs, we performed lentiviral-mediated clonal tracking for 3 primary mice and the corresponding 6 secondary mice. The presence of clones with the same restriction fragment size in primary mice that received a transplant of Rho^lo cells and their secondary recipients (Figure 2C) demonstrates the existence of self-renewing HSCs within the Rho^lo population. Overall, these data indicate that selection for cells with Rho^lo staining enables further enrichment of HSCs within the Lin⁻CD34⁺CD38⁻ population.

Limiting dilution analysis was performed to quantify SRC enrichment. The frequency of SRCs was estimated as 1 in 30 for Rho^lo cell fractions (95% confidence interval: 1 SRC in 18 to 1 SRC in 51 Rho^lo cells) and 1 in 121 for Lin⁻CD34⁺CD38⁻ fractions (95% confidence interval: 1 SRC in 74 to 1 SRC in 200 Lin⁻CD34⁺CD38⁻ cells) (Table S1, available on the Blood website; see the Supplemental Table link at the top of the online article). We defined the Rho^lo fraction as the lower 20% of the Rho-stained Lin⁻CD34⁺CD38⁻ population. Therefore, if all stem cells were in the Rho^lo fraction, the expected frequency would be 1 SRC in 24 Rho^lo cells. Our estimated frequency of 1 SRC in 30 Rho^lo cells indicates that most long-term repopulating cells are contained in this fraction. Thus, cell sorting based on Rho dye efflux provides an additional parameter for purification of human HSCs. Studies in the murine system suggest that purification of homogeneous HSC populations may not be possible as stem cells may be stochastically regulated by random intrinsic and extrinsic factors.¹¹  However, this improved protocol is a significant step toward achieving a more homogeneous population of primitive cells for both experimental and therapeutic applications.
