The Hedgehog receptor Patched controls lymphoid lineage commitment

Hematopoietic stem cells (HSCs) represent the common origin of all cell types within the immune system. According to the Akashi-Kondo-Weissman model, an early event of adult hematopoiesis is the differentiation of multipotent progenitors (MPPs) in the bone marrow (BM) into common myeloid progenitors (CMPs) and common lymphoid progenitors (CLPs).^1–3  CMPs further differentiate into megakaryocyte/erythrocyte progenitors (MEPs), or into granulocyte/macrophage progenitors (GMPs), which give rise to megakaryocytes and erythrocytes, or to granulocytes and macrophages, respectively. CLPs develop into precursor B cells, early thymic T-cell progenitors (ETPs), and natural killer (NK) cells

Discrete developmental stages of myelo- and lymphopoiesis have been defined based on the expression of stage-specific marker proteins (reviewed in Busslinger⁴ ). For example, HSCs normally express high levels of the surface receptors c-kit and Sca-1, which are both down-regulated as HSCs progress to CLPs. Formation of CLPs requires the transcription factors Spi-1/PU.1 and Ikaros together with the Fms-like receptor tyrosine kinase 3 (Flt3) and the α-chain of the IL-7 receptor (IL-7Rα). However, the details of early HSC differentiation are unclear, especially the specification of myeloid and lymphoid precursor cells. Recently, members of the Hedgehog (Hh) family of secreted signaling proteins have been shown to affect the proliferation of primitive hematopoietic cord blood cells^5,6  and to play a role in proliferation, survival, and differentiation of early T cells and germinal center B cells.^5,7–11  How Hh affects T-cell development is unclear. The impact of this pathway on B-cell development and the specification of the myeloid lineage has not yet been investigated.

Three mammalian Hh proteins exist (Sonic, Indian, and Desert Hh), which are recognized and bound by the cell surface receptor Patched (Ptch). Binding of Hh to Ptch suspends the inhibition of its membrane-bound signaling partner Smoothened (Smo), which in turn initiates nuclear translocation and activation of the Gli family of transcription factors. This is followed by the expression of a plethora of downstream target genes including Bcl-2, cell-cycle regulators, and Ptch itself (reviewed in Ruiz i Altaba et al¹² ). Hh/Ptch signaling is critical for cell-fate determination during embryogenesis and for cell growth and differentiation in the adult organism. An abnormal activation of the Hh/Ptch pathway results in developmental abnormalities and tumorigenesis.^12,13  Because targeted disruption of either Hh or Ptch is embryonically lethal,^14–16  analysis of Hh/Ptch signaling in adult tissues has been largely limited to in vitro analysis. By inducibly abrogating Ptch expression in the mouse, we show here that Hh/Ptch signaling in stromal cells is mandatory for the specification of both B- and T-cell lineages at the CLP progenitor stage, but not of the myeloid lineage in the BM.

Genomic DNA clones were isolated as described in Hahn et al.¹⁶  To generate the Ptch^flox conditional mouse line, a targeting vector derived from pPNT4 described by Conrad et al¹⁷  was constructed, in which a loxP site was inserted into intron 7 of the Ptch gene. The second loxP site together with the neo-cassette of the pPNT4 vector was introduced into intron 9. The neomycin resistance cassette of pPNT4 is also flanked by frt sites to enable FLPe recombinase-mediated excision, if required.¹⁸  The linearized targeting vector was electroporated into R1 embryonic stem cells.¹⁹  Upon positive and negative selection of the transfectants,²⁰ XhoI-digested genomic DNA was analyzed by Southern hybridization using a 5′ external probe to detect homologous recombination, which was confirmed by polymerase chain reaction (PCR) using the primers Neo-R/p910F.4, Neo-F/p1011R.2, or p910F.4/p1011R.2. Three positive clones were microinjected into C57BL/6 blastocysts, and obtained chimeric mice were mated to C57BL/6 females. The agouti offspring were tested by PCR and Southern blot analysis to confirm germ-line transmission of the Ptch^flox conditional allele. Ptch^flox/+ siblings were intercrossed to generate Ptch^flox/flox offspring. The Rosa26CreERT2 (ERT2) knock-in mouse strain (kindly provided by Dr Anton Berns, The Netherlands Cancer Institute, Amsterdam, The Netherlands) expresses a fusion gene encoding Cre recombinase and a modified ligand-binding domain for the estrogen receptor under control of the endogenous Rosa26 promoter (A. Berns, written personal communication, February 15, 2005). These mice were bred to Ptch^flox/flox mice. The resulting Ptch^flox/+ERT2^+/− mice were crossed with Ptch^flox/flox mice to obtain Ptch^flox/floxERT2^+/− mice. Eight-week-old Ptch^flox/floxERT2^+/− mice were injected intraperitoneally with 1 mg tamoxifen dissolved in a 1:10 ethanol-sunflower oil emulsion²¹  on 5 consecutive days to induce the Ptch^del mutation (named tPtch^−/− mice) or with solvent alone. Mice with Ptch^flox/floxERT2^−/− genotypes were used to assess any unspecific effects of tamoxifen. To detect the Cre-mediated Ptch^del mutation, which removes the floxed exons 8 and 9, mice were genotyped by PCR using the primer combination Exon7-F/NeoR or Neo-F/p1011R.2. For location of primers, see Figure 1A. All experiments using animals were performed according to legal requirements.

Two tamoxifen-treated Ptch^flox/floxERT2^+/− mice were killed at day 10 after the first injection and genomic DNA was isolated from several organs. Ptch^flox/floxERT2^−/− mice were used for generation of standard curves. Recombination efficiency was quantified on an ABI PRISM 7900 sequence detection system (Applied Biosystems, Foster City, CA) by real-time PCR using forward primers hybridizing to intron 7 and intron 9, and a common reverse primer hybridizing immediately downstream of the second loxP site in intron 9. A FAM-labeled probe was used for detection of the deleted Ptch^del allele, whereas a Yakima Yellow–labeled probe detected the Ptch^flox allele. A pelota gene-specific quantitative PCR assay was used for data normalization. Data were processed using the standard curve method for relative quantification. Separate standard curves were generated for each tissue. The deletion efficiency was calculated as the ratio of the values for the deleted allele to the total value from a Ptch^flox/flox mouse plus the deleted allele, and is expressed in percentage. All sequences of primers and probes together with detailed protocols are available upon request.

Total RNA was extracted from various tissues and embryos using TRIZOL reagent (Invitrogen, Carlsbad, CA). Reverse transcription was conducted with random hexamers and SuperScriptII reverse transcriptase (Invitrogen). PCR fragments detecting transcripts derived from Ptch^flox and Ptch^del alleles were amplified using the primers mPtc11 and mPtc7R, purified, and sequenced. Amplification of Gapd served as control. Primers for amplification of β-actin, EBF, Flt3, Ikaros, IL-7Rα, PU.1, Rag-1, and Rag-2 have been described in DeKoter et al.²² Gli transcripts were analyzed using primer pairs specific for Gli1, Gli2, and Gli3. All primer sequences are available upon request.

Peripheral blood or single-cell suspensions of BM cells derived from femur and tibia of hind limbs as well as thymocytes and splenocytes were prepared and incubated for 15 minutes on ice with different combinations of the following antibodies: anti-CD3-FITC, anti-CD4-biotin, anti-CD8α-PE, anti-CD8α-PE-Cy7, anti-CD21-FITC, anti-CD24-PE, anti-CD25-FITC, anti-CD43-biotin, anti-CD44-PE-Cy5, anti-CD45R/B220-PE-Cy7, anti-IgD-FITC, anti-TCRβ-FITC (BD Biosciences Pharmingen, San Jose, CA), and anti-IgM-RPE (Southern Biotechnology Associates, Birmingham, AL). Binding of biotinylated antibodies was monitored by streptavidin-PE or streptavidin-PE-Cy7 (BD Biosciences Pharmingen) or by streptavidin-FITC (Southern Biotechnology Associates). Erythrocytes of peripheral blood samples were lysed with fluorescence-activated cell sorting (FACS) ysis solution (BD Biosciences Pharmingen). Annexin V-PE staining was carried out using an annexin V-PE apoptosis detection kit (BD Biosciences Pharmingen). Hematopoietic stem and progenitor cells from 10⁷ BM cells were purified by depletion of lineage-positive (Lin⁺) cells using the EasySep mouse hematopoietic progenitor cell enrichment kit (StemCell Technologies, Vancouver, BC; depletion kit contains monoclonal antibodies toward murine CD5, B220, Mac-1, Gr-1, Ter119, and 7-4). Enriched lineage-negative (Lin⁻) BM cells were incubated for 15 minutes on ice with anti-CD117 (c-kit)-Biotin, anti-CD127 (IL-7Rα)-PE, and anti-Sca-1-FITC, and in a second staining step with streptavidin-PE-Cy7 or streptavidin-PE-Cy5 (all from BD Biosciences Pharmingen). For cell-cycle analysis, 100 μL of 10 mg/mL BrdU were injected intraperitoneally 3 hours before killing of the mice, and enriched Lin⁻ BM cells were stained with anti-c-kit-Biotin (streptavidin-PE-Cy7), anti-Sca-1-biotin (streptavidin-PE), anti-BrdU-FITC, and 7-AAD (BD BrdU FITC Flow Kit; BD Biosciences Pharmingen). To avoid cross-reactions of unbound biotin binding sites in the biotin/streptavidin complexes, anti-c-kit-biotin and anti-Sca-1-biotin were mixed in separate reactions with the respective streptavidin conjugates that were used in excess. Probes were stained first for c-kit with anti-c-kit-biotin/streptavidin-PE-Cy7 and after extensive washing with anti-sca-1-biotin/streptavidin-PE. Cells were analyzed on an LSR II flow cytometer (BD Biosciences Pharmingen). Data acquisition and analysis were performed using software BD FacsDiva (BD Biosciences Pharmingen) and FlowJo (Treestar, Ashland, OR), respectively. EDTA blood samples were collected by heart punction and analyzed on an AcT 5 hematology analyzer (Beckman Coulter, Hialeah, FL) and by blood smear tests.

Mouse clonogenic progenitor assays were performed by plating 2 × 10³ Lin⁻ BM cells into a methylcellulose medium (MethoCult 3434; StemCell Technologies) containing SCF, IL-3, IL-6, and Epo according to the manufacturer's instructions. Differential colony counts were scored after 8 days by morphologic characteristics using an inverted microscope. ERT2-mediated Ptch inactivation in CFU colonies was analyzed by PCR as described in “Detection and quantification of CreERT2-mediated recombination at the Ptch^flox locus.”

BMs were isolated from control and tPtch^−/− mice 19 days after tamoxifen injection and Lin⁻ BM cells were purified as described above. Nine-week-old Rag-2^−/−γc^−/− mice (Taconic, Germantown, NY) were irradiated with 7 Gy and engrafted with 400 000 Lin⁻ BM cells from donor mice by tail vein injection.²³  Seven and 25 weeks after injection of the cells, peripheral blood obtained from the retro-orbital sinus was analyzed by flow cytometry. Donor-derived T and B cells were detected using anti-CD4-biotin (streptavidin-FITC), anti-CD8α-PE-Cy7, and anti-B220-PE-Cy5 antibodies. T and B cells of Rag-2^−/−γc^−/− mice reconstituted with control or Ptch mutant Lin⁻ BM cells were isolated using magnetic-activated cell sorting (MACS) separation columns (Miltenyi Biotech, Auburn, CA), and ERT2-mediated recombination of Ptch alleles was analyzed as described.

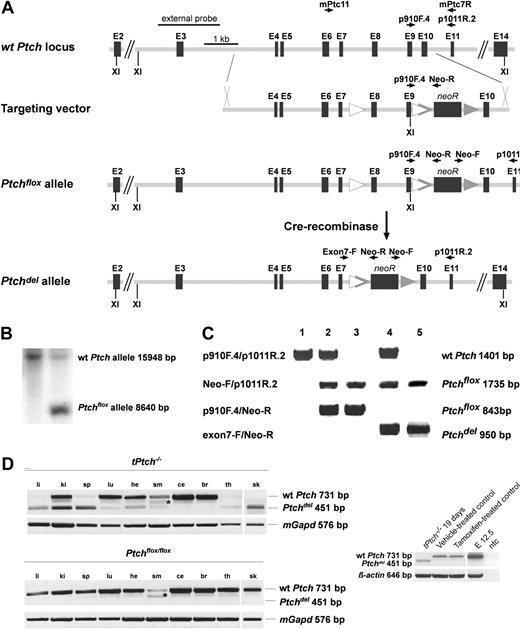

Proper genomic recombination of the Ptch^flox targeting vector (pPtch^flox) into the wt Ptch allele in R1 embryonic stem cells was analyzed by Southern blot hybridization and by PCR from genomic DNA (Figure 1B and 1C, respectively). Positive embryonic stem-cell clones were injected into blastocysts of C57BL/6 mice, and resulting chimeras were bred to wt C57BL/6 females. Heterozygous Ptch^flox/+ offspring were intercrossed to obtain the homozygous Ptch^flox/flox mouse line. Ptch^flox/flox mice were born at the expected Mendelian ratio. All heterozygous and homozygous mice remained healthy over an observation period of 15 months and were phenotypically normal and fertile. Neither the loxP sides in intron 7 nor the neomycine resistance cassette in intron 9 disturbed the normal splicing of the Ptch mRNA derived from the Ptch^flox allele. The cDNA amplification using the primer combination mPtc11/mPtc7R (Figure 1A) did not reveal any abnormal splicing variants from the Ptch^flox allele in Ptch^flox/+ and Ptch^flox/flox mice compared with wild-type (wt) mice (Figure 1D). Postnatal inactivation of Ptch was analyzed in Ptch^flox/floxERT2 mice by application of tamoxifen to induce Cre recombinase activity. The recombination efficiency of Cre-mediated deletion of exons 8 and 9 of the Ptch^flox alleles (Ptch^del allele) was demonstrated by quantitative PCR of genomic DNA. Ten days after the first tamoxifen injection, the deletion efficiency was nearly 100% in BM of Ptch^flox/floxERT2 (hereafter tPtch^−/−) mice. Since both nonstromal and stromal cells contribute to whole BM, Ptch must have been deleted in both cell compartments. More than 75% Ptch^flox alleles in liver, kidney, spleen, thymus, and skin from tPtch^−/− mice were converted into Ptch^del alleles. The recombination efficiency in lung, heart, and skeletal muscle was more than 50%, whereas in cerebellum and brain less than 25% of the Ptch^flox alleles were converted into Ptch^del alleles (data not shown). These results were confirmed by reverse-transcription (RT)–PCR and revealed expression of mutant Ptch^del transcripts in the analyzed tissues (Figure 1D). Thus, tissue specificity and recombinase efficiency of Cre in ERT2 mice appear to be identical to those reported for Mx1Cre mice, which are frequently used for immunologic studies.²⁵

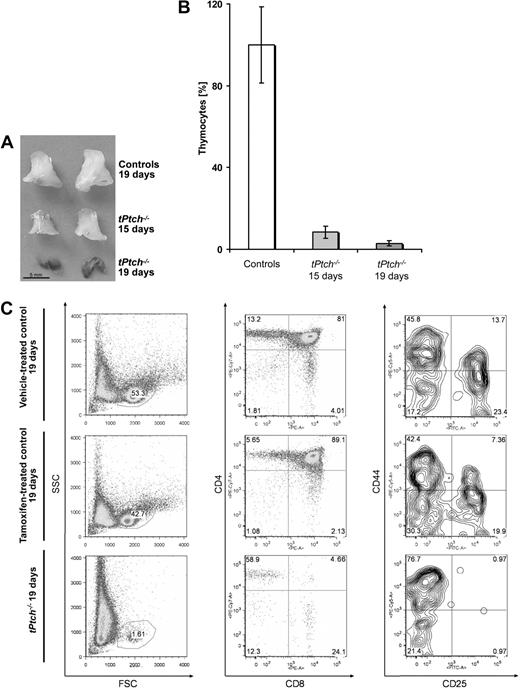

Fifteen days after the first tamoxifen injection, tPtch^−/− thymi were markedly smaller and the total number of thymocytes was 13-fold decreased compared with control animals (Figure 2A,B). At day 19, the thymus of tPtch^−/− mice had lost its regular morphology and the cortex was no longer distinguishable from the medulla (Figure 2A and data not shown). Only a few thymocytes were left at this stage (Figure 2B,C left panel). Although a moderate reduction of thymocyte numbers was also observed in tamoxifen-treated Ptch^flox/floxERT2^−/− control animals (Figure 2C left and middle panels), our data indicated a role of Ptch on thymocyte differentiation, which is consistent with previous reports.⁷  We thus monitored distinct T-cell populations by flow cytometry. Although the absolute numbers of all subpopulations were lowered in tPtch^−/− mice (data not shown), the relative numbers of immature double-negative (DN, CD4⁻CD8⁻) and mature single-positive (CD4⁺ or CD8⁺) T cells were strongly increased, whereas the double-positive (DP, CD4⁺CD8⁺) population was almost depleted in tPtch^−/− thymi 19 days after tamoxifen injection (Figure 2C middle panel). This result suggested that DN T-cell precursors require thymic Ptch expression to progress to the DP stage.

Four early stages of DN-cell differentiation can be discriminated based on the expression of CD25 and CD44 surface markers. The DN1 population (CD25⁻CD44⁺) possesses multilineage potential, while DN2 (CD25⁺CD44⁺) and DN3 (CD25⁺CD44⁻) cells commit to the T-cell lineage before they further develop into DN4 cells (CD25⁻CD44⁻).²⁶  In tPtch^−/− thymi, the DN1 population was considerably overrepresented, whereas DN2 and DN3 populations were diminished (Figure 2C right panel). The relative number of DN4 cells remained stable within the entire observation period. Collectively, our data show that upon Ptch ablation early thymocyte development is blocked at 2 stages (ie, at the transitions from DN1 to DN2 and DN4 to DP).

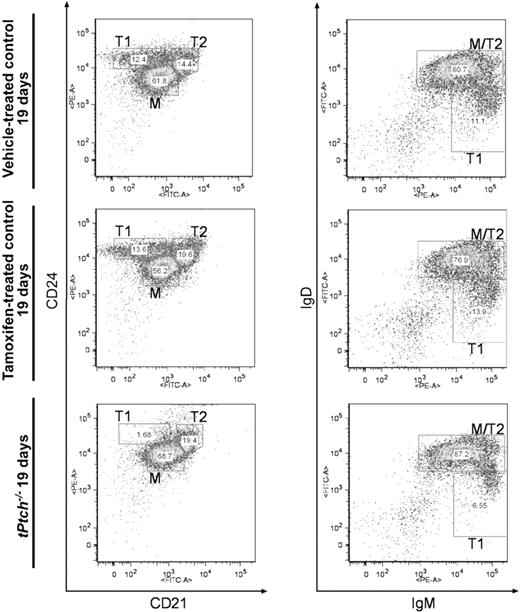

We next assessed a possible role of Ptch ablation on peripheral B-cell subsets. Splenic B220-positive B lymphocytes can be distinguished based on their expression patterns of CD21, CD24, and the B-cell antigen receptor (BCR) of classes IgM and IgD.²⁷  Transitional B cells of type 1 (T1, CD24⁺CD21⁻IgM^highIgD^low) are recent immigrants from the BM and develop into transitional type 2 B cells (T2, CD24⁺CD21⁺IgM^highIgD^high). Mature B lymphocytes (CD24^lowCD21^lowIgM^lowIgD^high) can be generated from both T1 and T2 B cells.²⁷  In tPtch^−/− spleens, the absolute number of B220-positive cells was reduced compared with the respective controls (data not shown). This was due mainly to a reduction of the population of T1 B cells. This is also reflected by their relative numbers that are drastically diminished compared with vehicle- and tamoxifen-treated control animals (Figure 3). In contrast, the pool of the more mature T2 cells remained stable and mature B cells were overrepresented. This effect was detected already at day 15 after treatment onset (data not shown) and progressed until day 19. Thus, in the spleen of tPtch^−/− mice, the supply of immature B cells from the BM is severely impaired suggesting a role of Ptch on early B-cell differentiation.

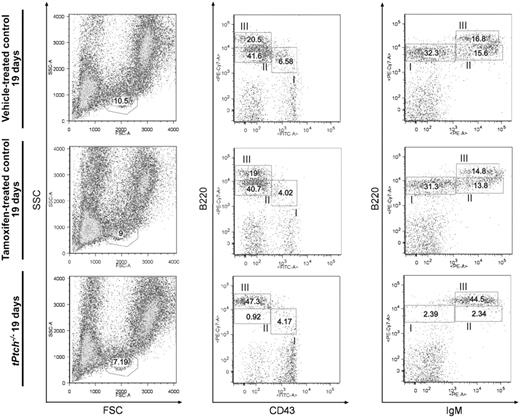

B-cell lymphopoiesis in the BM can be monitored by cell-surface staining of B220, CD43, and IgM. B220 and CD43 are both expressed on early B-cell precursors prior to the pro-B-cell stage, which is defined as B220^lowCD43⁺IgM⁻. Progression to the pre–B-cell stage is associated with loss of CD43 and expression of the pre-BCR encompassing the μm heavy chain (B220⁺CD43^lowμm⁺). B220 expression increases on immature B cells (B220^highCD43⁻IgM^low−high) and is maintained on immunocompetent recirculating B cells, which additionally express the IgD-BCR (B220^highCD43⁻IgM^lowIgD^high).²⁸  The total lymphocyte fraction in the BM of tPtch^−/− mice was only slightly decreased compared with wt controls (Figure 4 left panel). Striking alterations were, however, observed for the individual BM B-cell subsets in tPtch^−/− mice. Cell-surface staining of B220 versus CD43 revealed an almost complete loss of CD43⁺ progenitor B cells (Figure 4 middle panel, fraction II), which in turn led to a dramatic loss of B220^low pre-B and immature B cells (right panel, fractions I and II). Conversely, the relative numbers of recirculating B lymphocytes, which are B220^high (Figure 4 middle and right panel, fraction III) and IgD positive (data not shown), were strongly increased. A similar distribution of BM B-cell subsets was observed when counting the absolute cell numbers (data not shown). A moderate effect of tamoxifen on the pro-, pre-, and immature B cells was observed at day 15 in all tamoxifen-treated control mice (data not shown); this effect was almost compensated at day 19 of treatment (Figures 3,4). Collectively, our data reveal a severe block of early B-cell development in tPtch^−/− mice prior to the pro–B-cell stage.

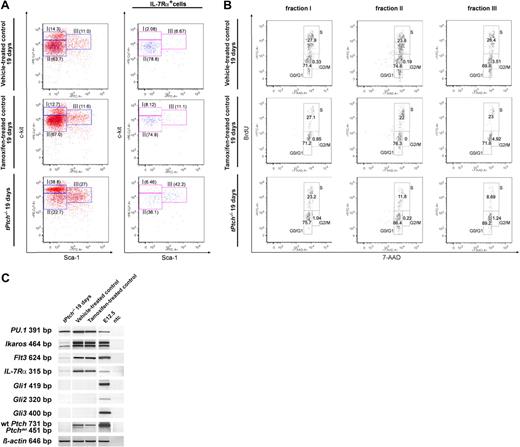

Since Ptch ablation affected both T- and B-cell lineages, we next analyzed their common precursors in our mutant mice. Within the pool of lineage-negative (Lin⁻) cells in the BM, those with small and nongranule appearance harbor both HSCs and more committed descendant precursors.²⁹  HSCs normally express high levels of c-kit and Sca-1, which are down-regulated in committed progenitors.³⁰  As shown in Figure 5A (left panel), the HSC-containing Lin⁻c-kit^highSca-1^high cell population III was relatively increased in tPtch^−/− mice as was the fraction I of Lin⁻c-kit^highSca-1^−/low cells, which comprises most of the myeloid progenitors.^28,31,32  In marked contrast, the CLP-containing fraction II (Lin⁻c-kit^lowSca-1^−/low)²⁶  was underrepresented and its relative cell number was reduced by half. Hence Ptch ablation appears to compromise CLPs. This notion was further confirmed by expression analysis of IL-7Rα chain (Figure 5A right panel), which is required for the generation of CLPs. In tPtch^−/− mice, the number of IL-7Rα-expressing cells within the CLP-containing fraction II (Lin⁻c-kit^lowSca-1^−/low) was drastically reduced compared with controls. Moreover, BrdU/7-AAD stainings shown in Figure 5B revealed a markedly reduced proliferative capacity of cells in fraction II from tPtch^−/− mice (middle panel). This was also true for cells in fraction III (Lin⁻c-kit^highSca-1^high), which contains HSCs and MPPs (right panel). Importantly, myeloid precursors of fraction I (Lin⁻c-kit^highSca-1^−/low) proliferated normally (left panel).

Final evidence for a CLP deficiency in tPtch^−/− mice was obtained by expression analysis of key transcription factors. The Ets-related transcription factor PU.1 is expressed in all Lin⁻ cells and supports maintenance of HSCs.³³  Transcription of PU.1 in Lin⁻ cells of tPtch^−/− mice was unaltered (Figure 5C), suggesting that the earliest stages of hematopoiesis do not require Ptch. In contrast, transcription of Ikaros, Flt3, and IL-7Rα, 3 marker genes known to be important for specification of CLP and also myeloid lineages,³⁴  was hardly detectable, which is consistent with a loss of CLP upon Ptch ablation. The complete absence of transcripts for EBF and Rag-1/2 in Lin⁻ BM cells of tPtch^−/− mice demonstrated the inability of the progenitor cells to recombine antigen receptor genes and to initiate lymphocyte differentiation. In summary, our results reveal a Ptch mutation-induced specification defect of the lymphoid lineage at the level of CLPs in the BM. However, we found no induction of Gli transcription in Lin⁻ BM cells of tPtch^−/− mice (Figure 5C), which is usually associated with loss of Ptch-mediated Smo inhibition.^12,35  It thus appears that upon tamoxifen treatment, Ptch-negative cells are rapidly lost from the BM.

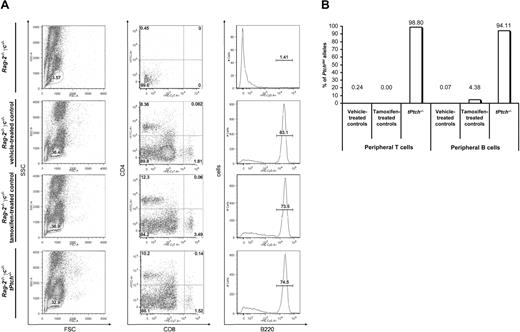

So far our data established a mandatory role of Ptch for CLP formation. Targeted Ptch disruption in our mice is, however, not cell-type specific and hence we cannot discriminate between cell-autonomous and heterologous (ie, stromal cell–dependent) defects. To distinguish between these possibilities, Lin⁻ BM cells were purified from tPtch^−/− mice and adoptively transferred into irradiated Rag-2^−/−γc^−/− mice, which lack T and B cells³⁶  and that express Ptch in the residual thymus as well as in BM stromal cells (data not shown). Lin⁻ BM grafts from vehicle- or tamoxifen-treated mice served as controls. As shown in Figure 6A, repopulation of peripheral blood lymphocytes was achieved in all cases and with the same efficiency (left panel). The Lin⁻ BM cells from Ptch mutant mice reconstituted mature CD4⁺ and CD8⁺ single-positive T cells (middle panel) as well as B220-positive B cells (right panel) and with the same frequency than wt BM cells did. Importantly, quantitative PCR analysis showed that 99% of Ptch^flox alleles in the transferred BM cells were inactivated by recombination (Figure 6B), which is consistent with the observation that almost all T and B cells derived from tPtch^−/− mice were deficient for Ptch expression (data not shown). Similar results were obtained by assessment of T and B cells after long-term population (25 weeks), in adoptive transfer experiments with severe combined immunodeficient (SCID)/beige mice or when Ptch was deleted after establishment of chimerism in Rag-2^−/−γc^−/− mice (data not shown). Since the Ptch homologue Ptch2 is not expressed in T and B cells (data not shown), it does not functionally substitute Ptch. These experiments show that Ptch function, itself, in CLPs appears to be dispensable for proper progression along the T- and B-cell lineages. Rather, Ptch function by the inductive environment, most likely stromal cells, is required for CLP differentiation.

So far we had no indication for myeloid deficiencies in tPtch^−/− mice. To analyze this aspect in more detail, we investigated the myeloerythroid colony-forming activity within the Lin⁻ fraction of the tPtch^−/− BM 19 days after the first tamoxifen injection. We found no effect of Ptch disruption on the differentiation of the multipotent CFU-granulocyte/erythrocyte/megakaryocyte/macrophage (CFU-GEMM), bi- or unipotential CFU-granulocyte/macrophage (CFU-GM), CFU-granulocyte (CFU-G), CFU-macrophage (CFU-M) and burst-forming unit-erythroid (BFU-E) progenitors (Table 1). Efficient Ptch ablation in CFU-GEMM colonies derived from tPtch^−/− mice was demonstrated by PCR (data not shown). We also investigated the morphology and distribution of all peripheral blood cells by automated blood cell counts, blood smear tests, and FACS analysis (Tables 2,3). Consistent with the specification defect of the lymphoid lineage, we found a reduction of peripheral lymphocytes in tPtch^−/− mice compared with control animals. Except for an increase in the number of neutrophilic granulocytes, the number and morphology of all other blood cells remained normal. The high number of neutrophils in tPtch^−/− mice is most likely a secondary effect of the Ptch ablation as this is associated with skin lesions and tumor formation (data not shown). However, these data show that Ptch is dispensable for development and specification of myeloid lineages.

With this paper, we have established a nonredundant inducer function of Ptch for the specification of B- and T-cell lineages. Targeted disruption of Ptch in the adult mouse severely compromises the CLP-containing cell population in the BM resulting in a depletion of early B-cell descendants in the spleen and abrogated differentiation of intrathymic T-cell progenitors. The CLP differentiation deficit is not cell autonomous as Ptch-negative BM cells are capable of fully reconstituting functional B- and T-cell compartments in Rag-2^−/−γc^−/− mice. We conclude that the generation and/or maintenance of CLPs requires Ptch expression by the stromal-cell compartment. In contrast, myeloid lineage commitment is Ptch independent.

Several lines of evidence show that the specification defect of the entire lymphoid lineage in Ptch mutant mice occurs at the level of CLPs or even earlier in the BM. First, the number of IL-7Rα–expressing cells within the Lin⁻c-kit^lowSca-1^−/low fraction, which represents CLPs,^1,37  is reduced in tPtch^−/− mice. Second, the proliferative capacity of the CLP-containing fraction and also that of their immediate progenitors, which are maintained in the Lin⁻c-kit^highSca-1^high fraction,³⁸  is reduced. Third, expression of Ikaros and the cell-surface receptor Flt3, which are expressed on lymphoid-primed multipotent progenitors,³⁴  was partially down-regulated in Lin⁻ BM cells of tPtch^−/− mice. The absence of Rag-1 and Rag-2 expression prevents the initiation antigen receptor gene recombination and explains the failure of B-cell progenitors to enter the pre–B-cell stage. In tPtch^−/− thymi, T-cell progenitors do not differentiate beyond the DN1 stage, which explains the involution of the cortical thymus region, where differentiation into DN2 and DN3 normally occurs.³⁹  Consistent with our data, Shah et al demonstrated that Hh plays an important role for the expansion of DN1 cells and their transition into DN2.⁹  While Hh has been shown to arrest thymocyte development at the DN3 stage in vitro,⁹  Ptch apparently does not play a major role in this process but appears to be required for the transition of DN4 to DP, because the pool of DN4 T cells is maintained in tPtch^−/− thymi 19 days after Ptch inactivation. Thymic atrophy and reductions of the immature DN and DP compartments associated with a relative increase of mature single-positive thymocytes have been also achieved by a Mx1Cre-mediated deletion of Smo, the downstream signaling partner of Ptch.⁷

In contrast to CLPs, the differentiation potential of the HSC- and MPP-containing Lin⁻ c-kit^highSca-1^high population appears to be normal, although we observed a slightly decreased proliferative capacity of these cells. These results are in agreement with data showing that Hh treatment of cord blood HSCs affects their proliferative capacity, but has no effect on cell fate.⁵  In tPtch^−/− mice, the Lin⁻c-kit^highSca-1^−/low fraction, which contains CMPs and the downstream GMPs and MEPs,²  proliferated normally. Moreover, the numbers of CFU progenitors as well as the majority of the corresponding peripheral blood cells in tPtch^−/− animals were indistinguishable from those of control animals. The number of thrombocytes was unchanged in the mutants, which demonstrates continuous thrombocyte generation from HSCs and is indicative of normal HSC function.^2,26  The elevated numbers of blood neutrophils in tPtch^−/− mice are probably caused by inflammatory processes due to precancerous lesions in several organs including stomach and skin (data not shown). The poor general condition of the mutant animals prevented us from investigations beyond day 21 of tamoxifen treatment onset. However, the morphology of all peripheral blood cells remained normal and we did not observe leukemogenesis within the observation period of 19 days. Collectively, our experiments demonstrate that Ptch deficiency targets the branching point of MPP differentiation into CLPs and CMPs. While CLP formation and/or maintenance require Ptch, CMP generation and function do not.

The successful repopulation of peripheral B and T cells from Ptch-negative BM cells in irradiated Rag-2^−/−γc^−/− mice shows that Ptch expression, itself, in CLPs is dispensable for proper lymphoid lineage commitment. Rather, the result strongly suggests a critical role of Ptch for the functionality of the inductive environment (ie, the stromal-cell compartment) that is necessary for lymphoid versus myeloid differentiation. One example of such a binary cell fate determinant on stromal cells is provided by the Jagged/Delta-like protein, which is the ligand for Notch expressed on thymocytes and directs T- versus B-cell development (for review see Germain⁴⁰ ). However, we cannot formally exclude a cell-autonomous function of Ptch in developing T cells, which would be consistent with the reported expression of Ptch during all DN stages.⁷  The fate of Ptch-deficient BM cells, the Hh/Ptch effector mechanisms, and how exactly they regulate lymphoid lineage commitment remain to be elucidated in future studies.
