YRRL motifs in the cytoplasmic domain of the thrombopoietin receptor regulate receptor internalization and degradation

Thrombopoietin (Tpo) is critical for the maintenance of hematopoietic stem and progenitor cells and is also the primary regulator of megakaryocyte development.^1,2  The binding of Tpo to its receptor, c-Mpl, causes associated Janus kinase 2 (Jak2) activation, which in turn phosphorylates (activates) several downstream effectors including signal transducers and activators of transcription (STAT) 3 and 5, mitogen-activated protein kinase (MAPK), phosphotidylinositol-3-kinase (PI3-K), and protein kinase C (PKC).^3-7  Activation of these pathways promotes proliferation and survival in c-Mpl–expressing cell lines and hematopoietic progenitor cells, in addition to megakaryocyte lineage differentiation and maturation.^8-11  It is critical that Tpo signal transduction is stringently controlled to prevent uncontrolled proliferation. Suppressors of cytokine signaling (SOCS) proteins, phosphatases, and negative regulators such FAK, Lnk, and Lyn have all been shown to down-modulate Tpo-induced signaling.^12-15  However, the most effective method of regulating Tpo signaling is by controlling expression of c-Mpl on the plasma membrane. Tpo-mediated c-Mpl endocytosis, recycling, and degradation are rapid mechanisms to control signaling longevity and represent a mechanism that regulates Tpo signaling without new protein expression.

The principal mechanism of receptor-mediated endocytosis in eukaryotic cells is the clathrin-coated vesicle.¹⁶  Soluble clathrin molecules self-assemble and are recruited to the plasma membrane, where they form lattice structures and interact with transmembrane receptors via adaptor proteins (APs), such as AP2, to form clathrin-coated pits.^17,18  These pits then further invaginate before finally budding from the membrane to form clathrin-coated vesicles. AP2 is a heterotetramer composed of α2, β2, μ2, and σ2 subunits. The α2 and β2 subunits localize AP2 to the membrane, recruit endocytic accessory proteins, and bind clathrin heavy chain.^19-21  Transmembrane proteins are associated with the AP2-clathrin complex via the μ2 domain, which binds directly to cytoplasmic YXXΦ (where X = any amino acid and Φ = bulky hydrophobic residue) and [DE]XXXL[IL] motifs.^22,23  To ensure that AP2 specifically associates with membrane-bound proteins, phosphorylation of ¹⁵⁶Thr in the μ2 subunit results in a conformational change in AP2, dramatically increasing the affinity of μ2 for YXXΦ motifs.^24,25 156Thr is phosphorylated by adaptor-associated kinase 1 (AAK1),²⁶  the activity of which is maximized by its association with clathrin,^27,28  ensuring that AP2–cargo protein interactions are initiated only at the plasma membrane. In addition to being an endocytic signal, YXXΦ motifs located between 6 to 9 amino acids from the transmembrane domain mediate targeting of cargo protein to the lysosome and lysosome-like organelles via interactions with AP3.^29-32

c-Mpl contains 2 YXXΦ motifs in its cytoplasmic domain at Tyr8 (Y₈RRL; numbering is from the first cytoplasmic domain residue) and Tyr78 (Y₇₈RRL). Previous findings suggest that Y₇₈ acts as a negative regulator in a truncated (T-83) form of c-Mpl,³³  although the function of this residue in a full-length receptor remains unclear. A role for Y₈ in c-Mpl signaling has not been identified. In addition, c-Mpl contains 2 dileucine/isoleucine repeats at L₅₄L₅₅ and I₅₇L₅₈ in the cytoplasmic box2 region. Using a series of truncated receptors and point mutations, Dahlen and colleagues³⁴  reported that c-Mpl requires L₅₄L₅₅ and I₅₇L₅₈ in addition to Y₁₁₂ for Tpo-dependent internalization. In this work, we demonstrate the importance of AP2 in controlling c-Mpl internalization and determine the roles of the 2 YRRL motifs in the receptor after Tpo stimulation. We found that AP2 is essential for Tpo-stimulated clathrin-mediated c-Mpl internalization by reducing expression of the AP2α2 subunit using small interfering RNA (siRNA). By generating cells stably expressing c-Mpl with a Y-to-F point mutation at Y₈ and Y₇₈, we found that Y₇₈RRL but not the Y₈RRL motif mediated the AP2-Mpl interactions and is essential for receptor internalization. In addition, cells expressing the Y₇₈F mutation exhibited increased proliferation and Jak2 and AKT phosphorylation in response to Tpo. Interestingly, although c-MplY₈ appears not to be significantly involved in c-Mpl internalization, receptors bearing this mutation are not degraded as rapidly as wild-type forms and appear not to be targeted to the lysosome. Our findings provide novel insights into the regulation of Tpo signaling, and potentially that of other hematopoietic growth factors, via receptor internalization and degradation.

Pharmacologic inhibitors JakI, LY294002, SU6656, and U0126 where all purchased from Calbiochem (San Diego, CA). The clathrin inhibitor monodansylcadaverine (MDC), the proteosome inhibitor Z-LLL-al (ZL), and cycloheximide were purchased from Sigma-Aldrich (St Louis, MO). Extracellular-specific polyclonal rabbit anti–human c-Mpl was provided by Amgen Pharmaceuticals (Thousand Oaks, CA), and intracellular-specific polyclonal rabbit anti–human c-Mpl was purchased from Upstate (Lake Placid, NY). Monoclonal mouse anti-AP2α2 antibody was purchased from BD Biosciences (La Jolla, CA). Antibodies specific to phosphospecific and total Jak2, STAT5, AKT, and ERK1/2 were purchased from Cell Signaling Technologies (Danvers, MA). Monoclonal mouse antiactin was purchased from Sigma-Aldrich. Secondary antibodies goat anti–rabbit–horseradish peroxidase (HRP) and rabbit anti–mouse–HRP were purchased from Santa Cruz Biotechnology (Santa Cruz, CA), and fluorescently labeled goat anti–rabbit-488 was purchased from Invitrogen (Carlsbad, CA). Membrane-impermeable N-hydroxysulfo-succinimidobiotin (sulfo-NHS-biotin) and neutravidin-coupled agarose beads were purchased from Pierce (Rockford, IL). Recombinant human (rh) Tpo was a gift from Don Foster (Zymogenetics, Seattle, WA).

Wild-type human c-Mpl was cloned into the retroviral expression vector pMX-puro using EcoRI and XhoI cloning sites. The c-Mpl intracellular domain point mutations (c-Mpl Y₈F, c-Mpl Y₇₈F, and c-Mpl Y₈₊₇₈F) were introduced using the QuikChange mutagenesis kit (Stratagene, La Jolla, CA) with the following oligonucleotides: Y₈F forward primer, 5′-CCTGCACACTTCAGGAGACTGAGGCAT-3′; Y₈F reverse primer, 5′-ATGCCTCAGTCTCCTGAAGTGTGCAGG-3′; Y₇₈F forward primer, 5′-CCAGATGGACTTCCGAAGATTGCAGCCTT-3′; and Y₇₈F reverse primer, 5′-AAGGCTGCAATCTTCGGAAGTCCATCTGG-3′. Mutations were confirmed by sequencing.

The interleukin-3 (IL-3)–dependent prolymphoid cell line BaF3 and BaF3-Mpl clones were maintained in RPMI 1640 medium containing 10% fetal bovine serum (FBS) supplemented with IL-3 (2 μL/mL conditioned medium from IL-3–producing baby hamster kidney cells). The retroviral packaging cell line Platinum-E (Plat-E) was maintained in Dulbecco modified Eagle medium (DMEM) supplemented with 10% FBS. To generate BaF3-Mpl clones, subconfluent Plat-E cells were transfected with pMX-puro-c-Mpl constructs using FuGENE 6 transfection reagent (Roche Applied Sciences, Indianapolis, IN) for 48 hours before viral supernatant collection. BaF3 parental cells were then incubated in viral supernatant supplemented with IL-3 for 48 hours before selection with puromycin (2 μg/mL). Clonal populations were generated by limiting dilution. Total c-Mpl protein expression was determined by Western blot and cell-surface expression by flow cytometry.

The previously described AP2α2 subunit siRNA target sequence AAGAGCAUGUGCACGCUGGCCA³⁵  and the DY547-labeled negative control were purchased from Dharmacon (Chicago, IL). BaF3-Mpl cells were transfected using an Amaxa nucleofector (Gaithersburg, MD) according to the manufacturer's protocol. Briefly, 4 × 10⁶ BaF3-Mpl cells were resuspended in solution V (Amaxa) containing 2 μg of either negative control or AP2α2 siRNA and electroporated using the program X-001. SiRNA efficiency was determined by Western blot analysis for AP2α2 subunit after 24, 48, and 72 hours. Maximal knockdown occurred 48 hours after transfection.

After chemical treatment or Tpo stimulation, BaF3-Mpl cell lines were washed 3 times with cold phosphate-buffered saline (PBS) and lysed in NP-40 buffer (50 mM Tris-HCl [pH 7.4], 1% NP-40, 150 mM NaCl, 1 mM EDTA, 1 mM Na₃VO₄, and 1 mM NaF) containing 1% protease inhibitors (Sigma-Aldrich). Denatured proteins were fractionated by sodium dodecyl sulfate (SDS)–polyacrylamide gel electrophoresis and transferred to PVDF membranes. Protein expression was detected by incubating with specific antibodies and visualized by chemiluminescent detection reagent (ECL-plus; GE Healthcare, Little Chalfont, United Kingdom).

BaF3-Mpl clones were starved of IL-3 for 2 hours before stimulation with 50 ng/mL rhTpo for 0, 10, 30, and 60 minutes. Cells were washed 3 times in cold PBS before biotinylation of the extracellular domains of membrane-bound proteins with 5 mg/mL sulfo-NHS-biotin for 30 minutes at 4°C, a cell-impermeable biotinylation reagent. Further protein biotinylation was prevented by washing the cells 3 times with cold PBS containing 100 mM glycine. Cells were lysed in NP-40 buffer, and protein concentrations were determined using the BCA protein assay kit (Pierce). Biotinylated proteins were pulled down using neutravidin-conjugated agarose beads, proteins were denatured by adding SDS-loading dye and boiling for 5 minutes, and c-Mpl expression was analyzed by Western blotting.

BaF3-Mpl clones in log-phase growth were washed 3 times with PBS to remove IL-3, resuspended in RPMI 1640 supplemented with 2% FBS, and plated into 96-well plates at a concentration of 1000 cells per well before rhTpo was added at concentrations ranging from 1 pg/mL to 10 ng/mL. Cells were incubated for 48 hours before treatment with 1 mg/mL MTT reagent (Sigma-Aldrich) and incubation at 37°C for 3 hours. Cells were lysed, formazen crystals were dissolved in 100 μL MTT lysis solution (dH₂O, 20% SDS, 40% dimethyl formamide (DMF), 2% acetic acid, and 0.2% HCl) for 6 hours at 37°C, and absorbance was read on a colorimetric plate reader at 570 nm. Each data point is expressed as a percentage of proliferation stimulated by a maximal dose of murine IL-3 (4 μL/mL murine IL-3 supernatant). Each experiment was performed in triplicate with 3 different clones for each wild-type or mutant Mpl construct.

Tpo-stimulated BaF3-Mpl cells were washed in cold labeling buffer (PBS with 0.5% bovine serum albumin) and fixed in cold 2% paraformaldehyde for 5 minutes. Cells were then labeled with primary antibody specific to the extracellular domain of c-Mpl for 30 minutes at 4°C. Unbound antibody was removed by washing, and cells were incubated for 30 minutes at 4°C with goat anti–rabbit-488 fluorescent secondary antibody. Cells were then washed and analyzed using a FACSCalibur flow cytometer and CellQuest Pro analysis software (BD Biosciences).

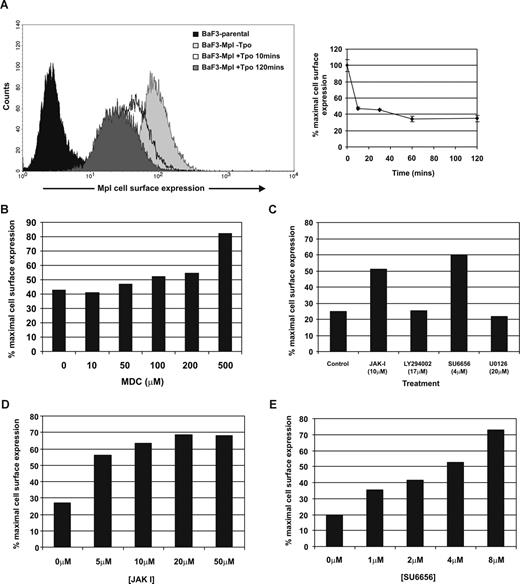

Using BaF3 cells expressing full-length human c-Mpl (BaF3-Mpl), we studied the kinetics of receptor internalization after stimulation with Tpo. Flow cytometric analyses demonstrated that c-Mpl internalization was near maximal (reduction to 46% [± 1.2] of normal cell-surface expression) 10 minutes after Tpo stimulation and maximal after 60 minutes (to 34.3% [± 3.2] of baseline; Figure 1A). These kinetics are comparable with those previously published.³⁴  To determine whether c-Mpl internalization was dependent on clathrin-mediated endocytosis, cells were pretreated with an inhibitor of clathrin-coated pit formation, MDC.³⁶  MDC addition inhibited c-Mpl internalization in a concentration-dependent manner, with maximal attenuation achieved at 500 μM (Figure 1B), indicating that Tpo-induced receptor internalization is dependent on the formation of clathrin-coated pits. To further determine the intracellular signaling mechanisms responsible for c-Mpl internalization, we used pharmacologic inhibitors to several kinases activated by Tpo, including Jak2, Jak and Src family kinases (SFKs), PI3-K, and ERK1/2. Inhibitors to Jak2 and SFKs (JAK I and SU6656, respectively) greatly reduced Tpo-stimulated c-Mpl internalization, while inhibitors to PI3-K and ERK1/2 had no effect (Figure 1C). A concentration-dependent inhibition of c-Mpl internalization by preincubation with JAK I and SU6656 was further demonstrated (Figure 1D,E).

To determine whether AP2 is required for Tpo-induced c-Mpl internalization, BaF3-Mpl cells were transfected with siRNA specific to the α2 subunit of AP2. Western blot analysis of whole-cell lysates after treatment with siRNA demonstrated an approximate 4-fold decrease in AP2α2 protein expression after 48 hours (Figure 2A). For internalization studies, BaF3-Mpl cells were transfected with AP2α2 siRNA for 48 hours before stimulation with 50 ng/mL Tpo, before c-Mpl expression was analyzed by flow cytometry. AP2α2-depleted cells exhibited greatly reduced c-Mpl internalization in response to Tpo; c-Mpl expression was reduced to 55.3% (± 9.6%) of baseline expression in control cultures, whereas AP2α2 siRNA–treated cell c-Mpl expression was reduced only to 91.2% (± 1.9%) of baseline maximal expression (Figure 2B).

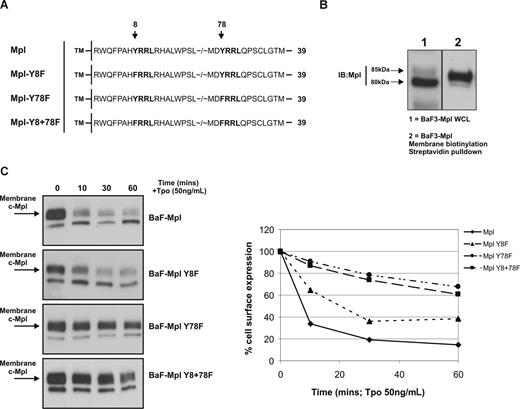

The AP2μ2 domain has previously been shown to interact with YXXΦ motifs on transmembrane receptors and drive clathrin-mediated receptor endocytosis.²²  To determine whether the 2 YRRL motifs in the cytoplasmic domain of c-Mpl are required for AP2-mediated internalization, we generated 4 expression-matched BaF3-Mpl cell lines stably expressing either wild-type or Y-to-F point mutations at cytoplasmic Y₈, Y₇₈, and both Y₈ and Y₇₈ (Figure 3A). In the absence of Tpo, there was no significant difference in cell-surface expression of c-Mpl between clones when analyzed by flow cytometry (data not shown).

Using a membrane-impermeable biotinylation reagent and a streptavidin pull-down strategy, we were able to accurately determine expression of c-Mpl on the cell surface after Tpo stimulation in the BaF3-Mpl wild-type and mutant clones. Previous findings suggest that posttranslational modifications of c-Mpl give rise to a more “mature” form of the receptor, which is expressed at the cell membrane.³⁷  In accordance with this finding, Western blot analyses of human c-Mpl–bearing cell lines display 2 specific protein bands, one migrating at 80 kDa and a second at 85 kDa, the latter of which represents the mature cell-surface form of the c-Mpl receptor (Figure 3B). We measured the intensity of the 85-kDa band to evaluate Tpo-induced Mpl internalization in the BaF3-Mpl clones. Cells were stimulated with 50 ng/mL rhTpo for 10, 30, and 60 minutes before membrane biotinylation, lysis, and streptavidin pull-down. Levels of internalization were quantified by densitometry of the 85-kDa membrane-localized c-Mpl band in Tpo-stimulated cells compared with unstimulated controls. Wild-type c-Mpl was rapidly internalized in response to Tpo, with cell-surface expression reduced to approximately 33% of baseline after 10 minutes and to 14% after 60 minutes (Figure 3C). c-Mpl Y₈F–expressing cells exhibited slightly reduced internalization in response to Tpo compared with wild-type receptor–bearing cells (surface expression reduced to 64% of baseline after 10 minutes and to 38% after 60 minutes). In contrast, Y₇₈F c-Mpl–bearing cells exhibited greatly blunted internalization in response to Tpo, with cell-surface expression remaining at 90% of baseline after 10 minutes and 68% after 60 minutes. c-Mpl internalization kinetics of Mpl Y₈₊₇₈F cells were similar to those of Mpl Y₇₈F cells.

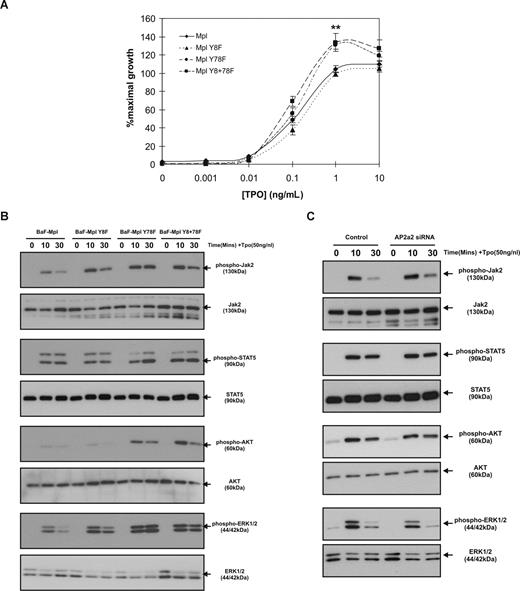

Our previous studies identified Y₇₈ in the cytoplasmic domain of c-Mpl as a potential negative regulator of Tpo proliferation,³³  although these findings were made using a truncated receptor, missing the distal 2 tyrosine residues. In the current study, we sought to determine the role of Y₇₈ in the context of the full-length receptor and assess whether our findings regarding c-Mpl internalization had any effects on Tpo-mediated proliferation and signaling. MTT assays were performed using 3 clones from each receptor type: wild-type, Y₈F, Y₇₈F, and Y₈₊₇₈F. All of the clones analyzed displayed comparable levels of c-Mpl expression as determined by Western blot analysis (data not shown). rhTpo induced a concentration-dependent increase in cell proliferation in all clones, although cells bearing c-Mpl with the Y₇₈F mutation displayed significantly greater maximal proliferation. Using 1 ng/mL rhTpo, BaF3/Mpl cells proliferated at 104% (± 3.9%) of IL-3–stimulated controls, whereas c-Mpl Y₇₈F cells proliferated to 133% (± 4.4%) of IL-3–stimulated controls (Figure 4A). c-Mpl Y₈F was not significantly different from c-Mpl wild-type receptor–bearing cells, and c-Mpl Y₈₊₇₈F was not significantly different from c-Mpl Y₇₈F. To determine the effects of the Y₈F and Y₇₈F mutations on Tpo-induced signaling, cells expressing the different forms of the receptor were starved for 18 hours before stimulation with rhTpo (50 ng/mL) for 0, 10, and 30 minutes. Cells bearing the Y₇₈F mutation showed moderately increased phosphorylation of Jak2 and STAT5 and increased longevity of signal and greatly increased phosphorylation of AKT and ERK1/2 (Figure 4B). Signaling in the c-Mpl Y₈F mutation was similar to wild-type c-Mpl control cells. To determine whether the increased Tpo-stimulated signaling was as a result of reduced internalization of c-Mpl observed with the Y₇₈F mutation, we treated wild-type c-Mpl–expressing cells with AP2α2 siRNA to inhibit endocytosis. Interestingly, we found that signaling was not affected by knocking down AP2α2 protein expression (Figure 4C), even to levels that blunted c-Mpl Y₇₈F receptor internalization, suggesting that attenuating receptor internalization may not significantly affect Tpo signaling in these cells.

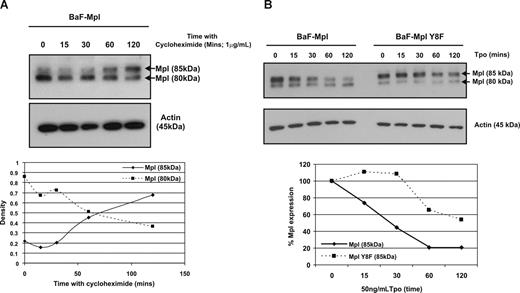

It has previously been demonstrated that YXXΦ motifs localized between 6 and 9 residues from the transmembrane domain mediate lysosomal targeting of internalized receptors.^31,32  Consequently, we assessed whether the c-Mpl Y₈RRL motif was involved in targeting the internalized receptor for lysosomal degradation. To accurately determine the effects on receptor degradation, we treated BaF-Mpl cells with the protein synthesis inhibitor cycloheximide (1 μg/mL) for a range of time periods from 0 to 120 minutes; c-Mpl expression was then analyzed by Western blot and the ratio of 80-kDa (“immature”) to 85-kDa (“mature”) Mpl determined by densitometry (Figure 5A). In the absence of cycloheximide, the majority (approximately 80%) of Mpl exists as an 80-kDa form. In the presence of cycloheximide, the mature form (85 kDa) becomes increasingly predominant with time. In the subsequent experiments, cells were treated with cycloheximide for 60 minutes, having determined that after this period of treatment, synthesis of new protein had been prevented without significant cell death (data not shown). Cycloheximide-treated cells were stimulated with rhTpo (50 ng/mL) for 0 to 120 minutes before the level of c-Mpl degradation was determined by Western blot analysis and densitometry. In wild-type c-Mpl–expressing cells, Tpo stimulation resulted in a steady degradation of the receptor (Figure 5B), which was maximal after 60 minutes (reduction to approximately 20% of normal c-Mpl expression). However, in Y₈F c-Mpl–expressing cells, receptor degradation only occurred after 30 minutes of Tpo treatment; after 60 minutes, the level of degradation was significantly lower than for wild-type c-Mpl (reduced to only approximately 65% of normal c-Mpl expression). These findings strongly suggest a role for Y₈RRL in mediating c-Mpl degradation.

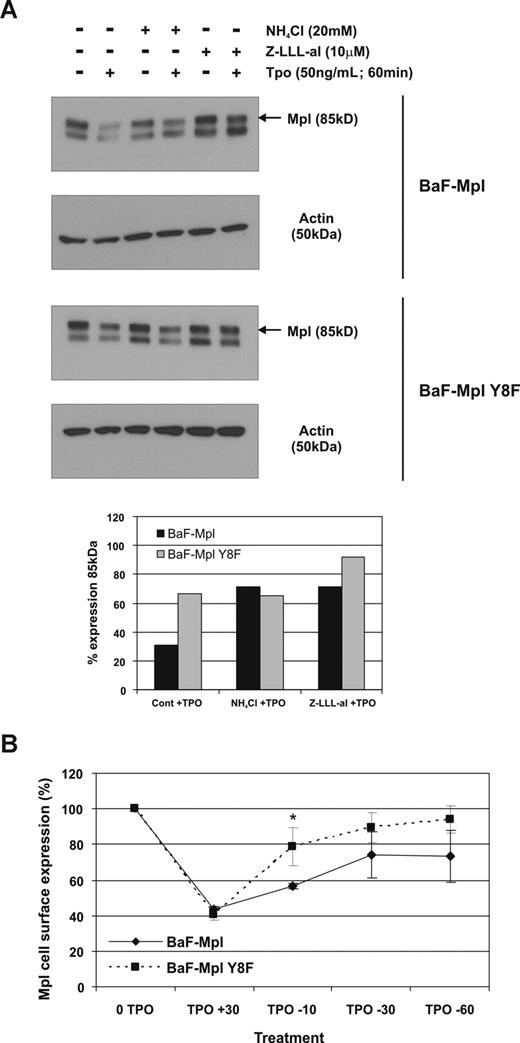

To determine whether the Y₈RRL motif is involved in lysosomal targeting and degradation rather than proteasomal degradation, cycloheximide-treated wild-type and Y₈F c-Mpl–expressing cells were pretreated with lysosome (NHCl₄) and proteasome (Z-LLL-al) inhibitors before Tpo stimulation. Both NHCl₄ and Z-LLL-al inhibited receptor degradation after Tpo stimulation in wild-type c-Mpl–expressing cells (Figure 6A). However, in Y₈F Mpl–expressing cells, NHCl₄ had no effect on degradation, while Z-LLL-al treatment alone almost completely aborted c-Mpl degradation, indicating that Y₈RRL is involved in lysosome targeting but not in proteasomal degradation. If the mutation in Y₈F c-Mpl–bearing cells destroys the lysosome targeting motif, the receptor would be expected to build up in the early endosome, and be available for rapid recycling. To determine whether this hypothesis was correct, Y₈F c-Mpl cells were stimulated with Tpo for a limited period to induce receptor internalization before Tpo was removed to promote recycling of the receptor back to the membrane. Y₈F c-Mpl recycled back to the membrane significantly more rapidly than wild-type (Figure 6B), further indicating a failure of Y₈F-Mpl to target to lysosomes.

In this study, we demonstrate a role for AP2 in mediating Tpo-stimulated c-Mpl internalization and determined that Y₇₈RRL is an AP2μ2-cytoplasmic binding motif in the receptor. In addition, we have shown that an identical sequence located close to the transmembrane domain (Y₈RRL) appears to target the receptor for lysosomal degradation after Tpo stimulation. Consistent with previous studies, we have shown that the Y₇₈F mutation results in increased Tpo-induced proliferation and further demonstrate that this mutation also leads to increased activity of Jak2 and AKT, which indicates a possible mechanism for the increase in cell numbers. These findings suggest a critical role for Y₈ and Y₇₈ in the cytoplasmic domain of c-Mpl in controlling surface expression and receptor degradation after Tpo stimulation, which is highly significant considering the importance of tightly regulating the response to Tpo.

Although we have been able to show the importance of AP2 and the predicted AP2-binding motif in controlling c-Mpl internalization, we have been unable to demonstrate direct protein-protein interactions between the receptor and the AP2μ2 subunit by coimmunoprecipitation (data not shown). Interestingly, this finding is similar to previous studies with the transferrin receptor (TfR). Both AP2 and the YTRF motif in the cytoplasmic domain of the TfR are critical to its internalization, but no direct interaction between AP2 and TfR could be detected.^38,39  Although we were unable to show a direct interaction, having demonstrated that AP2 and Y₇₈RRL are both vital for c-Mpl internalization, we hypothesize that the receptor interacts with AP2 at this site to mediate Tpo-induced endocytosis. It is possible that the AP2–c-Mpl interaction is too weak and/or transient to be detected by coimmunoprecipitation, and it may be feasible to identify these interactions by other methods, for example, fluorescence resonance energy transfer (FRET) with confocal microscopy.

The position of the YXXΦ motif in the cytoplasmic domain is thought to be of great importance to its function. Purely endocytic YXXΦ sequences are commonly considered to lie within 10 to 40 residues from the transmembrane domain.²²  The c-Mpl endocytic motif at Y₇₈RRL is therefore considerably further away than in other transmembrane receptors. Whether this is exclusive to c-Mpl, or whether it also occurs in other hematopoietic growth factor receptors, is currently unknown.

Regulation of AP2 localization and binding is mediated by PI(4,5)P₂⁴⁰ and AAK-1 kinase activity.^26,27  PI(4,5)P2 interacts via 2 binding sites on AP2, one on the α-subunit to dock the complex at the plasma membrane,¹⁹  and the other on the μ-subunit.⁴¹  AAK-1 increases the affinity of the μ-subunit to bind its target cargo by phosphorylation of ¹⁵⁶Thr. We have shown that Tpo is able to directly cause the internalization of its receptor via activation of Jak2 and SFK signaling cascades, although the downstream effectors remain unclear. Interestingly, a previous finding that c-Mpl Y₁₁₂ mediates receptor internalization³⁴  could also support a potential role for SFKs in regulating c-Mpl endocytosis, as this residue has previously been shown to regulate Tpo-stimulated Lyn kinase activity.⁴²  The role of SFKs in regulating receptor internalization has been studied previously with differing results. For example, the SFK inhibitor SU6656 fails to attenuate internalization of epidermal growth factor receptor (EGFR),⁴³  but previous studies on the stem cell factor receptor c-Kit suggest that SFKs are vital for internalization and degradation of the receptor.^44,45  We have demonstrated that similar to c-Kit, SFKs are important in regulating c-Mpl internalization. In addition, we cannot rule out the possibility that c-Mpl Y₇₈ is involved in the activation of another signaling pathway that mediates receptor internalization, in addition to interacting with AP2. Whether the Tpo-mediated stimulation of certain signaling pathways causes changes in AP2 structure and/or phosphorylation, for example by increasing AAK-1 kinase activity, is currently being investigated.

Although we demonstrate significant Tpo signaling alterations in the cells expressing the c-Mpl Y₇₈F mutation, our finding that signaling was not affected after AP2α2 siRNA treatment strongly suggests that the differences in signaling intensity and duration between wild-type c-Mpl and c-Mpl Y₇₈F are due to effects not directly linked with receptor endocytosis. Relatively little is known about the role of the Y₇₈ residue in mediating Tpo signaling, although our data strongly support the previous findings that identified a potential negative regulatory role.³³  Considering the increase in the extent of protein phosphorylation and longevity of activation, which was particularly evident in AKT and ERK1/2, it is possible that the c-MplY₇₈F mutation affects the activity of one or more phosphatases, for example the protein tyrosine phosphatases SHP1 or SHP2, which is activated in response to Tpo.⁶  Future experiments aimed at identifying Y₇₈-interacting proteins and the role of Y₇₈ in the activation of specific protein phosphates will elucidate the exact nature of this negative regulation.

As well as identifying a novel c-Mpl internalization motif, we have also described a potential lysosome-targeting motif at Y₈RRL. The location of this motif is consistent with previous findings that dileucine or YXXΦ motifs located 6 to 9 residues from the transmembrane domain can target proteins to the lysosome for degradation.^22,29  Studies of lysosome-associated membrane proteins (LAMPs) and lysosome integral membrane proteins (LIMPs) have highlighted AP3 as the prime candidate for association with lysosome-targeting motifs to mediate the transport of protein to the lysosomes.^32,46  Therefore, internalized c-Mpl is likely routed to the lysosomes via interactions between AP3 and Y₈RRL, and this interaction may be responsible for the rapid degradation of c-Mpl after Tpo stimulation. Although recent colocalization studies suggested that c-Mpl is not present in lysosomes,⁴⁷  we have found that the Tpo-stimulated rapid degradation of the receptor can be significantly inhibited by NHCl₄, strongly suggesting that there is in fact a role for lysosomal degradation in controlling c-Mpl expression.

This work is the first to describe the YXXΦ motif for receptor internalization and lysosome-targeting in the hematopoietic growth factor receptor (HGFR) family. Importantly, we have recently identified that potential AP2-interaction motifs are also present in a number of other receptors. For example, the erythropoietin receptor (EpoR), which shares significant homology with c-Mpl, contains one [DE]XXXL[IL] motif (D₇₈EGPLL) and several YXXΦ motifs (starting at Y₉₃, Y₁₅₃, Y₁₈₁, and/or Y₁₈₃). Interestingly, granulocyte colony-stimulating factor receptor (G-CSFR) contains 2 YXXΦ motifs, one of which is deleted by a common truncation in severe congenital neutropenia.⁴⁸  Future study of these and other potential HGFR internalization motifs may well prove important in understanding receptor clearance and degradation.

Our studies provide a novel insight into the mechanisms that regulate Tpo signaling. Interest surrounding the function of c-Mpl in controlling hematopoietic progenitor cell expansion and megakaryopoiesis has recently intensified after the discovery of the Jak2V₆₁₇F mutation and its role in the myeloproliferative diseases polycythemia vera (PV), essential thrombocythemia (ET), and primary myelofibrosis (PMF) (reviewed in Levine et al⁴⁹ ). Given the emerging link between uncontrolled receptor signaling and disease states, it has become even more important to determine the precise mechanisms controlling the clearance and degradation of c-Mpl and other HGFRs.

This research was supported by National Institutes of Health grants R01DK49855, R01 CA31615, and P01 HL078784-04.

National Institutes of Health

Contributions: All authors have substantially contributed to the content of the paper and have agreed to the submission in its current format. I.S.H. designed and performed research, analyzed data, and wrote the manuscript; M.M.C. and J.R.K. performed research and analyzed data; and K.K. designed experiments, interpreted data, and wrote the manuscript.

Conflict-of-interest disclosure: The authors declare no competing financial interests.

Correspondence: Ian S. Hitchcock, Department of Medicine, University of California–San Diego, 9500 Gilman Drive, La Jolla, CA 92093; e-mail: ihitchcock@ucsd.edu.
