Targeting MEK/MAPK signal transduction module potentiates ATO-induced apoptosis in multiple myeloma cells through multiple signaling pathways

Multiple myeloma (MM) is a clonal B-cell malignancy characterized by the accumulation of malignant plasma cells within the bone marrow (BM). Despite treatment with alkylating agents, anthracyclines, corticosteroids,^1,2  and bortezomib³  as well as high-dose therapy and stem cell transplantation,^4-6  MM remains an incurable disease because of the high resistance to apoptosis and both intrinsic and acquired drug resistance.^7-12  Therefore, new therapeutic strategies are needed to improve patient outcome.

Preclinical in vitro and in vivo studies showed that arsenic trioxide (ATO) has antimyeloma effects both as a single agent^13-16  and in combination with glutathione-depleting agents^17-19  and/or other antimyeloma agents.^15,20,21  Moreover, the combined results of 3 phase 2 studies in patients with relapsed MM refractory to conventional chemotherapy showed only modest efficacy of ATO as single agent,^22-28  but combination therapies with ascorbic acid, melphalan, steroids, thalidomide, and bortezomib have shown promising results.^29-34

We have previously demonstrated that PD184352 (PD), a highly selective inhibitor of MEK phosphorylation and activation, strikingly enhances ATO-mediated apoptosis in acute myelogenous leukemia (AML) via multiple intrinsic apoptotic pathways activation.^35-37

MEK blockade efficiently and selectively sensitizes tumor cells to suboptimal doses of other apoptotic stimuli, including classic cytotoxic treatment (nucleoside analogs, microtubule-targeted drugs, γ-irradiation),^38-43  biologicals (retinoids, interferons),^44,45  steroids,^46-48  and other signal transduction/apoptosis modulators (UCN-01, STI571, Bcl-2 antagonists, Bcl-2 antisense oligonucleotides).^49-53  In this study, we tested the apoptotic activity of ATO combined with MEK inhibitors in MM cells, and we were able to demonstrate that PD enhances ATO-induced cytotoxicity both in vitro and in vivo in a human plasmacytoma xenograft model, through a multiple modulation of apoptotic regulatory proteins, including p53 family proteins, TRAIL receptors, several Bcl-2 family proteins, and caspases, that depend on the functionality of the p53 pathway.

Approval for the study was obtained from the Institutional Review Board of the Department of Clinical Sciences, University of Parma (Parma, Italy).

ATO was purchased from Sigma-Aldrich (St Louis, MO). A 1 mM stock solution was obtained by dissolving ATO in phosphate-buffered saline. A 100 mM stock solution of either the MEK inhibitor PD184352 (2-[chloro-4-iodo-phenylamino]-N-cyclopropylmethoxy-3,4-difluoro-benzamide) or PD325901 (N-((R)-2,3-dihydroxy-propoxy)-3,4-difluoro-2-(2-fluoro-4-iodo-phenylamino)-benzamide), kindly provided to us by Dr J. S. Sebolt-Leopold (Cancer Molecular Sciences, Pfizer Global Research & Development, Ann Arbor, MI), were prepared in dimethyl sulfoxide (DMSO). These reagents are highly selective inhibitors of MEK phosphorylation and activation.^54,55  The doses used by us of 1 μM for PD184352 or 50 nM for PD325901 in our in vitro experiments were those that proved effective in vitro in leukemic cells as documented both by ourselves and other authors.^35,38,56  The doses of ATO hereby used were selected based on the evidence that ATO, from concentrations of 0.5 to 2 μM upward, has the capability to induce apoptosis. These in vitro concentrations are within the range found in the plasma of patients receiving ATO treatment for acute promyelocytic leukemia.^57,58  For the other reagents, see Document S1 (available on the Blood website; see the Supplemental Materials link at the top of the online article).

Human myeloma cell lines (HMCLs) XG-6 and XG-1 were established from peripheral blood of patients with plasma cell leukemia in Dr Bataille's laboratory (Inserm, Nantes, France); OPM2, RPMI 8226, and JJN3 were purchased from DSM (Braunschweig, Germany).

Primary MM cells from MM patients, B lymphocytes from healthy subjects, and primary bone marrow stromal cells (BMSCs) from BM samples of healthy subjects were isolated and treated as described in Document S1. Approval for these studies was obtained from informed consent of all patients and healthy donors in accordance with the Declaration of Helsinki protocol.

Cord blood (CB) was obtained after informed consent from healthy full-term placentas according to institutional guidelines. Human CD34⁺ cells purification and culture were performed as previously described.⁵⁹  For detailed information, see Document S1.

Colony-forming assays were carried out by standard methods as previously described.⁵⁹  For detailed information, see Document S1.

Flow cytometric assays to evaluate cell cycle, sub-G₁ DNA content, mitochondrial transmembrane potential (ΔΨ_m), and annexinV/PI staining were performed as previously described.^35-37

siRNA transfections, cell lysis in CHAP-lysis buffer, immunoblotting, and immunoprecipitation were carried out as described.^35-37  siRNA and antibodies used in this study are described in the figure legends and in Document S1.

Five-week-old nonobese diabetic (NOD)/severe combined immunodeficiency (SCID) CB17-Prkdcscid/J (NOD-SCID) mice were obtained from The Jackson Laboratory (Bar Harbor, ME) and maintained under the same specific pathogen-free conditions. All procedures involving animal models were performed in accordance with national and international laws and policies. The experimental protocol approved by the University of Parma Ethics Committee is described in Document S1.

The expression of p-ERK and cleaved caspase-3 of neoplastic cells was determinated with immunohistochemical staining and performed as previously described.⁶⁰  Slides were viewed with a Nikon Eclipse E800 microscope using a Nikon PLAN APO lens (Nikon, Tokyo, Japan) at 4×/0.2 WD 15.7, 10×/0.45 DIC L WD 4.0, and 20×/0.75 DIC M WD 1.0, and Bio Mount medium (Bio-Optica, Milan, Italy). Images were acquired using a DS Camera Control Unit DS-L2 (Nikon) and were processed with Adobe Photoshop version 7.0 software (Adobe Systems, San Jose, CA). For detailed information, see Document S1.

For multiple comparisons, statistical analysis was performed using analysis of variance for repeated measurements followed by a Tukey-Kramer, Hsu MCB, or Dunnett post tests. The Chou-Talalay method and Calcusyn software (Biosoft, Ferguson, MO) were used to assess synergistic or additive or antagonist effects of combined therapies. Survival curves were derived by the Kaplan-Meier method and compared using the log-rank test, followed by a Bonferroni correction for multiple comparisons.

We first analyzed the pharmacologic interactions between PD and ATO using a fixed-ratio experimental design on 5 HMCLs with various p53 status: XG-6 and JJN3 cells express wild-type p53,^61,62  XG-1 cells express both wild-type and mutated p53 alleles,⁶²  and RPMI 8226 and OPM2 cells express mutated p53.^62,63  We found that the combined treatment resulted in the synergistic (Combination Index < 1) induction of apoptosis in all tested HMCLs regardless of their p53 status (Figure 1A).

Fresh purified MM cells from 12 MM patients were treated with PD and/or ATO for 24 to 48 hours, and the apoptotic effect was monitored by sub-G₁ DNA content, annexin V labeling, and ΔΨ_m. The characteristics of these patients are summarized in Table 1. Similarly to HMCLs, we found that the treatment with PD significantly enhanced the apoptosis of fresh purified MM cells induced by ATO (*P < .001) in 9 of 12 patients with MM analyzed (Figure 1B). Conversely, PD treatment attenuated (n = 1) or did not affect (n = 2) the ATO cytotoxicity in normal BM CD20⁺ B cells (Figure 1C).

To evaluate the effect of the MEK inhibitor (PD) and ATO on normal hematopoiesis, we have carried out 2 types of experiments: standard clonogenic assays and unilineage liquid suspension cultures.

Standard clonogenic assays were carried out either on total adult peripheral blood mononuclear cells (PBMCs) or on purified CB CD34⁺ cells. Using adult PBMCs, we observed that PD addition had only a very weak inhibitory effect on colony formation, whereas ATO elicited a moderately higher inhibitory effect; the combined addition of PD and ATO induced a slightly higher inhibitory effect compared with that observed using ATO alone (Figure 1D). Importantly, using the combined addition of PD and ATO at the highest dose (2 μM for both drugs), an inhibitory effect of approximately 40% on erythroid burst-forming units (BFU-E), granulocyte-macrophage colony-forming unit (CFU-GM), and colony-forming unit granulocyte-erythrocyte-macrophage-megakaryocyte (CFU-GEMM) formation was observed (Figure 1D). Similar results were observed in the colony-forming assays carried out using purified CB CD34⁺ cells, with the only exception that on these cells PD/ATO at the highest dose (2 μM) induced a more pronounced inhibitory effect on BFU-E colonies (∼50%) compared with that observed on BFU-E cultures generated from total PBMCs (Figure 1E).

The studies carried out in unilineage liquid suspension cultures showed that (1) PD elicited only a weak (∼20%) inhibitory effect on the growth of erythroid (E), megakaryocytic (Mk), and granulocytic cultures (G); (2) ATO moderately (∼30% of growth inhibition) inhibited E, G, and Mk cultures; and (3) PD/ATO exhibited an additive inhibitory effect (∼40% of growth inhibition) on the growth of E, G, and Mk cultures (Figure 1F).

Taken together, these findings demonstrate that the combined treatment with PD and ATO has moderate inhibitory effect on in vitro hematopoiesis, compatible with a clinical use of these 2 compounds administered in combination. Furthermore, it is important to point out that the major inhibitory effects of the combination on in vitro hematopoiesis are ATO dose dependent.

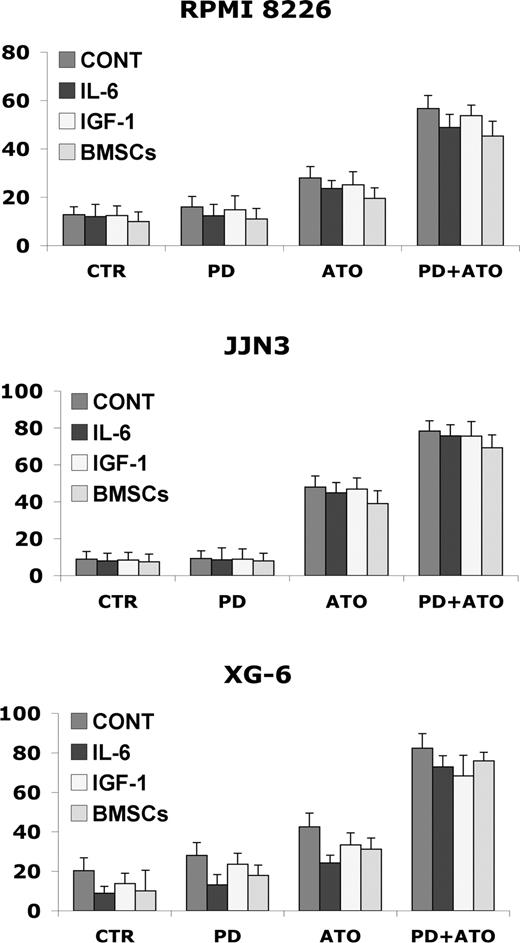

Interleukin-6 (IL-6) and insulin growth factor-1 (IGF-1), 2 major growth, survival, and drug-resistance factors for MM cells, activate a cascade of proliferative/antiapoptotic signaling pathways, including Ras/Raf/MAPK.^64,65  We then examined whether the IL-6 and IGF-1 could abrogate the apoptotic effect of PD/ATO in vitro. Importantly, IL-6 (20 ng/mL) or IGF-1 (50 ng/mL) did not block PD/ATO-triggered apoptosis in HMCL cells (Figure 2). Interestingly, similar behaviors were also observed in fresh purified MM cells treated with PD/ATO in the presence or absence of growth factors (data not shown).

Because the BM microenvironment confers MM cell growth and drug resistance,^64,65  we next studied whether PD/ATO induces MM cell apoptosis in the context of the BM microenvironment. Consistent with stimulation triggered by exogenous IL-6 or IGF-1, adherence of MM cells to BMSCs did not protect MM cells to PD/ATO-induced apoptosis (Figure 2). The cell death of BMSCs, assessed by annexin V labeling, was not significantly affected by PD/ATO treatment (data not shown). These data indicate that the combination PD/ATO triggers significant antitumor activity even against MM cells in the BM milieu.

Previous studies have shown that in cells expressing functional p53, caspase-9, and caspase-3 are activated by ATO, whereas in cells lacking functional p53, caspase-8 and caspase-3 are the primary caspases activated by ATO.¹⁵

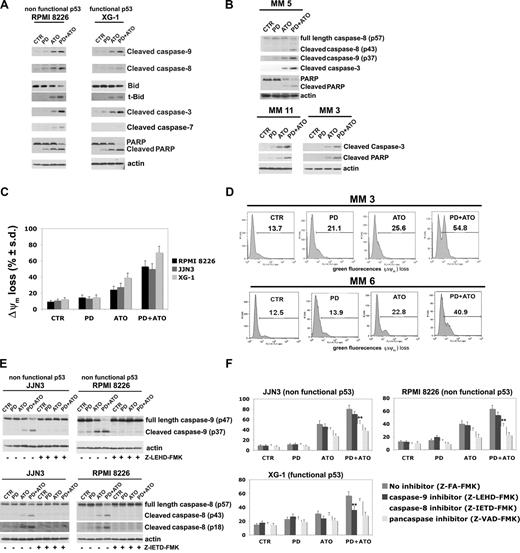

Therefore, we first compared the effect of the combined treatment on caspase activation and PARP degradation in HMCLs expressing nonfunctional p53 or functional p53: the RPMI 8226 (nonfunctional p53) and XG-1 (functional p53) cells were treated with PD and/or ATO for 24 hours: the treatment with PD strongly potentiated the ATO-induced activation of caspase-9, -8, -7, and -3 in RPMI 8226 (nonfunctional p53) cells and caspase-9 and -3 in XG-1 (functional p53) (Figure 3A). In addition, a modest activation of caspase-8 was observed in the PD/ATO-treated XG-1 (functional p53) (Figure 3A). Consistent with this latter finding, the combined treatment induced a more robust cleavage of Bid, a substrate of active caspase-8, in RPMI 8226 (nonfunctional p53) compared with XG-1 (functional p53; Figure 3A). The PD/ATO treatment induced PARP fragmentation in both HMCLs. Similar results were observed in PD/ATO-treated OPM2 (nonfunctional p53) and XG-6 (functional p53), respectively (data not shown). Caspase activation and PARP cleavage were also observed in fresh purified MM cells treated with PD/ATO (Figure 3B, representative data). In addition, the caspase-8–mediated proteolytic activation of Bid, a key protein involved in the cross-talk between the intrinsic and extrinsic apoptotic pathways,^66,67  closely correlated with the caspase-9 activation and loss of ΔΨ_M observed in PD/ATO treated RPMI 8226 (nonfunctional p53) and JJN3 (nonfunctional p53; Figure 3A,C,E). Notably, in JJN3 (wild-type p53), conversely to XG-6 (wild-type) and XG-1 (hemizygous p53), neither apoptotic doses of ATO nor ATO in combination with PD were able to induce p53 accumulation/biologic function (see next paragraph), thereby indicating that JJN3 cells have functional defect(s) in the p53 pathway. Similarly to HMCLs, loss of ΔΨ_M was also observed in PD/ATO-treated primary MM cells (Figure 3D, representative data).

Because caspases are proteolytically cleaved and activated during PD/ATO-induced apoptosis in MM cells, we next attempted to discern which caspases were indispensable for apoptotic signaling in MM. We therefore evaluated the effect of various caspase inhibitors (the caspase-9 inhibitor Z-LEHD-FMK, the caspase-8 inhibitor Z-IETD-FMK, and the pancaspase inhibitor Z-VAD-FMK) on PD/ATO-induced apoptosis in MM cells: Z-LEHD-FMK or Z-IETD-FMK completely blocked caspase-9 or -8 activation, respectively (Figure 3E), and the latter significantly reduced the PD/ATO-induced apoptosis in RPMI 8226 (nonfunctional p53) and JJN3 (nonfunctional p53) cells, whereas only Z-LEHD-FMK but not Z-IETD-FMK significantly affected the PD/ATO-induced cell death of the XG-1 (functional p53) cells (Figure 3F). Moreover, the pancaspase inhibitor Z-VAD-FMK protected MM cells from PD/ATO-induced apoptosis, confirming that caspase activity was indispensable in PD/ATO-induced apoptosis (Figure 3F). Similar results were observed in OPM2 (nonfunctional p53) and XG-6 (functional p53), respectively (data not shown). Taken together, these results indicate that the extrinsic, caspase-8–mediated, apoptotic pathway is strongly activated and plays an important role in PD/ATO-induced apoptosis in MM cells carrying a nonfunctional p53, whereas the intrinsic, caspase-9–mediated, mitochondrial apoptotic pathway is primarily activated in MM cells retaining a functional p53.

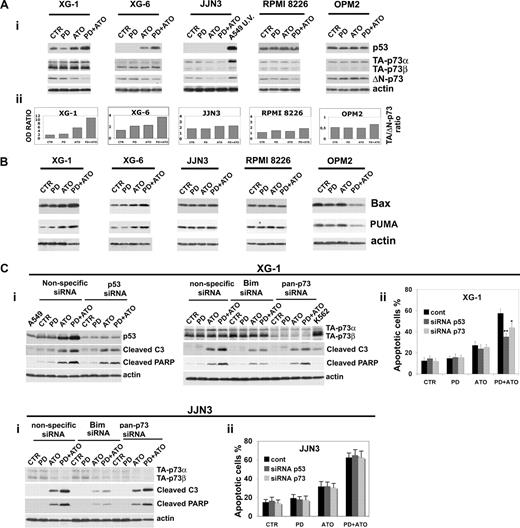

We recently reported that the disruption of the MEK/MAPK pathway potentiates the antileukemic activity of ATO in AML blasts through the activation of p73 and p53 proapoptotic pathways.^35,37,68  Therefore, we studied whether p53 and the p53-related gene p73 are molecular targets of the combined treatment in MM cells. PD treatment greatly enhanced the ATO-induced p53 accumulation in XG-1 (functional p53) and XG-6 (functional p53) but not in JJN3 (nonfunctional p53), RPMI 8226 (nonfunctional p53), and OPM2 (nonfunctional p53; Figure 4Ai). Notably, the lack of p53 accumulation in response to apoptotic doses of ATO alone or in combination with PD observed in JJN3 carrying a wt p53 indicates that this cell line has functional defect(s) in the p53 pathway. Given the well-recognized ability of p73 to transactivate p53 target genes irrespective of p53 status,^69-72  we investigated the role of p73 in PD and/or ATO-treated HMCLs presenting a wild-type or mutated p53. p73 exists as multiple transactivation competent (TA) proapoptotic and antiproliferative p73 COOH-terminal splicing isoforms (α, β, γ, δ, ϵ, ζ) of which the 2 major forms are p73α and p73β.⁷³  In addition, dominant-negative (ΔN) variants are expressed from a second promoter, lack the amino-terminal transactivation domain, act as trans-repressors of p53- and p73-dependent transcription, and have antiapoptotic and proproliferative potential.⁷⁴  The balance between TA and ΔNp73, or ratio is important in cancer and in the response to chemotherapy.⁷⁵  TA-p73α, TA-p73β, and ΔN-p73 protein expression isoforms were evaluated in HMCLs after 24 hours of treatment, and the TA/ΔN-p73 ratio was calculated (Figure 4Ai,ii). We found that the combined treatment strongly elevated the TA/ΔN-p73 ratio induced by ATO in XG-1 (functional p53) and XG-6 (functional p53; 1.7- and 1.6-fold increase, respectively), whereas neither ATO nor PD/ATO significantly modulated the TA/ΔN-p73 ratio in JJN3 (nonfunctional p53), RPMI 8226 (nonfunctional p53), and OPM2 (nonfunctional p53; Figure 4Aii). Consistent with these results, we found that the proapoptotic p53/p73 target genes Bax and PUMA were up-regulated in PD/ATO-treated MM cells retaining a functional p53 (XG-1 and XG-6) but not in MM cells carrying a nonfunctional p53 (JJN3, RPMI 8226, and OPM2; Figure 4B).

Finally, to determine the biologic relevance of p53 and p73 pathways in mediating PD/ATO-apoptosis, the endogenous p53 or p73 transcripts were selectively knocked down by specific double-stranded RNA oligonucleotides (siRNA): the selective down-regulation of p53 significantly inhibited the caspase-3 activation, PARP fragmentation, and apoptosis in PD/ATO-treated XG-1 (functional p53) and XG-6 (functional p53) but not in JJN3 (nonfunctional p53) cell line that lack a functional p53 pathway (Figure 4Ci,ii; and data not shown). We subsequently silenced p73 gene expression and found that caspase-3 activity, PARP fragmentation, and apoptosis were significantly blocked in p73 knocked-down PD/ATO-treated XG-1 (functional p53) and XG-6 (functional p53) but not in the JJN3 (nonfunctional p53) or RPMI 8226 (nonfunctional p53; Figure 4Ci,ii; and data not shown).

Taken together, these results suggest a model in which p73 cooperates with p53 to promote apoptotic cell death in PD/ATO-treated HMCLs that retain a functional p53 pathway.

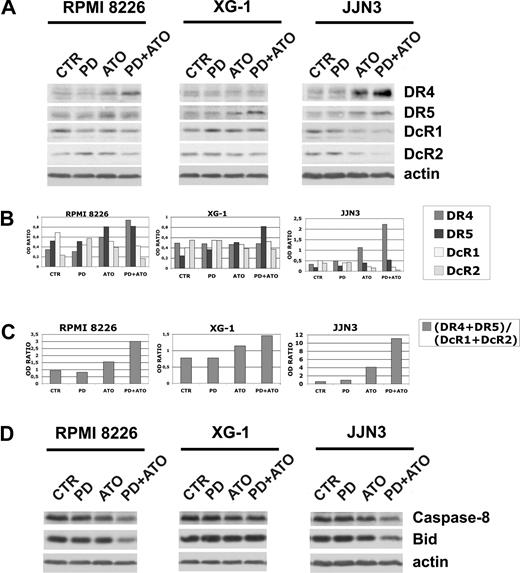

It has been reported that ATO and certain chemotherapeutic drugs induce APO2/TRAIL receptors and thereby can potentially engage both the extrinsic and the intrinsic apoptotic pathways.^15,76-78  We then hypothesized that treatment with PD may also enhance the ATO-mediated induction of APO2/TRAIL receptors in MM cells. The cells were treated with PD and/or ATO for 24 hours and the levels of DR4 and DR5 agonist APO2/TRAIL surface receptors and DcR1 and DcR2 APO2/TRAIL decoy receptors were analyzed by Western blotting (Figure 5A). Densitometric analyses were then performed to evaluate the (DR4 + DR5)/(DcR1 + DcR2) ratio (Figure 5B,C). ATO treatment positively modulated the (DR4 + DR5)/(DcR1 + DcR2) ratio through the up-regulation of DR4 and DR5 and the concomitant down-regulation of DcR1 in RPMI 8226 (nonfunctional p53) or the up-regulation of DR4 and DR5 and the concomitant down-regulation of DcR1/DcR2 receptors in JJN3 (nonfunctional p53; Figure 5A,B). Interestingly, we found that, in RPMI 8226 (nonfunctional p53) and JJN3 (nonfunctional p53), but not in XG-1 (functional p53), the cotreatment with PD markedly elevated the (DR4 + DR5)/(DcR1 + DcR2) ratio (2.0- and 2.7-fold increase, respectively), procaspase-8 degradation/activation and Bid fragmentation of ATO-treated cells (Figure 5C,D). Collectively, our data indicate that the combined treatment strongly activates the extrinsic pathway by up-regulation of TRAIL receptors in the PD/ATO-treated HMCLs that do not possess a functional p53 pathway.

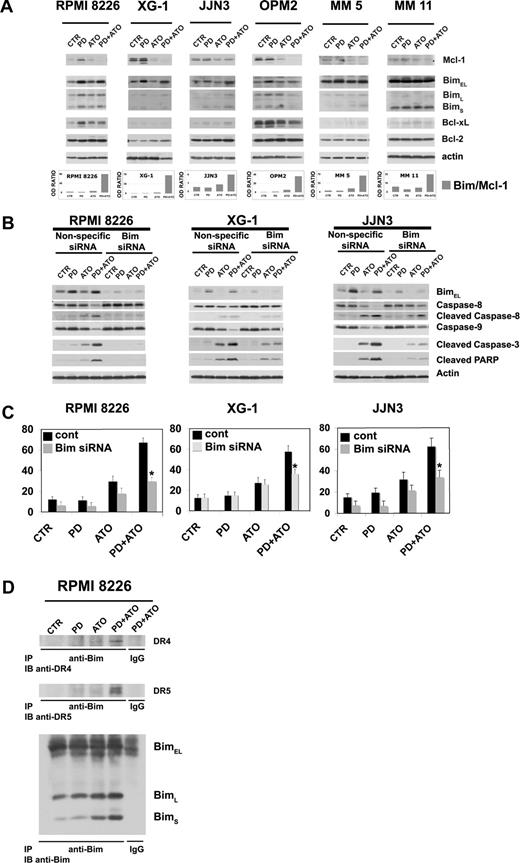

Among the Bcl-2 family, antiapoptotic Mcl-1 and proapoptotic Bim play a pivotal role in controlling MM cell survival and apoptosis.^79-81  First, we analyzed their expression in PD/ATO-treated cells. MM cells were treated with PD and/or ATO for 48 hours, and the levels of Bcl-2 family proteins were analyzed by Western blotting. ATO treatment decreased the level of antiapoptotic Mcl-1, whereas PD increased the level of the proapoptotic Bim, and the combined treatment provoked the simultaneous up-regulation of Bim and down-regulation of Mcl-1 in the MM cells retaining or not a functional p53 (Figure 6A). Similarly, an elevated ratio of Bim to Mcl-1 was also observed in fresh purified MM cells treated with PD/ATO (Figure 6A, representative data). In addition, in our experiments we did not observe a relevant modulation of Bcl-x_L or Bcl-2 protein levels in PD/ATO vs ATO-treated MM cells except for OPM2 HMCL (Figure 6A).

To determine the biologic relevance of Bim modulation in response to PD/ATO treatment, we silenced the expression of endogenous Bim transcripts by using specific siRNA. The selective down-regulation of Bim strongly inhibited caspase-8, -9, and-3 activation and PARP cleavage in response to the combined treatment in RPMI 8226 (nonfunctional p53), XG-1 (functional p53), and JJN3 (nonfunctional p53; Figure 6B). Consistent with these results, we found that apoptosis was significantly reduced in Bim knocked-down PD/ATO-treated responsive RPMI 8226 (nonfunctional p53), XG-1 (functional p53), and JJN3 (nonfunctional p53; Figure 6C). Because abrogation of Bim expression affected both the intrinsic mitochondrial programmed cell death and the extrinsic caspase-8 mediated pathways, more evident in RPMI 8226 (nonfunctional p53) and JJN3 (nonfunctional p53) in which PD/ATO strikingly activates caspase-8 (Figure 6B), we tested by coimmunoprecipitation/Western blot analysis whether Bim is recruited to TRAIL death-inducing signaling complex. As depicted in Figure 6D, immunoprecipitates using an antibody directed against Bim from lysates of PD and/or ATO-treated RPMI 8226 (nonfunctional p53) cells showed association of DR4 and DR5 TRAIL receptors with Bim in PD/ATO-treated cells (Figure 6D).

Altogether, these results suggest that Bim is critical for PD/ATO-induced killing of MM cells, and we demonstrate that Bim interacts with DR4 and DR5 TRAIL receptors and contributes to the PD/ATO-mediated activation of the extrinsic pathway.

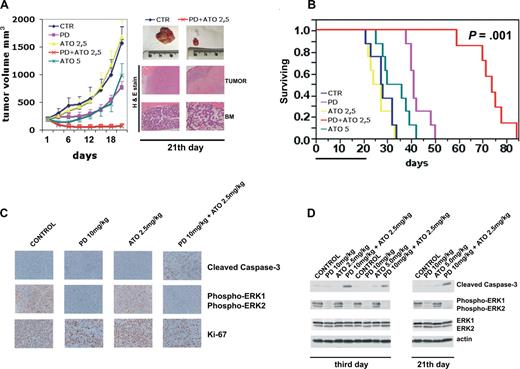

To determine whether the PD plus ATO efficacy observed in vitro for MM cells was recapitulated in vivo, mice harboring human plasmacytoma (RPMI 8226) xenograft tumor were treated with the MEK inhibitor PD325901 and/or ATO. PD325901 is a derivative of PD184352 that has improved oral bioavailability and induces a longer duration of target suppression.^56,82  We demonstrated that the effects of PD325901 alone or in combination with ATO on MM cells in vitro are qualitatively identical to those of PD184352, including the marked caspase-3 activation observed in PD/ATO-treated MM cells but occur at 20-fold lower concentration of PD325901 (50 nM) compared with PD184352 (1 μM; Figure S1).

We tested the efficacy of PD/ATO in a murine model in which RPMI 8226 cells (10⁷ cells/mouse) were injected subcutaneously into NOD-SCID mice. A similar plasmacytoma xenograft mouse model has been used in a broad range of preclinical compounds in MM.^83-89  When the tumors reached approximately 200 mm³, mice were randomized (n = 13/group) to receive vehicle or PD325901 at 10 mg/kg administered by oral gavage or ATO (2.5 or 5.0 mg/kg) injected intraperitoneally or PD/ATO on a 5-days-a-week schedule for 3 consecutive weeks. Treatment of RPMI 8226 MM-tumor-bearing mice with PD325901 (10 mg/kg) significantly reduced MM-tumor growth compared with control (P < .01; Figure 7A). ATO at low dose (2.5 mg/kg) had minimal effect on the growth of tumors, which increased as in control mice (Figure 7A). Importantly, when PD (10 mg/kg) was combined with ATO (2.5 mg/kg), there was a significant reduction in tumor growth relative to untreated or PD-treated mice (P < .001 for PD/ATO vs control, and P < .01 for PD/ATO vs PD; Figure 7A). As an additional control, we also treated mice with a high dose of ATO (5 mg/kg). ATO (5 mg/kg) significantly (P < .05) reduced MM-tumor growth compared with control, but the extent of tumor growth inhibition was significantly (P < .01) lower in mice treated with a high-dose of ATO (5 mg/kg) versus mice treated with combination PD plus low-dose ATO (2.5 mg/kg; Figure 7A).

Histopathologic examination of the tumors from representative animals (Figure 7A inset) further supported the interpretation of tumor reduction in the PD/ATO-treated mice compared with the untreated controls. Tumors from the PD/ATO-treated mice showed large areas of tumor necrosis. Notably, after 21 days of PD/ATO treatment, mice showed only moderate bone marrow hypoplasia with respect to untreated animals (Figure 7A inset). Furthermore, the combination PD plus ATO was well tolerated without significant weight loss even after 3 weeks of treatment (data not shown).

As depicted in Figure 7B, survival was significantly prolonged in PD/ATO-treated animals versus either treatment alone (mean survival time of PD, 10 mg/kg plus ATO, 2.5 mg/kg: 74 days, 95% confidence interval [CI], 59-78 days; PD 10 mg/kg: 41 days, 95% CI, 38-48 days, P = .003 for PD/ATO vs PD; ATO 5.0 mg/kg: 36 days, 95% CI, 25-39, P = .001 for PD/ATO vs ATO 5.0 mg/kg; ATO 2.5 mg/kg: 27 days, 95% CI, 21-32, P = .001 for PD/ATO vs ATO 2.5 mg/kg; untreated: 28 days, 95% CI, 21-32 days, P = .001 for PD/ATO vs untreated).

We next investigated the in vivo effects of the drug combination on proliferation and apoptosis; whole tumor-cell tissues and tumor lysates from mice treated for 3 days (n = 3/group) were subjected to immunohistochemical staining and immunoblotting to assess in vivo phosphorylation of ERK, the proliferative antigen, Ki-67, and cleaved caspase-3. Tumor tissues from PD325901 (10 mg/kg) treatments resulted in profound p-ERK inhibition compared with tumor tissues from vehicle control or ATO-treated animals (Figure 7C,D). In agreement with these data, a significant decrement in the number of Ki-67-positive plasma cells was noted in tumor sections from PD-treated mice relative to tumors from mice receiving either vehicle control or ATO (2.5 mg/kg) treatment alone (Figure 7C), thereby confirming the tumor growth retardation observed in PD-treated mice. Either PD (10 mg/kg) or ATO alone at low-dose (2.5 mg/kg) did not increase caspase activation compared with tumors from control cohorts. However, the combination PD/ATO dramatically activated caspase-3 in tumors (Figure 7C,D). Similar results were observed after 21 days of treatment (end point; Figure 7D, representative data).

Taken together, these findings suggest that combining PD with ATO induces both cytostatic and cytotoxic responses in vivo, resulting in regression of tumors, prolongs survival in vivo, and is well tolerated in vivo.

The present results show that the combined treatment with MEK inhibitors and ATO results in the synergistic (Combination Index < 1.0) induction of apoptosis in 5 HMCLs analyzed, irrespective of their p53 status. The combined treatment is also a highly potent inducer of apoptosis and mitochondrial damage in the majority of the primary MM cell samples ex vivo analyzed (9 of 12). Notably, 8 of 9 responders had stage III (Table 1), suggesting that the combination PD/ATO is effective on MM cells from aggressive late-stage disease. Importantly, growth factors or a coculture system with BMSCs failed to confer resistance to this combination regimen.

In this study, we have also demonstrated that PD/ATO-induced apoptosis occurs through multiple molecular mechanisms that may engage the extrinsic/receptor-mediated- and/or the intrinsic/mitochondria-associated pathways depending on the functionality of p53 in MM cells. In particular, we found that cotreatment with PD strikingly elevated the (DR4 + DR5)/(DcR1 + DcR2) TRAIL receptors ratio, caspase-8 activation, Bid fragmentation, mitochondrial depolarization, and caspase-9 activation of ATO-treated HMCLs that do not have a functional p53 pathway.

In HMCLs carrying a functional p53, we demonstrated that the extrinsic pathway was partially activated by PD/ATO and that PD greatly enhanced the ATO-induced p53 accumulation, Bax and Puma expression, mitochondrial depolarization, caspase-9/-3 activation, and apoptosis.

Furthermore, p73 was activated and had biologic relevance in PD/ATO-treated MM cells showing a partial activation of the extrinsic pathway (HMCLs carrying a functional p53), but not in MM cells in which PD/ATO highly activates the extrinsic pathway (HMCLs expressing nonfunctional p53). On the contrary, in AML blasts, we found that p73 is relevant for PD/ATO-induced apoptosis irrespective of p53 status.^35,37  In this regard, tissue-specific tumor suppressor functions for the p53 family proteins have been recently demonstrated.⁹⁰

In MM cells, a large variety of stimuli (growth factor withdrawal, cytotoxic agents) induce the disappearance of Mcl-1 that is associated with the onset of apoptosis. In contrast, regardless of the apoptotic stimulus, Bcl-2 expression remains unchanged.^79,80  In addition, knockdown of Mcl-1 triggered a rapid induction of apoptosis in MM cells, which was observed neither with Bcl-2 nor with Bcl-x_L antisenses.⁹¹  Mcl-1 down-regulation is important to make MM cells susceptible to BH3-only proteins and therefore to mitochondrial disruption.⁷⁹  Bim belongs to the category of “BH3-only activators,” and myeloma cell death has been demonstrated to be totally dependent on Mcl-1/Bim complex disruption.^79,80  Interestingly, in our study, we found that the combined treatment PD/ATO increased the level of the proapoptotic Bim (PD-mediated) and decreased its neutralizing antiapoptotic protein Mcl-1 (ATO-mediated), and Bim knockdown by siRNA significantly diminished caspase-3 cleavage/activation, PARP degradation, and apoptosis in PD/ATO-treated MM cells retaining, or not, a functional p53. These observations are in line with recent studies demonstrating the pivotal role of Bim in synergistic interactions between UCN-01 and MEK inhibitors in MM cells.⁸¹  Thus, the accumulation of Bim seems to represent a common mechanism by which MEK inhibitors can potentiate the effects of both UCN-01 and ATO in MM cells. Furthermore, a very recent study showed that Bim is necessary for ATO-induced apoptosis in MM.⁹²

In addition, the concomitant up-regulation of Bim and its antagonists Mcl-1 and/or Bcl-x_L protein levels under PD regimen could at least in part justify the absence of pronounced apoptosis observed in PD-treated cells (Figure 6A). Notably, the MEK inhibitor PD184352, at the concentration used in this study (1 μM), was able to completely block ERK1/2 phosphorylation in all HMCLs used (Figure S1, representative data).

The mechanism(s) by which Bim exerts its effects remains the subject of debate: Bim can trigger activation of Bax and Bak directly^93-95  or indirectly by inactivating the prosurvival family members that guard Bax and Bak.⁹⁶  In addition, the involvement of Bim and Mcl-1 in the TRAIL-mediated mitochondrial cascade has been recently reported.⁹⁷  In our study, we demonstrated that in MM cells Bim plays an important role in both the intrinsic mitochondrial programmed cell death and the extrinsic caspase-8–mediated pathways. The functional linkage between Bim and the extrinsic pathway has been demonstrated in our experiments by the ability of Bim knockdown to significantly diminish caspase-8 cleavage/activation in PD/ATO-treated MM cells. In addition, a physical interaction between Bim and DR4/DR5 TRAIL receptors in PD/ATO-treated MM cells carrying a nonfunctional p53 was demonstrated by coimmunoprecipitation and Western blot studies. Taken together, these findings identify Bim as a prominent player in TRAIL-mediated, caspase-8 activation pathway in PD/ATO-treated MM cells, and the functional role(s) for Bim in TRAIL/caspase-8 activation pathway is now under intensive investigation in our laboratory.

A very recent study showed that AZD6244 (ARRY-142886), a novel and specific MEK inhibitor, targets both MM cells and osteoclasts in the BM milieu and enhances cytotoxicity of both conventional (dexamethasone) and novel (perifosine, lenalidomide, and bortezomib) therapies, thereby confirming the importance of targeting ERK pathway in MM.⁸⁸  However, at concentrations close to the IC₅₀ for ERK enzymatic activity, MEK inhibitors have cytostatic rather than cytotoxic effects, and higher doses are required to efficiently trigger apoptosis,^38,81,98,99  thereby indicating that other parallel cytoprotective pathways should be targeted together, with MEK/ERK inhibition, to efficiently shift balance away from survival toward cell death.¹⁰⁰  In this regard, we and others demonstrated the ability of MEK inhibitors to increase the cytoxicity of conventional chemotherapeutic drugs and/or other signal transduction/apoptosis modulators.^{35-37,49-53,68}

Finally, the anti-MM activity of the combination PD (PD325901) plus ATO was also observed in vivo in a human MM xenograft mouse model. Immunohistochemistry and Western blot analysis of tumors from treated mice demonstrated that the potent anti-MM activity of PD/ATO in vivo was the result of either decreased proliferation or increased apoptosis.

The combination of PD and low-dose ATO prolonged survival compared with treatment with either drug alone and was well tolerated in vivo because no differences in body weight and general appearance were noted in mice during the treatment. Notably, after 3 weeks of treatment, only a moderate bone marrow hypoplasia in PD/ATO-treated versus untreated mice was observed.

The combination of PD and ATO showed a moderate inhibitory effect on normal hematopoiesis in vitro and had a minimal effect on normal bone marrow B cells in vitro. Both these in vivo and in vitro data indicate that the combination PD/ATO has a favorable therapeutic index in tumor cells versus normal cells.

Furthermore, the MEK inhibitor PD325901 used for our in vivo experiments, which has been shown to have improved pharmacologic properties over PD184352,⁵⁶  is currently in phase 2 clinical trials to treat advanced breast cancer, colon cancer, and melanoma.^101,102

Finally, the clinical observation that ATO therapy can be associated with limited efficacy and significant toxicity in MM, coupled with our present preclinical findings demonstrating that low doses of ATO together with PD325901 trigger a more potent anti-MM effect in vitro and in vivo without increased toxicity, suggests the promise of combination treatment strategies as a potential therapeutic avenue.

In conclusion, the current findings demonstrate a potent and specific antimyeloma activity of the combination of PD and ATO in vitro and in vivo and elucidate the multiple molecular mechanisms, most of them converging on Bim, by which MEK inhibition increases the therapeutic effect of ATO in MM cells.
