Structure of the Notch1-negative regulatory region: implications for normal activation and pathogenic signaling in T-ALL

Notch proteins are transmembrane receptors that transmit signals in response to transmembrane ligands expressed on adjacent cells (see Bray for a recent review¹ ). Signals transduced by Notch receptors influence cell fate decisions during development and also contribute to tissue homeostasis in the mature organism.

Mammalian Notch receptors are processed by a furinlike protease at an external site (S1) while en route to the cell surface, yielding a mature heterodimer composed of 2 noncovalently associated subunits.^2,3  The receptor is normally held in a resting, protease-resistant conformation by a negative regulatory region (NRR) that contains 3 Lin12/Notch repeats and a heterodimerization domain that flanks the S1 cleavage site^4,5  (Figure 1). Canonical Notch signaling is normally initiated when a ligand of the Delta/Serrate/Lag-2 family binds to the receptor⁶  and induces several additional proteolytic cleavages. The first of these cleavages occurs within the C-terminal portion of the heterodimerization domain at site 2 (S2), and is catalyzed by ADAM-type metalloproteases such as TACE.^7,8  This creates a short-lived transmembrane intermediate variously termed NEXT or N^TM*, which is rapidly cleaved within the membrane by γ-secretase.^9-13  γ-Secretase cleavage releases the intracellular portion of Notch (ICN) from the membrane, allowing it to be transported to the nucleus, where it enters into a nuclear complex that participates in the induction of target gene transcription.^1,14-16

Evidence that aberrant Notch signaling is associated with T-cell acute lymphoblastic leukemia lymphoma (T-ALL) first emerged when the human Notch1 gene was cloned from the breakpoint of a t(7;9) chromosomal translocation found in a minor subset of T-ALLs.¹⁷  These rare translocations result in the production of ICN-like polypeptides that result in constitutive and unregulated Notch signaling. More recently, point mutations and small insertions or deletions in Notch1 were found in more than half of human T-ALLs by our group¹⁸  and others.^19-24 Notch1 mutations also occur in many different murine T-ALL models, making Notch1 perhaps the most frequently mutated gene in this type of leukemia.²⁵

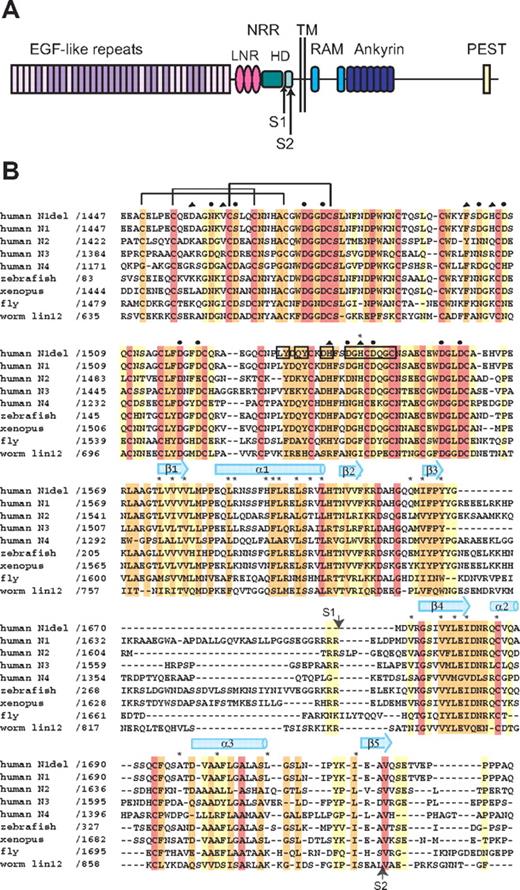

Notch1 mutations associated with human T-ALL cluster in 2 general regions of the protein. One cluster lies at the C-terminal end of the receptor, and consists of nonsense or frameshift mutations that result in the deletion of a PEST domain that regulates ICN1 degradation.²⁶  It appears that these mutations increase Notch activity by stabilizing ICN1.

The second cluster of mutations maps to the heterodimerization domain of the NRR and the region at the boundary between the extracellular and transmembrane regions of the protein. This group includes the most common Notch1 mutations found in human T-ALL.^18-22,24  Mutations in this region cause ligand-independent Notch1 signaling, and fall into at least 2 mechanistic classes.²⁷  Class I mutations are single amino acid substitutions or short insertions or deletions that cause increased sensitivity of Notch1 heterodimers to subunit dissociation under either native or mildly denaturing conditions. Class II mutations consist of insertions of at least 12 residues near the C-terminal end of the heterodimerization domain that duplicate the S2 cleavage site; these produce ligand-independent S2 cleavage and strong increases in signaling without any detectable destabilization of the heterodimeric receptor.²⁷  A third group of mutations in this region, recently reported to be present in the Jurkat cell line and certain primary T-ALLs,²³  create insertions at the boundary between the extracellular and transmembrane regions of the protein; these resemble class II mutations in terms of their structural consequences, but may activate signaling through a novel mechanism.

We recently reported the structure of the NRR of human Notch2, which provided insight into the mechanism by which Notch receptors are normally held in the “off-state” prior to ligand-mediated activation.²⁸  To determine the molecular basis underlying the ligand-independent signaling accompanying T-ALL mutations in the NRR, examine whether the structural basis for Notch autoinhibition is shared by different mammalian Notch receptors, and provide a structural template for the development of agents designed to stabilize the autoinhibited conformation of the receptor, we solved the structure of the Notch1 NRR by X-ray crystallography. We report here the structure of the Notch1 NRR determined to 2.0-Å resolution, map the sites of tumor-associated mutations onto the structure, and analyze a recently identified novel point mutation found in a T-ALL patient that is located in the third LNR,²¹  a position distinct and distant from the typical NRR mutations found in the heterodimerization domain. Together, these studies give new insights into the mechanism of pathogenic Notch1 signaling in human T-ALLs.

The NRR from human Notch1 (GenBank sequence ID AF308602,²⁹  also used to assign residue numbers for the protein) was subcloned into a pET 15b vector containing a hexahistidine tag and a custom TEV site. The crystallized protein has 47 residues removed from the nonconserved, unstructured loop (residues 1623-1669) containing the furin cleavage site, and also contains an additional glycine at the N-terminus resulting from TEV cleavage to release the tag. The protein was produced recombinantly in Rosetta(DE3)pLysS bacteria and recovered from the insoluble fraction after centrifugation using 5 M urea. The protein was affinity purified on a nickel column, eluted with imidazole in 1 M urea, and treated with TEV protease to remove the His tag. The protein was refolded in vitro by dialysis in a redox buffer containing 5 mM cysteine and 1 mM cystine, and purified by anion exchange chromatography after folding was complete (as monitored by reversed-phase high-performance liquid chromatography [HPLC]) to obtain a homogenous species.

The Notch1 NRR crystallized in 100 mM sodium acetate (pH 4.5), 1 to 1.5 M NaCl, and 10% (vol/vol) glycerol. Crystals were cryoprotected in liquid nitrogen after rapid transfer into the same buffer containing 2 M NaCl and glycerol at a final concentration of 35% (vol/vol).

Diffraction data were collected at beamline 24ID at the Advanced Photon Source of Argonne National Laboratory (Argonne, IL). Data were indexed and scaled using the program HKL2000 (HKL Research, Charlottesville, VA).³⁰  Because 2 lattices were observed in the diffraction pattern, the pick peaks feature was used to select the peaks from a single lattice for processing and subsequent analysis.

Initial phases were calculated using molecular replacement and the program Phaser (Read group, Univeristy of Cambridge, Cambridge, United Kingdom)³¹  using the coordinates of the Notch2 NRR as a search model. To construct the working model for refinement, we used the program Coot³²  (Paul Emsley, York Structural Biology Laboratory, University of York, York, United Kingdom) to add the residues of Notch1 that were not present in the Notch2 model.

CNS³³  was used to carry out multiple rounds of simulated annealing. Subsequent refinement and model building were performed iteratively using noncrystallographic symmetry restraints in Refmac³⁴  (Garib Murshudov, York Structural Biology Laboratory) and Coot.³²  The NCS restraints were fully released by the end of refinement. The final model contains 289 molecules of solvent (282 water, 7 glycerol) with an overall R_cryst/R_free of 21.3%/25.2% at 2.0-Å resolution. The percentage of protein residues in core, allowed, generous, and disallowed regions of the Ramachandran plot are 82.9, 17.1, 0.0, and 0.0, respectively.

Structure superpositions were performed using Dali-lite³⁵  (European BioInformatics Institute, Cambridge, United Kingdom), Coot,³²  and SwissModel (Swiss Institute of Bioinformatics, Basel, Switzerland). Individual residue RMSD values were obtained from SwissModel and manually added in the B-factor column for Figure 2B. The program Pisa³⁶  (European BioInformatics Institute) was used to evaluate crystallographic interfaces, as well as to calculate accessible surface areas. Buried surface area for individual T-ALL mutations was calculated by comparing the accessible surface area of a given residue to the known ASA of the relevant amino acid in the context of a Gly-X-Gly tripeptide.³⁷

Western blots were prepared and stained using antibodies specific for the intracellular transcriptional activation domain of Notch1³⁸  or activated Notch1 (Cell Signaling, Beverly, MA) as described.²⁷

Reporter assays were performed essentially as described previously.²⁷  Receptors used to evaluate ligand-independent signaling in Figure 6 (H1545P and other point mutations) and in Figure S1 (available on the Blood website; see the Supplemental Materials link at the top of the online article) were in the pcDNA3 vector. The reporter plasmid for these assays contained 4 iterated CSL binding sites, and luciferase activity was measured 44 to 48 hours after transfection. Full-length Notch1/Gal4 chimeras (containing the Gal4 DNA-binding domain in place of the RAM and ankyrin repeat domains) in pcDNA5 were used to investigate the effect of mutating the crystal contact interface on LNR-C. The luciferase reporter gene used for these studies contained 4 copies of the GAL4 binding site. In these experiments, U2OS cells transfected with Notch constructs and reporter plasmids were overlaid onto 3T3 cells alone or 3T3 cells stably expressing the Jagged2 ligand 24 hours after transfection, and luciferase activity was measured after an additional 24 hours. The urea sensitivity assays were conducted as described previously.²⁷

Coordinates have been deposited in the PDB with accession code 3eto.³⁹  Figures and descriptions in the text refer to protein chain A of the coordinate file.

Initial crystallization trials using the uncleaved form of the natural Notch1 NRR gave rise to crystals that were fragile and diffracted poorly. To increase the stability of the crystals and improve their diffraction properties, we excised a 47-residue sequence from the poorly conserved loop that contains the S1 cleavage site to create a single-chain mimic of the normal S1-cleaved heterodimer (Figure 1). The resulting protein, hereafter referred to as the Notch1 NRR, yielded crystals in the C2 space group diffracting to 2.0 Å with 2 independent copies of the protein in the asymmetric unit (Table 1). The root-mean-square deviation (RMSD) of the alpha-carbon atoms of the 2 copies is 0.21 Å when they are overlaid, with the largest deviations occurring in the LNR-A module.

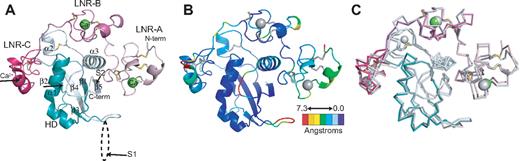

The Notch1 NRR adopts an autoinhibited conformation resembling that of the NRR from human Notch2,²⁸  confirming the overall role of the NRR as the regulatory switch that controls Notch activation. In both the Notch1 and Notch2 structures, the 3 LNR repeats wrap around the compact HD domain to stabilize it and sterically occlude the S2 site (Figure 2). A direct comparison of the Notch1 and Notch2 structures reveals a striking similarity in overall architecture, but with several notable differences in the interactions responsible for maintaining the autoinhibited conformation (Figure 2B,C).

The 3 LNR repeats serve as the cap of the structure, whereas the HD domain constitutes the “stem.” Each LNR module is characterized by 3 disulfide bonds and a calcium coordination site, and has little secondary structure. The HD domain, which immediately follows the LNR repeats in the sequence, folds into an alpha-beta sandwich with a β1-α1-β2-β3-β4(-α2)-α3-β5 topology. The base of the HD fold is a 4-stranded beta sheet, with the helices packed against the “top” face of this sheet to create an extensive hydrophobic core. Several loops, together with a cysteine “knuckle” in the HD domain, connect the secondary structural elements that bear the side chains comprising the hydrophobic core.

Although a blast search for protein sequences homologous to the Notch1 HD yields only other Notch HD domains, a search for homologous structures using the program MSD-fold (http://www.ebi.ac.uk/msd-srv/ssm; European Bioinformatics Institute) reveals that other domains adopt similar folds with the same secondary structure topology. These homologous folds include the SEA domains of mucins,^42,43  the RNA recognition motifs (RRMs) of several proteins,⁴⁴  and a juxtamembrane domain in the receptor protein-tyrosine phosphatase AI-2.⁴⁵  Remarkably, the composition of the hydrophobic core is conserved among the different groups of proteins that share the HD-domain fold, despite the high level of overall sequence divergence elsewhere (not shown).

In both the Notch1 and Notch2 NRRs, the LNR domain stabilizes the overall fold of the HD domain by making extensive packing interactions with the helices, buttressing them against the central 4-stranded sheet and stabilizing the hydrophobic core. Both proteins also use side chains from the linker connecting the LNR-A and LNR-B modules to form a hydrophobic plug that straddles the scissile bond cleaved by metalloprotease. In the normal receptor, therefore, this hydrophobic plug and its flanking LNR modules must be displaced away from the HD domain to expose the S2 site for metalloprotease cleavage.

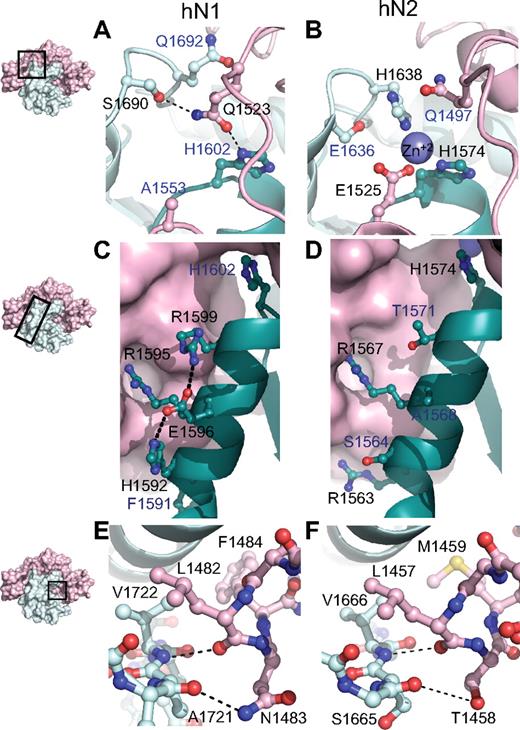

Although the overall architecture and general features of autoinhibition are preserved in both the Notch1 and Notch2 NRR structures, stabilization of the metalloprotease-resistant conformation of each protein is achieved through different packing interactions between the LNR and HD domains. At the most global level, the amount of surface area buried between the LNR and HD domains in the Notch1 NRR is 3300 Ų compared with 3000 A² in Notch2. The most striking difference between the 2 interfaces is at the junction between the LNR-C repeat and the HD domain, where 3 different structural elements of the protein converge (Figure 3A,B). The Notch2 NRR harbors a Zn⁺⁺ coordination site that acts to fix the relative positions of LNR-C, helix 1 of the HD domain, and the cysteine knuckle immediately preceding helix 3 of the HD domain (Figure 3B). In contrast, the Notch1 NRR does not bind Zn⁺⁺, because only 1 of the 3 Zn⁺⁺-coordinating side chains is preserved (Figure 3A). Instead, side chains from residues in the LNR B-C linker substitute for the Zn⁺⁺ ion of Notch2 by forming packing interactions and hydrogen bonds with the cysteine knuckle and the C-terminal end of helix 1. These interactions include contacts between the side chain of Q1523 and Q1692, the residue analogous to the Zn⁺⁺-coordinating H1638 from the cysteine knuckle of Notch2, and a hydrogen bond to the S1690 side chain hydroxyl group of the cysteine knuckle. Thus, an intriguing feature of these 2 proteins is the coalescence of 3 different structural features at this junction, which may serve as a fulcrum for movements that accompany the switch from the autoinhibited to the activation-competent conformation. The differences between the 2 proteins may represent 2 structural solutions for achieving the same end (stabilization of the autoinhibited structure), or alternatively, may serve to generate different levels of sensitivity to activation by ligands.

Another difference between the 2 structures is the nature of the packing interactions that determine the interface between the LNR-C module and helix 1 of the HD domain (Figure 3C,D). In Notch2, the interface between helix 1 and LNR-C is primarily established by the Zn⁺⁺-binding site in conjunction with 2 salt bridges to the LNR-C module, which together anchor helix 1 and position it over the beta sheet to help define the hydrophobic core. In the Notch1 structure, on the other hand, only 1 of these 2 salt bridges remains to fix the helix in position with respect to the LNR-C module. R1595, the residue of the Notch1 helix involved in this interaction (R1567 in Notch2), is highly conserved among different Notch proteins, suggesting that it plays a key role in positioning the helix against LNR-C.

A key set of interactions that maintain the Notch1 and Notch2 NRR regions in an autoinhibited conformation prior to ligand binding is the hydrophobic “plug” that straddles the scissile bond of the S2 site. This plug consists of 3 residues that envelop the amide bond, sterically precluding metalloprotease access to S2. In both Notch1 and Notch2, a leucine residue (L1482 of Notch1) extending from the LNR A-B linker packs tightly against the valine residue (V1722 of Notch1) that lies immediately terminal to the scissile bond. Although the other 2 residues of the plug differ between Notch1 and Notch2, key interactions are nevertheless preserved in both proteins (Figure 3E,F): a hydrogen bond from the main chain carbonyl group of the leucine residue to the main chain amide group protects the scissile bond, another polar interaction between the carbonyl group of the residue preceding the scissile bond (E1720 in Notch1 and V1664 in Notch2) and the side chain of either N1483 in Notch1 or T1458 in Notch2 stabilizes the orientation of the long-range interactions, and a hydrophobic cap provided by F1484 in Notch1 and M1459 in Notch2 is also buried within contact distance of both the valine residue following the S2 cleavage site and an aliphatic side chain from helix 3. Together, these shared structural features, despite the divergence in primary sequence, affirm the importance of the long-range interface between the LNR repeats and the HD domain in enforcing autoinhibition of Notch receptors in the absence of ligand stimulation, and argues strongly that this mechanism is general among different Notch family receptors.

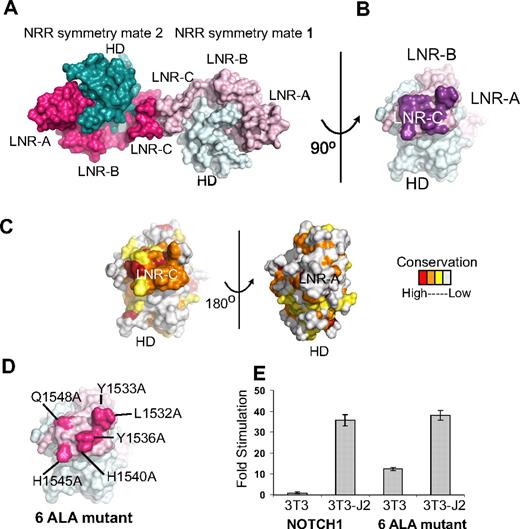

Analysis of the packing of Notch1 NRR molecules in the crystal lattice suggests the possibility that the surface of LNR-C may contain a conserved interface for intramolecular or intermolecular protein-protein interactions (Figure 4A-C). The total interface area at this crystal contact is 998 Ų and the interface contains a total of 12 hydrogen bonds, suggesting that the surface involved at the contact interface may be biologically significant. Indeed, the surface patch engaged in the lattice contacts is highly conserved among the LNR-C modules of Notch receptors, but is not conserved in the LNR-A or LNR-B modules of Notch receptors, or among LNR repeats in general. The program Pisa, which predicts the potential biologic significance of interfaces based on several criteria including buried solvent accessible surface area and hydrogen bonding interactions, also scores the interface between LNR-C modules in the crystal lattice as “highly significant,” and predictive of an interaction site on the protein surface.

To examine whether this conserved surface patch on LNR-C might be functionally relevant, we constructed a mutated form of the full-length Notch1 receptor in which 6 of the residues engaged in lattice contacts were substituted with alanine (Figure 4D), and tested the effect of these mutations on signaling in coculture assays. The mutated receptor responds indistinguishably from the normal receptor when cocultured with NIH 3T3 cells stably expressing Jagged-2 (Figure 4E), suggesting that it is fully competent for ligand-induced signaling. However, when cocultured with 3T3 cells alone, the mutated receptor exhibits a significant increase in reporter gene activity over the normal receptor. This observation suggests that the mutated receptor exhibits substantial ligand-independent signaling and is consistent with the idea that the residues engaged in the lattice contacts are functionally important in the normal restraint of signaling, a possibility that can be further explored in future studies. Because functional studies of Notch1 signaling argue against an important role for homodimerization in transmission of signals,⁴⁶  and Notch2 crystals do not exhibit similar contacts in their crystal lattice, it seems unlikely that the contacts constitute a biologically important homodimerization interface. Instead, the lattice contacts point to the possibility that this site is used for other intramolecular or intermolecular interactions. Interestingly, a novel T-ALL mutation, H1545P,²¹  maps to this region of LNR-C, and is further investigated in “Functional analysis of the H1545P mutation.”

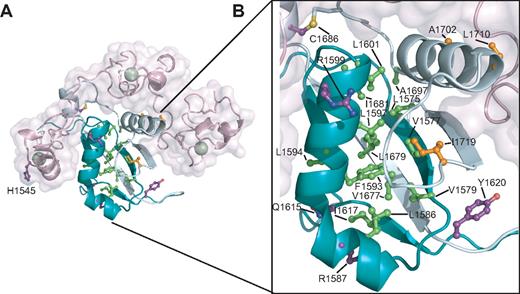

Approximately 40% to 50% of T-ALLs harbor mutations lying within the NRR of Notch1.^18-22,24  Mapping the sites of the known T-ALL–associated mutations onto the Notch1 NRR reveals that more than half (13 of 22) of the mutations are located in the conserved hydrophobic core of the HD domain (Figure 5). This hydrophobic core includes residues from the inner faces of the 2 primary alpha helices and the top face of the 4-stranded beta sheet. All of the mutations in the hydrophobic core belong to class I, as defined by destabilization of the NRR under native conditions (class 1A) or in the presence of urea (class 1B). Several of these substitutions introduce structure-breaking proline residues, which readily explains their destabilizing effects. Other less drastic mutations still add or remove steric bulk or introduce charged or polar side chains into the hydrophobic interior of the protein, again providing an explanation for their effects on the stability of the heterodimeric receptor.

Although R1599 is not itself a residue in the hydrophobic core, the R1599P mutation strongly destabilizes the protein. It seems likely that the mutation has 2 concurrent effects: (1) it eliminates the stabilizing salt-bridge from the R1599 side-chain to E1595, and (2) it unravels the C-terminal end of the helix, propagating its disruptive effects into the hydrophobic core of the HD with further deleterious effects on the stability of the protein.

Other mutations within the HD domain outside of the hydrophobic core tend to cause less destabilization of the HD domain. Some of these mutations alter residues at the interface with the LNR domain (Figure 5). Three mutations fall into this category: A1702P, L1710P, and I1719T. The reduced stability of proteins with these mutations is consistent with the notion that they disengage the LNR domain from the HD domain, relaxing a clamp that normally stabilizes the HD domain, thereby indirectly destabilizing the HD domain and the heterodimer. A summary of published mutations and their putative structural classification is presented in Table 2.

The H1545P substitution represents the first T-ALL–associated mutation of the NRR that lies outside of the HD domain.²¹  H1545P is located in a loop of LNR-C, and its solvent-exposed imidazole side chain, as previously noted, is located within the conserved crystal contact interface. Its backbone carbonyl oxygen also is one of the calcium-coordinating ligands within the LNR-C repeat (Figure 6A). Thus, a more complete mechanistic characterization of this mutation is of considerable interest.

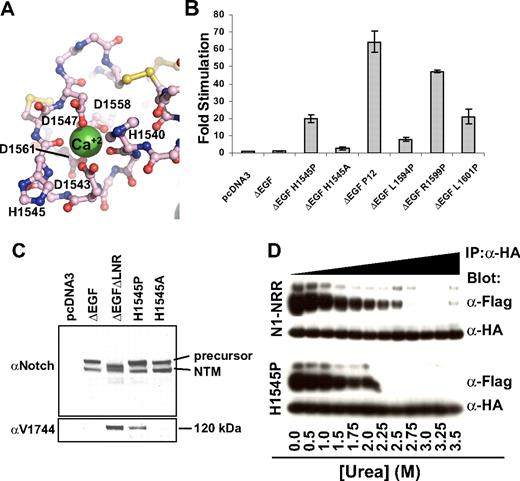

To determine whether the H1545P mutation leads to increases in ligand-independent Notch signaling, we examined the effect of the mutation on reporter gene transcription in the context of ΔEGF, a receptor that lacks the ligand-binding EGF repeats, and compared it with other well-characterized T-ALL–associated mutations (Figure 6B). In this assay, the mutation results in a 20-fold increase in ligand-independent reporter gene transcription, a level intermediate between the weak activating mutation L1594P, and the more potent “P12” insertion, which is a strong ligand-independent activator in these assays. Unlike the H1545P mutation, the more conservative H1545A mutation does not result in substantial induction of reporter gene transcription. Western blots performed on lysates from cells transfected with H1545P confirm that the observed transcriptional induction relies on canonical Notch signaling, as blots for the activated form of Notch1 detect the proteolytic product of H1545P and a control receptor that undergoes constitutive proteolysis, but do not detect the activated form for either the inactive ΔEGF receptor or the H1545A control protein (Figure 6C).

Typical class I mutations of the HD domain lead to reduced stability of the Notch1 NRR, as judged by increased sensitivity to urea-induced subunit dissociation. The assay design relies on the construction of minireceptors with N-terminal FLAG and C-terminal HA tags for monitoring the dissociation reaction, which is induced with increasing concentrations of urea.²⁷  To test whether the H1545P mutation reduces the stability of the Notch1 NRR, we compared the sensitivity of the normal Notch1 NRR with the H1545P mutant form of the NRR in this well-established urea-induced dissociation assay. Remarkably, the H1545P mutation results in only a mild increase in sensitivity toward urea-induced dissociation (Figure 6D). This finding is consistent with the anticipated effect of a mutation that is not in the hydrophobic core, and suggests that the observed ligand-independent signaling that results from the mutation may be an indirect consequence of increased disengagement of the LNR clamp from the HD domain to expose its S2 site, rather than direct destabilization of the HD domain itself.

One explanation for how the H1545P mutation results in disengagement of the LNR clamp is that the proline substitution directly or indirectly disrupts the calcium-binding site in LNR-C, interfering with the integrity of LNR-C and disengaging it from the HD domain. To investigate whether loss of calcium binding by LNR-C might result in ligand-independent signaling (and thus mimic the effect of the H1545P mutation), we constructed the D1561A mutation in LNR-C. This mutation removes a side-chain carboxylate group that participates in calcium coordination for LNR-C, and is likely to entirely disrupt calcium binding by this domain. Then, we tested the effect of this mutation on ligand-independent signaling in a reporter assay using a ΔEGF form of the receptor. The data show that the D1561A mutation in LNR-C leads to a ligand-independent increase in signaling activity (Figure S1), supporting the notion that disruption of the calcium-binding site can cause enough of a conformational disruption to allow inappropriate access of metalloproteases to the S2 cleavage site.

Here we have presented the structure of the Notch1 NRR, compared it with the structure of the Notch2 NRR, and examined the effects of a novel T-ALL–associated mutation in LNR-C on receptor stability and signaling properties.

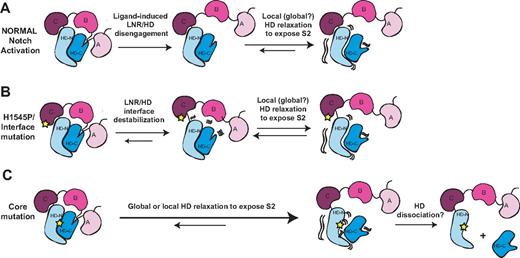

The structures of the Notch NRRs and a wealth of published biochemical and functional data suggest a model for normal signaling in which ligand binding promotes a series of conformational movements that expose the S2 site (Figure 7). Regardless of whether mechanical force^28,47,48  or allosteric events produce this conformational movement, the steps leading to S2 exposure must first include the displacement of at least the first 2 LNR modules (the autoinhibitory “clamp”) away from the HD domain.²⁸  To release the autoinhibitory clamp, ligand activation must remove the hydrophobic “plug” that directly occludes the metalloprotease site and undo the “latch” that holds the LNRs on top of helices 1 and 3 of the HD domain. However, mere peeling of the LNR modules away from the HD domain is unlikely to suffice for exposure of the S2 cleavage site, because the active site of metalloproteases such as TACE is buried in a deep cleft,⁴⁹  and the strand housing the S2 site still remains in a compact conformation when retained within a fully folded HD domain. Thus, we believe that either local or global relaxation of the HD domain will be required to fully expose the S2 site during activation, an idea in accordance with studies that favor a requirement for complete dissociation of the heterodimeric Notch1 receptor prior to activation.⁴⁷

In the pathogenic signaling associated with T-ALL, the normal autoinhibitory constraints are bypassed as a result of mutations in the Notch1 NRR (Figure 7B,C). Mutations in the hydrophobic core, which comprise all class IA and several class IB mutations, cause substantial destabilization of heterodimeric NRR molecules.²⁷  In these mutated proteins, the ensuing local or global unraveling of the HD disfavors the clamped, autoinhibited conformation, precludes stable intramolecular binding of the LNR clamp, and directly exposes the S2 site. Other more subtle class IB mutations located outside of the hydrophobic core may increase the rate of access to an open, proteolytically sensitive conformation despite a modest effect on the global stability of the NRR.

The new H1545P mutation of LNR-C characterized here also causes ligand-independent Notch1 signaling. As with the more conservative class IB mutations, the overall effect of the mutation on the stability of the NRR is modest, with a small shift in the urea-induced dissociation curve. The most straightforward explanation for this observation is that the mutation acts to disable the calcium-binding site of LNR-C and destabilize the LNR/HD interface, loosening or releasing the autoinhibitory LNR domain clamp that normally protects the S2 site, effectively mimicking deletion of the LNR domain.⁵  In essence, the mutation bypasses the first step of the normal Notch activation mechanism (Figure 7A) by aberrantly disengaging the LNR from the HD domain without a requirement for ligand. The local or global relaxation of the HD inferred to occur during normal ligand-induced activation would then ensue to expose the S2 site.

Modulatory antibodies that can either activate or inhibit Notch3 signaling have recently been reported. The inhibitory antibodies are highly potent, selective for Notch3, and block signaling from either Jagged or Delta-like ligands.⁵⁰  Similar antibodies or inhibitors targeting the NRR of Notch1 might find utility as targeted therapeutics in the management of T-ALL. For class I mutations that destabilize the NRR without causing total unfolding, antibodies or stabilizing small-molecular-weight compounds would shift the conformational preference of the mutated receptor back toward the autoinhibited conformation, and might prevent ligand-independent signaling. Inhibitors targeting the autoinhibited conformation of the Notch1 NRR would also directly attenuate the enhanced signaling by T-ALLs associated with PEST deletions. The structure of the Notch1 NRR can also serve as a valuable starting point for a computational search to identify compounds that directly stabilize the native conformation of the HD domain or that mimic the LNR domain in occluding the S2 site to confer resistance to proteolysis.
