The Asn505 mutation of the c-MPL gene, which causes familial essential thrombocythemia, induces autonomous homodimerization of the c-Mpl protein due to strong amino acid polarity

Cytokine/hematopoietic receptors possess a single transmembrane domain (TMD). Upon stimulation by ligand binding, some receptors transduce signals into the cytoplasm through dimerization and conformational changes in preformed dimers, and thereby activate a cascade of transphosphorylation signals, such as Jak2, Mek1/2, and Stat5b.^1-8  The chemical properties of amino acid (AA) residues in the TMD are thought to play important roles in receptor dimerization and signal activation.^8,9  Activating mutations in the TMD of cytokine/hematopoietic receptors have been identified because of oncogenic activity or as a cause of human diseases. For example, Val664Glu in neu/ErbB2-R¹⁰  acts as an oncogene, while Gly380Arg and Ala391Glu in fibroblast growth factor receptor 3 (FGFR3) cause achondroplasia and Crouzon syndrome with acanthosis nigricans.^11,12

Onishi et al identified an activating mutation in the TMD of c-MPL using polymerase chain reaction (PCR)–driven random mutagenesis¹³ ; this mutation (Asn505) was demonstrated to be a cause of familial essential thrombocythemia (FET).¹⁴  However, it was unclear how Asn505 constitutively activated intracellular signaling. Here, we investigated autonomous dimerization in Asn505 and in a truncated mutant of the entire extracellular domain (ECD) of c-MPL. We also tested whether the substitution of AA residues at the mutated position 505 of c-MPL influenced dimerization and intracellular signaling.

Wild-type and mutant c-MPL were inserted into pCI-Neo vectors¹⁴  and used as templates for PCR amplification. The primers 5′-tactacgcgttccaccatggcctggatctccttggtga-3′ and 3′-tattggcagcagccttgagcggccgctact-5′ were designed to amplify the truncated mutants ΔSer505 and ΔAsn505 that lack the entire ECD, corresponding to AA 490-636 of c-Mpl. The products were inserted into pCI-Neo with MluI and NotI sites.

We also generated a range of c-MPL mutants at position 505 instead of wild-type Ser using the Quick-Change Multi Site-Directed Mutagenesis kit (Stratagene). The constructs were stably transfected into Ba/F3 cells, and their sequences and protein expressions were examined by direct sequencing and immunoblotting, respectively.¹⁴  The membrane localization of their c-MPL proteins were confirmed (Figure 1A-B).

c-MPL–expressing Ba/F3 cells were suspended in RPMI medium with 10% fetal bovine serum (FBS), starved for 6 hours to deplete them of IL-3, and stimulated with or without 100 ng/mL human thrombopoietin (TPO; Diaclone Research). The cells were washed with phosphate-buffered saline (PBS) and incubated with or without BS³ (Bis [sulfosuccinimidyl] suberate) or DSG (disuccinimidyl glutarate; Pierce) as a cross-linker for 2 hours at 4°C. Cell lysates were resolved in 2× lysis buffer (Sigma-Aldrich).¹⁵  After SDS-PAGE, the membranes were incubated with anti–c-MPL antibody (Upstate Biotechnology), and subsequently with anti–rabbit horseradish peroxidase (HRP; Santa Cruz Biotechnology).

An MTT assay was conducted to estimate the numbers of viable cells.¹⁴  The phosphorylation status of MEK1/2 and STAT5 in the c-MPL mutants was determined by immunoblotting without or with IL-3 or TPO.¹⁴  Phospho-Mek1/2, Mek1/2, phospho-Stat5, and Stat5 antibodies (Cell Signaling Technology) were used to detect the respective phosphorylation signals.

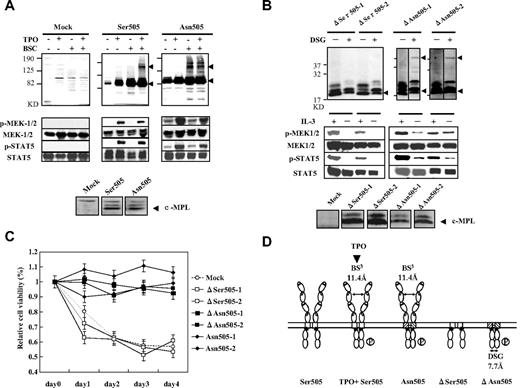

Homodimerization and conformational changes in receptors have been shown to be essential for signal activation in some cytokine/hematopoietic receptors.^1-8  Thus, we evaluated homodimerization in the various c-MPL–expressing Ba/F3 cells under nonreducing conditions with the chemical cross-linker BS³. In Tpo-free conditions, Asn505-expressing cells, but not Ser505-expressing cells, contained a band double the size of the c-MPL monomer (Figure 1A). The detection of dimerized bands depended on the presence of BS³, suggesting that dimerization was not due to a disulfide bond. TPO-independent phosphorylation of MEK1/2 and STAT5 was detected by the occurrence of the dimerized bands.

Previous studies showed that the ECD of cytokine receptors mediated dimerization^16,17  and controlled receptor activity.¹⁸  Thus, we generated 2 c-MPL mutants, ΔSer505 and ΔAsn505, in which the entire ECD was deleted. The ΔAsn505 mutant displayed homodimerization with the membrane-permeable cross-linker DSG and phosphorylation of MEK1/2 and STAT5 independently of IL-3 stimulation (Figure 1B). Cells carrying ΔAsn505 survived (but did not proliferate) in factor-free conditions, similarly to the Asn505 mutant (Figure 1C). These data indicate that the Asn505 mutation induced autonomous homodimerization and intracellular activation independently of growth factors and the ECD of c-MPL (Figure 1D).

The functions of the cytoplasmic domain and the ECD of c-MPL have been described in various reports.^15,19,20  Our observation that ΔSer505 did not induce constitutive activation (Figure 1B) is of interest because Sabath et al previously showed that deletion of the distal ECD (CRM-1) induced constitutive activation independently of TPO stimulation.¹⁸  We also found that ΔAsn505 had weaker phosphorylation of intracellular signals (Figure 1B), suggesting that the ECD of c-MPL may contribute to the stabilization of dimerization and signaling. The precise function of the ECD of c-MPL will be confirmed with further analysis using such mutants.

In the Asn505 mutant, MEK1/2 and STAT5 were phosphorylated more weakly without TPO stimulation than with TPO (Figure 1A), and cell survival rather than proliferation was observed without TPO. Under TPO stimulation, the proliferation capacity of the Asn505 mutant was not significantly different from the wild-type (Ser505; data not shown); this is consistent with another study.¹³  These findings suggest that Asn505 is not a fully constitutive activating mutation and does not have hypersensitivity to TPO; these characteristics might explain the relatively mild phenotype of patients with FET.¹⁴  Asn505 may not only promote dimerization of c-MPL but also change the conformation/rotation of dimer to an active form, as is the case with EPOR,^1,2,21  EGFR,³  and GHR.²²  Further study is required to clarify whether preformed dimers of c-MPL exist on the membrane.

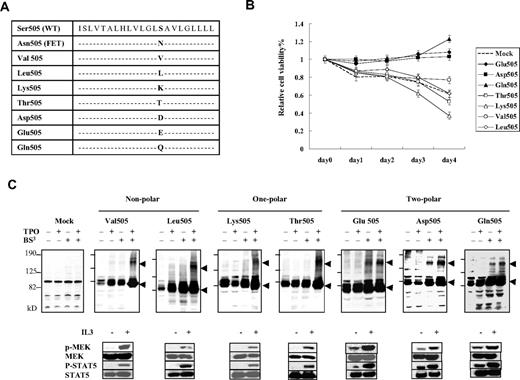

The Asn residue in the TMD of receptors was previously shown to induce interhelical hydrogen bonds with strong polarity.^8,9  Thus, we hypothesized that autonomous dimerization in Asn505 was induced by hydrogen bonding due to its strong polarity. To test this, we examined dimerization in various Ba/F3/c-Mpl mutants in which Ser505 was substituted with residues with different polarities: 2-polar Glu, Asp, or Gln; 1-polar Lys or Thr; and nonpolar Val or Leu (Figure 2A). The mutants with 2-polar residues presented factor-independent cell survival and constitutive phosphorylation of MEK1/2 and STAT5 with dimer formation, but the mutants with a 1-polar or nonpolar residue did not show such effects (Figure 2B-C). These results strongly suggest that autonomous dimerization of c-MPL in Asn505 was induced by hydrogen bonding due to strong AA polarity.

We reviewed all the reported activating mutations in the TMD of cytokine receptors (supplemental Table 1, available on the Blood website; see the Supplemental Materials link at the top of the online article) and found that most contain AA substitutions that result in the replacement of nonpolar or 1-polar AA with 2-polar AA. Thus, these mutations appear to have a similar effect to Asn505 in c-MPL. The exceptions were the mutations of a 1-polar Arg residue in FGFR2²³  and FGFR3.¹¹  Arg380 of FGFR3 predominantly showed ligand-dependent dimerization and overexpression with a selective delay in the down-regulation of the mutant receptor,¹¹  suggesting a different mechanism from Asn505. Our future studies will include 3-D structural analyses,^24,25  which should be valuable for understanding the precise mechanism by which Asn505 exerts its effects.

Overall, the Asn505 mutation of c-MPL, a cause of FET, activates intracellular signals through homodimerization in a factor-independent manner. Homodimerization resulted from hydrogen bonding due to the strong polarity of the Asn residue. Our results have provided a new insight into the mechanism of activating mutations in the TMD of cytokine/hematopoietic receptors.
