Analysis of the role of von Willebrand factor, platelet glycoprotein VI-, and α2β1-mediated collagen binding in thrombus formation

von Willebrand factor (VWF) plays an important role in coagulation as a carrier protein for factor VIII (FVIII) and in primary hemostasis with binding of VWF to exposed subendothelial collagens. The most hemostatically important forms of collagen include the fibrillar collagens I and III, and the microfibrillar collagen VI. VWF binds to collagen I and III via the VWF A1 and A3 domains^1,2  whereas only the A1 domain binds collagen VI.³  Although the relative hemostatic importance of the A3 and A1 collagen-binding domains is controversial, they likely have a complementary role and blood flow-mediated shear stress is important for the conformation and function of both.⁴  Once immobilized by collagen, the VWF platelet glycoprotein Ibα (GPIbα)–binding site within the A1 domain is exposed and the high affinity, rapid, and reversible interaction between VWF and GPIbα tethers platelets to the endothelium where they roll until they are immobilized by direct platelet-collagen binding which has slower binding kinetics.⁵  This is mediated by 2 collagen receptors on platelets, GPVI and the integrin α2β1 (or GPIa/IIa), which lead to irreversible adhesion and activation of platelets.^6-8

von Willebrand disease (VWD) is a highly heterogeneous mucocutaneous bleeding disorder marked by either quantitative or qualitative pathologies of VWF.⁹  The qualitative disorders representing type 2 VWD are further classified into variants that affect VWF-platelet interactions (types 2A, 2B, and 2M VWD) or affect VWF-FVIII binding (2N). The diagnostic algorithm for the evaluation of VWD recommended by the National Heart, Lung, and Blood Institute (NHLBI) VWD guidelines includes the measurement of VWF antigen (VWF:Ag), VWF ristocetin cofactor activity (VWF:RCo, a measure of VWF-GpIbα activity), and factor VIII coagulant activity (FVIII:C).¹⁰  The evaluation of collagen binding is infrequently incorporated into diagnostic testing and the omission of this assay will miss cases where rare mutations affect only the VWF collagen-binding function (also classified as type 2M VWD).

Several enzyme-linked immunosorbent assay (ELISA)–based VWF collagen-binding assays (VWF:CB) which use type I, type III, or a mixture of the 2 collagens, are commercially available and have been previously evaluated and compared.¹¹  Because the VWF:CB assay is sensitive to the loss of high-molecular-weight multimer (HMWM) VWF in addition to detecting a defect of collagen binding, studies have focused on optimizing this assay to discriminate between deficiencies of VWF (type 1 VWD) from dysfunction (type 2A/B VWD), potentially replacing the need for VWF:RCo or multimer analysis.^12,13  On the other hand, an abnormal CB:Ag ratio of <0.7,¹⁴  with a normal multimer profile indicates a collagen-binding defect. Collagen-binding mutations are rare and comprehensive analysis of the aberrant VWF-collagen interaction has been limited. To date, 4 point mutations within the VWF A3 domain affecting collagen binding have been described in 12 patients: p.S1731T, p.W1745C, p.S1783A, and p.H1786D.^15-17  The phenotypic characteristics of these 12 patients, who were all heterozygous for a collagen-binding mutation, are summarized in Table 1.^18,19

Given the rarity of collagen-binding mutants and the heterogeneous genetic backgrounds of the described subjects, we reasoned that studies in an inbred mouse model would provide a more controlled strategy to comprehensively evaluate the 4 previously described VWD collagen-binding defects, a collagen-binding gain-of-function mutant (p.L1757A),²⁰  and VWF with an A3 domain deletion. Furthermore, in light of the continuing, albeit attenuated, thrombogenesis documented with the VWF collagen-binding variants, we have also used this mouse model to determine the relative contribution of GPVI and α2β1 to this process.^7,21,22

The full-length murine VWF complementary DNA (cDNA) (mVWF, kindly provided by Dr Peter Lenting, Inserm U770 and Université Paris-Sud, Le Kremlin-Bicêtre, France) was cloned into the pCIneo plasmid (Promega)²³  to produce recombinant mouse VWF protein (r-mVWF) and into the pSC11 plasmid²⁴  (courtesy of Dr Luigi Naldini, San Raffaele Telethon Institute for Gene Therapy, San Raffaele Scientific Institute, Milan, Italy) for hydrodynamic delivery.²⁵  Mutagenesis was performed using the Quikchange Site-Directed Mutagenesis kit (Stratagene) to introduce the gain-of-function mutation (p.L1757A) and loss-of-function mutations (p.S1731T, p.W1745C, p.S1783A, p.H1786D, A3 deletion). All of these wild-type (WT) amino acids are conserved between human and mouse.

HEK293T cells were transiently transfected using the calcium phosphate method and r-mVWF was obtained as previously described.²⁶  mVWF protein concentration (VWF:Ag) was determined by ELISA as previously described.²⁶  All values of both media and lysates were normalized to the level of VWF:Ag expressed in the media (n = 10). Multimers were analyzed by electrophoresis as previously described and HMWM is defined as >10 bands.²⁷

The collagen-binding activity of VWF was measured by ELISA. Ninety-six-well microtiter plates (Thermo Scientific) were coated with either type I or type III collagen derived from human placenta (Sigma-Aldrich) at a final concentration of 40 μg/mL in sodium carbonate/bicarbonate buffer (0.035 M NaHCO₃, 0.015 M Na₂CO₃, pH 9.6) at room temperature for 48 hours. Wells were washed with imidazole buffer (0.12 M NaCl, 0.02 M imidazole, 0.005 M citric acid, pH 7.3). After washing and blocking with imidazole buffer, samples were added to the wells and incubated for 2 hours at 37°C. Wells were washed with imidazole buffer 3 times and incubated with horseradish peroxidase–conjugated rabbit anti-human VWF Ab (Dako) diluted 1:220 in imidazole buffer for 1 hour at room temperature. Bound antibody was detected with Color Fast O–phenylenediamine substrate (Sigma-Aldrich) and the absorbance recorded at 492 nm.

The parallel flow chamber was coated with human placenta collagen type I (500 μg/mL) or III (250 μg/mL) and recombinant mVWF mutants (10 U/mL) were applied after washing and blocking. Whole mouse blood was taken from VWF^−/− mice by cardiac puncture and anticoagulated with Argatroban (200 μM). Platelets are labeled with 3,3′-dihexyloxacarbobyanine iodide (DiOC₆, 1 μM). The flow chamber was set on a Quorum WaveFX-X1 spinning disk confocal system (Quorum Technologies Inc). Whole mouse blood was drawn through the chamber by a 6-channel syringe pump (New Era Pump Systems Inc) at 2500 s⁻¹. The lanes were sequentially imaged using 491-nm excitation laser and acquired on Hamamatsu EM-CCD camera through 520/35-nm BP filter for 10 minutes. For each channel, z series were acquired at 2-μm steps for an overall distance of 12 μm. Platelet adhesion and aggregation was evaluated as surface coverage based on the confocal sliced images at the height of 2 μm from the collagen surface, and subsequent thrombus formation was analyzed as thrombus volume, which was calculated by summing all sliced images of platelet covering area using Image Pro Plus 6.0 (Media Cybernetics).

C57Bl/6 WT mice or C57Bl/6 VWF^−/− mice,²⁸  10 to 12 weeks of age, were used in all experiments. All mouse experiments were reviewed and approved by the Queen’s University Animal Care Committee. Plasmid DNA (100 μg of pSC11-ET-mVWF) was diluted in a 10% body weight volume of lactated Ringer solution and injected via tail vein of C57Bl/6 VWF^−/− in <5 seconds using a 27-gauge needle and 3-mL syringe.²⁹  Blood was collected as previously described.²⁸

Anti-mouse GPVI antibody (JAQ1; Emfret) and anti-α2β1 antibody (23C11-Fab fragment: LEN/B) were used to inhibit the function of GPVI and α2β1 integrin, respectively. The inhibitory effect of these antibodies was confirmed by flow cytometry and platelet aggregation assay. For flow cytometry, heparinized whole blood was diluted 1:20, and incubated with the appropriate fluorophore-conjugated monoclonal antibodies for 15 minutes at room temperature and analyzed on a FACSCalibur (Becton Dickinson). For platelet aggregation, washed platelets (160 μL with 1.56 × 10⁸ platelets/mL) from normal mice or mice lacking α2β1 (Itga2^−/−) were used in the presence of 70 μg/mL human fibrinogen. Platelet aggregation upon fibrillar type I collagen (Nycomed) was analyzed by using fluorescein isothiocyanate (FITC)–labeled JAQ1 and LEN/B. Transmission was recorded on a 4-channel aggregometer (Fibrintimer; APACT) for 15 minutes and expressed in arbitrary units, with buffer representing 100% transmission. For the in vivo thrombosis studies, JAQ1 and LEN/B were injected intraperitoneally into VWF^−/− mice or VWF^−/− mice treated with the hydrodynamic delivery of the WT-mVWF expression plasmid 3 days and an hour, respectively, prior to the intravital experiments.²¹

Intravital microscopy was performed as previously described.³⁰  At the time of these experiments, the plasma VWF levels were between 0.5 and 4.5 U/mL, 10 to 21 days posthydrodynamic injection. Rhodamine 6G (40 μg; Sigma-Aldrich) was injected via the jugular vein to fluorescently label platelets in vivo. Arterioles ranging in size from 30 to 60 μm in the cremaster muscle were selected and injured with 10% ferric chloride-soaked filter paper for 3 minutes. Following injury, a single arteriole in the injured area was observed for 40 minutes. Size of the formed thrombus was measured, as was the time to vessel occlusion by 2 blinded observers. Occlusion times exceeding 40 minutes were recorded as 40 minutes. Thrombus was evaluated with percentage occlusion according to the area of thrombus in the defined area (as shown in Figure 6A). Thrombus covering the whole vessel diameter with residual blood flow was recorded as 100% and complete occlusion with stasis of blood flow was recorded as 125% (stable occlusion).

All data and statistical analysis were performed using GraphPad Prism 4.03 for Windows or 6.0 for Mac (GraphPad Software). Data are presented as mean values ± standard error of the mean. Statistical analyses were performed using the Student unpaired t test, 1-way analysis of variance (ANOVA), or 2-way ANOVA. For Figures 6B and 7B, data are presented as median values ± standard error of the median. For Figure 7C, Mann-Whitney tests were performed.

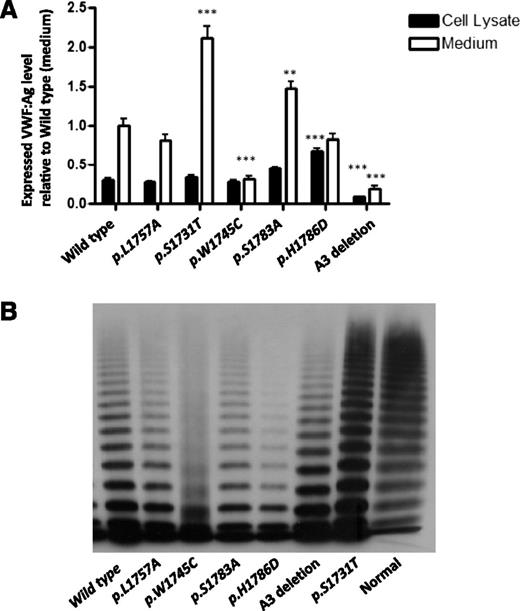

Results of recombinant mVWF levels measured both in cell lysate and medium are shown in Figure 1A. mVWF secretion did not differ significantly for p.L1757A-mVWF and p.H1786D-mVWF as compared with WT-mVWF. p.W1745C-mVWF and A3del-mVWF secretion into the medium was significantly lower than WT-mVWF (0.31, and 0.19, P < .001) whereas for p.S1731T-mVWF and p.S1783A-mVWF secretion was increased (2.11, P < .001, and 1.47, P < .01). Cell lysate retention of VWF was similar for the different recombinant proteins with the exception of A3 del-mVWF which was reduced (0.091, P < .00001) and p.H1786D-mVWF which was increased (1.68, P < .00001).

Multimer analysis (Figure 1B) demonstrated that all of the mutant proteins had a similar complement of HMWMs to wt-mVWF except p.W1745C, which showed a smeary multimer pattern. The A3 deletion mutant showed a triplet band shift corresponding to loss of the A3 domain.

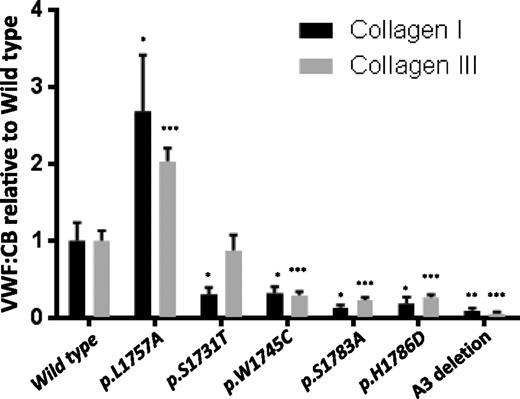

VWF function is closely related to its tertiary structure.³¹  In vivo, VWF is exposed to shear stress that alters VWF structure from a globular to extended configuration. In vitro collagen-binding activity of the r-mVWFs was assessed using 2 different methodologies: a static ELISA-based VWF:CB and a flow chamber system. The mutant VWF constructs, p.W1745C, p.S1783A, p.H1786D, and A3 deletion, demonstrated significant and parallel reductions in binding to type I and III collagen between 10.0% and 32.3% of WT-mVWF activity. In contrast, the p.S1731T-mVWF demonstrated a significant reduction of binding to only type I collagen (30.9%, P < .05), with normal levels of binding to type III collagen (87.7%, P > .05). The gain-of-function construct, p.L1757A, showed increased binding to both collagens (type I, 268%, P < .05, and type III, 204%, P < .001) (see Figure 2).

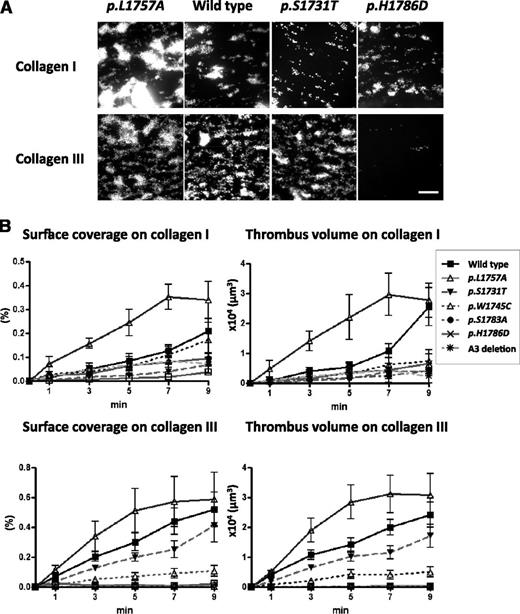

Using a flow chamber system, we demonstrate the ability of the r-mVWF proteins to mediate platelet adhesion to collagen under physiological high shear (Figure 3A). Compared with WT-mVWF, the p.L1757A-mVWF showed clearly increased platelet adhesion on both types I and III collagen surfaces, whereas p.H1786D-mVWF demonstrated decreased platelet adhesion. p.W1745C- and p.S1783A-mVWF imaging results were comparable to those of p.H1786D and are not shown. p.S1731T-mVWF demonstrated decreased platelet adhesion to collagen I with a subtle decrease in adhesion to collagen III. Figure 3B summarizes the image analysis of the flow chamber results. Using the parameters of surface coverage by platelets and volume of platelet adhesion on the collagen surfaces, p.L1757A-mVWF again shows accelerated and enhanced platelet adhesion (P < .01), whereas the loss-of-function mutants showed varying extents of functional deficit.

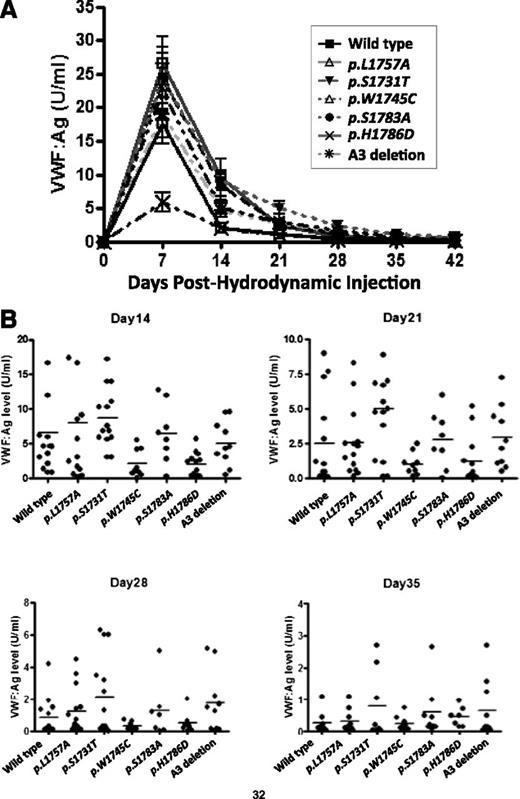

VWF:Ag was monitored every 7 days in the mice hydrodynamically injected with the mVWF expression plasmids. Peak VWF levels were seen at day 7 (Figure 4A). The variability between the individual animals, compared with the mean, is shown in Figure 4B. When the plasma VWF levels were between 0.5 and 4.5 U/mL, intravital microscopy was performed: this occurred between 10 and 21 days posthydrodynamic injection. Similar to the expression from HEK293T cells, p.W1745C showed reduced expression in this hydrodynamic delivery system.

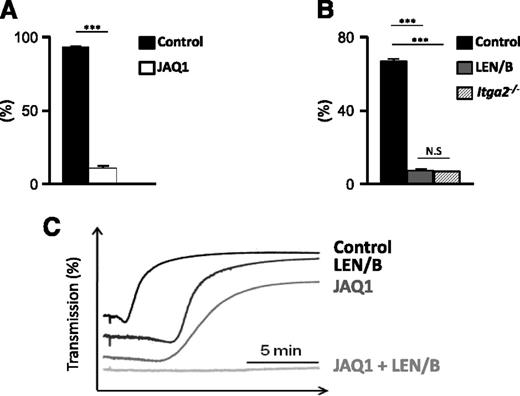

We explored the relative contribution of the platelet receptor GPVI and α2β1 on platelet adhesion to sites of vascular injury by using the anti-GPVI (JAQ1) and α2β1 (LEN/B) antibodies to transiently deplete the receptors.²¹  Injection of these antibodies had no effect on platelet count (data not shown). Flow cytometry shows effective blockade of the GPVI receptor that was statistically significant (P < .001, Figure 5A). α2β1 was also effectively blocked, with flow cytometry results that were comparable to platelets obtained from mice lacking α2β1 (Itga2^−/−) (Figure 5B). In the collagen-induced platelet aggregation assay, LEN/B-opsonized platelets demonstrated delayed aggregation. The magnitude of the inhibition of aggregation was larger in JAQ1-treated platelets. However, combination of JAQ1 and LEN/B completely abolished platelet aggregation. (Figure 5C).

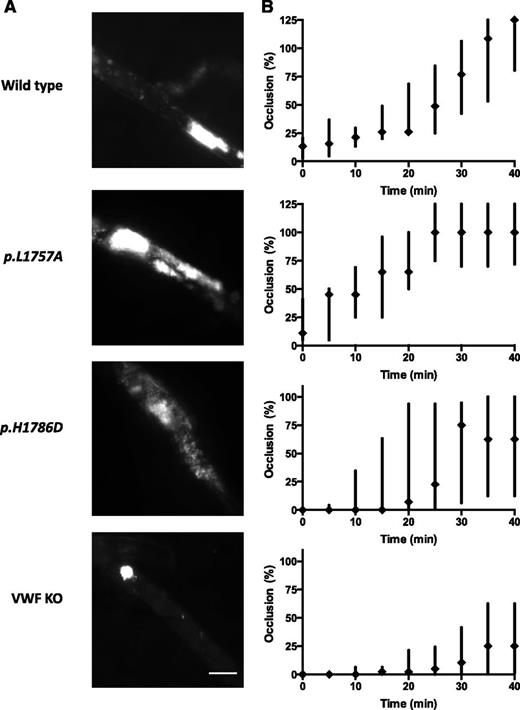

Ferric chloride-induced arteriolar injury monitored by intravital microscopy was performed on 6 to 9 mice in each of the following groups: VWF^−/− mice, and VWF^−/− transfected with WT-, p.L1757A-, or p.H1786D-mVWF. p.H1786D was chosen for this series of experiments as it represented the most severe loss-of-function defect in the VWF:CB assay and flow chamber analysis. After cremaster arteriolar damage with 10% ferric chloride for 3 minutes, the vessel was observed for 40 minutes. At the time of these experiments, the plasma VWF levels in the hydrodynamic-injected mice were between 0.5 and 4.5 U/mL. The rate and extent of thrombosis was analyzed as percentage occlusion by measuring the covered area of thrombus in the vessel. Representative images of each group (Figure 6A) and corresponding analysis are shown (Figures 6B, 7B). As compared with the WT-mVWF–expressing mice, the p.L1757A-mVWF gain-of-function mutant-expressing mice showed an increased rate of initiation and progression to a 100% thrombus though it was not statistically significant in the box-and-whisker plot analysis (Figures 6B, 7B).

The p.H1786D-mVWF–expressing mice demonstrated a nonstatistically delayed onset of platelet adhesion, decreased rate of extension of thrombosis, and failure to completely occlude the vessel in 8 of 9 mice. The lack of statistical significance is likely a result of the small study population. The VWF^−/− mice demonstrated a variable degree of platelet adhesion and thrombogenesis, but none of the mice formed a stable occlusion of the vessel (P < .001).

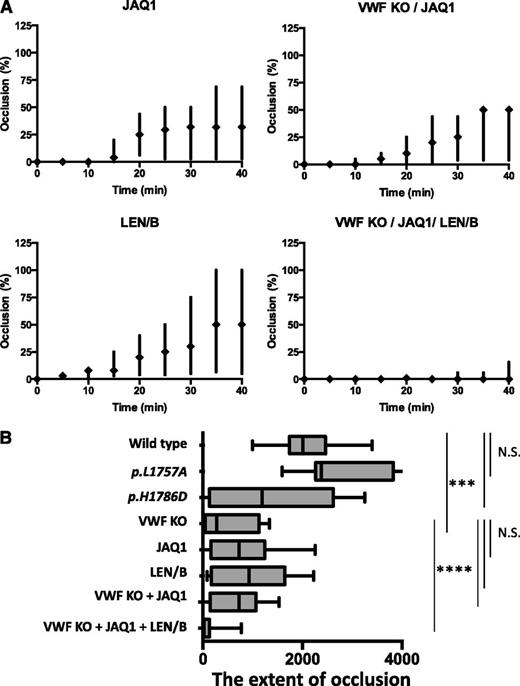

To evaluate the impact of GPVI and α2β1 platelet receptors, we also included mice with the following: VWF^−/− mice expressing WT-mVWF were treated with JAQ1 to inhibit GPVI binding (n = 6), or LEN/B (n = 9), and VWF^−/− mice treated with JAQ1 (n = 9) or both JAQ1 and LEN/B (n = 8). All 4 groups demonstrated delayed initiation of platelet adhesion and attenuated thrombus formation with none of the mice being able to form stable occlusions at 40 minutes (JAQ1:P < .01, LEN/B:P < .05) (Figure 7A). The VWF^−/− mice demonstrated the most severe hemostatic defect (P < .001), with no significant changes being seen with the addition of GPVI inhibition with JAQ1. The α2β1-inhibited group had the mildest phenotype of the 4 groups, with 3 of the 9 LEN/B-treated WT-mVWF group forming 100% occlusion within the observation time. Six of the 8 JAQ1- and LEN/B-treated VWF^−/− mice demonstrated initial platelet adhesion (P < .0001). However, only 2 of them formed 25% occlusion.

Type 2M VWD caused by collagen-binding mutations is rare: only 4 point mutations have been described in 12 patients; 11 were heterozygous for the collagen-binding mutation and 1 was compound heterozygous for a type 1 VWD mutation (Table 1). This suggests that collagen-binding mutations within the A3 domain have an autosomal dominant effect. We have used a series of comprehensive in vitro and in vivo strategies to characterize the functional deficit of the 4 mutations, p.S1731T, p.W1745C, p.S1783A, and p.H1786D, as well as a gain-of-function mutation, p.L1757A. Although the homozygous state evaluations used here allow for characterization of these mutant proteins, it may not reflect the disease process in humans where these mutations are expressed in the heterozygous state.

The static VWF:CB assay has been used in the diagnostic workup of VWD to aid in the discrimination between type 1 and types 2A/2B VWD, potentially eliminating the routine clinical use of VWF multimers or VWF:RCo.³²  However, commercially available assays vary significantly in their ability to provide this discrimination.¹¹  This manuscript highlights the role of the VWF:CB assay in identifying defective VWF collagen binding. VWD caused by collagen-binding mutations appears rare, although no systematic evaluation of its prevalence has been performed. The reported cases (summarized in Figure 1B) would have been diagnosed as type 1 VWD with parallel decreases in VWF platelet-dependent function and antigen level (RCo:Ag ratio >0.6) and normal multimer profiles, or would have been missed altogether with low-normal VWF:Ag and VWF:RCo levels. Studies have shown that over 50% of patients who present with symptoms consistent with a mild bleeding disorder will remain undiagnosed despite extensive investigations.³³  The addition of the VWF:CB assay may not only allow for the accurate classification of apparent type 1 VWD, but also diagnosis of a subset of patients currently known as bleeders with undefined cause. The type, concentration, and source of collagen for clinical use also needs to be considered to optimize the detection of defective collagen binding. For example, the mutation p.S1731T showed marked differential binding to collagen types I and III in our study (Figure 2). This differential response was confirmed in our flow-chamber analysis (Figure 3) and by previously published data.¹⁷

VWF function is influenced by its conformational structure as determined by the shear rates of blood flow.^34,35  At the site of vascular injury, VWF binds to exposed collagen through its A3 domain. Shear forces then induce conformational changes to the bound VWF resulting in changes to the VWF A1 domain that promote rapid and reversible attachment of platelets. Studies suggest that the VWF A1 domain may also play a role in binding to both type VI and type III collagen.³  This binding requires high-shear conditions and triggers platelet adhesion to immobilized collagen.^4,36  The flow-chamber model allows in vitro evaluation of both A1 and A3 domain-mediated collagen binding and platelet adhesion via the A1 domain at physiological shear conditions.³⁷  In this study, the pattern of collagen binding in the flow system was largely consistent with the results of the static collagen-binding assay, whereas the magnitude of the effect varied between the assays (Figures 2-3). The exception was p.W1745C-mVWF which showed significant differences in the flow system in surface coverage compared with thrombus volume with collagen type I. The explanation for this discrepancy is unclear. Consistent with the static VWF:CB assay, the p.S1731T mutant again showed a differential response: we demonstrated significantly decreased binding with collagen I but normal binding with collagen III when assessed by the static VWF:CB assay or only minimally defective function with type III collagen in the flow-based assay. In this flow system, we did not see a rescue of collagen/platelet binding by the VWF A1 binding to type III collagen with high shear rates as has been previously described.^4,36

We evaluated the thrombogenic potential of the collagen-binding variants in an established in vivo thrombosis model using ferric chloride-induced cremaster arteriolar injury. This method has adequate sensitivity to differentiate normal VWF function from a range of type 1 and type 2 VWD mutations.^24,30,38  The results from the thrombosis injury model are consistent with the static and flow-based collagen-binding studies, and differentiate the 3 groups of mice: the gain-of-function mutant, p.L1757A, from WT-mVWF, and loss of function, p.H1786D. In addition to the A3-collagen interaction, VWF likely mediates platelet adhesion through a number of complementary mechanisms: the binding of the A1 domain to collagen VI³  and possibly to collagen I/III,³⁶  self-association of VWF, and the interaction of VWF and αIIbβIII.³⁸  These mechanisms may account for the significant amount of thrombosis seen in the p.H1786D-mVWF mice despite collagen binding via the A3 domain being almost completely abolished, as seen in the VWF:CB assay and the flow experiments. Importantly, although platelet adhesion and thrombus formation was significantly reduced in VWF^−/− mice using this model, there is residual thrombogenic activity. This has been previously described.^28,38  We hypothesized that this residual platelet adhesion was mediated through a direct platelet-collagen interaction. Platelets interact with collagen through 2 receptors: the α2β1 integrin and GPVI. GPVI is reported to play a central role, whereas α2β1 has an accessory role.⁷  We transiently inhibited GPVI using the JAQ1 antibody and α2β1 using LEN/B in VWF^−/− mice that expressed WT-mVWF through hydrodynamic delivery. Our results show important roles for VWF, GPVI and α2β1-mediated collagen binding, with GPVI inhibition proving to be as significant as VWF knockout on thrombus development. Consistent with previous publications,⁷  α2β1 inhibition resulted in a milder phenotype as compared with inhibition of GPVI. The addition of GPVI inhibition to VWF^−/− mice did not demonstrate an additive defect to platelet binding whereas the inhibition of both GPVI and α2β1 in VWF^−/− mice almost completely abolished any platelet binding. Unfortunately, further studies using the combination of VWF^−/− with α2β1 inhibition, or VWF WT mice with both GPVI and α2β1 inhibition are outside the scope of this study. We hypothesize that GPVI and α2β1 have overlapping and complementary functions that account for the thrombosis seen in the GPVI inhibited VWF^−/−.

We continued to demonstrate a small amount of platelet binding and initial thrombus generation in mice who were VWF^−/− and whose platelet-collagen receptors, GPVI and α2β1, were inhibited. This suggests that an alternative pathway(s) that is independent of collagen binding supports delayed and reduced, but not abolished, platelet adhesion to sites of endothelial injury. Previous studies, using laser-induced vessel injury, demonstrated that platelet accumulation was largely independent of the collagen-VWF and collagen-GPVI interactions, and dependent on thrombin in this particular thrombosis model that is strongly influenced by tissue-factor–mediated thrombin generation.^6,39,40  In contrast, the FeCl₃ injury model has been reported to be dominated by collagen exposure, with up to 5 times less tissue factor as compared with a laser injury model.⁶  The delayed and reduced platelet adhesion seen in the face of inhibition of GPVI and α2β1 in the VWF^−/− mice may be mediated by platelet interactions with other subendothelial adhesive proteins such as vitronectin and fibronectin.³⁹  Alternatively, a recent report suggests that FeCl₃ injury does not expose subendotheial matrices.⁴¹  The authors observe that red blood cells (RBCs) and RBC fragments are the first to adhere to the injured endothelium with the association between the endothelium and RBCs being unclear. Once bound, the RBC structures then bind platelets via GPIbα and initiation a thrombus in a collagen-independent manner.⁴¹  Our current data, in which we have focused on collagen-binding via either VWF or GPVI and α2β1, demonstrate the importance of collagen binding in the FeCl₃ injury model. However, the small amount of platelet binding and thrombus initiation in the VWF^−/− and GPVI- and α2β1-inhibitied mice may be accounted for by direct endothelial-RBC-platelet binding. The relative importance of this mechanism remains to be confirmed.

A3 domain collagen-binding mutants are associated with mild bleeding phenotypes and thus might be considered as safe candidates for antithrombotic therapy. However, the residual thrombus generation documented with the p.H1786D mutant in the ferric chloride injury studies suggests that the antithrombotic protection provided by these variants may be of limited value. No naturally occurring gain-of-function collagen-binding variant of VWF has been described. Increased VWF levels have been associated with cardiovascular disease and deep venous thrombosis.^42-44  Our experiments with the gain-of-function collagen-binding mutation, p.L1757A, suggest that the associated phenotype would be thrombotic in nature and may have significant implications regarding risk of both arterial and venous thrombosis.

In conclusion, these studies present a comprehensive evaluation of 4 previously described VWD collagen-binding defects,^15-17  a collagen-binding gain-of- function mutant (p.L1757A),²⁰  and VWF with an A3 domain deletion. Because defects in collagen binding may be associated with normal VWF multimers, VWF:Ag, and VWF:RCo levels, the current approach to the diagnosis of VWD in many laboratories will miss these cases. Our results confirm the robustness of the VWF:CB assay and demonstrate that the results of this static assay are reflective of those obtained in a more complex, flow-based assay system. The results obtained with the VWF:CB were also in accordance with our findings in an in vivo thrombosis model. Overall, the findings in this study strongly support the standardization and inclusion of the VWF:CB assay in the routine workup of VWD.

Our studies examining the contribution of GPVI and α2β1 to primary hemostasis confirm that collagen binding by VWF, GPVI, and α2β1 have major roles in thrombus formation. Furthermore, the VWF^−/−, GPVI, and α2β1 inhibited mice were still able to initiate platelet adhesion and thrombus formation in our ferric chloride injury model, demonstrating an important role for collagen-independent pathway(s) of primary hemostasis that likely contribute to the mild bleeding phenotype in patients with VWF collagen-binding mutations.

The authors thank Matthew Gordon for technical assistance.

This work was supported by operating grants from the Canadian Institutes of Health Research (MOP 97849), the Heart and Stroke Foundation of Ontario (NA 6386), and the US National Institutes of Health, National Heart, Lung, and Blood Institute (2PO1HL081588-06).

N.R. is the recipient of a Bayer Hemophilia Awards Program Clinical Training Award. D.L. is the recipient of a Canada Research Chair in Molecular Hemostasis.

Contribution: Y.S. designed, performed, and interpreted the research, and wrote the manuscript; N.R. interpreted the data and wrote the manuscript; D.S., C.B., J.M., K.S., O.D., B.C., B.V., C.A.H., and B.N., performed and analyzed the research; C.M.P. helped design the research; and D.L. provided the overall experimental design and direction of this work and wrote the manuscript.

Conflict-of-interest disclosure: The authors declare no competing financial interests.

Correspondence: David Lillicrap, Queen’s University, Richardson Laboratory, 88 Stuart St, Kingston, ON, K7L 3N6, Canada; e-mail: dpl@queensu.ca.
