Mouse and human HSPC immobilization in liquid culture by CD43- or CD44-antibody coating

Maintaining single-cell identification over time is a prerequisite to understanding dynamic and heterogeneous cell behaviors and is lost by snapshot analysis of bulk or single-cell cultures.^1,2  Continuous, quantitative time-lapse imaging has emerged as a powerful tool to answer long-standing questions and enables the investigation of dynamic single-cell behavior.^3,4  Imaging frequencies need to be chosen carefully to ensure cell survival and identification while minimizing photo toxicity and frame-to-frame displacement. Adherent cells migrate slowly and proliferate in colonies; cell identities can be kept with low-imaging frequencies. Their adhesive properties prevent loss of cell identification during media exchange, making the study of dynamic single-cell responses during stimulation/starvation cycles or endpoint analysis after time-lapse observations feasible.^5,6  In contrast, most hematopoietic cells are nonadherent or motile, and cell/clonal identities are lost unless images are acquired every minute, massively limiting the throughput of time-lapse studies. In addition, their cell identification is easily lost during media exchange. This poses a major challenge when studying dynamic single-cell responses of hematopoietic cells.

Classical hematopoietic assays retain clonal identity by plating cells in semisolid medium,⁷  stroma cocultures,⁸  or spatial separation in microwells,⁹  but do not provide continuous single-cell information. Although time-lapse imaging has been applied to these assays,¹⁰  technical drawbacks still hamper their application. Semisolid medium reduces cell motility, but induces 3-dimensional cell growth, requiring time consuming and more phototoxic image acquisition and analysis across z planes. Stromal cocultures only lead to minor motility reductions and are poorly defined. Single-cell deposition into microwells maintains clonal identity but does not reduce motility, and cell identifications are lost when cells divide.

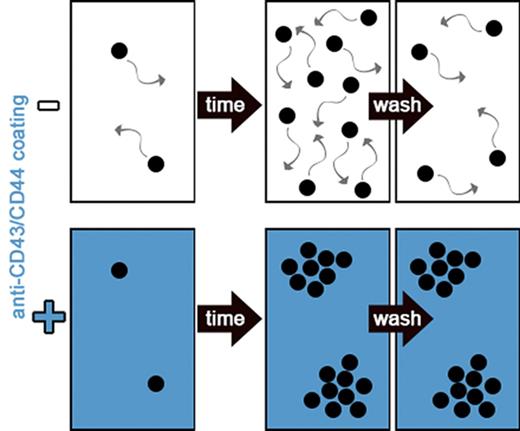

We therefore tested whether surface-bound antibodies against surface antigens widely expressed on hematopoietic stem and progenitor cells (HSPCs)¹¹  can reduce their motility, enabling lower imaging frequencies while keeping single-cell identification over time.

Experiments were conducted with 12- to 14-week-old male C57BL/6J mice from Janvier Labs according to Swiss federal law and ETH Zurich institutional guidelines, approved by local animal ethics committee Basel-Stadt (approval number 2655).

HSPCs were isolated¹²  and cultured as described¹³  using Iscove modified Dulbecco medium supplemented with 20% bovine serum albumin, insulin, and transferrin (BIT; Stemcell Technologies), 20 ng/mL CD41-phycoerythrin (MWReg30; eBioscience), 5 ng/mL CD16/32-BV421 (93; Biolegend), Annexin V Alexa Fluor 647 (Life Technologies) 1:5000.

Umbilical cord blood (CB) was obtained from consenting donors according to ethically approved protocols at the University of Basel (Basel, Switzerland). CD34⁺ cells were isolated¹⁴  and cultured as described.¹⁵

Time-lapse imaging and in-culture antibody staining was performed as described^12,16,17  in either 384 plates (Greiner) or IBIDI VI 0.4 slides coated at indicated concentrations at 4°C overnight. Cells were segmented and quantified as described.^18,19

Unless stated differently data were analyzed using 2-way analysis of variance and corrected for multiple comparison. Mean ± standard error of the mean (SEM) are displayed using GraphPad Prism. Significant differences: *P < .05, **P < .01, ***P < .001.

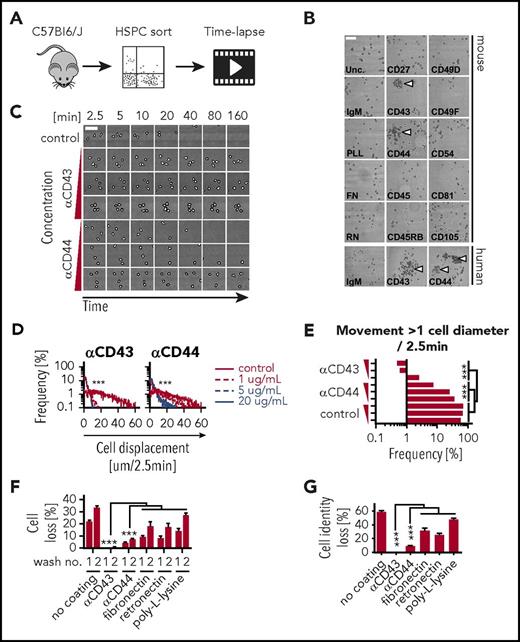

The high motility of HSPCs is a major obstacle in continuous single-cell analyses. We hypothesized that surfaces coated with antibodies against widely expressed cell-surface antigens would reduce HSPC motility. We cultured mouse Sca1⁺c-KIT⁺Lineage⁻ (KSL) cells on anti-CD27, anti-CD43, anti-CD44, anti-CD45, anti-CD45RB, anti-CD49D, anti-CD49F, anti-CD54, anti-CD81, anti-CD105, poly-l-lysine, fibronectin, or retronectin coated surfaces (Figure 1A). Although cells were scattered uniformly on most coatings, colony formation was observed on anti-CD43 and anti-CD44 (Figure 1B). Dose-titration experiments showed that cell motility was reduced with increasing coating concentrations (Figure 1C) and that anti-CD43 was more potent than anti-CD44 (Figure 1D). At 5 μg/mL, anti-CD43 coating was sufficient to reduce the number of cells moving >1 cell diameter within 2.5 minutes to <0.7% (Figure 1E), which makes it possible to retain cell identifications at imaging intervals of 20 to 40 minutes (Figure 1C) as opposed to the currently required 60 to 90 seconds. This up to 40-fold reduction in imaging frequency allows more XY positions to be acquired per acquisition cycle, thus massively increasing the throughput of time-lapse experiments.

To determine whether the anti-CD43– and anti-CD44–mediated adhesion is also sufficient to reduce loss of cell identification during media exchange, we cultured KSL on anti-CD43, anti-CD44, poly-l-lysine, fibronectin, or retronectin, and quantified the number of lost cells (Figure 1F) and lost cell identifications (Figure 1G) after media replacement. Twenty percent to 30% of cells and 30% to 50% of cell identifications were lost on poly-l-lysine, fibronectin, or retronectin coating after 2 media exchanges, whereas cell and cell-identification loss with anti-CD43 and anti-CD44 coating was <1% and <8%, respectively, demonstrating that these coatings can be used to minimize cell (identification) loss during media exchange and subsequent analyses including immunostaining.

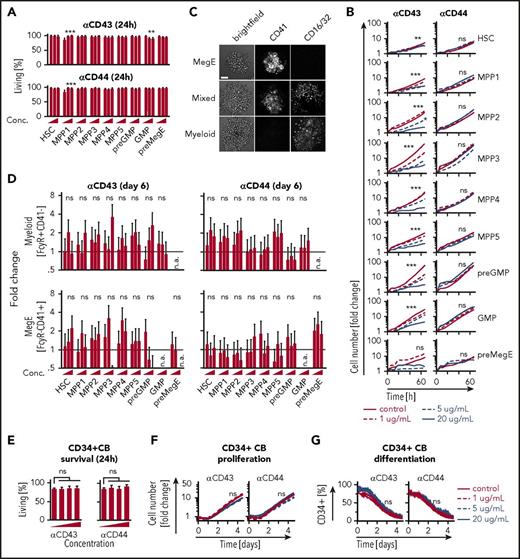

To further characterize the effects of reduction in cell motility in subpopulations, hematopoietic stem cells (HSCs), multipotent progenitors 1-5 (MPP1-5),²⁰  pre–granulocyte/macrophage progenitors (pre-GMPs), GMPs, and pre–megakaryocyte/erythrocyte progenitors (pre-MegEs)²¹  were sorted (supplemental Figure 1, available on the Blood Web site) and cultured on anti-CD43 or anti-CD44. Colony formation and cell-motility reduction were observed in all populations (not shown) as expected, owing to the broad expression of both antigens.¹¹  Next, we examined whether the coating affects survival by culturing the isolated populations with anti–Annexin V antibody to discriminate between living and apoptotic or dead cells during live imaging. No effect was detected within 24 hours except for MPP1s and GMPs on anti-CD43 coating (Figure 2A). However, with longer culture periods, increased cell death in GMP, pre-GMP, and pre-MegE was detected with anti-CD43 but not anti-CD44 coating. HSC and MPP1-5 survival remained unaffected on either coating (supplemental Figure 2). In addition, proliferation rates of all analyzed populations were unaffected by anti-CD44 coating, whereas anti-CD43 showed a concentration-dependent reduction in proliferation across all populations (Figure 2B). Lastly, to determine whether differentiation is affected by anti-CD43 and anti-CD44 coating, we cultured all subpopulations with “in culture” antibodies against CD16/32 and CD41, and quantified the myeloid and MegE lineage differentiation, respectively.^4,17  Morphologically recognizable CD41⁺CD16/32⁻ megakaryocytes and CD41⁻CD16/32⁺ macrophages were observed on both coatings; colonies with mixed, myeloid, or MegE potential were detected as in standard liquid-culture conditions⁹  (Figure 2C). Differentiation kinetics and frequencies of myeloid and MegE lineages are unaltered (Figure 2D; supplemental Figures 4-5).

To determine whether motility of human hematopoietic cells can also be reduced, umbilical CB–derived CD34⁺ cells were cultured on 1, 5, and 20 μg/mL anti-CD43 and anti-CD44 (Figure 1B). Neither anti-CD43 nor anti-CD44 altered cell survival (Figure 2E) or proliferation (Figure 2F). Differentiation kinetics as determined by CD34 downregulation were not affected by either coating (Figure 2G).

In summary, we describe a simple method to reduce the motility of mouse and human HSPCs by the use of surface coating by antibodies. This enables a massive increase in the throughput of time-lapse studies, without affecting survival, proliferation, and differentiation of HSPCs at the right antibody concentrations. In addition, it allows medium exchange without cell-identification loss, enabling the combination of time-lapse imaging with endpoint single-cell analysis. This will allow improved studies of cell responses in dynamic rather than static culture conditions, and shed light on how signal changes over time influence cell-fate decisions during homeostasis and disease. Optimal results can be obtained by using up to 5 μg/mL anti-CD43 coating, which minimizes advertent effects on proliferation while still significantly reducing cell motility.
