Activation of the small GTPases, rac and cdc42, after ligation of the platelet PAR-1 receptor

Human thrombin, wortmannin, bovine serum albumin, phallacidin, GTPγS, GTPβS, and other general chemicals were purchased from Sigma (St. Louis, MO). TRAP (SFLLRNPNQKYEPF) was purchased from BACHEM (King of Prussia, PA). Mouse anti-rac and rho monoclonal IgG antibodies were kindly provided by Dr Toshifumi Azuma (Brigham and Women's Hospital, Boston, MA). Mouse monoclonal cdc42 antibody was purchased from Transduction Laboratories (San Diego, CA). Horseradish peroxidase (HRP)–coupled antirabbit and antimouse antibodies were purchased from BIORAD (Hercules, CA). Secondary antibody for immunofluorescence was purchases from Jackson Immuno Research Laboratories (Bar Harbor, ME). All other antibodies were purchased from Sigma.

The GTPase binding domain of PAK1 (amino acids 67-150) was inserted with the correct orientation into the pGEX-2T vector (Pharmacia, Piscataway, NJ). Dr G. Bokoch (Scripps Research Institute, La Jolla, CA) kindly provided the GST-PAK-1 cDNA. GST-PAK-1 was expressed in Escherichia coli and was affinity purified on a glutathione-Sepharose column. Cells were induced to express the fusion protein with 1 mmol/L isopropylthiogalactoside after 4 hours of growth in the log phase.

Human blood from healthy donors was drawn into 1/10 volume of Aster-Jandel anticoagulant and centrifuged at 110g for 10 minutes. The platelet-rich plasma was removed and gel filtered at room temperature through a Sepharose 2B column, equilibrated, and eluted with a platelet buffer composed of 145 mmol/L NaCl, 10 mmol/L Hepes, 10 mmol/L glucose, 0.5 mmol/L Na₂HPO₄, 2 mmol/L KCl, 2 mmol/L MgCl₂, and 0.3% bovine serum albumin (BSA) (pH 7.4). Purified platelets were incubated for 30 minutes at 37°C to ensure a resting state. Platelet concentration was determined by a Coulter counter (Coulter, Miami, FL) and normally ranged from 2-3 × 10⁸ cells per milliliter. Platelets were activated by the addition of 25 μmol/L TRAP or 1 U/mL thrombin. Wortmannin and LY294 002 treatments were performed at 37°C for 15 minutes at concentrations of 100 nmol/L and 25 μmol/L, respectively, before platelets were exposed to TRAP. Platelet activation was performed without stirring.

Platelets were activated by centrifugation onto glass coverslips at 250g for 5 minutes, as described previously,7 and fixed with 2% formaldehyde in platelet buffer, pH 7.4, for 15 minutes at 37°C. Resting platelets were adhered to the coverslips by dilution into the 2% formaldehyde buffer; this was followed by centrifugation onto coverslips and fixation for 15 minutes. Fixed cells were permeabilized with 0.1% Triton X-100 containing 1 μmol/L fluorescein isothiocyanate (FITC)–phalloidin for 20 minutes, washed into PHEM buffer containing 0.3% BSA, and incubated with mouse anti-rac IgG for 1 hour at room temperature. Platelets were then washed, incubated with TRITC-rabbit antimouse IgG, washed again, incubated with 1 μmol/L FITC-phalloidin in the next-to-last wash step, and mounted for light microscopy. Stained cells were photographed on a confocal microscope.

Glass-adherent platelets were permeabilized with 0.75% Triton in PHEM buffer containing 0.1% glutaraldehyde or were mechanically disrupted by attaching a poly-lysine–coated coverslip to adherent cells and removing the coverslip (unroofed) in PHEM buffer.8 Unroofed and permeabilized cells were fixed with 1% glutaraldehyde for 10 minutes at 37°C. The fixative was blocked with 0.1% sodium borohydride in PHEM buffer, 60 mmol/L PIPES, 25 mmol/L Hepes,10 mmol/L EGTA, 0.75% Triton X-100, pH 7.8. Coverslips containing cytoskeletons were washed twice with PHEM buffer, pH 7.8, and twice in the PHEM buffer containing 0.5% BSA. Coverslips were covered with a 10-μg/mL solution of mouse anti-rac IgG at room temperature for 1 hour and subsequently washed 3 times with PHEM/BSA. Coverslips were then treated for 1 hour with a 1:20 dilution of 8-nm gold particles coated with goat antimouse-IgG, washed 3 times in PHEM/BSA and 3 times in PHEM, and fixed with 1% glutaraldehyde in PHEM buffer. Samples were washed in distilled water, rapidly frozen, freeze dried, and coated with 1.4 nm tungsten-tantalum with rotation and 2.5 nm carbon without rotation. Replicas were recovered, picked up on carbon-formvar-coated copper grids, viewed, and photographed in a JEOL EX-1200 electron microscope at an accelerating voltage of 100 kV.

We based this method on principles established by Benard et al,9 who measured GTPase activation in neutrophils. This assay uses the PAK-1 CRIB domain (amino acids 67-150) to trap GTP-bound rac and cdc42. Resting or activated platelets were lysed by the addition of 1/10 volume of a solution containing 10% Triton X-100, 500 mmol/L Tris-HCl, 50 mmol/L EGTA, 50 mmol/L EDTA, 52 nmol/L leupeptin, 10 nmol/L benzamidine, 123 nm aprotinin, and 10 μmol/L phallacidin or in a PHEM buffer used to analyze cytoskeletal structure.10Cytoskeletal and soluble-fluid fractions were separated by centrifugation of the lysate at 100,000g for 20 minutes. This soluble detergent fraction that followed ultracentrifugation will be referred to as high-speed supernatant. This high-speed supernatant was carefully removed and mixed with the Sepharose 4B-glutathione-GST-PAK1 bead conjugates for 4 to 8 hours at 4°C. Beads containing 10 to 20 μg recombinant GST-PAK1 were used for each assay. Precaution was taken to use fresh GST-fusion protein of PAK1. After the incubation period, the beads were collected by centrifugation at 10,000gfor 5 minutes and washed with chilled TBS-Tween (0.1% Tween 20, 150 mmol/L NaCl, 20 mmol/L Tris-HCl, pH 7.5). SDS-PAGE sample buffer 5 ×  or 1 × was added to the supernatant fluid or the Sepharose bead pellet, respectively, to make the final volumes equal. The high-speed pellet was used to quantitate rac and cdc42 binding to the actin cytoskeleton. Bound rac and cdc42 were quantitated from the bead pellet by immunoblotting using anti-rac and anti-cdc42 antibodies. Rac and cdc42 were separated on 12% SDS-PAGE gels and subsequently transferred to polyvinylidene difluoride (PVDF) membranes for immunoblotting.

Proteins were electrophoresed as described by Laemmli11with some modifications. Samples were separated on 12% polyacrylamide gels and stained with 0.2% Coomassie brilliant blue. Immunoblotting was performed by electrophoretically transferring the proteins on PVDF Immobilon P membranes (0.45 μm; Millipore, Bedford, MA) in transfer buffer containing 20% methanol, 25 mmol/L Tris, and 195 mmol/L glycine. Membranes were blocked with 5% Carnation (Glendale, CA) nonfat dry milk in TBS-Tween 20 (20 mmol/L Tris, 150 mmol/L NaCl, 0.05% Tween 20). The blocked membrane was incubated with 1:1000 dilution of mouse rac and cdc42 monoclonal antibodies in TBS-Tween 20 buffer (containing Carnation 5% nonfat dry milk) overnight. Secondary mouse and rabbit HRP-coupled antibodies were used at a 1:3000 dilution in TBS-Tween buffer supplemented with 5% nonfat dry milk. Chemiluminescence detection was done using the Pierce system.

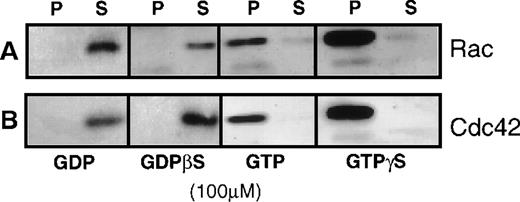

Figure 1 shows the validity of this assay in platelets. After incubation with GTP or GTPγS, all the rac and cdc42 protein from the high-speed supernatant bound to PAK1-coated beads, and no rac or cdc42 bound after loading with guanosine diphosphate (GDP) or GDPβS. This demonstrated that the binding of rac and cdc42 to the GBD domain of PAK1 required bound GTP to the GTPase.

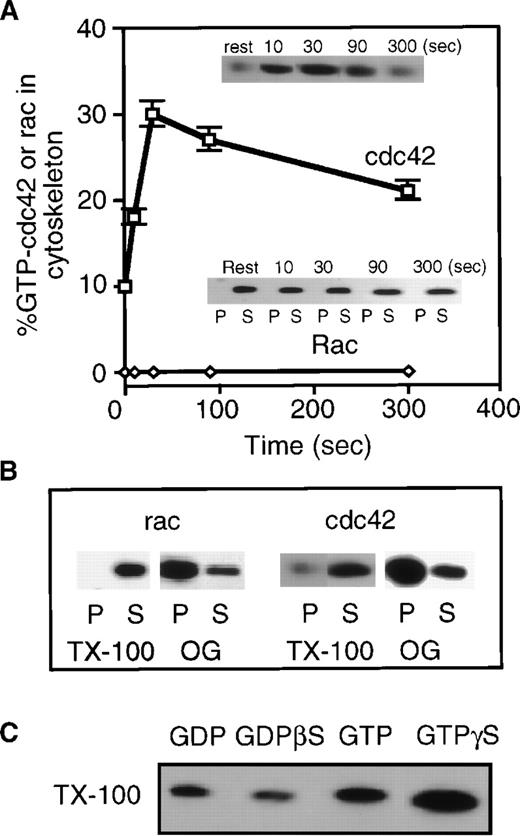

We first had to determine the distribution of rac and cdc42 between the soluble-protein phase and the actin-based cytoskeletal fraction of resting and activated platelets. Platelets contained 1.9 to 3.1 and 0.21 μmol/L rac and cdc42, respectively. Insolubility of cdc42 and of rac has been reported after platelet aggregation.3 In Triton X-100 high-speed supernatant prepared from resting platelets, the bulk of rac and cdc42 were soluble (90% to 100% of the total); no rac and only a small amount of the total cdc42 pellet were soluble with actin filaments at 100 000g from resting platelets (Figure 2). When platelets were activated with 25 μmol/L TRAP in the absence of aggregation, all the rac protein remained in the Triton X-100 supernatant (Figure 2A) and rac did not associate with F-actin in lysates from resting platelets after loading with GDP, GDPβS, GTP, or GTPγS (data not shown). This result demonstrated that the GTP charging of rac had only to be assayed in the Triton X-100 soluble high-speed supernatant. Although solutions containing Triton X-100 completely released rac from platelets, the platelet permeabilization scheme involving n-octyl β-D-glucopyranoside (OG) liberated only a small amount of rac, leaving most of the protein in the permeabilized platelet (Figure 2B). This finding was consistent with the retention of a signaling pathway involving rac in these platelet preparations. Approximately 30% of the total cdc42 co-sedimented with the Triton X-100-insoluble actin cytoskeleton after ligation of the PAR-1 receptor (Figure 2A). We determined whether the association of cdc42 with the cytoskeleton was affected by the bound guanine nucleotide. The incubation of platelet lysates with GTP and GTPγS significantly increased the sedimentation of cdc42, showing that the incorporation of cdc42 into the platelet cytoskeleton was facilitated by GTP (Figure 2C). Like rac, most of the cdc42 was not eluted when OG was used to permeabilize platelets (Figure 2B).

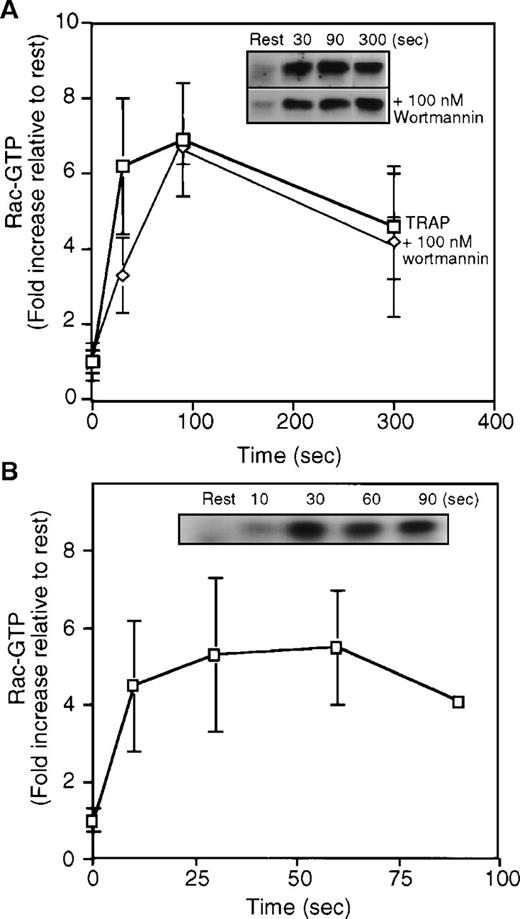

When resting human platelets were activated with TRAP and then lysed in a Triton X-100 solution lacking magnesium to slow intrinsic GTPase activity and nucleotide exchange. GTP-bound rac was collected with GST-PAK1–Sepharose bead complexes. Rac bound to the PAK1-beads was visualized in immunoblots with an anti-rac monoclonal IgG (Figure3A). As described above, little or no rac was collected in the GTP-bound state from resting platelets. However, after ligation of the PAR-1 receptor with 25 μmol/L TRAP, GTP-rac increased 6-fold in platelet high-speed supernatant (Figure 3A). The increase in GTP-rac content was rapid and peaked 30 to 60 seconds after the addition of TRAP to platelets. Although the extent of rac activation varied among platelet preparations, the kinetics of GTP-loading was similar in all experiments. In the best experiments, GTP-rac increased to 40% of the total rac contained in the high-speed supernatant. F-actin content increased with a similar time course after PAR-1 receptor ligation (data not shown). The loading of rac with GTP also was found in platelets activated with 1 U/ml of thrombin (Figure3B).

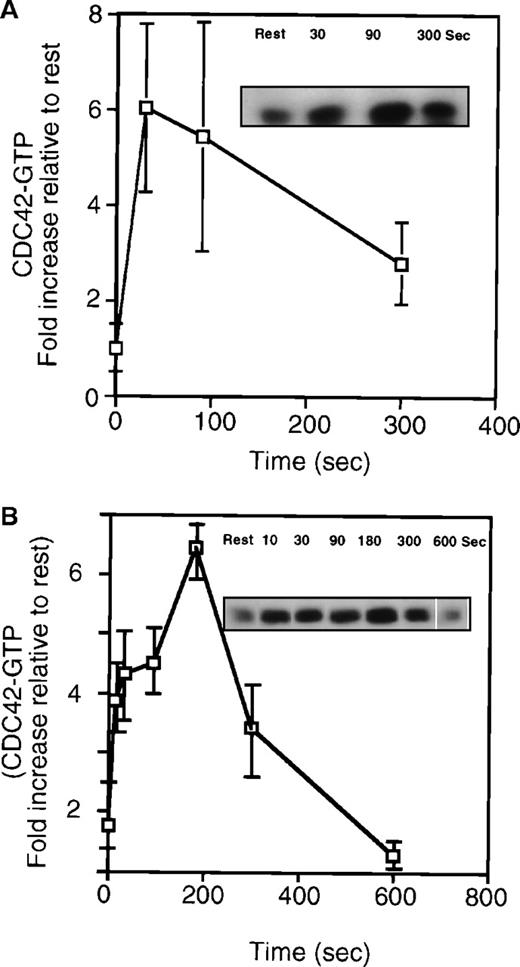

As shown in Figure 4, TRAP activation of platelets led not only to increased cytoskeletal association but to a rapid increase in the amount of GTP-cdc42 measured in the 100 000g supernatant. Like rac, the increase in GTP-cdc42 was rapid and reached a maximal extent of approximately 6-fold at 30 seconds before it decreased. This increase was measurable within 10 seconds of TRAP or thrombin addition. The decrease in the amount of GTP-cdc42 recovered from supernatant corresponded in part to the incorporation of cdc42 into the platelet actin skeleton (Figure 2A). The kinetics of cdc42 charging (Figure 4) and movement into the cytoskeleton (Figure 2) are superimposable. The GTP-cdc42 content also increased 4- to 7-fold in the high-speed supernatant from platelets activated with thrombin (Figure 4B). Because GST-PAK1 bound to GTP-cdc42 and had no detectable binding to GDP-cdc42, we concluded that PAR-1 ligation increased cdc42 charging with GTP.

Actin assembly in lamellae induced by PAR-1 ligation in platelets is insensitive to the PI-3-kinase inhibitors, wortmannin, and LY294002.12 However, wortmannin inhibits lamellipodia formation and ruffling in fibroblasts.13 These results place PI-3-kinase upstream of rac in fibroblasts, a finding supported by GTP/GDP exchange measurements in PDGF-activated fibroblasts.14 Hence, the effect of PI-3-kinase inhibition by wortmannin on the GTP charging of rac and cdc42 in platelets was determined. As shown in Figure 3A, treatment of platelets with wortmannin did not significantly change the kinetics or the extent of GTP-rac recovered with the PAK1-beads. The GTP charging of rac also was not affected in platelets treated with 50 μmol/L LY294002 (data not shown).

Figure 5 shows the distribution of rac in fixed and permeabilized platelets. In resting platelets, rac appeared uniformly distributed throughout the cell (Figure 5D). However, after activation, a portion of the rac moved to the cell periphery and concentrated with actin filaments in lamellae and in extended processes such as filopodia. Rac also concentrated in the center of the platelet, which was enriched in platelet granules and membrane. Figure 5E shows that wortmannin treatment did not alter this redistribution of rac and that platelets spread in the presence of these inhibitors. To gain more information about rac contained within the platelet cortex, we localized rac in disrupted platelet preparations in the electron microscope. Because Triton X-100 eluted rac from unfixed platelets, we used 2 approaches to maintain rac in the platelet. First, platelets were mechanically unroofed in the absence of detergent (Figure 5A). This procedure revealed portions of cytoskeleton underlying removed membrane and protein-membrane interactions disrupted by detergents were maintained, allowing actin-membrane contacts to be visualized.8 In unroofed platelets, 8 nm anti-rac gold particles bound along the edge of the cytoskeleton and along the residual plasma membrane. In the second procedure, we extracted cells with the detergent Triton X-100 in buffers containing 0.1% glutaraldehyde. Figure 5B shows that in a representative cytoskeleton, gold particles were predominately at the cytoskeletal edge.

The reproducible and extensive temporal sequence of actin remodeling in platelets makes these cells useful for defining the steps linking rho family GTPases to particular morphologic responses involving actin rearrangements. This article adds direct measurements of rac activation to the previous indirect evidence implicating this GTPase in the pathway from thrombin receptor perturbation to actin assembly. Rac activation is rapid, peaks within 10 to 30 seconds of PAR-1 receptor ligation, and involves 30% to 40% of the total platelet rac protein. In permeabilized platelets, 5 to 10 nmol/L rac maximally activates actin filament barbed-end uncapping.1Because we found that platelets contain 2 to 3 μmol/L rac, the fraction of rac activated by thrombin was sufficient to produce the effects observed with exogenous active rac.

Inhibition of PI-3-kinase activity blocks some but not all actin assembly reactions. One of the exceptions is thrombin-mediated platelet actin polymerization.12 The observation reported here that PI-3-kinase inhibitors had no effect on rac activation or subcellular redistribution to the cell periphery is consistent with rac operating in platelets independently of D3 phosphoinositides. One clue to the differential sensitivity of actin-signaling reactions to D3 phosphoinositides may reside in whether signaling traffics to rac through D3 phosphoinositide-dependent or -independent upstream controls. Among these regulators is the protooncogene VAV, a GEF (GTPase exchange factor) for rac, which exists in D3 phosphoinositide-dependent (VAV1) or -independent (VAV2) isoforms.15 We predict, therefore, that VAV2 is the conduit to signaling from PAR-1 to rac in platelets.

We also showed that PAR-1 ligation leads to cdc42 activation with a timing and magnitude approximating the GTP charging of rac. We have less information about the role of cdc42 than about rac in platelet actin assembly reaction. The evidence in this article suggests that cdc42 functions in different ways from rac, a conclusion consonant with the original discovery that rac and cdc42 induce different morphologies in Swiss 3T3 cells.16-18

Platelet rac is detergent soluble in resting and activated platelets, suggesting that it does not bind tightly to the actin cytoskeleton of nonaggregated cells. Rather, we think that activation targets it to membrane-bound lipid kinases that synthesize D4 phosphoinositides, which mediate actin filament barbed-end uncapping. The retention of rac in OG-treated platelets suggests a weak association of rac with membranes in resting and activated platelets. The localization of rac to membranes adjacent to actin filaments that elongate in thrombin receptor-activated platelets19 is also consistent with the idea that rac interacts with membrane lipids to induce actin filament assembly. In contrast, cdc42 appears to bind to the actin cytoskeleton in resting platelets and, more so, in a GTP-dependent fashion, in activated platelets. This finding complements much evidence implicating cdc42 as facilitating the construction of multiprotein assemblies, including members of the WASp family, WASp-interacting proteins, and the ARP2/3 complex to initiate de novo nucleation and elongation of monomeric actin.20-28 Further evidence that rac and cdc42 have different roles in platelets is that rac is much more potent than cdc42 in promoting actin filament nucleation activity in permeabilized platelets (Hartwig JH, unpublished data).

In conclusion, we have quantified GTP-rac and GTP-cdc42 in resting and thrombin-activated human platelets. The ligation of PAR-1 causes the charging of rac and cdc42 and temporally links GTPase activation to platelet responses. These experiments add to the wealth of information implicating rac and cdc42 as central proteins in the control of cell motility.

We thank Dr Gary Bokoch for the PAK1 cDNA and Dr Thomas P. Stossel for insightful criticism. We also thank Dr Joseph Italiano for his continued moral support.
