Differential in vivo potential of endothelial progenitor cells from human umbilical cord blood and adult peripheral blood to form functional long-lasting vessels

The discovery of circulating endothelial progenitor cells (EPCs) in peripheral blood—reported almost a decade ago¹ —has generated impetus for using EPCs in applications ranging from alleviation of tissue ischemia to cancer therapy. One such application is vasculogenesis, which is an important objective for tissue engineering. However, in vitro phenotypic studies have demonstrated that cells defined as EPCs consist of a heterogeneous population, containing cells with differential phenotype (ie, endothelial and hematopoietic myeloid cells) and outgrowth potential.^2,3  Recent reports have also shown that peripheral blood (PB)– and cord blood (CB)–derived EPCs (also referred to as endothelial colony-forming cells² ) can form functional blood vessels when implanted in vivo, however the duration and functional performance of these blood vessels have not been defined.^2,4,5  In this report, we address 2 critical outstanding questions regarding the use of EPCs for vasculogenesis in tissue engineering. First, can both adult PB- and CB-derived EPCs form stable vessels? Second, if ex vivo expanded EPCs form durable vessels in vivo, how well do these vessels function compared with the preexisting microvasculature? To this end, we used an in vivo engineered vessel model to compare the neovasculature generated by PB- and CB-derived EPCs through vasculogenesis. We assessed the functional performance of the engineered vessels by measuring 3 parameters: red blood cell velocity, vessel permeability to serum albumin, and leukocyte rolling in response to cytokine stimulation

Adult buffy coat samples were obtained from the blood bank at Massachusetts General Hospital. Umbilical cord blood samples were obtained from the Pediatric Research Institute, University of St Louis, MO, according to guidelines established by the Human Investigation Committee (Institutional Review Board protocols no. 2003-P-000588). All animal procedures were carried out following the Public Health Service Policy on Humane Care of Laboratory Animals and approved by the Institutional Animal Care and Use Committee of Massachusetts General Hospital.

All data were analyzed by ANOVA with the Fisher posthoc test. All data are reported as mean with standard error. Statistical significance was set at P values less than .05.

An expanded Methods section that includes image acquisition information can be found in Document S1 (available on the Blood website; see the Supplemental Materials link at the top of the online article).

To obtain EPC-derived colonies, we cultured PB and CB mononuclear blood cells on type I collagen–coated dish for 14 to 21 days.⁶  We confirmed the endothelial phenotype of PB- and CB-derived EPCs by immunocytochemistry and flow cytometry. EPCs from both sources expressed multiple endothelial markers, including CD31, VE-cadherin, VWF, VEGFR2, and Tie2; incorporated acetylated low-density lipoprotein (AcLDL); and were negative for the pan hematopoietic marker CD45 and the monocyte marker CD14 (Figures S1,S2).

To determine whether adult PB- and CB-derived EPCs are able to self-assemble into functional blood vessels, we implanted EGFP-labeled EPCs alone or coimplanted them with 10T1/2 cells in a collagen/fibronectin gel onto the pial surface in cranial windows.⁷  10T1/2 cells, a line of mouse embryonic fibroblasts, have previously been demonstrated to stabilize endothelial cells by functioning as perivascular-like cells and releasing paracrine factors.^7-9  Here, we found that both human adult PB- and CB-EPCs were capable of vasculogenesis. However, the density and persistence of the engineered neovasculature were substantially different depending on the source of EPCs.

In the case of PB-EPCs coimplanted with 10T1/2, the EPCs began to elongate and to connect to one another resulting in a meshlike network 7 days after implantation (Figure 1A; Figure S3A). By day 11, some of the EPCs had joined together to form patent vascular tubes that were connected to the host circulation (Figure 1A). However, the number of these functional engineered vessels was low and they were distributed haphazardly within the collagen gel. Coimplantation of PB-EPCs with 10T1/2 cells did not significantly increase either perfused or nonperfused vessel densities compared with PB-EPC implantation alone (Figure 1B; Figure S3A). This is in contrast with in vitro data where 10T1/2 cells promote cordlike formation by the EPCs (Figure S4). With time, the PB-EPC–derived blood vessels began to regress and disappeared almost completely 1 month after implantation, regardless of the absence or presence of 10T1/2 cells (Figure 1B). Occasionally, a few of the blood vessels remained 27 days after implantation (Figure 1C).

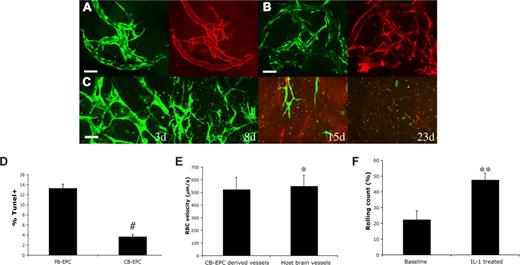

In contrast, CB-EPCs were able to produce a dense network of blood vessels that were distributed uniformly throughout the collagen gel (Figure 1D). We quantified the vascular density of the same region of collagen gel over time. In the group with CB-EPCs implanted alone, the density of engineered blood vessels was low and they quickly regressed before they could become perfused (Figure 1E; Figure S3B). However, we found that in the group coimplanted with 10T1/2 cells, CB-EPCs formed a network of microvessels that remained stable and patent for more than 119 days (Figure 1E,F). We observed some host vessels infiltration into the gel, however the majority of the blood vessels were CB-EPC derived. The collagen gel was excised and whole-mount staining with human specific antibodies showed the expression of the endothelial markers, CD31 and VE-cadherin, on the EGFP-positive EPC-derived vascular endothelial cells (Figure 2A; Figure S5). Collagen type IV staining revealed that the engineered blood vessels had an intact basement membrane (Figure 2B). The 10T1/2 cells persisted and functioned as perivascular cells in vivo (Figure S6).

We next investigated whether implanting CB-EPCs at a higher density could obviate the need for 10T1/2 pericyte precursors. CB-EPCs were implanted alone at a 5-fold increase in cell density (5 million cells/mL vs 1 million cells/mL). Some of the implanted CB-EPCs aligned into functional blood vessels, however these vessels were only transiently perfused and disappeared by 23 days (Figure 2C). Implantation of 10T1/2 cells alone led to a minimal angiogenic response (data not shown). These findings reaffirm that coimplantation of endothelial and perivascular cells is critical for vasculogenic vessel remodeling and sustenance.

The long-lasting functional blood vessels might be linked to a higher proliferative capacity of CB-EPCs. Indeed, Ingram et al showed that CB-EPCs have a higher level of telomerase activity compared with PB-EPCs.⁶  We found a significantly higher percentage of CB-EPCs were positive for the Ki-67 proliferation marker compared with PB-EPCs (65.9% for CB-EPCs vs 38.3% for PB-EPCs, P < .01) (Figure S7), confirming a proliferative advantage for CB-EPCs.

In addition, PB-EPCs might have a competitive disadvantage compared with CB-EPCs due to poorer survival.¹⁰  Cell transplantation is often inefficient. For example, it has been estimated that less than 1% of implanted cells survived 4 days after implantation into a mouse heart.¹¹  We tested in vitro the EPCs' resistance to stress-induced apoptosis by exposing them to serum-free medium for 48 hours. After 48 hours of exposure to serum-free media, only 3.7% of CB-EPCs were apoptotic (ie, positive for terminal deoxynucleotidyl transferase biotin-dUTP nick end labeling [TUNEL]) versus 13.3% of the PB-EPCs (Figure 2D; Figure S8). These findings suggest that CB-EPCs are more resistant to stress-induced apoptosis, in addition to having a proliferative advantage compared with PB-EPCs.

Finally, the function of the engineered blood vessels is critical, since functional abnormalities can have serious pathological consequences.¹²  For example, 2 major problems with immature blood vessels are the irregular flow and the increase in permeability. This leads to leakiness of plasma proteins or even hemorrhage, similar to blood vessels inside tumors.¹³  We measured the permeability to serum albumin of the CB-EPC–derived blood vessels at 2 months after implantation. We found that CB-EPC–derived vessels have low vascular permeability, with values close to those of the neighboring brain capillaries (Table 1). We have not detected any hemorrhagic episode during the period of observation. The average blood flow rate was comparable between the CB-EPC–derived vessels and host pial vessels (Figure 2E; Figure S9).

Besides serving as a conduit for blood, vascular endothelium should also have the ability to become activated to recruit leukocytes in the setting of homeostasis, infection, or tissue injury. To test this in CB-EPC–derived endothelium, we induced systemic inflammation by injection of IL1β in mice with CB-EPC–engineered vessels.¹⁴  We measured the number of rolling leukocytes at baseline and 4 hours after injection of IL1β in selected engineered blood vessels that had characteristics of postcapillary venules (based on morphology, diameter, and rate of blood flow). In these engineered vessels, we found a significant increase in the percentage of rolling leukocytes after induction of systemic inflammation, suggesting that CB-EPC–derived endothelium undergoes proper cytokine activation (Figure 2F).

In summary, we found that CB-EPCs have enhanced vasculogenic ability in vivo compared with adult PB-EPCs. Moreover, CB-EPC coimplantation with pericyte precursors led to the formation of long-lasting and functionally normal blood vessels, providing an attractive cellular therapy platform for tissue engineering.
