Δ¹²-prostaglandin J₃, an omega-3 fatty acid–derived metabolite, selectively ablates leukemia stem cells in mice

In addition to its well-known anti-inflammatory benefits, particularly in cardiovascular and other inflammatory diseases,^1-4  eicosapentaenoic acid (EPA), a long-chain ω-3 polyunsaturated fatty acid (n-3 PUFA) of marine origin, is associated with cancer prevention. Studies have demonstrated that cyclooxygenase 2 (COX-2), but not COX-1, either preferentially metabolizes EPA to a novel set of autocoids called resolvins⁵  or it forms prostaglandin H₃ (PGH₃).⁶  PGH₃, much like its n-6 counterpart, arachidonic acid (ARA)–derived PGH₂, is metabolized to the “3-series” PG end products PGD₃, PGE₃, PGF_3α, PGI₃, and TxA₃ by specific PG synthases.⁶  However, unlike the 2-series PGs, the 3-series PGs reportedly have anti-inflammatory properties even though they exhibit comparable affinity toward the cell-surface PG receptors DP, EP_1-3, and FP as their 2-series counterparts.⁶  Studies by Wada et al⁶  also suggest that the health benefits of 3-series prostanoids possibly arise not from its ability to compete with the 2-series PGs, but most likely from their metabolites. In this context, the metabolism of EPA-derived cyclopentenone PGs (CyPGs) in the form of PGJ₃, Δ¹²-PGJ₃, and 15d-PGJ₃ (supplemental Figure 1, available on the Blood Web site; see the Supplemental Materials link at the top of the online article) is thus far unknown. We speculate that the metabolism of EPA to PGD₃-derived CyPGs may follow an identical pathway of metabolism, as in the case of ARA-derived PGD₂ by hematopoietic-PGD synthase (H-PGDS) or lipocalin-PGD synthase (L-PGDS) PGD₃.⁷  As demonstrated earlier by Fitzpatrick et al with PGD₂,^8,9  it is very likely that EPA-derived PGD₃ undergoes nonenzymatic dehydration to form PGJ₃, followed by an isomerization to Δ¹²-PGJ₃ and a second dehydration to 15d-PGJ₃ in an aqueous environment.

15d-Prostaglandin J₂ (15d-PGJ₂) inhibits anti-apoptotic NF-κB, while activating NF-E2–related factor 2 (Nrf-2) and peroxisome proliferator activated receptor γ (PPAR-γ) to mediate apoptosis and anti-inflammation.^10-12  The proapoptotic activity of 15d-PGJ₂ has been suggested to potentially lead to the eradication of acute myelogenous leukemia and chronic myelogenous leukemia (CML) stem cells based on an in silico study using cDNA microarray gene-expression profiles available in the Gene Expression Omnibus (GEO) database.¹³  The cancer stem cells (CSCs) represent a small dormant population, whereas the “bulk” cancer cells that exhibit limited proliferative potential are targeted by current cancer therapeutics. Such refractory CSCs begin to self-renew and differentiate into malignant cells causing a recurrence of the disease.¹⁴  Therefore, selective targeting of CSCs is potentially a highly effective treatment for cancer. To this end, we have investigated the endogenous formation of Δ¹²-PGJ₃ from EPA and further examined the ability of this novel n-3 PUFA metabolite to target leukemia stem cells (LSCs) in 2 well-studied models of leukemia, Friend virus (FV)–induced erythroleukemia,¹⁵  and a well-established model for inducing CML in mice, which uses BCR-ABL–IRES-GFP retrovirus,^16-19  where transplantation of transduced hematopoietic stem cells (HSCs) into mice results in pathology similar to the chronic phase of CML. FV induces leukemia by activating the bone morphogenetic protein-4 (BMP4)–dependent stress erythropoiesis pathway, which leads to a rapid amplification of target cells and acute disease.²⁰  Recent studies have shown that stress erythropoiesis uses a self-renewing population of stress erythroid progenitors.²¹  Infection of this population with FV led to the development of LSCs (S.H. and R.F.P., unpublished data). The FV LSCs are not Lin⁻ because they express low levels of Ter119 in addition to Kit, Sca1, and CD71, similar to what was observed for self-renewing stress erythroid progenitors.²¹  We demonstrate that Δ¹²-PGJ₃ administration (at doses as low as 0.6 μg/mouse/d) to FV-infected and BCR-ABL⁺–transduced HSC (hereafter referred to as BCR-ABL⁺ LSC)–transplanted mice completely ablates leukemia, restores hematologic parameters, and eradicates LSCs via the activation of Ataxia telangiectasia mutated (ATM)/p53 pathway of apoptosis in these cells.

Murine erythroleukemia (MEL) cells (a gift from Dr Ross Hardison, Pennsylvania State University, University Park, PA) were cultured in DMEM with 10% FBS. To examine the production of 3-series PGs, BALB/c-derived RAW264.7 macrophage-like cells (from the ATCC) were cultured in DMEM containing 5% FBS, 250nM sodium selenite, and 50μM EPA (as BSA conjugate) for 72 hours, followed by stimulation with Escherichia coli endotoxin lipopolysaccharide (LPS; serotype 0111B4; 50 ng/mL) for 30 minutes. The cells were then cultured in fresh DMEM for an additional 24-144 hours. Cells cultured with cell culture–grade fatty acid–free BSA (Sigma-Aldrich) served as controls. Culture medium was withdrawn at various times and analyzed for 3-series PGs, as described in “Preparation, isolation, and spectroscopic characterization of PGD₃ metabolites.” Total RNA was isolated from cells or tissues using TRIzol reagent as per the instructions of the supplier (Invitrogen) and cDNA was prepared using a high-capacity cDNA Reverse Transcriptase kit (Applied Biosystems). Semiquantitative RT-PCR for p53 and β-actin was performed with primers as described in supplemental Methods. Nuclear and cytoplasmic protein extracts of LSCs were prepared using methods described previously.²²

PGD₃ (Cayman Chemicals) was incubated with 0.1M sodium phosphate buffer, pH 7.4, containing 0.9% NaCl at a final concentration of 100 μg/mL with shaking at 37°C for various periods (24-144 hours). The reaction products and those from the cell-culture medium supernatants were purified by HPLC and analyzed by UV and MS as described in supplemental Methods.

Apoptosis of LSCs was performed using annexin V as described in supplemental Methods.

LSCs were isolated by FACS. For the FV model, spleen cells were labeled with anti-Kit, Sca1 (BioLegend) and M34 Abs. M34 is an mAb that recognizes the envelope protein of SFFV²³  and was used as described previously.²⁰  Similarly, in the BCR-ABL model, BM cells from C57BL/6 mice pretreated with 5-fluorouracil (150 mg/kg) were harvested and infected with mouse stem cell virus–green fluorescent protein (MSCV-GFP) control retrovirus or MSCV-IRES-GFP-retrovirus (MIGR)–BCR-ABL retrovirus overnight in IMDM containing 5% FCS and supplemented with 2.5 ng/mL of IL-3 and 15 ng/mL of SCF (R&D Systems). Transduced cells (0.5 × 10⁶) were transplanted by retro-orbital injection into C57BL/6 recipient mice that were preconditioned with 950 rads of irradiation. To increase the number of CML and control mice, 17 days after transplantation, GFP⁺ spleen cells were isolated by FACS using Kit⁺Sca1⁺Lin⁻GFP⁺ cells from the BM or spleen and used for all of the ex vivo studies.

BALB/c mice were infected with FV as described previously.^20,21  On day 14 after infection, spleens were isolated and a single cell suspension of spleen cells was generated. The cells were filtered through a 70-μm sterile filter and flow-through cells were resuspended in RBC lysis buffer and then centrifuged. As indicated above, LSCs (M34⁺Kit⁺Sca1⁺) were cultured in Methocult medium M3334 (StemCell Technologies) supplemented with 200 ng/mL of Sonic Hedgehog (Shh), 15 ng/mL of bone morphogenetic protein-4 (BMP4; both from R&D Systems), and 50 ng/mL of stem cell factor (SCF; Peprotech). For CFU-FV assays, cells were plated in methylcellulose medium containing FCS, but lacking added growth factors as described previously.²⁴

FV-LSCs were generated as described in “Isolation and identification of LSCs.” FV-LSCs (2.5 × 10⁵) were transplanted into BALB/c-Stk^−/− mice by retro-orbital injection. Six weeks after transplantation the mice were treated with CyPGs or vehicle control.

MIGR–BCR-ABL and control MSCV-GFP retroviruses were a gift from Dr Warren Pear (University of Pennsylvania, Philadelphia, PA). Viral stocks were generated in HEK293 cells as described previously.²⁵  C57BL/6 mice were treated with 5-fluorouracil (5-FU; 150 mg/kg; Sigma-Aldrich) to enrich for cycling HSCs. On day 4 after treatment, BM cells were infected, followed by transplantation of GFP⁺ cells into recipient mice. Two weeks after transplantation, mice were treated as indicated with CyPGs and vehicle control. For ex vivo experiments, Kit⁺Sca1⁺Lin⁻GFP⁺ cells were isolated from the BM or spleens of transplanted mice by FACS. The sorted cells were cultured in Methocult medium M3334 (StemCell Technologies) supplemented with Shh, SCF, and BMP4, and treated with the indicated CyPGs and vehicle controls for the indicated time periods. To demonstrate the effect of Δ¹²-PGJ₃ on normal hematopoietic progenitors, HSCs isolated from the BM of C57BL/6 mice were cultured in methylcellulose medium (1 × 10⁶ cells/mL/well) containing erythropoietin (3 U/mL), SCF, IL-3, and BMP4 in the presence or absence of Δ¹²-PGJ₃ (25nM). The hematopoietic colonies (measured in colony-forming cells in culture [CFCs]) were scored.

For CML, B6.SJLPtprca Pep3b/BoyJ (CD45.1⁺) mice were treated with 5-FU and BM cells enriched in cycling HSCs were isolated and then infected with MIGR–BCR-ABL virus or control MSCV-GFP virus. The cells were transplanted into C57BL/6 (CD45.2) recipient mice, and the mice were treated with Δ¹²-PGJ₃ or vehicle control. Two weeks after treatment, spleen cells were isolated and transplanted into irradiated secondary C57BL/6 (CD45.2) recipients. Two weeks after secondary transplantation, mice were analyzed for WBC counts, splenomegaly, and the presence of GFP⁺ or CD45.1 donor cells in the BM and spleen by flow cytometry. Secondary transplantations were also done with FV-infected mice treated with Δ¹²-PGJ₃ or vehicle control. BALB/c mice were infected with FV. The mice were treated with Δ¹²-PGJ₃ or vehicle control. Two weeks after treatment, spleen cells were isolated from FV-infected mice and transplanted into BALB/c-Stk^−/− recipient mice (1 × 10⁵ cells per mouse). Five weeks after transplantation, the mice with secondary transplantations were tested for WBC counts, splenomegaly, and presence of M34⁺Kit⁺Sca1⁺ FV-LSCs by flow cytometry.

Mice with FV-induced erythroleukemia or MIGR–BCR-ABL–induced CML were treated with CyPGs as follows. Mice were treated with a daily IP injection of Δ¹²-PGJ₃ (0.01-0.1 mg/kg), 15d-PGJ₂ (0.1 mg/kg), or 9,10-dihydro-15d-PGJ₂ (0.1 mg/kg) for 7 days. All 3 compounds were formulated with hydroxypropyl-β-cyclodextrin (30% wt/vol; Sigma-Aldrich). All experiments using mice were approved by the institutional animal care and use committee of The Pennsylvania State University.

LSCs isolated from FV-infected mice or BCR-ABL⁺LSCs–transplanted mice were treated with either the ATM-specific inhibitor 2-morpholin-4-yl-6-thianthren-1-yl-pyran-4-one ((MTPO; KU55933; 50nM; Calbiochem) or the ATM/ATR–specific inhibitor (CGK-733; 1μM; Calbiochem), followed by treatment with CyPGs.

The results are expressed as means ± SEM and the differences between groups were analyzed using the Student t test and Prism Version 4 software (GraphPad). The criterion for statistical significance was P < .05.

To relate the potent antileukemic effects of EPA-derived CyPGs to their endogenous production, we examined the cellular biosynthesis of PGD₃, Δ¹²-PGJ₃ and 15d-PGJ₃ in murine macrophage-like cells (RAW264.7) cultured with EPA (50μM). RAW264.7 cells, which express H-PGDS,²⁶  were stimulated with the bacterial endotoxin LPS (50 ng/mL) to induce expression of COX-2. Treated cells produced detectable amounts of PGD₃ and its metabolites at 48 hours after LPS treatment. Liquid chromatography–mass spectrometry (MS) analysis of culture medium supernatants confirmed the increased production of PGD₃, Δ¹²-PGJ₃, and 15d-PGJ₃ (Figure 1A and supplemental Figure 1) only in cells treated with EPA. Based on the LC-retention times and mass fragmentation patterns, the cellular metabolites were identified as PGD₃ (m/z 349; supplemental Figure 1A), Δ¹²-PGJ₃ (m/z 331.45; Figure 1B), and 15d-PGJ₃ (m/z 313.45; supplemental Figure 1A). These metabolites were not seen in cells cultured without exogenous EPA (Figure 1A). We estimated that treatment of macrophages with 50μM EPA produced ∼ 0.15μM Δ¹²-PGJ₃/10⁶ cells in 48 hours. Nonenzymatic dehydration of PGD₃ in PBS produced PGJ₃, Δ¹²-PGJ₃, and 15d-PGJ₃ in vitro. Incubation of PGD₃ (100 μg/mL; Cayman Chemicals) in a serum-free environment for 24-48 hours at 37°C led to the formation of Δ¹²-PGJ₃, Δ¹³-PGJ₃ (PGJ₃), and 15d-PGJ₃, all of which were well resolved on a reversed-phase LC (C₁₈) column with retention times of 9.63, 9.97, and 11.02 minutes, respectively (supplemental Figure 1B-C). Prolonged incubation of PGD₃ up to 144 hours at 37°C also produced these metabolites, with Δ¹²-PGJ₃ predominating over the others (supplemental Figure 1D). The presence of serum (10%) did not affect the conversion of PGD₃ (supplemental Figure 1E). UV-spectroscopic analysis of the purified Δ¹²-PGJ₃ confirmed the presence of a conjugated diene-like structure with a λ_max of 242nM, whereas PGJ₃ and 15d-PGJ₃ showed a distinct peak at ∼ 300nM, which is characteristic of the cyclopentenone structure (supplemental Figure 2). These data confirm the endogenous production of PGD₃ metabolites and the enhanced stability of Δ¹²-PGJ₃ in an aqueous environment.

Previous studies have demonstrated that 15d-PGJ₂ induces apoptosis of several cancer cell lines, and that this effect was mediated in part by the inhibition of NF-κB and/or by activation of PPARγ.²⁷  In the present study, we examined the proapoptotic properties of PGD₃ metabolites in the 2 well-studied murine models of leukemia. Mice were transplanted with HSCs transduced with a BCR-ABL–expressing retrovirus (hereafter referred to as BCR-ABL mice). Incubation of Kit⁺Sca1⁺Lin⁻GFP⁺ LSCs isolated from the spleens of BCR-ABL mice with low doses of Δ¹²-PGJ₃ significantly increased apoptosis of these cells with an IC₅₀ of ∼ 12nM, but did not affect the normal HSCs, which are represented by Kit⁺Sca1⁺Lin⁻GFP⁺ cells isolated from mice transplanted with HSCs transduced with a MSCV-GFP control virus (hereafter referred to as MSCV-control mice; Figure 1C). Similar effects were also observed when BCR-ABL LSCs (Kit⁺Sca1⁺Lin⁻GFP⁺) isolated from the BM were treated ex vivo with Δ¹²-PGJ₃ (Figure 1D). An identical effect was also observed with FV-LSCs (Figure 1E). Incubation of FV-LSCs with EPA had no effect, whereas PGJ₃ displayed only a 2-fold increase in apoptosis and Δ¹²-PGJ₃ and 15d-PGJ₃ treatment at 25nM led to a significant increase (∼ 75%) in apoptosis (Figure 1F). We also tested the effects of ARA-derived PGJ₂, Δ¹²-PGJ₂, and 15d-PGJ₂ on FV-LSCs and LSCs derived from BCR-ABL mice. We observed responses similar to Δ¹²-PGJ₃ with Δ¹²-PGJ₂ and 15d-PGJ₂, whereas PGJ₂ was largely ineffective (supplemental Figure 3A). In contrast, there was no apoptosis of FV-LSCs treated with 9,10-dihydro-15d-PGJ₂, a 15d-PGJ₂ derivative that lacks an unsaturation at carbon 9 (supplemental Figure 3B). Ex vivo treatment of Sca1⁺GFP⁺Kit⁺BCR-ABL⁺ LSCs sorted from the spleens of transplanted mice with 25-1000nM Δ¹²-PGJ₃ or 15d-PGJ₂ significantly increased their apoptosis; whereas 9,10-dihydro-15d-PGJ₂ was ineffective even at high concentrations up to 1μM (supplemental Figure 3C). Whereas all of these studies clearly demonstrated the proapoptotic ability of Δ¹²-PGJ₃, we next examined if Δ¹²-PGJ₃ modulated NF-κB or PPARγ, which has been shown to be the mechanism by which 15d-PGJ₂ induces apoptosis.^11,12  Δ¹²-PGJ₃ did not affect the NF-κB pathway, as seen by gel-shift analysis at concentrations in high-nanomolar range in LPS-treated RAW264.7 cells (supplemental Figure 4A). Furthermore, analysis of the NF-κB activation in sorted BCR-ABL⁺LSCs treated with Δ¹²-PGJ₃ by EMSA and Western blotting of nuclear extracts also demonstrated lack of activation of NF-κB (supplemental Figure 4B). In addition, Δ¹²-PGJ₃ was unable to activate PPARγ in reporter assays at nanomolar concentrations that caused apoptosis of LSCs (supplemental Figure 4C). Similarly, treatment of FV-LSCs with rosiglitazone, a synthetic agonist of PPARγ,²⁸  did not affect proliferation of LSCs, indicating that the apoptotic pathway did not involve PPARγ (supplemental Figure 3B inset). Our data indicate that an alkylidenecyclopentenone structure in CyPGs is absolutely essential to effectively inducing apoptosis of LSCs from 2 murine models of leukemia by a mechanism that does not involve PPARγ or NF-κB.

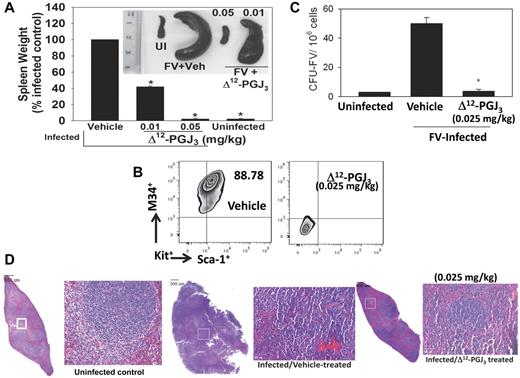

Given the potent proapoptotic potential of Δ¹²-PGJ₃ on LSCs in vitro, we tested the ability of Δ¹²-PGJ₃ to ablate LSCs in FV-infected leukemic mice. Seven days after infection with FV, the mice were treated with Δ¹²-PGJ₃ at 0.01and 0.05 mg/kg/d for an additional week and then euthanized on day 14. Compared with the vehicle-treated mice, FV-infected mice treated with Δ¹²-PGJ₃ at 0.05 mg/kg (Figure 2A) and 0.1 mg/kg (data not shown) showed no signs of splenomegaly. Although 0.01 mg/kg treatment did not completely ablate splenomegaly, there was a significant reduction (∼ 50%; Figure 2A). A similar trend was seen with 15d-PGJ₂ (supplemental Figure 5B); whereas 9,10-dihydro-15d-PGJ₂ did not have any effect on the amelioration of splenomegaly (supplemental Figure 5B). Flow cytometric analysis clearly demonstrated that Δ¹²-PGJ₃ (0.025 mg/kg) completely eradicated the Sca1⁺Kit⁺M34⁺Ter119^lo cells in the spleen (Figure 2B), which represents the LSC population (S.H., P.H., and R.F.P., unpublished data). Identical results were obtained with 15d-PGJ₂, whereas 9,10-dihydro-15d-PGJ₂ treatment was ineffective (supplemental Figures 5 and 6). In agreement with the absence of splenomegaly and complete ablation of LSCs, total leukocyte and reticulocyte counts were decreased to normal levels in Δ¹²-PGJ₃–treated (supplemental Figure 5A) and 15d-PGJ₂–treated mice (supplemental Figure 5C). Previous studies showed that transformed leukemia cells form FV-CFUs that exhibit factor-independent growth that can be measured by plating infected spleen cells in methylcellulose medium without growth factors.²⁴  FV-CFU in the Δ¹²-PGJ₃–treated mice was completely reduced to background levels, similar to those in the uninfected mice (Figure 2C). Histological examination of vehicle-treated, FV-infected spleens showed complete effacement of splenic architecture as a result of infiltration of leukemic blasts, with erythroid progenitor expansion replacing the sinusoids (Figure 2D). Consistent with the results of decreased splenomegaly, treatment of FV-infected mice with Δ¹²-PGJ₃ led to the better demarcation of periarteriolar lymphoid tissue (Figure 2D). The erythroid progenitor cells were substantially lower, and a few giant cells were seen accompanied by an increase in the number of apoptotic bodies with increased individual tumor cell necrosis in the CyPG-treated group compared with the vehicle-treated, FV-infected group (Figure 2D). CyPG treatment of FV-infected mice restored the splenic architecture, with well-defined red and white pulp regions, as in the uninfected mice.

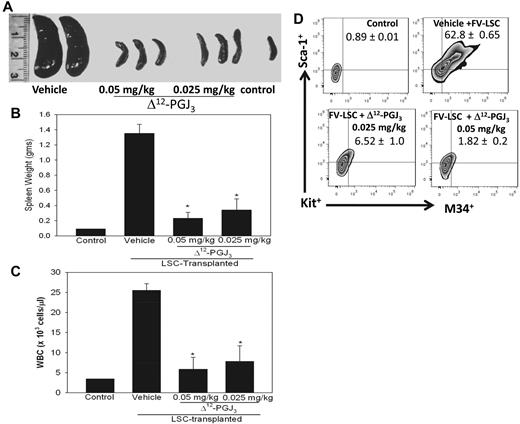

To rule out the possibility that Δ¹²-PGJ₃ blocks FV-induced leukemia by inhibiting viral replication, a second model of FV-induced leukemia was used in which the FV-LSCs were transplanted into Stk^−/− mice. Short-form Stk (Sf-Stk), a naturally occurring truncated form of Stk/Ron receptor tyrosine kinase, is encoded by the FV-susceptibility locus 2 (Fv2).²⁹ Fv2-resistant mice express low levels of Sf-Stk, which fails to support the proliferation of infected cells.^25,29,30  Therefore, transplantation of FV-LSCs into Stk^−/− mice results in leukemia caused by the expansion of donor cells and not by the spread of viral infection. LSCs generated from wild-type mice were transplanted into syngeneic Stk^−/− mice. Treatment with Δ¹²-PGJ₃ (at 0.025 and 0.05 mg/kg) led to significantly decreased splenomegaly with a concomitant decrease in leukocyte counts (Figure 3A-C). Flow cytometric analysis of LSCs in the spleens of transplanted Stk^−/− mice indicated complete ablation of M34⁺Sca1⁺Kit⁺ cells upon treatment with Δ¹²-PGJ₃ (Figure 3D), whereas LSCs from Stk^−/− mice treated with 9,10-dihydro-15d-PGJ₂ or vehicle did not have any effect on their viability and did not alleviate splenomegaly (supplemental Figure 7). Treatment of FV-induced leukemia with Δ¹²-PGJ₃ or 15d-PGJ₂ significantly decreased the hematocrit, WBC counts, and reticulocyte counts, which are all hallmarks of leukemia, whereas 9,10-dihydro-15d-PGJ₂ had no effect on any parameter tested (Figure 3C and supplemental Figure 5C).

Our in vitro studies (Figure 1) showed that Δ¹²-PGJ₃ treatment caused apoptosis of BCR-ABL⁺LSCs but not the normal HSCs (MSCV-GFP⁺ HSCs). We also examined the antileukemic activity of Δ¹²-PGJ₃ in BCR-ABL mice, which is a model for the chronic phase of CML.¹⁷  As shown in Figure 4, treatment of mice transplanted with BCR-ABL⁺ LSCs with 0.05 mg/kg of Δ¹²-PGJ₃ for 1 week completely alleviated splenomegaly with spleen weights close to those transplanted with the MSCV-GFP⁺ HSCs (Figure 4A). Furthermore, Δ¹²-PGJ₃ treatment also significantly decreased the leukocyte counts in the peripheral blood (Figure 4B), decreased Kit⁺Sca1⁺ GFP⁺ LSCs in the spleen (Figure 4C), and eradicated Kit⁺Sca1⁺Lin⁻GFP⁺ LSCs in the BM of the BCR-ABL⁺ LSC–transplanted mice (Figure 4D). More importantly, treatment of BCR-ABL⁺ LSC–transplanted mice with Δ¹²-PGJ₃ rescued all of the mice, whereas those treated with vehicle died 2 weeks after transplantation of LSCs (Figure 4E). In contrast, treatment of mice transplanted with MSCV-GFP⁺ HSC with Δ¹²-PGJ₃ had no effect on WBC counts, other hematologic parameters, or survival, suggesting that Δ¹²-PGJ₃ does not affect steady-state hematopoiesis (Figure 4E). To further demonstrate that Δ¹²-PGJ₃ does not affect normal hematopoietic differentiation, we next tested whether Δ¹²-PGJ₃ treatment had an adverse effect on hematopoietic progenitors by testing its effect on colony-forming ability in CFC assays. BM from 5-FU–treated mice was plated in methylcellulose medium containing multiple cytokines in the absence or presence of 25nM Δ¹²-PGJ₃. There was no difference in the number of CFCs in Δ¹²-PGJ₃–treated compared with control (PBS)–treated cells (Figure 4F).

To confirm that Δ¹²-PGJ₃ had eradicated LSCs, we performed secondary transplantations using splenocytes from Δ¹²-PGJ₃– or vehicle-treated BCR-ABL mice. The original donor MIGR–BCR-ABL–transduced BM cells were marked with CD45.1⁺, whereas the primary and secondary recipients were CD45.2⁺. Secondary transplantations that received donor cells from vehicle-treated mice rapidly developed splenomegaly and high WBC counts, which are indicative of leukemia. In contrast, second recipients of donor cells from Δ¹²-PGJ₃–treated mice failed to develop splenomegaly or high WBC counts (Figure 5A). Further analysis of spleens for LSCs showed that recipients of donor cells from Δ¹²-PGJ₃–treated mice lacked Kit⁺Sca1⁺GFP⁺ cells. In addition, analysis of CD45.1 expression also showed that CD45.1⁺ donor cells were not present in the spleen (Figure 5C). Secondary recipients of donor cells from vehicle-treated mice exhibited large numbers of donor-derived Kit⁺Sca1⁺GFP⁺ and CD45.1⁺ donor cells in their spleens (Figure 5B-C). We performed similar secondary transplantation experiments with donor spleen cells isolated from FV-LSC–transplanted BALB/c-Stk^−/− mice treated with Δ¹²-PGJ₃ or vehicle. Similar to the BCR-ABL secondary transplantations, mice receiving donor cells from Δ¹²-PGJ₃–treated mice failed to develop splenomegaly or high WBC counts and lacked LSCs in their spleens (Figure 5D-E). These data clearly demonstrate the ability of Δ¹²-PGJ₃ to eradicate LSCs in 2 diverse murine models of myeloid leukemia.

Ex vivo treatment of sorted LSCs from FV-infected mice with 10 or 25nM Δ¹²-PGJ₃ for 12 hours led to significant up-regulation of p53 expression at the transcript level (Figure 6A). Treatment of LSCs with 15d-PGJ₂ also showed a similar trend, whereas 9,10-dihydro-15d-PGJ₂ was ineffective (Figure 6A). Interestingly, PGJ₂ treatment up-regulated the expression of p53 to only a minor degree, not to the extent observed with other CyPGs. However, preincubation of PGJ₂ with medium (at 37°C) for 42 hours before the addition of LSCs led to increased expression of p53, which suggests a time-dependent isomerization event that possibly converts PGJ₂ (Δ¹³-PGJ₂) to Δ¹²-PGJ₂ or 15d-PGJ₂ and PGJ₃ (Δ¹³-PGJ₃) to Δ¹²-PGJ₃ or 15d-PGJ₃, which makes the latter metabolites more potent than the precursor (Figure 1E). Treatment of BCR-ABL⁺ LSCs ex vivo with Δ¹²-PGJ₃ or 15d-PGJ₂ (25nM) also led to a similar increase in p53 mRNA, whereas 9,10-dihydro-15d-PGJ₂ treatment was ineffective (Figure 6B). Time-course analysis showed that p53 transcript levels rapidly increased after treatment of FV-LSCs ex vivo with Δ¹²-PGJ₃ such that by 12 hours, maximal p53 expression was observed (Figure 6C). Analysis of p53 expression in total spleens of uninfected and vehicle-treated, FV-infected mice clearly showed no increase; however, Δ¹²-PGJ₃–treated mice (treated for 1 week) showed a significant expression of p53 in the spleen (Figure 6D). Similarly, we observed an increase in the nuclear levels of p53 protein in sorted LSCs treated with Δ¹²-PGJ₃ for 12 hours, but not in the untreated or vehicle-treated cells (Figure 6E). To confirm the role of p53 as a critical mediator of Δ¹²-PGJ₃–dependent LSC apoptosis, we examined the proapoptotic role of CyPGs in MEL cells that lack functional p53. MEL cells are derived from FV-CFUs that have been expanded into a cell line. Treatment of MEL cells with Δ¹²-PGJ₃ failed to initiate apoptosis (Figure 6F). MEL cells exhibited sensitivity to treatment with antileukemic drugs such as daunorubicin, mitoxantrone, and cytarabine (supplemental Figure 8), but not to nutlin, a small-molecule inhibitor of the MDM2-p53 interaction that causes reactivation of p53. These studies confirm the role of Δ¹²-PGJ₃–dependent activation of the p53 pathway in apoptosis of LSCs.

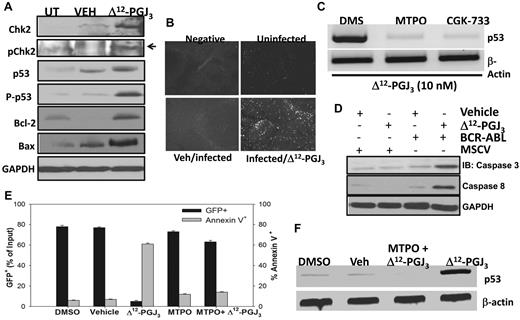

The activation of p53 activity is known to be regulated by an ATM-dependent signaling pathway.^31-33  We next examined whether ATM played a critical role in the proapoptotic activity of Δ¹²-PGJ₃. In addition to increased phosphorylated-p53 protein, we observed an increase in the levels of pChk2 only in the total spleen extracts from the Δ¹²-PGJ₃–treated mice transplanted with FV-LSCs (Figure 7A). TUNEL staining of splenic sections from FV-infected mice showed increased apoptosis only in the Δ¹²-PGJ₃–treated group (Figure 7B). In agreement with the TUNEL staining results, we observed activation of Bax, a downstream mediator of apoptosis in the spleens of Δ¹²-PGJ₃–treated, FV-infected mice, but not in vehicle-treated, FV-infected mice (Figure 7A). These experiments suggested the involvement of the ATM-p53 signaling axis in promoting Δ¹²-PGJ₃–dependent apoptosis. To further confirm the involvement of ATM, we used 2 well-characterized inhibitors of ATM. Preincubation of sorted FV-LSCs ex vivo with a high-affinity inhibitor of ATM (MTPO), as well as a dual inhibitor of ATM and the related ATR kinase (CGK-733), followed by treatment with Δ¹²-PGJ₃ blocked the CyPG-dependent expression of p53, which indicated that ATM served as a critical mediator of apoptosis by Δ¹²-PGJ₃ (Figure 7C). Similar to what we observed with FV, treatment of BCR-ABL⁺ LSCs (Kit⁺Sca1⁺Lin⁻GFP⁺) with 25nM Δ¹²-PGJ₃ led to a significant increase in apoptosis, as seen by increased annexin V staining and Western blot analysis of caspase 3 and caspase 8 activation (Figure 7D). Δ¹²-PGJ₃ treatment led to an increase in p53 transcription, whereas there was a concomitant decrease in GFP⁺ cells (Figure 7E). Similar to what we observed in FV-LSCs, pretreatment of these cells with MTPO blocked the effect of Δ¹²-PGJ₃ on apoptosis and the induction of p53 expression (Figure 7F).

Previous animal and human studies have documented an important role of n-3 PUFAs in their ability to affect cancer cell growth, slow histopathological progression, and increase survival.³⁴  Recent studies have shown that metabolites of n-3 PUFAs, such as resolvins, are capable of promoting resolution of inflammation by limiting leukocyte infiltration while coordinating inflammatory cell efflux.³⁵  In the present study, we demonstrate the metabolism of EPA-derived PGD₃ to cyclopentenone PGJ₃, Δ¹²-PGJ₃, and 15d-PGJ₃ in macrophages. Of these stable metabolites that were detected in the macrophage culture medium, only Δ¹²-PGJ₃, and 15d-PGJ₃ targeted LSCs for apoptosis in an FV-induced leukemia and a BCR-ABL⁺ retrovirus-based murine model of CML. In contrast, EPA and PGJ₃ were ineffective. These data suggest a structure-function relationship in the form of an alkylidenecyclopentenone structure with an unsaturation at carbon 12 as a critical requirement for the apoptotic activity of CyPGs.

Our data demonstrating the endogenous production of PGD₃ and Δ¹²-PGJ₃ in EPA-treated macrophages and the in vitro conversion of PGD₃ to Δ¹²-PGJ₃ in the presence of serum (Figure 1 and supplemental Figure 1E) are consistent with previous reports of the metabolism of EPA to PGD₃ in the uvea and serum of human subjects consuming fish oil supplements.^36-38  These observations stress the important question of whether sufficient quantities of Δ¹²-PGJ₃ are formed in vivo to exert any biologic activity, such as the apoptosis of LSCs. Indeed, based on LC-MS/MS studies, a sufficient quantity of Δ¹²-PGJ₃ (∼ 0.15μM/10⁶ macrophages) was produced by macrophages, which was well within the concentration required to cause apoptosis of LSCs (IC₅₀ = 7nM). Despite its proapoptotic effects on LSCs, Δ¹²-PGJ₃ had no adverse effects on HSCs or downstream progenitors. Interestingly, previous studies have demonstrated that many immune cells, including macrophages and T cells, express the 2 major enzymes, COX-2 and H-PGDS,²⁶  which are critical for the production of Δ¹²-PGJ₃. In fact, the inability of EPA to cause any apoptosis of LSCs in vitro suggests that LSCs may not be the main source of Δ¹²-PGJ₃. Alternatively, splenic tissue, which is rich in monocytes and T cells, also expresses high amounts of H-PGDS³⁹  that may aid in the metabolism of dietary EPA to Δ¹²-PGJ₃ to activate proapoptotic pathways in LSCs in a paracrine mechanism.

Our studies indicate that LSCs exhibit increased sensitivity to Δ¹²-PGJ₃ and other related CyPGs in a stereoselective manner. The induction of apoptosis in LSCs by these endogenous metabolites requires the ATM/p53–signaling axis, which causes complete ablation of leukemia in vivo, as seen in 2 different mouse models of leukemia. Our data show that CyPG treatment eliminates LSCs to such an extent that no LSC activity is observed on secondary transplantation. There have been several reports on the induction of apoptosis by 15d-PGJ₂ treatment in immortalized leukemic cell lines, in which the increased production of reactive oxygen species is implicated.⁴⁰  However, at the concentrations of Δ¹²-PGJ₃ used in this investigation, which are several orders of magnitude less than those known to cause oxidative stress, we did not observe any induction of reactive oxygen species in the primary LSCs (data not shown). Moreover, the observed differences in the proapoptotic potential of PGJ₃ and Δ¹²-PGJ₃ (15d-PGJ₃), which are both electrophiles capable of interacting with cellular thiol-containing nucleophiles, also invoke other mechanisms. We have also considered the likelihood of a high-affinity CyPG-target protein specifically expressed in LSCs that mediates their selective apoptosis; this is currently being investigated and the results will be reported in the future. It is also possible that CyPG could activate ATM in a DNA damage–independent mechanism by covalently interacting with the Cys thiols present in the dimer interface of ATM. Such an interaction could activate the intrinsic kinase activity, leading to autophosphorylation and dissociation of the dimeric ATM molecule and to the phosphorylation of other downstream substrates such as Chk2 and p53. Increased phosphorylated p53, formed as a result of increased ATM activity, then activates transcription of p53 in a feed-forward loop to increase total p53 levels, which is in contrast to the ability of 15d-PGJ₂ to stabilize and functionally inactivate p53 by covalent modification of specific cysteine thiols in human MCF-7 breast cancer cells, albeit at high concentrations.⁴¹  Previous studies by Kobayashi et al¹⁰  have shown that the covalent modification of ATM by CyPG activated the enzyme; however, key residues involved in the interaction have not been identified and further work may shed more light on the mechanism of its activation by low concentrations of Δ¹²-PGJ₃ and other related CyPGs. Therefore, our studies support the role of ATM as an important mediator of the electrophilic “stress” response pathway in LSCs.

In summary, we demonstrate the ability of macrophages to produce endogenous Δ¹²-PGJ₃ that displays potent proapoptotic activity toward LSCs in 2 murine models of leukemia by activating the ATM-p53 pathway of apoptosis. IP administration of Δ¹²-PGJ₃ eradicated LSCs in a BCR-ABL retroviral model of CML, with no relapse noted 5 weeks after administration of the last dose of Δ¹²-PGJ₃. In contrast, vehicle-treated mice transplanted with LSCs failed to survive past day 16 after transplantation (Figure 4F). Current anticancer therapies are ineffective against LSCs; therefore, the ability of a stable endogenous metabolite to ablate LSCs identifies it as a potential therapy. In addition, these results indicate that Δ¹²-PGJ₃, derived from dietary n-3 PUFAs, has the potential to serve as a chemopreventive agent in the treatment of leukemia.

The authors thank Charanjeet Singh (University of Minnesota, Minneapolis-St Paul, MN) for help with histological evaluation; Robert Murphy (University of Colorado, Denver, CO) for suggestions on the spectroscopic characterization of CyPGs; Thomas Loughran (Pennsylvania State University Cancer Institute, Hershey, PA) for the gift of daunorubicin, mitoxantrone, and cytarabine; Ross Hardison (The Pennsylvania State University, University Park, PA) for the gift of MEL cells; and Warren Pear (University of Pennsylvania, Philadelphia, PA) for the MIGR–BCR-ABL and control MSCV-GFP retroviruses.

These studies were funded in part by US Public Health Service grants (R01-DK077152 and R21-AT004350 to K.S.P., R01-DK080040 to R.F.P., and R01-HL66471 to P.H.) from the National Institutes of Health.

National Institutes of Health

Contribution: S.H., N.K., C.C., R.F.P., J.P.v.d.H., and K.S.P. designed the research; S.H., N.K., C.C., K.C.R., K.T.H., U.H.G., and J.T.T. performed the research; S.H., N.K., C.C., K.C.R., M.J.K., P.H., R.F.P., J.T.T., J.P.v.d.H., and K.S.P. analyzed the data; and R.F.P. and K.S.P. wrote the manuscript.

Conflict-of-interest disclosure: The authors declare no competing financial interests.

Correspondence: Robert F. Paulson or K. Sandeep Prabhu, 115 Henning Bldg, Dept of Veterinary and Biomedical Sciences, The Pennsylvania State University, University Park, PA 16802; e-mail: rfp5@psu.edu or ksprabhu@psu.edu.
