SAP gene transfer restores cellular and humoral immune function in a murine model of X-linked lymphoproliferative disease

X-linked lymphoproliferative disease (XLP1) arises from mutations in the SH2D1A gene, which codes for an intracellular adaptor protein (termed SAP [SLAM-associated protein]) expressed predominantly in T and NK cells.^1,2  The lack of SAP results in defective T- and NK-cell cytotoxicity, NKT-cell development, and CD4 T follicular cell (T^FH) help (reviewed in Ma et al³ ). The clinical phenotype is characterized by severe immunedysregulation including development of lymphoma, T-cell activation defects, and abnormalities in immunoglobulin production and T-dependent humoral immunity.^4,5  Similar immune defects are seen in SAP-deficient murine models.^6-8

The only curative option for XLP1 is allogeneic hematopoietic stem cell (HSC) transplantation, which has high mortality in the mismatched donor setting.^5,9  Gene therapy using viral vector–mediated gene transfer into autologous HSCs is curative in several severe monogenic immunodeficiencies.^10-14  To determine whether gene therapy is a possible treatment option for XLP1, we investigated whether SAP gene transfer in HSCs could correct the multiple immunologic abnormalities seen in SAP-deficient mice.

SAP-deficient mice (SAP^−/−) have been previously described.⁷  Animal experiments were performed under an Institutional United Kingdom Home Office license.

Lineage-negative (Lin⁻) cells were isolated from SAP^−/− bone marrow cells using MACS Lineage Cell Depletion Kits (Miltenyi Biotec). Lin⁻ cells were infected overnight at an MOI of 100 according to previously described protocols.¹⁵

SAP^−/− mice were lethally irradiated (1100 rad in a split dose over 2 days). A total of 3 × 10⁵ Lin⁻ cells were injected into tail veins of the recipient mice. Data from 2 separate experiments including 9 wild-type, 6 SAP^−/− controls, 8 EFSeGFP (elongation factor 1 α promoter [EFS] control vector encoding enhanced green fluorescent protein [eGFP] alone), and 9 EFS-SAPeGFP (EFS–codon-optimized human SAP cDNA linked to the eGFP gene) reconstituted animals were combined to generate the results. Immunization with NP-CGG [(4-hydroxy-3-nitrophenyl)acetyl-chicken γ-globulin] was carried out in 1 experiment (see also supplemental Methods, available on the Blood Web site; see the Supplemental Materials link at the top of the online article).

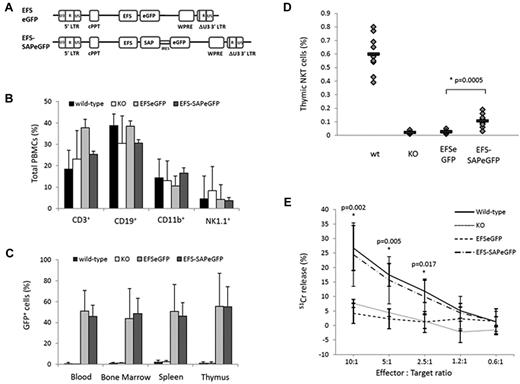

We generated lentiviral vectors encoding the shortened form of the EFS driving the transcription of either EFS-SAPeGFP or EFSeGFP (Figure 1A). Lin⁻ cells from SAP^−/− donor mice were transduced with either EFS-SAPeGFP or EFSeGFP and transplanted into lethally irradiated SAP^−/− recipients. Transduction efficiencies for both vectors were similar with eGFP expression of 64% and 66% for EFS-SAPeGFP and EFSeGFP, respectively (supplemental Figure 1). Reconstituted animals were analyzed at 13 weeks after transplantation and compared with SAP^−/− mice and C57BL/6 wild-type (WT) littermates. The recovery of different immune cell lineages in the periphery was similar in all 4 study groups (Figure 1B). Similarly, after lin⁻ cell transduction and plating in semisolid media, there was no difference between EFS-SAPeGFP and EFSeGFP cells in the number and type of colony forming units seen (supplemental Figure 2). Together, these data suggest that SAP gene transfer into murine progenitors does not affect lineage-specific development.

After reconstitution at 13 weeks, expression of eGFP in the peripheral blood, bone marrow, spleen, or thymus of either EFS-SAPeGFP or EFSeGFP reconstituted mice was approximately 40%-50% with no significant difference between the 2 groups (Figure 1C). The vector copy number in PBMCs was found to be at mean levels of 1.7 vector copies per cell (range, 0.2-5.4) in EFS-eGFP mice and 2.8 vector copies per cell (range, 0.6-4.6) in EFS-SAPeGFP mice (supplemental Figure 3A). SAP protein expression was clearly visible in all tissues from mice reconstituted with EFS-SAPeGFP–transduced cells (supplemental Figure 3B). To compare the level of SAP expression in EFS-SAPeGFP–transduced cells, we also measured intracellular expression of SAP using the same antibody in normal human PBMCs (supplemental Figure 3C). The level of SAP expression in corrected PBMCs from EFS-SAPeGFP mice is comparable with that seen in normal human PBMCs.

Analysis of thymic NKT-cell development in the thymus by flow cytometry using NK1.1 and TCRβ antibodies showed a significant increase in NKT-cell numbers in EFS-SAPeGFP mice in comparison to EFSeGFP or SAP^−/− controls although total numbers were decreased in comparison to WT mice (Figure 1D and representative flow cytometry in supplementary Figure 4A). Analysis of the NKT-cell population showed that in comparison to the overall population of PBMCs, the majority (> 70%) of these cells were eGFP positive (supplemental Figure 4B left panel). In contrast, in other cell lineages in the peripheral blood, eGFP expression after EFS-SAPeGFP transfer was less than 50% and no different to mice transduced with EFSeGFP only vector, suggesting that only NKT-cell development was particularly dependent on successful SAP gene correction (supplemental Figure 4B right panel). Intrathymic T-cell development in terms of proportions of double-negative, double-positive, and single-positive CD4 and CD8 thymocytes was similar in WT and in gene-corrected mice (supplemental Figure 4C). Analysis of splenic NK-cell cytotoxicity against RMA/S target cells in EFS-SAPeGFP mice showed similar levels of cytotoxicity to WT NK cells and significantly increased activity compared with either EFSeGFP reconstituted mice or SAP^−/− controls (Figure 1E). These data demonstrate that SAP gene transfer allows correction of both developmental and functional cellular defects seen in SAP^−/− mice.

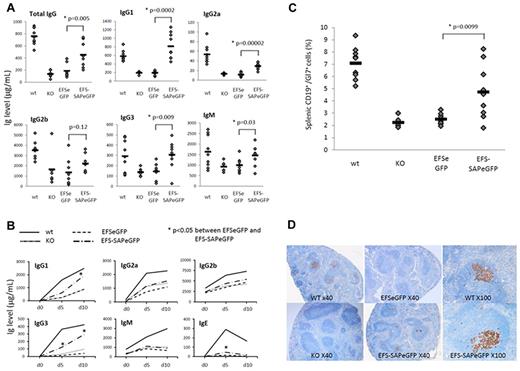

More than 50% of XLP1 patients have abnormalities of immunoglobulin production and this is the most common phenotype.⁵  In SAP^−/− mice, baseline immunoglobulin production is abnormal with decreased production of total IgG, IgM, and IgG subclasses.⁷  At 13 weeks after transplantation, EFS-SAPeGFP reconstituted mice demonstrated significantly increased mean levels of basal IgG, IgM, IgG1, IgG2a, and IgG3 in comparison to EFSeGFP reconstituted mice and SAP^−/− controls (Figure 2A). Levels of IgG1, IgG3, and IgM in EFS-SAPeGFP reconstituted mice were comparable with that seen in WT mice. After challenge with the T-dependent antigen NP-CGG, EFS-SAPeGFP reconstituted mice demonstrated significantly increased levels of IgG1 and IgG3 NP-specific antibody in comparison to EFSeGFP or SAP^−/− controls (Figure 2B). In spleens of challenged mice, germinal center formation as evidenced by Gl7 expression on splenic CD19⁺ B cells was significantly increased in comparison to EFSeGFP reconstituted mice and SAP^−/− controls (Figure 2C). In support of this, immunohistochemical staining of spleens with the germinal center B-cell marker PNA (peanut agglutinin) showed positive staining in WT and EFS-SAPeGFP reconstituted mice whereas little or no staining was visible in EFSeGFP reconstituted mice and SAP^−/− controls (Figure 2D). Specific EFS-SAPeGFP reconstituted follicles showed germinal center peanut agglutinin (PNA) staining equivalent to WT mice (Figure 2D, ×100 magnifications).

We also performed transplantation experiments using bone marrow from WT SAP^+/+ mice transplanted into lethally irradiated SAP^−/− mice. These studies showed very similar results to the gene transfer experiments with full recovery of NK-cell cytotoxicity and partial recovery of NKT-cell development and immunoglobulin production (supplemental Figure 5).

Together, these data demonstrate that SAP gene transfer into SAP^−/− HSCs is able to reconstitute major defects in cellular and humoral immunity seen in SAP^−/− mice. The mechanisms of reconstitution after gene transfer are due to the expression of SAP in several specific cell lineages, which now allows SAP interaction with specific SLAM family receptors, especially 2B4 and Ly108. In thymic NKT-cell development, SAP gene expression is required in thymocyte-thymocyte interactions and acts to propagate positive signals and also to inhibit negative signaling through Ly108.^16,17  The observed generation of T-dependent immune responses is most likely related to the development of SAP-expressing CD4 germinal center T^FH cells¹⁸  which now allows formation of stable conjugates with B cells to allow germinal center formation and specific antibody production.^17,19  Full restoration of cytotoxic function in NK cells is again dependent on SAP expression and its role in controlling positive and negative signaling through 2B4.²⁰  Thus, HSC gene transfer provides multilineage SAP expression to correct the different immunologic defects.

The reason for incomplete immune recovery seen in NKT-cell development and immunoglobulin production is not clear, but seems unlikely to be related to efficiency of gene transfer because copy numbers in PBMCs were not low (mean level of 2.8 vector copies per cell), and the level of SAP expression in the transduced murine PBMCs was comparable with that seen in normal human PBMCs. However, it is possible that human SAP does not function optimally in a murine cell background. In addition, WT transplantation experiments into SAP-deficient mice result in similar patterns of immune recovery suggesting that there may be preexisting microenvironmental deficits that are not easily corrected by reconstitution of adult mice, or that extended time periods are necessary for full correction to be achieved.

The EFS-SAPeGFP vector used in this study constitutively expresses SAP, which may not be desirable given that SAP is not physiologically expressed in specific cell types including HSCs and B cells. However, we did not see any detrimental effect on HSC function and lineage-specific development. The generation of vectors with physiologically regulated SAP gene expression may allow a fuller correction of the phenotype and may offset safety concerns and are under current development. Nevertheless, this study demonstrates for the first time a proof of concept for a HSC gene strategy approach for correction of the different immunologic abnormalities seen in XLP1. These data are important in showing that HSC gene transfer can rescue T-cell help and may be important in development of gene therapy for other immunodeficiencies such as CD40 ligand deficiency or inducible T-cell costimulator deficiency.
