Inhibition of Eosinophil Rolling and Recruitment in P-Selectin– and Intracellular Adhesion Molecule-1–Deficient Mice

P-selectin–deficient, ICAM-1–deficient, P-selectin/ICAM-1 double-mutant, as well as C57BL/6 background control wild-type female mice aged 8 to 10 weeks were purchased from Jackson Laboratories (Bar Harbor, ME). The above-noted mice were developed by Dr Arthur Beaudet (Department of Molecular Genetics, Baylor College of Medicine, Houston, TX) and used previously in studies of neutrophil adhesion in a model of bacterial infection in mice.10

The techniques used for ragweed immunization and challenge are similar to those previously described by other investigators.23-25Previous studies of neutrophil recruitment into the peritoneal cavity in these adhesion molecule-deficient mice were performed 2 to 4 hours after bacterial infection by Bullard et al,10 whereas the studies of eosinophil peritoneal recruitment we describe were performed at a later time point optimal for evaluation of eosinophil recruitment (24 to 48 hours after allergen challenge). Mice are immunized by a series of five injections of a 1:1,000 dilution of a ragweed pollen extract (Miles Inc, Spokane, WA): 0.1 mL is injected subcutaneously on days 0 and 1, and 0.2 mL is injected subcutaneously on days 6, 8, and 14. A control group of ragweed immunized mice (challenged with phosphate-buffered saline [PBS] diluent) and nonimmunized mice (prepared by subcutaneous injections of isotonic saline instead of the ragweed pollen extract) follow the same immunization schedule. Three to five mice are included in each group of mice studied. The mice are challenged on day 20 by the intraperitoneal injection of 0.2 mL of the ragweed allergen (or control PBS diluent).

To determine whether wild-type and adhesion molecule-deficient mice were equivalently sensitized to allergen, immediate hypersensitivity skin tests were performed. Wild-type and adhesion molecule-deficient mice were sensitized to ragweed as described. On day 20, 50 μL of ragweed antigen or diluent control was injected into the shaved backs of the different groups of mice. Immediately after antigen administration, 200 μL of 1% Evans blue dye was injected into the tail vein of the mice. Blueing of the skin at the antigen challenged (but not diluent challenged) sites occurred within 10 minutes of antigen challenge. The size of the blueing reaction (15 to 20 mm diameter) was not significantly different in wild-type, P-selectin–deficient, or ICAM-1–deficient mice.

In selected experiments to evaluate the contribution of vascular cell adhesion molecule (VCAM) expression to eosinophil recruitment, two groups of P-selectin/ICAM-1 double-mutant mice were immunized over a 14-day period with ragweed allergen as described above. On day 20 of the ragweed sensitization protocol, either a rat IgG1 antimouse VCAM monoclonal antibody (MoAb) mk 2.7 (1 mg/kg body weight; kindly provided by Dr E. Butcher, Stanford, CA)26or a species- and isotype-matched control MoAb was injected intravenously. Two hours after the antibody was administered, the mice were challenged by the intraperitoneal injection of allergen and the number of peritoneal eosinophils was enumerated 48 hours later.

At time points before (day 0) and after immunization, as well as before and 48 hours after intraperitoneal allergen challenge (day 22), the mice were killed by cervical dislocation. Two milliliters of PBS containing 6 U/mL of heparin was injected intraperitoneally, the abdomen was massaged, and the peritoneal infusion was collected after the peritoneum was opened. An appropriate PBS dilution of the recovered peritoneal fluid was added to trypan blue, and the viability and total number of white blood cells were counted with a hemocytometer. Differential leukocyte counts were performed after brief acetone fixation and staining of the peritoneal cells with May-Grünwald-Giemsa stains. The percentage of eosinophils present on each slide was assessed by counting a minimum of 300 cells in random high-power fields using a light microscope (40× magnification) to display the slide image on a TV monitor (Videometric 150 image analysis program; American Innovision, San Diego, CA). In addition, because mast cells participate in allergen-induced inflammation, the number of resident peritoneal mast cells was compared in wild-type and adhesion molecule-deficient mice.

In addition to enumerating the number of eosinophils in the peritoneal cavity, EPO, an eosinophil cytoplasmic granule protein, was assayed using the substrate solution O-phenylenediamine dihydrochloride (OPD) and a calorimetric assay.27 Peritoneal cell pellets (10⁵ cells) were lysed in 0.02% CTAB, 0.05% triton and added to 2 mL of assay buffer (0.1 mol/L phosphate buffer, pH 6.8, 8 mmol/L OPD, 0.01% H₂O₂). Reaction volumes were incubated in duplicate for 10 minutes at room temperature and read in a spectrophotometer at 492 nm wavelength (Shimadza UV160U, Tokyo, Japan).

Adhesion molecule-deficient or control wild-type mice (25 to 35 g body weight) were anesthetized with a subcutaneous injection of saline solution containing a cocktail of ketamine hydrochloride and Xylazine (7.5 mg and 2.5 mg, respectively, per 100 mg body weight). The mice were then placed on a heating pad maintained at 37°C. A midline incision was made and the mesentery was gently exteriorized and spread on a heated glass window (37.5°C) of the stage of a Leitz intravital microscope (Wetzlar, Germany). The exteriorized portion of mouse mesentery was kept continuously moist with endotoxin-free isotonic saline solution (pH 7.4). Other parts of the intestine that were exposed but not microscopically observed were kept moist with isotonic saline-soaked cotton pads and the mesentery was covered with Saran Wrap. To minimize endotoxin contamination, Saran Wrap (Dow Brands LP, Indianapolis, IN) was presoaked with 1% E-Toxa-Clean (Sigma Chemical Co, St Louis, MO) overnight, followed by rinsing in 70% ethanol and endotoxin-free distilled water and a final wash with sterile isotonic saline solution.

The passage of circulating leukocytes in the peritoneal microcirculation was made visible by transillumination using a Nikon 10× (numerical aperture [NA], 0.30), 20× (NA, 0.40), or 40× (NA, 0.55) water immersion objective (Melville, NY), as previously described.2,28 All microscopic images were recorded through a silicon-intensified tube camera (SIT68; Dage-MTI, Michigan City, IN) attached to the microscope and connected to a Sony monitor (Tokyo, Japan) and an SVHS video recorder (JVC HR-S66004) for off-line analysis of eosinophil rolling. Video recordings of different postcapillary and collecting venules (range, 20 to 65 μm) were analyzed for assessment of rolling and adhesion of leukocytes as previously described.2 28 Rolling leukocytes were quantitated by counting the number of cells interacting with the vessel wall in 1 minute in a plane perpendicular to a vessel axis, whereas those cells that were found to be stationary for at least 1 minute were considered as adherent or sticking cells. All studies were conducted between 0 to 1 hour after exteriorization of the mouse mesentery.

In selected experiments, mouse eosinophils of greater than 90% purity and greater than 98% viability were purified from IL-5 transgenic mice, kindly provided by Dr Colin Sanderson (Perth, Australia).29 IL-5 transgenic mice (age, 10 weeks old) have peripheral blood leukocyte differential cell counts exhibiting 42% ± 12% peripheral blood eosinophilia (n = 3). The contaminating white blood cells comprise 44% T lymphocytes, 2% mononuclear cells, and 10% neutrophils. To purify the eosinophils, we diluted blood drawn from six IL-5 transgenic mice 1:1 in PBS, 0.1 mmol/L EDTA and layered it onto a discontinuous density gradient of percoll (1.075, 1.080, 1.085, 1.090, and 1.095). Eosinophils (85% to 95% pure; 98% viable) banded between the 1.085 and 1.090 layers. Fluorescence-activated cell sorting analysis showed that the purified eosinophils expressed L-selectin, as well as α4 and β2 integrin cell surface receptors (data not shown).

Eosinophils with at least 98% viability and greater than 90% purity were selected and labeled with carboxy fluorescein diacetate (CFDA; Molecular Probes, Eugene, OR) as previously described for human eosinophils and murine mast cells.2 28 CFDA-labeled eosinophils were resuspended at a concentration of 0.5 × 10⁷ cells/200 μL of PBS containing 0.01% glucose and kept at room temperature in the dark until used. Eosinophils were then injected into the tail vein of mice previously sensitized with ragweed allergen and challenged 24 hours before surgery with either ragweed or saline and observed by intravital fluorescence microscopy. All studies were conducted between 0 and 1 hour after exteriorization of the mouse mesentery.

The rolling of mouse eosinophils in mesenteric venules was made visible by stroboscopic epi-illumination using a video-triggered Xenon lamp (Chadwick Helmuth, El Monte, CA) and Leitz Ploemopak epi-illuminator employing an I2 filter block (Wetzlar, Germany). All images were recorded through a silicon-intensified tube camera (SIT68; Dage MTI, Michigan City, IN) using a 10× or 20× water immersion objective (Nikon), as described previously.2 The rolling fraction (Rf) and the rolling velocity of CFDA-labeled mouse eosinophils in ragweed and diluent PBS challenged mice (wild-type control and P-selectin–deficient mice) was determined by frame-by-frame analysis, as previously described.2 28

The number of eosinophils and mast cells, as well as EPO levels in peritoneal fluid, were compared by multiple comparisons of paired data by Student's t-test using a statistical software package (In Stat, San Diego, CA). P values of less than .05 were considered to be statistically significant. All results are given as the mean ± standard error of the mean (SEM). Rolling fractions of murine leukocytes and injected eosinophils were compared by multiple comparisons of paired data by Student's t-test using a statistical software package (SigmaStat, Jandel Scientific). Pvalues of less than .05 were considered statistically significant. All results are given as the mean ± standard error (SE).

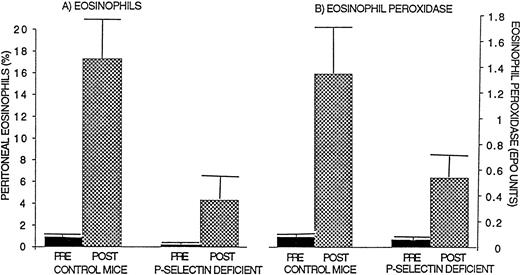

Control wild-type mice (n = 9 mice; 3 separate experiments), when immunized and challenged with ragweed allergen, developed a significant peritoneal cavity eosinophilia (17.3% ± 3.5% eosinophils; Fig 1) compared with wild-type mice that were not challenged with ragweed (0.9% ± 0.4% eosinophils;P = .03) or compared with wild-type mice that were immunized with ragweed and challenged with PBS diluent (2.5% ± 0.8% eosinophils; P = .04). In contrast to control wild-type mice, P-selectin–deficient mice immunized with ragweed developed less peritoneal eosinophilia when challenged with an intraperitoneal injection of ragweed allergen (P-selectin–deficient mice 4.3% ± 2.0% peritoneal eosinophils, ∼75% inhibition compared with ragweed-challenged wild-type mice, P = .005; Fig 1).

There was a trend to an increase in the total leukocyte count in the peritoneal cavity of wild-type mice after, compared with before, allergen challenge (89.4 ± 53.6 × 10⁵ peritoneal cells after allergen; 44.0 ± 14.8 × 10⁵peritoneal cells before allergen; n = 3 experiments; P = .19) and P-selectin–deficient mice (94.8 ± 41.4 × 10⁵peritoneal cells after allergen; 76.6 ± 13.6 × 10⁵ peritoneal cells before allergen; n = 3 experiments;P = .48), but this did not reach statistical significance.

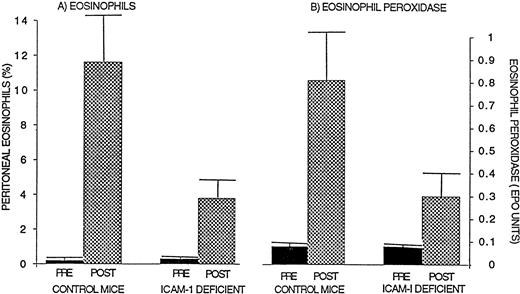

Control wild-type mice (n = 10 mice; 3 separate experiments), when immunized and challenged with ragweed allergen, developed a significant peritoneal cavity eosinophilia (11.6% ± 2.9% eosinophils) compared with wild-type mice that were not challenged with ragweed (0.2% ± 0.1% eosinophils; P = .05) or compared with wild-type mice that were immunized with ragweed and challenged with PBS diluent (1.4% ± 0.6% eosinophils). In contrast to control wild-type mice, ICAM-1–deficient mice immunized with ragweed developed less peritoneal eosinophilia when challenged with an intraperitoneal injection of ragweed allergen (ICAM-1–deficient mice 3.8% ± 1.1% peritoneal eosinophils, ∼67% inhibition compared with ragweed challenged wild-type mice; P = .03; Fig 2).

As with studies of P-selectin–deficient mice, there was a trend to an increase in the total leukocyte count in the peritoneal cavity of wild-type mice after versus before allergen challenge (73.3 ± 50.5 × 10⁵ peritoneal cells after allergen; 34.2 ± 10.2 × 10⁵ peritoneal cells before allergen; n = 3 experiments; P = .22) and ICAM-1–deficient mice (48.9 ± 20.6 × 10⁵ peritoneal cells after allergen; 37.1 ± 7.1 × 10⁵ peritoneal cells before allergen; n = 3 experiments; P = .37), but this did not reach statistical significance.

Because peak eosinophil recruitment in this model of eosinophilic peritonitis occurs from 24 to 72 hours after allergen challenge, our initial studies (reported above) focused on the 48-hour post-allergen challenge time point. We also performed studies of eosinophil recruitment at earlier time points. Control wild-type mice, when immunized and challenged with ragweed allergen, developed a significant peritoneal eosinophilia (18.3% ± 1.7 % eosinophils) 24 hours after allergen challenge compared with ICAM-1–deficient mice (6.3% ± 1.8% eosinophils; P = .01) or compared with P-selectin–deficient mice (5.3% ± 0.6% eosinophils; P = .001). These studies show that there was no significant difference in the degree of inhibition of eosinophil recruitment in ICAM-1–deficient mice at 24 hours after allergen challenge (66% inhibition vwild-type mice) compared with 48 hours after allergen challenge (67% inhibition v wild-type mice). Similarly, our studies of P-selectin–deficient mice showed that there was no significant difference in the degree of inhibition of eosinophil recruitment in P-selectin–deficient mice at 24 hours after allergen challenge (72% inhibition v wild-type mice) compared with 48 hours after allergen challenge (75% inhibition v wild-type mice).

We also performed studies at 12 hours after allergen challenge that are more difficult to interpret because of the very low level of allergen-induced eosinophil recruitment in wild-type mice at 12 hours (3% eosinophils) compared with 24 hours (18% eosinophils) or 48 hours (17% eosinophils) after allergen challenge. Nevertheless, there is a similar degree of inhibition of eosinophil recruitment 12 hours after allergen challenge in ICAM-1–deficient mice (62% inhibition compared with wild-type mice) and P-selectin–deficient mice (63% inhibition compared with wild-type mice). These studies clearly demonstrate the importance of P-selectin and ICAM-1 at the 24-hour and 48-hour post-allergen challenge time points and also suggest a role for P-selectin and ICAM-1 as early as the 12-hour time point (the caveat being the low numbers of eosinophils recruited in wild-type mice).

Control wild-type mice (n = 9 mice; 3 separate experiments), when immunized and challenged with ragweed allergen, developed a significant increase in peritoneal cavity EPO levels (1.35 ± 0.35 EPO units) compared with wild-type mice that were not challenged with ragweed (0.08 ± 0.05 EPO units; P = .01) or compared with wild-type mice that were immunized with ragweed and challenged with PBS diluent (0.14 ± 0.06 EPO units; P = .01). In contrast, P-selectin–deficient and ICAM-1–deficient mice immunized with ragweed developed lower levels of peritoneal EPO when challenged with an intraperitoneal injection of ragweed allergen (P-selectin–deficient mice 0.54 ± 0.16 EPO units, ∼60% inhibition compared with ragweed-challenged wild-type mice 1.35 ± 0.35 EPO units; P= .05; Fig 1; ICAM-1–deficient mice 0.30 ± 0.07 EPO units, ∼63% inhibition compared with ragweed challenged wild-type mice 0.81 ± 0.24 EPO units; P = .05; Fig 2).

In contrast to the changes noted in the number of recruited eosinophils in control wild-type and adhesion molecule-deficient mice after allergen challenge, there were no significant differences in the number of resident peritoneal mast cells in wild-type and ICAM-1–deficient mice before (ICAM-1 wild-type 4.1% ± 1.3% vICAM-1–deficient 4.7% ± 0.9%) or after allergen challenge (ICAM-1 wild-type 2.8% ± 0.4% v ICAM-1–deficient 3.2% ± 0.3%).

There was a slight, but statistically insignificant, reduction in peritoneal mast cells in P-selectin–deficient compared with control wild-type mice before (P-selectin wild-type 3.2% ± 0.5% vP-selectin–deficient 2.0% ± 0.3%) and after allergen challenge (P-selectin wild-type 1.5% ± 0.7% v P-selectin–deficient 1.1% ± 0.5%). There was also a trend for antigen-challenged P-selectin–deficient, ICAM-1–deficient, as well as wild-type mice to have a lower percentage of peritoneal mast cells compared with their respective pre-antigen control. This is probably due to the fact that antigen challenge induces mast cell degranulation, rendering some post-antigen degranulated peritoneal mast cells invisible with the granule-based stain we have used to enumerate mast cells.

Mononuclear cells comprised the majority of peritoneal cells in wild-type (96.1 ± 0.1% before allergen v 83.3% ± 3.7% after allergen), P-selectin–deficient (97.6% ± 0.3% before allergen v 91.5% ± 2.1% after allergen), and ICAM-1–deficient mice (94.9% ± 0.8% before allergen v93.3% ± 1.2% after allergen). Rare neutrophils that comprised less than 1% to 2% of peritoneal cells were occasionally noted in wild-type mice challenged with allergen.

There was no significant difference in the number of circulating eosinophils in wild-type (2.1%) compared with P-selectin–deficient (2.0%) or ICAM-1–deficient mice (2.2%). P-selectin/ICAM-1–deficient mice had a slight increase in circulating eosinophils (3.1%) compared with wild-type mice (2.1%). As previously noted,10 there was a mild increase in the total peripheral blood leukocyte cell count as well as the percentage of neutrophils in P-selectin/ICAM-1–deficient, ICAM-1–deficient, and P-selectin–deficient mice compared with wild-type mice (wild-type mice 6.4 ± 0.8 × 10³ total leukocytes/μL; 2.1% ± 0.2% eosinophils, 14.8% ± 6.3% neutrophils, 83.1% ± 7.4% mononuclear cells; P-selectin–deficient mice 8.1 ± 0.7 × 10³ total leukocytes/μL; 2.0% ± 0.3% eosinophils, 22.4% ± 10.6% neutrophils, 75.6% ± 8.4% mononuclear cells; ICAM-1–deficient mice 11.5 ± 0.6 × 10³ total leukocytes/μL; 2.2% ± 0.1% eosinophils, 27.1% ± 10.3% neutrophils, 70.7% ± 12.6% mononuclear cells; and P-selectin/ICAM-1–deficient mice 11.8 ± 0.6 × 10³ total leukocytes/μL; 3.1% ± 0.2% eosinophils, 29.6% ± 9.8% neutrophils, 67.3% ± 12.7% mononuclear cells).

The effect of ragweed challenge on leukocyte rolling and firm adhesion in mesenteric venules of wild-type (n = 11 mice, 34 venules) as well as P-selectin (n = 6 mice, 19 venules) and ICAM-1–deficient mice (n = 5 mice, 18 venules) was examined by intravital microscopy (Table 1). There was no significant difference in hemodynamic parameters measured (venular diameter, mean blood flow velocity, shear rate, and shear stress; Table 2) in wild-type compared with P-selectin–deficient or ICAM-1–deficient mice. Leukocyte rolling was observed predominantly in postcapillary and collecting venules and was rarely observed in arterioles. In wild-type mice, challenge with ragweed allergen resulted in a fourfold increase in leukocyte rolling compared with challenge with PBS diluent (ragweed challenge 68.1 ± 11.1 rolling leukocytes/minute v PBS diluent challenge 16.4 ± 5.3 rolling leukocytes/minute; P = .004; Table 1). However, leukocyte rolling in ragweed-challenged P-selectin–deficient mice (4.2 ± 0.3 rolling leukocytes/minute) was significantly less than that observed in control ragweed-challenged wild-type mice (68.1 ± 11.1 rolling leukocytes/minute; P = .0001). PBS diluent challenge failed to induce detectable leukocyte rolling in P-selectin–deficient mice during the 1-hour observation period.

Allergen challenge of ICAM-1–deficient mice with ragweed resulted in a threefold increase in leukocyte rolling (45.1 ± 4.5 rolling leukocytes/minute) compared with PBS diluent-challenged ICAM-1–deficient mice (13.9 ± 2.2 rolling leukocytes/minute;P = .002). Furthermore, no significant differences in leukocyte rolling was observed between ragweed-challenged wild-type mice and ragweed challenged ICAM-1–deficient mice.

We next examined the effect of allergen challenge on leukocyte firm adhesion (adherent leukocytes/100 μm venule length) in the mesenteric venules (Table 1). In wild-type mice, intraperitoneal challenge with ragweed resulted in a fourfold increase in leukocyte adhesion compared with PBS diluent challenge (ragweed challenge 10.6 ± 2.2 adherent leukocytes v PBS diluent challenge 2.3 ± 0.9 adherent leukocytes; P = .02). Leukocyte adhesion in ragweed-challenged P-selectin–deficient mice was found to be significantly reduced compared with ragweed-challenged wild-type mice (P-selectin–deficient 2.8 ± 1.2 adherent leukocytes v wild-type mice 10.6 ± 2.2 adherent leukocytes; P = .0001). Minimal adhesion of murine leukocytes was observed in P-selectin–deficient mice that were challenged with PBS diluent (0.2 ± 0.4 adherent leukocytes). Although allergen challenge had induced significant leukocyte rolling in ICAM-1–deficient mice, it failed to induce significant leukocyte adhesion in the ICAM-1–deficient mice (1.1 ± 0.4 adherent leukocytes in ragweed-challenged ICAM-1–deficient mice; v 10.6 ± 2.2 adherent leukocytes in ragweed-challenged wild-type mice;P = .007). As observed with P-selectin–deficient mice, PBS diluent administration failed to induce significant firm adhesion of rolling leukocytes in ICAM-1–deficient mice (0.6 ± 0.3 adherent leukocytes).

Because the above-noted studies characterized total leukocyte, but not eosinophil, rolling and adhesion, we examined the ability of purified murine eosinophils to roll and adhere to vascular endothelium in vivo (Table 3). Eosinophils were purified from IL-5 transgenic mice and labeled with CFDA before injection into the tail vein. The passage of the fluorescently labeled eosinophils in the mesenteric circulation was made visible by stroboscopic epi-illumination (Fig 3). Similar to studies of total leukocyte rolling, allergen challenge with ragweed induced a 1.8-fold increase in eosinophil rolling in the mesenteric venules of wild-type mice challenged with ragweed (eosinophil Rf: 26.7% ± 2.6%) compared with wild-type mice challenged with PBS diluent (eosinophil Rf: 9.1% ± 1.5%; P = .002; Table 3). The rolling of eosinophils in venules of ragweed challenged P-selectin–deficient mice was found to be dramatically reduced (eosinophil Rf: 1.2% ± 0.8%; P = .0002 vragweed-challenged wild-type mice). PBS diluent challenge failed to induce detectable eosinophil rolling in P-selectin–deficient mice.

The ability of eosinophils to firmly adhere to mesenteric endothelium in P-selectin–deficient and wild-type mice after allergen challenge was also determined. In wild-type mice ragweed challenge resulted in an eightfold increase in eosinophil adhesion (ragweed challenge 3.3 ± 1.1 adherent eosinophils v 0.4 ± 0.3 adherent eosinophils after PBS diluent challenge; P = .001; Table 3). As observed with murine leukocytes, reduced levels of eosinophil adhesion was observed in P-selectin–deficient compared with wild-type mice that were challenged with ragweed (0.8 ± 0.5 adherent eosinophils in ragweed challenged P-selectin–deficient mice v 3.3 ± 0.5 adherent eosinophils in ragweed challenged wild-type mice,P = .001), whereas no detectable adhesion of eosinophils was observed in PBS diluent-challenged P-selectin–deficient mice. A comparison of velocity distribution profiles of rolling eosinophils showed that the eosinophil rolling velocity in ragweed-challenged P-selectin–deficient mice (216.3 ± 31.9 μm/s) was significantly greater than the eosinophil rolling velocity in ragweed-challenged wild-type mice (35.7 ± 8.3 μm/s;P < .001).

Because studies with neutrophil emigration into the peritoneum during streptococcus pneumoniae inducing peritonitis demonstrated complete inhibition of neutrophil emigration into the peritoneum of P-selectin/ICAM-1 double-mutant mice,10 we performed similar experiments evaluating eosinophil recruitment after ragweed allergen challenge. In contrast to studies with neutrophils in which there was complete inhibition of neutrophil emigration,10eosinophil recruitment in P-selectin/ICAM-1 double-mutant mice challenged with allergen was not completely inhibited (eosinophil recruitment inhibited ∼62%; P = .01; Fig 4) and was similar to that noted with either P-selectin–deficient (eosinophil recruitment inhibited ∼75%) or ICAM-1–deficient mice (eosinophil recruitment inhibited ∼67%) challenged with allergen.

Experiments were performed with an anti-VCAM antibody to determine the contribution of VCAM to eosinophil recruitment in P-selectin/ICAM-1–deficient mice. Pretreatment of P-selectin/ICAM-1 double-mutant mice with either an anti-VCAM or control antibody before the day-20 peritoneal allergen challenge resulted in near complete inhibition of eosinophil recruitment into the peritoneal cavity 48 hours later only in the mice receiving the anti-VCAM antibody (∼93% inhibition of eosinophil recruitment). In contrast, the species- and isotype-matched antibody had no additional effect on eosinophil recruitment in the control group of P-selectin/ICAM double-mutant mice (∼53% inhibition of eosinophil recruitment; wild-type mice 16.6% ± 8.4% peritoneal eosinophils; P-selectin/ICAM-1–deficient mice pretreated with control antibody 7.8% ± 1.2% peritoneal eosinophils; P-selectin/ICAM-1–deficient mice pretreated with an anti-VCAM antibody 1.1% ± 0.2% peritoneal eosinophils; Fig 5).

In this study, we demonstrate that endothelial-expressed P-selectin and ICAM-1 subserve important functions in the recruitment of eosinophils to sites of allergic inflammation. In addition, we show that eosinophil rolling is significantly reduced in P-selectin–deficient mice at sites of allergen challenge 24 hours after challenge. Because significant peritoneal eosinophilia (but not neutrophilia) is present 48 hours after intraperitoneal allergen challenge,23-25 our recruitment studies focused on analyzing the influx of eosinophils at 48 hours.23-25 Our study confirmed previous studies in several laboratories that have shown that intraperitoneal allergen challenge induces a peritoneal eosinophilia that is present at 8 hours and peaks between 24 and 72 hours.23-25 A small influx of neutrophils that peaks at 8 hours and is no longer present after 24 hours has also previously been noted in this mouse model.23-25 Our studies using intravital microscopy have demonstrated that total leukocyte rolling in mesenteric venules is significantly induced in ragweed-challenged wild-type and ICAM-1–deficient mice. In contrast, total leukocyte rolling is significantly inhibited in ragweed-challenged P-selectin–deficient mice. Studies with fluorescently labeled eosinophils confirm that not only total leukocyte, but also eosinophil rolling is significantly reduced in P-selectin–deficient mice. In addition, eosinophils roll appreciably faster in P-selectin–deficient compared with wild-type mice, suggesting that the absence of P-selectin weakens the strength of the initial eosinophil endothelial cell interaction, resulting in eosinophils rolling at higher velocities. Intravital microscopy studies also demonstrated that total leukocyte firm adhesion was significantly reduced in ragweed-challenged ICAM-1–deficient and P-selectin–deficient mice as compared with ragweed-challenged wild-type mice. These observations underscore the importance of ICAM-1 as a firm adhesion receptor in vivo. The reduced firm adhesion of leukocytes in P-selectin–deficient mice challenged with allergen also suggests that leukocyte rolling and adhesion are sequential at sites of allergen challenge. A model of sequential leukocyte adhesion would require initial leukocyte rolling before firm adhesion. Thus, the absence of significant leukocyte rolling in the mesenteric venules of P-selectin–deficient mice would not allow for the subsequent firm adhesion of leukocytes to firm adhesion receptors such as ICAM-1. Indeed, studies with fluorescently labeled eosinophils confirmed that not only total leukocytes, but also eosinophils, exhibited reduced rolling and firm adhesion in P-selectin–deficient as compared with wild-type mice challenged with allergen.

Our studies with ICAM-1–deficient mice (∼67% inhibition of eosinophil recruitment) also demonstrated an important role for this endothelial-expressed adhesion molecule in recruitment of eosinophils after allergen challenge. Studies with antibodies to ICAM-1 in animal models of asthma have previously shown conflicting results regarding the role of ICAM-1 in eosinophil recruitment into the allergen-challenged lung.20-22 In a primate model of asthma, antibodies against ICAM-1 decreased BAL eosinophil infiltration (∼65%) and attenuated bronchial hyperresponsiveness,20whereas in a mouse model antibodies to ICAM-1 had no effect on eosinophil recruitment.21,22 The conflicting results in these studies may relate to methodologic differences in the studies in which different animal models (mouse v primate), different antibodies (rat α mouse ICAM-1 MoAb YN1/1.7 v MoAb R6.5), different route of antibody administration (intraperitoneal vintravenous), and different antigens (ascaris v ovalbumin) were used.20-22 Our study using ICAM-1–deficient mice would suggest that ICAM-1 is important to eosinophil recruitment to the peritoneal cavity in mice, as has previously been demonstrated for eosinophil recruitment to the lung in primates.20 A potential confounding variable in the studies of the ICAM-1–deficient mice we have used in this study is the recent demonstration that these mice are not completely deficient in ICAM and do express small amounts of alternatively spliced ICAM (as assessed by immunohistochemistry).30 At present, the in vivo biologic and functional significance of these alternative spliced forms of ICAM are not known. The demonstration in this study that eosinophil recruitment was inhibited approximately 67% in ICAM-1–deficient mice suggests that ICAM-1 plays a significant role in eosinophil recruitment. Although it is possible that alternative isoforms of ICAM-1 could contribute to the approximately 33% of eosinophil recruitment not inhibited in ICAM-1 mutant mice, our studies using neutralizing antibodies to VCAM in P-selectin/ICAM-1 double-mutant mice suggest that VCAM is more likely than these alternate isoforms of ICAM to participate in eosinophil recruitment into the peritoneal cavity.

Previous studies by Gonzalo et al31 and our group32 have shown that eosinophil recruitment into the lungs of ovalbumin-challenged P-selectin–deficient mice is inhibited 70% to 80% compared with wild-type mice 3 hours after allergen challenge. In contrast, Gonzalo et al31 showed that eosinophil recruitment into the lungs of ovalbumin-challenged mice was increased 2.5-fold 7 hours after allergen inhalation challenge. The difference in eosinophil requirements for P-selectin at 7 hours compared with other time points after allergen challenge may depend on the vascular bed studied (pulmonary v peritoneal), the antigen used (ovalbumin by Gonzalo et al and ragweed in our model), or the method of sensitization and challenge (single v multiple repetitive challenge). It is difficult to directly compare kinetic results in the two studies (pulmonary versus peritoneal), because the time 0 hours in the Gonzalo et al pulmonary study was preceded by 7 consecutive days of daily inhaled allergen, whereas in our peritoneal study the single day-20 intraperitoneal injection of allergen was not preceded by daily allergen challenge for 7 days. Further studies will need to define whether repetitive allergen challenge compared with single allergen challenge alters the kinetic requirements of eosinophils for P-selectin.

Overall, these studies demonstrate that P-selectin and ICAM-1 play an important role in eosinophil recruitment to sites of allergic inflammation. However, neither of these adhesion molecules is completely able to inhibit eosinophil recruitment, and neither adhesion molecule is specific for eosinophils as P-selectin and ICAM-1 are also important to neutrophil10 and T lymphocyte11,33,34 adhesion. Studies with P-selectin/ICAM-1 double-mutant mice suggest that approximately 25% to 40% of eosinophil recruitment at sites of allergen challenge in the peritoneal cavity occurs through a P-selectin/ICAM-1–independent pathway. In terms of P-selectin–independent endothelial mechanisms of eosinophil rolling along vascular endothelium, E-selectin and VCAM-1 are important candidate endothelial expressed rolling receptors. In addition, VCAM-1 can function as an ICAM-1–independent eosinophil firm adhesion pathway. Our studies in which we were able to nearly completely inhibit eosinophil recruitment in P-selectin/ICAM-1 double-mutant mice pretreated with neutralizing antibodies to VCAM, suggest that VCAM contributes most significantly to P-selectin/ICAM-1–independent eosinophil recruitment. VCAM-1 expressed by endothelial cells can function both as a firm adhesion and a rolling receptor.6Studies using either T cells or α4 integrin transfected cells have shown that cells expressing an α4 integrin can roll on purified VCAM-1, but not on ICAM-1 or fibronectin.6 Studies using eosinophils have also demonstrated that neutralizing antibodies to α4, but not to β₂ integrins can inhibit eosinophil rolling in vivo,2 presumably through an interaction between eosinophil expressed α4 and endothelial expressed VCAM-1. However, at present, in vitro flow chamber or in vivo studies with eosinophils and neutralizing antibodies to VCAM-1 have not been published. The importance of P-selectin and VCAM-1, but not E-selectin to eosinophil rolling is also suggested from in vitro flow chamber studies and in vivo studies of the rabbit microcirculation in which E-selectin was shown to preferentially support neutrophil35,36 but not eosinophil rolling.37However, in this study, we have not directly evaluated the role of E-selectin in supporting eosinophil rolling. Nevertheless, overall, these studies suggest that P-selectin supports both eosinophil and neutrophil rolling,10,12 whereas VCAM-1 supports eosinophil but not neutrophil rolling and adhesion and E-selectin predominantly supports neutrophil but not eosinophil rolling.35-38

In summary, we report the first demonstration of murine eosinophil rolling and firm adhesion in mouse mesenteric venules at sites of allergen challenge using intravital microscopy. These studies also provide evidence for the importance of vascular P-selectin, ICAM-1, and VCAM-1 in the rolling, adhesion, and recruitment of murine eosinophils and leukocytes in a model of allergic eosinophilic peritonitis.

The authors thank Lauri Doval for expert secretarial support during the preparation of the manuscript, Dr Colin Sanderson for providing IL-5 transgenic mice, and Gregory K. Hughes for technical support.
