Hematopoietic Malignancies Demonstrate Loss-of-Function Mutations ofBAX

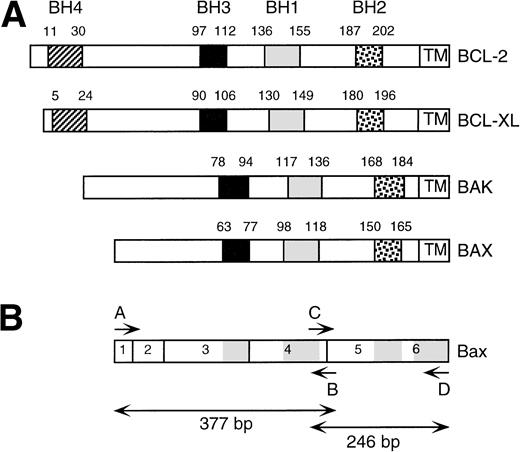

BAX RNA from cell lines of human hematopoietic malignancies was amplified by reverse transcription-polymerase chain reaction (RT-PCR) either unlabeled or, alternatively, in the presence of 500 μmol/L dATP, dTTP, and dGTP; 125 μmol/L dCTP; and 100 μCi/mL [α-³²P]dCTP (Amersham, Arlington Heights, IL; 3,000 Ci/mmol; 10 mCi/mL). The complete BAXcoding region was covered by two partially overlapping PCR reactions (Fig 1B).3 In one PCR reaction,BAX cDNA was amplified from exon 1 to the exon 4/5 boundary using forward primer A (5′-TGG ACG GGT CCG GGG AGC-3′) and reverse primer B (5′-GCA CAG GGC CTT GAG CAC C-3′). In a second reaction, BAX cDNA was amplified from exon 4 through exon 6 using forward primer C (5′-GCC CTT TTC TAC TTT GCC AGC-3′) and reverse primer D (5′-TCA GCC CAT CTT CTT CCA GAT-3′; Fig 1B). Products were analyzed by SSCP-polyacrylamide gel electrophoresis (SSCP-PAGE). For the SSCP analysis, nonradioactive PCR products were purified on Wizard PCR Prep columns (Promega, Madison, WI) and dissolved in TE-buffer. Five microliters of PCR product was mixed with an equal volume of loading buffer (20% EDTA, 20 mmol/L NaOH, 0.05% xylene cyanol, 0.05% bromophenolblue in 96% formamide) and denatured for 10 minutes at 95°C. One microliter was separated on a 4% to 15% polyacrylamide gradient gel or a 12.5% polyacrylamide gel (Pharmacia LKB Phastsystem, Piscataway, NJ). Products were visualized by silver staining. Alternatively, 2 μL of 10-fold diluted radioactive PCR products in SSCP loading buffer was separated on a 5% nondenaturating polyacrylamide gel (49:1), 5% glycerol in half-strength TBE buffer. The gel was exposed to x-ray film (Eastman Kodak, Rochester, NY).

Immunoprecipitation was performed as described.3 For immunoprecipitation, 50 mg/mL of 6C8 (hamster antihuman BCL-2 monoclonal antibody [MoAb])29 or 12CA5 (mouse anti-influenza virus hemagglutinin protein epitope MoAb)30was used.

EcoRI sites, an upstream Kozak sequence, and hemagglutinin influenza (HA) epitope tag were introduced by PCR using extended primers and germline and mutant BAX cDNA sequences. Products were cloned into PCRII using the TA-Cloning kit (Invitrogen, La Jolla, CA) and confirmed by DNA sequencing. Identical G67R and G108V mutations as found in Daudi and HPB-ALL, respectively, were introduced by site-directed mutagenesis (Clontech). Mutations were confirmed by DNA sequencing. BAX and mutantBAX cDNAs were cloned into pSFFV-LTR neo expression vector. For yeast two-hybrid experiments, cDNAs without their C-terminal signal-anchor sequence were cloned into the Gal4 activation domain (AD) vector pACTII and the LexA DNA binding domain (DB) vector pBTM116.5 Extended primers were used to introduce a 5′ EcoRI site and a 3′ Sal I site for cloning into pBTM116 or a 5′ Nco I site and a 3′Sma I site for cloning into pACTII. Constructs were confirmed by DNA sequencing. The constructs for BCL-X_LΔC19,BCL-2ΔC22 and pACTII, and BCL-X_LΔC19 in pBTM116 were previously described.5

Twenty micrograms of DNA of Xba-1 linearized pSFFV-LTR neo vector expressing HA-BAX, HA-BAX^G67R, or HA-BAX^G108V was transfected into FL5.12 cells or cotransfected with 1 μg of linearized pGK-hygro vector DNA into FL5.12-BCL-2 cells. Stably transfected clones were selected for neomycin resistance (2 mg/mL G418) or hygromycin resistance (1 mg/mL). Transfected clones were analyzed for HA-BAX, HA-BAX^G67R, or HA-BAX^G108V expression by Western blot using polyclonal antiserum N20 (Santa Cruz, Santa Cruz, CA; 1:500) as primary antibody and goat-antirabbit HRPO (Caltag Labs; 1:2,000) as the secondary antibody. BCL-2 expression was detected by the 6C8 MoAb (1:250) and a secondary goat-antihamster HRPO antibody (Caltag Labs; 1:2,000). Immunoblots were developed by enhanced chemiluminescence (ECL; Amersham).

cDNAs cloned in pBTM116 or pACTII were cotransformed into yeast strain L40 (MATa trp1-901 leu2-3, 112 ade2 his3-Δ200 LYS2::(lexA0p)₄-HIS3 URA3::(lexA)₈-LacZ)31 using the lithium-acetate method. After transformation, yeast cells were plated on selective media (His⁺, Ura⁻, Leu⁻, and Trp⁻) and incubated at 30°C. After 2 to 4 days, yeast colonies were transferred to nitrocellulose filters and incubated for 1 minute in liquid N₂. Filters were dried on Whatmann paper (Whatmann, Maidstone, UK) and stained with 5-bromo-4-chloro-3-indolyl β-D-galactoside (X-Gal) substrate solution (60 mmol/L Na₂HPO₄, 40 mmol/L KC1, 1 mmol/L MgSO₄, 50 mmol/L β-mercaptoethanol, 1 mg/mL X-Gal, pH 7.0) for 1 to 12 hours at 37°C.

Twenty-nine cell lines derived from hematopoietic malignancies of various cell types were analyzed for mutations in BAX by SSCP and sequence analysis. We found evidence for mutations in 7 cell lines (Table 1). The Burkitt lymphoma (BL) cell line Daudi expressed a mutant BAX allele that contained a G108V mutation and a wild-type allele. This mutation substitutes the central glycine within the BH1 domain (Fig 1). The plasmacytoma (PC) cell line OPM1 expressed a mutant allele with a G11E mutation and a wild-type allele. This glycine resides in the N-terminus proximal to the first predicted α helix. The acute lymphoblastic leukemia (ALL) cell line HPB-ALL expressed a G67R mutant allele as well as a wild-type allele. This mutation alters the central glycine within the BH3 domain (Fig 1A). All three cell lines expressed BAX protein by Western analysis.

SSCP analysis also noted a distinct, altered pattern common to four cell lines (KM3, CEM, Jurkat, and JM*; Table 1). DNA sequence analysis showed the same single nucleotide deletion (G)₇ in a simple tract of 8 deoxyguanosine residues (G)₈ (nt 114-121) encompassing codons 38 to 41 of human BAX (Table 1). This deletion was consistently detected in 3 or more independently amplified RT-PCR products from each cell. DNA sequence of four or five independent clones from these RT-PCR products demonstrate the same (G)₇ deletion. SSCP and DNA sequence analysis of the pre-B–cell ALL KM3 and the T-cell ALL CEM only detected the (G)₇ deletion and no wild-type allele, indicating that the mutation was hemizygous or homozygous. PCR amplification of the third exon of BAX from the genomic DNA of KM3 also failed to show a wild-type allele (not shown). The (G)₇ deletion frameshift generated a proximal stop codon. Consistent with this finding, no immunodetectable protein was observed in KM-3 or CEM (Table 1).

The T-cell ALL line Jurkat and its derivative JM³² both displayed an additional alteration on SSCP that, upon DNA sequencing, proved to be a single nucleotide insertion (G)₉ in the same (G)₈ (nt 114-121) tract (Table 1). Approximately half of the independent clones from the RT-PCR products of Jurkat and JM demonstrated the G₍₉₎ insertion, whereas the others demonstrated the G₍₇₎ deletion. The G₍₉₎insertion frameshift also generates a proximal stop codon consistent with the lack of immunodetectable protein in Jurkat and JM cells (Table1) and the presence of two mutated BAX alleles.

The BAX^G67R and BAX^G108V mutants found in HPB-ALL and Daudi reside in the conserved BH3 and BH1 domains, respectively, and consequently were tested for dimerization capacity with BCL-2 family members by means of yeast two-hybrid analysis (Table 2). Although the binding of BAX^G67R to wild-type BAX appeared unaffected, it demonstrated enhanced dimerization with itself, BAX^G67R. In contrast, the capacity to heterodimerize with BCL-2 or BCL-X_L was lost. BAX^G108V did not form homodimers with itself, BAX^G108V, but bound to wild-type BAX. BAX^G108V demonstrated enhanced binding to BCL-2 and BCL-X_L. Thus, both mutations demonstrated altered, yet very distinct dimerization characteristics.

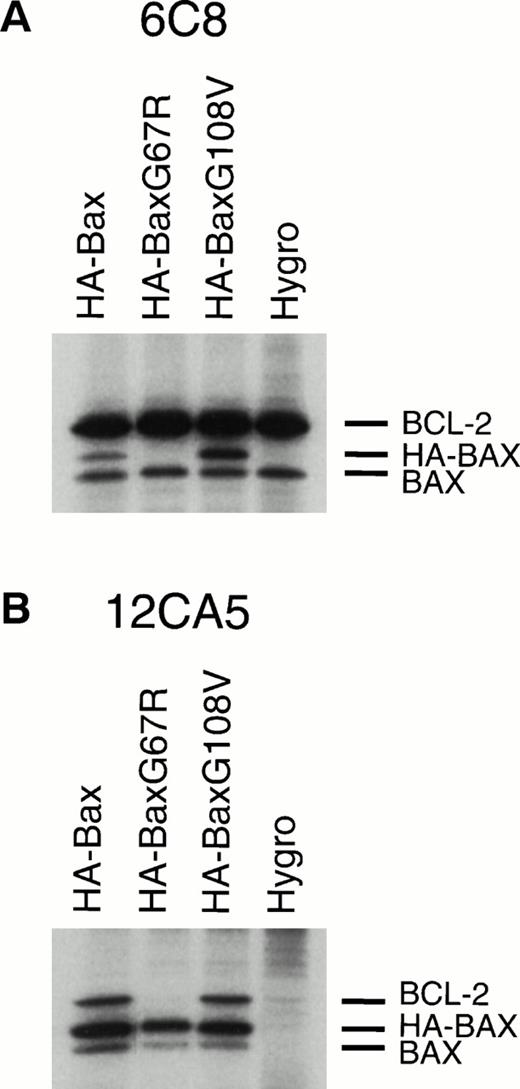

We next examined whether these BAX mutants demonstrated altered dimerization within mammalian cells. Stably transfected FL5.12-BCL-2 clones expressing comparable amounts of hemagglutinin epitope-tagged (HA) molecules HA-BAX, HA-BAX^G67R, or HA-BAX^G108V were generated (Fig2). When BCL-2 was immunoprecipitated from lysates, it coprecipitated HA-BAX and the endogenous BAX (Fig 2A, lane 1). HA-BAX^G108Vbut not HA-BAX^G67R was also coprecipitated with BCL-2, confirming the interactions suggested in yeast two-hybrid (Fig 2A, lanes 2 and 3). A consistently higher ratio of HA-BAX^G108V/endogenous BAX compared with HA-BAX/endogenous BAX in BCL-2 immunoprecipitates is consistent with the enhanced binding of BAX^G108V noted by yeast two-hybrid analysis (Table 2). In the reciprocal experiment, HA-BAX, HA-BAX^G67R, and HA-BAX^G108V were immunoprecipitated with anti-HA MoAb 12CA5 and all heterodimerized to endogenous BAX. As before, HA-BAX and HA-BAX^G108V but not HA-BAX^G67R coprecipitated BCL-2, confirming the pattern of interactions within mammalian cells (Fig 2).

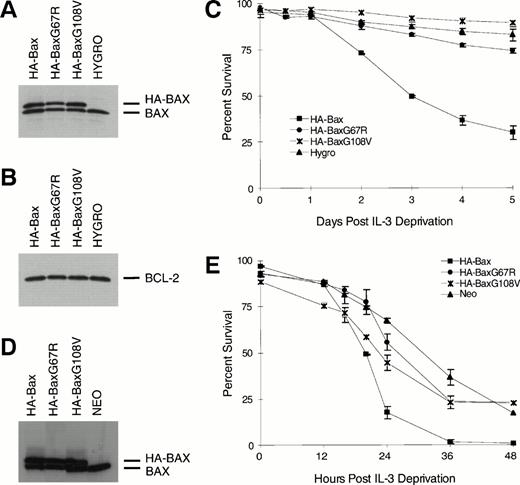

To address the functional consequence of the BH1 and BH3 mutations, they were assessed in an interleukin-3 (IL-3) deprivation assay using the FL5.12 line. Clones of FL5.12 (Neo) or FL5.12-BCL-2 expressing comparable amounts of HA-BAX, HA-BAX^G67R, or HA-BAX^G108V were identified by immunoblots (Fig 3A, B, and D). Addition of wild-type HA-BAX but not HA-BAX^G67R or HA-BAX^G108V was capable of promoting cell death in FL5.12-BCL-2 cells that were protected by BCL-2 (Fig 3C). Similarly, HA-BAX^G67A and HA-BAX^G108V did not substantially alter the survival of native FL5.12 cells, whereas wild-type HA-BAX clearly enhanced apoptosis (Fig 3E).

Prolonged cell survival with resistance to apoptosis can be a primary oncogenic event. Transgenic mice bearing a Bcl-2-Ig minigene that recapitulated the t(14;18) found in human follicular lymphoma display B-cell hyperplasia that progresses to high-grade lymphoma.33 Evidence is emerging that a principal contribution from the loss of p53 function is the elimination of a death pathway.34,35 Recent evidence suggests that BAX, a pro-apoptotic member of the BCL-2 family, can also qualify as a tumor suppressor. Bax-deficient mice display cellular expansions of neurons, lymphocytes, ovarian granulosa cells, and spermatogonia, reflecting the survival of cells that avoided developmental death.20 TGT121 transgenic mice that express a truncated T antigen that inhibits Rb but leaves p53 intact displayed an accelerated progression to malignancy upon a Bax-deficient background.25 It is of note that heterozygous Bax(+/−) mice also displayed an earlier onset of malignancy, suggesting that alteration of a single BAX allele could be of functional significance. An increase in focus formation was also documented in Bax-deficient versus wild-type fibroblasts when transfected with RAS and E1A.²⁶ These experimental models argue that Bax can also be considered a tumor suppressor and that loss of this pro-apoptotic molecule promotes tumorigenesis.

We found mutations in BAX in approximately 21% (6 of 28 independent lines with confirmation of the mutation in Jurkat in its derivative JM) of human hematopoietic malignancy lines. No BAXalterations were noted in 35 normal individuals or in 8 Epstein-Barr virus–transformed lymphoblastoid lines, indicating that the observed alterations of BAX are not common polymorphisms or associated with immortalization. Approximately half of the mutations were frameshifts confined to a single mononucleotide (G)₈tract (nt114-121). The existence of both insertions (G)₉and deletions (G)₇ within the same leukemia (Jurkat and JM) favors a biallelic aberration and argues that the elimination ofBAX is a selective advantage. Lack of detectable BAX protein in other leukemias with (G)₇ deletions is compatible with a homozygous abnormality or perhaps loss of the second allele. Recently, Rampino et al28 described the presence of frameshift mutations in the identical (G)₈ tract of BAX in about 50% of human colon adenocarcinomas with the microsatellite mutator phenotype (MMP). Some sporadic cancers and almost all cancers associated with the hereditary nonpolyposis colorectal cancer syndrome (HNPCC) accumulate mutations in microsatellites of nucleotide repeats due to defects in human DNA mismatch repair genes, including hMSH2, hMLH1, hPMS1, and hPMS2.36,Msh-2–deficient mice progress to a precursor T-cell lymphoblastic lymphoma.37 Moreover, mutations have been noted in hMSH2 within human lymphoblastic lymphoma37 and in hMLH1 in a panel of lymphoid leukemia cell lines.38 This includes the CEM cell line,38 which demonstrated a frameshift mutation ofBAX in this study (Table 1). In total, these studies indicate that a subset of lymphoblastic leukemia/lymphoma have a mutator phenotype and that BAX may represent one target.

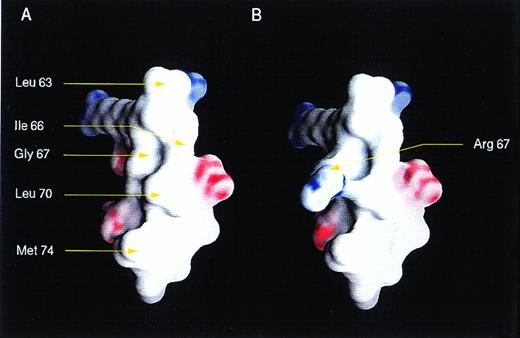

In addition to the frameshift mutations, we found missense mutations, including BAXG67R in the BH3 and BAXG108V in the BH1 domain. Both mutations demonstrated abnormal dimerization characteristics, but were nearly opposite in their patterns. This finding argues that the death agonist activity of BAX may not strictly correlate with the capacity to form any single set of homodimer or heterodimer pairs. Molecular modeling of the BAX BH3 α2-helix showed a classic amphipathic α helix. The G67R mutation would introduce a charged residue onto the hydrophobic face of this helix (Fig 4). NMR analysis of wild-type and mutant peptides of the BH3 α2-helix of BAK indicated critical interactions with BCL-X_L through both hydrophobic and electrostatic interactions.39 The substitution of the central glycine in this α2-helix to arginine noted here has a much greater affect than an alanine substitution analyzed for BAK.39 The impact of the G67R mutation in BAX provides additional evidence that BH3 domains are critical for pro-apoptotic molecules.

The G108V substitution in the BH1 α5-helix of BAX also resulted in the loss of pro-apoptotic activity. While eliminating mutant/mutant dimerization, it, if anything, enhanced heterodimerization with BCL-2 or BCL-X_L. Previous substitution of this central glycine to alanine in BCL-2 (G145A) and in BCL-X_L (G159A) eliminated both their heterodimerization with BAX and their anti-apoptotic activity.5,6 However, the comparable substitution in BAX (G108A) had no effect (unpublished observations). Thus, the strong effect of the G108V substitution was somewhat unexpected. The G108 residue resides in the long hydrophobic α5-helix felt to be part of the transmembrane helical cores responsible for the ion channel activity of BCL-X_L⁴⁰ and in similar approaches also for BAX.41 42 This provides an alternative role for this residue beyond protein interaction.

Oncogenes that promote proliferation contribute to cancer through gain-of-function alterations, whereas growth-inhibitory tumor-suppressor genes contribute principally through loss-of-function mutations. The gain-of-function alteration of the BCL-2-Igtranslocation overexpressed the anti-apoptotic molecule BCL-2 in follicular lymphoma. This suggested that pro-apoptotic molecules could contribute to oncogenesis by loss-of-function mutations. The discovery of BAX mutations in a subset of colon carcinomas and in hematopoietic malignancies here provide such evidence. This adds evidence in human tumors to the prospective experiments usingBax-deficient mice. The loss of BAX function would confer resistance to programmed cell death within hematopoietic cells and could contribute to malignancy in several ways. Extended cell survival and resistance to apoptosis would enable cells to withstand additional genetic alterations. In this context, loss of BAX function could be a primary oncogenic aberration for which the Bax-deficient mice provide evidence. BAX mutations could also contribute to tumor progression or the establishment of cell lines. Finally, chemotherapy could have selected for the loss of BAX as BAX deficiency would confer chemoresistance.

The authors thank Stephen Elledge for the gift of the pACTII vector. The pBTM116 vector was constructed by Paul Bartel and Stanley Fields. We thank Mary Pichler for secretarial assistance.
