Biologic sequelae of IκB kinase (IKK) inhibition in multiple myeloma: therapeutic implications

We and others have shown that the bone marrow (BM) microenvironment promotes growth, survival, and drug resistance in multiple myeloma (MM) cells by direct contact of MM cells with components of the BM microenvironment, including BM stromal cells (BMSCs), osteoblasts, osteoclasts, and endothelial cells.^1,2  Furthermore, these cells secrete cytokines, which trigger mitogen-activated protein kinase kinase/MAPK, phosphoinositide-3 kinase/Akt, Janus kinase 2/signal transducers and activators of transcription 3, and nuclear factor-κB (NF-κB) signaling cascades in MM cells. We have shown that NF-κB activated by growth factors and/or cytokines modulates expression of cytokines, adhesion molecules, and antiapoptotic proteins in MM cells. Therefore, blockade of NF-κB signaling represents a novel therapeutic strategy in MM.

Previous studies have shown that NF-κB is a Rel family member protein heterodimer composed of p50 (NFκB1) and p65 (RelA), which is inactivated by its association with IκB family inhibitors.³  IκBα therefore has a crucial role in regulating NF-κB activation. After phosphorylation of IκBα protein by IκB kinase (IKK) complex, IκB is targeted for ubiquitination and degradation by the proteasome, thereby allowing translocation of NF-κB into the nucleus where it binds to specific DNA sequences in the promoters of target genes. To examine the biologic sequelae of specific NF-κB inhibition in MM cells, we have used 2 IKKβ inhibitors, PS-1145⁴  and MLN120B.⁵  In these studies, the effect of IKKβ on growth and survival of MM cells in the context of the BM milieu is only modest. Specifically, we found that NF-κB activity was not inhibited by these agents in MM.1S cells, although significant inhibition was observed in RPMI8226 and INA6 MM cells.

Recent studies have shown the relationship between NF-κB activity and genetic abnormalities in MM,^6,7  suggesting the biologic significance of the noncanonical NF-κB pathway in MM pathogenesis. For example, the noncanonical NF-κB pathway is constitutively activated in MM cells with inactivation of tumor necrosis factor (TNF) receptor–associated factor 3,⁷  suggesting the need to target the noncanonical pathway therapeutically and that inhibition of the canonical pathway alone may be insufficient to block NF-κB activity. Nonetheless, MLN120B inhibits canonical NF-κB pathway and induces growth inhibition in many MM cell lines, suggesting that IKKβ inhibitors may hold promise for the treatment in MM.⁶

Although previous studies have shown that IKKα and IKKβ play crucial roles in mediating NF-κB activity,^8,9  the biologic sequelae of inhibiting each kinase in MM cells have not been demonstrated. In this study, we characterize mechanisms of constitutive canonical vs noncanonical NF-κB activity in MM cells, which can be enhanced by coculture with BMSCs to mediate MM cell growth. Importantly, we demonstrate that inhibition of IKKβ blocks growth only in MM cell lines with canonical NF-κB activity, whereas it activates noncanonical NF-κB cascade in cells with both pathways. Surprisingly, IKKα knockdown significantly inhibits MM cell growth without inhibiting NF-κB activity, suggesting that IKKα targets signaling cascades mediating MM cell proliferation other than NF-κB. Finally, targeting both IKKα and IKKβ inhibits growth of MM cells with both canonical and noncanonical NF-κB activation, suggesting the therapeutic potential of combination inhibitor therapy.

MM cell lines were obtained from ATCC (Manassas, VA), the German Collection of Microorganisms and Cell Cultures (Braunschweig, Germany), or kindly provided by sources and maintained as previously described.¹⁰  BM specimens were obtained from patients with MM and mononuclear cells separated by Ficoll-Hypaque density sedimentation. Primary CD138⁺ plasma cells from MM patients were obtained using negative selection as previously described,¹¹  with Institutional Review Board–approved (Dana-Farber Cancer Institute) informed consent and in accordance with the Declaration of Helsinki protocol. BM mononuclear cells were used to establish long-term BMSC cultures, as previously described.¹¹

IKKβ inhibitor MLN120B¹²  was provided by Millennium Pharmaceuticals (Cambridge, MA), dissolved in dimethyl sulfoxide, stored at −20°C, and diluted in culture medium immediately before use; control media contained less than 0.1% dimethyl sulfoxide. TNF-α was purchased from R&D Systems (Minneapolis, MN). 17-Allylamino-17-demethoxygeldanamycin (17AAG) was obtained from Calbiochem (San Diego, CA).

MM cell growth was assessed by measuring 3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyl tetrazolium bromide dye absorbance, as previously described.¹¹  DNA synthesis was measured by [³H]-thymidine (PerkinElmer Life and Analytical Sciences, Waltham, MA) uptake. Cells were pulsed with [³H]-TdR (0.5 μCi/well) during the last 8 hours of culture, as previously described.⁵  All experiments were performed 3 times in quadruplicate.

Protein lysates were obtained by cell lysis in Triton X-100 buffer (50 mM Tris-HCl [pH 7.4], 150 mM NaCl, 1% NP-40, 5 mM ethylenediaminetetraacetic acid, 5 mM NaF, 2 mM Na₃VO₄, 1 mM phenylmethylsulfonyl fluoride, 5 μg/mL leupeptin, and 5 μg/mL aprotinin). Whole-cell lysates were immunoblotted with antiphospho (p)–IKKα/β, -IKKα, -IKKβ, -IκBα, -p65 NF-κB, and –β-catenin (Cell Signaling Technology, Danvers, MA) antibodies (Abs); as well as -GAPDH, -ARK1 (aurora A), and –α-tubulin Abs (Santa Cruz Biotechnology, Santa Cruz, CA). Nuclear protein lysates were immunoblotted with anti-p65 NF-κB Ab (Cell Signaling Technology); -p50, -p52, -RelB, and –C-Rel Abs (Santa Cruz Biotechnology); as well as –nuclear matrix protein p84 Ab (Abcam, Cambridge, MA). Immunoprecipitation using anti-IKKα and –β-catenin Ab was carried out as described previously.¹³  Anti-GFP (Cell Signaling Technology) served as a control Ab. The intensity of the blots was digitalized using ImageJ software (National Cancer Institute, Bethesda, MD).

Electrophoretic mobility shift analysis (EMSA) was carried out for detection of NF-κB activity, as previously described.⁵  Briefly, nuclear extracts from MM cells were obtained using the Nuclear Extraction Kit (Panomics, Fremont, CA). Double-stranded NF-κB consensus oligonucleotide probe (Promega, Madison, WI) was end-labeled with [γ³²P]ATP (10 mCi/mL; PerkinElmer Life and Analytical Sciences). Binding reactions containing 0.035 pmol/μL oligonucleotide and 8 μg nuclear protein were conducted at room temperature for 20 minutes in binding buffer.⁴  Samples were loaded onto a 4% polyacrylamide gel, transferred to Whatman paper (Whatman, Maidstone, United Kingdom), and visualized by autoradiography. For supershift analysis, anti-p65, RelB, c-Rel (Santa Cruz Biotechnology), p50 (Abcam), or p52 (Rockland Immunochemicals, Gilbertsville, PA) Abs were incubated for 5 minutes before adding the reaction mixtures. The samples were loaded onto a 4% polyacrylamide gel, transferred to Whatman paper (Whatman), and visualized by autoradiography. For BMSC coculture, MM cells were incubated in BMSC-coated flasks for 12 hours. MM cells were then harvested by pipetting and subjected to nuclear protein extraction. Purity of MM cells was confirmed by CD138 expression (> 95%) using flow cytometry.

Immunohistochemistry was performed on bone marrow from 10 healthy volunteers, 20 persons with monoclonal gammopathy of undetermined significance (MGUS), and 30 patients with MM, as described previously.¹⁴  Anti–human p50 (catalog no. 3035), p65 (catalog no. 4764), and p52 (catalog no. 3017) Abs were obtained from Cell Signaling Technology. Anti-CD138 Ab was obtained from BD Biosciences (San Jose, CA). The primary Abs were visualized with the corresponding biotinylated Ab coupled to streptavidin-peroxidase complex (Vector Laboratories, Burlingame, CA). All Abs, conditions, and reactivity were tested with positive control slides.

IKKβ gene expression was examined by real-time polymerase chain reaction (PCR) and normalized to expression of glyceraldehyde-3-phosphate dehydrogenase (GAPDH), as previously described.¹⁵  Briefly, total RNA was extracted from untreated or 17AAG (1 μM for 4 hours and 8 hours)–treated MM.1S and RPMI8226 cells using the RNeasy Kit and RNase-Free DNase Set (QIAGEN, Valencia, CA). cDNA was synthesized using the first-strand cDNA Synthesis Kit (Superarray Bioscience, Frederick, MD). Quantitative real-time PCR was carried out in a 7500 Real-time PCR system (Applied Biosystems, Foster City). cDNAs were amplified in 25-μL reactions containing SYBR Green PCR Master Mix (Superarray Bioscience). Amplification was done at 95°C for 10 minutes, followed by 95°C for 15 seconds and 60°C for 1 minute, for a total of 40 cycles. Gene-specific oligonucleotide primers included GAPDH: forward 5′-AATCCCATCACCATCTTCCA-3′; and reverse 5′-TGGACTCCACGACGTACTCA-3′. Primers for survivin were purchased from Superarray Bioscience. Data represent mean plus or minus SD of triplicate wells.

To evaluate growth stimulation and signaling in MM cells adherent to BMSCs, 2 × 10⁴ MM cells were cultured in 96-well BMSC-coated plates. MM cell proliferation was assessed by [³H]-thymidine uptake, as previously described.⁵

Seventy-nine cytokines produced by BMSCs were detected by RayBio Human Cytokine Antibody Array V (RayBiotech, Norcross, GA), according to the manufacturer's instructions.

Scrambled and IKKα pLKO shRNA vectors were kindly provided by Dr William Hahn (Dana-Farber Cancer Institute). Recombinant lentivirus was produced by transient transfection of 293T cells following a standard protocol. After 48 hours, MM cells were incubated with culture supernatants from 293T cells containing crude virus for 6 hours and washed with media. A second transfection was repeated on the next day, and 48 hours later, MM cells were counted and examined for cell proliferation and by immunoblotting analysis.

Statistical significance of differences observed in drug-treated versus control cultures was determined using the Wilcoxon signed-rank test. The minimal level of significance was P less than .05.

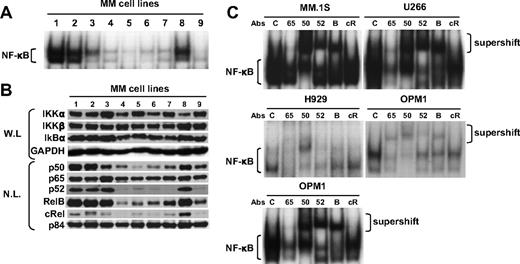

We first examined baseline NF-κB activity in MM cell lines by EMSA. As expected, the intensity of constitutive NF-κB activity was variable (Figure 1A lanes 1-9), with highest NF-κB activity in MM.1S cells (lane 1) and lowest NF-κB activity in H929 cells (lane 5). We next examined expression of proteins mediating canonical and noncanonical NF-κB pathways in MM cell lines. All MM cell lines highly expressed IKKα and IKKβ, as well as p65 (RelA) and p50 (NFκB1) proteins involved in the canonical pathway. Importantly, these cell lines also nuclear expressed p52 (NFκB2) and RelB proteins involved in noncanonical pathway (Figure 1B), suggesting that both canonical and noncanonical NF-κB pathways might be constitutively activated in these MM cell lines. Indeed, recent studies have shown that NF-κB activity is maintained by canonical and noncanonical pathways.^16,17  To examine activity of canonical vs noncanonical NF-κB pathway, we next carried out supershift assays using anti-p65 (RelA), -p50, -52, -RelB, and –cRel Abs in MM.1S, U266, RPMI8228, H929, and OPM1 cells. Consistent with protein expression (Figure 1A), intensity of original NF-κB bands were supershifted and/or reduced by p65 and p50 antibodies in RPMI8226 and H929 cells. In addition to p65 and p50, p52, and RelB antibodies also reduced NF-κB intensity in MM.1S, U266, and OPM1 cells (Figure 1C). These data suggest that both the canonical and noncanonical NF-κB pathways are constitutively activated in these MM cell lines.

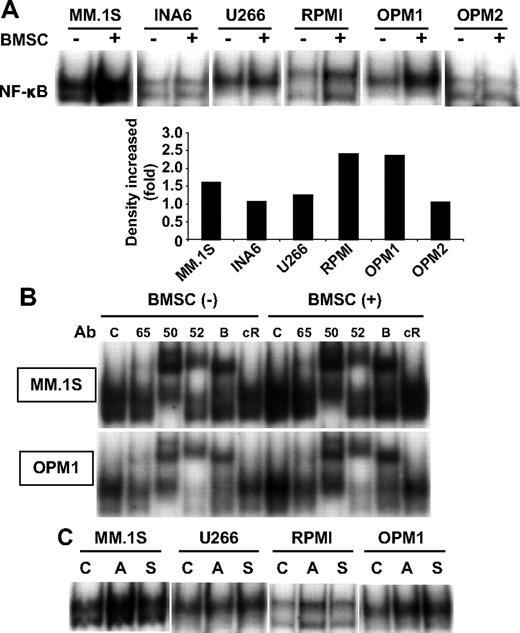

Because BMSCs secrete many cytokines and chemokines that activate NF-κB, we next examined whether NF-κB in MM cells was activated in the presence of BMSCs. BMSCs triggered robust activation of NF-κB in MM.1S and OPM1 cells, but only weak activation in INA-6, U266, RPMI8226, and OPM2 cells (Figure 2A). Cytokine antibody array of supernatants from cultures of MM cells and BMSCs showed that cytokines known to activate NF-κB (ie, TNF-α, interleukin-1β [IL-1β]) were detectable (data not shown). To delineate which NF-κB activation pathway is activated in MM cells by culture with BMSCs, we next performed supershift assay in MM.1S and OPM1 cells cultured with BMSCs. Antibodies targeting both the canonical and noncanonical pathway proteins showed increased supershifted bands induced by BMSC cocultures (Figure 2B), indicating that BMSCs activate both canonical and noncanonical NF-κB pathways. Interestingly, supernatants from BMSC cultures also activated NF-κB in MM.1S, U266, and OPM1 cell lines (Figure 2C).

To assess the clinical relevance of canonical and noncanonical NF-κB activity in MM cell lines, we next examined p50 and p65 (canonical) as well as p52 (noncanonical) expression in normal BM (n = 10), MGUS BM, (n = 20), and MM patient tumor cells (n = 30). Tissue microarray immunohistochemistry (TMA-IHC) was used to examine the relative levels and patterns of p50, p65, and p52 expression. In 10 of 10 normal bone marrow (NBM), 20 of 20 MGUS, and 20 of 30 MM samples, p50 was weakly positive in the nucleus/cytoplasm. All samples showed p65 staining predominantly in the cytoplasm. p52 was positive in 8 of 10, 18 of 20, and 30 of 30 in NBM, MGUS, and MM samples, respectively. Staining for p50, p65, and p52 on IHC is mostly cytroplasmic and only weakly nuclear. Representative results of TMA-IHC analysis of NBM, MGUS BM, and MM cells revealed expression of p50, p65, and p52 in MGUS and MM (Figure 3A). As in MM cell lines (Figure 1B), expression of p65 and p52 was also detected by immunoblotting in nuclear extracts from purified MM tumor cells (Figure 3B). These results suggest that both canonical and noncanonical NF-κB pathway may contribute to the total NF-κB activity in both MGUS and MM tumor cells.

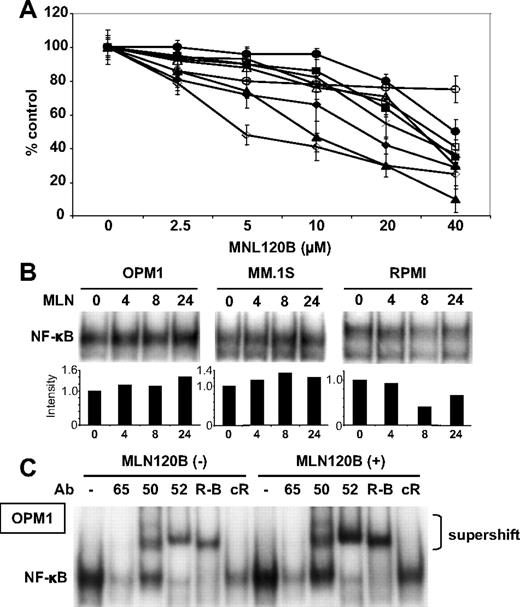

We have previously reported that specific IKKβ inhibitors PS-1145⁴  and MLN120B,⁵  when used as single agents, show only modest antitumor activities in MM cells. IKKβ is predominantly involved in the canonical NF-κB pathway via triggering phosphorylation and proteasomal degradation of IκBα. Previous reports have also shown that the noncanonical NF-κB pathway can be activated in MM cells.^6,7  We therefore hypothesized that MM cell lines with predominantly canonical pathway activation may be more sensitive to IKKβ inhibition than those lines with both canonical and noncanonical pathway activation. Indeed, we found that H929, RPMI8226, RPMI-LR5, and OPM2 cells have primarily canonical activation and are more sensitive to MLN120B than those cell lines (MM.1S, MM.1R, U266, and OPM1) with noncanonical as well as canonical NF-κB activation (Figure 4A). To confirm the association between sensitivity to MLN120B and NF-κB activity in these cell types, we next performed EMSA in RPMI8226 as well as OPM1 and MM.1S cells. Consistent with [³H]-thymidine uptake assay data, MLN120B significantly inhibited NF-κB activity in RPMI8226 cells (Figure 4B). Surprisingly, NF-κB was activated by MLN120B treatment in a time-dependent fashion in OPM1 and MM.1S cells (Figure 4B). To delineate the role of each NF-κB pathway in MLN120B-induced NF-κB activation, we next performed supershift assay in OPM1 cells before and after MLN120B treatment. Importantly, anti-p52 and -RelB Abs showed more significant intensity of the shifted bands after treatment compared with anti-p65 or -p50 Abs (Figure 4C). For example, intensity of total NF-κB was 1.3-fold increased; however, intensity of p52 supershifted band was 2.4-fold enhanced by MLN120B treatment (data not shown). These results suggest that IKKβ inhibitor does not block total NF-κB activity and may activate noncanonical pathway in cells with both canonical and noncanonical pathways.

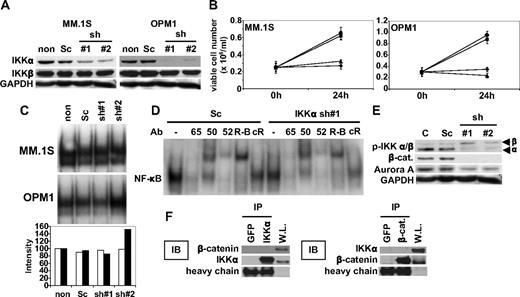

We next similarly examined the biologic significance of IKKα inhibition in MM cells. Because no small molecule inhibitors against IKKα are available, we used shRNA lentivirus transfection system to knockdown IKKα. To define nonspecific effect of this transfection, we used 2 different shRNAs. MM.1S and OPM1 cells were transfected with either scrambled (Sc) or IKKα shRNAs (1 and 2); significant down-regulation in IKKα protein expression was confirmed by Western blot in IKKα, but not in Sc, shRNA transfectants (Figure 5A). Importantly, IKKα shRNA transfected MM.1S (Figure 5B left panel) and OPMI (Figure 5B right panel) cells demonstrated significant growth inhibition compared with nontransfected and scrambled shRNA transfectants. For example, 2.9-, 0.8-, and 1.2-fold increases in viable cell number were observed in scrambled shRNA, IKKα shRNA 1, and IKKα shRNA 2 transfected OPM1 cells, respectively.

We next examined the effect of IKKα down-regulation on NF-κB activity in MM.1S and OPM1 cells. Specifically, nuclear extracts were isolated from the same treated cells used for IKKα protein expression (Figure 5A). Surprisingly, there is no association between growth inhibition and NF-κB activity in IKKα shRNA transfected cells (Figure 5C). To examine the effect of IKKα knockdown on canonical and noncanonical NF-κB activation pathways, we performed supershift assays in scrambled versus IKKα shRNA 1 OPM1 transfectants, which indicated that neither canonical nor noncanonical pathway was inhibited by IKKα down-regulation (Figure 5D). These data suggest that partial inhibition of IKKα alone may be insufficient to block either the canonical or noncanonical NF-κB pathways.

We next examined the molecular mechanisms whereby IKKα down-regulation triggered growth inhibition of MM cells without inhibiting NF-κB activity. Interestingly, down-regulation of IKKα enhanced phosphorylation of IKKβ, suggesting compensatory activation of the canonical pathway. Previous studies have shown that IKKα could modulate function and/or expression of β-catenin,^18,19  Wnt/β-catenin signaling,^20-22  and Aurora-A.²³  Moreover, inhibition of Wnt/β-catenin signaling induces significant growth inhibition in MM cells.²⁴  We therefore examined protein expression of β-catenin, as well as its downstream molecule Aurora A, in scrambled vs IKKα shRNA MM.1S transfectants. Importantly, levels of β-catenin and Aurora-A proteins were markedly lower in IKKα shRNA transfectants than in scrambled shRNA transfectants (Figure 5E). To define physical interaction of IKKα with β-catenin, we performed immunoprecipitation; however, neither β-catenin nor IKKα protein coimmunprecipitated with anti-IKKα or –β-catenin (Figure 5F). These results strongly suggest that MM cell growth inhibition induced by IKKα down-regulation is not the result of a decrease of NF-κB activity; and that down-regulation of β-catenin and Aurora A may, at least in part, account for IKKα down-regulation-induced growth inhibition of MM cells.

We next examined whether inhibition of both IKKα and IKKβ could augment the growth inhibitory effect in MM cells induced by targeting either IKKα or IKKβ alone. MM.1S cells transfected with scrambled or IKKα shRNA were cultured in the presence or absence of MLN120B (2.5 and 5 μM). Although MLN120B alone did not trigger growth inhibition in scrambled shRNA transfectants, it significantly enhanced growth inhibition in IKKα shRNA transfectant (Figure 6A). Because lentivirus knockdown does not have therapeutic implications and IKKα specific small molecule inhibitors are not available, we used Hsp90 inhibitor 17AAG in this combination strategy. Specifically, we first examined IKKα and IKKβ expression after 17AAG treatment. Consistent with our previous study,²⁵  17AAG down-regulated both IKKα and IKKβ expression in MM.1S cells in a time-dependent fashion (Figure 6B). Similar results were observed in RPMI8226 cells (data not shown). To address the mechanism of this effect, we next measured IKKβ transcription using quantitative real-time PCR before and after 17AAG treatment. IKKβ mRNA level in MM.1S cells was not altered by 17AAG treatment (Figure 6C), suggesting that down-regulation of IKKβ occurred at a posttranscriptional level. Similar results were observed with IKKα (data not shown).

Because 17AAG down-regulated both IKKα and IKKβ, we next examined the effect of 17AAG treatment on NF-κB activity. Although MLN120B (Figure 4B) or IKKα shRNA (Figure 5C) did not down-regulate NF-κB, 17AAG markedly inhibited NF-κB activity, in a dose-dependent fashion, in MM.1S cells (Figure 6D). Consistent with MLN120B treatment (Figure 4B), NF-κB activity in RPMI8226 cells was blocked by 17AAG treatment (Figure 6D). Therefore, both MLN120B and 17AAG have different effects on NF-κB activity, depending on the cell line. For example, NF-κB activity was inhibited in RPMI8226, but enhanced in MM.1S cells, by MLN120B. On the other hand, NF-κB activity was not inhibited by 17AAG in both MM.1S and RPMI8226 cells (Figure 6E). Inhibition of constitutive NF-κB activity was further examined by culturing MM.1S cells with (5 μM) or without MLN120B, in the presence (250 or 500 nM) or absence of 17AAG for 8 hours. As expected, enhanced NF-κB triggered by MLN120B in MM.1S cells was significantly blocked by 17AAG (Figure 6F).

Because we have shown that the BM microenvironment confers growth and drug resistance in MM cells,²  we next studied the effect of combined MLN120B and 17AAG treatment on MM cell growth in the BM milieu. Importantly, proliferation of MM.1S (2.1-fold, Figure 6G) and INA6 (1.5-fold, Figure 6H) cells triggered by adherence to BMSCs was modestly inhibited by 5 μM MLN120B; this inhibition was significantly (P < .01) increased by 17AAG in a dose-dependent fashion. These results confirm that the combination of MLN120B and 17AAG remains cytotoxic against MM cells in the context of the BM microenvironment.

NF-κB plays a crucial role in the pathogenesis of various cancers.^17,26-28  Specifically, NF-κB regulates transcription of proteins mediating cell cycle progression, antiapoptosis, drug resistance, and cytokine/chemokine production.^29-31  However, the precise mechanism and role of NF-κB activation in the pathogenesis of MM have not been fully characterized. Importantly, a recent study using high-density oligonucleotide array comparative genomic hybridization and gene expression profiling⁷  demonstrated dysregulation of NF-κB in approximately 20% of MM patient samples. Therefore, NF-κB represents a promising therapeutic target in many types of cancer, including MM.

The proteasome inhibitor bortezomib is a novel agent that targets NF-κB by preventing proteasomal degradation of IκBα. It demonstrates remarkable anti-MM activities in preclinical in vitro and in vivo models of MM in the BM milieu,^32,33  has shown remarkable clinical activity in MM, and was approved by the Food and Drug Administration in 2003, 2005, and 2008 for treatment of relapsed refractory, relapsed, and newly diagnosed MM, respectively.³⁴  Besides bortezomib, a variety of other novel agents with preclinical and/or clinical anti-MM activity, such as thalidomide,³⁵  immunomodulatory derivatives,³⁶  histone deacetylase inhibitors,³⁷  transforming growth factor-β receptor tyrosine kinase inhibitor,³⁸  lysophosphatidic acid acyltransferase-β inhibitor,³⁹  1′-acetoxychavicol acetate,⁴⁰  and proteasome inhibitor NPI0052,⁴¹  all inhibit NF-κB activation, associated with significant inhibition of MM cell growth. However, these agents are not specific NF-κB inhibitors, and the precise molecular mechanisms of NF-κB inhibition by these agents are not delineated.

To characterize the biologic sequelae of specific NF-κB inhibition in MM, we have previously used specific IKKβ inhibitors PS-1145⁴  and MLN120B,¹²  which completely block TNF-α–induced NF-κB activation, MM cell growth in the context of BMSCs, and IL-6 secretion from BMSCs triggered by MM cell adhesion. However, the direct growth inhibitory effect of these agents against MM cells is modest.^4,5  Moreover, recent studies have shown that NF-κB can be activated via both canonical and noncanonical (alternative) pathways.¹⁶  Because IKKβ mediates predominantly the canonical pathway, inhibition of IKKβ alone may be insufficient to inhibit total NF-κB activity in MM cells.

Specifically, although the canonical pathway with p50 (NFκB1)/p65 (RelA) heterodimer mediates NF-κB activity, recent studies have revealed the importance of the noncanonical pathway with predominantly p52 (NFκB2)/RelB. In this study, we therefore examined the relative contribution of canonical versus noncanonical pathway mediating NF-κB activation in MM cells. As expected, all MM cell lines examined express p50 and p65 canonical pathway; 4 of 9 MM cell lines also express p52 and RelB. Interestingly, those cell lines that express p50/p65 and p52/RelB have higher NF-κB activity than those cell lines that lack p52/RelB. Supershift assays confirm that both canonical and noncanonical pathways are active in cell lines expressing p50/p65 and p52/RelB, suggesting the importance of noncanonical pathway in constitutive NF-κB activity in these MM cells. These results are consistent with a previous report demonstrating constitutive activation of noncanonical NF-κB pathway in patient MM cells.⁷

We have shown that cytokines (ie, TNF-α, IL1β, stromal-derived factor-1α, B cell–activating factor) secreted by BMSCs and other components in the BM activate NF-κB in MM cells in vitro^2,10,42 ; however, the relative role of canonical and noncanonical pathway mediating BMSC-induced NF-κB activation in MM cells has not been defined. In this study, we demonstrated that both canonical and noncanonical pathways were activated by culture of MM cells with BMSCs. Furthermore, the intensity of NF-κB activation triggered by BMSCs is higher in MM cells with both canonical and noncanonical pathways than in those MM cells with predominantly canonical pathway. To assess the biologic significance of these in vitro studies demonstrating both canonical and noncanonical NF-κB activation in MM cells triggered by BMSCs, we performed p50, p65, and p52 staining in TMA samples of plasma cells from several healthy donors, persons with MGUS, and MM patients. Consistent with previous studies^6,7  and our in vitro studies, the majority of MGUS and MM patient samples express p50, p65, and p52; and immunoblotting confirmed their nuclear localization. These results confirm that both canonical and noncanonical pathways are activated in MGUS and MM patient plasma cells in the BM microenvironment, suggesting that growth, survival, and drug resistance of MM cells conferred in the BM microenvironment are mediated, at least in part, by NF-κB.

Because both canonical and noncanonical NF-κB pathways are activated, we further examined the biologic sequelae of inhibiting of each pathway in MM cell lines. To block the canonical pathway, we used specific IKKβ inhibitor MLN120B.¹²  We have previously shown that MLN120B has modest anti-MM activity in vitro and in vivo, with differential sensitivity of MM cell lines to MLN120B.⁵  In this study, we found that MM cell lines with canonical NF-κB activity were more sensitive to MLN120B than those with both canonical and noncanonical NF-κB activation. In our experiments, IKKα shRNA could not completely down-regulate IKKα expression. It therefore remains possible that more complete IKKα knockdown would inhibit NF-κB activation; moreover, it is also possible that IKKα down-regulation triggers compensatory activation of IKKβ. Another recent study has shown growth inhibitory effects of MLN120B in MM cells⁶  at much higher concentrations than the IC₅₀ between 5 and 10 μM, observed in our study. Interestingly, MM cell lines with activated noncanonical pathway evidenced by nuclear p52 expression (ie, EJM, XG2, KMS18) were also sensitive to MLN120B in this earlier study.⁶  The differences in sensitivity to MLN120B might be the result of experimental methods (³H-thymidine uptake vs viable cell count). In addition, we show that MLN120B can inhibit the canonical but enhanced noncanonical pathways. This unexpected result suggests the possibility of cross-talk signaling between canonical and noncanonical pathways; ie, IKKα phosphorylates and mediates IKKβ activity.⁴³

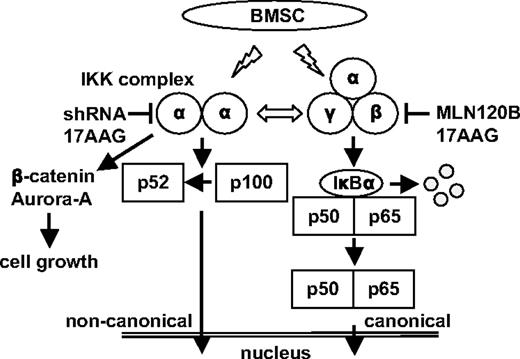

IKKα is involved in both canonical and noncanonical NF-κB pathways. In the canonical pathway, a key step is activation of an IKK complex, which is generally maintained by 3 IKK subunits: IKKα and IKKβ act as catalytic subunits, whereas IKKγ acts as a regulatory subunit of the kinase.⁸  In the noncanonical pathway, IKKα typically is composed of a homodimer and mediates phosphorlation of p52 precursor protein p100.^16,44  In this study, we therefore expected that inhibition of IKKα could bock both canonical and noncanonical pathways, associated with MM cell growth inhibition. As expected, IKKα shRNA transfectants showed significant growth inhibition in MM cell lines. Surprisingly, IKKα shRNA transfected cells had even higher NF-κB activity than control vector transfected cells, indicating that the growth inhibitory effect of IKKα down-regulation was independent of NF-κB activity in these cells.

We therefore sought to identify possible molecular mechanisms whereby IKKα down-regulation induced MM cell growth inhibition. We found that IKKα knockdown cells showed significantly lower expression of β-catenin and Aurora-A than control cells. Previous studies have shown that IKKα mediates not only NF-κB activation, but also other pathways, including regulation of chromatin remodeling and cell cycle regulation via modulating Aurora kinase A phosphorylation.²³  Wnt signaling plays a crucial role in both development and differentiation; moreover, activation of canonical Wnt pathway results in β-catenin stabilization in human cancers. In MM, Wnt/β-catenin axis plays a role in progression and metastatic potential⁴⁵ ; conversely, inhibition of β-catenin by a small molecule inhibitor PKF115-584 induces remarkable anti-MM activity in vitro and in vivo in a MM xenograft mouse model.²⁴  Most recently, anti-MM activities triggered by inhibiting Aurora-A have also been shown.⁴⁶  Our results therefore suggest that MM cell growth inhibition by IKKα knockdown may be mediated, at least in part, by down-regulation of β-catenin and/or Aurora-A expression in MM cells. Ongoing studies will delineate the molecular mechanisms whereby down-regulation of IKKα triggers decreased expression of these proteins.

Having shown the sequelae of inhibiting canonical versus noncanonical NF-κB activation pathways, we next examined whether simultaneous inhibition of both pathways enhances the growth inhibitory effect. Although IKKα down-regulation triggered significant growth inhibition in MM cells, we found that MLN120B further augmented its effect, specifically in cells with both canonical and noncanonical pathways. To validate the clinical potential of combined inhibition, we used Hsp90 inhibitor 17AAG as an IKK inhibitor.^25,47  We confirmed that 17AAG down-regulates both IKKα and IKKβ in MM cells at a posttranscriptional level. As expected, 17AAG significantly inhibited NF-κB activity in both MM.1S cells and RPMI8226 cells. Although Hsp90 has other client proteins involved in MM cell growth, our results suggest that growth inhibition triggered by Hsp90 may be mediated, at least in part, via down-regulating IKKs.

We further studied the sequelae of combined MLN120B and 17AAG treatment in MM cells. As expected, the combination treatment markedly inhibited TNF-α–induced phosphorylation and degradation of IκBα (data not shown). Moreover, induction of noncanonical NF-κB activity by MLN120B was blocked by 17AAG, associated with an enhanced growth inhibitory effect. Because we have shown that the BM microenvironment confers drug resistance on MM cells,²  we further examined the growth inhibitory effect of this combination in MM cells in the context of the BM microenvironment. Importantly, we confirmed that this combination blocked MM cell growth, even in the presence of BMSCs. Moreover, the growth inhibitory effect of this combination treatment was most significant in IL-6–dependent INA6 cells. Because IL-6 production by BMSCs is modulated by NF-κB activity,⁴⁸  combination treatment strategies targeting both canonical and noncanonical pathways may both target MM cells and overcome growth and cell adhesion-mediated drug resistance⁴⁹  to conventional therapy conferred by the BM microenvironment (Figure 7). These studies provide the preclinical rationale for combination therapy strategies to improve patient outcome in MM.
