GPIbα regulates platelet size by controlling the subcellular localization of filamin

Filamin A is a large dimeric 280 kDa multidomain protein that exists as a major component of the membrane skeleton of most cells, and is widely expressed in species ranging from slime molds to humans (for a recent review, see Zhou et al¹ ). Originally described as an actin-binding protein tightly associated with actin-myosin filaments,^2,3  filamin A also functions prominently as a scaffolding protein, binding a reported 70+ cytosolic proteins, including transcription factors, GTPase-related proteins, and kinases.¹  Encoded by the X chromosome in humans, filamin A is closely related to 2 other members of the filamin family—filamins B and C, the former of which, similar to filamin A, is ubiquitously expressed, and the latter of which is restricted to expression in muscle. In many cells, filamin A is brought close to the inner face of the plasma membrane by virtue of its association with transmembrane receptors of the integrin or Ig superfamily, where it is consequently well-positioned to mediate both signal and force transmission. In blood platelets, filamin A associates predominantly with the cytoplasmic domain of GPIbα^4,5 —a Type I transmembrane protein that serves, together with GPIbβ, GPV, and GPIX, as a major subunit of the GPIb complex—the platelet adhesion receptor for collagen-bound von Willebrand factor (VWF).⁶  The nature of the association between filamin A and GPIbα has been extensively studied,^7-14  and is currently thought to mainly involve amino acids 556-577 within the central region of the cytoplasmic domain of GPIbα and Ig-like repeat number 17 in the C-terminal half of filamin A.¹⁵

The association of filamin A with the GPIb complex has been shown to be important for a number of cellular functions. Early on, filamin A/GPIbα interactions are required for efficient biosynthesis and processing of the GPIb complex, as suggested by the finding that its enforced expression on the surface of melanoma¹⁶  and Chinese hamster ovary (CHO)¹⁴  cells is diminished in the absence of filamin A, and by the recent observation that GPIb surface expression is significantly decreased in filamin A–deficient murine platelets.^17,18  The mechanism by which filamin A promotes cell surface expression of the GPIb complex is not completely understood, but is thought to involve an interaction between filamin and nascent GPIbα within the endoplasmic reticulum (ER) of the cell, which facilitates trafficking of the GPIb complex to the cell surface.¹⁴  Whether GPIb conversely affects the cell surface distribution of filamin is not known. Once on the cell surface, GPIb continues to require filamin-mediated attachment to the membrane skeleton to anchor CHO cells^11,19  and platelets¹⁷  to immobilized VWF under conditions of shear.

In addition to its role in stabilizing GPIb trafficking and function, filamin appears to play a prominent role in regulating platelet size. For example, the macrothrombocytopenia seen in patients with Bernard-Soulier syndrome (BSS)—an inherited bleeding disorder caused by absence or dysfunction of one or more subunits that comprise the GPIb complex—has long been attributed to a failure to anchor the plasma membrane to the underlying membrane skeleton during the process of platelet formation,²⁰  a notion supported by the marked deformability of the plasma membrane of BSS platelets,²¹  and by the observation that mice genetically engineered to lack either GPIbα²²  or filamin A¹⁷  both form giant platelets. That the macrothrombocytopenia in BSS mice and humans is primarily because of loss of filamin/GPIbα interactions is supported by the finding that platelets from a BSS patient with a mutation that eliminates only the transmembrane and cytoplasmic domain of GPIbα are as large as those from BSS patients lacking the entire GPIb complex,²³  and from the observation that transgenic expression in GPIbα-deficient mice of a chimeric protein consisting of only the transmembrane and cytoplasmic domains of GPIbα fused to the extracellular domain of the IL-4 receptor is able to partially rescue the macrothrombocytopenia, conferring a 40%-50% correction in platelet size.²⁴  Interestingly, platelet size was found to correlate directly, rather than inversely, with the level of expression of the chimeric IL-4Rα/GPIbα protein (eg, transgenic mouse lines expressing more of the transgene produced larger, rather than smaller, platelets).²⁴  The reason increased expression of IL-4Rα/GPIbα should lead to the formation of larger platelets during the process of thrombopoiesis was not determined.

In the present study, we sought to further examine the role of filamin as a determinant of platelet size and production during the process of platelet-poiesis. For this, we used a newly developed model in which the expression levels of filamin A, filamin B, and GPIbα could be manipulated in embryonic stem cells that were subsequently differentiated into embryoid bodies, and then into megakaryocytes, proplatelets, and platelets. We found that, in addition to contributing to megakaryocytopoiesis, filamin plays an important role in the process by which platelets are derived from their proplatelet precursors, as filamin-deprived platelet precursors give rise to distended proplatelets that produce giant platelets. We also report that, in addition to the known contribution of filamin in directing GPIbα to the plasma membrane, balanced expression of GPIbα is similarly required to chaperone filamin to the inner face of the plasma membrane, where it can become incorporated into the membrane skeleton and regulate the deformability of the platelet membrane during thrombogenesis. Taken together, these data suggest that, in addition to controlling the absolute levels of expression of GPIbα and filamin, cells must coordinately regulate the ratio at which these 2 proteins become expressed to achieve normal platelet biogenesis.

Rabbit polyclonal antibody against mouse filamin A (FlnA) was raised by immunizing rabbits with a recombinant, dimerized domain of mouse FlnA. The mouse monoclonal antibody against FlnB (clone D-6), and a mouse monoclonal antibody recognizing the human IL-4 receptor (MAB230; R&D Systems), are all commercially available.

CMV promoter-EGFP-short hairpin RNA (shRNA) vector. The target sequence for mouse FlnA and mouse FlnB (tac agg caa tat ggt gaa gaa g) was converted into shRNAs based on human pri-miR30 precursor using RNAi Codex (http://cancan.cshl.edu/cgi-bin/Codex/Tools.cgi). A Not/XhoI fragment of a synthesized mini-gene having this shRNA sequence, and a HindIII/NotI fragment of the pEGFP-N1 plasmid vector (Invitrogen) were cloned into pcDNA3.1/Zeo(+) (Invitrogen). hTPO expression vector: full-length cDNA obtained from Open Biosystems was cloned into pcDNA3.1/Zeo 3(+) using its EcoRI site. Expression vectors encoding the human GPIb complex and human filamin A: cDNAs encoding GPIbα, GPIbβ, and GPIX^24,25  were subcloned into the eukaryotic expression vector pcDNA3.1/Zeo(+) (Invitrogen), as previously described.^24,25  Vectors encoding GPIbα-EGFP (carboxyl-terminal of GPIbα fused to EGFP) and FlnA-DsRed (carboxyl-terminus of filamin A fused to DsRed mono N1) were generated by PCR mutagenesis. cDNA for human FlnA subcloned into pREP4 (Invitrogen), was provided by Y. Ohta (Kitasato University, Kanagawa, Japan).

IL4R-Ibα Tg33 and Tg51 transgenic mice expressing the extracellular domain of the IL-4 receptor fused to the transmembrane and cytoplasmic domain of GPIbα have been previously described.²⁴  All mice were produced or bred onto a GPIbα-null background.²²

Blood samples were collected from the retro-orbital venous plexus using heparin-coated capillary tubes. Blood cell parameters including platelet size, platelet number, and the mean platelet volume (MPV) were analyzed using a Scil Vet abc Counter (Scil Animal Care Company).

Murine embryonic stem cells: the ES cell line E14tg2a (kindly provided by Dr Hitoshi Niwa, Center for Developmental Biology, RIKEN, Kobe, Japan), was maintained on plates coated with 0.1% gelatin and in Glasgow Minimum Essential Medium (GMEM; Sigma-Aldrich) supplemented with 10% fetal bovine serum (FBS), 100μM nonessential amino acids, 1mM sodium pyruvate, 2mM glutamate, 1% penicillin streptomycin, 100μM β-mercaptoethanol plus 1000⁻¹ U/mL ESGRO (Millipore). Stromal cells: hTERT stromal cells transduced with the human telomerase catalytic subunit (kindly provided by Dr Hirofumi Hamada, Department of Molecular Medicine, Sapporo Medical University School of Medicine, Sapporo, Japan) were grown in long-term culture (LTC) medium containing minimum essential medium-α supplemented with 12.5% FBS (Invitrogen), 12.5% horse serum (Invitrogen), 1 × 10⁻⁶M hydrocortisone (Sigma-Aldrich), and 1 × 1⁻⁴M β-mercaptoethanol (Sigma-Aldrich).

FlnAB knockdown (FlnAB_Low ES), hTPO-producing hTERT stromal cells (hTERT-TPO stromal cells), FlnA overexpressing HEK293T cells (OXF), and FlnA-DsRed expressing HEK293T cells were all established by transfection in 6-well tissue culture plates using Lipofectamine LTX with PLUS reagent (Invitrogen). The protocol was performed as per the supplier's directions. Cells were harvested 2 days after transfection, reseeded on 10-cm plates, and cultured for an additional 6 to 9 days in the presence of antibiotics, after which time single clones were removed by micropipette aspiration.

Embryoid body (EB) formation: 2.5 × 10⁵ embryonic stem cells (ESCs) were placed in ultra-low attachment 6-well plates (Corning) containing Iscove modified Dulbecco medium (IMDM) supplemented with a cocktail of 300 μg/mL human transferrin, 0.45mM monothioglycerol, 50 μg/mL ascorbic acid, and penicillin-streptomycin/l-glutamine solution (Invitrogen) as previously described.²⁶  Megakaryocyte-platelet generation: day 1: hTPO-TERT stromal cells (6-9 × 10⁴) were seeded into 6-well dishes. Day 0: 6 (or 8)–day-old EBs were dissociated with 0.25% trypsin/EDTA, and incubated with PE-labeled anti–mouse CD41 antibody (MWReg 30; BD Pharmingen). CD41-positive cells were isolated using anti-PE antibody-conjugated magnetic immunobeads (Miltenyi Biotec). CD41-positive cells (3 × 10⁴) were suspended in IMDM containing 15% FBS with 40 ng/mL hTPO (PeproTech) and transferred to hTPO-TERT stromal cells. Alternatively, 3 × 10⁵ CD41-positive cells were plated per well in 12-well dishes in the presence of 50 ng/mL hTPO. Day 6: analyzed megakaryocytes and platelets.

Platelets (5 × 10⁸) were suspended in 500 μL modified Tyrode buffer, and then mixed with equal volumes of solubilization buffer (2% Triton X-100, 0.1 mol Tris [tris(hydroxymethyl)aminomethane], 0.01 mol ethyleneglycoltetraacetic acid [EGTA], 0.15 mol NaCl, and 1 tablet of cOmplete ULTRA (Roche) in 10 mL lysis buffer [pH 7.4] and 20μM MG132 (Calbiochem). The lysates (1 mL) were mixed with 50 μL (50% vol/vol) protein G beads (Pierce) and 5μg of the polyclonal Ab against FlnA or monoclonal Ab against FlnA PM6/317 (Sant Cruz) for 90 minutes. The beads were then washed 3 times in the same solubilization buffer containing 1% Triton X-100.

Cultured cells or washed platelets were resuspended in phosphate-buffered saline (PBS), and then lysed with equal volumes of T-SDS buffer (50mM Tris-Cl [pH 7.4], 2% SDS) in the presence or absence of β-mercaptoethanol. Platelet lysates or cell lysates were analyzed by electrophoresis in 7.5% or 10% SDS-polyacrylamide gels. The separated proteins were then electrophoretically transferred to polyvinylidene fluoride (PVDF) membranes (Millipore), blocked with EzBlock (Atto), and then probed with the antibodies previously described. Blots were washed 3 times, incubated with a horseradish peroxidase (HRP)–conjugated secondary antibody, washed again 3 times, developed with Super Signal West Pico Chemiluminescent Substrate (Thermo Scientific), and analyzed using a Kodak 1D imaging system (Kodak Scientific Imaging System).

For analysis of ESC-derived proplatelets, the cells were fixed with 1% paraformaldehyde in PBS for 2 hours at 4°C, incubated with rat monoclonal antibody against GPIbβ (Xia.C3, Emfret Analytics GmbH & Co KG) or control rat IgG2a for 20 minutes, followed by Alexa Fluor 647–labeled goat anti–rat IgG. The platelet population was identified by GPIbβ expression or CD41 (αIIb) expression and forward scatter (FSC). The cutoff value for FSC was determined by the size of normal C57BL/6J mouse platelets. For intracellular staining of FlnA and F-actin, whole blood samples were fixed and permeabilized with Cytofix/Cytoperm (BD Biosciences) after incubation with FITC labeled CD41 antibody (MWReg30), and then incubated with biotinylated rabbit polyclonal antibody against mouse FlnA, followed by Alexa Fluor 647–labeled streptavidin (Invitrogen). F-actin was quantified using Alexa Fluor 647–labeled phalloidin (Invitrogen).

A Nikon Eclipse TE200 microscope equipped with a FITC filter, a Cool Snap ES camera (Roper Scientific Photometrics), and Metamorph 7.6 acquisition software (Universal Imaging) were used to acquire images of ESCs, EBs, megakaryocytes, and proplatelets. Immunofluorescent detection was performed by confocal microscopy using an Olympus FV1000-MPE Multiphoton Microscope (Olympus) using a LUMPlanFl 40x W/IR water immersion objective (Olympus).

Data are presented as mean ± SD as indicated. Statistical analysis was performed using GraphPad Prism 4 software (GraphPad Software).

To analyze the function of filamin in vitro megakaryocytopoiesis and platelet production, we constructed a short hairpin RNA (shRNA) vector that targets both filamins A and B under the control of the human cytomegalovirus (CMV) immediate-early promoter and enhancer (Figure 1A). As shown in Figure 1B, the targeting sequence was 100% identical to FlnA and 82% identical to FlnB, and was effective in generating Zeocin resistant, GFP-expressing clones, termed FlnAB_Low, having reduced expression of both filamin isoforms. These Flns targeting vectors also expressed GFP as a tracer, which could be used to monitor knockdown efficiency. More than 90% of FlnAB_Low ESCs expressed GFP when first generated (not shown), but lost expression of both GFP and the targeting shRNA, a property that we exploited below to determine the effects of filamin expression in an internally controlled manner.

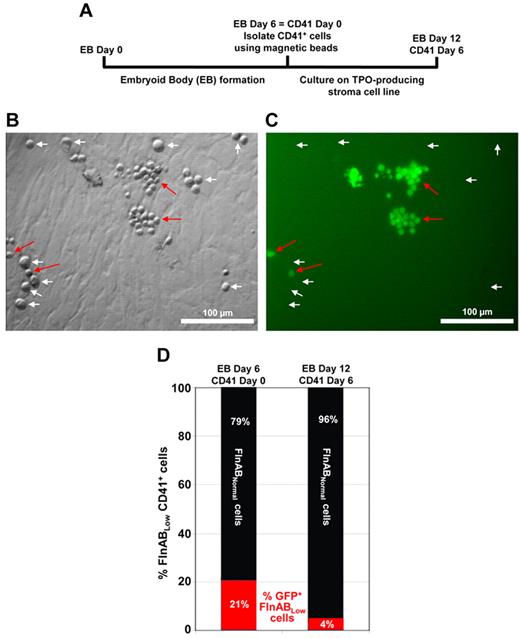

Nishiki et al recently developed an efficient method for generating platelets from ESCs that involves culturing CD41, c-kit double-positive hematopoietic progenitor cells in the presence of OP9 stroma cells to generate hematopoietic progenitor cells.^26-28  Transduction of the telomerase gene into bone marrow stroma cells to generate hTERT stroma cells was later found to improve the efficiency of stromal cell help,²⁹  and thrombopoietin has been known not only to be required to drive differentiation down the megakaryocyte/platelet lineage but also to support self-replication of hematopoietic stem cells.³⁰  We combined these features into a newly established TPO-producing, telomerase gene-transduced human stromal cell line, designated hTERT-TPO. As shown schematically in Figure 2A, CD41-positive cells were isolated from embryoid bodies that had been derived from FlnAB_Low embryonicstem cells and cultured in the presence of TERT-TPO stroma feeder cells for an additional 6 days. Many of these cells lose expression of the GFP-Fln shRNA construct over time, resulting in the appearance of 2 distinct populations of cells by day 4 (Figure 2A-B): (1) numerous large GFP-negative cells that express near-normal levels of these 2 filamin isoforms, and (2) fewer small cells that have remained GFP-positive and FlnAB_Low. Quantitation of these 2 cell populations (Figure 2D) revealed a 79:21% ratio of GFP-negative:GFP-positive cells at day 0 that further evolved into a 96:4% ratio by day 6, strongly suggesting that expression of filamin confers a maturational, proliferative, and differentiation advantage over those cells that express only low levels of filamins A and B. These data suggest that failure to express filamin results in a delay in megakaryocytopoiesis.

In addition to a role in supporting megakaryocyte differentiation (Figure 2), filamin A has been shown to be important in regulating platelet size in vivo.¹⁷  To further examine the importance of filamins A and B in thrombopoiesis, we analyzed the size of the proplatelet projections and ensuing platelets derived from FlnAB_Low EB-derived cells that had been allowed to mature in the presence of hTERT-TPO stroma cells for 6 days. As shown in Figure 3A and B, GFP-positive FlnAB_Low proplatelet projections exhibited a distinctly abnormal morphology, characterized by enlarged swellings and thick shafts. In contrast, most of the GFP-negative proplatelets (Figure 3C) had well-extended, noticeably thinner proplatelet shafts decorated with smaller preplatelet swellings. We also evaluated at Day 6 the size of the platelets produced from EB-derived primitive FlnAB_Low megakaryocytes, which had either become GFP/shRNA-negative (FlnAB_Normal) or retained GFP and the shRNA to suppress filamin A and B synthesis (FlnAB_Low). As shown in Figure 3D, FACS analysis of GPIbβ-positive cells revealed that proplatelets that had remained GFP-positive produced platelets 2 to 3 times larger than those derived from FlnAB_Normal cells. Expression of CD41was proportionally increased, whereas GPIbβ expression, which accurately reports expression of the GPIb complex,²⁶  was proportionally decreased in expression (Figure 3E), consistent with observations made of FlnA-null megakaryocytes and platelets.¹⁸  Taken together, these data demonstrate that filamins A and B are required for efficient megakaryocytopoiesis, for efficient trafficking of the GPIb complex to the cell surface, and for production of normal sized platelets.

ESCs express both filamins A and B,³¹  although the level of filamin B in platelets is reported to be only ∼ 10% that of filamin A.¹⁷  To evaluate the relative contribution of filamin B to these processes, we generated ESCs in which filamin A, but not filamin B, was selectively knocked-down using an shRNA that targets only FlnA (supplemental Figure 1A-B, available on the Blood Web site; see the Supplemental Materials link at the top of the online article). As shown in supplemental Figure 1C, FlnA_Low ESCs produced slightly more CD41-positive megakaryocyte precursors than did FlnAB_Low ESCs (31% vs 21% at day 0, and 10% vs only 4% at day 6; compare Figure 2D with supplemental Figure 1C), indicative of less efficient ESC→megakaryocyte differentiation when both filamins A and B, rather than just filamin A alone, are decreased. In contrast, proplatelet size was not significantly different when they were derived from FlnA_Low versus FlnAB_Low ESCs; being approximately twice the size of FlnAB_Normal platelets in both instances (compare Figure 3D with supplemental Figure 1D). These data suggest that FlnB plays a minor, but measurable, role in megakaryocyte differentiation, but is unable to restore normal platelet size in the absence of filamin A.

The mechanism by which filamin functions as a determinant of platelet size requires its constitutive association with the GPIb complex not only in mature platelets, but as illustrated in Figure 3, during the process of thrombogenesis. Loss of either protein results in failure to properly anchor the plasma membrane to the underlying membrane skeleton, resulting in deformable, thickened, and distended proplatelet shafts and macrothrombocytopenia. In support of this model, previous studies have shown that filamin associates with GPIbα within the endoplasmic reticulum of the cell during the early stages of their biogenesis, serving as a molecular chaperone to ensure efficient trafficking of the GPIbα/filamin complex to the cell surface.^14,16-18  To examine whether balanced expression of these 2 proteins might be required for efficient trafficking of the ER, we established 3 stable lines of HEK293T cells, one transfected with a filamin-specific shRNA to knockdown filamin (KDF), and the other transfected with a filamin-expressing plasmid to overexpress the protein (OXF), and untransfected cells (N) with intermediate levels of filamin A (Figure 4A top panel). GPIbα was then transfected into all 3 cell lines, and its ability to traffic of the ER assessed by Western blot analysis. As shown in the bottom panel of Figure 4A, overexpression of filamin, similar to the lack of filamin expression,^14,16-18  results in retention of GPIbα within the ER, as shown by the accumulation of its low molecular weight, endo H-sensitive form (not shown).

To explore whether GPIb serves a complementary role in chaperoning filamin to the membrane skeleton, we expressed a GPIbα-EGFP²⁶  fusion protein (either alone or together with GPIbβ and GPIX) in HEK293 cells that constitutively expressed filamin, and examined whether conditions that favor trapping of GPIbα within the ER of the cell might also result in the retention of filamin. As shown in the top 3 panels of Figure 4B, when GPIbα was expressed together with GPIbβ and GPIX, both it and filamin became predominantly localized at the cell periphery. In contrast, when GPIbα was expressed without the other 2 subunits of the GPIb complex, conditions under which it is largely retained within the ER,³²  filamin became similary trapped, with little or no plasma membrane staining (Figure 4A bottom 3 panels). Thus, forced accumulation within the ER of either filamin (Figure 4A) or GPIbα (Figure 4B) results in retention of the other, strongly suggesting that balanced, stoichiometric expression of filamin and GPIbα is required for their optimal trafficking to the margin of the cell.

To determine the physiologic importance of balanced expression of GPIb and filamin for producing normal size platelets, 2 different complementary strategies were used. In the first, we generated ESCs expressing, in addition to their own GPIbα, a chimeric protein composed of GPIbα fused at its C-terminus to EGFP²⁶  under the control of the platelet-specific human GPIbα promoter³³  (shown schematically in Figure 5A). When cultured in the presence of hTERT-TPO stromal cells to induce proplatelet production using the same procedures described in Figures 2 and 3, these cells generated platelets that could be identified by their forward scatter properties, and by their expression of GPIbβ (Figure 5B left panel). Interestingly, when the ESC-derived platelets were analyzed according to their expression of the human GPIbα-EGFP fusion protein, 2 populations were observed (Figure 5B right panel): population P1, characterized by normal expression of murine GPIb and little or no expression of human GPIbα, and population P2, characterized by normal expression of murine GPIb together with moderate to high expression of human GPIbα. When each of these 2 populations were back-gated and analyzed for their forward-scatter properties, the human GPIbα/GFP-positive cells were found to be more than twice as large as those derived from GFP-negative ES cells (Figure 5C). Taken together with the observation that excess GPIbα results in retention of GPIbα/filamin complexes in the ER (Figure 4B top panel), these data reinforce the notion that balanced expression of GPIb and filamin is required for the complex to be effective in regulating normal platelet biogenesis.

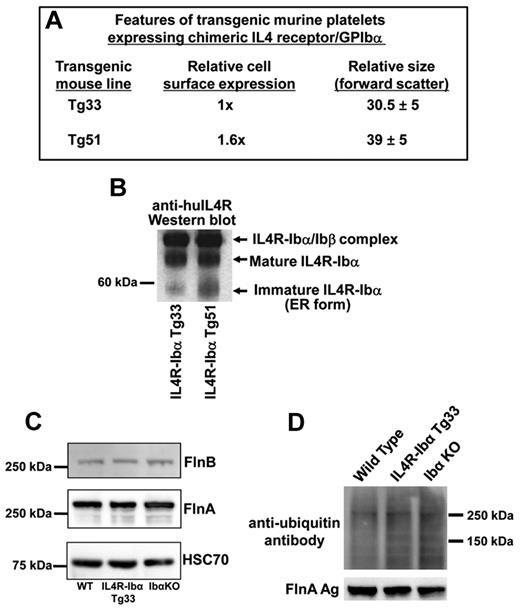

To confirm that the GPIbα cytoplasmic domain is responsible for the observed effects on platelet size of manipulating GPIbα/filamin ratios, we reexamined the relative size of platelets, generated in vivo, from 2 mouse strains, Tg33 and Tg51, that expressed different levels of a chimeric protein composed of the extracellular domain of the IL-4 receptor fused to the transmembrane and cytoplasmic domains of GPIbα (IL4R-GPIbα).²⁴  As shown in Figure 6A, although the Tg51 transgenic line expressed 1.6 times more IL4R-GPIbα on the surface of their platelets than the Tg33 mouse line, their platelets were ∼ 30% larger, not smaller, consistent with the possibility that excess GPIbα might be accumulating in the ER, resulting in the observed phenotype. Western blot analysis of detergent lysates of platelets from Tg33 and Tg51 transgenic mice (Figure 6B) confirmed this suspicion, as there was noticeably more of the ER-trapped form of the chimeric IL4R-GPIbα protein in platelets derived from Tg51, relative to Tg33 mice. Neither the level of expression nor their degree of ubiquitination of filamins A and B differed noticeably between wild-type, Tg33, and GPIb-deficient platelets (Figure 6C-D), consistent with the notion that the subcellular location of filamin, and not its absolute expression level, is a more important determinant of platelet size. The content of F-actin in the platelets from these 3 mouse lines was also proportional to their size (supplemental Figure 2).

Filamins are large (280 kDa) actin-binding proteins composed of an N-terminal F-actin-binding domain, 23 Ig-like domains that organize into a bent rod, and a C-terminal Ig-like domain that mediates its dimerization. The mammalian filamin family is composed of 3 homologous members: filamins A, B and C, with filamin A being the most abundant. In addition to their role in organizing F-actin networks, controlling cell shape, and regulating locomotion, filamins have been reported to bind a diverse array of proteins, including transmembrane adhesion molecules, transcription factors, and cytosolic signaling molecules. The bivalent nature of the molecule, together with its multiple protein interaction sites, allows filamin to serve as a cellular scaffold capable of integrating multiple cellular events.^1,34

In human and murine blood platelets, filamin and spectrin³⁵  comprise the major filamentous components of the membrane skeleton,³⁶  and via its association with the cytoplasmic domain of GPIbα, filamin also serves the role of linking the membrane skeleton to the plasma membrane. Constitutive interaction between GPIbα and filamin has been shown to help maintain the stability and integrity of the plasma membrane under both resting conditions²¹  and under conditions of high shear.³⁷  Association of these 2 proteins takes place early on during the process of megakaryocyte maturation,¹⁴  and based on studies presented herein appears to be important not only for efficient megakaryocytopoiesis (Figure 2), but also for supporting the morphology of proplatelet projections that precede platelet production (Figure 3). Our findings in ESC-derived megakaryocytes and their progeny are similar to those recently observed in vivo by Jurak-Begonja et al, who found that filamin A–null megakaryocytes prematurely release large, fragile platelets into circulation that are prone to disintegration and clearance.¹⁸  Interestingly, Patel-Hett et al recently reported that the other major component of the platelet membrane skeleton, spectrin, also plays an important role in stabilizing the membranous systems of megakaryocytes, proplatelets, and platelets,³⁸  as blebbing and swelling of proplatelet extensions reminiscent of those observed in cells lacking filamins A and B (Figure 3) were also observed in spectrin-null cells. Whether spectrin also functions in early megakaryocytopoiesis, and whether it interacts with the GPIbα/filamin network to support formation of proplatelet structures involved in the terminal stages of platelet production remains to be determined.

Major findings of the present investigation were the reciprocal requirement for filamin to associate with an intact GPIb complex for travel to the cell periphery, and cells must coordinately regulate the ratio at which these 2 proteins become expressed to achieve normal platelet biogenesis. In the case of filamin, it had previously been established,¹⁴  and confirmed by us in this study (Figure 4A), that filamin promotes efficient trafficking of the GPIb complex to the cell surface; however, it was not previously appreciated that the level of filamin expression appears to be as important as expression itself, as reported by the observation (Figure 4A) that overexpression of filamin also results in the trapping of nascent GPIbα within the ER. The mutual requirement for GPIb to chaperone filamin to the periphery of the cell was also somewhat unexpected. In the absence of GPIbβ and GPIX, GPIbα forms an unproductive association with filamin, which traps both proteins within the endoplasmic reticulum of the cell (Figure 4B) with reduced expression of both components at the cell margin. Although it cannot be shown directly, similar unproductive associations probably occur when GPIbα is expressed without the other components of the GPIb complex in ESC-derived proplatelets (Figure 5), or when the GPIbα cytoplasmic domain is overexpressed in vivo (Figure 6). In each case, larger-than-normal platelets were generated. Taken together, the inability of the cell to anchor the plasma membrane to the underlying cytoskeleton has profound effects on megakaryocyte maturation, proplatelet morphology, and ultimately generation of normal sized platelets—both in vitro and in vivo.

Exactly how the GPIbα/filamin complex regulates platelet size during the final stages of plateletpoiesis is still not well understood. Chang et al observed that inhibition of myosin light chain 2 phosphorylation by inhibitors of Rho, Rho associated kinase, or myosin light-chain kinase reduced contractility although increasing proplatelet formation.³⁹  Chen et al reported that loss of myosin-IIA accelerates proplatelet formation, whereas constitutive phosphorylation of myosin light-chain significantly attenuated proplatelet formation.⁴⁰  Jurak-Begonja et al showed that expression of FlnA, GPIb, and actin dramatically increased with megakaryocyte maturation.¹⁸  We speculate that down-regulation of ASB2, which targets filamin for proteasomal degradation,⁴¹  contributes to increase FlnA during the process of megakaryocyte maturation. Expression of myosin is also reported to be up-regulated.³⁹  The increased contractile forces enabled by up-regulating filamin and myosin, combined with the known interactions of GPIb, filamin, actin, and myosin may very well regulate platelet production via their ability to limit the size of proplatelets during their formation. In the absence of either filamin or GPIbα, megakaryocytes may not possess sufficient contractile force to restrict proplatelet size, resulting in aberrant, early release of large platelets from their proplatelet precursors. Further studies will be required to address this important and fascinating aspect of platelet and megakaryocyte cell biology.

The authors thank Dr Hidekazu Nishikii (University of Tsukuba) and Dr Koji Eto (Kyoto University) for technical advice for generating ESC-derived platelets and Susan Russell for platelet sample preparation. They also acknowledge the contributions of Dr Naotaka Hamasaki (Nagasaki International University).

This work was supported by Program Project Grant HL-44612 from the National Heart, Lung, and Blood Institute of the National Institutes of Health (P.J.N.), HL-50545 (J.W.), and the Japan Society for the Promotion of Science and the Futamata Memorial Foundation (T.K. and T.O.).

National Institutes of Health

Contribution: T.K. designed and performed experiments, interpreted data, and wrote the paper; J.W. and T.O. contributed vital reagents and reviewed the paper; and P.J.N. supervised experiments, interpreted data, and wrote the paper.

Conflict-of-interest disclosure: The authors declare no competing financial interests.

Correspondence: Taisuke Kanaji MD, PhD, Blood Research Institute, BloodCenter of Wisconsin, 8727 Watertown Plank Rd, Milwaukee, WI 53266-3548; e-mail: Taisuke.Kanaji@bcw.edu.
