Molecular and cellular features of CTLA-4 blockade for relapsed myeloid malignancies after transplantation

Relapsed acute myeloid leukemia (AML) following allogeneic hematopoietic stem cell transplantation (HSCT) is associated with poor prognosis, and therapeutic options remain limited.¹  Immune escape mechanisms contribute to relapse post-HSCT²  and suggest a reinvigorated graft-versus-leukemia (GVL) effect could improve outcomes.³  Indeed, the Experimental Therapeutics Clinical Trials Network 9204 trial demonstrated that immune checkpoint blockade (ICB) can induce regression of relapsed AML after HSCT through CD8⁺ T-cell recruitment to leukemic sites.^4,5  Through unbiased molecular profiling of the leukemic microenvironment and peripheral blood immunophenotyping of samples from study subjects on this trial, we sought to elucidate the molecular and cellular features of immunologic responses to ICB. These fresh insights may inform new strategies to control relapsed myeloid malignancies after HSCT and broaden our understanding of leukemia-specific immune responses.^6,7

Additional information is provided in the supplemental Appendix, available on the Blood Web site.

RNA was extracted from formalin-fixed paraffin-embedded (FFPE) tissue scrolls and sequenced as previously described (supplemental Figure 1A-D).⁴

Flow cytometry data were acquired using antibody panels (supplemental Tables 1 and 2) on a BD Fortessa flow cytometer. Cytometry by time-of-flight (CyTOF) data were acquired using a 35-antibody panel (supplemental Table 3) on a Fluidigm Helios Mass Cytometer.⁸  Data analysis was performed using CATALYST⁹  and manual gating (FlowJo 10.7.1).

RNA was extracted from T cells enriched with CD3 MicroBeads and MACS columns (Miltenyi) using the RNeasy Midi Kit (Qiagen). Complementarity-determining region 3 (CDR3) sequences were obtained using rhTCRseq.¹⁰

Protein concentration in plasma samples was determined using the Proximity Extension Assay (Olink Bioscience, Sweden).¹¹  Normalized protein expression was calculated from cycle threshold values.¹²

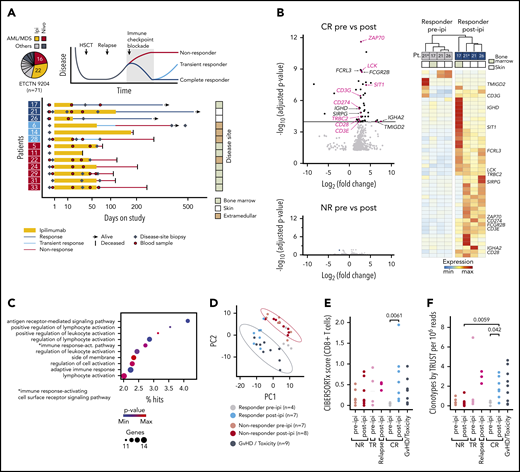

We focused on patients enrolled on Experimental Therapeutics Clinical Trials Network 9204 with relapsed myeloid disease, which constituted the majority of subjects (38/71 [54%]; Figure 1A). To define transcriptomic characteristics underlying successful GVL responses with ipilimumab, we performed bulk RNA-sequencing (RNA-seq) on 33 high-quality disease-site biopsies from 13 patients (3 complete responders [CR; response > 12 months], 3 transient responders (TR; response < 12 months], and 7 nonresponders [NR]) before (pre-ipi) and after (post-ipi) ipilimumab treatment (supplemental Tables 4-7). Disease sites included bone marrow, skin, and extramedullary manifestations. In addition, we generated RNA-seq data from 9 biopsies from sites of graft-versus-host disease (GVHD) or ICB-associated toxicity (supplemental Figure 1E).

Differential gene expression analysis (DGEA) between all pre- and post-ipi CR samples demonstrated enrichment of T cell–specific genes post-ipi but revealed no consistent change in NR samples post-ipi (Figure 1B; supplemental Figure 1F). DGEA on 4 site-matched paired pre-post samples from 3 CR patients revealed a signature of 47 up- and 3 downregulated genes (adjusted P value < 10⁻⁴; absolute log₂ [fold change] >2) enriched for the Gene Ontology terms “lymphocyte activation” and “antigen receptor-mediated signaling” (Figure 1B-C; supplemental Table 8). By principal component analysis (PCA), this signature showed similarity between samples collected from GVHD or toxicity sites with post-ipi CR samples (Figure 1D), suggesting expression of related gene programs. TR and CR biopsies were similar post-ipi on PCA (supplemental Figure 1G). However, DGEA between TR and CR biopsies pre-ipi, although limited by available samples, revealed upregulation of interferon-response genes and checkpoint molecules in TRs that may contribute to ICB resistance (supplemental Figure 1H).^13,14  Cell type abundance estimation (CIBERSORTx) detected evidence of increased CD8⁺ T-cell infiltration in CR biopsies post-ipi compared with pre-ipi (median score 0.56 vs 0.04, P < .01) (Figure 1E). Quantification of de novo assembled T-cell receptor (TCR) clonotypes per million reads (TRUST4) similarly indicated increased T-cell infiltration post-ipi in CR samples (0.33 vs 1.65; P < .05) (Figure 1F). In sum, response to CTLA-4 blockade is characterized by transcriptional evidence of T-cell infiltration and activation within the tumor microenvironment, similar to the signatures linked with GVHD/ICB-associated toxicity.

Ipilimumab alters peripheral T-cell differentiation and broadens the TCR repertoire in solid malignancies.^15-17  We hypothesized that these effects may also mark clinical responses in the post-HSCT setting and thus evaluated serial peripheral blood samples prospectively collected from 20 study subjects by flow cytometry. We observed an increase in effector memory (CD45RO⁺ CD62L⁻) and a decrease in naïve (CD45RO⁻ CD62L⁺) CD4⁺ and CD8⁺ T cells post-ipi (P values < 0.05) independent of response, disease type, or dosing (Figure 2A; supplemental Figure 2A-C).¹⁸

Additionally, we characterized the longitudinal changes in activation states as defined by co-inhibitory or costimulatory molecule expression in 10 patients using CyTOF.⁸  Even though these analyses were all performed on NR, we observed that pre-ipi and post-ipi samples clustered separately (Figure 2B). Consistent with T-cell activation, we detected increased expression of PD-1 on both CD4⁺ and CD8⁺, and HLA-DR and ICOS on CD8⁺ T cells post-ipi (all P < .05; Figure 2C). The proliferation marker Ki-67 was higher on CD8⁺ T cells post-ipi (P < .05), but no changes in absolute lymphocyte counts were detected (supplemental Figure 2D). CD69 was upregulated on regulatory T cells post-ipi (false discovery rate < 0.05), which may reflect a compensatory mechanism to ipilimumab-induced T-cell activation (supplemental Figure 2E-F). Altogether, ipilimumab thus alters differentiation and activation states of circulating T cells independent of clinical response.

Hypothesizing increased TCR diversity post-ipi,¹⁷  we performed TCR sequencing on longitudinally collected peripheral blood samples of 9 AML/myelodysplastic syndrome patients (3 CR, 1 TR, 5 NR). However, TCR repertoires remained relatively stable without consistent changes in TCR diversity (supplemental Figure 2G). Of 572 017 total CDR3α/β sequences, only 776 dynamic CDR3s (0.13%) changed in abundance after 1 cycle of ipilimumab (adjusted P value < .01; Figure 2D). Increased T-cell infiltration of disease biopsies post-ipi suggested ipilimumab may mobilize T cells from systemic sites into the leukemic microenvironment. Indeed, we observed an increase in CDR3 sequences shared between tissue sites and blood post-ipi regardless of clinical outcome (Figure 2E; supplemental Figure 2H). We also observed differences in the systemic effects of ipilimumab between CR/TRs and NRs. Dynamic CDR3s were more frequent in CR/TR (613 of 776 vs 163 of 776, P < .01; Figure 2F). Moreover, ipilimumab induced higher plasma expression of pro-inflammatory factors modulating a broad range of cell types in CR/TR (n = 4) compared with NR (n = 8; adjusted P value < .05, log₂ fold change > 1) (Figure 2G-H; supplemental Figure 3; supplemental Table 9). Thus, peripheral TCR repertoires largely remain stable, and increased T-cell mobilization into tissue sites occurs independent of outcome. In addition, responders show more dynamic changes in a subset of the peripheral TCR repertoire and greater systemic expression of chemokines associated with leukocyte activation and trafficking.¹⁹

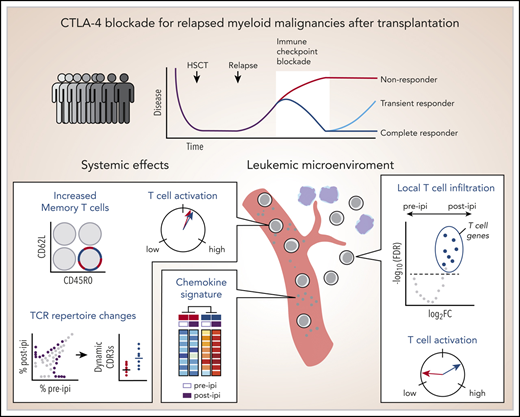

In summary, T-cell reinvigoration accompanies clinical response to ipilimumab. Similar observations following response to donor lymphocyte infusion suggest common mechanistic pathways for effective GVL reinstatement.²⁰  Moreover, the convergence both locally and peripherally of gene and chemokine response signatures that invoke GVL and GVHD processes speak to the involvement of CD28-CTLA-4 signaling to each pathway. Future studies that compare tissue sites of GVL and GVHD will be critical to divorce these processes to ensure improved HSCT outcomes. Because of the limitations imposed by small cohort size and tissue heterogeneity, longitudinal high-resolution studies on larger cohorts are urgently needed to deconvolute the heterogeneous cellular populations driving clinical outcomes to ICB.^21,22
