A common bipotent progenitor generates the erythroid and megakaryocyte lineages in embryonic stem cell–derived primitive hematopoiesis

Although erythrocytes and platelets are mature cells with quite different functions, the erythroid and megakaryocytic (MK) lineages are closely related. Their similarities are observed at all stages of differentiation and include cytology, regulation by growth factors, and at the transcriptional level. Their homeostatic regulation is controlled by 2 humoral growth factors, erythropoietin (EPO) and thrombopoietin (TPO), which share strong structural homology and may derive from an ancestral gene.^1,2  Moreover, the erythropoietin receptor (EPOR) and thrombopoietin receptor (MPL) are closely related. They are homodimeric class I cytokine receptors, and both require JAK2 for signaling.^3,4  Numerous transcription factors, such as GATA2, GATA1, FOG1, TAL1/SCL, GFI1B, and NFE2, are critical for both erythroid and MK development,^5-7  whereas others are more dedicated for unilineage differentiation, such as the erythroid EKLF (KLF1)^8,9  and MYB¹⁰  or the MK FLI1,¹¹  GABPA,¹²  and AML1.¹³

Studies of adult hematopoiesis, both in human and mice, have shown that the erythroid and MK lineages arise from a bipotential megakaryocyte-erythroid progenitor (MEP),^14-16  a separate entity with no lymphoid and granulomonocytic potential.¹⁷  The precise hierarchical relationship between the MEP and other progenitors is controversial because it has been suggested that MEP may directly arise from a multipotent hematopoietic stem cell.¹⁸  The erythroid and MK lineages are also tightly associated during development as a primitive MEP has been detected in the mouse yolk sac.¹⁹  Because of limited availability of embryonic samples collected before the onset of definitive hematopoiesis, it is not known whether a MEP also exists during human primitive hematopoiesis. One way to overcome these limitations has been to use human embryonic stem cells (hES) to model in vitro the very early developmental stages of hematopoiesis.²⁰  Indeed, it is now possible to efficiently produce erythroid and MK cells from hES cells.^21-25

In the present study, we demonstrate that the primitive erythroid and MK lineages arise from a common MEP bipotent progenitor. Expression profiling allowed us to identify the gene expression signature of this progenitor and of its descendants, thus establishing a novel model for the study of erythroid and MK differentiation.

H1 (National Institutes of Health code WA01) and H9 hES (National Institutes of Health code WA09) cell lines were obtained from WiCell Research Institute. Most experiments were performed with the H1 cell line. Cells were maintained in an undifferentiated state on mouse embryonic fibroblasts in hES medium consisting of Dulbecco modified Eagle/F12 medium supplemented with 20% knockout serum replacement, 0.1 mM minimum essential medium nonessential amino acids solution, 2 mM l-glutamine, 50 U/mL penicillin, 50 μg/mL streptomycin (all from Invitrogen), 0.1 mM β-mercaptoethanol (Sigma-Aldrich), and 10 ng/mL human basic fibroblast growth factor (PeproTech). For this study, H1 and H9 hES 3 cells were used from passages 25 to 60. The mouse OP9 (Riken Institute, Osaka University, Osaka, Japan), and mouse MS5 stromal cell lines were used as feeder layers.

Antibodies and their suppliers are provided in supplemental Table 1 (available on the Blood website; see the Supplemental Materials link at the top of the online article). Recombinant human hematopoietic cytokines were used at the following concentrations: EPO, 2 U/mL (OrthoBiotech); interleukin-3 (IL-3), 100 U/mL (generous gift from Novartis); stem cell factor (SCF), 50 ng/mL (generous gift from Amgen); and TPO, 50 ng/mL (generous gift from Kirin Laboratories).

To induce differentiation, hES cells were dissociated mechanically and seeded as small clumps onto a confluent OP9 stromal cell layer, previously treated with mitomycin C (Sigma-Aldrich) for 3 hours. Cells were cultured in minimum essential medium containing 20% hES-tested fetal bovine serum (FBS; Hyclone Laboratories). Medium was changed every 3 to 4 days. Growth factors were added at day 7 at indicated concentrations. At different time points, suspension and adherent cell fractions of the coculture were harvested by treatment with 0.05% trypsin-ethylenediaminetetraacetic acid solution (Invitrogen) for 3 minutes and subjected to cell sorting and functional and molecular assays (supplemental Figure 1).

For cell-surface marker identification, single-cell suspension containing both OP9 and hES cells was incubated for 30 minutes at 4°C with the different conjugated monoclonal antibodies (mAbs) and then washed twice. Cells were stained with 7-actinomycin D (7-AAD; Sigma-Aldrich) and immediately analyzed with a FACSort flow cytometer (BD Biosciences). For cell sorting, cell populations at different stages of differentiation (between 9 and 14 days of coculture) were sorted on a FACSDiva cell sorter (BD Biosciences). DNA content of hES-derived MKs was measured by propidium iodide staining after 9 to 16 days of hES/OP9 coculturing.

Sorted cell populations were plated in triplicate at a density of 1 to 3 × 10³ cells/mL in human methylcellulose medium H4434 (StemCell Technologies). Progenitor-derived hematopoietic colonies were scored after 9 to 14 days. Alternatively, sorted cells from different populations were grown at a density of 1 to 3 × 10³ cells/mL in serum-free fibrin clots in the presence of the following cytokines: TPO (10 ng/mL), SCF (50 ng/mL), IL-3 (10 IU/mL), and EPO (1 U/mL).¹⁴  MK colonies were scored after 5 to 7 days by indirect immuno-alkaline phosphatase labeling using an anti-GPIb mAb (anti-CD42a; clone GN287) or anti-GPIIb mAb.

The MS5 cells were cultured for 24 hours to confluence on 96 flat microwell plates. After 12 days, GPA⁺CD41⁺ cells were sorted from hES/OP9 cocultures and seeded on an MS5 feeder layer at 1 cell per well in medium containing hES-tested FBS and a combination of SCF, EPO, TPO, and IL-3. After 5 days, proliferating clones were identified under an inverted microscope; at day 7 and day 12, cells were labeled with directly conjugated antiglycophorin A (GPA) and anti-CD41 mAbs and analyzed by flow cytometry.

Cultured MKs were layered on poly-L-lysine–coated slides (Menzel-Glaser) for 1 hour. Cells were then fixed with 2% paraformaldehyde for 5 minutes, permeabilized with 0.1% Triton X-100, and incubated with a rabbit anti–von Willebrand factor (VWF) polyclonal antibody (Tebu) for 1 hour. After 3 washes, cells were incubated with the appropriate secondary antibodies and then stained with 4,6 diamidino-2-phenylindole.

Sorted cell populations were centrifuged onto slides for 3 minutes at 500g (Cytospin II; Thermo). Smears were stained with May-Grünwald-Giemsa.

Total RNA was extracted with QIAGEN columns according to the manufacturer's recommendations. RNA quantification was assessed with NanoDrop Nd-1000 UV/Vis (Labtech France). A total of 1 μg RNA was reverse transcribed into cDNA as previously described.²⁶  The resulting synthesized cDNA was amplified using the TaqMan Universal PCR Master Mix (Applied Biosystems) containing the specific primers (1.2 μM) and probe (0.1 μM). Quantitative polymerase chain reaction (PCR) was performed on a 7500 Real-Time PCR System (Applied Biosystems) with standard cycling conditions. Expression levels of all the genes were normalized to the expression of the TATA box-binding protein (TBP), scored as one of the most stable genes by GeNorm analysis.²⁷  Quantification was done with the Pfaffl method, taking into account the amplification efficiencies of each primer gene couple.²⁸  Relative expression ratios were calculated by reporting values to one of the tested conditions. Primers and probes were those publicly available on the RTPrimerDB primer database (http://medgen.ugent.be/rtprimerdb/) or were derived from an in-house in silico design.

Cells generated from hES/OP9 cocultures were sorted according to their distinctive expression of hematopoietic antigens and directly collected as single cell in a PCR plate containing 9 μL reverse-transcribed (RT) mixture as previously described²⁶  but without RNase inhibitors and RT enzymes. Plates were spun to ascertain deposition of single-cell drops into the RT mixture, incubated for 2 minutes at 80°C, and cooled on ice. cDNA synthesis was performed by addition of RNase inhibitors and RT enzymes in each well (24 IU/well RNase OUT and 50 IU/well Superscript II, Invitrogen), and incubation during 2 hours at 50°C. The reaction was stopped by thermal heating for 15 minutes at 70°C. Final volume for all reverse transcription reactions was 10 μL. cDNA (2 μL) was analyzed in the 7500 Real-Time PCR System. Absolute quantification of each cDNA species was performed by dilution series of purified amplicons (QIAGEN), concentrations of which were measured using the NanoDrop.

To induce the development of the erythroid and MK lineages, we used a 2-step protocol in which undifferentiated H1 or H9 hES cells were cocultured with OP9 stromal cells^29,30  (supplemental Figure 1). In the first step, hES cells were grown for 7 days without growth factors, before adding a cocktail of cytokines (EPO, TPO, SCF, and IL-3). Using this experimental protocol, erythroid and MK differentiation (Figures 1–2) was efficiently achieved between day 9 and day 14 of coculture. This differentiation preceded the principal wave of myelopoiesis that occurred after day 14 (supplemental Figure 2) as previously reported for murine and hES cell differentiation.^31,32

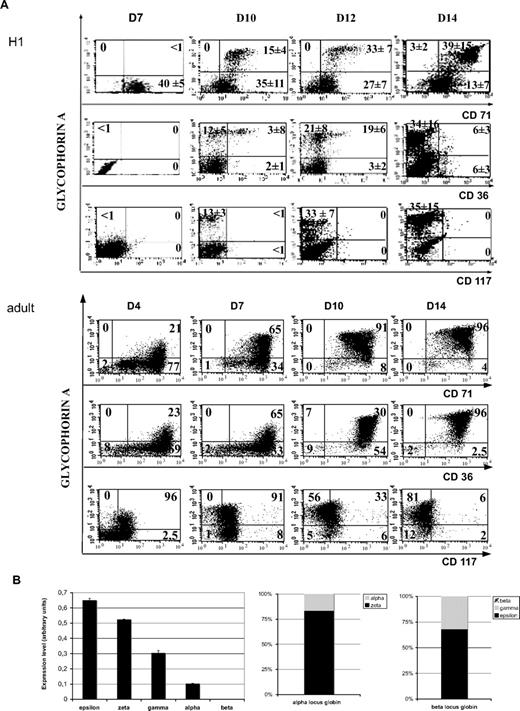

Next, we determined the maturation stages of erythroid and MK cells during time. Expression of GPA progressively increased from the first day of culture, whereas the level of CD71 was constantly high. A decrease in the expression of CD36 was observed from day 12 and thereafter. Thus, we identified a GPA^highCD71^highCD36^−/low cell subset by day 14 (Figure 1A). KIT was near the threshold of detection in contrast to a high level detected in erythroid cells differentiating from mobilized adult CD34⁺ cells. May-Grünwald-Giemsa staining of GPA⁺CD71⁺ cells at day 14 showed large-sized erythroblasts at different stages of maturation, including basophilic, polychromatophilic, and orthochromatic erythroblasts (supplemental Figure 3 top panel). Enucleated cells were not observed, consistent with primitive erythropoiesis. Globin detection by immunologic staining showed that the totality of the cells was positive for the Σ chain. The γ chain was detected only in a minority of cells, whereas β globin chain was undetectable (supplemental Figure 3 bottom panel). RT-PCR analysis detected all the globin chains tested, but not the β chain even in saturating conditions (supplemental Figure 4). Quantification by quantitative RT-PCR indicated that embryonic globin chains (Σ and ζ) were much more expressed than the fetal ones (γ and α; Figure 1B; 80% for ζ and 70% for Σ of the α- and β-globin loci, respectively).

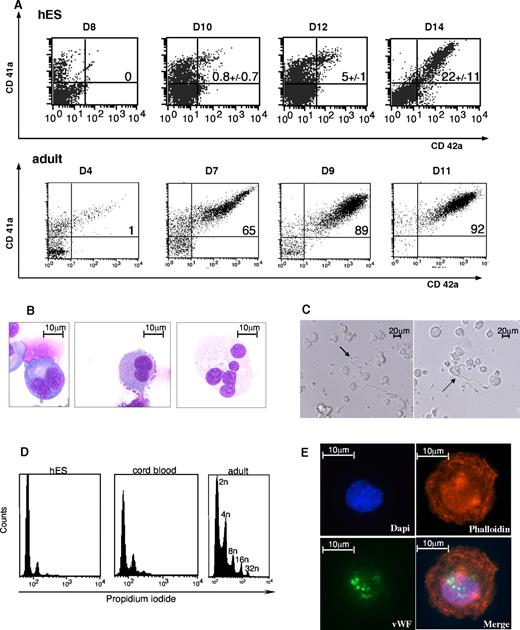

MK maturation from hES cells was associated with an increased expression of CD41 and the appearance of CD42, leading to the presence of a CD41^highCD42⁺ cell population, a phenotype defining mature MKs. However, CD42 membrane expression did not reach the high levels observed in adult MKs, and expression was at least 1 log lower (Figure 2A), although mature MKs were present (Figure 2B). Proplatelet formation (Figure 2C) was observed, albeit at a low rate. On 3 independent experiments, the mean percentage of the CD41^highCD42⁺ cell population was 22% plus or minus 11% for the H9 cell line (Figure 2A). The CD41⁺CD42⁺ cell population also expressed VWF with a granular pattern (Figure 2D). Ploidy analysis of hES-derived MKs showed that they were of low ploidy levels with a maximum of 8N. In contrast, MKs derived from cord blood or adult CD34⁺ reached ploidy up to 16N and 32N, respectively (Figure 2E).

Taken together, our experimental protocol allowed the generation of erythroid cells and MKs with the characteristic hallmarks of primitive hematopoiesis.

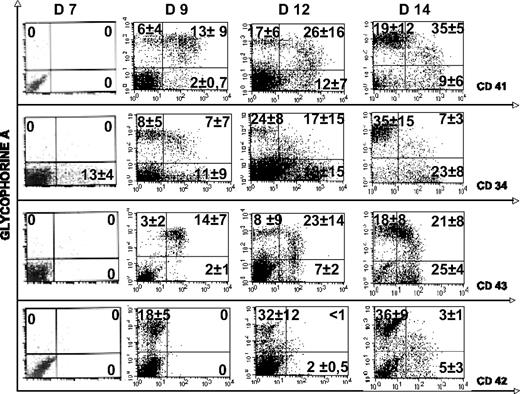

To further define the kinetics of erythroid and MK differentiation, we studied the expression of GPA and CD41 by double staining of H1 and H9 hES cells. The CD41 antigen (αIIb β3 integrin, platelet GPIIb/IIIa), considered to be restricted to the MK lineage, was found to be one of the most reliable markers of early steps of embryonic hematopoiesis in mice.^33,34  A small percentage of cells coexpressing CD41 and GPA were detected at days 8 and 9 of differentiation, whereas single-positive cells (ie, GPA⁺CD41⁻ or CD41⁺GPA⁻ cells) were nearly absent. These double-positive cells, already described in cultures of ES cells,³²  peaked at days 10 to 12 and reached maximum of approximately 50% of the cultured cells when the first erythroblasts and MKs were emerging (Figure 3). As the culture progressed, the frequency of double-positive cells declined, whereas the frequency of single-positive cells increased. Moreover, the double-positive cells expressed a lower intensity of GPA and a slightly higher intensity of CD41.

Additional phenotypic analysis of the GPA⁺CD41⁺ cells using the simultaneous detection of 4 antigens showed that these cells were positive for CD34 and CD43. In contrast, they did not express the CD45 antigen (data not shown). CD42 was not detected in this cell population except after day 12 (Figure 3).

These kinetic studies suggested that the CD41⁺GPA⁺ cell population (double-positive) was the precursor of the CD41⁻GPA⁺ and CD41⁺GPA⁻ cell populations (single-positive) and could be a candidate cell population for an MEP.

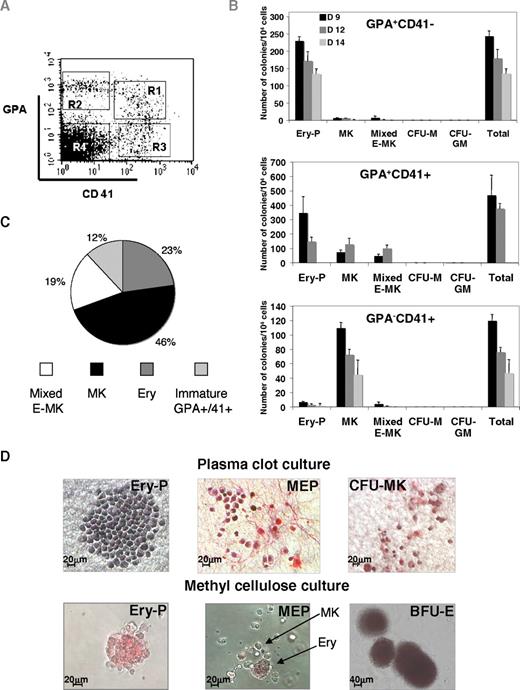

To test this hypothesis, we sorted the cells in 4 fractions: CD41⁺GPA⁺, CD41⁻GPA⁺, CD41⁺GPA⁻, and a double-negative CD41⁻GPA⁻ cell population at different time points (Figure 4A). Among the sorted populations, the GPA⁺CD41⁺ cell fraction was the most enriched in progenitors with a cloning efficiency of approximately 5% in semisolid medium for the H1 cell line (Figure 4B). This fraction had a restricted erythro-MK potential (Figure 4B-C). Three main types of hematopoietic colonies were seen. Primitive erythroid colonies (Ery-P) grown in semisolid medium contained usually 10 to 100 large highly hemoglobinized erythroblasts (Figure 4D) at day 12 in semisolid medium. These colonies were morphologically distinguishable from erythroid burst-forming units (BFU-E) colonies derived from definitive erythropoiesis and found at later days of coculture (Figure 4D). MK colonies were identified after CD42 or CD41 staining in plasma clot cultures (Figure 4D). Colony-forming unit (CFU) MK-derived colonies were composed of a cluster of large cells (2-20 cells), which were subjected to rapid lysis after 5 to 7 days. These colonies differed from cord blood and adult CFU-MK–derived colonies by a low staining with the anti-CD42 mAb (Figure 4D; and data not shown). Mixed erythro-MK colonies had a distinguishable morphology. They had the appearance of Ery-P with the presence of a few large MKs, usually seen at the periphery (Figure 4D). These mixed colonies were still observed when cells were plated at low concentration (10³ cells/mL), suggesting that they were not the result of the confluence of 2 colonies. These MEP-derived colonies represented, at day 12 of coculture, approximately one-third of the hematopoietic colonies. In contrast, the single-positive GPA⁺CD41⁻ and GPA⁻CD41⁺ cell fractions were highly enriched in erythroid and MK progenitors, respectively, suggesting that the loss of GPA or CD41 is accompanied with a restriction in the colony-forming potential and a progressive commitment toward the MK or erythroid lineage. Mixed erythro/MK colonies were nearly absent from these 2 cell fractions (Figure 4B).

These 3 cell fractions were studied at different days of coculture ranging from day 9 to day 14. Enough cells were recovered in each cell fractions to perform clonal assays, except for the GPA⁺CD41⁺ cell fraction. No difference in the type of progenitors present in each fraction was observed during this kinetic, but their content in bipotent progenitors declined with time. Of note, despite IL-3 addition, no myeloid colony was observed. However, granulo-macrophage and BFU-E–derived colonies (Figure 4D) with a different pattern of globin chain expression were seen in the fractions depleted in GPA⁺ and CD41⁺ cells (supplemental Figure 4) at later days of coculture.

To further demonstrate the existence of an MEP, individual GPA⁺ CD41⁺ cells from H9 were grown in 96-well plates on a MS5 feeder in the presence of cytokines. Wells containing hematopoietic cells were identified after 6 days of culture under a microscope. Cells were labeled with anti-GPA and anti-CD41 antibodies and analyzed by flow cytometry. Four types of clones were observed: erythroid clones containing only GPA⁺CD41⁻ cells, MK clones containing exclusively GPA⁻CD41⁺ cells, megakaryocyte/erythroid clones (MEP) containing both GPA⁺CD41⁻ and GPA⁻CD41⁺ cells, and clones with still some GPA⁺ CD41⁺ cells representing progenitors that have not yet completely differentiated (Figure 4C). The MEP represented approximately one-fifth of the progenitor content of the GPA⁺CD41⁺ cell fraction, a proportion slightly lower than found in semisolid medium but with the H1 cell line.

These data establish a developmental hierarchy among erythroid and MK subsets derived from primitive hematopoiesis, with CD41⁺GPA⁺ cells being the most primitive subset exhibiting an erythro-MK differentiation potential, whereas GPA⁺CD41⁻ and GPA⁻CD41⁺ cells represent more mature populations committed to either the erythroid or MK lineages.

Having defined the hierarchy among these cell fractions, we studied whether differentiation could be traced to the molecular level. We investigated expression of 2 cytokine receptors (EPOR and MPL), 3 transcription factors involved in MK differentiation (AML1, FLI1, and GABPA), 1 involved in erythroid differentiation (KLF1), and 6 involved in both lineages (GATA1, NFE2, TAL1, GATA2, MYB, and LMO2), in H1 cells. GPA⁺CD41⁺, GPA⁺CD41⁻, and GPA⁻CD41⁺ cell fractions (called Ery, MEP, and MK, respectively, in Figure 5A) were sorted by flow cytometry (Figure 4A), and gene expression was analyzed by quantitative RT-PCR (Figure 5A). They show stringent differences in the erythroid and MK commitment from the MEPs derived from hES cells. MK differentiation was associated with no significant change in the expression of “MK” genes (AML1, FLI1, GABPA, and MPL), but by a down-regulation of “erythroid” genes (EPOR and KLF1). In contrast, erythroid differentiation was characterized by a down-regulation of “MK” genes together with an induction of “erythroid” genes. Among the genes associated with differentiation in both lineages, GATA1, NFE2, and LMO2 had similar expression levels at all stages of differentiation. The level of TAL1 slightly increased on differentiation, especially for the erythroid lineage. In contrast, the level of GATA2 was much higher in MEP and MK cell fractions than in the erythroid cell fraction, an expected finding as GATA2 plays a later role in MK than in erythroid differentiation. More surprisingly, MYB was detected during both differentiation stages with a tendency to be more expressed in MKs than in erythroid cells. Nonetheless, expression levels of GATA2, MYB, and also LMO2 were much lower at all differentiation stages compared with the other erythroid/MK genes. Considering the importance of these 3 genes in hematopoiesis, we investigated whether their expression could differ between primitive and definitive erythro/MK differentiation (Figure 5B). The level of LMO2 expression was higher in the embryonic MEP than in cord blood– or adult-derived CD34⁺CD41⁺CD42⁻ fraction, a cell fraction highly enriched in MK progenitors but also containing low number of MEPs. In contrast, GATA2 and MYB levels were similar or close to that found in these adult or neonate cell fractions.

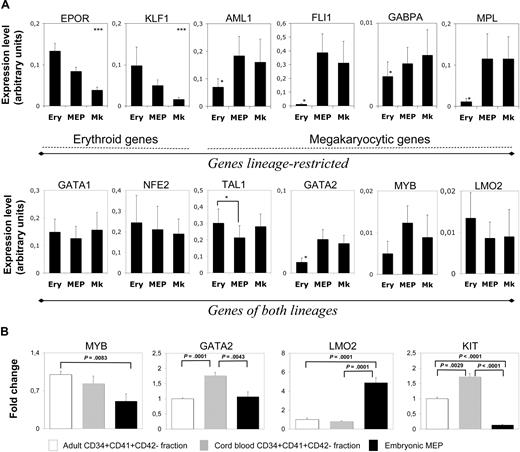

Figure 5 showed that expression of 2 pairs of genes (KLF1 and EPOR) and (FLI1 and MPL) was markedly inhibited during MK and erythroid differentiation, respectively (Figure 5A). Therefore, we sought to use these genes to molecularly trace commitment at the single-cell level, as each cellular subfraction remains heterogeneous. We analyzed the quantitative expression of these 4 genes in single GPA⁺CD41⁻, GPA⁺CD41⁺, and GPA⁻CD41⁺ cells derived from H1. Of a total of 132 wells containing single sorted cells, 108 were positive for GAPDH transcripts used as a control housekeeping gene. An average of 36 cells from each cell fraction were individually analyzed. The expression level of each gene transcript was plotted for the 3 cell fractions (Figure 6A). At the single-cell level, erythroid differentiation was associated with an increase in EPOR transcripts and a down-regulation of FLI1. Engagement to MK differentiation was associated with the up-regulation of MPL and a concomitant decrease of both EPOR and KLF1 (Figure 6A). To ascertain a possible correlation among the 4 genes in the various fractions, we calculated Pearson correlation coefficients between the genes in 2-by-2 comparisons (Table 1). As expected, the association of EPOR-KLF1 and MPL-FLI1 was positively correlated in the GPA⁺CD41⁻ and GPA⁻CD41⁺ cell fractions, respectively. In the GPA⁺CD41⁺ cell fraction that coexpressed the 4 genes, we observed an opposite correlation between KLF1 and MPL genes (Table 1). In search of unique gene expression profiles, we ran K-means cluster analysis of expression of EPOR, MPL, KLF1, and FLI1. The totality of the transcript data obtained in the single-cell level was integrated to assess for clustering in specific pattern of expression independently of the cell fraction from which they were isolated. Three major patterns of expression were identified, which we named on the major subpopulation represented in the cluster: cluster Ery (51% GPA⁺CD41⁻), cluster MK (64% GPA⁻CD41⁺), and cluster MEP (31% GPA⁺CD41⁻, 36% GPA⁺CD41⁺, 33% GPA⁻CD41⁺; Figure 6B top panel). Cells with a MK or Ery cluster were rare (18% and 8%, respectively) in cells defined as erythroid (GPA⁺CD41⁻) or MK (GPA⁻CD41⁺) on their immunophenotype. In contrast, the MEP cluster included a similar proportion of cells from each fraction underscoring its heterogeneity. In these 3 clusters, the shift between the various phenotypes was merely governed by changes in the balance between EPOR and FLI1 (Figure 6B bottom panel). Nonetheless, the balance between EPOR and FLI1 and the loss of GPA or CD41 antigens were not totally coordinated, as attested by the presence of cells belonging to the MEP clusters among GPA⁺CD41⁻ and GPA⁻CD41⁺ cells. Considering the expression of EPOR and FLI1 only, we could thus discriminate the various cell clusters that were clearly separated (Figure 6C).

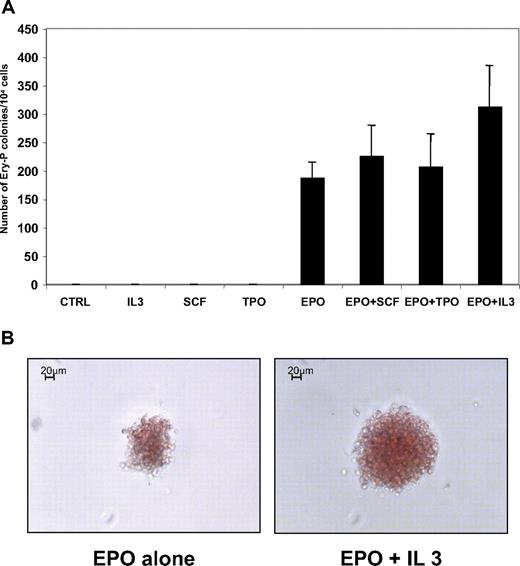

In the mouse, it has been suggested that EPO was not a requirement for primitive erythropoiesis.^35-37  Thus, we evaluated the cytokine response of erythroid progenitors (GPA⁺CD41⁻) purified from H1 hESC/OP9 coculture at day 12. As shown in Figure 7A, EPO was absolutely required for Ery-P formation, and its effect could not be replaced by SCF, IL-3, or TPO, as described in the mouse. SCF, IL-3, and TPO had no synergy with EPO on the plating efficiency of Ery-P. However, a slight synergy was observed between EPO and IL-3 and, to a lesser extent, between EPO and SCF, leading to an increase in colony size, which could contain up to 200 hemoglobinized cells (Figure 7B). These “large” Ery-P colonies represented approximately 25% of the colonies growing in presence of EPO and IL-3.

Human adult erythropoiesis and megakaryopoiesis share a common bipotential progenitor, the MEP,^14-16  although there is evidence that MK differentiation might occur by alternative pathways.¹⁷  In the mouse, it has recently been shown that 2 waves of MEPs occur in the yolk sac during development: one belonging to primitive hematopoiesis and the second to definitive hematopoiesis.¹⁹  In human hematopoiesis, MEPs derived from definitive hematopoiesis have been already described, but primitive MEPs have not been characterized. To investigate the primitive erythroid and MK differentiation, we have used the hematopoietic differentiation of hES cells that recapitulates human ontogeny.

A previous study has shown that coculture of hES cells on OP9 stromal cells for 4 to 5 days induced a hematopoietic differentiation phenotypically defined by the expression of the CD43 antigen.³²  Among the CD43⁺ cell population, CD41⁺ and GPA⁺ cells were restricted to the MK and erythroid lineages.³²  We have extended these results by demonstrating that the erythroid and MK differentiation, which occurred from day 8 to day 14 of coculture, was confined to 3 cell populations: GPA⁺CD41⁻, GPA⁻CD41⁺, and GPA⁺CD41⁺. The GPA⁺CD41⁻ and GPA⁻CD41⁺ cell populations contained nearly exclusively erythroid and MK progenitors, respectively. The double-positive GPA⁺CD41⁺ cell population contained erythroid and MK progenitors but also a significant proportion (20%) of progenitors, giving rise to mixed colonies composed of erythroblasts and MKs but devoid of macrophages. We confirmed the existence of a MEP by performing single-cell cultures. In addition, this approach validated that the double-positive cells (GPA⁺CD41⁺) were at the origin of single-positive cells (GPA⁺CD41⁻ or GPA⁻CD41⁺). The human erythroid/MK differentiation derived from hES cells cocultured on OP9 for 8 to 12 days exhibited several criteria of primitive hematopoiesis. Erythroblasts were large nucleated cells that synthesized embryonic hemoglobins and MKs were hypoploid, a characteristic of yolk sac MKs in the mouse.^19,35  In addition, hES-derived MKs expressed a low level of GPIb (CD42), thus differing from neonate or adult MKs. The primitive human and murine MEPs share many similarities and give rise to small colonies composed of less than 100 erythroid cells and a few MKs at the periphery of the colony. Thus, colonies derived from Ery-P or MEP have similar appearance except for the presence of a few MKs in MEP. However, the main difference between human and mouse hematopoiesis appears to be an absolute EPO requirement of the primitive human hematopoiesis.^36-38

Overall, the phenotype of primitive human MEPs differs from definitive MEPs¹⁷  because the cell coexpresses differentiation markers associated with terminal erythroid (GPA) and MK (CD41) differentiation and undergoes accelerated differentiation. In adult mouse, a bipotential erythroid/megakaryocytic precursor also coexpressing glycophorin and platelet glycoproteins¹⁶  has been described in the bone marrow or spleen after an erythroid stress.³⁹  Thus, primitive hematopoiesis and stress erythropoiesis, which both are associated with an accelerated production of erythrocytes, may have some similarities at the level of hematopoietic progenitors.

In definitive hematopoiesis, the mechanisms of MEP commitment have not yet been completely identified. There is evidence that the competition between KLF1 and FLI1 on one hand^8,9,40  and the expression level of MYB^41,42  on the other hand regulate the MEP fate, and that several other transcription factors such as GATA1, GATA2, and NFE2 are necessary for both erythroid and MK differentiation.^5-7  Our study demonstrates that a distinct pattern of transcription factors and cytokine receptors is associated with the 3 cellular subsets that were analyzed. When the 3 global populations were considered, the progressive commitment was evidenced by a decrease in EPOR/KLF1 gene expression and an increase in AML1 and GABPA only in MK cells, whereas commitment to the erythroid lineage was associated with a decrease in MPL/FLI1/AML1/GABPA/GATA2 gene expression and an increase in EPOR/KLF1 gene expression. Interestingly, MK commitment of the MEP was associated with a decrease of the 2 erythroid-specific genes (EPOR and KLF1) but without the induction of MK genes (FLI1, AML1, GABPA, and MPL). In contrast, erythroid commitment of the MEP was ascertained by both an increase in erythroid gene expression and a decrease in MK gene expression.

One limitation of the approach relied in the cell heterogeneity of each population. This is particularly true for the MEP-enriched population, which contains committed erythroid and MK progenitors. Thus, expression of FLI1, KLF1, EPOR, and MPL transcripts were investigated at the unicellular level by quantitative techniques. We could depict a well-ordered hierarchy, at cellular and molecular levels, from bipotential to monopotential progenitor cells. This hierarchy was particularly well defined by the inverse relationship between FLI1 and the EPOR transcript levels. The schematic model of MEP differentiation toward erythroid and MK lineages is illustrated in supplemental Figure 5.

The expression level of MYB transcripts was quite surprising because levels in MEP, MK, and erythroid cell fractions were similar, even with a decreasing trend in erythroid cells. However, the overall level of MYB expression was low but quite similar to that observed in adult or neonate progenitor. In the mouse, it has been demonstrated that MYB plays an important role in the commitment toward the erythroid lineage for the definitive hematopoiesis and, in contrast, that MYB was not necessary for primitive erythro/MK differentiation.⁴³  However, recent studies strongly suggest that the MYB protein level is posttranscriptionally regulated by mIR150 in human⁴² ; therefore, the level of MYB transcript might not correlate with the protein level. Further experiments will be required to understand whether such a process occurs in primitive hematopoiesis. In contrast, LMO2 was expressed 5-fold higher in primitive MEP than in the fetal or adult progenitors. Considering the high level of TAL1 expression in MEP and erythro/MK primitive cells, the LMO2/TAL1 complex^44,45  might have an important role during primitive hematopoiesis, a hypothesis awaiting additional investigation.

In conclusion, the results presented herein provide the first evidence for the presence of a common megakaryocyte-erythroid progenitor in the primitive human embryonic hematopoiesis. These findings suggest that the close association between the erythroid and megakaryocytic lineages is conserved throughout the ontogeny of the human hematopoietic system. The model proposed in our study might be useful to dissect the mechanisms underlying erythroid and MK commitment as well as the differences between primitive and definitive hematopoiesis.
