Hematopoietic progenitor cell regulation by CD4⁺CD25⁺ T cells

CD4⁺CD25⁺ T lymphocytes (regulatory T cells [Tregs]) comprise a relatively small population within the normal peripheral CD4 T-cell compartment whose function is dependent on expression of the transcription factor FoxP3.^1-4  Deletion of these cells in both neonatal and adult mice results in the rapid onset of peripheral T-cell activation and autoimmunity, indicating that the presence of functionally active FoxP3⁺ Tregs is requisite for maintaining the dominant tolerant state.²  Studies following the identification of this Treg population have demonstrated their capacity to modulate transplantation^5-11  and antitumor^12-14  responses. Importantly, cotransplantation of CD4⁺CD25⁺ T cells has been found to exert regulatory activity on responses mediated by multiple types of immune cells including CD4, CD8, and natural killer (NK) populations.^10,15  Such studies have demonstrated the capacity of Tregs to suppress both adaptive and innate immune responses. Although model dependent, cytokines including transforming growth factor-β (TGF-β), interleukin-10 (IL-10), and IL-9 have been reported as effector molecules in both in vitro and in vivo settings.^14,16-19  Hence, the presence of Tregs in hematolymphoid compartments led us to hypothesize that, after activation, CD4⁺CD25⁺FoxP3⁺ T cells may modulate hematopoietic function. Such regulatory activity could generate novel perspectives regarding the expanding applications of these cells in the field of hematopoietic stem cell transplantation (HSCT).^6,8-10,20,21

BALB/c wild-type (WT) and C57BL/6 wild-type (B6 WT; from Charles River Laboratories or Animal Production Area at the National Cancer Institute–Frederick), B6.129S2-CD8a^tm1Mak (B6 CD8^−/−), and B6.129-H2 (dlABl-Ea)/J (MHC II^−/−; from The Jackson Laboratory or obtained from the Animal Production Area at the National Cancer Institute–Frederick) mice were used in this study. Some mice were subsequently bred and maintained at the University of Miami animal facilities. B6 cytotoxic double (perforin and Fas ligand [FasL])–deficient mice (B6-cdd) were generated from B6 Pfp^+/− Fasl^gld/gld pairings or B6 Pfp^−/− Fasl^gld/gld × B6 Pfp^+/− Fasl^gld/gld pairings, as previously described.²²  Mice were screened as previously described.²³  Foxp3^gfp breeder mice were obtained from Dr A. Y. Rudensky (University of Washington). Animal studies were carried out under a protocol approved by the University of Miami Animal Care and Use Committee.

Spleen and lymph node cell (LNC) homogenates were depleted of B cells and CD8⁺ cells after incubation with anti-CD8 monoclonal antibody (mAb; clone 2.43) and panning on plates coated with goat anti–mouse immunoglobulin G (IgG)/IgM antibody (Millipore) for 30 minutes at room temperature. Enriched CD4⁺ T-cell preparations were labeled with anti-CD25 phycoerythrin (PE; clone PC61; BD Biosciences) and positively selected using anti-PE magnetic-activated cell sorting (MACS) microbeads (Miltenyi Biotec). CD4⁺CD25⁺ purity was routinely more than 93% (80%-90% Foxp3⁺) of total cells and more than 98% of CD4⁺ T cells.

Enrichment of Treg preparations was determined by antibody labeling before and after enrichment followed by flow cytometric analysis. Spleens and LNCs were stained with PE anti-CD25 (PC61) and PE-Cyanin5 anti-CD4 (RM4-5; BD Biosciences). Tregs were permeabilized and stained for Foxp3 using the Foxp3 Staining Kit, fluorescein isothiocyanate (FITC)–anti-FoxP3 (FJK-16s), or FITC-isotype control (eBioscience). Samples were acquired and analyzed using a FACScan, FACSCalibur, or LSR-I (Becton Dickinson).

Spleen and LNC homogenates were B cell– and CD8⁺ T cell–depleted as described. Enriched CD4⁺ T-cell preparations were labeled with Cy5–anti-CD4 and PE–anti-CD25 (Ab dilution 1:10 in sterile 1× 5% fetal bovine serum flow-activated cell sorting [FACS] buffer), incubated for 15 minutes at 4°C to 8°C. Excess Ab was washed and cell pellet resuspended in 1× 5% FACS buffer. Samples were separated into CD4⁺CD25⁺ (Tregs) and CD4⁺CD25⁻ (conventional T cells) by positive and negative selection via a FACSAria.

Bone marrow cells (BMCs) were primarily harvested from the long bones by flushing with a 26^1/2-gauge needle. Single-cell suspensions were T-cell depleted using anti-Thy1.2 (HO-13.4 supernatant) antibody at 1:5 vol/vol for 30 minutes on ice; followed by addition of 12% Low-Tox M rabbit complement (Cedarlane Labs) plus Ab/complement medium, incubated at 37°C for 45 minutes. Depletion efficiency was routinely more than 95%. The procedure was performed with all strains of mice from which TCD BM was cocultured with activated Tregs.

BMCs were harvested as described and subsequently subjected to depletion of lineage-expressing cells by the Lineage Depletion Kit from Miltenyi Biotec based on MACS separation. Briefly, BMCs were incubated with a cocktail of biotin-conjugated monoclonal Abs (CD5, CD45R [B220], CD11b, Gr-1 [Ly6G/C], 7D4, and Ter119) for 10 minutes at 4°C to 8°C, followed by incubation with antibiotin microbeads for 15 minutes at 4°C to 8°C. Cells were passed through a single mass spectrometry column; the negative fraction was collected (average Lin⁻ enrichment, ∼ 75%-80%) and labeled with PE–anti-CD117 (BD Biosciences) and subjected to a MACS-positive selection (mass spectrometry column). Preparations were more than 93% Lin⁻c-kit⁺. Some Lin⁻ BM preparations used for in vitro assays were not further enriched for c-kit⁺ cells.

BMCs were subjected to depletion of lineage-expressing cells as described. Lin⁻-enriched samples were subsequently labeled with streptavidin-FITC and PE-CD117 to target residual lineage-expressing cells.

Freshly isolated Tregs were plated in triplicates in 96-well round or V-bottom plates typically at 5.0 × 10⁴ cells/well (for coculture with TCD-BM), at 1.0 × 10⁴ cells/well (for coculture with Lin⁻-enriched BMCs) or at 7.0 × 10³ cells/well (for coculture with FACS-purified Lin⁻c-kit⁺ BMCs) and activated for 3 days in the presence of anti-CD3/28 beads at a ratio of 3 beads to 1 cell or 1:1, and 200 ng/mL rIL-2 (Hoffman-LaRoche). Some cultures were allowed to remain in activation/expansion cultures and were reactivated at day 5 or 8 with fresh beads and IL-2 before coculture with BMCs. Medium (50 μL) was removed from each well containing day 3–activated CD4⁺CD25⁺ Tregs, and 50 μL of TCD-BM, Lin⁻c-kit⁺–enriched BMCs, or FACS-purified Lin⁻c-kit⁺ BMCs were added (25.0, 5.0, and 3.5 × 10³/well, respectively), typically at 1:2 (BMCs/Tregs) in the presence of rmSCF 50 ng/mL (PeproTech) plus 6 U/mL rmIL-3 (R&D Systems) to provide growth/survival signals to progenitor populations during the coculture period of 1.5 to 3 days.

Contents from control and Treg/BM cocultures were harvested and pooled after the coculture period, placed in 3.5 mL of Base MethoCult medium (M3134; StemCell Technologies), which is routinely prepared with 10% fetal bovine serum, 1.0 mL of penicillin/streptomycin, 1.0 mL of l-glutamine, 30.0 mL of Iscove modified Dulbecco medium, and 520 μL of 2-mercaptoethanol (0.05 mM final concentration), and supplemented with 6.0 U/mL rmIL-3 (colony-forming unit [CFU]-IL3), a growth factor that drives predominantly granulocyte-macrophage CFU, granulocyte CFU, and megakaryocyte CFU colonies. Each tube was thoroughly vortexed, and 1.0-mL aliquots were plated in triplicates (12-well plates). Day-7 colonies (clusters ≥ 50 cells were scored as 1 colony) were counted. In some experiments granulocyte-macrophage colony-stimulating factor (GM-CSF; at 25-50 ng/mL; PeproTech) was used in combination with rIL-3. Results are presented as average number of CFU (± SD).

CFU assays were also performed from spleen and BMC preparations obtained from mice that underwent transplantation. Single-cell suspensions were plated in Base MethoCult medium supplemented with the indicated cytokines in 12-well plates. Spleen CFU-IL3 cultures corresponding to day 7 after transplantation contained 7.5 × 10⁴ to 1.0 × 10⁵ cells per well. Bone marrow CFU-IL3 cultures corresponding to days 14 and 17 after transplantation contained 3.5 × 10⁴ cells per well. Culture conditions and colony scores were as indicated. Total CFU-IL3 per compartment were generated as follows: spleen, total CFU-IL3 in spleen = average number of CFU-IL3 present in the triplicate cultures corresponding to 1 individual animal (ie, control or experimental) × total number of live mononuclear cells present in the spleen of the same animal at the indicated time after transplantation; bone marrow, total CFU-IL3 in BM = average number of CFU-IL3 present in the triplicate cultures corresponding to 1 individual animal × total number of BM mononuclear cells present in 2 femurs + 2 tibiae in the same animal at the indicated time after transplantation. A cytokine cocktail used to elicit granulocyte, erythrocyte, monocyte, macrophage colonies contained SCF (50 ng/mL), rmIL-6 (10 ng/mL), thrombopoietin (25 ng/mL; all from PeproTech), rmIL-3 (50 ng/mL), and rhEpo (8.0 U/mL; Akronbiotech).

Two concentrations of biotinylated chicken (IgY)–derived anti–TGF-β1 (AF-101-NA; high concentration = 6 ng/mL and low concentration = 0.6 ng/mL; R&D Systems) or biotinylated isotype control (R&D Systems) was added to Treg-activated cultures before coculture with BMCs (TCD- or Lin⁻c-kit⁺–enriched preparations as indicated) and incubated at room temperature for 30 minutes. BMCs were then added as described above and these Treg/BM cocultures incubated for the indicated time periods, and CFU activity was assessed after the coculture period as described.

CD4⁺CD25⁺ cells were isolated by MACS as described and activated for 3 days with anti-CD3/28 microcoated beads (1:3) or used immediately (ie, “fresh”) after isolation. Medium (50 μL) was removed from microtiter (triplicate) wells of day-3 Treg-activated cultures before addition of CD4⁺CD25⁻ responder cells. Responder cells were obtained from the negative fraction of B6 CD8^−/− spleen cells after Treg isolation (purity of CD4⁺CD25⁻ > 95%), added to the activated or freshly isolated Tregs, and cocultured for 3 days. Responder cells were stimulated by addition of anti-CD3/CD28 microbeads. Treg/responder cocultures were pulsed with 1.0 μCi (0.037 MBq) ³H-thymidine (Perkin Elmer) for the final 16 hours of culture and harvested using a Tomtec Autotrap 24 harvester and pump system. Counts were obtained using a Wallac 1205 Betaplate Liquid Scintillation Counter and the data are presented as average counts per minute/group (± SD).

BM was collected from femurs/tibias of BALB/c, C57BL/6, and MHC II–deficient donors. BMCs were T-cell depleted by treatment with anti-Thy1.2 mAb (2 μg per 1 × 10⁶ of cells, clone 38-H-12, or 1:500 ascites clone HO-13.4) or anti-CD4 mAb (clone 72.4) and anti-CD8 mAb (clone H02.2) for 30 minutes at 4°C. Cells were washed 1 time in PBS (Cambrex) and centrifuged. Rabbit complement (Cedarlane Labs) was prepared as per the manufacturer's instructions and added to the cells for 45 minutes at 37°C. Cells were then washed 3 times in PBS and centrifuged, and cell concentration was adjusted for the transplantations.

BALB/c or B6 mice were given sulfomethoxazole-trimethoprim (Schein Pharmaceutical Inc) in drinking water 7 days before bone marrow transplantation (BMT). Before BMT, mice were injected intraperitoneally with the following antibodies: 1 mg of rat IgG (Jackson ImmunoResearch Laboratories) or anti-CD25 (PC61; produced at the National Cell Culture Center) at days −4 and −2 before BMT. On the day of transplantation (day 0), recipients were lethally irradiated with a ¹³⁷Cs source (7.5 Gy, BALB/c; 9.5 Gy, B6), and later BALB/c mice were injected intravenously with 5.0 × 10⁵ or 1.0 × 10⁶ TCD-BMCs from BALB/c mice and B6 mice were injected with 2.0 × 10⁵, 5.0 × 10⁵, or 1.0 × 10⁶ TCD-BMCs from C57BL/6 or MHC II–deficient mice.

Tregs were obtained by several strategies: (1) Treg preparations were isolated from B6 Foxp3^gfp mice by FACS. Briefly, spleen and LN from 9 mice were depleted of B cells and CD8 T cells as previously described. The remaining cells were collected and labeled with allophycocyanin anti-CD4 mAb. Labeled cells were then subjected to negative (CD4⁺GFP⁻) and positive (CD4⁺GFP⁺) separation (FACSAria cell sorter). (2) Donor CD4⁺CD25⁺ cells were also expanded in vivo as previously described.^11,24  Briefly, B6 wild-type or CD8^−/− animals were administered infusions (intraperitoneal) of rmIL-2 plus anti-IL2 mAb immune complex (rmIL-2/JES6-1A12 mAb [eBioscience] in 500 μL of PBS immediately after preparation 3 times every other day). These Treg donor animals were killed 2 days after the last treatment (day 0 of transplantation) and cell homogenates from spleens and lymph nodes were obtained and subjected to CD4⁺CD25⁺ enrichment as described. In vivo–expanded CD4⁺CD25⁺ cells (1 × 10⁶) together with 0.3 × 10⁶ syngeneic TCD-BMCs (n = 3-4/group) were cotransplanted into each animal. Highly purified CD4⁺FoxP3^GFP cells (> 99.8%) or CD4⁺CD25⁺ cells (> 97% of CD4⁺ T cells) were then coinfused together with syngeneic B6 TCD-BMCs via intravenous tail vein injection (0.3 × 10⁶ TCD-BMCs + 1 × 10⁶ CD4⁺FoxP3^GFP+ or CD4⁺CD25⁺) into lethally irradiated B6 recipients (total body irradiation [TBI] = 9.5 Gy 24 hours before BMT). Hematopoietic CFU-IL3 activity in the spleen of control (BMCs alone) versus experimental (received Tregs + BMCs) was scored and analyzed at day 7 after BMT as described.

Statistical comparisons in experiments involving a control and single experimental group were performed using an unpaired t test (2 tailed). A P value less than .05 was considered significant. A 1-way ANOVA was performed together with the Bonferroni multiple comparison test to determine statistical significance in experiments involving 3 or more groups (P < .05).

Animals were bled (40-50 μL) at noon every 4 to 7 days, starting at day 6 after transplantation and continuing until day 35. Complete blood counts plus differential were obtained using the automated veterinary hematology system Hemavet 950 (Drew Scientific). Total white blood cell (WBC) range for an adult C57BL/6 mouse is estimated to range between 4.5 and 9.1 × 10³/μL of blood. Percentage of blood cell composition of neutrophils normally ranges from 21% to 57%. The total numbers of neutrophils per 1.0 μL of peripheral blood was calculated multiplying the percentage of the mature neutrophils by the total WBC/μL (ie, number of segmented neutrophils present in 1.0 μL of peripheral blood at a given time after transplantation = % segmented neutrophils × total WBCs/μL). Statistical significance (P < .05) was computed using the unpaired t test (2-tailed P value) from GraphPad Prism Software.

To begin addressing the possibility of Treg cell modulation of hematopoietic activity, highly enriched CD4⁺CD25⁺ T cells were isolated from BALB/c and B6-CD8^−/− spleen and lymph node (> 97% of CD4⁺ T cells were CD25⁺), activated with anti-CD3/anti-CD28 beads and rIL2 (supplemental Figure 1A, available on the Blood Web site; see the Supplemental Materials link at the top of the online article) and plated together with syngeneic T cell–depleted bone marrow (TCD-BM). These activated B6-CD8^−/− Tregs (as well as fresh CD4⁺CD25⁺ T cells; data not shown) were also tested in a CD4⁺ T-cell suppressor assay and exhibited inhibitory activity (supplemental Figure 1B). Analyses of hematopoietic progenitor cell (PC) function was assessed by subsequent culture with rIL-3 and SCF. Syngeneic TCD-BM cocultured with activated BALB/C (Figure 1A) Tregs contained diminished colony levels versus identical TCD-BM cultures not containing regulatory cells. Freshly isolated Tregs cultured with BMCs in the presence of anti-CD3/CD28 stimulation did not exhibit CFU-IL3 inhibition (Figure 1C), and inhibition was not observed without activating the Tregs (Figure 1D). Notably, increasing the numbers of added Tregs to the cultures only modestly increased the level of suppression. To exclude contribution of a minor population of contaminating CD8 T cells that may have accounted for these findings, experiments were performed using activated CD4⁺CD25⁺ Foxp3⁺ Tregs obtained from B6-CD8^−/− donor mice and similar inhibition was observed (Figure 1B). Activated Tregs were capable of mediating inhibition against allogeneic as well as syngeneic TCD-BM populations (supplemental Figure 1C).

Inhibition of immune activity ex vivo by CD4⁺CD25⁺ T cells has generally been found to be contact dependent.^16,25  BALB/c TCD-BM were therefore separated from activated BALB/c CD4⁺CD25⁺ T cells using transwell chambers (Figure 2A). Inhibition of CFU-IL3 was abolished under these conditions. In addition, supernatants from cultures of activated Tregs also failed to mediate CFU-IL3 suppression (Figure 2A) and identical results were obtained using a different (ie, BL/6) strain (data not shown). Finally, no suppression was detected in transwell cultures (or supernatants) using CD25⁻ (CD4⁺ conventional T cells) T cells (Figure 2A). These results support the notion that similar to the observed Treg modulation of lymphoid cell responses ex vivo, contact dependency is also required for Treg-mediated regulation of IL-3–responsive progenitors. Because TGF-β1, both membrane bound and soluble, has been reported to be an effector molecule of Tregs, anti–TGF-β antibody was added during the coculture of B6 CD8^−/− Tregs with TCD-BM.¹⁶  Antibodies used were reactive against both the active (25 kDa) form (ie, 1D11; data not shown) and the LAP of TGF-β1 (chicken IgY), which is reportedly associated with membrane-localized TGF-β1.¹⁶  Inhibition was abolished using both reagents involving B6-CD8^−/− Tregs (Figure 2B) as well as BALB/c Tregs (data not shown). To ascertain whether ex vivo–activated CD4⁺FoxP3⁺ Tregs mediate contact-dependent regulation of CFU-IL3, knockin Tregs (B6-Foxp3^gfp) were FACS purified to more than 99%. Activation of these cells using our in vitro protocol followed by their coculture with lineage-depleted BMCs (< 0.5% lineage marker–positive) also resulted in inhibition of CFU-IL3 levels indistinguishable from that observed using enriched CD4⁺CD25⁺ populations when cocultured but not separated in transwell culture (Figure 2C).

CD4⁺CD25⁺ T cells express TcRαβ receptors with diversity commensurate with conventional T cells and are presumed to recognize antigen presented by MHC class II.²⁶  TCD-BMCs from B6-wt or B6-class II–deficient mice were therefore cocultured with activated B6-CD8^−/− Tregs. As predicted, inhibition of CFU-IL3 was observed against cultures containing B6-wt TCD-BMCs; however, inhibition was not detected in BMCs deficient in MHC class II expression (supplemental Figure 2A). This pattern has been observed with different progenitor cell–containing populations including TCD-BM, as well as rigorously depleted marrow (supplemental Figure 2B-C). Together with the findings that cell contact is required for inhibition, these results suggest that a cognate interaction between Tregs and marrow cells that requires MHC class II may be important. Furthermore, the findings are consistent with the notion that direct Treg-PC interaction may be occurring.

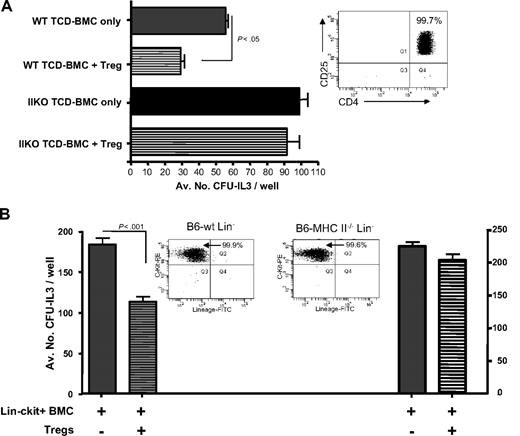

To further examine this possibility, we next investigated the capacity of highly purified (99.7% CD4⁺CD25⁺) Tregs for their inhibitory activity. This population inhibited CFU-IL3 activity of B6-wt but not B6-MHC class II^−/− TCD-BM (Figure 3A). Moreover, when this highly purified Treg population was cocultured with rigorously lineage-depleted BMCs from B6-wt or B6-MHC class II^−/− mice, this same pattern of inhibition was observed (Figure 3B). In contrast to the likelihood that Tregs can “indirectly” modulate hematopoiesis via regulation of T- and NK cell function, these results strongly suggest that direct regulation of hematopoietic PC function can also be mediated by Tregs. To determine whether cytotoxicity by Tregs may be important in this hematopoietic regulation, Tregs from B6 mice deficient in functional perforin and FasL were examined and found to be capable of effecting inhibition of CFU-IL3 (supplemental Figure 2D). Thus, neither cytolytic-mediated apoptotic signaling pathway is necessary to affect hematopoietic regulation observed.

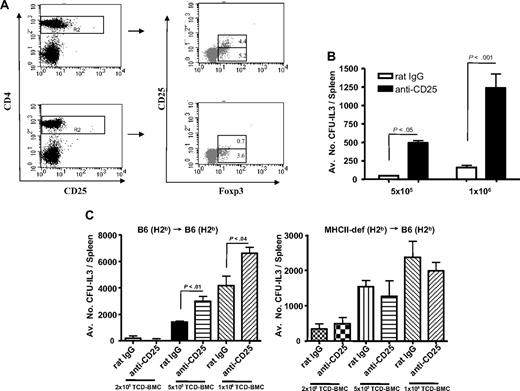

Based on experimental findings, there is increasing consideration of application of CD4⁺CD25⁺ Treg populations to regulate graft-versus-host disease (GVHD) and PC resistance pathways after allogeneic BMT, and initial trials involving such therapy in clinical HSCT are under way.^5-9  The present observations support the notion that activated Tregs may directly modulate the hematopoietic compartment during the immediate reconstitution period after BMT. BALB/c mice were therefore pretreated with anti-CD25 mAb before lethal conditioning and syngeneic TCD-BMCs (Figure 4A). The CD25⁺FoxP3⁺ compartment was diminished in anti-CD25–treated mice as assessed after this mAb administration (Figure 4A bottom right panel). Although anti-CD25 treatment markedly diminished the host FoxP3 compartment, up to 40% of CD4⁺ Tregs can be CD25⁻.²⁷  Regardless, splenic CFU-IL3 levels were elevated in these depleted recipients versus controls 1 week after BMT (Figure 4B). We further tested the hypothesis that MHC class II is required for such regulation by transplanting B6-wt or MHC class II^−/− BMCs into lethally conditioned B6-wt recipients (Figure 4C left panel). In contrast to enhanced CFU levels detected in the B6-wt recipients receiving B6-wt BMCs, recipients receiving BMCs lacking MHC class II did not contain augmented colony activity after anti-CD25 mAb administration (Figure 4C right panel). These findings are consistent with the in vitro observations supporting the notion that a cognate, contact-dependent interaction between CD4⁺CD25⁺FoxP3⁺ and targeted cells is required for the observed regulation and is dependent on MHC class II.

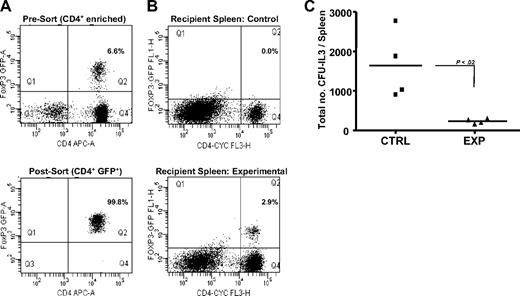

The findings thus far indicated that diminishment of the endogenous CD4⁺CD25⁺ T-cell compartment affected hematopoietic progenitor cell activity after HSCT. To definitively examine the capacity of CD4⁺FoxP3⁺ Tregs to modulate this progenitor cell activity after transplantation, B6 mice were TBI conditioned (9.5 Gy) and administered B6 TCD-BM together with highly purified (> 99.8%) B6 CD4⁺FoxP3⁺ T cells obtained after sorting (Figure 5A) from FoxP3^gfp mice.²⁷  One week after transplantation, the FoxP3⁺ infused cells were readily apparent in recipient spleens (Figure 5B). Notably, overall spleen cell numbers were diminished (49%, n = 4) in recipients of the Tregs versus controls. CFU-IL3 progenitor cell numbers in animals that received a cotransplant of Tregs were markedly diminished (P < .02) compared with control animals receiving marrow alone (Figure 5C). An experiment was performed to compare the regulatory activity of Tregs with a non-Treg (ie, “filler”) population. Cotransplantation of B6 CD4⁺CD25⁺ Tregs but not B6 CD19⁺ B cells into lethally irradiated recipients resulted in diminished spleen cell numbers and overall numbers of CFU-IL3 (supplemental Figure 4A-B).

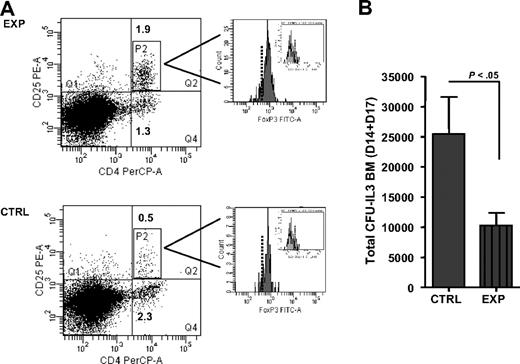

To address whether cotransplantation of Tregs could affect marrow progenitor activity, CFU-IL3 were assessed from B6 bone marrow 14 to 17 days after transplantation (Figure 6). To obtain sufficient numbers of Tregs for these experiments, we expanded CD4⁺CD25⁺ T cells from normal B6 mice using rmIL2 plus anti-IL2 mAb complexes.^11,24  These Tregs express identical levels of FoxP3 as nonexpanded populations, and we have shown they possess virtually identical suppressive activity in Treg assays^11,24  (data not shown). After transplantation, CD4⁺CD25⁺Foxp3⁺ B6 Tregs were identified in the marrow of both control and the experimental recipients of CD4⁺CD25⁺ B6 Tregs (Figure 6A). Notably, the marrow CD4 T-cell compartment of the Treg recipients contained approximately 60% CD25⁺Foxp3⁺ cells, whereas the control recipient's compartment contained approximately 18%. The numbers of Tregs were clearly higher in the former as well (2.3 × 10⁶ vs 5.4 × 10⁴). Overall CFU-IL3 numbers were diminished in the marrow of recipients of Tregs (Figure 6B). An experiment was performed to examine whether CD4⁺FoxP3⁺ knockin Tregs influenced the appearance of multipotential spleen CFUs. Although the decrease in numbers was modest, the overall size of spleen CFU colonies in recipients of Tregs was reduced (supplemental Figure 3B). To examine a comparable in vitro multipotent CFU population, a cocktail of growth factors to drive CFU–granulocyte, erythrocyte, monocyte, macrophages was used. Coculture with activated Tregs suppressed CFU numbers (supplemental Figure 1D). In total, these findings demonstrated that transplanted CD4⁺FoxP3⁺ Tregs possess the capacity to inhibit hematopoietic progenitor populations and function in situ after bone marrow transplantation in lethally conditioned recipients.

Lastly, to determine whether the diminished CFU-IL3 progenitor cell levels observed could result in altering the levels of a mature, reconstituting myeloid cell population, complete blood count (CBC) was performed for individual recipients (n = 7/group) in control mice and mice that received a Treg cotransplant (Figure 7). In vivo expanded Tregs were obtained from B6 mice and coinfused in experimental recipients. Circulating numbers of polymorphonuclear leukocytes (PMNs) were found to be decreased by 2 weeks after HSCT. Further analyses indicated that up to 5 weeks after transplantation, lower numbers of circulating PMNs (as well as decreased percentage of PMNs in the peripheral blood vs animals that did not undergo Treg transplantation, P < .03; data not shown) were observed in the experimental (ie, received a cotransplant with Tregs) recipient groups (Figure 7 inset). We also examined peripheral blood levels of monocytes and platelets (supplemental Figure 4C-D). Both of these parameters exhibited slower recovery and somewhat decreased numbers. the percentage of monocytes in blood was significantly decreased (P < .05), although the overall numbers did not reach statistical differences.

T cells have been proposed to contribute to the regulation of hematopoietic activity under both physiologic as well as transplant conditions.^28-31  Hematopoietic growth factors including GM-CSF and IL-3 produced by T lymphocytes have been demonstrated to expand murine and human PCs ex vivo, and CD4 and NK/T lymphocytes have been reported to promote PC activity in vivo.^28,29,32,33  The present results indicate that in contrast to findings regarding enhancement of hematopoietic progenitors by global CD4-activated and Th1 populations,^30,31  CD4⁺CD25⁺ T cells possess the capacity to down-regulate functional IL-3–responsive progenitor cells to growth factor stimulation ex vivo. Several pathways may contribute to this regulation. The ex vivo findings here suggest that “direct” regulation of hematopoietic PC function may be mediated by Tregs. Although inclusion of anti-TCR (CD3) mAb and cytokines in our assays prevented meaningful analyses of bidirectional Treg-PC signaling, a recent study proposed that direct interaction of Tregs with mobilized Lin⁻Sca-1⁺c-kit⁺ mobilized PCs could signal expansion of the former via a notch-dependent pathway.³⁴  In addition, results demonstrated that cotransplanted Tregs could also suppress progenitor cell populations in situ in syngeneic recipients conditioned with lethal TBI (but not sublethal TBI; data not shown). Thus, these findings support the notion that regulatory activity of CD4⁺FoxP3⁺ T cells extends to hematopoiesis under conditions of stress such as hematopoietic progenitor cell transplantation.

In typical lymphocyte suppression assays, Tregs are activated while in coculture with responding lymphocytes, typically by anti-CD3 mAb and other signals. Suppression of IL-3–driven progenitors in vitro occurred only using preactivated Tregs. Such “disparity” may reflect the different levels of cytokine(s) required to inhibit hematopoietic progenitor cells compared with lymphocytes and/or the time of susceptibility of these differing populations to regulation under the culture conditions used. The capacity of both fresh as well as “preactivated” Tregs to suppress CFUs in transplant recipients is not surprising, as the former presumably undergo activation involving antigen release and cytokines present in lethally conditioned recipients. Consistent with this interpretation, heightened levels of CD25 expression were apparent on CD4⁺FoxP3⁺ Tregs isolated from recipients after HSCT (supplemental Figure 3A). Nonetheless, it is not unlikely that Treg populations that are coinfused into conditioned recipients undergo activation because of a variety of potential signals dependent on the transplant conditions. We routinely detect 40% to 60% suppression of CFU-IL3 levels in experimental cultures even after addition of high numbers of Tregs/BMCs (ie, 5:1, 10:1). It is worthwhile to note that in the multiday coculture period, SCF and growth factors are included to maintain and support progenitor cell presence. Although the majority of progenitor cells express c-kit, there is considerable heterogeneity in the type and differentiated state of marrow populations present in the cultures that are then subject to signaling by the supplemented growth factors. Such heterogeneity is likely to contribute to the overall levels of suppression observed and inability to effect complete suppression (100% inhibition) in these assays. Similar circumstances are likely present during hematopoietic progenitor cell transplantations, resulting from diverse conditioning protocols as well as the source of progenitor cell populations (eg, marrow, mobilized peripheral blood, cord blood) used for clinical transplantation. Initial observations have not detected differences in apoptosis of marrow cells in cocultures lacking or containing Tregs (data not shown). These observations are consistent with the present findings that Tregs simultaneously lacking functional perforin and FasL retain this hematopoietic inhibitory activity and with prior reports that did not detect apoptosis by TGF-β1 in multipotent CFU–high proliferative potential (HPP) populations.³⁵  CFU activity could be inhibited as a result of a diminution in growth factor receptors. Studies have reported that TGF-β1 can modulate (ie, down-regulate) IL-3 and CSF-1 receptors.³⁶  TFGβ1 has also been reported to down modulate c-kit expression and thus could dampen SCF signals to progenitor populations.³⁷  Alternatively, but not mutually exclusively, cell cycle arrest of CD34⁺ human cord blood–derived hematopoietic PCs has recently been reported after TGF-β signaling. In contrast to nonhematopoietic populations in which p15 and p21 are important for TGF-β–mediated cytostasis, a recent study reported TGF-β receptor type I (TβR-I) inhibition of the human CD34⁺ populations was linked to up-regulation of the cyclin-dependent kinase inhibitor p57KIP2.³⁸  P27^−/− mice express an increased level of PC proliferation and overall pool size numbers.³⁹  The use of purified PCs together with CD4⁺CD25⁺ T regulatory cells in transwell experiments may enable analyses of TβR signaling and involvement of p57/p27 pathways in the inhibition observed.

It may be noteworthy that in mice deficient in TGF-β1, concurrent with a relative increase in CD4⁺ T cells, there is elevated myelopoiesis present in the bone marrow and spleen in the absence of extreme inflammation.⁴⁰  A recent study noted that after depletion of FoxP3⁺ T cells in adult mice, expansion was observed in the myeloid dendritic cell compartment.²  Because the CD11c⁺CD11b⁺ dendritic cell populations are mostly nonproliferative, the generation of the cells was examined and labeling studies suggested that their enhanced numbers resulted via heightened generation from precursors after elimination of Tregs in these mice.²  Finally, bipotential megakaryocytic erythroid progenitors can give rise to both megakaryocyte CFUs and erythroid CFUs.⁴¹  Because thrombopoietin is known to up-regulate TGF-β receptors on megakaryocytic precursors as part of negative feedback inhibition of platelet production, it will be interesting to determine where during the erythroid/megakaryocytic lineage Treg modulation may be occurring.^42,43  We have observed that Tregs were also found to be capable of enhancing erythroid CFUs and this pathway is IL-9 dependent (Urbieta et al, manuscript in preparation).

The inhibition of CFU-IL3 required MHC class II expression on the targeted populations. MHC class II expression on some hematopoietic progenitor cells has been reported and its cytokine induction by interferon-γ can also occur.^44-46  If direct Treg-PC and not non-PC interaction is required for the inhibition observed, the distribution and level of MHC class II expression may influence the extent of regulation observed. Although no evidence of a qualitative or quantitative difference in hematopoiesis has been reported in MHC class II–deficient mice, these animals clearly lack physiologic levels of CD4⁺CD25⁺Foxp3⁺ T cells. It may be noteworthy that we have frequently observed somewhat higher overall numbers of CFU-IL3 from highly purified MHC class II^−/− versus wild-type BMCs (Figure 3), but studies necessary to carefully assess a causal physiologic relationship of greater numbers of CFU-IL3 with decreased Tregs in mice that have not undergone transplantation (eg, IL-2, IL-2R, CD4, or MHC class II deficiency) have not been performed. Our findings suggest that individuals lacking this population may have altered/imbalanced levels of selected CFU progenitor populations consistent with observations addressing the role of CD4 T-cell activity during normal hematopoiesis.³¹

Tregs have been identified in healthy mouse and human bone marrow and with respect to transplantation, ex vivo–activated Tregs up-regulate CXCR4.⁴⁷  Based on these observations, it is likely that both endogenous as well as anti-CD3–stimulated and infused Tregs possess the potential to migrate to hematopoietic tissues via stromal-derived factor-1 (SDF-1 or CXCL12). We have found endogenous, that is, host CD4⁺CD25⁺FoxP3⁺ cells in the marrow and spleen compartments of mice after TBI at levels greater than those used in the present studies (eg, ≥ 9.5 Gy) as well as after busulfan with or without cyclophosphamide conditioning.⁴⁸  These CD4⁺CD25⁺Foxp3⁺ cells are of recipient origin and represent a small number of surviving Tregs, which then rapidly undergo expansion assessed by bromodeoxyuridine incorporation.⁴⁸  We depleted endogenous CD25⁺ Tregs before HSCT and observed modulation of PC activity consistent with our in vitro observations, that is, removal of suppression resulted in increased CFU-IL3 numbers. Notably, host “residual” Tregs are known to persist even after ablative conditioning and mediate protection from autoimmune disease as well as regulation of marrow allograft rejection.^10,49-51  These observations support the notion that surviving host Tregs undergo activation in transplant recipients perhaps due to cytokine and or self-antigen signaling. To address the question of whether Tregs coinfused at the time of transplantation could alter hematopoietic activity, highly purified Treg populations including Foxp3gfp knockin cells were cotransplanted with syngeneic progenitor cells and found to reduce splenic and marrow levels of CFU-IL3 1 and 2 weeks, respectively, after transplantation. These results demonstrate the potential of FoxP3⁺ regulatory cells to modulate hematopoietic activity under transplant conditions and together with the depletion studies indicate that both donor as well as recipient Tregs may be important. Currently, clinical trials have begun administering donor CD4⁺CD25⁺FoxP3⁺ T cells at the time of MHC-mismatched HSCT to regulate GVHD. When potent alloreactive T-cell activity is ongoing, Treg cell affects on T-cell responses may obfuscate or make assessment of hematopoietic activity difficult to assess. However, we did observe diminution of CFU activity when FoxP3⁺ Tregs were added to a MiHA-mismatched transplant under conditions where weak alloreactivity is engendered early after transplantation (supplemental Figure 4). Present studies observed decreased levels of circulating PMNs for several weeks posttransplantation in recipients of CD4⁺CD25⁺ Tregs; Treg effects may be more pronounced in situations where more limited PCs are present. It is thus interesting to consider cord blood transplant settings where GVHD is often reduced and neutrophil and platelet reconstitution can be delayed.^52-54  Previous studies have clearly demonstrated that Tregs can influence HSCT via regulation of donor (GVHD) and host (host vs graft) alloimmune T/NK-cell responses.^6-8  Delayed infusion of Tregs, which has been shown to inhibit GVHD, may provide one approach to circumvent early regulation of hematopoiesis after transplantation while maintaining desired affects on adaptive and innate immune responses.²⁰

Our results suggest that CD4⁺CD25⁺FoxP3⁺ T cells are not restricted in their regulatory actions within the adaptive and innate immune systems. The ability of these cells to inhibit progenitor cell activity illustrates the complex interactions between the immune and hematopoietic compartments. The findings support the notion that Treg involvement in hematopoiesis may occur under conditions of stress to the hematopoietic compartment, such as accompanies hematopoietic cell transplantations, infections, and others. Interestingly, in a nontransplantation model, a recent study noted that depletion of CD25⁺ Tregs resulted in elevated myeloid progenitors during an Staphylococcus enterotoxin B–induced immune response.⁵⁵  In total, the present study suggests that negative regulation of myeloid progenitors can occur in the presence of CD4⁺FoxP3⁺ regulatory cells after ablative conditioning and HSCT. Thus, the intentional addition (ie, “donor”) and/or deletion (ie, “recipient”) of this population may be important to consider within the context of the hematopoietic and immunologic reconstitution of the patient after HSCT.
