Efficient marking of human cells with rapid but transient repopulating activity in autografted recipients

The existence of human hematopoietic stem cells able to permanently repopulate the hematopoietic system has been well established from clinical studies of allogeneic transplants,¹  clonality analyses,²  and gene marking.³  Evidence of short-term repopulating human cells (STRCs) has come from comparative studies of the pattern of reconstitution obtained from different prospectively isolated subsets of human cells transplanted into preimmune fetal sheep⁴  or genetically immunodeficient mice.^5-7  Results obtained using these xenograft models have identified 4 types of human cells with different phenotypes and biologically distinct differentiation and self-renewal properties: CD34⁺CD38⁺ myeloid-restricted short-term (3-week) repopulating cells (STRC-Ms), CD34⁺CD38^– lympho-myeloid short term (6- to 12-week) repopulating cells (STRC-MLs), CD34⁺CD38^– lympho-myeloid cells with long-term repopulating activities (CD34⁺ LTRCs) and CD34^–CD38^– lymphomyeloid cells with long-term repopulating activities (CD34^– LTRCs). However, as yet there have been no studies to determine whether the human STRCs identified in these experimental models play a similar role in patients. To address this question we examined the appearance, persistence, clonality, and sites of proviral integration in retrovirally marked peripheral blood (PB) cells that were regenerated in 3 patients who received transplants with partially transduced autografts of mobilized PB cells.

Between March 1998 and July 1999, 3 patients with chronic myelogenous leukemia (CML; no. 1 and no. 3 in chronic phase and no. 2 in early blast crisis) received transplants of partially transduced autologous PB cells at the University Hospital in Freiburg, Germany, according to a protocol approved by the Institutional Review Board, State and National Review Commission. Informed consent was provided according to the Declaration of Helsinki. All 3 patients were given 24 mg/m² idarubicin, 450 mg/m² etoposide phosphate, and 1600 mg/m² cytosine-arabinoside followed by subcutaneous administration of granulocyte colony-stimulating factor (G-CSF). PB cells were then collected when the white blood cells (WBCs) reached 0.5 × 10⁹/L (500/μL) or the CD34⁺ cells exceeded 1% of the mononuclear cells. From 2.9 × 10⁶ to 6.2 × 10⁶ CD34⁺ cells/kg body weight were isolated from a portion of the collection using the CellPro device (CellPro, Seattle, WA), and remaining cells were frozen. Patients were conditioned with 16 mg/kg body weight busulfan and received subcutaneous injections of 300 μg/d G-CSF starting 7, 9, or 13 days after transplantation until the neutrophils were greater than 1.5 × 10⁹/L or the WBCs were greater than 5 × 10⁹/L for 2 consecutive days.

Supernatants of LN retrovirus–producing PG13 cells (A.D. Miller, Fred Hutchinson Cancer Research Center, Seattle, WA) containing 1.6 × 10⁵ infectious units/mL were collected under good manufacturing practice (GMP) guidelines in a GMP facility (Magenta, Stirling, Great Britain) using a clinical grade serum-free medium (CellGro SCGM; Cell Genix, Freiburg, Germany). Transductions were also carried out in a GMP clean room facility as described⁸  with minor modifications. Briefly, cells from patients no. 1 and no. 2 were prestimulated for 48 hours in 850 cm² roller bottles (Costar, Cambridge, MA) at 2 × 10⁵ cells/mL in serum-free medium (CellGro) containing 100 ng/mL flt3-ligand (FL), 100 ng/mL stem cell factor (SCF), and 20 ng/mL each of interleukin (IL)–3, IL-6, and G-CSF (all from Genzyme, Cambridge, MA). The cells were then harvested, resuspended in virus-containing medium (VCM) plus 10^–6 M hydrocortisone, 4 μg/mL protamine, and the same growth factors and transferred into new roller bottles. Cells from patient no. 3 were suspended directly in VCM with 10^–6 M hydrocortisone, 4 μg/mL protamine, 300 ng/mL FL, 100 ng/mL SCF, and 30 ng/mL IL-3. Half of the VCM was replaced with fresh VCM each day. After a total of 5 days in culture, an aliquot (∼ 5% of the cells) was removed to perform helper virus assays (S⁺/L^–), sterility testing, and other safety and gene transfer efficiency tests. The remaining cells were frozen. The fraction of colony-forming cells (CFCs) and 5-week long-term culture-initiating cells (LTC-ICs)⁹  transduced was inferred from colony yields in the presence and absence of 1.5 mg/mL G418 (Sigma Chemicals, St Louis, MO).

Semiquantitative polymerase chain reaction (PCR) was performed to measure the contribution of gene-marked cells in samples of PB cells obtained from all patients at regular intervals after the transplantation was performed. DNA was isolated using the blood and cell culture DNA kit (Qiagen, Valencia, CA). A 589-base pair (bp) fragment of the 5′ vector sequence was amplified from 1 μg of each sample and compared with dilutions of DNA isolated from HeLa cells containing a single copy of LN provirus. Taq polymerase (2.5 U; Qiagen) was used in 35 PCR cycles (denaturation at 95°C for 60 seconds, annealing at 60°C for 45 seconds, extension at 72°C for 60 seconds) after initial denaturation for 5 minutes and before final extension for 10 minutes with primers LTR1 (5′-GTGGTCTCGCTGTTCCTT-3′; Roth, Karlsruhe, Germany) and MISC (5′-CGCTCGACATCTTTCCAGT-3′; Roth). PCR products were separated on a 2% agarose gel and quantified by comparing the intensity of the test signal to a limited dilution set of HeLa cell controls.

Genomic proviral junction sequences were detected by linear amplification-mediated PCR (LAM-PCR).^10,11  In brief, 1 μg DNA from PB leukocytes was used as template for 2 rounds of a 50-cycle linear PCR with a biotinylated vector-specific primer followed by immobilization on streptavidin-coupled paramagnetic beads and separation using a magnet. This step was followed by hexanucleotide random priming, restriction digestion with Sse9I or isoschizomers, ligation of the linker, and exponential PCR. Two percent of the first PCR product served as template (either directly or after an additional magnetic capture purification step) for a second (semi-) nested PCR that enabled the visualization of the LAM-PCR amplicons (Figure 1B). LAM-PCR amplicons derived from DNA isolated from patients 1 and 2 were separated on a high-resolution Spreadex gel (Elchrom Scientific, Cham, Switzerland). For patient 3, PCR products were separated on a 2% agarose gel, transferred to a nylon membrane (Hybond-N; Amersham, Piscataway, NJ) by pressure blot (Stratagene, La Jolla, CA), probed with a digoxigenin-labeled LTR/extended packaging signal probe, and documented by chemiluminescence exposure to x-ray film (Roche Diagnostics, Mannheim, Germany). LAM amplicons were either isolated, purified, and directly sequenced or shotgun cloned into the TOPO TA vector (Invitrogen, Carlsbad, CA) and sequenced. The length of 37 bp in the unprimed LTR was taken to indicate the specificity and correctness of the insertion sites sequenced. A representative analysis of 96 wells showed 14 contained no bacterial colonies, and in 9 the genomic-LTR junction could not be sequenced. As a result, from 96 wells, a total of 73 specific inserts were isolated.

G-CSF–mobilized PB cells were harvested from 3 patients with CML (2 in chronic phase and 1 in early blast crisis), and a portion of the total CD34⁺ cells present (8%, 25%, and 25%, respectively; Table 1) were then isolated and cultured for 5 days in the presence of a potent growth factor cocktail (FL, SCF, and IL-3 ± G-CSF and IL-6). During the same 5 days, or only during the last 3 days, the cells were also exposed to a clinical grade preparation of a neo-encoding retrovirus, as described in “Materials and methods.” These cultured cells were then harvested and transplanted together with the unmanipulated cells into their respective autologous hosts who, in the interim, had been treated with a myeloablative dose of busulfan. The proportion of transduced (G418-resistant) CFCs was at least 13%, and the total number of transduced CFCs infused varied from 2.9 to 3.8 × 10⁴ per kg body weight (Table 1). Corresponding values for the LTC-ICs harvested from the same cultures were greater than 9% marked LTC-ICs and a calculated 2 to 11 × 10⁴ transduced LTC-ICs per kg body weight transplanted (Table 1). Hematologic recovery was timely in all 3 patients, with achievement of a sustained WBC count of greater than 10⁹/L and a platelet count of greater than 2 × 10¹⁰/L within 13 to 18 days.

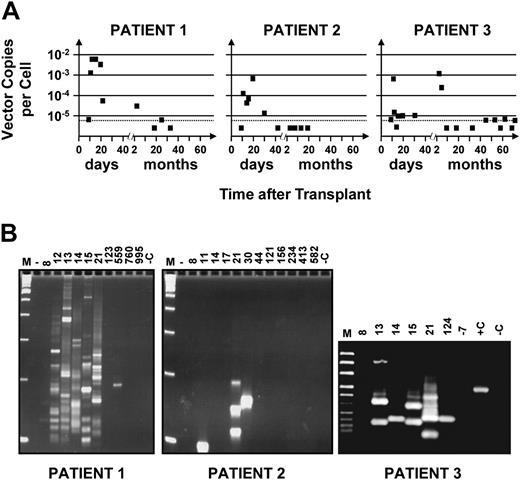

Figure 1 shows the results of semiquantitative PCR and highly sensitive LAM-PCR analyses of sequential PB samples obtained from all 3 patients from 10 days after transplantation until follow-up was terminated (18, 33, and 72 months later). Marked cells were first detected in all 3 patients on day 11 (Figure 1A). In one case (patient no. 2), such cells were detected only at that time among several samples taken before day 21 and then again on days 21 and 30 but not thereafter. In the other 2 patients (no. 1 and no. 3), evidence of a first peak of marked WBC production persisted throughout the period between days 11 and 21. Quantification of the amount of proviral DNA within the WBCs sampled during the first month showed that marked cells contributed approximately 0.1% to 1% of the total, assuming 1 copy of proviral DNA per transduced cell. Only approximately 10% of the CD34⁺ cells transplanted were exposed to the original retroviral preparation, and it is unlikely that the number of cells with STRC activity would have increased during the 5-day transduction culture.^7,12  Thus, from the level of marking detected in these patients, a transduction efficiency of approximately 1% to 10% can be inferred for the cells infused that were able to generate an initial burst of WBC production. This would be consistent with the assumption of 1 copy of proviral DNA per transduced cell.

In patients no. 1 and no. 3, evidence of a second transient output of marked cells was seen 4 to 5 months after transplantation. However, thereafter, marked cells permanently decreased to undetectable or barely detectable levels in both.

We also used LAM-PCR and sequence analysis of proviral integration sites to investigate the clonal composition of the marked PB cells identified at different times after transplantation (Figure 1B; Table 2 and Table S1, which is available on the Blood website; see the Supplemental Table link at the top of the online article). None of the insertion sites were repeated in sequential samples taken from patient no. 1 on days 12, 13, 14, 15, or 21 after transplantation or from patient no. 3 on days 13, 14, and 15 after transplantation. Of note, the clone identified in the second wave of marked WBC production that occurred 4 to 5 months after transplantation in patient no. 3 was different from those seen earlier or detected later. However, a repeat analysis performed on an early sample from patient no. 2 demonstrated some bands of identical size and one with a different size. Since we can estimate that the template DNA analyzed for LAM-PCR from these samples was derived from fewer than 150 marked cells, this finding supports the inference that low levels of marked cells reflect small numbers of transduced cells in the transplant. Taken together, these results confirm the transient nature of the populations of marked cells detected in this initial phase of hematologic recovery and, thus, support the concept of their origin from STRCs.

The numbers of unique integration sites detected in all 3 patients during the first month after transplantation (59 inserts detected in cells from patient no. 1, 3 in cells from patient no. 2, and 5 cells from patient no. 3) also demonstrates the multiplicity of clones active during this time, assuming 1 clone per insert. The greater number of clones (∼ 10-fold) of gene-marked cells identified in the WBCs produced within the first 3 weeks in patient no. 1 by comparison to patients 2 and 3 is consistent with the correspondingly greater representation of marked cells in the PB of patient no. 1 during this period (Figure 1A).

Sequencing of shotgun-cloned LAM-PCR products revealed 69 unique integration sites (Table 2 and Table S1). Fifty-one of these integration sites could be mapped unequivocally to previously identified sequences in the human genome (44 from patient no. 1, 1 from patient no. 2, and 6 from patient no. 3). Forty-one of the 51 mapped inserts (80%) were found near (± 100 kb) or within genes defined in RefSeq, and all but 2 of these were located within introns. Interestingly, 2 of the integration sites detected in WBCs produced early after transplantation in 2 different patients (no. 1 and no. 3) were 19 kb and 23 kb upstream of CXC chemokine receptor 4 (CXCR4), the gene encoding the receptor for stromal-derived factor-1 (SDF-1).

In this study, we analyzed serial PB blood cell samples from 3 recipients of partially marked autografts. The results provide new evidence that human hematopoietic cells with predetermined short-term repopulating activity contribute to the initial but not later phases of hematopoietic reconstitution seen in such patients. This conclusion is based on the following findings. First, in all 3 patients, there was a well-defined early wave of marked WBCs that reached a peak between the 11th and 20th days after transplantation. Second, the kinetics and ultimate level of early and late repopulation in individual patients was found to be highly dissociated. Third, multiple (differently marked) clones were found to be uniquely active during the first 4 weeks after transplantation with different clones showing activity at later times. These studies thus extend to human autografts the concept of a hierarchy of cells with in vivo repopulating ability that vary in their durability of mature cell output.

It is noteworthy that the substantial, but transient, early burst of marked WBCs seen in the patients followed in this study mirrors closely in time and content the output of cells produced during the first 3 weeks after transplantation in immunodeficient nonobese diabetic (NOD)/SCID-β2microglobulin^–/– mice that received transplants of CD34⁺CD38⁺ STRC-Ms.^5-7  These results suggest that STRCs defined by their repopulating activities in such xenogeneic recipients display similar kinetics of growth and differentiation when transplanted into myeloablated human hosts, thus underscoring the promise of such xenotransplantation assays for predicting WBC recoveries in patients receiving transplants.¹³

Transplantation experiments to examine the properties of individual repopulating cells have further suggested that hematopoietic recovery in mice can be carried out by a very small number of clones when grafts of freshly isolated murine cells are transplanted.^14-17  In humans, it seems much less likely that the neutrophils and platelets produced immediately after transplantation would represent clonal populations for a number of reasons. First, the cell numbers required to meet the daily needs for new mature PB cells in adult humans are much larger (∼ 100 times those needed in mice). Second, human cells also have longer cell cycle times (∼ 2 times longer than murine cells). Thus, it would not be anticipated that single human cells could achieve clonal dominance within 2 to 3 weeks in patients with a normalized WBC count by that time. Assuming an 80-kg adult human normally contains approximately 10¹⁰ WBCs, a single repopulating cell would have to produce a minimum of 10⁸ progeny within 11 days to regenerate just 1% of these. This, in turn, would require a minimum of 26 divisions in the same time frame, assuming no lag time and no cell loss during this phase of cell expansion in vivo. The present evidence of oligo/polyclonal reconstitution of human recipients of marked autologous cells is consistent with these calculations. In fact, clonal repopulation of humans with transplanted cells has rarely been documented and then only after a minimum of 28 days.^2,11  Similarly in nonhuman primates, early repopulation by marked cells has also been found to be highly polyclonal.¹⁰

We have recently shown that the leukemic clone in patients with chronic-phase CML contains cells with features of STRCs¹⁸  as well as more primitive leukemic cells with a more prolonged repopulating activity detectable in immunodeficient mice.^19-21  It is, therefore, conceivable that some of the repopulating activity detected in the present study might have been attributable to BCR-ABL⁺ cells. Although the data available cannot completely exclude this possibility, we believe such cells did not play a significant role in the repopulation obtained in the autografting studies reported here for several reasons. First, in 2 cases (patients no. 2 and no. 3), fluorescence in situ hybridization analyses were performed on the CD34⁺ cells isolated from the freshly harvested leukapheresis products subsequently used as autografts, and these analyses showed the frequency of BCR-ABL⁺ cells to be either low (7% and 30% in the 2 collections obtained from patient no. 2) or undetectable (< 6% in the case of patient no. 3). In the case of patient no. 2, who received a transplant after showing symptoms of incipient blast crisis and who relapsed with terminal blast-phase disease 18 months after transplantation, no evidence of gene marking was detectable in the relapse PB or marrow cells using a sensitive nested (LTR) PCR procedure (data not shown). Finally, the chemotherapy used in this study has been demonstrated to mobilize predominantly normal hematopoietic progenitors in patients with chronic-phase CML, and we and others have previously shown that the number of primitive BCR-ABL⁺ cells (LTC-ICs) declines rapidly in vitro under the type of culture conditions used in our 5-day transduction protocol.²²

Our results also add significantly to a growing body of data documenting a preferential integration of Moloney virus-based oncoretroviral vectors, and lentiviral vectors near or within genes.^23-26  In this study we were able to identify a total of 51 integration sites by sequence alignment and found that 80% of these inserts were also located within or near genes (± 100 kb). The concept that such inserts occur preferentially in genes whose expression is relevant to the function of the cells transduced was reinforced here by the finding that 2 inserts in cells from different patients were sited within 25 kb upstream of the CXCR4 gene. CXCR4 is the receptor for SDF-1 and is known to be expressed on the surface of primitive human hematopoietic cells where it participates in the regulation of both their cell cycle arrest^27,28  and chemotactic/homing responses to SDF-1.²⁹  No untoward consequences of retroviral insertional mutagenesis were noted in any of the 3 recipients of marked autografts in the present study. Nevertheless, our findings point to the need for continuing vigilance of this possibility in future trials using transduced grafts, particularly given the demonstrated efficiency (∼ 10%) with which STRCs can be retrovirally transduced, even in the virtual absence of transduction of cells with long-term repopulating activity.
